• Design Features p. 169
• Electrical Data p. 187
• Unit Model Key p. 171

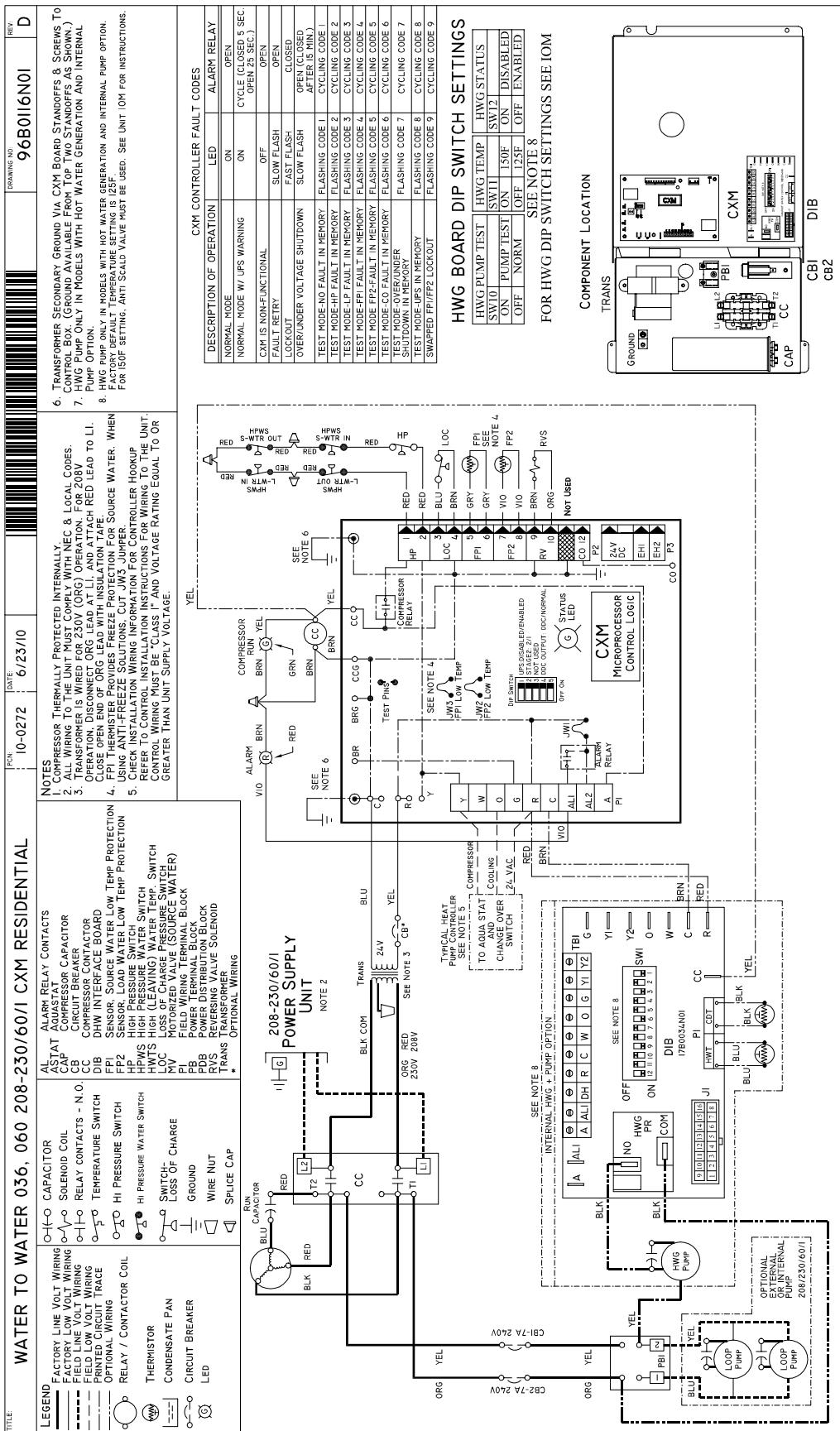

• 50YER 036 & 060 Electrical Wiring Diagram p. 188
• AHRI/ISO/ASHRAE/ANSI 13256-2 Performance p. 172

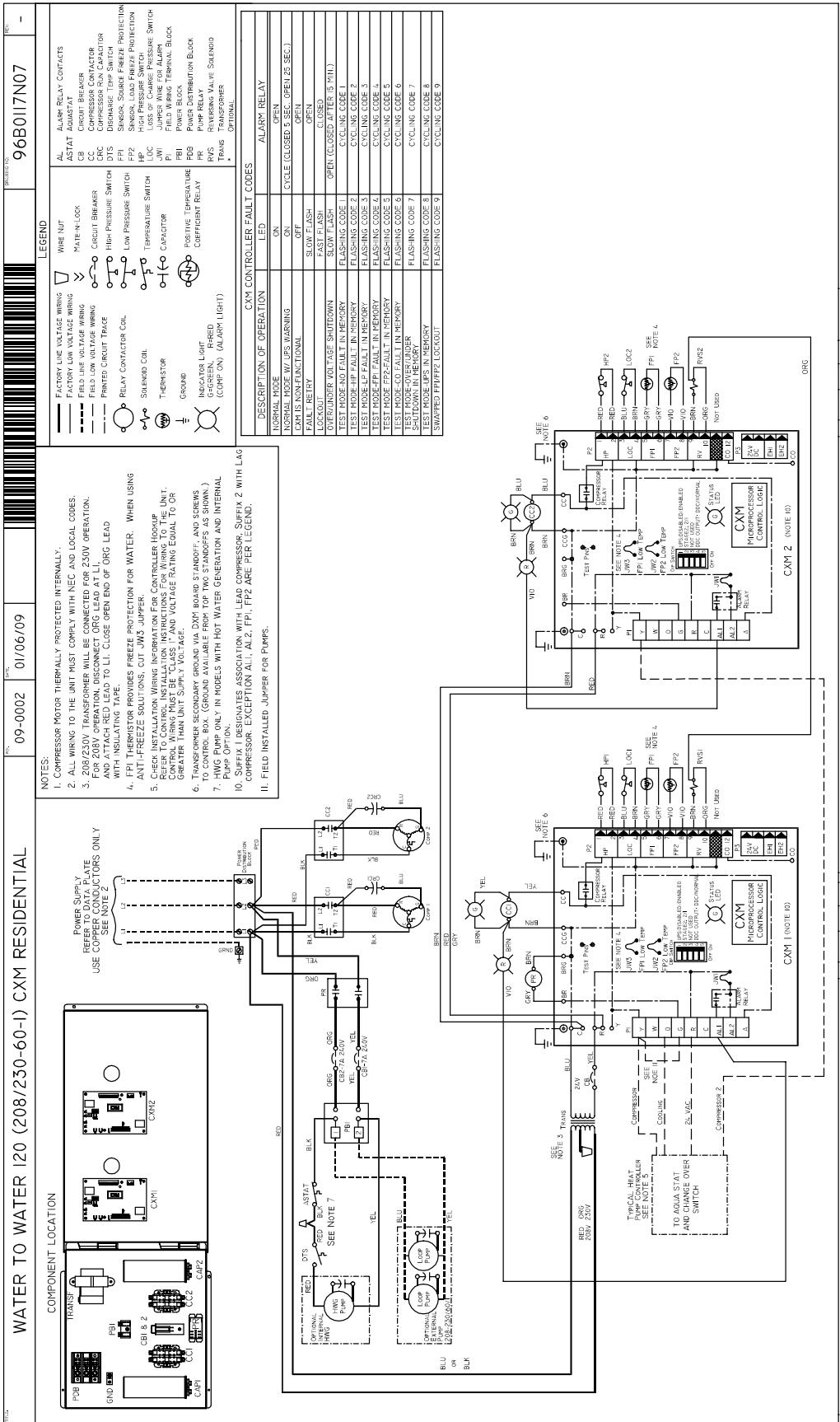

• 50YER 120 Electrical Wiring Diagram p. 189
• Performance Data p. 173
• -183 Engineering Guide Specifications p. 190
• Performance Data Selection Notes p. 184
• Accessories & Options p. 191
• Physical Data p. 185
• Warranty Information p. 191
• Dimensions - 50YER036, 060 & 120 p. 186

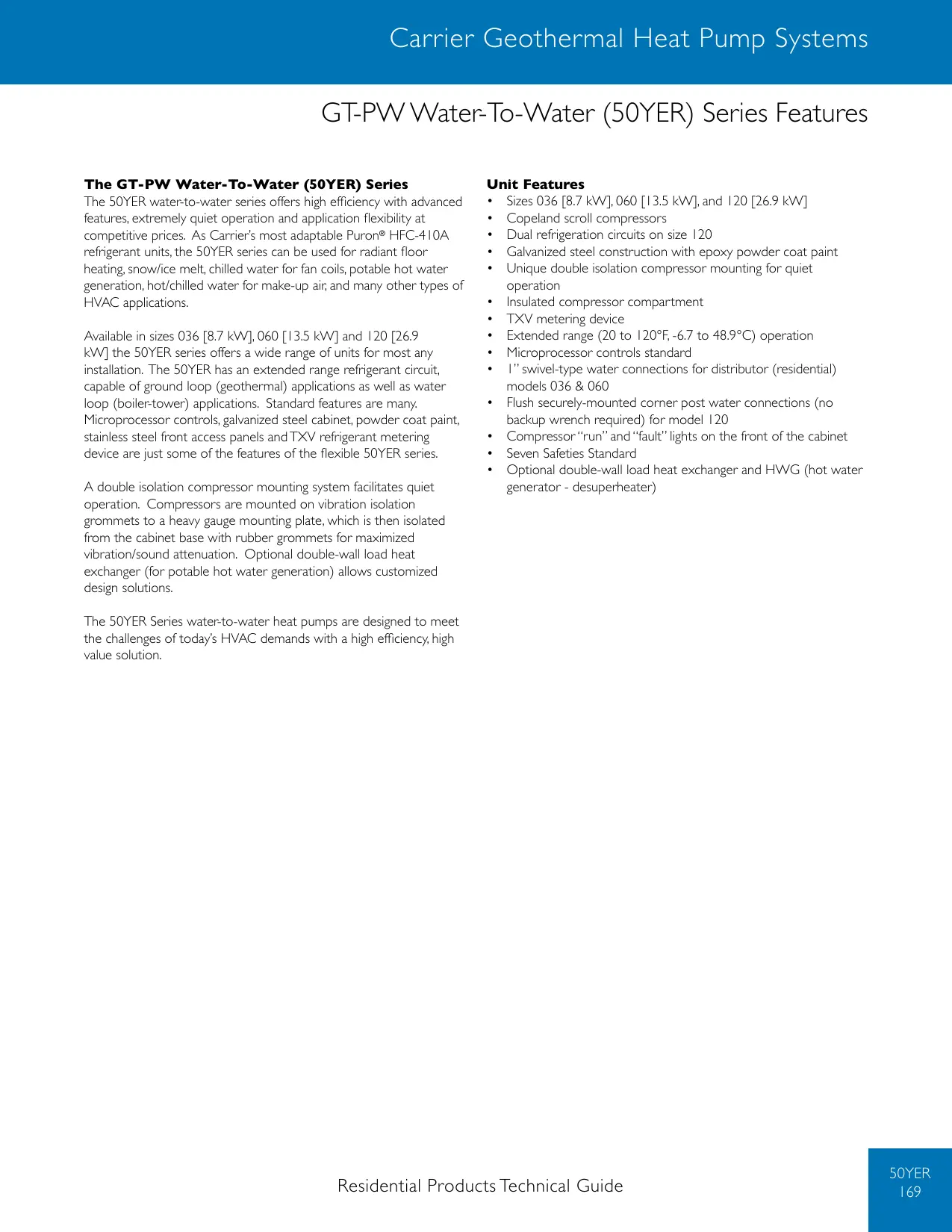

• Revision History Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems GT-PW Water-To-Water (50YER) Series Features The GT-PW Water-To-Water (50YER) Series The 50YER water-to-water series offers high efficiency with advanced features, extremely quiet operation and application flexibility at competitive prices. As Carrier’s most adaptable Puron® HFC-410A refrigerant units, the 50YER series can be used for radiant floor heating, snow/ice melt, chilled water for fan coils, potable hot water generation, hot/chilled water for make-up air, and many other types of HVAC applications. Available in sizes 036 [8.7 kW], 060 [13.5 kW] and 120 [26.9 kW] the 50YER series offers a wide range of units for most any installation. The 50YER has an extended range refrigerant circuit, capable of ground loop (geothermal) applications as well as water loop (boiler-tower) applications. Standard features are many. Microprocessor controls, galvanized steel cabinet, powder coat paint, stainless steel front access panels and TXV refrigerant metering device are just some of the features of the flexible 50YER series. A double isolation compressor mounting system facilitates quiet operation. Compressors are mounted on vibration isolation grommets to a heavy gauge mounting plate, which is then isolated from the cabinet base with rubber grommets for maximized vibration/sound attenuation. Optional double-wall load heat exchanger (for potable hot water generation) allows customized design solutions. Unit Features p. 194

• Copeland scroll compressors
• Dual refrigeration circuits on size 120
• Galvanized steel construction with epoxy powder coat paint
• Unique double isolation compressor mounting for quiet operation
• Insulated compressor compartment
• Extended range (20 to 120°F, -6.7 to 48.9°C) operation
• Microprocessor controls standard
• 1” swivel-type water connections for distributor (residential) models 036 & 060
• Flush securely-mounted corner post water connections (no backup wrench required) for model 120
• Compressor “run” and “fault” lights on the front of the cabinet
• Seven Safeties Standard
• Optional double-wall load heat exchanger and HWG (hot water generator - desuperheater) The 50YER Series water-to-water heat pumps are designed to meet the challenges of today’s HVAC demands with a high efficiency, high value solution. Residential Products Technical Guide 50YER

GT-PW Water-To-Water (50YER) Series GT-PW Water-To-Water (50YER) Series Features

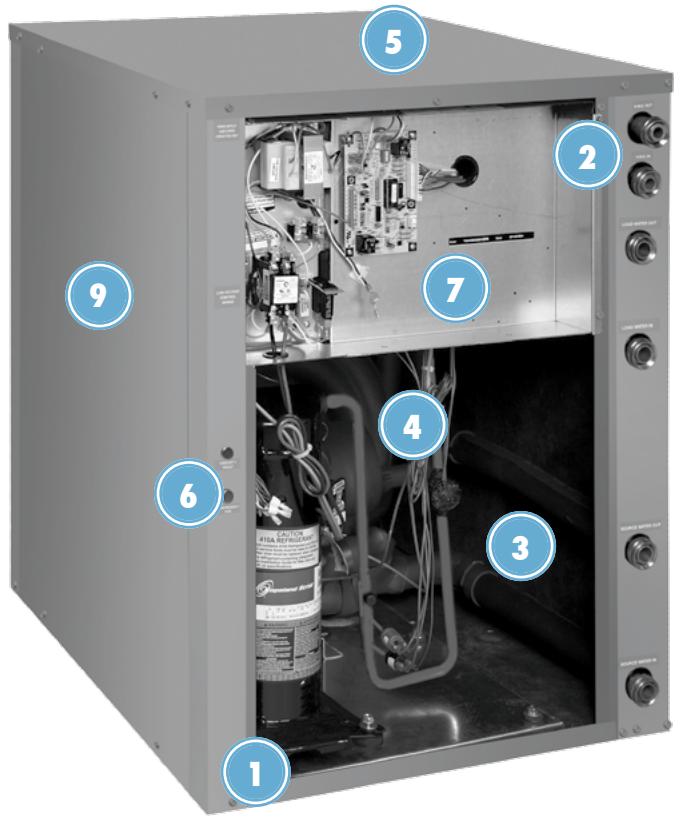

Copeland™ High Efficiency Scroll Compressor

Optional Hot Water Generator With Internal Pump

Fully Insulated Water and Refrigerant Lines

Fully Insulated Compressor Section

Powder Coated Steel Cabinet For Long Life, Taupe Metallic

System Operating LED Lights

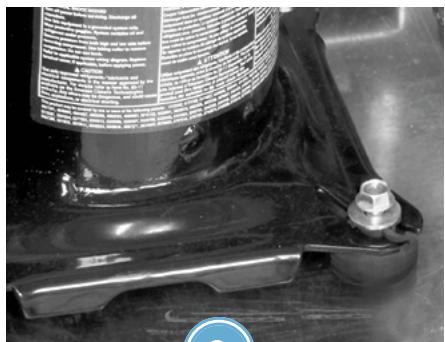

Exclusive Dual Level Compressor Vibration Isolation For Ultra Quiet Operation

Multiple Removable Access Panels for Service

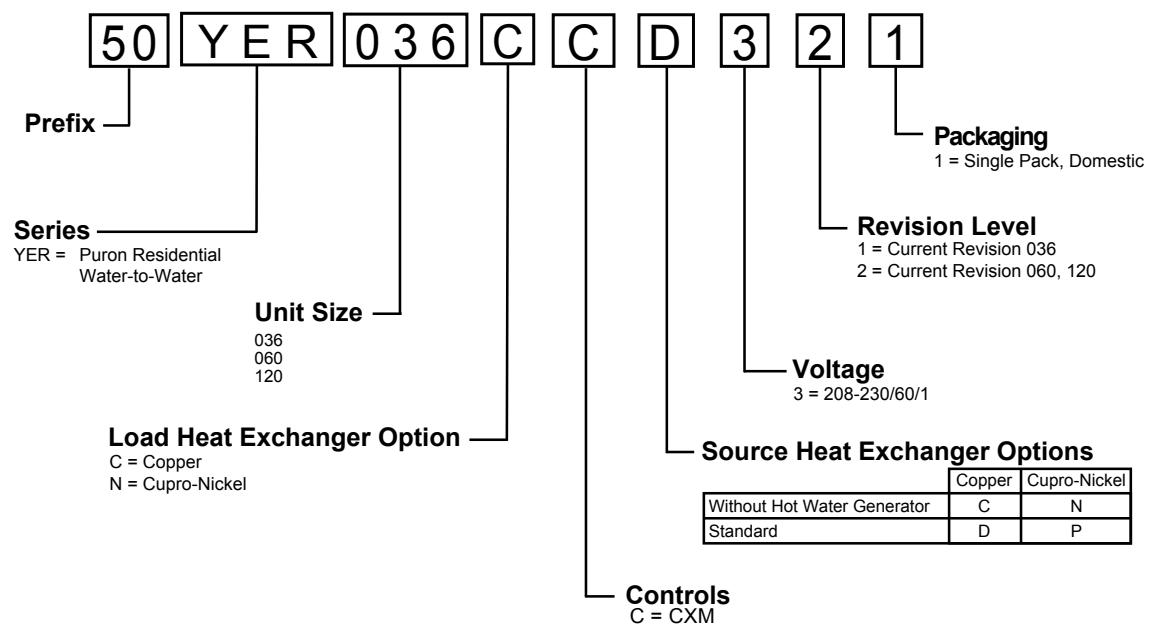

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Unit Model Key 50 Y E R 0 3 6 C C D

Prefix Packaging 1 = Single Pack, Domestic Revision Level Series 1 = Current Revision 036 2 = Current Revision 060, 120 YER = Puron Residential Water-to-Water Unit Size

Voltage 3 = 208-230/60/1 Load Heat Exchanger Option C = Copper N = Cupro-Nickel Source Heat Exchanger Options Copper Cupro-Nickel Without Hot Water Generator

Controls C = CXM Residential Products Technical Guide 50YER

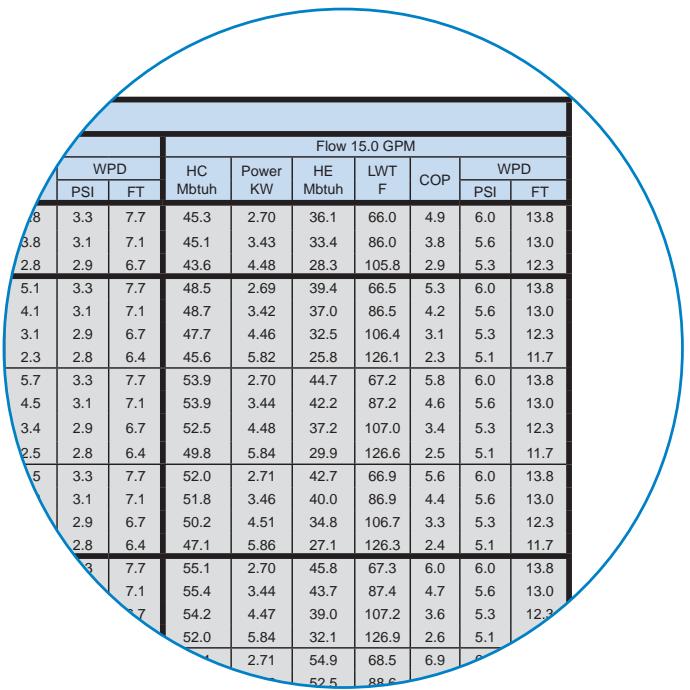

All ratings based upon 208V operation Indoor coil also called “Load” and outdoor coil also called “Source” ASHRAE/AHRI/ISO 13256-2. Metric (S-I) Units Water Loop Heat Pump Model Ground Water Heat Pump Ground Loop Heat Pump Cooling Heating Cooling Heating Cooling Heating Indoor 12°C Outdoor 30°C Indoor 40°C Outdoor 20°C Indoor 12°C Outdoor 15°C Indoor 40°C Outdoor 10°C Indoor 12°C Outdoor 25°C Indoor 40°C Outdoor 0°C Capacity Watts EER W/W Capacity Watts COP Capacity Watts EER W/W Capacity Watts COP EER W/W Capacity Watts COP 50YER036 TMW036 9,472

All ratings based upon 208V operation Indoor coil also called “Load” and outdoor coil also called “Source” 50YER

Operation Not Recommended

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

Table Continued on Next Page Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40°F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated 50YER

Mbtuh Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Performance Data — 50YER036 - Heating Table Continued from Previous Page SOURCE LOAD Flow EWT

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40°F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

Table Continued on Next Page Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated 50YER

WPD PSI Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Performance Data — 50YER060 - Cooling Table Continued from Previous Page SOURCE EWT

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

Table Continued on Next Page Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated 50YER

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Performance Data — 50YER060 - Heating Table Continued from Previous Page SOURCE LOAD Flow EWT

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40°F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

Table Continued on Next Page Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated 50YER

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Performance Data — 50YER120 - Cooling Table Continued from Previous Page SOURCE LOAD Flow EWT GPM

WPD Flow 30.0 GPM PSI

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

Table Continued on Next Page Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40°F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated 50YER

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Performance Data — 50YER120 - Heating Table Continued from Previous Page SOURCE LOAD Flow EWT GPM

Interpolation is permissible, extrapolation is not All performance data is based upon the lower voltage of dual voltage rated units All performance data is based upon a load coaxial heat exchanger of single-walled copper construction. For vented double-wall performance consult the factory Operation below 40°F EWT is based upon 15% methanol antifreeze solution See performance data notes for operation in the shaded areas Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated Residential Products Technical Guide 50YER

GT-PW Water-To-Water (50YER) Series Performance Data Selection Notes For operation in the shaded area when water is used in lieu of an anti-freeze solution, the LWT (Leaving Water Temperature) must be calculated. Flow must be maintained to a level such that the LWT is maintained above 40°F [4.4°C] when the JW3 jumper is not clipped (see example below). Otherwise, appropriate levels of a proper anti-freeze should be used in systems with leaving water temperatures of 40°F or below and the JW3 jumper should be clipped. This is due to the potential of the refrigerant temperature being as low as 32°F [0°C] with 40°F [4.4°C] LWT, which may lead to a nuisance cutout due to the activation of the Low Temperature Protection. JW3 should never be clipped for standard range equipment or systems without antifreeze. Example: At 50°F EWT (Entering Water Temperature) and 1.5 gpm/ ton, a 3 ton unit has a HE of 22,500 Btuh. To calculate LWT, rearrange the formula for HE as follows: HE = TD x GPM x 500, where HE = Heat of Extraction (Btuh); TD = temperature difference (EWT - LWT) and GPM = U.S. Gallons per Minute.

In this example, as long as the EWT does not fall below 50°F, the system will operate as designed. For EWTs below 50°F, higher flow rates will be required (open loop systems, for example, require at least 2 gpm/ton when EWT is below 50°F). 50YER

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Physical Data Model

Compressor (qty) Factory Charge HFC-410A (lbs) [kg] Per Circuit

Scroll (2) Water Connection Size Source/Load 1" Swivel HWG (in) 1" Swivel 1-1/2 FPT 1/2" FPT Weight - Operating (lbs) [kg] 348 [158] 360 [163] 726 [329] Weight - Packaged (lbs) [kg] 373 [169] 385 [175] 770 [349]

Water Volume (Source) Gallons (Liters) Dual isolated compressor mounting Balanced port expansion valve (TXV) Insulated Source and Load Water Coils standard Insulated Refrigerant Circuit standard Compressor on (green) and fault (red) light Residential Products Technical Guide 50YER

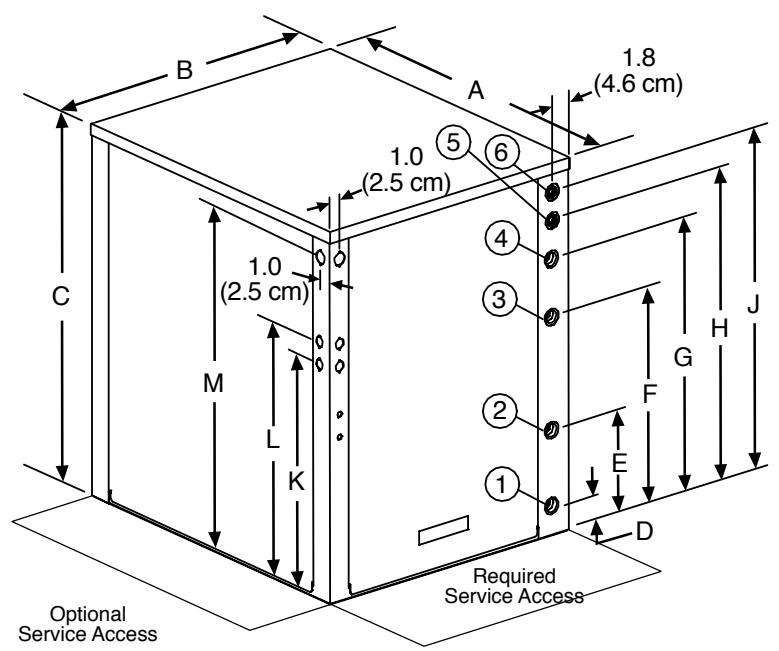

Required Service Access

(18.5 cm) Optional Service Access Required Service Access

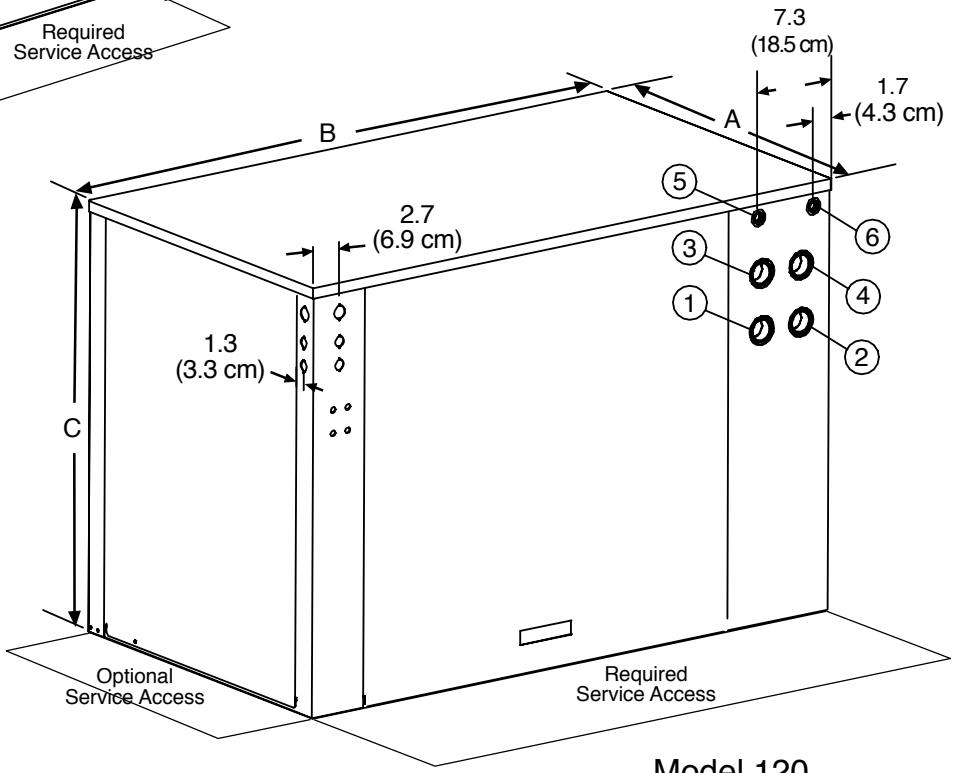

Required Service Access Optional Service Access Required Service Access Model 120 Overall Cabinet Water to Water 036-060

Source (Outdoor) Water In Water Connections Electric Access Plugs

Source (Outdoor) Water Out

Load (Indoor) Water In

Load (Indoor) Water Out

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Electrical Data QTY RLA LRA HWG Pump FLA 187/254

Compressor EXT Loop Pump FLA Total Unit FLA Min Circuit Amps Max Fuse/ HACR HACR circuit breaker in USA only Residential units come standard with 75VA transformer, HWG pump, and HWG connections Residential Products Technical Guide 50YER

GT-PW Water-To-Water (50YER) Series Engineering Guide Specifications General The water-to-water heating/cooling units shall be supplied completely factory built for an entering source water temperature range from 20° to 120°F [-6.7° to 48.9°C] and entering load water temperature range from 50° to 130°F [10.0° to 54.4°C] as standard. All equipment listed in this section must be rated in accordance with The Air Conditioning, Heating and Refrigeration Institute / International Standards Organization (AHRI / ISO) and Environmental Testing Laboratories for United States and Canada (ETL-US-C). The units shall have the ETL-US-C label. All units shall be fully quality tested by factory run testing under normal operating conditions and water flow rates as described herein. Quality control system shall automatically perform via computer: triple leak check, pressure tests, evacuate and accurately charge system, perform detailed heating and cooling mode tests, and quality cross check all operational and test conditions to pass/fail data base. Detailed report card will ship with each unit displaying all test performance data. Note: If unit fails on any cross check, system shall not be allowed unit to ship. Serial numbers will be recorded by factory and furnished to contractor on report card for ease of unit warranty status. Each unit shall be pallet mounted and shipped in clear shrink wrap for visual shipping damage inspection. The units shall be warranted by the manufacturer against defects in materials and workmanship for a period of 10 years on all parts, and 10 years on the compressor and refrigerant circuit parts with a service labor allowance of 5 years for all refrigeration components and 2 years on other parts. An optional extended warranty is available for the units, which increases the labor allowance to 10 years on all parts. Furnish and install Carrier “50YER” Water Source Heat Pumps, as indicated on the plans. Equipment shall be completely assembled, piped and internally wired. Capacities and characteristics as listed in the schedule and the specifications that follow. Casing and Cabinet All units must have multiple access panels for serviceability of compressor compartment. The heat pumps shall be fabricated from heavy gauge galvanized steel with powder coat paint finish and a front access panel. Both sides of the steel shall be painted for added protection. All interior surfaces shall be lined with 1/2 inch [12.7mm] thick, dual density, acoustic type glass fiber insulation. Insulation placement shall be designed in a manner that will eliminate any exposed edges. Cabinets shall have separate holes and knockouts for entrance of line voltage and low voltage control wiring. All factory-installed wiring passing through factory knockouts and openings shall be protected from sheet metal edges at openings by plastic ferrules. Refrigerant Circuit Units shall have a sealed refrigerant circuit including a high efficiency scroll compressor designed for heat pump operation, a thermostatic expansion valve for refrigerant metering, a reversing valve, coaxial (tube in tube) refrigerant to water heat exchangers, and safety controls including a high pressure switch, low pressure switch (loss of charge), and low temperature sensors. Access fittings shall be factory installed on high and low pressure refrigerant lines to facilitate field service. 120 units shall have 2 independent refrigeration circuits. Activation of any safety device shall prevent compressor operation via a microprocessor lockout circuit. Hermetic compressors shall be internally sprung. The compressor(s) shall have a dual level vibration isolation system. Compressor(s) will be mounted on rubber grommets to a large heavy gauge compressor mounting plate, which is then isolated from the cabinet base with rubber grommets for maximized vibration attenuation. Compressor shall have thermal overload protection. Refrigerant to water heat exchangers shall be of copper inner water tube and steel refrigerant outer tube design, rated to withstand 625 PSIG [3101 kPa] working refrigerant pressure and 500 PSIG [3101 kPa] working water pressure. Plate to plate heat exchangers are not acceptable. Refrigerant metering shall be accomplished by thermostatic expansion valve only. Expansion valves shall be dual port balanced types with external equalizer for optimum refrigerant metering. Units shall be designed and tested for operating ranges of entering water temperatures from 20° to 120°F. Reversing valve shall be four-way solenoid activated refrigerant valve, which shall default to heating mode should the solenoid fail to function. Electrical CXM Control - A microprocessor-based compressor controller (CXM) shall be provided to monitor and control unit operation. The control shall provide compressor sequencing (120 size), high and low pressure monitoring, field selectable water coil low temperature sensing, over/under voltage monitoring, and unit performance sentinel (UPS). The control shall also provide for water valve connection, a test mode, short cycle protection, random start-up, as well as fault LED, fault memory, and intelligent fault retry. The control shall employ quick attach harness assemblies for low voltage connections to the control board to aid in troubleshooting or replacement. An integral terminal block with screw terminals shall be provided on the control for all field low voltage connections. A circuit breaker protected 75VA transformer shall be employed. Line voltage box lugs shall be provided for unit wiring. Units shall have knockouts for entrance of low and line voltage wiring. Unit(s) shall have exterior indicator lights showing, 1) compressor operation (on/off) and 2) unit “fault” status. Contractor shall be responsible for providing control circuitry and indicator lights for units not providing this feature. 50YER

Carrier : Turn to the Exper ts. Carrier Geothermal Heat Pump Systems Accessories & Warranty Piping For 036 and 060 size units, supply and return water connections (and optional HWG connections) shall be of gasketed brass swivel union type and provide a working pressure rating to 450 psi [3101 kPa]. For 120 units, copper threaded fittings are mechanically fastened to the cabinet, eliminating the need to use a back-up wrench when making field piping connections. The threaded copper adaptors shall be low-temperature soldered to prevent misshaping or weakening of the fitting, eliminating potential start-up piping leaks. All water piping shall be insulated to prevent condensation at low liquid temperatures. Warranty Information Accessories & Options Carrier goes even further to back up its commitment to quality by including a service labor allowance for the first five years on refrigeration circuit components and two years on all other parts, auxiliary heaters and geothermal pumping modules. Hot Water Generator An optional heat reclaiming desuperheater coil of vented double-wall construction suitable for potable water shall be provided. The coil and hot water circulating pump shall be factory mounted inside the unit. A high limit and low compressor discharge line temperature switch shall be provided to disable the pump when these conditions occur. Cupro-Nickel Heat Exchanger An optional corrosion resistant CuNi coaxial heat exchanger shall be factory installed in lieu of standard copper construction. The 2010 standard warranty applies to units ordered on or after July 1, 2010. See Carrier’s 2010 Limited Express Residential Warranty Certificate CA234 for specific coverage and limitation. Carrier residential class heat pumps are backed by a ten-year limited warranty on all unit parts, including the following accessories when installed with Carrier units: Flow Controllers & Electric Heaters. The Optional Extended Factory Service Labor Allowance Warranty offers additional length of term protection to the consumer by offsetting service labor costs for 10 years. To order this warranty, contact your Carrier distributor. This coverage must be purchased within 90 days of unit installation. See Limited Express Extended Labor Warranty Certificate CA235 for details. Double-Walled Load Heat Exchanger An optional double-walled load side heat exchanger shall be factory installed when unit is dedicated to providing domestic hot water. Flow Controller (field installed) A self-contained module shall provide all fluid pumping, fill and connection requirements for ground-source closed-loop systems up to 20 GPM. The Flow Controller shall provide 1” pump isolation valves and 3-way service valves. Pump heads shall be removable from the volute for easy replacement. The Flow Controller shall be enclosed in a polystyrene case and fully insulated with urethane foam to prevent condensation. The Flow Controller shall have a 5- year warranty on all parts. Hose Connection Kit (field installed) An accessory hose kit shall provide 150psi 1” rubber hose with brass fittings equipped with service pressure/temperature ports for connection between the unit and Flow Controller. Residential Products Technical Guide 50YER

GT-PW Water-To-Water (50YER) Series Revision History Date Page # 21 July, 10 Wiring Diagram Pages 01 June, 10 Various Warranty, Paint, Nomenclature Updates 171-181 New Performance Data Tables and Updated Electrical Tables 20 May, 10 21 April, 09 50YER

Description Wire Diagram revision: water-side high pressure switches added

Physical Data-Updated Factory Charge for sizes 60 & 120 All First Published Carrier : Turn to the Exper ts.
