Product Type	Extraction fan with remote motor
Brand	ROBLIN
Model	CONFORT 800
Power supply voltage	220-240 V ~ 50 Hz / 220 V ~ 60 Hz
Total power	340 W
Protection class	Class I (earthing)
Number of speeds	3 speeds
Filter type	Washable metal filters
Filter maintenance	Every 2 months (manual washing or dishwasher)
Body maintenance	Non-abrasive detergent, slightly damp sponge
Lighting	Compatible with incandescent or halogen lamps
Connection diameter	150 mm (extraction)
Recommended use	Absorption of cooking smoke and vapors
Warranty	Contractual (upon presentation of invoice)
Standards	CE (2006/95/CE, 2004/108/CE)
Installation	By a qualified installer
Periodic check	Extraction duct every 6 months

Frequently Asked Questions - CONFORT 800 ROBLIN

How to install the remote motor?

The remote extraction unit must be installed in the attic or garage. Clip the dampers onto the unit, fix it in the appropriate position, then connect the extraction piping to the outlet of the sensor and to the inlet of the Confort. Finally, plug the power cord into the sensor.

How to clean the metal filters?

The metal filters should be cleaned periodically, about every two months for normal use. You can wash them by hand with a liquid detergent in warm water and rinse, or put them in the dishwasher.

What is the electrical power of the appliance?

The total electrical power is 340 W (under 220-240 V).

What diameter of duct to use for extraction?

The outlet diameter of the appliance must be respected, which is 150 mm. Never connect the hood to a mechanical controlled ventilation duct (V.M.C.).

Can I use the hood without the remote motor?

No, the motor is essential for operation. The kit allows installing the motor remotely, but it must be connected electrically and mechanically.

How to maintain the lighting?

Before any intervention on the lighting, set the lamp switch to the off position. Do not exceed the prescribed power and do not change the lamp type.

What to do in case of breakdown?

In case of malfunction, notify your installer. If an electrical component is damaged, it must be replaced by a repair shop recognized by the manufacturer. Disconnect the appliance completely before any intervention.

Is the hood compatible with a VMC?

No, the hood must never be connected to a mechanical controlled ventilation duct (V.M.C.).

What is the required power supply voltage?

The power supply voltage is 220-240 V single-phase 50 Hz, or 220 V 60 Hz. Check that the mains voltage matches the values indicated on the rating plate.

How to ensure good ventilation in the kitchen?

Make sure to provide one or more air inlets with a cross-section equal to or greater than the diameter of the extraction duct, to avoid excessive depression. The maximum depression must be less than 0.04 mbar.

USER MANUAL CONFORT 800 ROBLIN

Instructions for use and installation Extractor unit at a distance

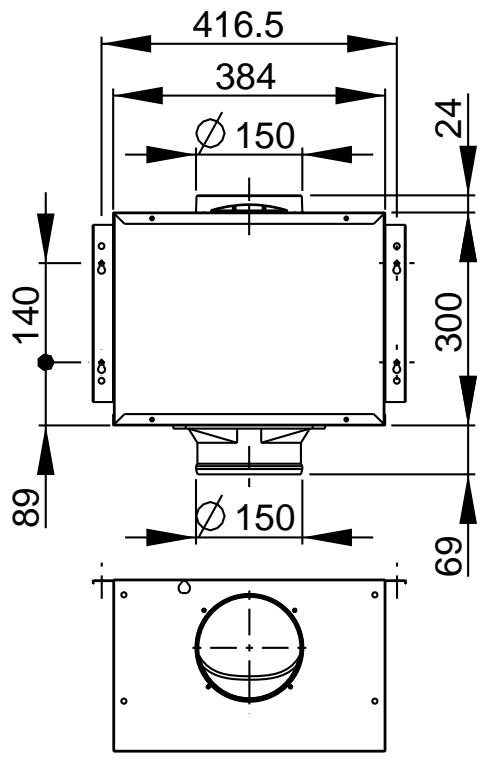

Exterior view of a white industrial or laboratory device with mounting holes and a central cylindrical component (no visible text or symbols)

Confort 800

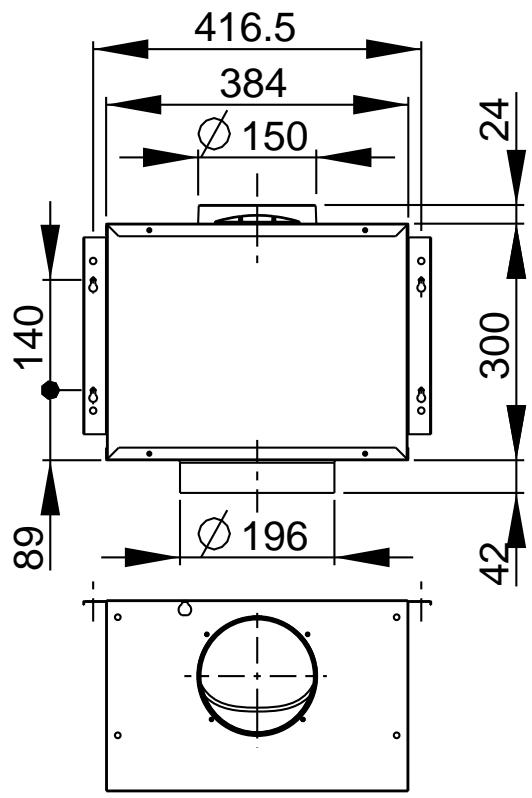

Exterior view of a white industrial or laboratory device with mounting holes and a central hub (no visible text or symbols)

Confort Pro

Exterior view of a white industrial cabinet or enclosure unit (no visible text or symbols)

Confort Energy

Exterior view of a white industrial cabinet or enclosure unit with a black top and side mounting bracket (no visible text or symbols)

Confort Expert

F

SOMMAIRE

RACCORDEMENT ÉLECTRIQUE

CONSEILS D'INSTALLATIONS

POSE DE L'APPAREIL

CONSEILS D'UTILISATIONS

ENTRETIEN

GARANTIE ET SERVICE APRÈS-VENTE

REMARQUES

GB

CONTENTS

ELECTRICAL WIRING

INSTALLATION ADVICE

FITTING THE APPLIANCE

USEFUL HINTS

MAINTENANCE

GUARANTEE AND AFTER-SALES-SERVICES

REMARKS

D

INHALT

NETZANSCHLUSS

MONTAGEHILFEN

MONTAGE DES GERÄTES

NUTZUNG

Thank you for buying a ROBLIN product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

With this kit it is possible to place the blower of the kitchen hood to a remote position inside the house. Installation of the kit must be carried out by qualified staff, following all the rules given by the relevant authorities concerning the exhaust air ducting. The manufacturer will not be liable for any damages resulting from incorrect or from improper installation.

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug.
• Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
- Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: Voltage 220-240 V, single phase \~ 50 Hz / 220 V - 60Hz.

2 INSTALLATION ADVICE

• It is a possible fire risk if the hood is not sited as recommended.
- To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
- Ducting
- If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
- If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger.
- The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
- The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood.
- When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
- The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision.
• This appliance must be positioned so that the wall socket is accessible.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

green / yellow : earth

blue : neutral

brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol 12 or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manufacturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs.

It is necessary to provide an adequate thermal isolation in case the blower is placed in particularly cold rooms.

1) The following extractor unit at a distance: Confort has to be fitted in an attic or in the garage; this appliance run in any position but it must under no circumstances be fitted outside.
2) Set the extractor tube in place.

3) Connect up the flexible tube to the outlet of the Capteur or of the Hood and to the inlet of Motorbox.

DUCTING

The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker hood is ducted to the outside, charcoal filters are not required.

The ducting used must be 150 mm (6 INS), rigid circular pipe and must be manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Wherever possible utilise rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting.

Maximum length of ducting run:

• 4 metres with 1 x 90° bend.
• 3 metres with 2 x 90° bends.
• 2 metres with 3 x 90° bends.

The above assumes our 150 mm (6 INS) ducting is being installed. Please note ducting components and ducting kits are optional accessories and have to be ordered, they are not automatically supplied with the chimney hood.

4) Connect the electrical plug of Confort cord on the «Capteur» or on the cooker hood without motor.

4 USEFUL HINTS

• To obtain the best performance we recommend you to switch ‘ON’ the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing.
  • IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD
• Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.
• Do not leave naked flames under this cooker hood.
• Switch 'OFF' the electric and gas before removing pots and pans.
• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

5 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean; a build up of fat or grease may cause a fire hazard.

Casing

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.
• Never use excessive amounts of water when cleaning particularly around the control panel.
• Never use scouring pads or abrasive cleaners.
  • Always wear protective gloves when cleaning the cooker hood.

Metal Grease Filters : The metal grease filters absorb grease and dust during cooking in order to keep clean the cooker hood inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

• Remove the metal grease filters one at a time by releasing the catches on the filters; the filters can now be removed.
• The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher.
• Allow to dry before replacing.

Active Charcoal Filter : The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

• Remove the metal grease filters.
• Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.
• Clean the surrounding area and metal grease filters as directed above.
• Insert the replacement filter and ensure the two retaining clips are correctly located.
• Replace the metal grease filters.

Extraction tube : Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air.

Lighting : If the lamp fails to function check to ensure it is fitted correctly into the holder. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

6 GUARANTEE AND AFTER SALES SERVICE

• In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.
• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who will have the required tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood.
  • Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced.

This Guarantee does not cover :

- Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic.

These items are considered to be consumable under the terms of this guarantee.

7 REMARKS

This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compatibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol ↗ is attached to a product it means the product is covered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

3 INSTALLATIE VAN HET APPARAAT

Rating plate of the cookerhood

Exterior view of a white industrial machine with a downward arrow indicating compression or reduction (no text or symbols visible)

Modèle

Model

Modell

Modello

Modelo

Model

Numéro de série

Serial number

Seriennummer

Numero di serie

Numero de serie

Serienummer

Roblin

Made in EC

CODE : 6301006

MOD: CONFORT 800

Confort 800 1M P TYPE 3500

N° série: 09/19/002823

220-240V\~50Hz

220V\~60Hz

1x350W

W

TOT. 350W

E 17

RF 502

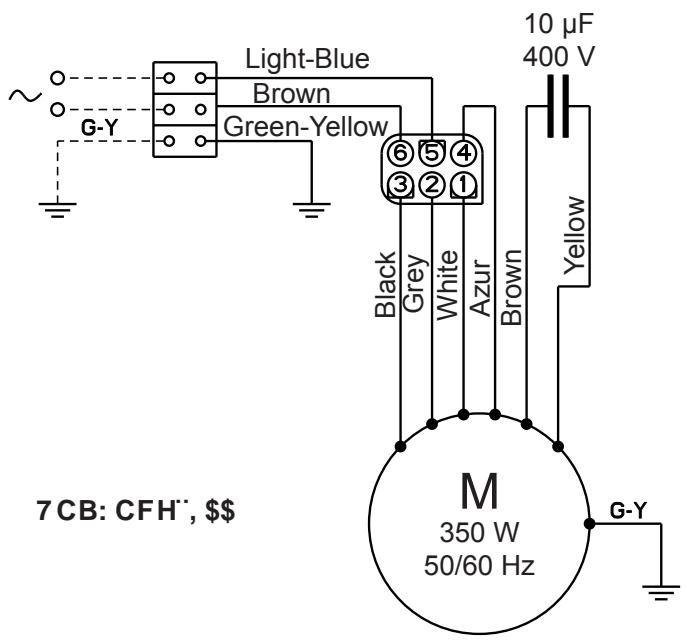

7CB: CFH ^.. , \\

Rating plate of the cookerhood

Exterior view of a white industrial machine with a downward arrow indicating compression or reduction (no text or symbols visible)

Modèle

Model

Modell

Modello

Modelo

Model

Numéro de série

Serial number

Seriennummer

Numero di serie

Numero de serie

Serienummer

Made in EC

CODE:6301005

MOD: CONFORT PRO

Confort Pro 1M P TYPE 3500

N° série: 09/19/011437

220-240V\~50Hz 220V\~60Hz

Rating plate of the cookerhood

Pure diagram of a white rectangular container with a downward arrow pointing to its side (no text or symbols)

Modèle

Model

Modell

Modello

Modelo

Model

Numéro de série

Serial number

Seriennummer

Numero di serie

Numero de serie

Serienummer

Roblin

Made in EC

CODE : 6301014

MOD: CONFORT ENERGY

Exterior view of a black industrial fan or compressor unit with visible blades and housing (no text or symbols)

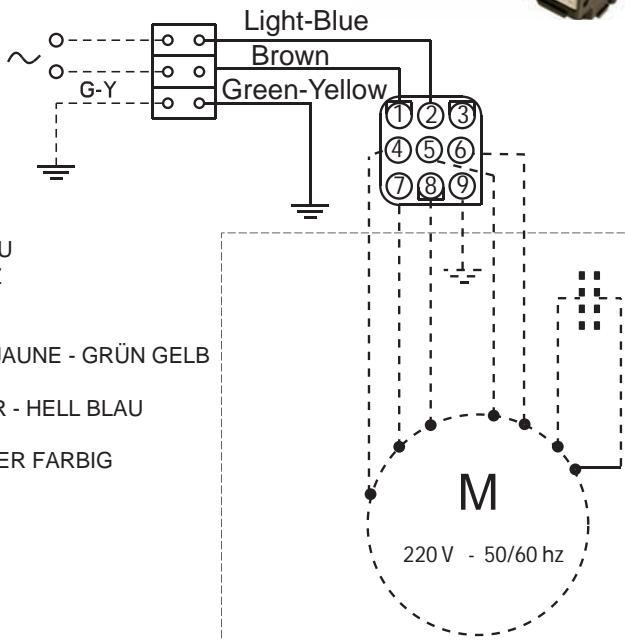

AZUR - AZUR - AZUR BLAU

BLACK - NOIR- SCHWARZ

BLUE - BLEU - BLAU

BROWN - BRUN - BRAUN

Rating plate of the cookerhood

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Modèle

Model

Modell

Modello

Modelo

Model

Numéro de série

Serial number

Seriennummer

Numero di serie

Numero de serie

Serienummer

Roblin

Made in EC

CODE:6301015

MOD: CONFORT EXPERT

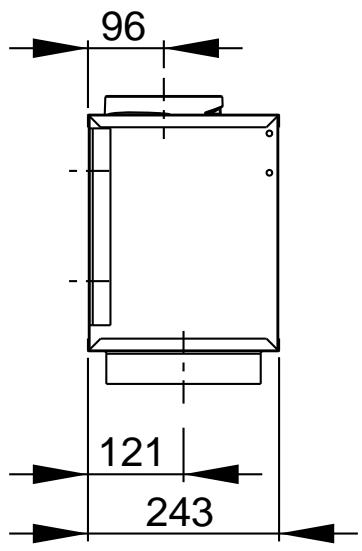

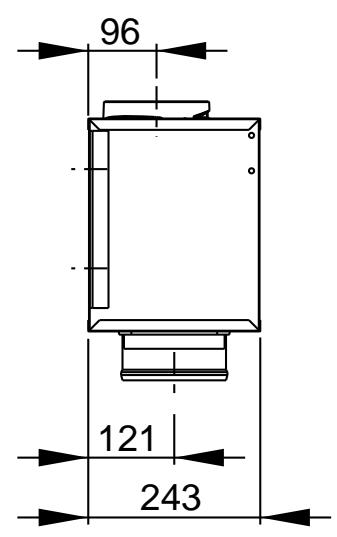

Technical line drawing of a mechanical housing or enclosure with mounting flanges and a circular component (no text or symbols)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

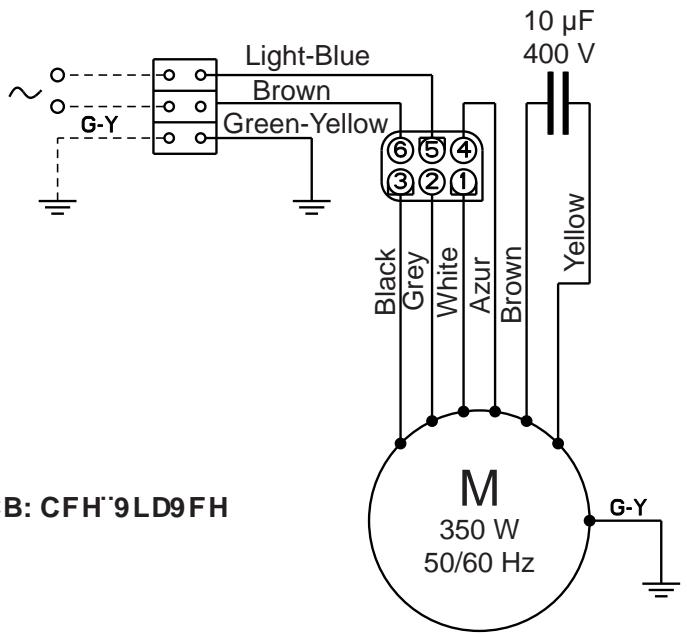

7CB: CFH'9LD9FH

Roblin

FRANKE France S.A.S.
