USER MANUAL D600 JAMO

THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved.

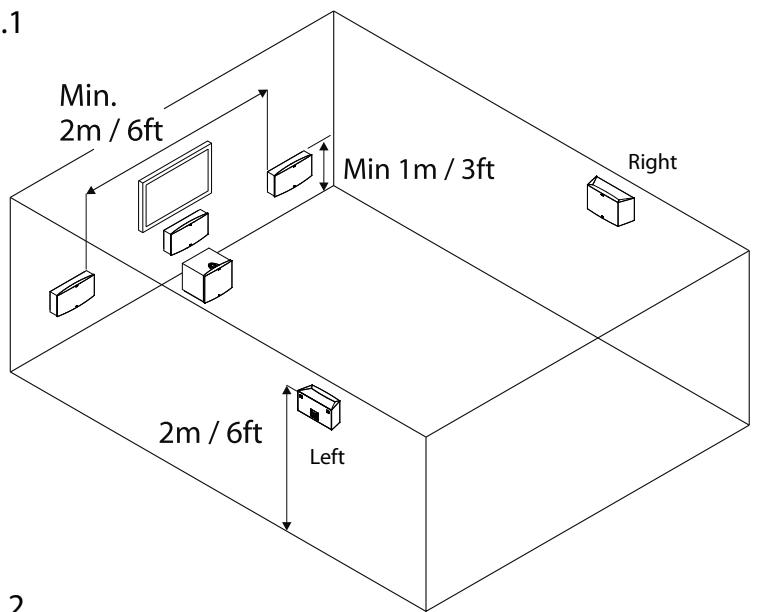

1 D 600 LCR / D 600 SUR Left / D 600 SUR Right

THX 5.1
THX 5.2

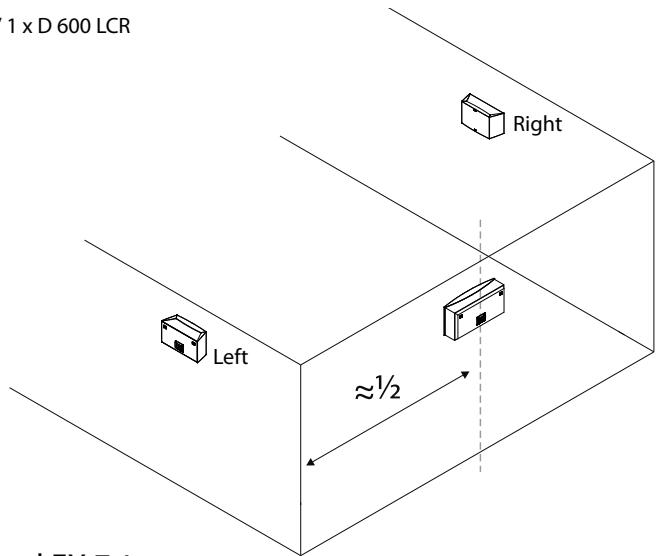

THX Surround EX 6.1

Surround back / 1 x D 600 LCR

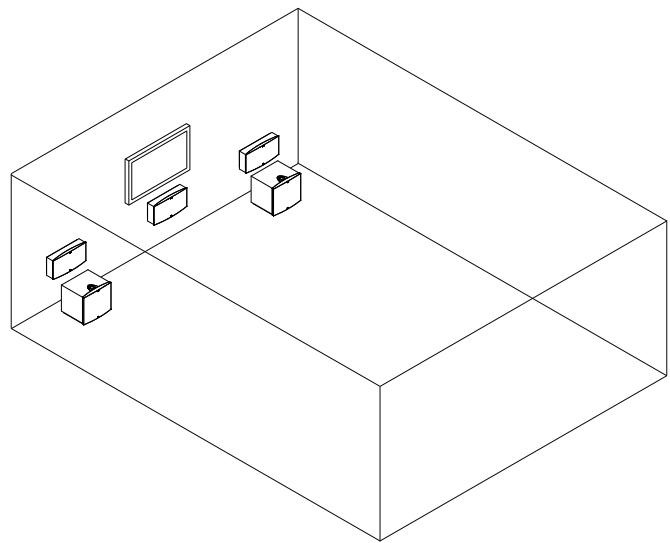

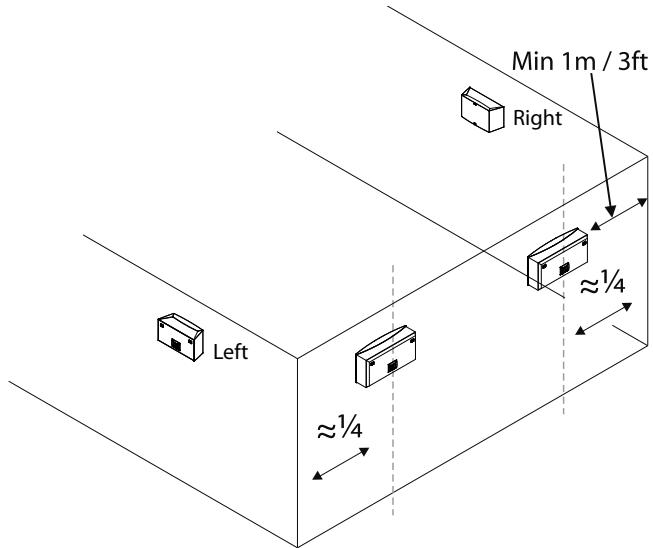

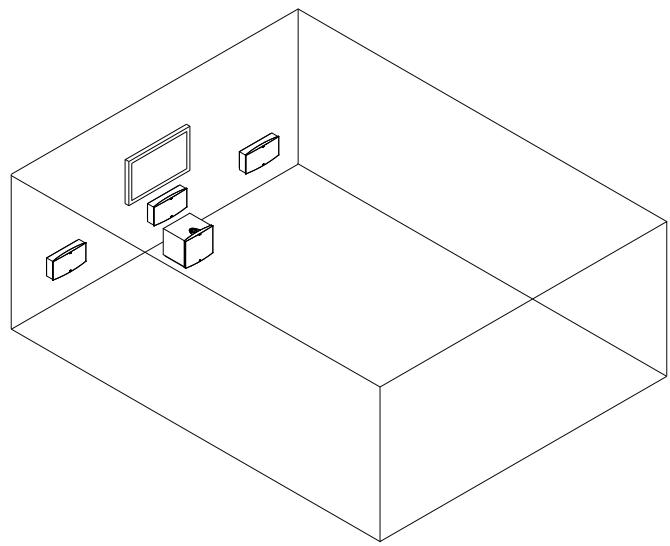

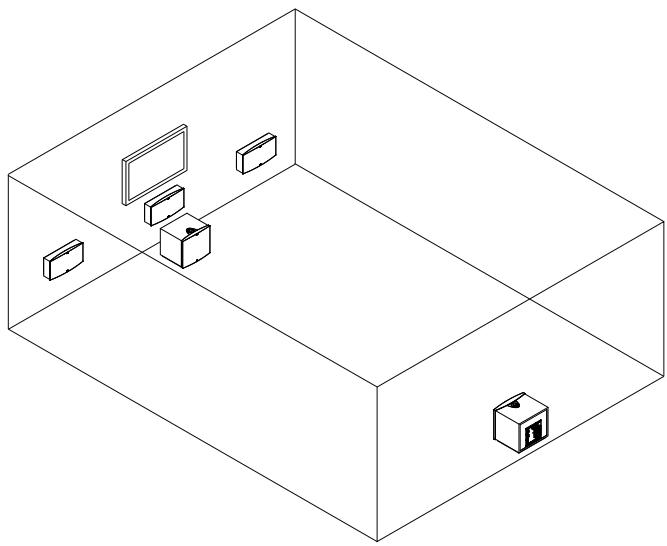

THX Surround EX 7.1

Surround back / 2 x D 600 LCR

D 600 SUB

1xD600SUB

2×D600SUB

A

2xD600SUB

B

THX Ultra 2

2xD600SUB

ULTRA2

RECOMMENDED USE

All Home Theaters or Living Rooms

THX CERTIFICATION FEATURES

Frequency Response: Low Frequency Extension 25Hz at -3dB

High Output, Low Distortion Design THX Settings and Inputs Conform to Bass Management System

THX PERFORMANCE

Capable of THX Reference Level up to 3000 cubic feet (85 cubic meters) with two subwoofoers.

Visit www.thx.com for further technical details.

2

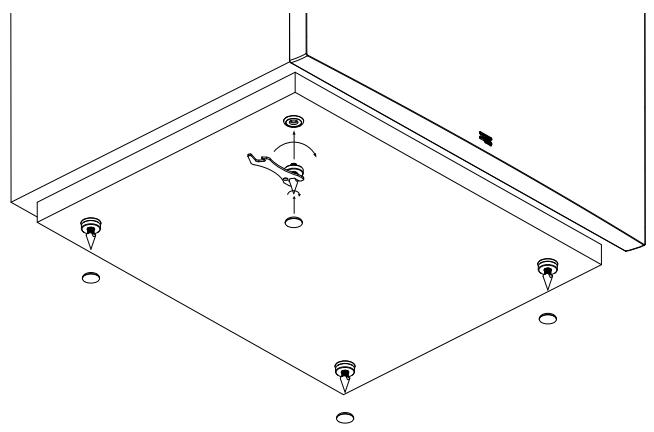

D 600 SUB

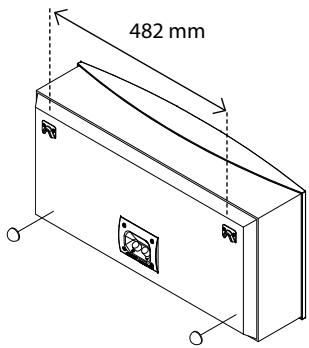

D 600 LCR

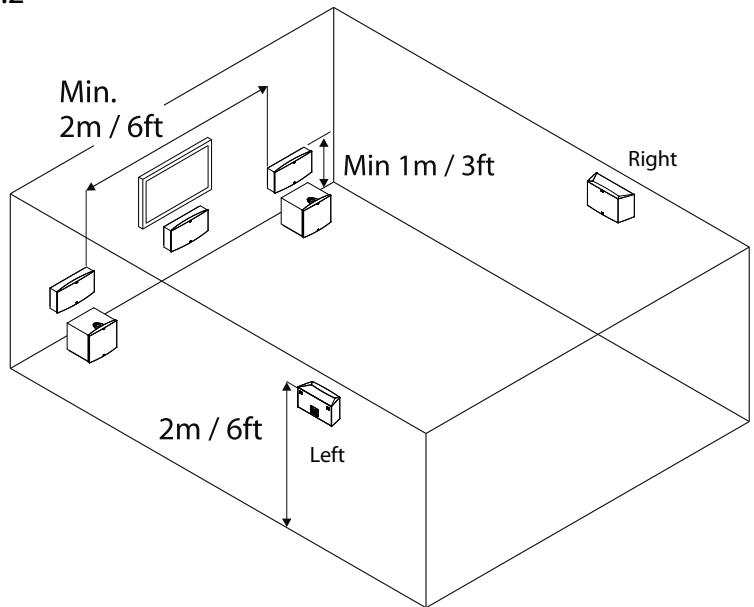

This speaker should not be placed close to a CRT display

D 600 SUR

This speaker should not be placed close to a CRT display

3

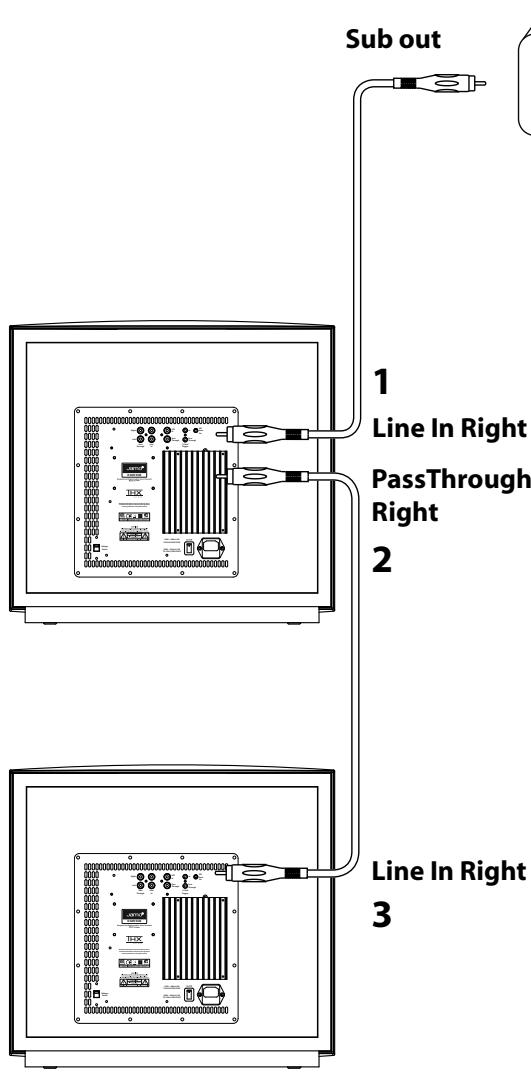

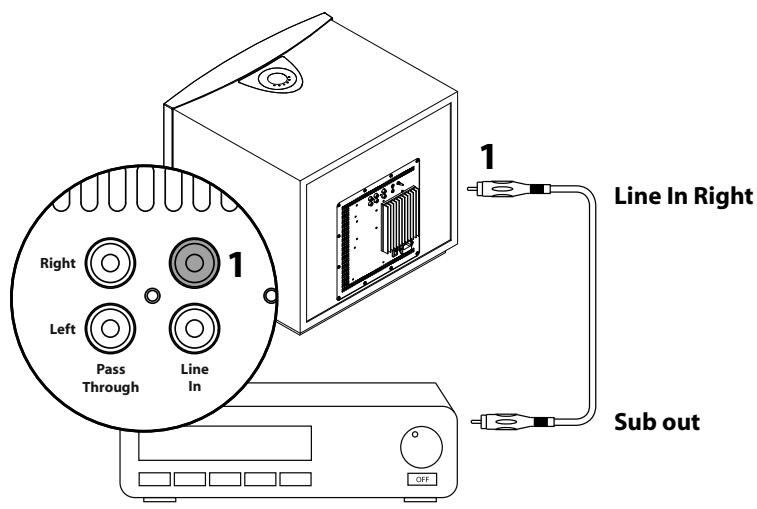

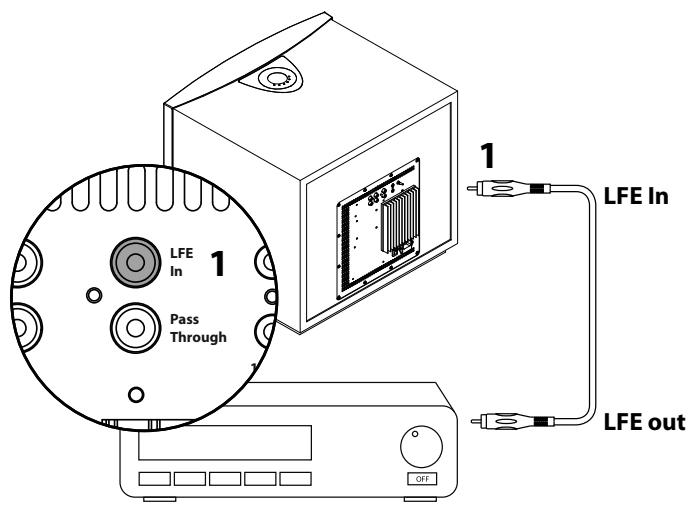

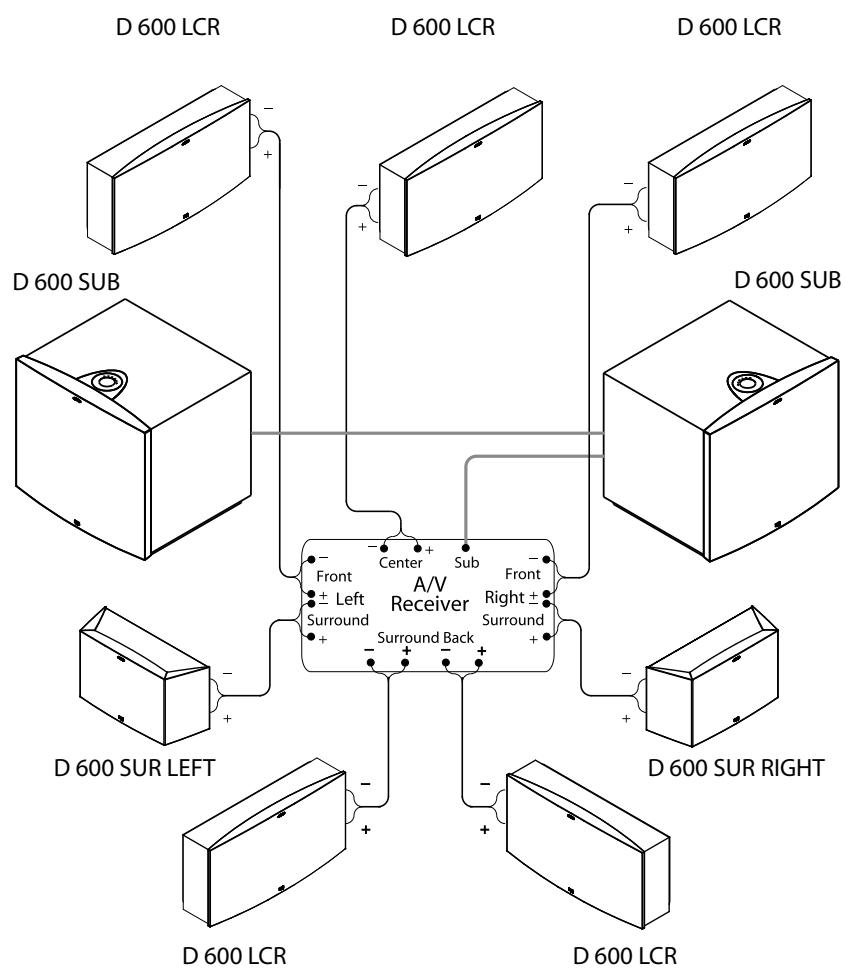

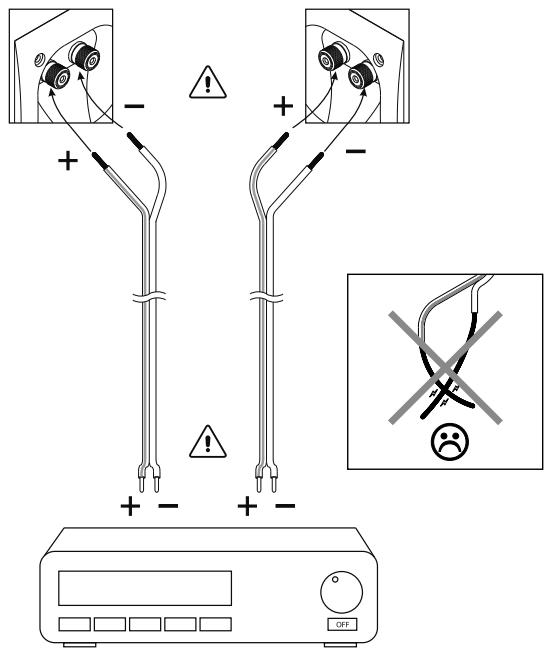

5 System Connection

6

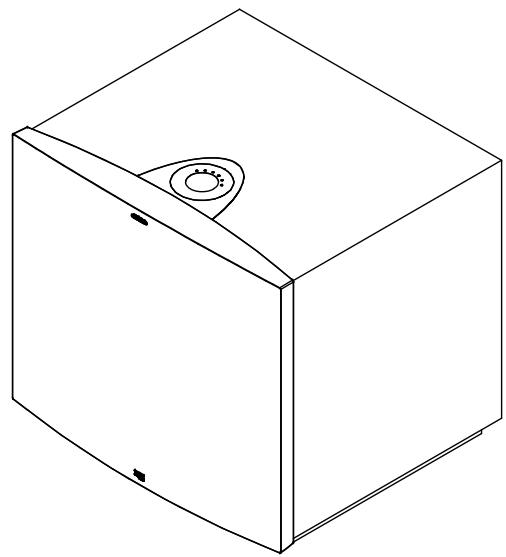

D 600 SUB

D 600 SUB:Sound Mode

Deafault (DEF)

Level	2
BGC	off
Cut off	80
Phase	0

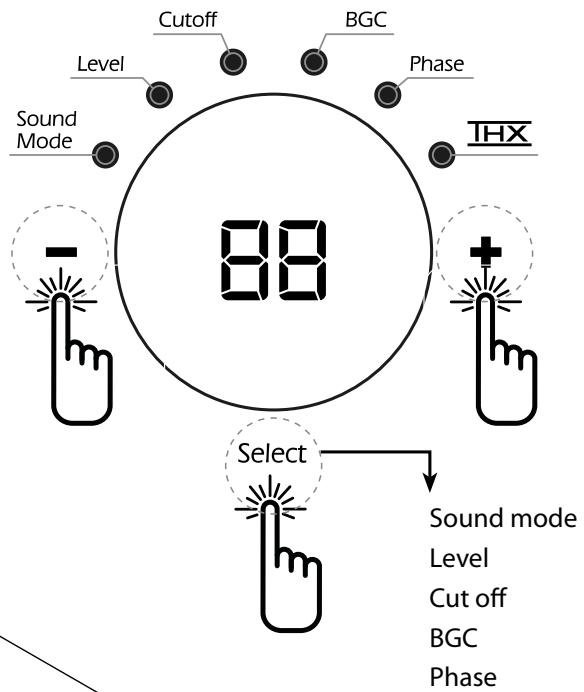

Select

THX

Level	0
BGC	0 → Max
Cut off	200
Phase	0 → -180

Select

Personal (PER)

Level	-20 → 10
BGC	off → Max
Cut off	40 → 200
Phase	0 → -180

Select

D 600 SUB:Sound Mode PER

1

2

Adjust:

Level

Page 15

Cut off

Page 16

BGC

Page 17

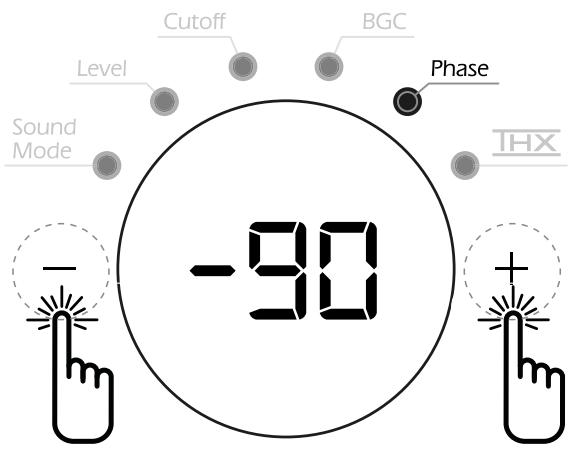

Phase

Page 18

3

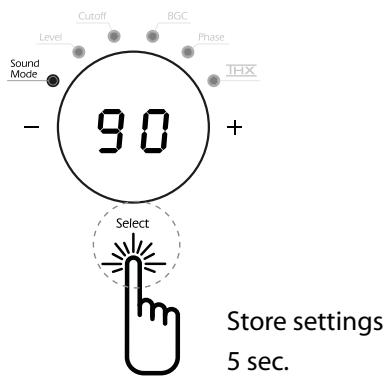

Store settings

5 sec.

D 600 SUB:Sound Mode THX

1

2

Adjust:

BGC

Page 17

Phase

Page 18

3

Select

Select

Select

Select

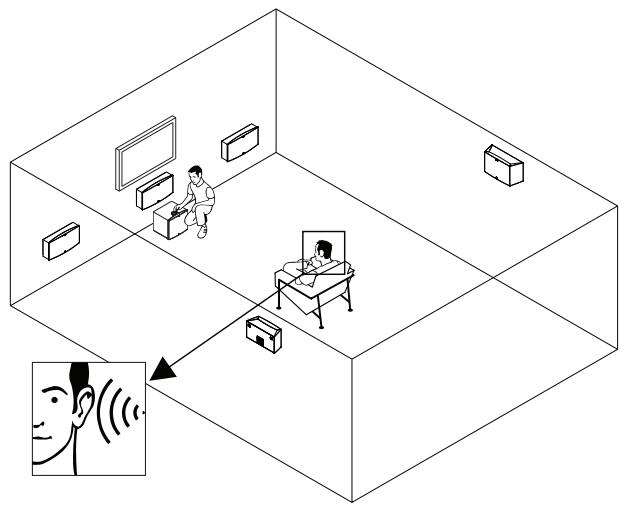

D 600 SUB: Cut off

D 600 SUB:BGC

(Boundary Gain Compensation)

Select

Select

Select

Select

7 D 600 specifications

Type

D 600 SUB

System. Active DSP based subwoofer,

sealed enclosure, motional feedback

User interface....... Touch panel with backlight

Woofer. 15^ / 380mm

Rated power .600Wrms @4Ω@THD+N <1%

Dynamic power 800Wrms@4Ω

Peak power 1600Wpk@4Ω

Maximum SPL 109 dB

Frequency range. 20 - 200 Hz

Variable cut off 40-200 Hz

Variable phase 0 to -180°

Level control. Range 27 dB

Boundary gain compensation Variable

Line input. Yes, stereo pass through for daisy chain

LFE input. Yes, pass through for daisy chain

Speaker level input. Yes

Sensitivity. 100mVrms (line in only)

Sound modes.. Default, Personal, THX

12V trigger. Yes, pass through for daisy chain.

Mains switch.. .On / Off

Voltage switch (fuse) 115V/60Hz (6.3A) / 230V/50Hz (3.15A)

Auto enable switch.. Off / Auto / On

Stand-by power. < 1W

Dimension. 557 x 587 x 501 mm

Weight 32 kg

Type

D 600 LCR

System 3 Way closed

Woofer. 2× 612'' / 165mm

Midrange 2x3" / 76 mm

Tweeter 1" / 25 mm DTT

Power handling* 200W/300W

Sensitivity [dB/2,8V/1m] .89

Frequency range. 80 - 20.000 Hz

Cross-over frequency 400/2.500 Hz

Impedance 4 ohm

Dimension. 393 x 645 x 229 mm

Weight 13 kg

Type

D 600 SUR

System 3 Way closed dipole

Woofer. 1× 612^ / 165mm

Midrange 2x3/76mm

Tweeter 2x1" / 25 mm DTT

Power handling* 150W/200W

Sensitivity [dB/2,8V/1m] .87

Frequency range. 80 - 20.000 Hz

Cross-over frequency 250/2.500 Hz

Impedance 4 ohm

Dimension. 327 x 516 x 221 mm

Weight 9 kg

8

We Klipsch Group, Inc.

Of 3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 USA

Declare that

Equipment: Passive Home Audio Speakers

Model Name: Jamo D 600 LCR, Jamo D 600 SUR

In accordance with the following Directives:

89/336/EEC & The Electromagnetic Compatibility Directive 2004/108/EC and its amending Directives

has been designed and manufactured to comply with the following specifications:

EN55013: 2001 Sound and television broadcast receivers and associated equipment - Radio disturbance characteristics - Limits and methods of measurements

EN55020: 2002 Sound and television broadcast receivers and associated equipment -Immunity Characteristics - Limits and methods of measurements

I hereby declare that the equipment named above has been designed to comply with the relative sections of the above reference specifications. The unit complies with all essential requirements of the Directives.

Signature:

Name: Kerry Geist

Position: Vice President of Engineering

Klipsch Group, Inc. 3502 Woodview Trace, Suite 200 Done At: Indianapolis, IN 46268 USA

On date: 6/19/09

CE_09

KILIPSCH AUDIO TECHNOLOGIES 3502 WOODVIEW TRACE, SUITE 200 INDIANAPOLIS, IN 46268 USA

KLIPSCH EUROPEBV 40 CHEVENING ROAD LONDON,NW6,6DE ENGLAND

We Klipsch Group, Inc.

Of 3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 USA

Declare that

Equipment: Powered Subwoofer - Speaker /Audio Amplifier

Model Name: Jamo D 600 SUB

In accordance with the following Directives:

2004/108/EC The Low Voltage Directive and its amending Directives

The Electromagnetic Compatibility Directive 2004/108/EC and its amending Directives

has been designed and manufactured to comply with the following specifications:

EN60065:2002 Audio, Video and Similar Electronic Apparatus - Safety requirements

EN55013: 2001 Sound and television broadcast receivers and associated equipment - Radio disturbance characteristics - Limits and methods of measurements

EN55020: 2002 Sound and television broadcast receivers and associated equipment -Immunity Characteristics - Limits and methods of measurements

EN61000-3-2: 2000 Electromagnetic Compatibility Part 3. Limits Section 2. Limits for harmonic current emissions (equipment input current #16A per phase)

EN61000-3-3: 1995 Electromagnetic Compatibility Part 3. Limits Section 3. Limits for voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current #16A

I hereby declare that the equipment named above has been designed to comply with the relative sections of the above reference specifications. The unit complies with all essential requirements of the Directives.

Name: Kerry Geist

Position: Vice President of Engineering

Klipsch Group, Inc. 3502 Woodview Trace, Suite 200 Done At: Indianapolis, IN 46268 USA

Revised: 6/19/09

KLIPSCH AUDIO TECHNOLOGIES 3502WOODVIEWTRACE,SUITE200 INDIANAPOLIS,IN46268USA

KLIPSCH EUROPEBV INDUSTRIESTRAAT 1 7041 GD's-HEERENBERG,NETHERLANDS

9

FCC AND CANADA EMC COMPLIANCE INFORMATION:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

This Class B digital apparatus complies with Canadian ICES-003.

The scope of the warranty

Service. In case of warranty enquiries, please contact your dealer/installer. In case of request for service under warranty, please enclose your original receipt and make sure that the serial number on the product is readable. Important: Never send the product to be repaired without the prior agreement of your dealer. The product must always be packed properly. If the product is NOT UNDER WARRANTY, all costs including without limit costs of repair and freight must be paid for by the customer.

Terms of Warranty

1. Nothing in this warranty shall limit your statutory rights.
2. The warranty is only valid on presentation of the original sales receipt or other valid proof of purchase, and provided that the serial number on the product is fully legible.
3. Warranty repairs must be carried out by an authorised Jamo dealer, or an authorised service centre. No payment will be made for repairs performed by unauthorised persons. This warranty does not extend to products which have been repaired or otherwise altered by unauthorised persons, and any damage to the product caused by work by unauthorised persons is not covered by this warranty.
4. This product will not be considered defective, either in materials or in manufacture, to the extent that faults are caused by adaptation to national, local, technical or safety related requirements in countries other than the specific country where the product was purchased.
5. Jamo shall at its option during the relevant warranty period either repair or replace defective components. If the component repair or replacement cannot be performed, the product will be replaced.
6. In no circumstances shall Jamo be liable in contract, tort (including negligence) or breach of statutory duty or otherwise for loss of profits, loss of revenue, loss of data, loss of business or loss of anticipated savings or for any consequential loss whatever.

7. The warranty does not cover the following:
   a) Periodic inspection, maintenance and repair or replacement of parts resulting from normal wear and tear.
   b)Costs connected to delivery to the dealer, disassembly or re-installation of the product.
   c) Misuse, including use for purposes other than was intended, or faulty installation.
   d) Damage caused by lightning, water, fire, natural catastrophes, war, insurrection, incorrect line voltage, insufficient ventilation, transport or other causes outside of the control of Jamo.

8. This warranty applies to every legal owner of the product during the warranty period.
