USER MANUAL N68-GS ASROCK

Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations English passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” ASRock Website: http://www.asrock.com Published February 2010 Copyright©2010 ASRock INC. All rights reserved.

ASRock N68-GS UCC / N68-S UCC Motherboard Motherboard Layout (N68(N68-GS GS UCC / N68-S UCC)

PS2_USB_PW1 Jumper CPU Fan Connector (CPU_FAN1) 2 x 240-pin DDR2 DIMM Slots (Dual Channel: DDRII_1, DDRII_2; Yellow) ATX Power Connector (ATXPWR1) SATAII Connector (SATAII_2 (PORT 0.1)) Primary IDE Connector (IDE1, Blue) SATAII Connector (SATAII_4 (PORT 1.1)) SATAII Connector (SATAII_3 (PORT 1.0)) SATAII Connector (SATAII_1 (PORT 0.0)) SPI Flash Memory (4Mb) NVIDIA GeForce 7025 / nForce 630a Chassis Fan Connector (CHA_FAN1) Clear CMOS Jumper (CLRCMOS1) USB 2.0 Header (USB4_5, Blue)

Chassis Speaker Header (SPEAKER 1, White) USB 2.0 Header (USB6_7, Blue) System Panel Header (PANEL1, White) Print Port Header (LPT1, White) Floppy Connector (FLOPPY1) Front Panel Audio Header (HD_AUDIO1, White) PCI Slots (PCI1- 2) PCI Express x16 Slot (PCIE2) PCI Express x1 Slot (PCIE1) ATX 12V Power Connector (ATX12V1) CPU Heatsink Retention Module AM2 940-Pin CPU Socket

ASRock N68-GS UCC / N68-S UCC Motherboard I/O PPanel anel (N68GS UCC / N68-S UCC) (N68-GS

PS/2 Mouse Port (Green) RJ-45 Port Line In (Light Blue) Front Speaker (Lime) Microphone (Pink)

USB 2.0 Ports (USB01) USB 2.0 Ports (USB23) VGA Port COM Port PS/2 Keyboard Port (Purple)

For N68-GS motherboard, please refer to the table below for the LAN port LED indications. LAN Port LED Indications Activity/Link LED Status Description Off No Activity Blinking Data Activity Status Off Orange Green SPEED LED Description 10Mbps connection 100Mbps connection 1Gbps connection

ACT/LINK SPEED

LED LED LAN Port To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on your system. Please follow below instructions according to the OS you install. For Windows® XP / XP 64-bit OS: Please click “VIA HD Audio Deck” icon , and click “Speaker”. Then you are allowed to English select “2 Channel” or “4 Channel”. Click “Power” to save your change. For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS: Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click “OK” to save your change.

ASRock N68-GS UCC / N68-S UCC Motherboard

1. Introduction

Thank you for purchasing ASRock N68-GS UCC / N68-S UCC motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to BIOS setup and information of the Support CD. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. www.asrock.com/support/index.asp

Package Contents One ASRock N68-GS UCC / N68-S UCC Motherboard (Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm) One ASRock N68-GS UCC / N68-S UCC Quick Installation Guide One ASRock N68-GS UCC / N68-S UCC Support CD Two Serial ATA (SATA) Data Cables (Optional) One I/O Panel Shield English ASRock N68-GS UCC / N68-S UCC Motherboard Specifications Platform CPU Chipset Memory Expansion Slot Graphics Audio LAN Rear Panel I/O - Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm - Support for Socket AM2+ / AM2 processors: AMD PhenomTM FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor (see CAUTION 1) - Support for AM3 processors: AMD PhenomTM II X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron processors - Supports UCC feature (Unlock CPU Core) (see CAUTION 2) - Supports AMD’s Cool ‘n’ QuietTM Technology - FSB 1000 MHz (2.0 GT/s) - Supports Untied Overclocking Technology (see CAUTION 3) - Supports Hyper-Transport Technology - NVIDIA® GeForce 7025 / nForce 630a - Dual Channel DDR2 Memory Technology (see CAUTION 4) - 2 x DDR2 DIMM slots - Support DDR2 1066/800/667/533 non-ECC, un-buffered memory (see CAUTION 5) - Max. capacity of system memory: 8GB (see CAUTION 6) - 1 x PCI Express x16 slot - 1 x PCI Express x1 slot - 2 x PCI slots - Integrated NVIDIA® GeForce 7025 graphics - DX9.0 VGA, Pixel Shader 3.0 - Max. shared memory 256MB (see CAUTION 7) - Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz - 5.1 CH HD Audio (VIA® VT1708S / VT1705 Audio Codec)

- N68-GS UCC

Realtek Giga PHY RTL8211CL, speed 10/100/1000 Mb/s

- N68-S UCC

Realtek PHY RTL8201EL / 8201CL, speed 10/100 Mb/s - Supports Wake-On-LAN I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x VGA Port - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone ASRock N68-GS UCC / N68-S UCC Motherboard English

Connector BIOS Feature Support CD Unique Feature English Hardware Monitor

Certifications - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ and “Hot Plug” functions (see CAUTION 8) - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x Print port header - CPU/Chassis FAN connector - 24 pin ATX power connector - 4 pin 12V power connector - Front panel audio header - 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 9) - 4Mb AMI BIOS - AMI Legal BIOS - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - Supports Smart BIOS - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite and Creative Sound Blaster X-Fi MB) (OEM and Trial Version) - ASRock OC Tuner (see CAUTION 10) - Intelligent Energy Saver (see CAUTION 11) - Instant Boot - ASRock Instant Flash (see CAUTION 12) - ASRock OC DNA (see CAUTION 13) - Hybrid Booster: - CPU Frequency Stepless Control (see CAUTION 14) - ASRock U-COP (see CAUTION 15) - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% (see CAUTION 16) - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit compliant - FCC, CE

ASRock N68-GS UCC / N68-S UCC Motherboard

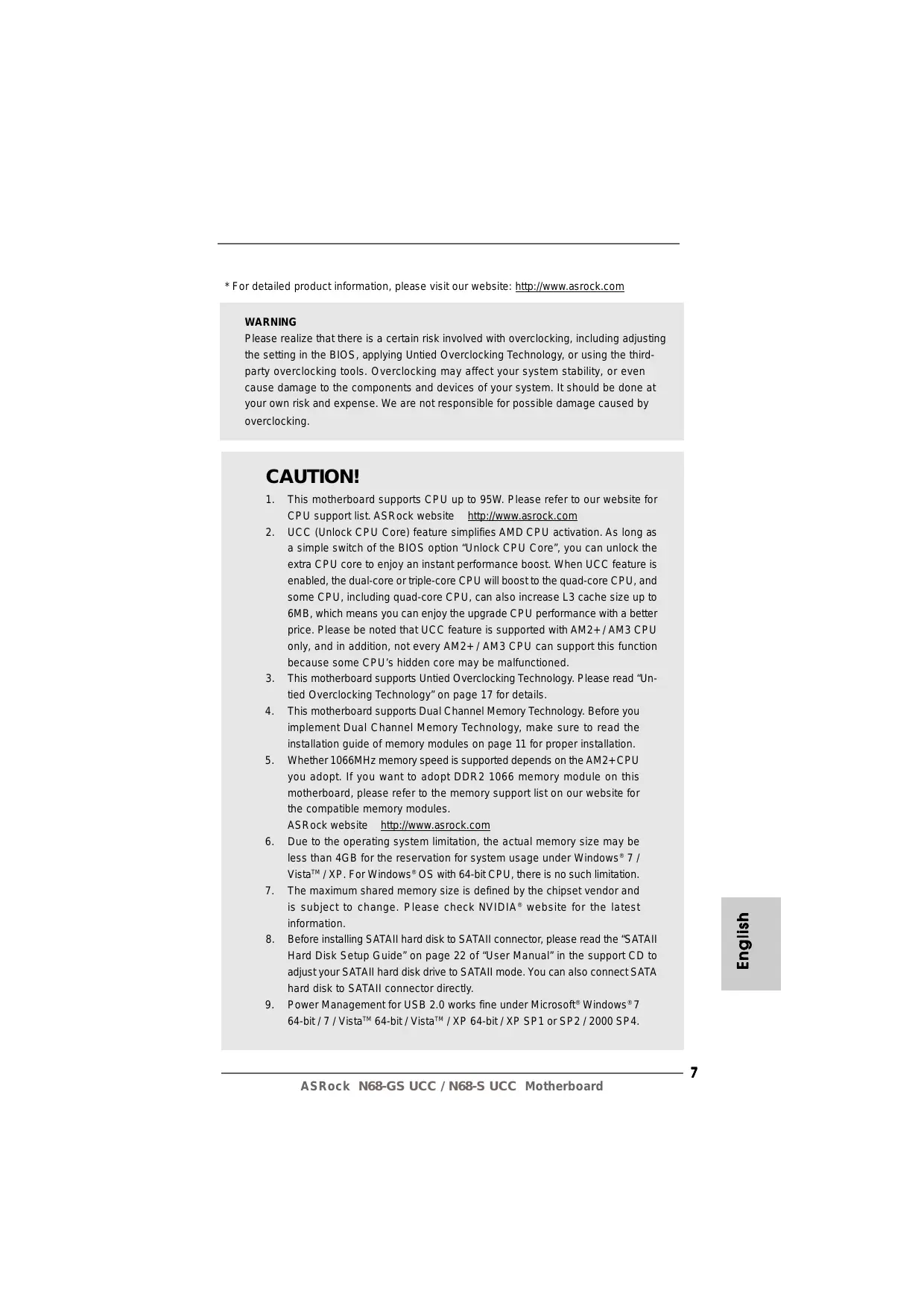

For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the thirdparty overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. CAUTION!

This motherboard supports CPU up to 95W. Please refer to our website for CPU support list. ASRock website http://www.asrock.com UCC (Unlock CPU Core) feature simplifies AMD CPU activation. As long as a simple switch of the BIOS option “Unlock CPU Core”, you can unlock the extra CPU core to enjoy an instant performance boost. When UCC feature is enabled, the dual-core or triple-core CPU will boost to the quad-core CPU, and some CPU, including quad-core CPU, can also increase L3 cache size up to 6MB, which means you can enjoy the upgrade CPU performance with a better price. Please be noted that UCC feature is supported with AM2+ / AM3 CPU only, and in addition, not every AM2+ / AM3 CPU can support this function because some CPU’s hidden core may be malfunctioned. This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 17 for details. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 11 for proper installation. Whether 1066MHz memory speed is supported depends on the AM2+ CPU you adopt. If you want to adopt DDR2 1066 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules. ASRock website http://www.asrock.com Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 7 / VistaTM / XP. For Windows® OS with 64-bit CPU, there is no such limitation. The maximum shared memory size is defined by the chipset vendor and is subject to change. Please check NVIDIA ® website for the latest information. Before installing SATAII hard disk to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 22 of “User Manual” in the support CD to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly. Power Management for USB 2.0 works fine under Microsoft® Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4. English

ASRock N68-GS UCC / N68-S UCC Motherboard English

10. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows® environment. Please visit our website for the operation procedures of ASRock OC Tuner. ASRock website: http://www.asrock.com

11. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers unparalleled power savings. The voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle. In other words, it is able to provide exceptional power saving and improve power efficiency without sacrificing computing performance. To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option in the BIOS setup in advance. Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com

12. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS without entering operating systems first like MS-DOS or Windows®. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

13. The software name itself – OC DNA literally tells you what it is capable of.

OC DNA, an exclusive utility developed by ASRock, provides a convenient way for the user to record the OC settings and share with others. It helps you to save your overclocking record under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and share with your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours! Please be noticed that the OC profile can only be shared and worked on the same motherboard.

14. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

15. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system.

ASRock N68-GS UCC / N68-S UCC Motherboard

16. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU reference clock. However, we can not guarantee the system stability for all CPU/DRAM configurations. If your system is unstable after AM2 Boost function is enabled, it may not be applicative to your system. You may choose to disable this function for keeping the stability of your system.

2. Installation

This is a Micro ATX form factor (9.6-in x 7.0-in, 24.4 cm x 17.8 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

Unplug the power cord from the wall socket before touching any component. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components. Hold components by the edges and do not touch the ICs. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard. English

ASRock N68-GS UCC / N68-S UCC Motherboard

CPU Installation Unlock the socket by lifting the lever up to a 90 angle. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Carefully insert the CPU into the socket until it fits in place. The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins. Step 4. When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked. Lever 90° Up CPU Golden Triangle STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 2, No. 2). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink. English ASRock N68-GS UCC / N68-S UCC Motherboard

2.3 Installation of Memory Modules (DIMM)

N68-GS UCC / N68-S UCC motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip-type) memory modules in the DDR2 DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single channel mode.

It is not allowed to install a DDR memory module into DDR2 slot; otherwise, this motherboard and DIMM may be damaged. If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology. Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. English Step 1. Step 2. The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

ASRock N68-GS UCC / N68-S UCC Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. PCIE slots: PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc. PCIE2 (PCIE x16 slot) is used for PCI Express cards with x16 lane width graphics cards. Installing an expansion card Step 1. Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Align the card connector with the slot and press firmly until the card is completely seated on the slot. Fasten the card to the chassis with screws. English ASRock N68-GS UCC / N68-S UCC Motherboard

Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins. Jumper

PS2_USB_PW1

Short Open Setting Short pin2, pin3 to enable +5VSB (standby) for PS/2 or USB wake up events. Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. (see p.2, No. 1) Clear CMOS Jumper (CLRCMOS1) (see p.2, No. 13) Default Clear CMOS English Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.

ASRock N68-GS UCC / N68-S UCC Motherboard

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

Floppy Connector (33-pin FLOPPY1) (see p.2 No. 19) the red-striped side to Pin1 Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the connector. Primary IDE connector (Blue) (39-pin IDE1, see p.2 No. 6) connect the black end to the IDE devices connect the blue end to the motherboard 80-conductor ATA 66/100/133 cable Note: Please refer to the instruction of your IDE device vendor for the details. SATAII_2 (PORT 0.1) (SATAII_2 (PORT 0.1): SATAII_4 (PORT 1.1) see p.2, No. 9) SATAII_1 (PORT 0.0) (SATAII_1 (PORT 0.0): SATAII_3 (PORT 1.0) Serial ATAII Connectors see p.2, No. 5) (SATAII_3 (PORT 1.0): see p.2, No. 8) (SATAII_4 (PORT 1.1): see p.2, No. 7) Serial ATA (SATA) Data Cable English (Optional) These four Serial ATAII (SATAII) connectors support SATAII or SATA hard disk for internal storage devices. The current SATAII interface allows up to

3.0 Gb/s data transfer rate.

Either end of the SATA data cable can be connected to the SATA / SATAII hard disk or the SATAII connector on the motherboard.

ASRock N68-GS UCC / N68-S UCC Motherboard USB 2.0 Headers (9-pin USB6_7) (see p.2 No. 16) Besides four default USB 2.0 ports on the I/O panel, there are two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB4_5) (see p.2 No. 14) Print Port Header (25-pin LPT1) (see p.2 No. 18) Front Panel Audio Header (9-pin HD_AUDIO1) This is an interface for the front panel audio cable that allows convenient connection and control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select Chipset Configuration. Set the Front Panel Control option from [Auto] to [Enabled]. English (see p.2, No. 20) This is an interface for print port cable that allows convenient connection of printer devices.

ASRock N68-GS UCC / N68-S UCC Motherboard System Panel Header This header accommodates several system front panel functions. (9-pin PANEL1) (see p.2 No. 17) Chassis Speaker Header Please connect the chassis speaker to this header. (4-pin SPEAKER 1) (see p.2 No. 15) Chassis Fan Connector Please connect a chassis fan cable to this connector and match the black wire to the ground pin. (3-pin CHA_FAN1) (see p.2 No. 12) CPU Fan Connector Please connect the CPU fan cable to this connector and match the black wire to the ground pin.

(4-pin CPU_FAN1) (see p.2 No. 2) Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation ATX Power Connector

(24-pin ATXPWR1) Please connect an ATX power supply to this connector. (see p.2 No. 4) English Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13. 20-Pin ATX Power Supply Installation

ASRock N68-GS UCC / N68-S UCC Motherboard

ATX 12V Power Connector (4-pin ATX12V1) (see p.2 No. 24)

Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

If you just want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64bit on your SATA / SATAII HDDs without RAID functions, you don’t have to make a SATA / SATAII driver diskette. Besides, there is no need for you to change the BIOS setting. You can start to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit on your system directly.

ation If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit on your SATA / SATAII HDDs with RAID functions, please refer to the document at the following path in the Support CD for detailed procedures: ..\ RAID Installation Guide

2 . 1 0 Untied Overclocking TTechnology echnology This motherboard supports Untied Overclocking Technology, which means during overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment. English

Please note that it is necessary to connect a power supply with ATX 12V plug to this connector. Failing to do so will cause power up failure. Please refer to the warning on page 7 for the possible overclocking risk before you apply Untied Overclocking Technology.

ASRock N68-GS UCC / N68-S UCC Motherboard

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF file) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft® Windows® operating systems: 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit. The Support CD that came with the motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CDROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and doubleclick on the file “ASSETUP.EXE” from the “BIN” folder in the Support CD to display the menus. English ASRock N68-GS UCC / N68-S UCC Motherboard ASRock N68-GS UCC / N68-S UCC Motherboard (Micro ATX-Formfaktor: 24.4 cm x 17.8 cm; 9.6 Zoll x 7.0 Zoll) ASRock N68-GS UCC / N68-S UCC Schnellinstallationsanleitung ASRock N68-GS UCC / N68-S UCC Support-CD Zwei Seriell-ATA- (SATA) Datenkabel (Option) Ein I/O Shield

ASRock N68-GS UCC / N68-S UCC Motherboard

Spezifikationen Plattform CPU Chipsatz Speicher ASRock N68-GS UCC / N68-S UCC Motherboard BIOS Support-CD Einzigartige Eigenschaft Deutsch Anschlüsse

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard SATAII_2 (PORT 0.1) (SATAII_2 (PORT 0.1): SATAII_4 (PORT 1.1) SATAII_1 (PORT 0.0) (SATAII_1 (PORT 0.0): SATAII_3 (PORT 1.0) Seriell-ATAII-Anschlüsse Serial ATA- (SATA-) Datenkabel (Option)

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Deutsch ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Connecteurs BIOS CD d’assistance Caractéristique unique

ASRock N68-GS UCC / N68-S UCC Motherboard Surveillance système

Certifications ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Français

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard SATAII_2 (PORT 0.1) Français SATAII_4 (PORT 1.1) SATAII_1 (PORT 0.0) (SATAII_1 (PORT 0.0): SATAII_3 (PORT 1.0)

ASRock N68-GS UCC / N68-S UCC Motherboard (USB4_5 br.9) (voir p.2 No. 14)

ASRock N68-GS UCC / N68-S UCC Motherboard (CHA_FAN1 br. 3) (voir p.2 fig. 12)

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Français ASRock N68-GS UCC / N68-S UCC Motherboard Scheda madre ASRock N68-GS UCC / N68-S UCC (Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm) Guida di installazione rapida ASRock N68-GS UCC / N68-S UCC CD di supporto ASRock N68-GS UCC / N68-S UCC Due cavo dati Serial ATA (SATA) (Opzionale) Un I/O Shield

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Italiano

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Italiano ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard SATAII_2 (PORT 0.1) (SATAII_2 (PORT 0.1): SATAII_4 (PORT 1.1) vedi p.2 Nr. 9) SATAII_1 (PORT 0.0) (SATAII_1 (PORT 0.0): SATAII_3 (PORT 1.0)

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Italiano ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Conectores BIOS CD de soport Característica Única

ASRock N68-GS UCC / N68-S UCC Motherboard Monitor Hardware

Certificaciones ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Español

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard (33-pin FLOPPY1) (vea p.2, No. 19) vea p.2, No. 5) (SATAII_3 (PORT 1.0): vea p.2, No. 8) (SATAII_4 (PORT 1.1): SATAII_2 (PORT 0.1) (SATAII_2 (PORT 0.1): SATAII_4 (PORT 1.1) vea p.2, No. 9) SATAII_1 (PORT 0.0) (SATAII_1 (PORT 0.0): SATAII_3 (PORT 1.0) Español ASRock N68-GS UCC / N68-S UCC Motherboard (Opcional) (9-pin USB4_5) (ver p.2, No. 14)

ASRock N68-GS UCC / N68-S UCC Motherboard (9-pin PANEL1) (vea p.2, No. 17) (4-pin SPEAKER1) (vea p.2, No. 15) (3-pin CHA_FAN1) (vea p.2, No. 12)

ASRock N68-GS UCC / N68-S UCC Motherboard (4-pin ATX12V1) (vea p.2, No. 24) Conector de ATX 12V power

ASRock N68-GS UCC / N68-S UCC Motherboard Español ASRock N68-GS UCC / N68-S UCC Motherboard Português ASRock N68-GS UCC / N68-S UCC Motherboard Plataforma CPU Chipsets Memória ASRock N68-GS UCC / N68-S UCC Motherboard Português

1.2 Especificações

Conectores BIOS CD de suporte Português Funcionalidade Única

ASRock N68-GS UCC / N68-S UCC Motherboard Monitor do HW

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard Português

ASRock N68-GS UCC / N68-S UCC Motherboard Português ASRock N68-GS UCC / N68-S UCC Motherboard Conector Conector FDD Figura Descrição (SATAII_2 (PORT 0.1): SATAII_4 (SATAII_1 (PORT 0.0): SATAII_1 (PORT 0.0) (SATAII_3 (PORT 1.0): veja a folha 2, No. 8) (SATAII_4 (PORT 1.1): SATAII_3 (PORT 1.0)

ASRock N68-GS UCC / N68-S UCC Motherboard Português ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard ASRock N68-GS UCC / N68-S UCC Motherboard

SATAII_2 (PORT 0.1) SATAII_4 SATAII_1 (PORT 0.0) (PORT 1.1) SATAII_3 (PORT 1.0)

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard ASRock N68-GS UCC / N68-S UCC Motherboard

SATAII_1 (PORT 0.0) SATAII_2 (PORT 0.1) SATAII_3 (PORT 1.0) SATAII_4 (PORT 1.1)

ASRock N68-GS UCC / N68-S UCC Motherboard

ASRock N68-GS UCC / N68-S UCC Motherboard SATAII_1 (PORT 0.0) SATAII_2 (PORT 0.1) SATAII_3 (PORT 1.0) SATAII_4 (PORT 1.1)

ASRock N68-GS UCC / N68-S UCC Motherboard
