USER MANUAL 3141D ZENEC

ABOUT THIS INSTRUCTION MANUAL

The instruction manual contains important information and warnings about the operation of this unit. Please store it inside your vehicle to have access to it any time. The contents of this document are provided "as is", as required by applicable law. No warranties of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. ZENEC reserves the right to revise this document or withdraw it at any time without prior notice.

CONTENTS

SAFETY INSTRUCTIONS 3
FRONT PANEL BUTTONS 4-5
BASIC OPERATION 6-7
RADIO MODE 8-11
PLAYBACK/PLAYLIST AUDIO/VIDEO 12-17
BLUETOOTH MODE 18-25
NAVIGATION MODE 26-27
SETUP 28-37
REMOTE CONTROL MAIN 38-39
REMOTE CONTROL M-ZONE 40-41
EXTERNAL PLAYBACK SOURCES 42-43
GLOSSAR 44
TROUBLESHOOTING 45-46
SPECIFICATIONS 47
WARRANTY 94-95
Navigation manual is separate.

SAFETY INSTRUCTIONS

1. Read these instructions entirely.
2. Keep these instructions. Whoever uses the unit should have access to this manual.
3. Heed all warnings. Follow all instructions.
4. This unit is designed to be used in a vehicle with 12V DC battery and negative ground.
5. Do not operate the unit in any other way than described in this manual. Failure to follow the instructions within this manual may void your warranty.
6. Do not disassemble or alter the unit in any way, because it will void your warranty. Do not attempt to repair or to service the unit yourself, but contact an authorized ZENEC dealer instead.
7. Use only original accessories which are designed and manufactured for the unit, otherwise you will risk damage. Install the unit according to the mounting manual by using the supplied mounting accessories. The forces of acceleration for accidents are sometimes huge. Incorrect mounted units are a big risk for the driver and the car passengers, during an accident.
8. Protect the unit from water and other liquids, which can enter the casing. A short circuit or even fire could be the result.
9. To prevent a short circuit, never insert or stick any metallic objects (such as coins or metal tools) into the unit.
10. Before you replace a defective fuse, try to find the cause for the short circuit. Please pay attention to the cables of the power supply! If the short circuit doesn't result from a failure of the power supply or wiring, you can replace the defective fuse with a new one (same values). If the short-circuit is still existing, please contact an authorized ZENEC dealer.
11. When connecting to any other device, read its user's guide for detailed safety instructions. Do not connect incompatible products.
12. Be careful not to drain the car battery while using the unit when the car engine is turned off. Because the unit uses a considerable amount of energy and the battery will be charged only while the engine is running, it might happen that the battery will discharge to a point where it's not longer possible to start the engine.
13. According to the law in different European countries, driving with monitors which are showing movies in the viewing range of the driver is not allowed, because the driver might be distracted from the traffic. Please respect the traffic regulations of your country, or you might face penalties in case of an accident or even loose your insurance coverage. Please pay attention to the volume inside your vehicle, because you are obliged to notice exterior sounds like police sirens etc.
14. Don't expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could be the result.
15. Should any problems or questions occur during installation, please consult your ZENEC dealer/ importer.
16. This unit utilizes a laser class 1. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous exposure to coherent light. Do not open covers and do not repair yourself. Refer servicing to qualified personnel.

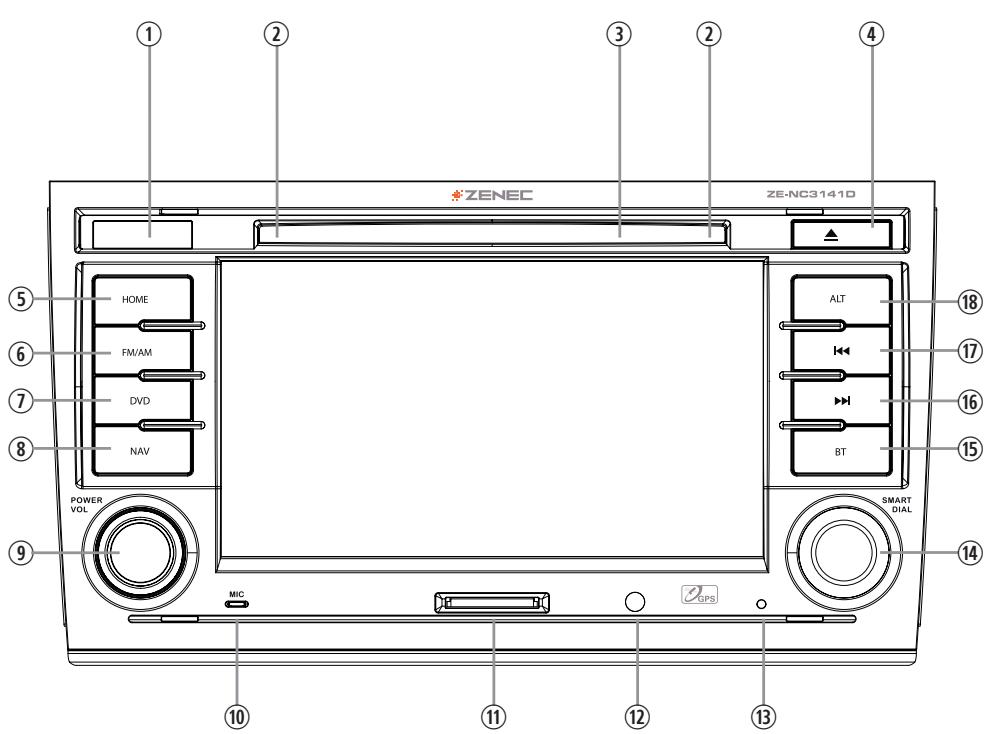

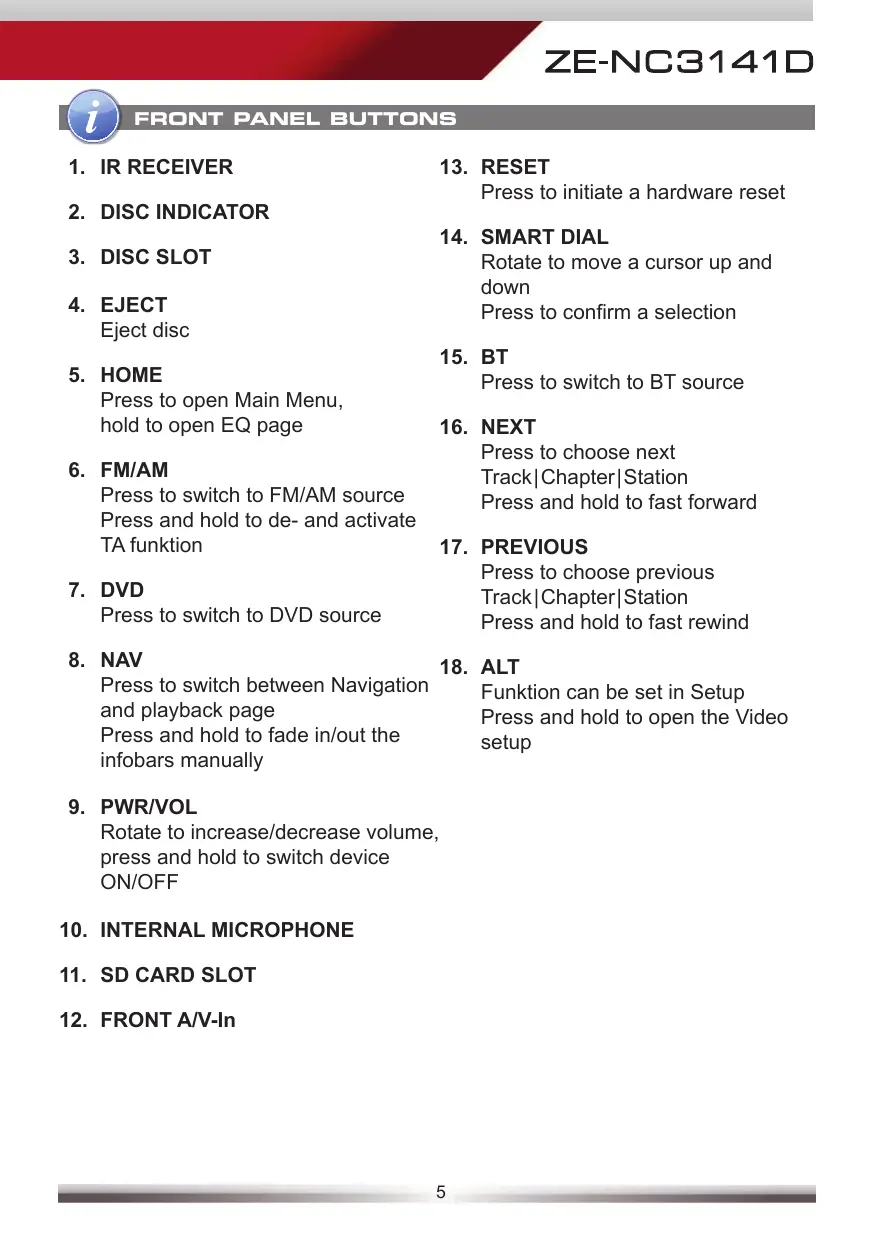

FRONT PANEL BUTTONS

Front Panel

FRONT PANEL BUTTONS

1. IR RECEIVER
2. DISC INDICATOR
3. DISC SLOT
4. EJECT Eject disc
5. HOME Press to open Main Menu, hold to open EQ page
6. FM/AM Press to switch to FM/AM source Press and hold to de- and activate TA Funktion
7. DVD Press to switch to DVD source
8. NAV Press to switch between Navigation and playback page Press and hold to fade in/out the infobars manually
9. PWR/VOL Rotate to increase/decrease volume, press and hold to switch device ON/OFF
10. INTERNAL MICROPHONE
11. SD CARD SLOT

12. FRONT A/V-In

13. RESET Press to initiate a hardware reset

14. SMART DIAL
    Rotate to move a cursor up and down
    Press to confirm a selection
15. BT Press to switch to BT source
16. NEXT Press to choose next Track|Chapter|Station Press and hold to fast forward
17. PREVIOUS Press to choose previous Track|Chapter|Station Press and hold to fast rewind
18. ALT Funktion can be set in Setup Press and hold to open the Video setup

BASIC OPERATION

POWER ON/OFF

Correctly installed, your device will power on together with the ignition. Ignition off: Device does not receive power. When the ignition is activated, you may also switch the device On and Off using the front panel power button.

SELECT A SOURCE

Enter main menu:

• Via Touchscreen:

Touch the icon in the upper left corner of the screen.

• Via "HOME" button:

Push "HOME" button to enter main menu.

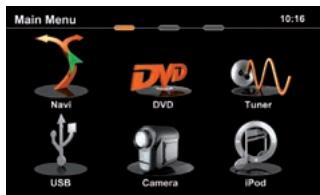

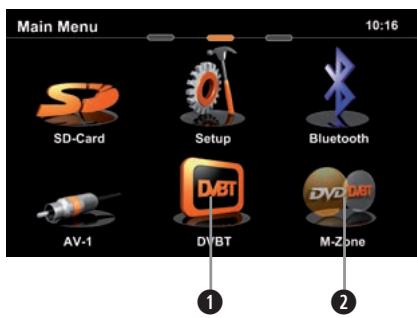

Operation at main menu:

The main menu consists of three pages: 2 main pages and 1 M-Zone page.

There are two basic ways to get there:

• Slide You can slide the two main pages back and forth.

Just slide your fingertip onscreen in the respective direction.

The M-Zone page (backseat area) cannot be accessed via sliding.

• Bar Tap on any of the three oval markers on top of the screen to navigate through all three main menu pages. M-Zone included.

Entering the main menu you have access to all playback sources and settings.

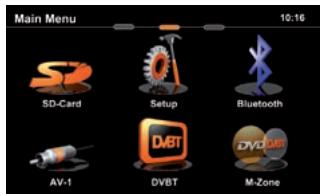

Main menu 1

Main menu 2

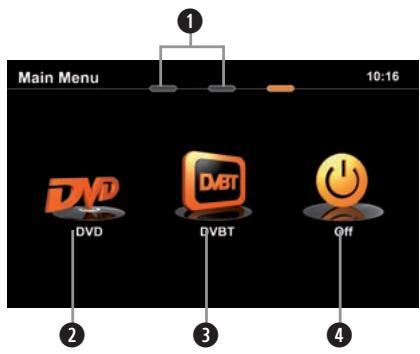

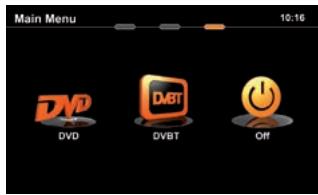

M-Zone page

Tap center header button or slide to second main menu page. Choose SETUP > GENERAL > LANGUAGE and adjust to your likings. You might want to adjust some other basic settings. See chapter "Setup".

BASIC OPERATION

Basic elements (all playback sources)

Display & control elements:

1 Indicates current source - Tap to enter main menu
2 Indicates when NAV infobar is available - Tap to display NAV infobar - Tap again to hide it
③ Connected cellphone battery status.
4 Cellphone GSM reception field strength

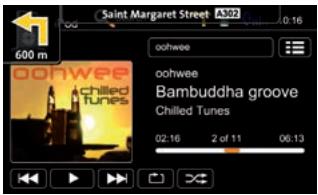

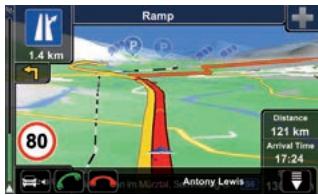

Three infobar styles:

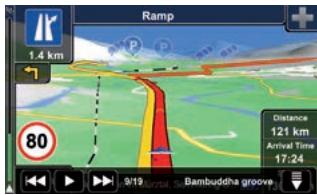

NAV infobar

Playback infobar

BT infobar

NOTE:

Press and hold the NAV button to fade in/out the infobars manually. Touch the icon to fade out the infobars manually.
NAV infobar is only available during active route guidance.
An incoming call or new playback information triggers the automatic pop-up of the other infobar types at NAV screen. They will fade out after five seconds.

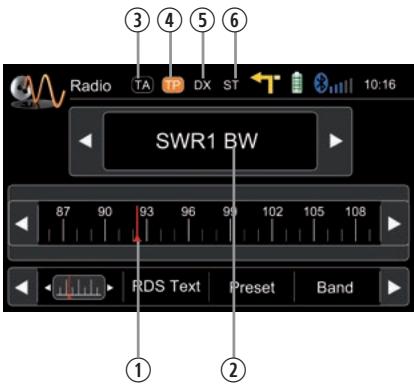

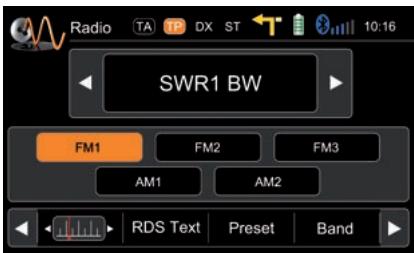

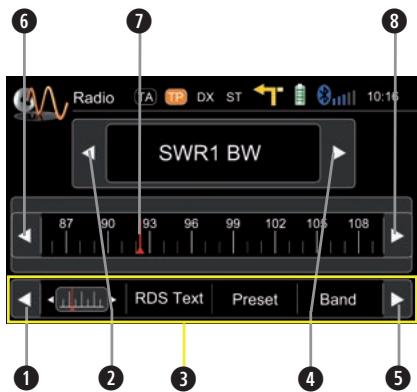

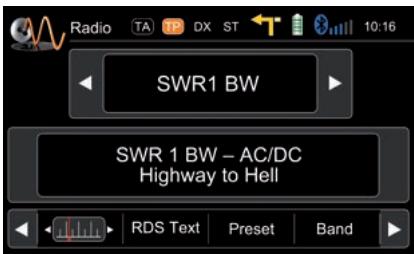

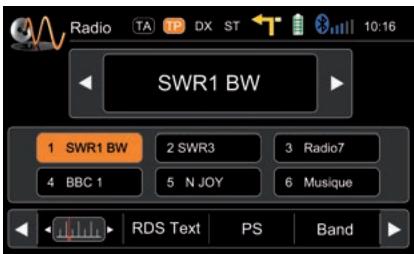

RADIO MODE

Display elements:

① Red line marks current frequency
② Frequency or station name
③ Traffic announcement status
④ Traffic announcements on carrier
⑤ LOC/DX status
⑥ Stereo reception status

Control elements:

1 Scroll left
2 Previous station
3 Tap to select center display content
4 Next station
Scroll right
6 100 kHz down
Drag to adjust frequency
8 100 kHz up

RADIO MODE

RDS text allows a radio station to transmit free-form textual information that can be either static e.g. station slogans or in sync with the programming such as the title and artist of the currently playing song or even short ads. Availability depends on region, reception quality and carrier.

RADIO MODE

Select preset or save a preset. Press and hold a center button to set a new frequency as preset.

To select a radioband tap on a center button.

Lower bar options:

The selected item is highlighted in orange onscreen:

AF ON/OFF: When activated, AF function automatically switches to an alternative frequency (AF) of your chosen station, in order to always offer the best possible reception quality.
TA ON/OFF: When activated, the radio temporarily switches, for the duration of the traffic announcement, to tune mode.
AS Searches for the six strongest stations and saves them as preset.
SCAN Intro-scan of all stations in reception range. You can hear each station for a short moment. Lock to the one you like by pressing scan again.
REG ON/OFF: At certain daytimes some stations divide their program into regional subprograms. The REG function prevents your receiver from switching to an alternative frequency with different content.
LOC Touch LOC/DX to omit or allow reception of stations with weak signals.
/DX If LOC is activated it will exclusively find strong stations.

NOTE:

This unit features an RDS tuner. RDS is a system which transmits data on top of the FM radio signal. Availability and content of the RDS data depend on the respective broadcast station and its signal strength. RDS does, for example, transmit alternative frequencies, which allow for frequency changes without user interaction. AM band doesn't support RDS functions.
■ You need to have the AF function activated in order to use the RDS feature. However, the AF function is deactivated ex factory. We recommend to activate it directly after mounting/installation of your device.

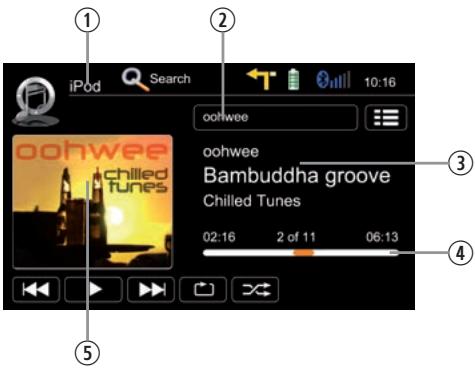

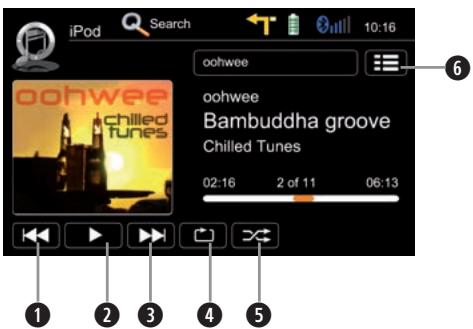

Playback page:

Display elements:

① Source
② Current folder/playlist
③ ID3 tag info
④ Progress bar
⑤ Album Art

Control elements:

1 Previous track
Play/Pause
Next track
Repeat
5 Shuffle
Switch to playlist page

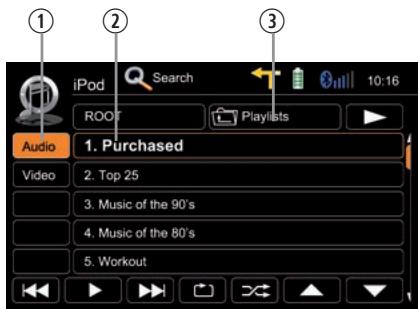

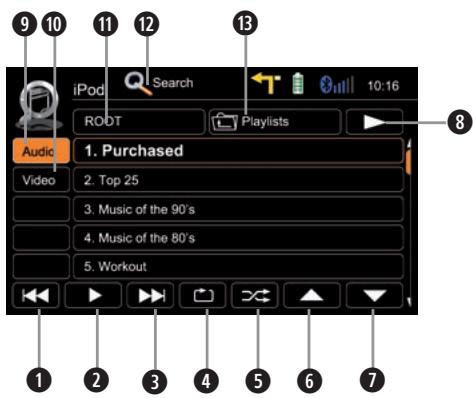

Playlist page iPod:

Display elements:

① iPod mode
② Track/folder/playlist
③ Current folder

Control elements:

Previous track
Play/Pause
Next track
Repeat
Shuffle
Cursor up
7 Cursor down
Switch to playback page
Switch to iPod audio mode
Switch to iPod video mode
11 Go to root directory
Search
3 Folder/playlist up

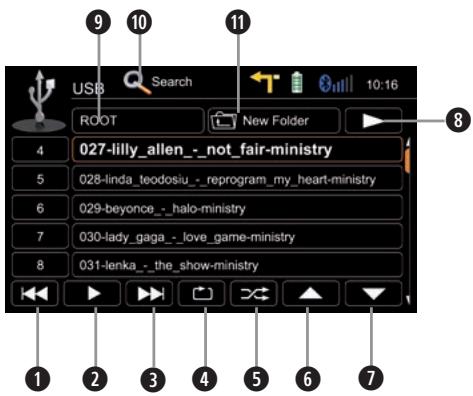

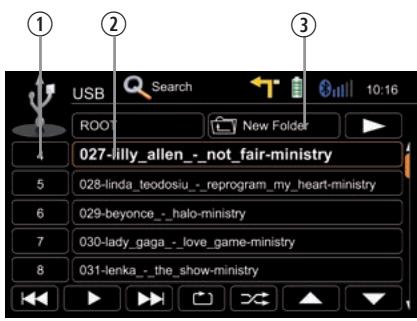

[ \text{Playlist page USB/SD/Disc:} ]

Display elements:

① Track index
② Track/folder
③ Current folder

Control elements:

Previous track
Play/Pause
3 Next track
Repeat track
Shuffle
Cursor up
7 Cursor down
Switch to playback page
9 Go to root directory
10 Search
1 Folder up

Search function:

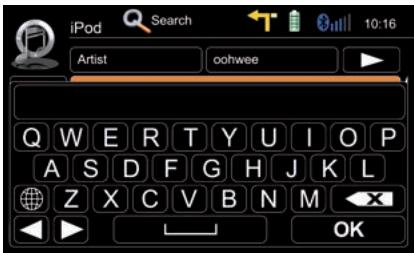

iPod search:

Tapping on Search pops up an alphabetickeyboard,allowing you to enter an initial letter. Alphabetic search is unique for iPod mode.

Tapping on pops up the keyboard option allowing you to select your preferred keyboard language.

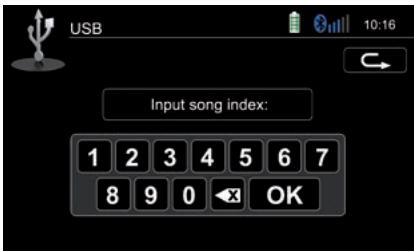

USB/SD/Disc modi search:

Tapping on Search pops up an numeric keyboard, allowing you to enter track numbers. Numeric search is unique for USB/SD/Disc modi.

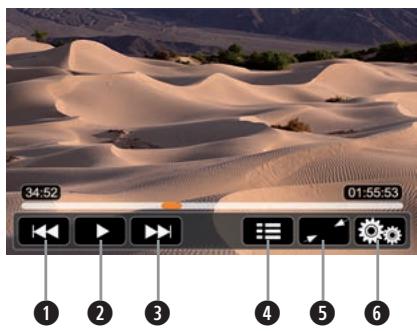

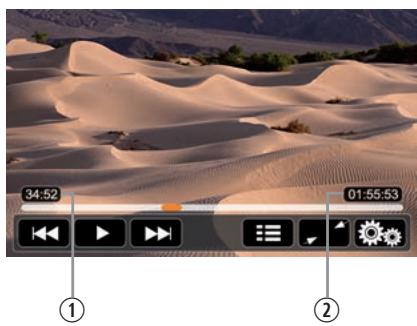

Elements to control playback of video files:

Display elements:

① Current temporal position in track
② Total duration of track

Control elements:

Previous title/track/chapter
Play/Pause
3 Next title/track/chapter
To playlist/root menu of DVD
Full screen mode
DVD settings

USB/SD/Disc mode:

Make sure your mass storage device is FAT32 formatted.
Depending on directory structure and contents the total number of available folders is limited.
- Sorting and handling speed depends on speed and capacity of the mass storage used, as well as on the amount of stored data.
- Connected USB hard disks have to be formatted with FAT32 and are only allowed to consume a maximum of 400mA (peak) current. Otherwise they must be considered incompatible and can't be used with the device.
Only iPod mode supports album art.

iPod mode:

Depending on the size of the search list, results may be delayed during first search. That is due to the iPod, which takes a moment to setup and provide the search index.
- iPods/iPhones display, depending on content and sorting, an extended set of information on the playlist page.

NOTE:

See www.zenec.com for:

Compatible file formats and their possible restrictions.
- iPod/iPhone compatibility list.

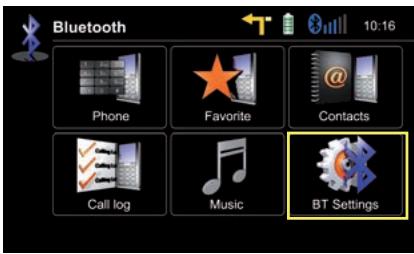

BLUETOOTH MODE

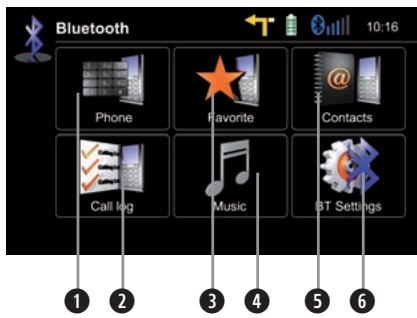

Bluetooth main menu:

Tap icon to enter

Control elements:

1 Onscreen keypad
2 Call Log
3 Favourites
4 Audiostreaming (A2DP) toggle
Contacts
Bluetooth settings

A2DP (de-)activation:

Control elements:

Control Playback
2 A2DP On/Off (highlighted=ON)

BLUETOOTH MODE

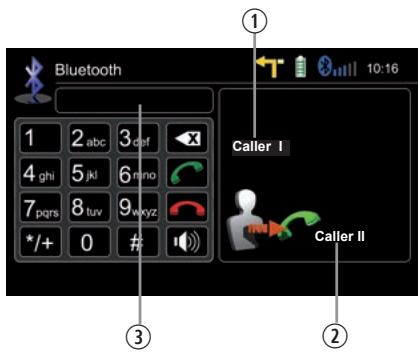

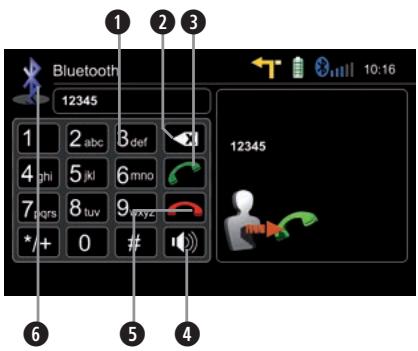

Accept call, dial, hang up, switch between calls:

Display elements:

① First incoming call
② Second incoming call
③ Dialled number

Control elements:

Keypad
Deletes last digit
Pick up call/Switch to second call
Toggle to shift call between handsfree and mobile phone (privacy mode)
Hang up active call/Back to first call
Back to BT main menu

BLUETOOTH MODE

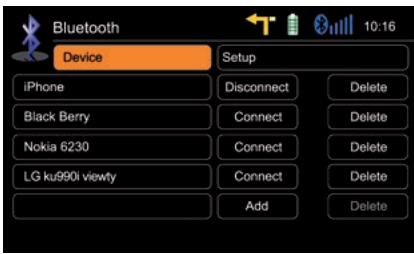

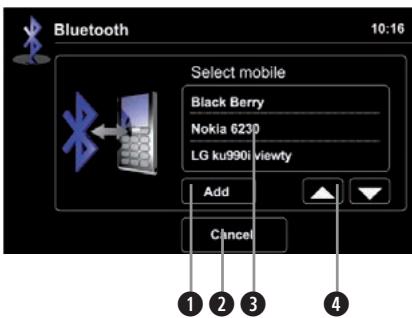

Pairing a mobile phone:

1 Enter BT settings > Device

2 Tap on "Add" to trigger a search for BT devices.

3 Choose your mobile phone from the list or retry searching. Press "Add".

Control elements:

1 Add a mobile phone and input PIN for pairing
Back to BT settings
3 Tap to select mobile phone
4 Browse list (up/down)

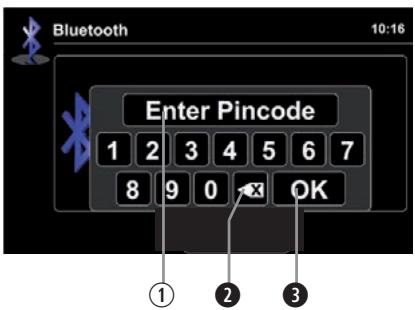

4 Enter pin code and tap OK or retry.

① Pin code
2 Deletes the last digit
3 Acknowledge pincode and continue

5 Upon request enter identical pin code on your mobile and acknowledge. You should now get a screen saying "Device successfully paired".

NOTE:

If you are trying to pair more than one cell phone:

• Switch off the "auto connect" function while pairing additional mobile phones with the device.
  Use different pin code twins for each paired cell phone.

BLUETOOTH MODE

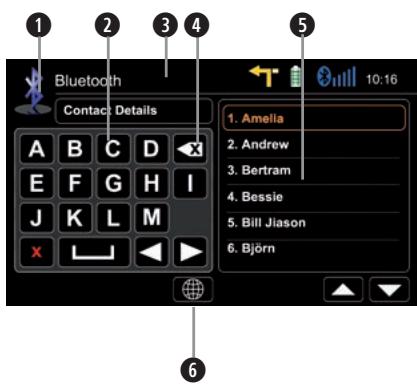

Contacts - Manage phonebook:

Control elements:

Back to BT main menu
2 Tap a contact number to start a call
3 Search
Tap on star to save as favourite
Choose contact name from list
Select your preferred keyboard language

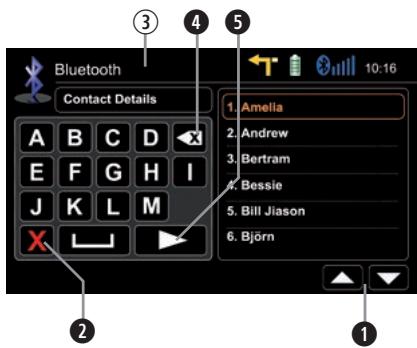

Search for an entry:

No function, when keypad is active
2 Quit keypad
③ Display input
4 Tap to delete last character
Switch to next page of keypad

NOTE:

You may search for up to 15 leading characters.

BLUETOOTH MODE

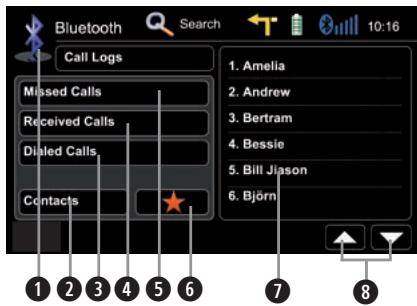

Manage phonebook:

Control elements:

1 Go back to BT main menu
Go to contacts page
3 Tap to display outgoing call list
Tap to display incoming call list
Tap to display missed call list
6 Go to favourites page
Tap on entry to call
Page up/down

NOTE:

• The synchronisation, the transferring, the sorting as well as the display of the phone book entries depend on the mobile phone brand and model. If the synchronisation doesn't work properly, disconnect the cell phone and repeat the pairing process.
  If automatic phone book synchronisation does not work, consult the manual of your mobile phone. Some mobile phones require explicit activation of that function.
  ■ After entering the BT main menu press & hold either the Contacts or Call-Log icon in order to force a resync of the entire phone book (if you have experienced syncing problems).

BLUETOOTH MODE

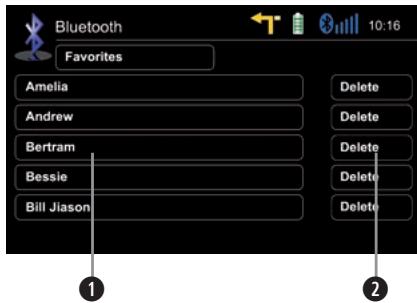

Manage favourites:

Control elements:

Tap on entry to call favourite
2 Delete favourite

NOTE:

■ Be aware that solely terminating the connection, or deleting a connected mobile phone, does not affect the list of favorites. Favourites have to be explicitly deleted one by one.

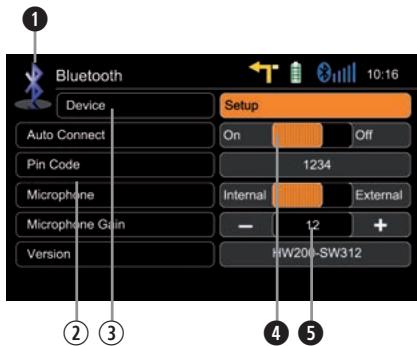

Setup settings:

Back to BT main menu
② Options
③ BT device settings
Microphone selection
Tap +/- to adjust microphone gain

NOTE:

If your mobile phone is compatible and still does not appear in the device list, make sure Bluetooth is turned on and set to "visible for all devices".
Bluetooth connections usually work within a range of approx. 8m . Obstacles in the way may shorten the distance.
- You can pair up to five cell phones, and synchronise up to a thousand phonebook contacts each.
In order to use the built-in handsfree device you need to pair your mobile phone first.
It cannot be guaranteed, that all mobile phones can be paired and that all functions will work.
For the "BT compatibility list" of tested and compatible mobile phones as well as the latest software updates look out on www.zenec.com.

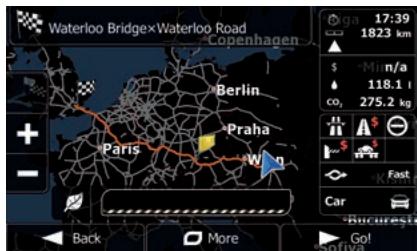

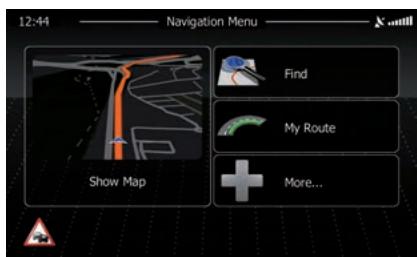

NAVIGATION MODE

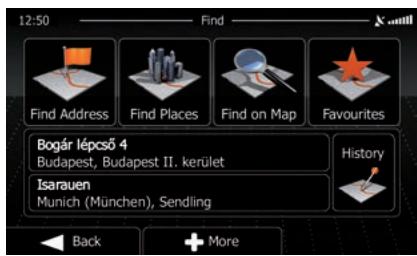

How to input a destination and start a route guidance:

Tap on "Find".

Choose your preferred destination search method. Here, in our example, choose "Find address".

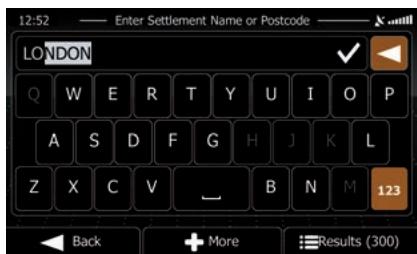

Type in a city, street name, house number and confirm each step by tapping OK.

The program is now calculating the desired route. Once route calculation has completed just tap "GO!" to start route guidance.

NOTE:

■ For operation and detailed description of navigation features, please refer to the included, separate navigation manual.
- You may listen to any playback source during navigating. The navigation software automatically manages volume levels during voice guidance.
If you change the volume level during voice guidance, the chosen volume level gets stored for later route guidance.
Audio playback is, during voice guidance, capped to volume 10. If the preset audio volume is below 10, it will be muted.

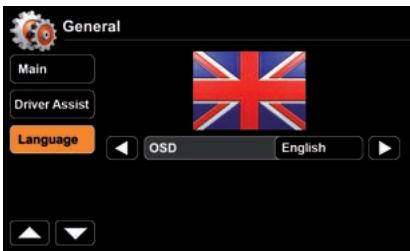

SETUP: MAIN/FIRST SETTINGS

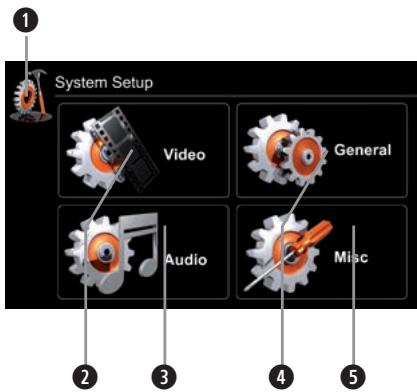

Main setup screen:

Control elements:

1 Return to the previous menu. Works with all four submenus.

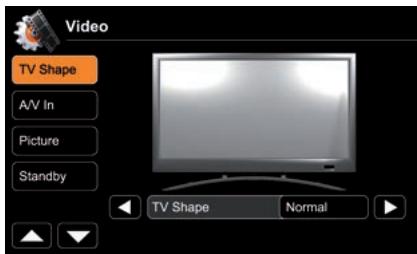

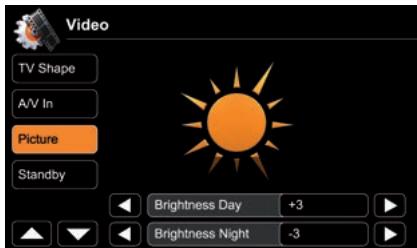

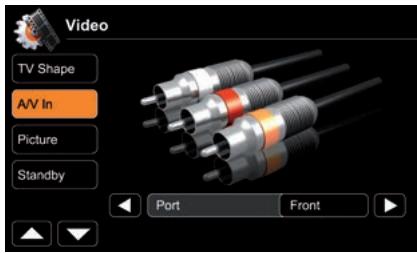

See chapter Setup Video.

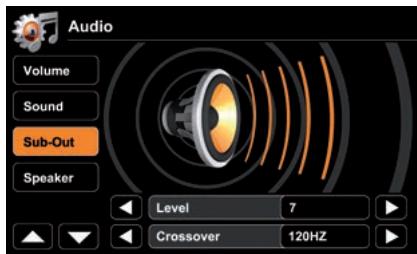

See chapter Setup Audio.
See chapter Setup General.
See chapter Setup Misc.

Settings to be made directly after mounting and initial startup:

Set OSD language:

Go to Setup>General>Language to choose your desired OSD language. Animated picture visualises your setting.

Set Reverse Camera:

Go to Setup>General>Driver Assist Needs to be enabled once in order to use the camera. Animated picture visualises your setting.

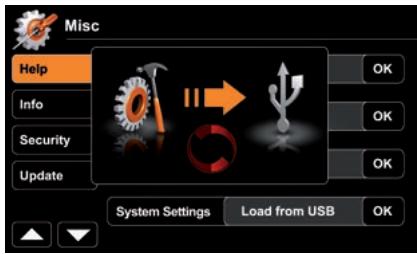

SETUP: IMPORT/EXPORT SYSTEM SETTINGS

Go to Setup>Misc>Help

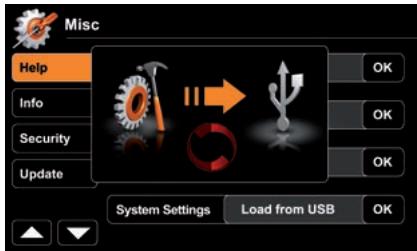

Export system settings:

1. Format USB flash drive with FAT32.
2. Connect USB flash drive to device.
3. Tap "OK", at System Settings-Export option, to launch export.

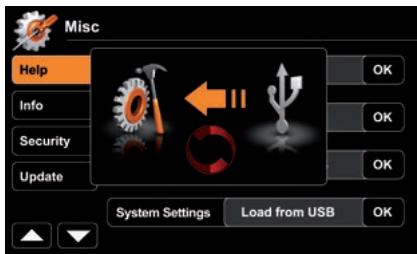

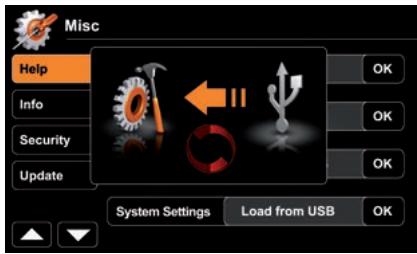

Import system settings:

1. Connect USB flash drive to device.
2. Tap "OK", at System Settings-Import option, to launch import.
3. Restart device upon import completion.

NOTE:

Make sure the USB flash drive has been FAT32 formatted.
- Refrain from manually modifying the generated export file. Re-import has to rely on proper file integrity.
After adding new functions, by means of a system update, they will always be initialised with standard default values. That compensates for lacking values from the import file content.
After a firmware update, check the update installation instructions for notes on system settings import and take them into consideration.

SETUP:VIDEO

Animated picture visualises TV shape settings.

Choose between front and rear A/V In port. A/V In is equipped with a PAL/NTSC auto switch.

Animated picture visualises your setting during adjusting TFT screen brightness.

Day-/Night TFT screen brightness is controlled by GPS time signal.

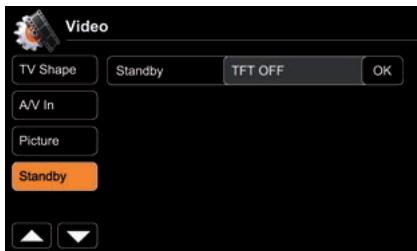

Standby activation turns screen OFF. Apart from that, the device operates in a normal manner.

Tap somewhere on screen to reactivate it.

Name	Descriptor	Function	Choice/Range
TV-Shape	Video display setting	TV-Shape	Normal
			Cinema

A/V-In	A/V-In setting	Port switching	Rear
			Front

Picture	TFT brightness control	Brightness Day	0...20
		Brightness Night	0...20

Standby

TFT OFF

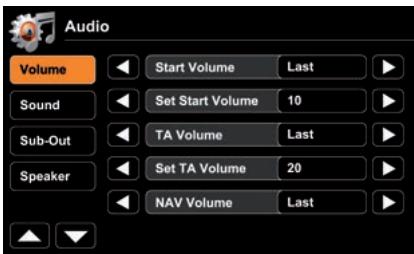

Audio mixer:

Choose "Last" to adjust to last volume. Choose "Set" to adjust to an arbitrary value.

Level adjustments for sources: Adjust volume relative to other sources.

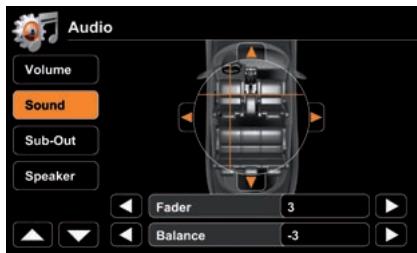

Animated picture visualises fader and balance settings.

EQ frequency adjustments Adjust EQ bands.

Animated picture visualises sub-out level.

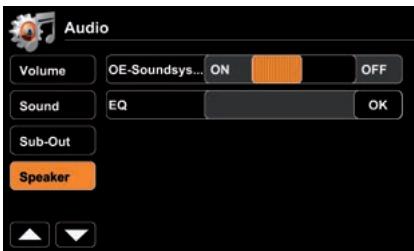

If your vehicle is already equipped with an integrated OE Soundsystem, activate parameter "OE Soundsystem" in order to avoid audio distortion.

Tap "OK" at EQ to open equalizer page.

Volume	Descriptor	Function	Choice/Range
	Audio mixer	Start volume	last value, set value
		Set start volume	0...40
		TA volume	last value, set value
		Set TA volume	0...40
		NAV volume	last value, set value
		Set NAV volume	0...40
	Level adjustment of sources	Tuner	rel. 0...14
		CD/DVD	rel. 0...14
		iPod	rel. 0...14
		A/V In	rel. 0...14
		DVB-T	rel. 0...14

Sound	Level assignment	Fader	front 9, center 0, rear -9
		Balance	left -9, center 0, right 9
	EQ frequencies	Set bass frequency	50, 100, 200 Hz
		Set mid frequency	0.5, 1, 2 kHz
		Set treble frequency	5, 10, 15 kHz
	Loudness		On, Off

Sub-Out	Sub-Out settings	Level	rel. -7...+7
		Crossover	55, 80, 120 Hz

Speaker	Speaker system settings	OE Soundsystem	On, Off
		Open Equalizer	OK

SETUP:GENERAL

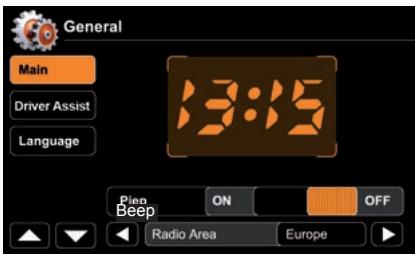

System time gets periodically updated by GPS time stamp.

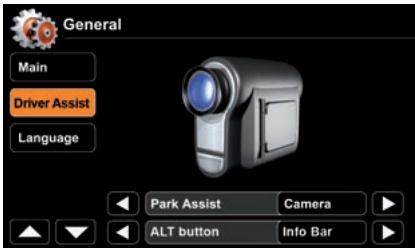

Animated picture visualises your driver assist settings. Example: Reverse Camera.

Reverse mute: Mute audio when in reverse gear.

Shown flag visualises the chosen OSD language.

Name	Function	Choice/Range
Main	Beep	On, Off
	Radio area	Europe, USA, Latin (America)
	Bluetooth	On, Off
	Volume Pop-Up	On, Off
	Antenna supply	On, Off

NOTE:

• Switch above mentioned antenna supply parameter to "Off", in case your vehicle does not deploy an active antenna.

Driver assist	Parking assist	Off, Rear view camera
	Alt button	Infobar, Standby
	Reverse mute	On, Off

Language

OSD

Set OSD language

SETUP: MISC

You may export/import your system settings to/from a USB flash drive. A feature, that comes in very handy after a firmware update, or a complete power disconnection.

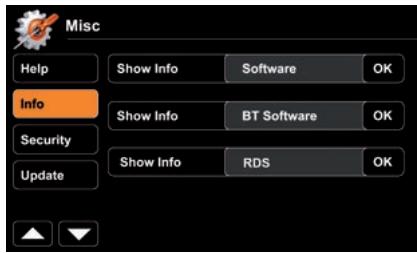

Tap "OK" to display corresponding software version.

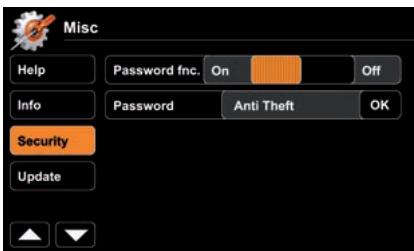

Activate password function to secure device in case of temporary disconnection from power supply (theft). Use an arbitrary 4-digit code. To reset the code enter "0000" instead.

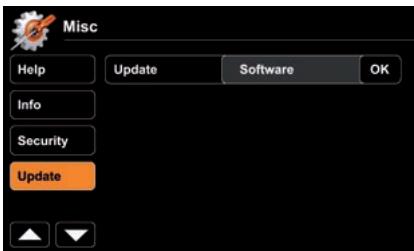

Press "OK" to launch a software update. For preparations and details, consult the accompanying update installation instructions BEFORE you actually update.

Help	Calibrate TS	OK starts touchscreen calibration
	Load factory	OK loads factory settings
	System settings	Export settings to USB
	System settings	Load settings from USB

Info	Show Info	Software
	Show Info	BT Software
	Show Info	RDS

Security	Password enable	On, Off
	Password	OK sets password

Update

Update

OK starts software update

NOTE:

Compare installed software version with the version from www.zenec.com (see support and download area for updates).

REMOTE CONTROL MAIN

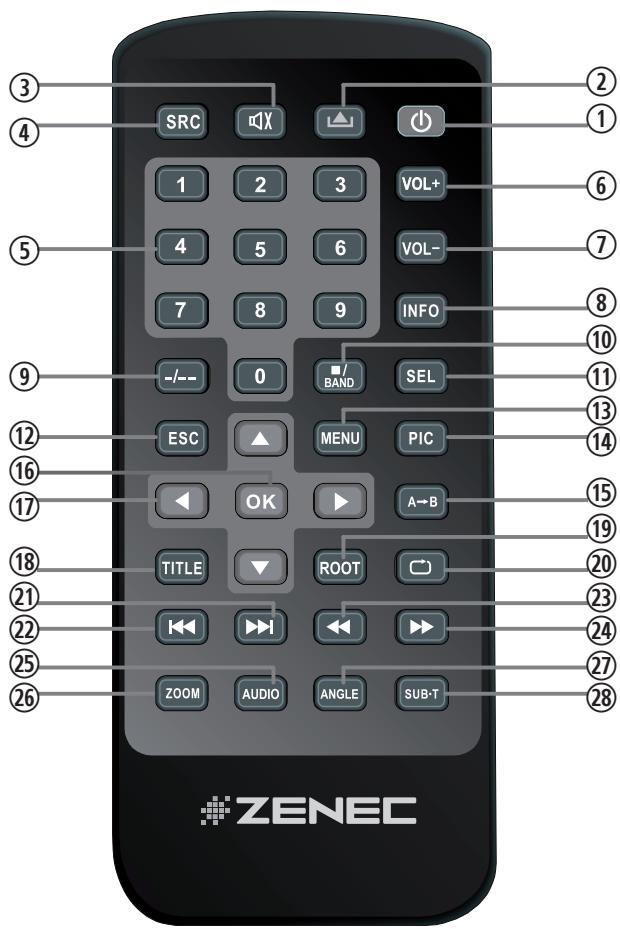

Remote Control Buttons

REMOTE CONTROL MAIN

1. POWER

Device ON/OFF

1. EJECT

Eject disc

1. MUTE

Mute/Un-mute audio output

1. SRC

Change sources

1. KEYPAD

Input track/chapter/title

1. VOL+

Increase volume

1. VOL-

Decrease volume

1. INFO

Show DVD info

1. GOTO

Open numeric onscreen keypad

1. STOP/BAND

Stop DVD/change radio band

1. SEL

Open EQ

1. ESC

Close menu/EQ

1. MENU

Open main menu

14.PIC

No function

1. REPEAT A B

Set start and end point at DVD to repeat

1. OK

Play/Pause; Confirm

1. DIRECTION BUTTONS

Select item; move cursor

1. TITLE

Open DVD Title menu

1. ROOT

Open DVD main menu

1. REPEAT

Repeat track/chapter/title

1. SKIP NEXT

Jump to next track/preset/ chapter/title

1. SKIP PREVIOUS

Jump to previous track/preset/ chapter/title

1. FAST REVERSE

Fast reverse; 50kHz down at tuner mode

1. FAST FORWARD

Fast forward, 50kHz up at tuner mode

1. AUDIO

Change DVD audio language

1. ZOOM

Zoom in/out

1. ANGLE

Change DVD viewing angle

1. SUB-T

Change DVD subtitle

NOTE:

Some functions may not be available; depending on your chosen mode and type of media.

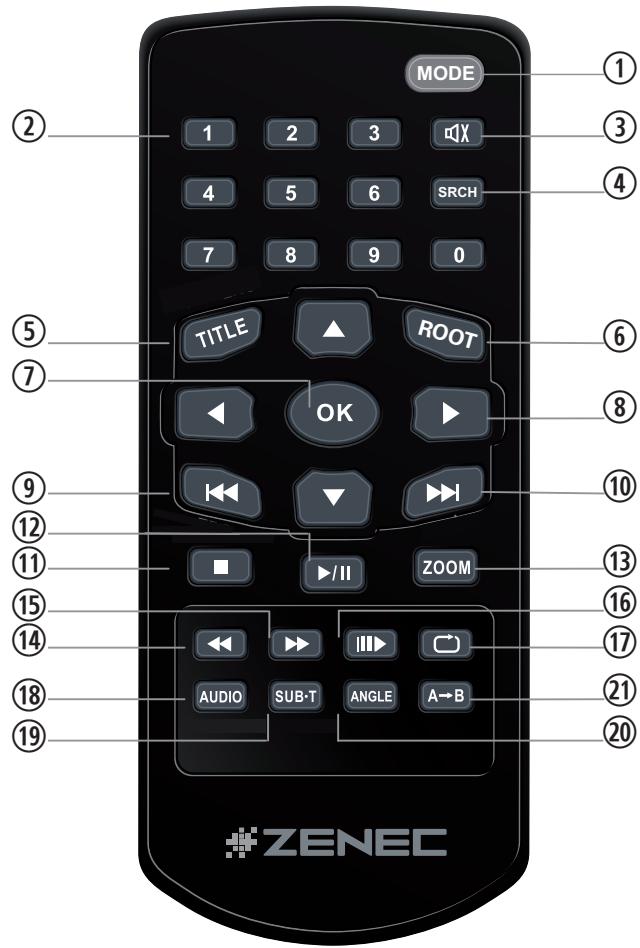

REMOTE CONTROL M-ZONE

Remote Control Buttons

REMOTE CONTROL M-ZONE

1. MODE

Change source

1. KEYPAD

Input track/chapter/title

1. MUTE

Mute/un-mute audio output

1. GOTO

Open numeric onscreen keypad

1. TITLE

Open DVD Title menu

1. ROOT

Open DVD main menu

1. OK

Play/Pause; Confirm

1. DIRECTION BUTTONS

Select item; move cursor

1. SKIP PREVIOUS

Jump to previous track/preset/ chapter/title

1. SKIP NEXT

Jump to next track/preset/

chapter/title

1. STOP

Stop playback

1. PLAY/PAUSE

Play/pause playback

1. ZOOM

Zoom in/out

1. FAST REVERSE

Fast reverse

1. FAST FORWARD

Fast forward

1. SLOW

Slow motion playback

1. REPEAT

Repeat track/chapter/title

1. AUDIO

Change DVD audio language

1. SUB-T

Change DVD subtitle

1. ANGLE

Change DVD viewing angle

1. REPEAT A->B

Set start and end point at DVD

to repeat

NOTE:

Some functions may not be available; depending on your chosen mode and type of media.

EXTERNAL PLAYBACK & SOURCES

M-Zone

Control elements:

Direct access to DVB-T
Direct access to M-Zone

Control elements:

Direct access to main menu
Choose DVD
3 Choose DVB-T
4 Deactivate M-Zone

NOTE:

• With deactivated M-Zone you will not see any signal on connected M-Zone monitors (Blackscreen).
  The M-Zone volume cannot be adjusted by the headunit. Use the control elements of the connected peripherals (i.e. roof monitor) instead to adjust the volume.
  If the M-Zone and the front zone get both fed by one and the same media source, the M-Zone stereo output will be muted.
  The headunit does not memorize that the M-Zone has been activated after shutting off. Therefore you have to reselect the M-Zone after re-starting the headunit.

EXTERNAL PLAYBACK & SOURCES

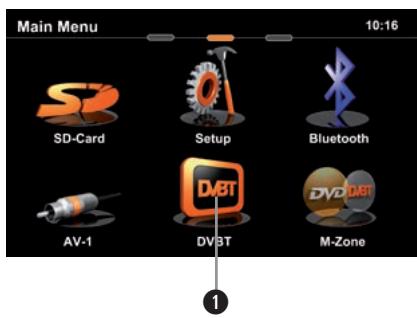

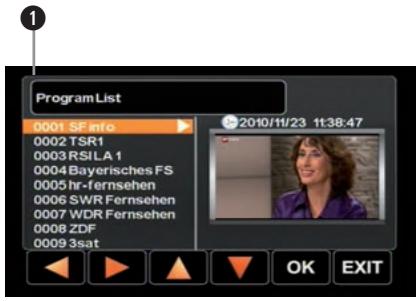

DVB-T

Control elements:

Direct access to DVB-T

Control elements:

Tap into the upper right corner to return to the main menu

NOTE:

■ For DVB-T reception you need to connect an external ZENEC DVB-T receiver. For a perfect compatibility match check out the manual and the compatibility list in advance.
- Compatible DVB-T devices sport easy operation by using the touchscreen of the headunit.
The headunit does not memorize that the DVB-T receiver has been activated after shutting off. Therefore you have to reselect DVB-T after re-starting the headunit.

GLOSSAR

A2DP	Advanced Audio Distribution Profile, Bluetooth Audio
AC-Control	Optical indication showing air condition status information
A/V In	Audio-Video Input
AUX In	Auxiliary Input, Audio only Input
CAN-Bus	Controller Area Network-Bus; Automotive industrial standard bus system
CAN/Stalk IF	Interface to communicate with CAN-Bus
DVB-T	Digital Video Broadcasting – Terrestrial; TV transmission standard
EQ	Equalizer
FAT32	File allocation table 32-bit
GSM	Global System for Mobile Communications, Mobile phone network
GUI	Graphical User Interface
HMI	Human Machine Interface (graphical part = GUI)
ID3-Tag	Format to display additional info together with MP3 audio files
Media Link box	Box to reroute some inputs from the back of the headunit to easier accessible locations
M-Zone	Rear seat entertainment area
OBC	On Board Computer, Menu to control board computer
OE	Original Equipment > OEM Original Equipment Manufacturer
OPS	Optical Parking system (shows parking radar)
OSD	On Screen Display
POI	Navigation: Point of interest
Phantom pow.	"In-line" antenna power supply; Power and antenna signals use the same wire
TMC/TMC Pro	Traffic Message Channel/Traffic Message Channel Professional Pro with extended pay content

TROUBLESHOOTING

Problem	Cause	Solution
GENERAL
Unit will not power on.	Radio fuse blown.	Install new fuse with correct rating.
	Car battery fuse blown.	Install new fuse with correct rating.
	Illegal operation.	Press the RESET button.
No/low audio output.	Improper audio output connection.	Check wiring and correct.
	Volume set too low.	Increase volume level.
	Speakers damaged.	Replace speakers.
	Only one channel is playing.	Check the balance and fader adjustments.
	Speaker wiring is in contact with metal part of car.	Insulate all speaker wiring connections or replace the speaker cable.
	Mute is activated.	Turn off the Mute function.
Poor sound quality or distortion.	Unauthorized disc is in use.	Use original disc.
	Speaker power rating not compatible with unit.	Connect proper speakers.
	Speaker is shorted.	Check speaker connections.
TFT MONITOR
No image.	The parking brake is not engaged.	Stop vehicle in a safe place and apply parking brake.
	The "Monitor off"-function is activated.	Touch the monitor to activate the display.
Prolonged image or improper height/width ratio.	Improper aspect ratio setup.	Use correct aspect ratio setting.

TUNER
Weak station searching.		Auto antenna not properly connected.	Connect the auto antenna cable properly.
		REG function is activated.	Turn REG function off.
		The AF function is not activated.	Activate the AF function.
MP3
The ID3 tags are shown incorrectly.		Message is longer than LCD can display or ID3 tag is not compatible.	Use proper ID3 tag information.
DVD-PLAYER
Disc does not play back.	[Bad Disc]	Disc is warped or scratched.	Use disc in good condition.
	[Bad Disc]	Disc is dirty or wet.	Clean disc with soft cloth.
	[Unknown Disc]	Incompatible disc is used.	Use compatible disc.
	[Unknown Disc]	Disc rating exceeds parental lock rating limit.	Change parental lock settings to lower restriction.
	[Region Error]	Disc region code is not compatible with unit.	Use disc with proper region code.
	[Bad Disc]	Disc is inserted upside down.	Insert disc with label side up.
Cannot insert disc.		Disc already inside unit.	Eject current disc and insert new one.

SPECIFICATIONS ZE-NC3141D

3D High-Definition navigation system
TMC and TMC Pro receiver
External GPS antenna
- 8 GB internal flash memory with map data for 43 Eastern and Western European countries and Premium POI database
- Graphical user interface and voice guidance in 28 different languages
- 2D or 3D map view with auto-zoom and display of 3D terrains and 3D landmarks
- Eco and Smart Route Planning, Outlook address import, Real Junction View and Real Signpost rendering etc.
Text to Speech function

PARROT BLUETOOTH HANDS-FREE MODULE

• Synchronization of up to 1'000 contacts with max. 5 telephone numbers per contact
• Alphabetical search function for contacts
• Internal and external microphone
• Future-proof upgradable Bluetooth firmware

MULTIMEDIA PLAYER

DVD loader
- USB 2.0 port (via Media-Link box)
- SD/SDHC card reader (up to 32 GB)
Made for iPod/Made for iPhone
- Playback DVD loader: CD, CD-R/RW, MP3, WMA, DVD, DVD±R/RW, DVD-MP3, AVI, Xvid and JPEG
- Playback SD/USB: MP3, WMA, AVI, Xvid, H.264 and JPEG

GENERAL FEATURES

• Intuitive, user friendly HMI in 20 different languages
• 6.5^ / 16.5 cm 16:9 HD TFT-LCD display with 800x480 pixel resolution and touchscreen control
  RDS tuner with 30 preset stations (18 FM/12 AM)
  Multi zone function
• 4 × 50 watts class-D amplifier
• 2 x IR-remote control

A/V-CONNECTIONS

4.1-CH preamp line outputs
2-CH preamp line outputs without volume adjustment
- 2 × composite video outputs (NTSC)
- 1 x A/V-input
- 1 x video input for rear view camera with switching function
- Connectivity for compatible external DVB-T or DAB+ receivers

BRAND/VEHICLE SPECIFIC FEATURES

• Steering wheel remote control integration via CAN
• Driver information system (DIS) integration via CAN (AUDIO information)
• BOSE Soundsystem integration
  Red key illumination

NOTE: SPECIFICATIONS AND DESIGNS OF THIS MODEL ARE NECESSARILY SUBJECT TO CHANGE WITHOUT NOTICE.

ÜBER DIESES HANDBUCH

SETUP: IMPORT/EXPORT SYSTEM SETTINGS

Export System Settings:

Import System Settings:

Update

Update

OK startet Software Update

HINWEIS:

Thank you for purchasing this ZENEC product. It is advisable to keep the original packaging material for any future transporting of the product. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country. This ZENEC product is warranted against defective materials or workmanship for a period of TWO years from date of purchase at retail to the original purchaser.

WARRANTY LIMITATIONS

This warranty does not cover any damage due to:

1. Improper installation, incorrect audio or mains connection(s).
2. Exposure to excessive humidity, fluids, heat sun rays or excessive dirt or dust.
3. Accidents or abuse, unauthorized repair attempts and modifications not explicitly authorized by the manufacturer.

This warranty is limited to the repair or the replacement of the defective product at the manufacturer's option and does not include any other form of damage, whether incidental, consequential or otherwise. The warranty does not cover any transport costs or damages caused by transport or shipment of the product. Warranty work will not be carried out unless this warranty certificate is presented fully completed with model, serial number, purchaser's address, purchasing date and dealer stamp together with the original sales slip!

2 JAHRE GARANTIE

Serial number:
Date of purchase:
Your name:
Your address:
City:
State: ZIP or postal code:
Country:

Dealer's address & stamp

RoHS

COMPLIANT

2002/95/EC

The packing material of this item and the finished product contained inside are fully compliant with RoHS directive. Halogenated flame retardants are not used in any of the plastic injection parts of the product, nor for the printed circuit boards.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual party rights of Rovi corporation. Reverse engineering and disassembly are prohibited.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Parrot S.A. is under license. Other trademarks and trade names are those of their respective owners.

All Rights reserved. The Parrot trademarks appearing on this giftbox artwork are the sole and exclusive property of Parrot S.A. All the others trademarks are the property of their respective owners and are used under license by Parrot S.A.

"Made for iPod" and "Made for iPhone" mean that an electronic product has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this product with iPod or iPhone may affect wireless performance.
