Product type	Decorative pool fountain
Brand	Uniprodo
Model	UNI_WATER_54
Rated voltage	12 V / 50 Hz
Rated power	24 W
Protection rating	IP44
Protection class	II
Dimensions (L x D x H)	35 x 35 x 51 mm
Weight	4.8 kg
Electrical supply	12 V / 50 Hz transformer for pump and LED
Intended use	Decorative waterfall for pond, stream, or self-contained basin
Lighting	LED with included power adapter
Connection	Water outlet for hose to pump (not included)
Maintenance	Disconnect before cleaning, soft cloth and non-corrosive cleaner
Electrical safety	Use an RCD outdoors, do not touch with wet hands
Repairability	Repairs by authorized service only, original parts
Compliance	CE marking, applicable safety standards
Recycling	Device to be recycled via WEEE scheme, do not throw in household waste
Delivery	Fountain and LED adapter, pump and hose not included

Frequently Asked Questions - UNI_WATER_54 Uniprodo

How do I install my Uniprodo UNI_WATER_54 pool fountain?

To install your fountain, assemble the unit as shown in the manual. Connect a water hose to the water outlet leading to the pump (pump and hose not included). Connect the pump to the reservoir, then plug in the LED lighting power supply and the transformer. Make sure all connections are watertight and comply with electrical standards.

Which pump should I use with the UNI_WATER_54 model?

The manual states that the water pump is not included. You must choose a pump suitable for the fall height of your waterfall and the desired flow rate. Connect the pump hose to the fountain's water inlet (indicated by letter B in the diagram).

Can I use the fountain without LED lighting?

Yes, the LED lighting is optional. You can connect only the pump. The power adapter for the LED is provided, but you can choose not to connect it if you do not want the lighting.

How do I clean the Uniprodo UNI_WATER_54 fountain?

Before any cleaning, disconnect the device. Use a soft cloth and a non-corrosive cleaner. Avoid sharp objects, metal brushes, solvents, and harsh chemicals that could damage the surface. Rinse with clean water if necessary.

What safety precautions should I take for the electrical installation?

Follow these instructions: the plug must match the outlet, do not touch the device with wet hands, use an extension cord suitable for outdoor use if necessary, and install a residual current device (RCD) if the environment is damp. Always disconnect the power supply before any intervention.

Where should I place the fountain in my garden?

The fountain is designed to create a decorative waterfall. You can integrate it into a pond, a stream, or a self-contained water feature. Make sure the support is stable and the water reservoir is sufficient to feed the pump.

What should I do in case of a malfunction?

If the device does not work properly, turn it off immediately and contact the manufacturer's support service. Do not attempt to repair it yourself; only an authorized service center is authorized to perform repairs, with original spare parts.

How should I store the fountain in winter?

Disconnect the device, clean it, then store it in a dry, cool place away from moisture and direct sunlight. Protect it from frost if possible.

Does the fountain consume a lot of energy?

The rated power is 24 W, which is relatively energy-efficient. It operates on 12 V with a transformer, which reduces electrical risks.

What is the noise level of the fountain?

The device is designed to minimize noise thanks to technological advances. The noise depends mainly on the pump used. We recommend a high-quality pump for quiet operation.

USER MANUAL UNI_WATER_54 Uniprodo

UNI_WATER_37

UNI_WATER_42

UNI_WATER_54

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Water spillway	Water spillway
Model	UNI_WATER_36	UNI_WATER_37
Rated voltage [V~] / Frequency [Hz]	12 / 50	12/50
Rated power [W]	24	24
Protection rating IP	IP44	IP44
Protection class	II	II
Dimensions [Width x Depth x Height; mm]	45 x 50 x 60	35 x 60 x 76
Weight [kg]	6.4	8
Parameter description	Parameter value
Product name	Water spillway	Water spillway
Model	UNI_WATER_42	UNI_WATER_54
Rated voltage [V~] / Frequency [Hz]	12 / 50	12 / 50
Rated power [W]	24	24
Protection rating IP	IP44	IP44
Protection class	II
Dimensions [Width x Depth x Height; mm]	33 x 60 x 40	35 x 35 x 51
Weight [kg]	4.9	4.8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the:

Water spillway.

2.1. Electrical safety

Applies to the power supply

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Do not touch the device with wet or damp hands.
c) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
d) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.

c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO 2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

b) Before adjusting, replacing accessories, or storing the appliance, unplug the appliance from the power source. This will decrease the possibility of accidentally switching it on.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not move, adjust or rotate the device in the course of work.
i) Clean the device regularly to prevent stubborn grime from accumulating.
j) Do not cover the air intake and outlet.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed to create a decorative waterfall feature in a garden. The garden waterfall can be integrated into ponds, streams, or standalone water features.

The user is liable for any damage resulting from unintended use of the device.

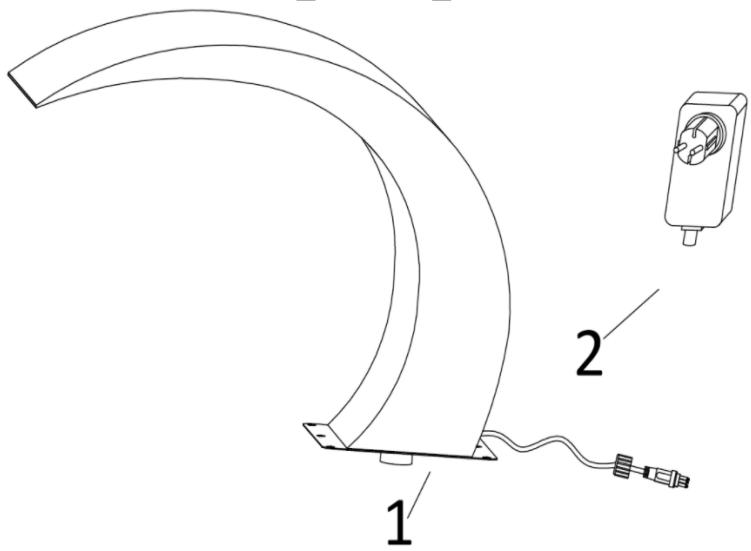

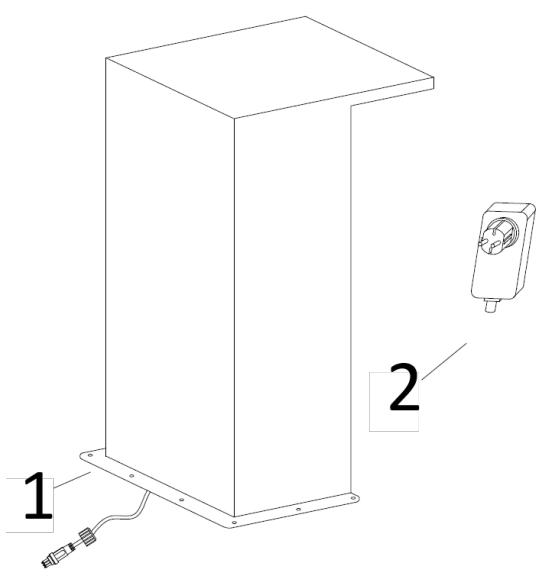

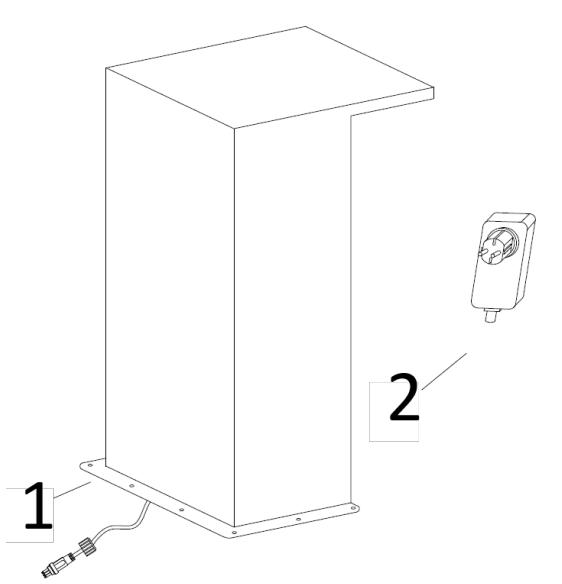

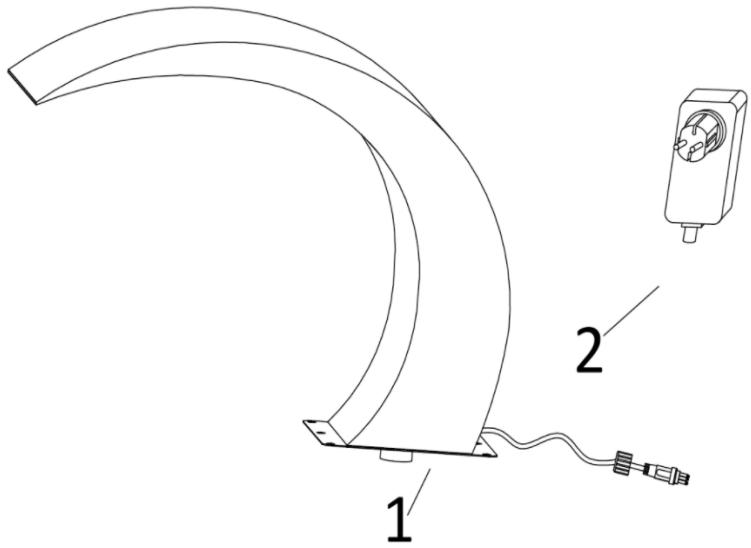

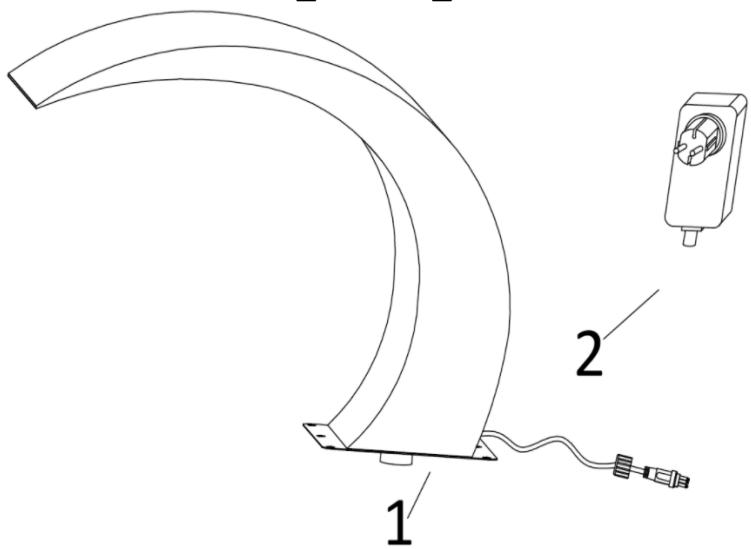

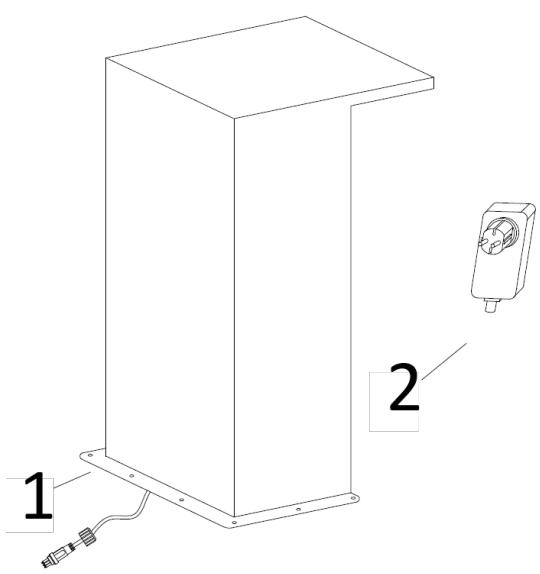

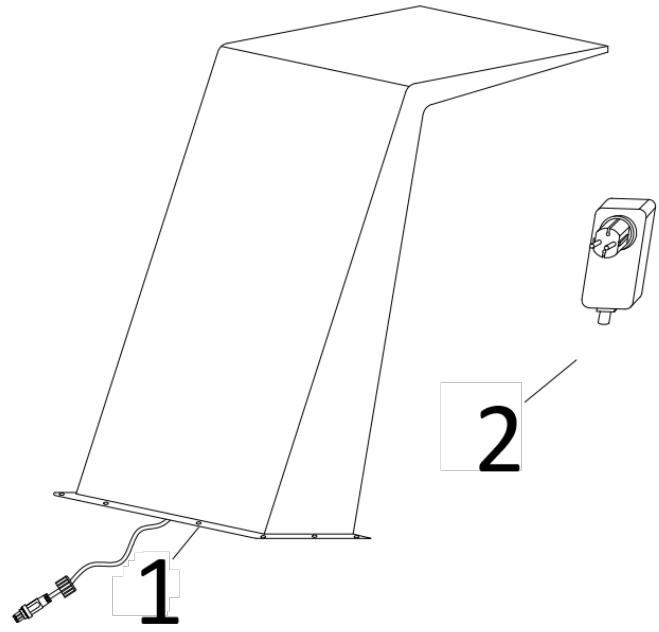

3.1. Device description

UNI_WATER_36

UNI_WATER_37

UNI_WATER_42

UNI_WATER_54

1 Waterfall
2 Power adaptor for LED

3.2. Assembling the device/Device use

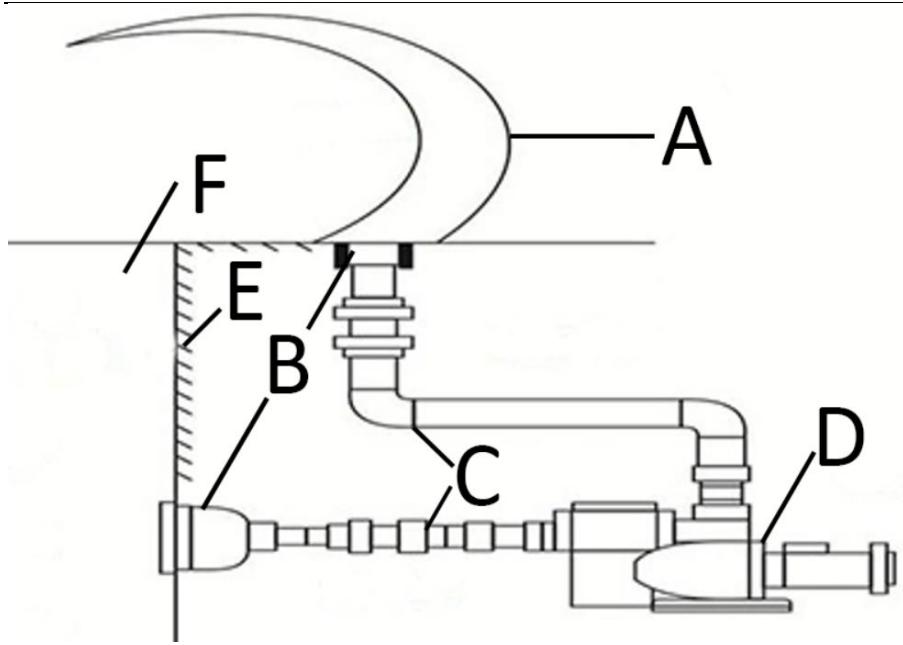

Mount the unit as required (an example mounting is shown in the figure below).

Connect a water pipe to the water outlet leading to the water pump (water pipe and pump not included in the scope of delivery). Connect the water pump with a pipe to the tank as shown below. Connect the lighting supply. Plug the transformer and water pump to your local power supply.

When finished working, disconnect the power supply to the pump and the power supply to the lighting

A Waterfall

B Water inlet

C Water pipe

D Water pump

E Wall

F Water tank

3.3. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) The device must be regularly inspected to check its technical efficiency and spot any damage.
e) Use a soft cloth for cleaning.

f) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

g) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

UNI_WATER_37

UNI_WATER_42

UNI_WATER_54

1 Wodospad
2 Zasilacz do LED

UNI_WATER_37
UNI_WATER_42

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

UNI_WATER_37

UNI_WATER_42

UNI_WATER_54

1 Foss
2 Strømadapter for LED

UNI_WATER_54

UNI_WATER_54

UNI_WATER_54

For the disposal of the device please consider and act according to the national and local rules and regulations.
