Product type	LED grow light for plants
Brand	Hillvert
Model	HT-WEDGE-100A
Energy efficiency class	A
Energy consumption	87 kWh/1000 h
Supply voltage	230 V ~ / 50 Hz
Rated power	90 W
LED type	2835 (full spectrum)
Number of LEDs	136
Main functions	Blue-red full spectrum lighting to stimulate plant growth
Lighting angle	120°
PPFD	903 µmol/m²/s at 30 cm
Wavelength	380 to 780 nm (blue-red light)
LED lifespan	50,000 h
Dimensions (L x D x H)	160 x 240 x 45 mm
Weight	1.4 kg
Operating ambient temperature	-20 to +40 °C
Operating ambient humidity	≥ 95 %
Protection class	Class I
Protection rating	IP20
Use	Indoor only
Maintenance and cleaning	Disconnect before cleaning, allow to cool, wipe with a soft cloth, never immerse
Safety	Do not look at the light without protection, do not use in a humid environment
Spare parts and repairability	Repair only by the manufacturer's after-sales service with original parts
Disposal	Separate collection at a recycling center for electrical and electronic equipment

Frequently Asked Questions - HT-WEDGE-100A Hillvert

What is the power consumption of the HT-WEDGE-100A?

The energy consumption is 87 kWh/1000 h, i.e. a rated power of 90 W. It is classified as energy efficiency class A.

What are the dimensions and weight of this grow light?

The dimensions are approximately 160 x 240 x 45 mm (L x D x H) and its weight is approximately 1.4 kg.

Is this lamp suitable for growing plants indoors?

Yes, it is designed to stimulate plant growth indoors thanks to a full blue-red spectrum from 380 to 780 nm. It must not be used as domestic lighting.

What is the protection rating of the lamp?

The lamp has a protection rating of IP20. It must therefore be installed away from moisture and water splashes. Do not use it outdoors or in a damp room.

How do I install the HT-WEDGE-100A lamp?

Securely mount the lamp on a support using mounting elements, plug the power cord into a grounded outlet, then remove the protective film. Make sure the outlet is accessible and keep a distance of at least 10 cm around the device.

How do I clean and maintain this lamp?

Unplug the lamp and allow it to cool before any cleaning. Use a soft cloth without caustic products. Never immerse the device in water or use a water jet.

Can the device be repaired by yourself?

No, any repair must be carried out by the manufacturer's after-sales service with original parts to guarantee safety. Do not disassemble the device yourself.

What are the risks associated with use?

The LEDs emit intense light. Do not look at it without appropriate safety glasses. Follow electrical safety instructions, avoid water and humid environments.

What is the lifespan of the LEDs?

The LEDs have a lifespan of 50,000 hours. The lamp must be used at a temperature between -20 °C and +40 °C and a relative humidity of at least 95%.

How do I dispose of this lamp at the end of its life?

Do not throw it away with household waste. Take it to a collection and recycling center for electrical and electronic equipment to allow the materials to be recycled.

USER MANUAL HT-WEDGE-100A Hillvert

Parameter description	Parameter value
Product name	LED PLANT GROW LIGHT
Model	HT-WEDGE-50A	HT-WEDGE-50AP	HT-WEDGE-100A	HT-WEDGE-100AP
Energy efficiency class	A
Energy use [kWh/1000h]	44		87
Supply voltage [V~]/ Frequency [Hz]	230/50
Rated power [W].	45		90
Safety class	I
IP code	IP20
Lamp dimensions (with legs sticking out) [Width x Depth x Height; mm]	130x250 x45		160x240 x45
Weight [kg]	120		140
Type of LED diodes	2835 (full spectrum)
Number of LEDs	68		136
Illumination angle [o].	120
PPFD	438 umol/m2/s@30 cm		903 umol/m2/s@30 cm
Wavelength [nm]	380~780 (blue-pink light)
LED Service Life [h]	50000
Ambient work temperature [°C]	-20 ~ +40
Ambient work humidity [%]	≥95

1. GENERAL DESCRIPTION

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

LEGEND

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER!Applicable to the given situation (general warning sign).
	Wear protective goggles.
	ATTENTION! Electric shock warning!
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details, it may differ from the actual product.

2. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term „unit“ or „product“ in the warnings and in the description of the instructions refers to the LED PLANT GROW LIGHT.

2.1. ELECTRICAL SAFETY

a) The plug of this unit must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Do not touch the unit with wet or damp hands.
c) Do not use the cord in an unintended manner. Never use it to carry the unit or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
d) If you cannot avoid using the unit in a wet environment, use a residual current unit (RCD). Using an RCD reduces the risk of electric shock.
e) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.

EN

f) To avoid electric shock, do not immerse the cable, plug, or unit itself in water or other liquid. Do not use the unit on wet surfaces.
g) CAUTION - THREAT TO LIFE! When cleaning or using the unit, never immerse it in water or other liquids.
h) Do not allow the machine to get wet. Risk of electric shock!

2.2. SAFETY IN THE WORKPLACE

a) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
b) Only the manufacturer's service department may repair the unit. Do not carry out repairs yourself!
c) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
d) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
e) Use the appliance in a well-ventilated area.
f) Check the condition of the safety stickers regularly. Replace them if they are illegible.
g) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
h) Keep the packaging and small assembly parts out of the reach of children.
i) Keep the unit away from children and animals.
j) When using this unit together with other units, also follow the other instructions for use.

REMEMBER! When using the device, protect children and other bystanders.

2.3. PERSONAL SAFETY

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) Use personal protective equipment as required for working with the device, specified in section 1 (Legend). The use of correct and approved personal protective equipment reduces the risk of injury.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. SAFE DEVICE USE

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.

b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) When operating the device, do not look into the light emitted by the device without suitable protective glasses.
o) Install the device in a place protected from moisture, e.g. condensing water.
p) The device is not intended to illuminate living quarters. Use only as a light source that additionally stimulates plant growth.
q) Do not use sprinklers or other water systems when operating the device.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. RULES OF USE

The product is designed to illuminate the plants and thus stimulates their growth.

The user is responsible for any damage resulting from misuse.

3.1. PREPARATION FOR OPERATION POSITIONING OF THE UNIT

The ambient temperature must not exceed 40° C and ambient humidity should not exceed 95%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always keep the device out of reach of children and persons with reduced mental, sensory or intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE UNIT

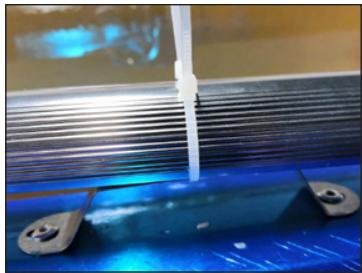

1. Securely fasten the lamp to the outer component, e.g. using clamps, etc. mounting elements.

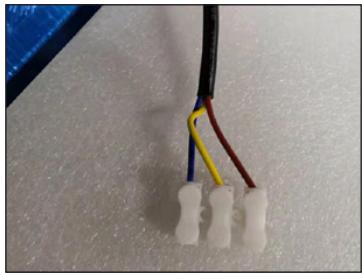

1. Connect the power cord to the power source, e.g. with a cord with a suitable plug. The device must be grounded!

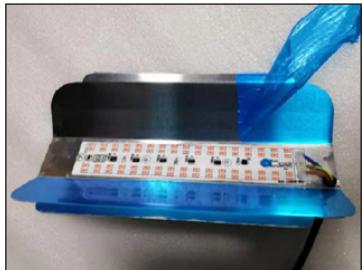

1. Remove the protective foil from the device casing.

1. The device is ready for use.

EN

3.2. CLEANING AND MAINTENANCE

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Perform regular inspections of the unit checking technical fitness and any damages.
f) Use a soft cloth for cleaning.
g) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
h) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

DANE TECHNICZNE

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.
