Product type	Pull-up bar / strength training station
Brand	Cecotec
Model	Drumfit Pullups 4000
Reference	07189
Dimensions	106.7 x 108.5 x 224 cm
Weight	36.6 kg
Maximum user weight	120 kg
Power supply	None (mechanical equipment)
Main functions	Allows you to perform pull-ups, dips, and bodyweight strength exercises
Intended use	Exclusively for home use
Materials	Steel, foam grips, padding
Assembly	Manual assembly required, screws included
Safety	Use on a flat, stable surface, keep children away
Care and cleaning	Clean with a mild product, check and tighten the screws regularly
Spare parts	Available through the official Cecotec after-sales service
Warranty	Compliant with current regulations
Device class	Class H
Manufacturing	Made in China, designed in Spain
Recycling	Dispose of separately from municipal waste
Box contents	Tubes, bars, grips, padding, screws, instruction manual

Frequently Asked Questions - Drumfit Pullups 4000 CECOTEC

What is the maximum weight supported by this equipment?

The maximum user weight is 120 kg.

How to assemble the Drumfit Pullups 4000?

Follow the manual's steps: first attach the lower part, then the upper part, using the provided bolts and nuts. Make sure to tighten all screws before use.

What exercises can I do with this pull-up bar?

You can do pull-ups, dips and various bodyweight strength exercises thanks to the bars and grips.

How to clean and maintain the device?

Use a mild cleaning product and avoid chemical solvents. Regularly check that all parts are properly tightened.

Is this equipment suitable for professional use?

No, it is designed for exclusively domestic use. Do not use it in businesses or for therapeutic purposes.

What is the warranty on this product?

The warranty complies with current regulations. If you have any issues, contact the official Cecotec after-sales service at [phone].

Is the device delivered assembled?

No, it requires manual assembly. The manual provides all instructions and the necessary screws.

What are the dimensions of the equipment?

The dimensions are 106.7 x 108.5 x 224 cm and it weighs 36.6 kg.

What to do if a part is missing or defective?

Contact the official Cecotec after-sales service to get spare parts. Do not use the device until the issue is resolved.

Can I use this pull-up bar outdoors?

It is recommended not to use it outdoors. Install the device on a solid, flat surface, indoors, with a clear space of at least 0.6 m around.

USER MANUAL Drumfit Pullups 4000 CECOTEC

DRUMFIT

1. Parts and components 33
2. Before use 33
3. Product assembly 34
4. Cleaning and maintenance 35
5. Information on exercising 35
6. Technical specifications 36
7. Recycling 36
8. Technical support and warranty 36
9. Copyright 36

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Read the entire manual before assembling and using the machine. The product will only be safe if it is properly assembled, cared for and used correctly. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Before beginning an exercise programme, it is recommended that you consult your doctor if you have any adverse health

or physical condition that may pose a safety risk. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.

• The safety level of the machine can be only maintained through regular examination for damage and/or signs of wear and tear.
• It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Use the pull-up tower on a solid, even surface with a protective cover for your floor or carpet.
• This machine can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
• Do not allow children under 14 to use the pull-up tower and keep them away from it.
• Keep children and animals away from the assembling area, as small parts could cause risk of suffocation if swallowed.
• Maximum user weight: 120 kg.
• Check that the screws and nuts are securely fastened before using the pull-up tower. The safety level of the machine can be only maintained through regular examination for damage and/or signs of wear and tear.

• Always use the pull-up tower as indicated in this instruction manual. If you find any defective piece when assembling or testing the machine, or if it makes unusual noise during use, stop using it immediately and contact the official Cecotec Technical Support Service. Do not use the pullup tower until the problem has been solved.

• Any misuse or non-compliance with these instructions voids the warranty and the manufacturer's liability.

• Be aware of your body signals. Incorrect or excessive exercise can deteriorate your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, dizziness, or nausea. If you experience any of these conditions, you should consult your physician before continuing with your training programme.
• Care must be taken when lifting or moving the machine so as not to injure your back.
• This product is intended for household use only. Do not use it in shops, institutions, or for therapeutic purposes. It is not recommended for outdoor use.
• Follow the recommended warm-up and stretching exercises before using the equipment to exercise.
• Only one person at a time should use the pull-up tower.
• Do the exercises correctly, otherwise your health may be seriously impaired.
• If repairs are required, please consult your supplier for further information or contact the official Cecotec Technical Support Service.
• The machine must be installed on a properly levelled and stable base.
• The free area around the machine shall not be less than 0.6 m larger than the training area in the directions from which the equipment is accessed.
• Keep the pull-up tower away from excessive humidity and dust.
• Wear suitable clothes when using the pull-up tower. Avoid wearing baggy clothing, as it may get stuck or hinder movement. It is advisable to wear sports shoes.
• Do not place any sharp objects around the pull-up tower.

INSTRUCTIONS DE SÉCURITÉ

1. Bottom tube
2. Bottom base connection tube
3. Lower vertical tube
4. Mid-height grip
5. Support bar
6. Upper base connection tube
7. Upper vertical tube
8. Upper grip
9. Plate
10. Arm pad
11. Mid-height grip handle
12. Horizontal upper tube handle
13. Cover for bottom tube enclosure
14. Cover for upper tube enclosure
15. Hexagonal bolt M10X70 mm
16. Hexagonal bolt M10X65 mm
17. Carriage bolt M8X85 mm
18. Hexagonal bolt M8X65 mm
19. Washer M8
20. Washer M10
21. Nylon lock nut M8
22. Nylon lock nut M10

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any

piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content:

1. Bottom tube (x2)
2. Bottom base connection tube
3. Lower vertical tube (x2)
4. Mid-height grip (x2)
5. Support bar
6. Upper base connection tube
7. Upper vertical tube (x2)
8. Upper grip
9. Plate (x2)
10. Arm pad (x2)
11. Mid-height grip handle (x8)
12. Horizontal upper tube handle (x2)
13. Cover for bottom tube enclosure (x4)
14. Cover for upper tube enclosure (x2)
15. Hexagonal bolt M10X70 mm (x10)
16. Hexagonal bolt M10X65 mm (x12)
17. Carriage bolt M8X85 mm (x2)
18. Hexagonal bolt M8X65 mm (x4)
19. Washer M8 (x6)
20. Washer M10 (x44)
21. Nylon lock nut M8 (x2)
22. Nylon lock nut M10 (x22)
23. Instruction manual

3. PRODUCT ASSEMBLY

Caution: make sure all nuts and bolts are tightened securely before training.

A. Bottom half assembly

1. Fix the four covers for bottom tube enclosure (13) to the bottom tube (1).
2. Fix the bottom base connection tube (2) to the bottom tube (1), by using four hexagonal bolts M10X65 mm (16), eight washers M10 (20) and four nylon lock nuts M10 (22).
3. Fix the lower vertical tube (3) to the bottom tube (1), by using four hexagonal bolts M10X65 mm (16), eight washers M10 (20) and four nylon lock nuts M10 (22).
4. Fix the upper base connection tube (6) to the lower vertical tube (3), by using four

hexagonal bolts M10X65 mm (16), eight washers M10 (20) and four nylon lock nuts M10 (22).

1. Fix the support bar (5) to the bottom tube (1) and lower vertical tube (3), by using four hexagonal bolts M10X70 mm (15), eight washers M10 (20) and four nylon lock nuts M10 (22).

Fig. 2

B. Upper half assembly

1. Fix the upper vertical tube (7) to the lower vertical tube (3).
2. Fix the mid-height grip (4) and the plate (9) to the upper vertical tube (7) and lower vertical tube (3), by using four hexagonal bolts M10X70 mm (15), eight washers M10 (20) and four nylon lock nuts M10 (22).
3. Fix the upper grip (8) to the upper vertical tube (7), by using two carriage bolts M8X85 mm (17), two washers M8 (19) and two nylon lock nuts M8 (21).
4. Fix the arm pad (10) to the mid-height grip (4), by using four hexagonal bolts M8X65 mm (18) and four washers M8 (19).

Fig. 3

4. CLEANING AND MAINTENANCE

• Always check and tighten all parts of the product before using the equipment.
• Use a mild cleaning agent to clean the equipment and avoid chemical solvents.

5. INFORMATION ON EXERCISING

A proper workout should consist of the following three phases:

• Warm-up: consists of a session of stretching and low-intensity exercise lasting 5 to 10 minutes. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
• Training: consists of 20 to 30 minutes of exercise. (Note: during the first few weeks of exercise do not keep your heart rate high for more than 20 minutes).
• Cool-down: consists of 5 to 10 minutes of stretching exercises. This will increase the flexibility of your muscles and will help prevent injuries.

Never start a training session without warming up. Before starting each training session, it is advisable to prepare the body for more intense exercise by warming up and stretching the muscles, increasing circulation and pulse, and supplying more oxygen to the muscles.

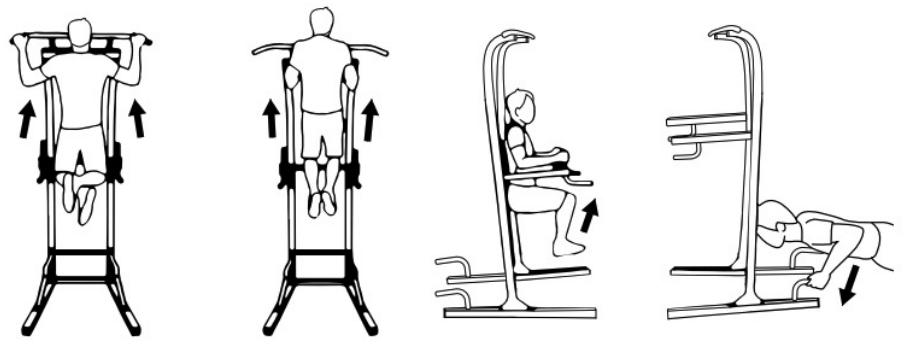

Some of the exercises that can be performed with this apparatus are shown in Fig. 4.

6. TECHNICAL SPECIFICATIONS

Product reference: 07189

Product: Drumfit PullUps 4000

Maximum user weight: 120 kg

Class H

Dimensions: 106.7 x 108.5 x 224

Weight: 36.6 kg

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. RECYCLING

The product must be disposed of separately from household waste.

When this product reaches the end of its useful life, it should be taken to a suitable place for recycling. For detailed information on the most appropriate way to dispose of the product, the consumer should contact the local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys./Obr.3
Fig./Img./Abb./Afb./ Rys./Obr.2

Fig./Img./Abb./Afb./ Rys./Obr.4
