USER MANUAL Ready Warm 5620 Space CECOTEC

Ready Warm White

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente en lugares abrigados o para una utilización puntual. EN · This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use.

ÍNDICE

1. Parts and components / 04
2. Safety instructions /11
3. Product Assembly / 12
4. Before use / 12
5. Operation / 13
6. Cleaning and maintenance / 13
7. Technical Specifications / 13

INDICE

4. ANTES DE USAR

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
- This appliance is intended for household use only. Do not use for industrial or commercial purposes.
- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
- Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.
• Do not operate in rooms smaller than 5 m2.
- Do not cover the air inlet or outlet openings while the appliance is operating. Keep a minimum safety distance of 1 metre from the appliance to any object or wall on each side, back and in front.
• Do not place the appliance immediately below a power socket.
- The product's surface will reach high temperatures during operation. Avoid skin from getting in contact with it and use the handle to move it.
- Any reparation that requires opening the oil tank must be carried out by a qualified person. Contact the official Technical Support Service of Cecotec if leakage is detected.
- Follow the special regulations concerning the disposal of oil when the device is going to be disposed of.
- Avoid the use of an extension cord as this may overheat and cause a risk of fire.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
- This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
- Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

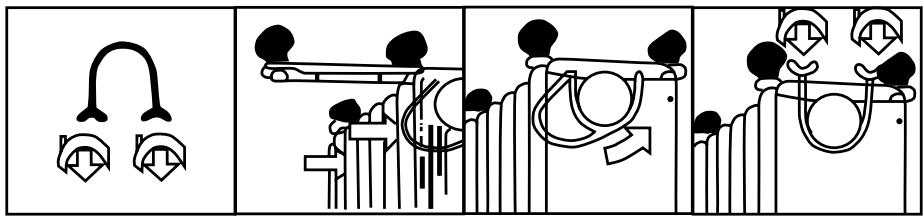

3. PRODUCT ASSEMBLY

Place the radiator upside-down on a stable surface where it cannot fall and follow the below instructions:

1. Unscrew the wing nuts from the u-shaped bolt.
2. Introduce the bolt between the first and second fin.
3. Introduce the bolt's ends into the holes of the castor-mounting plate.
4. Screw the wing nuts back to the bolt and tight them in order to fix the castor mounting plate to the radiator.

1. Repeat these steps on the other part of the radiator to assemble the back castors.

4. BEFORE USE

• Place the radiator on a flat, stable surface.
  • Set the power switch and temperature knob to 0.
  • Plug the appliance to a properly-earthed power outlet.

5. OPERATION

1. Turn the temperature knob clockwise to the MAX position.
2. Select the heating power level by turning on the power switch:

• Switch I: low-power heating.
• Switch II: medium-power heating.
• Both switches at the same time: maximum-power heating.
3. Turn switches and the knob off and remove disconnect it from the power supply to disconnect completely the device.

Thermostat

• When the room has reached the desired temperature, turn the temperature knob anticlockwise until the light indicator turns off. When the room temperature falls below this temperature, the device will switch on automatically until the set temperature is reached again.
  • To change the set temperature, turn the temperature knob clockwise to increase it or anticlockwise to decrease it.

Overheat protection

- The device includes a safety system which automatically turns off the radiator when it gets excessively hoy.

6. CLEANING AND MAINTENANCE

• Always turn off, unplug and allow the appliance to cool down before cleaning.
• Do not use abrasive scouring pads, powders or cleaners to clean the product.
- Use a soft, dampened and clean cloth to clean the product's outer housing. Be careful not to touch the heating elements.
- If the heater is not going to be operated for a long period of time, store it in a dry and safe place where it is protected from dust.

WARNING: do not immerse the appliance in water

7. TECNICAL SPECIFICATIONS

Models and References:

Ready Warm 5600 Space.(05335)

Ready Warm 5620 Space (05344)

1500 W, 220-240 V, 50/60 Hz.

Made in China | Designed in Spain

Models and References:

Ready Warm 5650 Space.(05336)

Ready Warm 5670 Space (05345)

2000 W, 220-240 V, 50/60 Hz.

Made in China | Designed in Spain

Models and References:

Ready Warm 5700 Space.(05337)

Ready Warm 5720 Space (05346)

2500 W, 220-240 V, 50/60 Hz.

Made in China | Designed in Spain

• Disposal of old electrical appliances

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

• TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
  • The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

Information requirement for the electric local space heaters
Model identifier(s): Ready Warm Space Series
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	Model 5600 and 5620: 0,7612Model 5650 and 5670: 0.9134Model 5700 and 5720: 1,0075	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	Model 5600 and 5620: 0,7612Model 5650 and 5670: 0,9134Model 5700 and 5720: 1,0075	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eLSB	N/A	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)
