USER MANUAL PAGE 10EX OKI

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by Oki Data. Copyright 1999 by Oki Data A mericas, Inc. AI] rights reserved. First edition December 1999. Written and produced by the Oki Data Training and Publications Dept. Please address any comments to: Training and Publications Department Oki Data A mericas, Inc. 2000 Bishops Gate Blvd. Mount Laurel, New Jersey 08054 Visit our Web site at: www.okidata.com or e-mail us at comments@ okidata.com OKI Flash SIMM OKI, OKILAN and OKIPAGE are registered trademarks of Oki Electric Industry Company, Ltd.; Marques déposées de Oki Electric Industry Company, Ltd.; Marcas Registradas, Oki Electric Industry Company, Ltd. Microsoft and MS-DOS are registered trademarks and Windows is a registered trademark of Microsoft Corporation in the U. S. and other countries. Adobe, PostScript, and A crobat are trademarks of A dobe Systems Incorporated, which may be registered in certain jurisdictions. Apple, LaserWriter Macintosh, and EtherTalk are registered trademarks of A pple Computers, Inc. Year 2000 Compliance All products currently sold by Oki Data are Year 2000 Compliant. Each product contains information technology that accurately processes date and time data between the years 1999 and 2000, and caries no issue for the September 9, 1999 (9999) programming concern. These products, when used in combination with products purchased from other manufacturers, whose products properly exchange data and time information, will accurately process the date and time. AI future products are committed to meeting the same Year 2000 compliance.

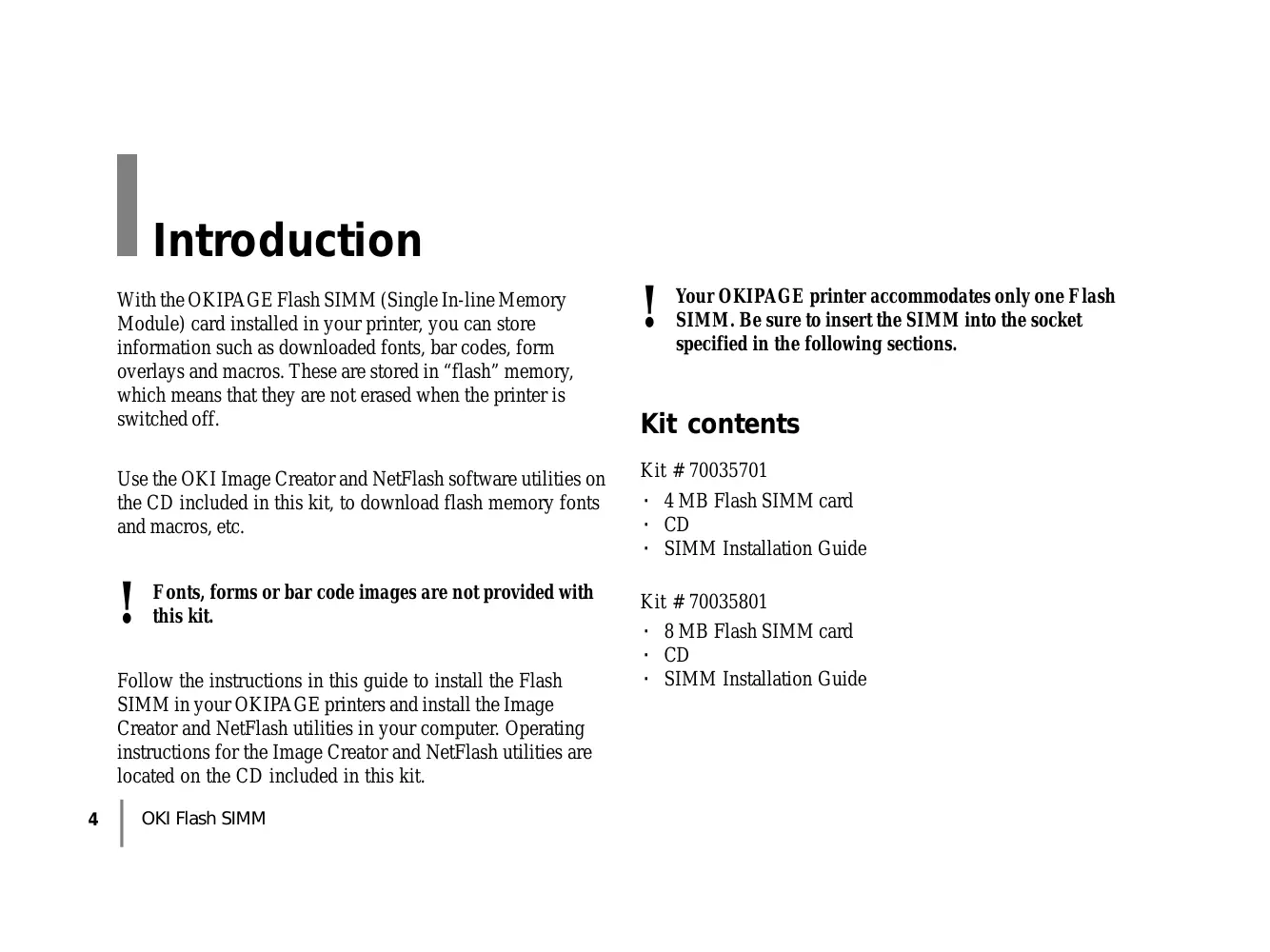

] Introduction With the OKIPA GE Flash SIMM (Single In-line Memory Module) card installed in your printer, you can store information such as downloaded fonts, bar codes, form overlays and macros. These are stored in “flash” memory, which means that they are not erased when the printer is switched off. Use the OKI Image Creator and NetFlash software utilities on the CD included in this kit, to download flash memory fonts and macros, etc. Fonts, forms or bar code images are not provided with © thiskit Follow the instructions in this guide to install the Flash SIMM in your OKIPA GE printers and install the Image Creator and NetFlash utilities in your computer. Operating instructions for the Image Creator and NetFlash utilities are located on the CD included in this kit. OKI Flash SIMM l Your OKIPAGE printer accommodates only one Flash e SIMM.Be sure to insert the SIMM into the socket specified in the following sections. Kit contents Kit # 70035701 + 4 MB Flash SIMM card

Installing Flash Memory in the OKIPAGE: 10i, 10i/n, 10e, 10ex, 12i and Li/n Printers For models listed above, the flash memory SIMM is installed on one of the following optional accessory boards. + 1 MB Memory Expansion Kit (Part #70033101) + RS-232C Serial Interface Kit (Part #00025302) + OKILAN® 310e Network Interface Kit(OKIPAGE 10i only) (Part #70032901) + OKILAN® 310e+ Network Interface Kit (OKIPAGE 12i only) (Part # 70032902) If your printer is not equipped with one of these accessories, you will need to purchase the accessory to install the Flash SIMM in the printer. Expansion sockets are provided on each board included in the option kits. Preparing Your Printer l CAUTION! SIMMs and circuit boards can be damaged e by static electricity and rough handling. Keep the SIMM card and option board in the packaging until you're ready to perform the installation. To avoid damage to the SIMM card, ground yourself by touching the chassis of your computer each time before handling. WARNING! Disconnect printer from power before beginning installation procedure.

1 Tum the printer off and unplug the power cord. 2 Detach the interface cable. 3 If an option board is already installed in your printer, turn the screws counterclockwise, then slide the board out of the printer. Hardware Installation Guide: English

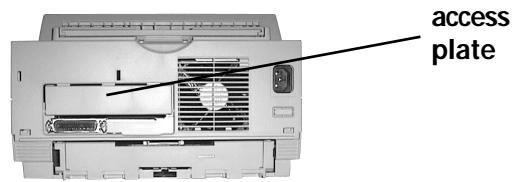

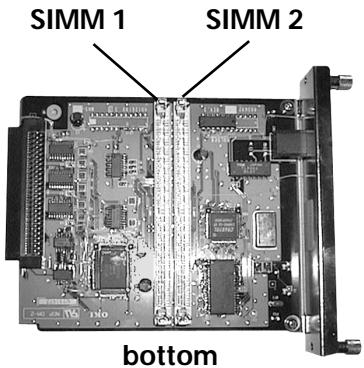

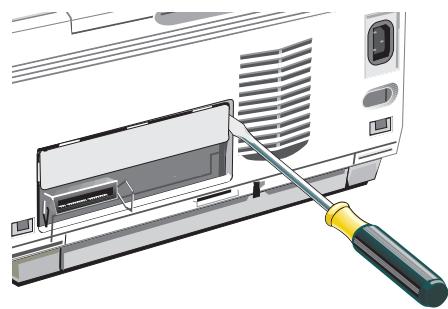

Removing the Access Plate If you areinstalling an option board for the first time: a. Turn the printer around so the rear is facing you. access plate b. Use a screwdriver to pry the plate from the back panel of the printer. OKI Flash SIMM Installing the SIMM Card Install the Flash SIMM card in the SIMM 2 socket on the option board. 1 Place the option board on a flat surface. Locate the SIMM 2 socket. SIMM 2 SIMM 1 2 Remove the SIMM card from its packaging. 3 Hold the SIMM card with the metallic contact edge down, and the notch on the bottom. 4 Insert the metallic contact edge of the SIMM card into the SIMM 2 socket at a 45° angle.

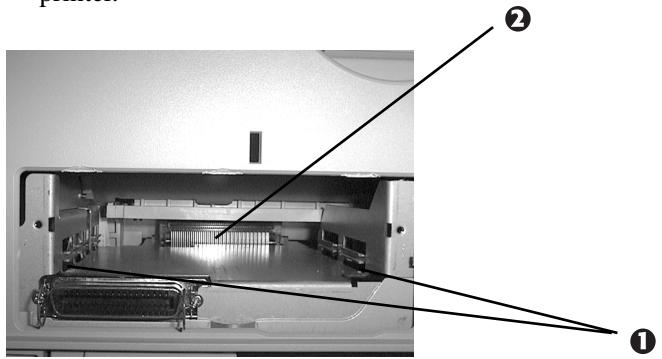

5 Push in until the metallic contacts are fully inserted into the socket. 6 Push the SIMM card forward slightly until it snaps into place. The plastic mount pins should fit into the holes on each end of the SIMM card. Installing the Board 1 Locate the guide rails (1) and edge connector (2) in the printer te en

2 Insert the option board into the printer, making sure that it locates in the guide rails. Slide in the board and push it firmly into place. 3 Tighten the screws. If the screws do not fit, the board may not be properly e seated. Slide the board out and reinstall it. Hardware Installation Guide: English

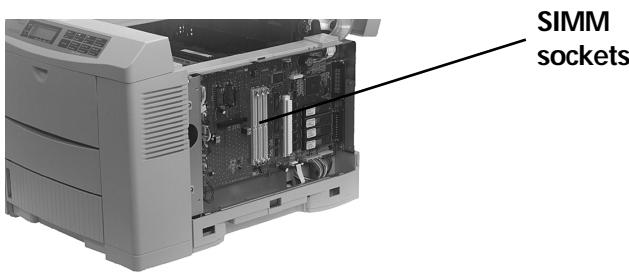

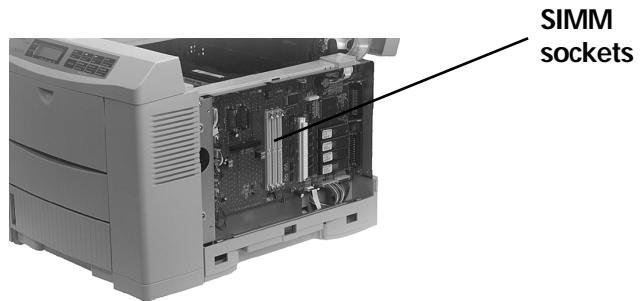

Installing Flash Memory in the OKIPAGE 20, 20DX and 20DXhn Printers SIMM Configurations The OKIPAGE 20/20DX has three slots for installation of optional SIMMS: SIMM sockets 8 | OKI Flash SIMM CAUTION! SIMMs and circuit boards can be damaged by static electricity and rough handling. Keep the SIMM cards and option board in the packaging until you're ready to perform the installation. To avoid damage to SIMMs, ground yourself by touching the chassis of your computer each time before handling.

WARNING! Disconnect printer from power before beginning installation procedure.

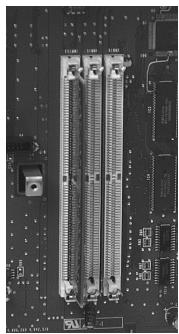

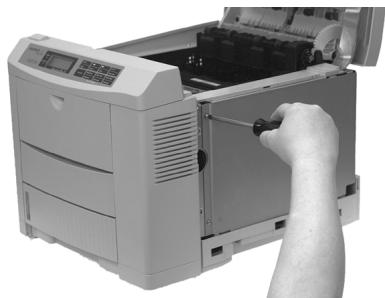

4 Remove and save the two large screws on the right side, 6 Remove and save the two screws on the left of the metal which hold the side panel in place. plate covering the internal board, then pull the plate out about an inch and lift it out. Se" Installing the SIMM Card 5 Pull the side panel out and remove it from the printer. 1° Locate the three SIMM sockets on the board. SIMM sockets Hardware Installation Guide: English 9

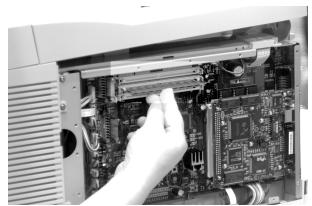

2 Insert the silver metallic contact edge of the SIMM into 4 Insert the tabs on the metal plate into the slots on the the left socket (FSIMM1) at about a 45° angle, with the printer housing, then swing it up into place and replace notched corner of the SIMM at the bottom. Push in until the two mounting screws. the silver contacts are fully inserted into the socket. 10 | OKI Flash SIMM

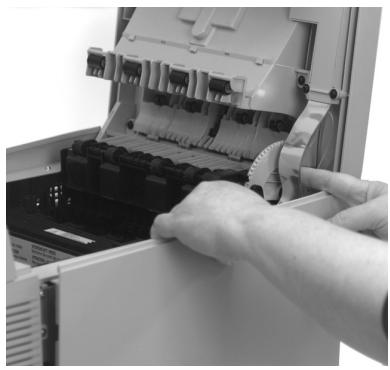

5 Replace the side panel (tabs go in slots): you’Il need to move the cover hinge out of the way before you put the side panel back into place. 6 Secure the panel in place with the two screws. 7 Close the printer cover. Hardware Installation Guide: English

8 Reattach the interface cable and plug the power cord into the power outlet. 12 OKI Flash SIMM

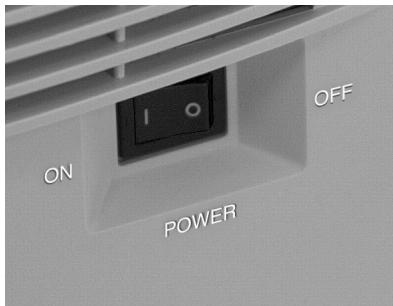

| Installing Flash Installing SIMMs Memory in the Preparation 1 Tum the printer off. OKIPAGE 18, 18n, 24DX and 24DXn Printers l CAUTION! Circuit boards can be damaged by static e electricity and rough handling. Keep board in packaging until you're ready to install it. SIMMs are sensitive to static electricity. To avoid damage, ground yourself by touching the chassis of your computer each time before handling SIMMs. Hardware Installation Guide: English 13

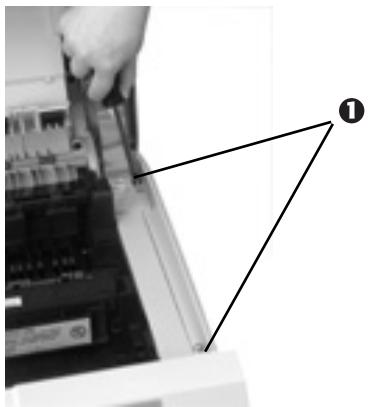

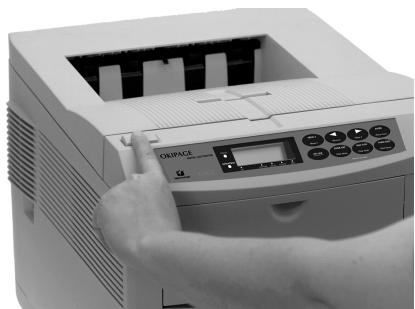

2 Unplug the power cord and detach the interface cable from the back of the printer. 4 Remove and save the two large screws (1) on the right side, which hold the side panel in place. 3 Push the OPEN button, then open the top cover. 14 OKI Flash SIMM

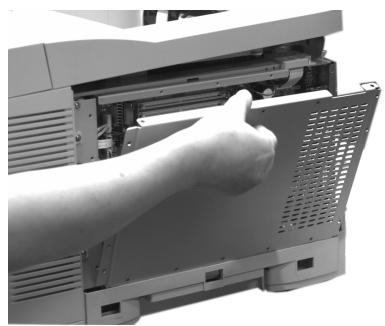

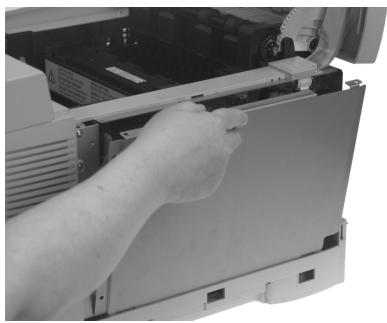

5 Pull the side panel out and remove it from the printer then 6 Remove and save the screws on the metal plate covering close the cover to protect the image drum from light while the internal board, then lift the plate out. you are installing the SIMM.

Hardware Installation Guide: English 15

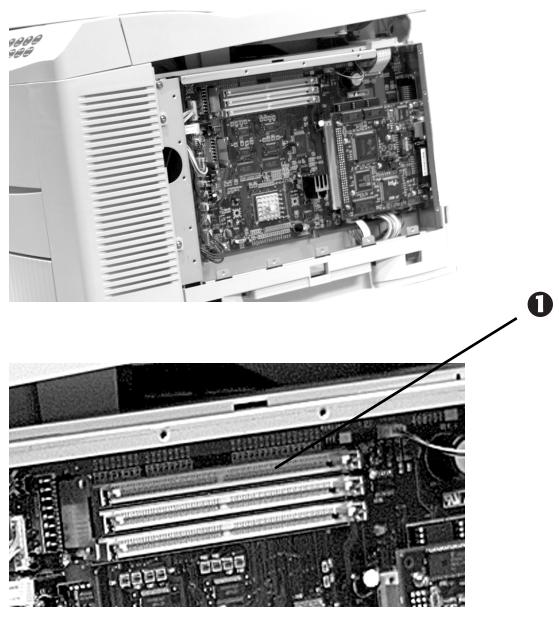

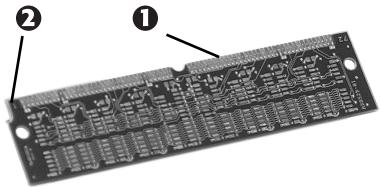

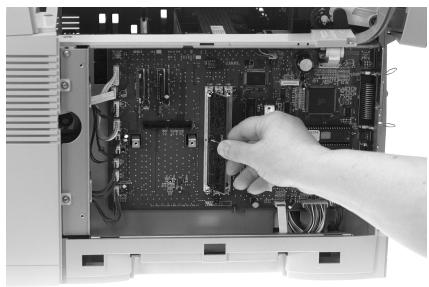

Installing the SIMMs 2 Hold the SIMM with the metallic contact edge (1) toward 1 Locate the SIMM sockets on the board. The top socket (1) the printer and the notched comer (2) to the left. is used for a Flash SIMM. (2) 1) 3 Angle the SIMM down about 45°, then insert the contact edge into the top socket and lift the board until it locks in place. 16 OKI Flash SIMM

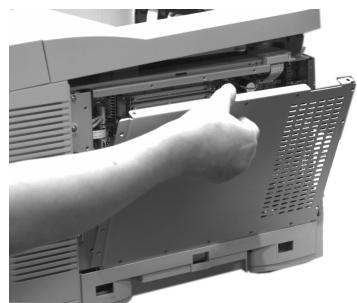

hing the Installation 1 Position the metal plate on the housing and replace the mounting screws.

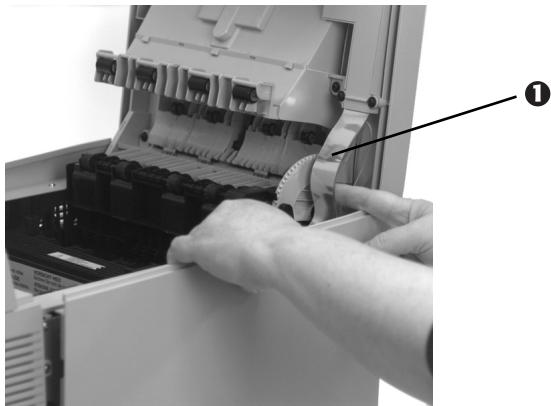

2 Open the cover and replace the side panel (tabs go in slots): you need to move the cover hinge (1) out of the Way. Hardware Installation Guide: English

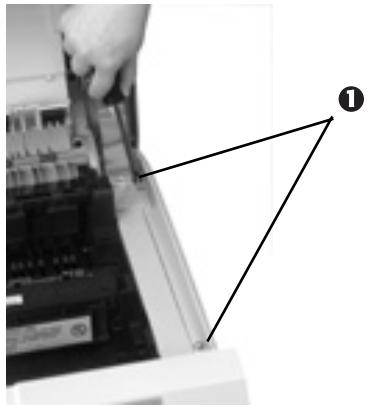

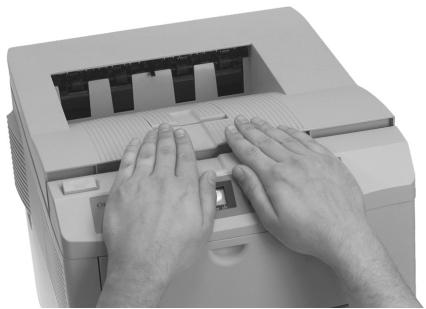

3 Secure the panel in place with the two screws (1). 5 Reattach the PC interface cable and plug the power cord into the power outlet. 4 Close the printer cover. 18 OKI Flash SIMM

| Software Utilities Installation To install the Image Creator and NetFlash utilities: 1 Insert the Flash SIMM Kit CD into your CD-ROM drive. 2 Click Start- Run. 3 Type D:\SETUP (if your CD-ROM drive exists at other than D, use the appropriate letter). 4 Follow the installation instructions. Hardware Installation Guide: English
