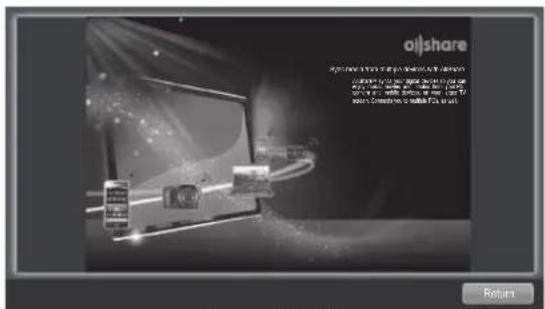

Additional Features	AllShare, ConnectShare Movie, Anynet+ (HDMI-CEC)

Frequently Asked Questions - UN40D6900 SAMSUNG

How do I connect my Samsung UN40D6900 to Wi-Fi?

To connect your TV to Wi-Fi, press the Menu button on the remote, go to Network > Network Settings, select Wireless, and choose your network from the list. Enter your password using the on-screen keyboard. Once connected, the TV will confirm the connection.

What is the VESA mount size for this TV?

The Samsung UN40D6900 is compatible with a 200 x 200 mm VESA wall mount. Use screws specifically designed for this pattern and make sure the mount supports at least 15 kg (the TV's weight).

How do I enable 3D on my TV?

Put on your Samsung 3D active glasses, then press the 3D button on the remote. Choose the 3D mode depending on the source (e.g., 3D Blu-ray or SIMULATE for 2D to 3D conversion). Ensure the glasses are paired with the TV for the best experience.

Why is there no sound from my TV?

Check if the Mute function is enabled and that the volume is not at zero. Verify that any external device is properly connected via HDMI or optical cables. Go to Menu > Sound > Speaker Settings and select TV Speaker. Also ensure the audio output is set to Internal.

How do I connect an external device via HDMI?

Connect the device to one of the 4 HDMI ports on the back or side of the TV. Then press the Source button on the remote and select the corresponding HDMI input. For best picture quality, use a high-speed HDMI cable.

How do I perform a picture reset?

Go to Menu > Picture > Picture Reset and confirm with OK. This will restore all picture settings to factory defaults, which can help resolve color or contrast issues.

How can I update the firmware?

Connect the TV to the internet, then go to Menu > Support > Software Update. Select Update Now to download and install the latest firmware. Alternatively, download the firmware from Samsung's website onto a USB drive and insert it into the TV.

Can I use the TV as a PC monitor?

Yes, you can connect your computer to the TV via HDMI or DVI-to-HDMI cable. Set the TV to the correct source, then adjust the computer's resolution to 1920x1080 for optimal sharpness. Use Game Mode for reduced input lag.

How do I clean the TV screen safely?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. If needed, slightly dampen the cloth with distilled water. Avoid using alcohol, ammonia, or abrasive cleaners that can damage the anti-reflective coating.

How do I access Smart Hub and apps?

Press the Smart Hub button on your remote to launch the Smart Hub interface. From there, you can browse apps, games, and streaming services. To install new apps, go to the Samsung Apps section and select the app you want to download.

USER MANUAL UN40D6900 SAMSUNG

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

BN68-034862-00

[UD600-70]EN58-044950-05102.indb

©

SAMSUNG

SERIES

6500

6900

LED TV

Manual do Usuário

imagine the possibilities

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news bars at the screen bottom etc.), or programs in panorama or 4:3 image format on the screen. Constantly displaying still pictures can cause image burn-in on the LED screen, which will affect image quality. To reduce risk of this effect, please follow the recommendations below:

• Avoid displaying the same TV channel for long periods.
  • Always try to display any image in full screen. Use the TV set's picture format menu for the best possible match.
• Reduce brightness and contrast to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn. Refer to the e-Manual for details.

Securing the Installation Space

Keep the required distances between the TV, the wall, and other objects to ensure proper ventilation. Failing to do so may result in a fire or a problem with the TV caused by an increase in its internal temperature.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

Installation with a stand. Installation with a wall-mount.

•The shape of the stand may vary depending on the model.

Other Warnings

The actual appearance of the TV may differ from the images in this manual, depending on the model.
Be careful when you touch the TV. Some parts can be somewhat hot.

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
The items' colors and shapes may vary depending on the model.
Check that there are no accessories hidden behind or under packing materials when you open the box.

• Remote Control & Batteries (AAA x 2)

- Owner's Instructions

Power Cord
- Cleaning Cloth
• Warranty Card / Safety Guide

AV/Component Adapter AV Adapter Holder-Ring (4EA) Holder-Wire stand

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

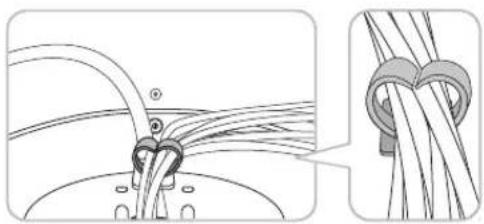

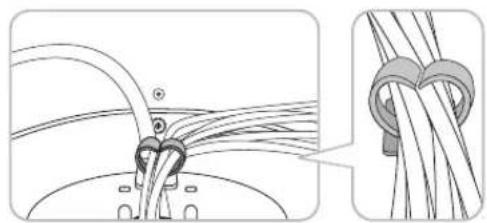

Assembling the Holder-Wire stand

Viewing the Control Panel

The product color and shape may vary depending on the model.

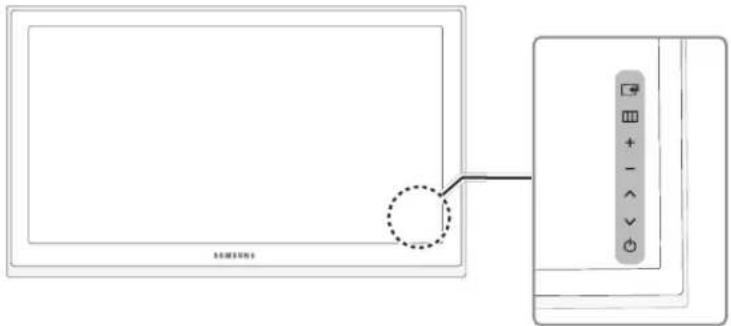

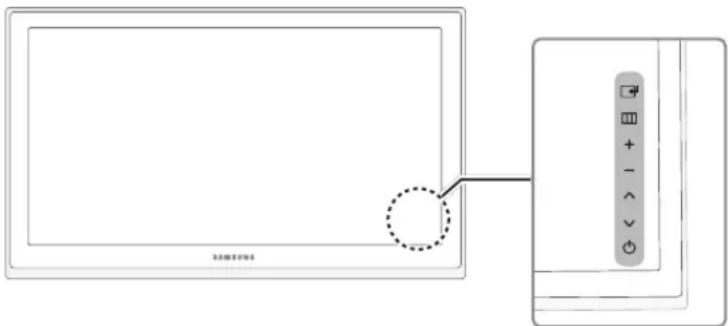

There are control buttons in rear of TV. When you touch the button, control icons appears.
Any object (an electric wire, etc.) near the control panel may cause unintended activation of the OSD.

TV Rear

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

(Source)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your TV's features.

± (Volume)

Adjusts the volume. In the OSD, use the +- buttons as you would use the ◀ and ▶ buttons on the remote control.

◇ (Channel)

Changes the channels. In the OSD, use the ▲▼ buttons as you would use the ▼ and ▲ buttons on the remote control.

(Power)

Turns the TV on or off.

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

Installing the Wall Mount

Preparing before installing Wall-Mount

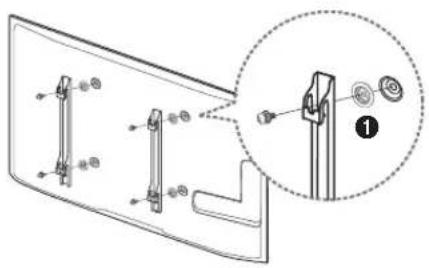

To install a wall-mount from another manufacturer, use the Holder-Ring.

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. We recommend you assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

Standard dimensions for wall mount kits are shown in the table below.

Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard length or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

Our 55" model do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

Do not mount the TV at more than a 15 degree tilt.

•Always have two people mount the TV on a wall.

Product Family	TV size in inches	VESA screw hole specs (A * B) in millimeters	Standard Screw Quantity
LED-TV	19~22 75 X 75		M4
	23~29 200 X 100
	32~40 200 X 200		M846~60 400 X 400
	65~75 600 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

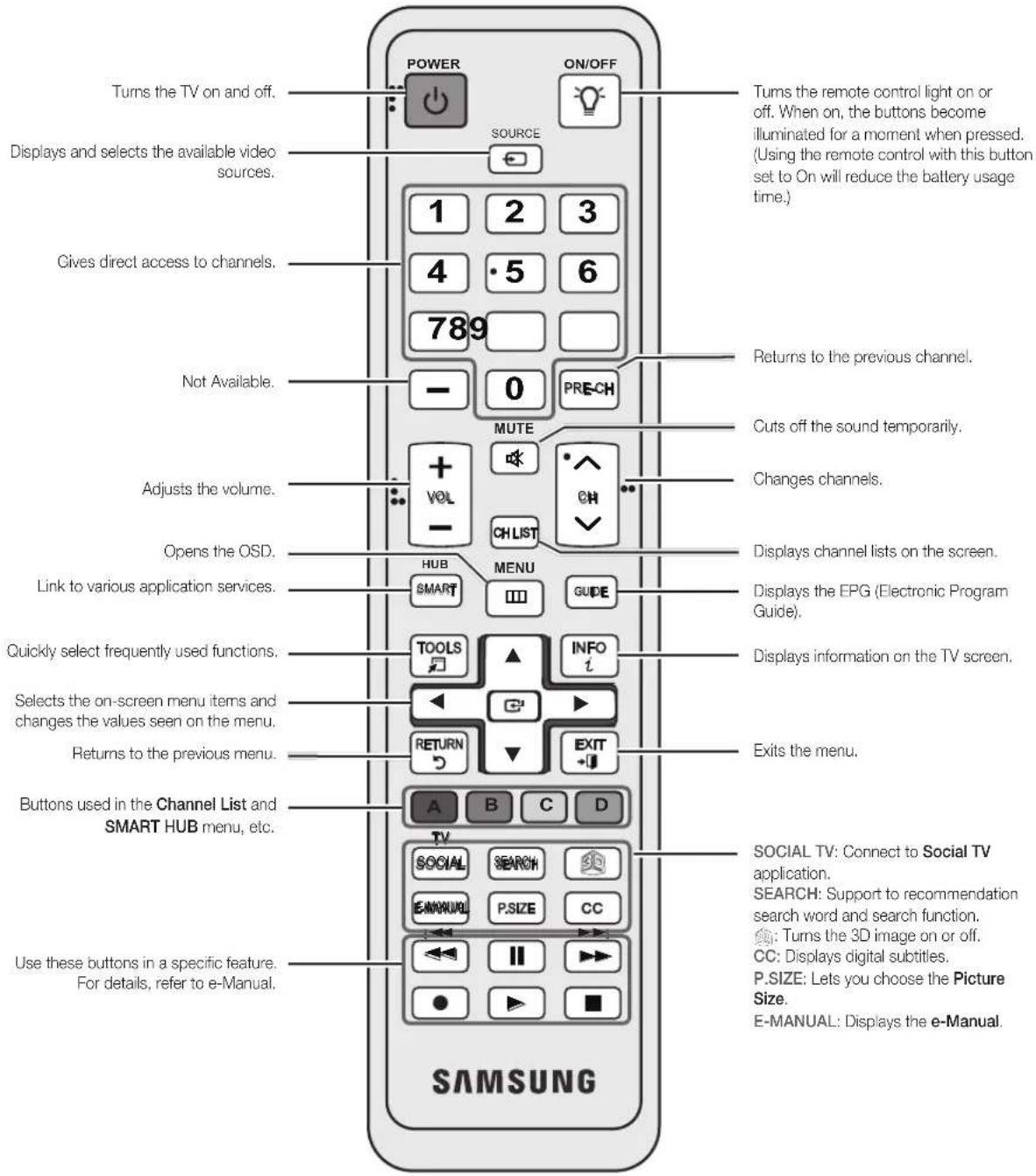

Remote Control Buttons

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

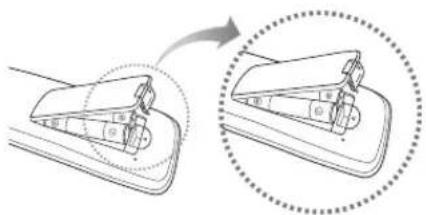

Installing batteries (Battery size: AAA)

NOTE

Use the remote control within 23 feet of the TV.

Bright light may affect the performance of the remote control

Avoid using when near special fluorescent lights or neon signs.

The color and shape may vary depending on the model.

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

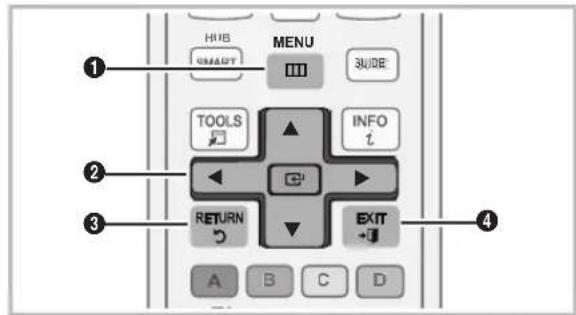

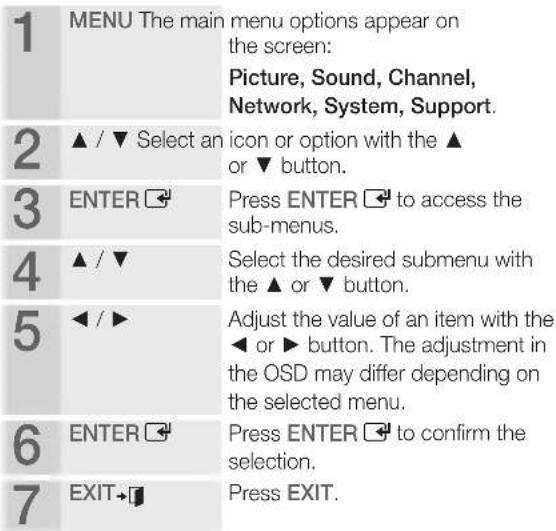

① MENU button: Displays the main on-screen menu.
② ENTER ↩ / Direction button: Move the cursor and select an item. Confirm the setting.
③ RETURN button: Returns to the previous menu.
④ EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access steps may differ depending on the selected menu.

For the best cable connections to this product, be sure to use cables no thicker than 0.55 inches (14mm).

Maximum thickness - 0.55 inches (14mm)

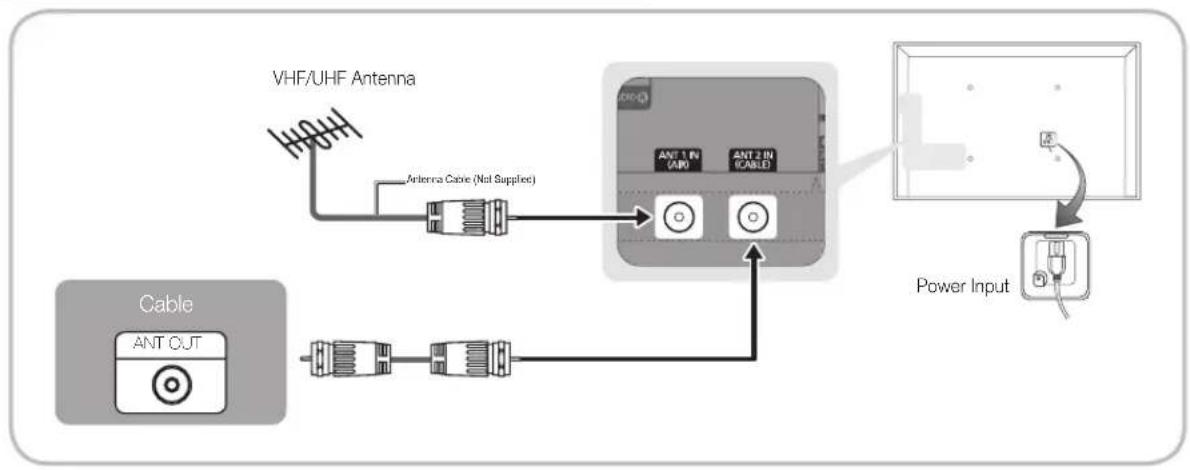

Connecting the power cord and an antenna or cable connection

Connecting the power cord and an antenna or cable connection

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of on-screen prompts will assist in configuring basic settings. To turn on the TV, press the POWER button.

Plug & Play is available only when the Source is set to TV.

To return to the previous step in the Plug & Play sequence, select Previous, and then press ENTER.

Before turning on the TV, make you have connected the TV to an antenna or cable connection (p. 7).

1	Selecting the OSD Language	Press the ▲ or ▼ button to select a language. Press ENTER□ twice when done.

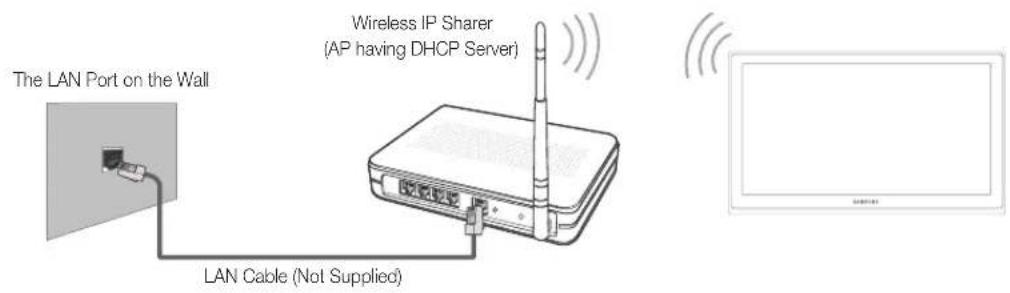

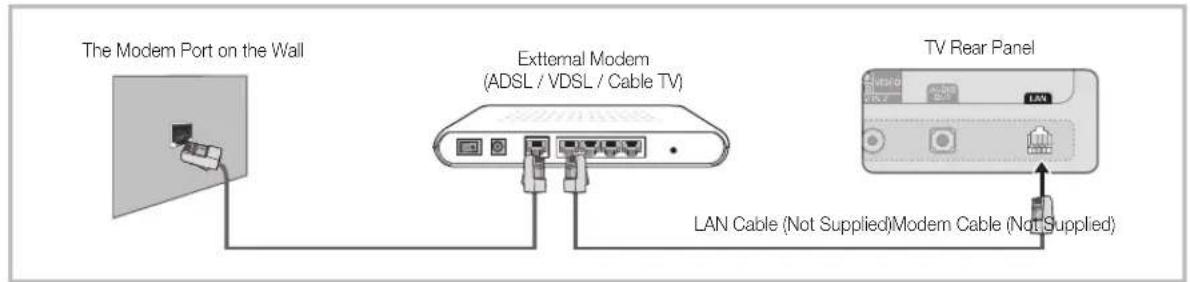

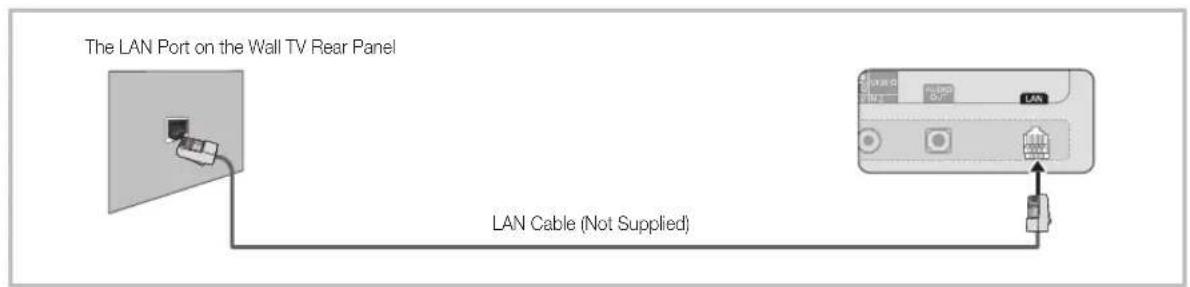

2	Setting up the Network	Set up your network connection. Press the ENTER□ button to start.If you do not know your network set up information or want to set to it later, selectSkip. We suggest you skip network connection setup now and refer to “Network menu” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (Page 14).You can set up the network connection later using the Network menu.
3	Software Upgrade When	network connection settings are complete, Software Upgrade is available. SelectNextto upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select theSkip. For more information, refer to "Software Upgrade" (Preference Features → Support Menu) in the e-Manual.↑↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
4	Selecting the usage mode	Press the ▲ or ▼ button to selectHome Use, and then press the ENTER□ button twice.Select theHome Usemode. Store Demomode is for retail environments.
5	Setting theClock Mode	Set theClock Modeautomatically or manually.Auto: Set theClock Modeautomatically.Manual: Allows you to manually set the current date and time.
6	Selecting search options for auto tuning	Press the ▲ or ▼ button to selectAir or Cable, and then press ENTER□. A check appears on your selection. SelectNext, and then press the ENTER□ button. You can check both if you have both connected.
7	Selecting and memorizing channels	The channel search will start automatically.For more information, refer to Channel→Auto Programin the e-Manual.Press the ENTER□ button at any time to interrupt the memorization process.
8	Enjoy your TV. If you want	If you want to enjoySmart Hub, selectSmart Hub. Smart Hubwill start. For more detailed information, refer to “Smart Hub” in the e-Manual.

If You Want to Rerun Plug & Play...

MENU → System → Plug & Play → ENTER

NOTE

- To change the TV's setting from Store Demo to Home Use when not in Plug & Play, press the volume button on the TV. When you see the volume in the OSD, press and hold MENU for 5 sec.

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0." If you want to change the PIN number, use the Change PIN function.

Connecting to an AV Device

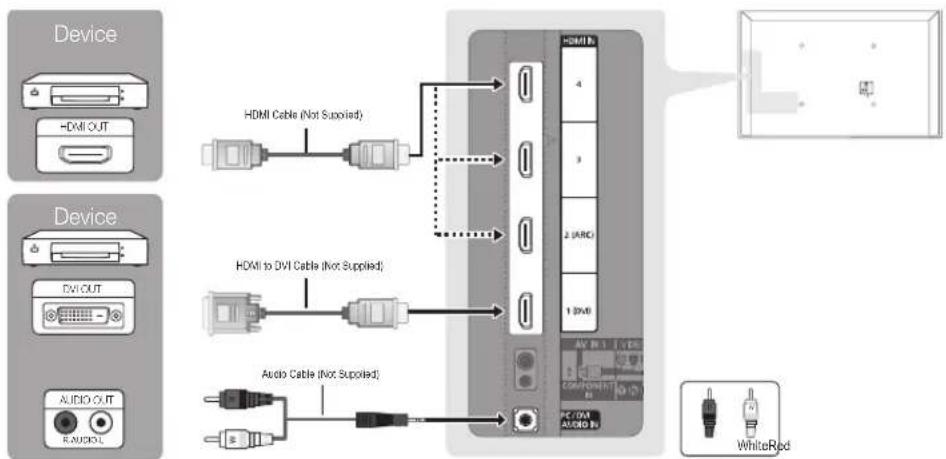

Using an HDMI or an HDMI to DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.

Available devices: DVD player,, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver

HDMI IN 1 (DVI), 2 (ARC), 3, 4 / PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

- To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

The picture may not display normally (if at all) or the audio may not work if you connect an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to use an HDMI cable with a thickness of 14 mm or less.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

We recommend using a basic high-speed HDMI cable or and HDMI cable that is Ethernet is compatible. Note that this product does not support the Ethernet function via HDMI.

This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2 (ARC) port only.

The ARC function allows digital audio to output via the HDMI IN 2 (ARC) port. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function.

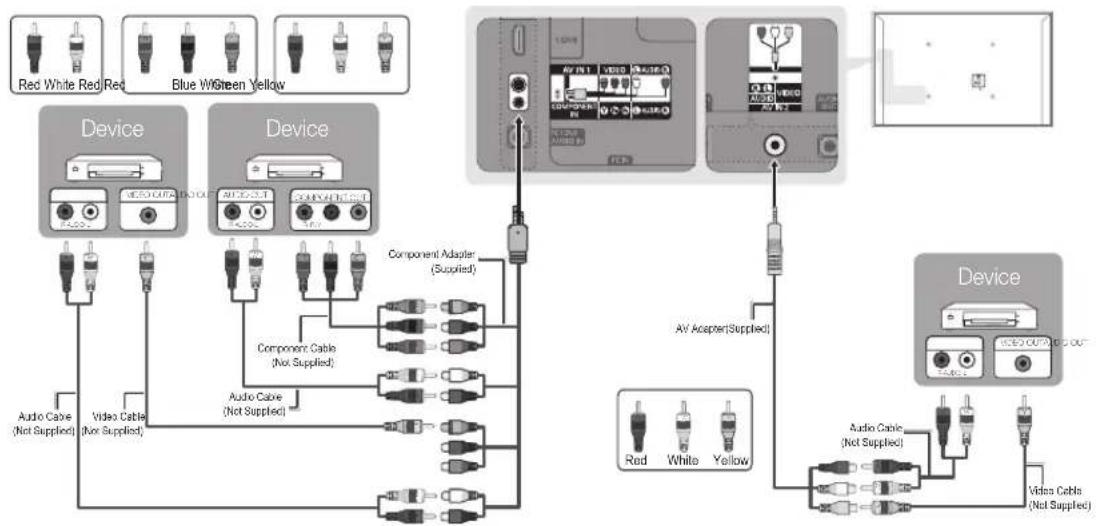

Using a Component (up to 1080p) or an Audio/Video (480i only) Cable

Available devices: DVD player, Blu-ray player, cable box, STB satellite receiver, VCR

When connecting to AV IN, the color of the AV IN 1 [VIDEO] jack (green) will not match the video cable (yellow).
For better picture quality, we recommend the Component connection over the A/V connection.

Connecting to an Audio Device

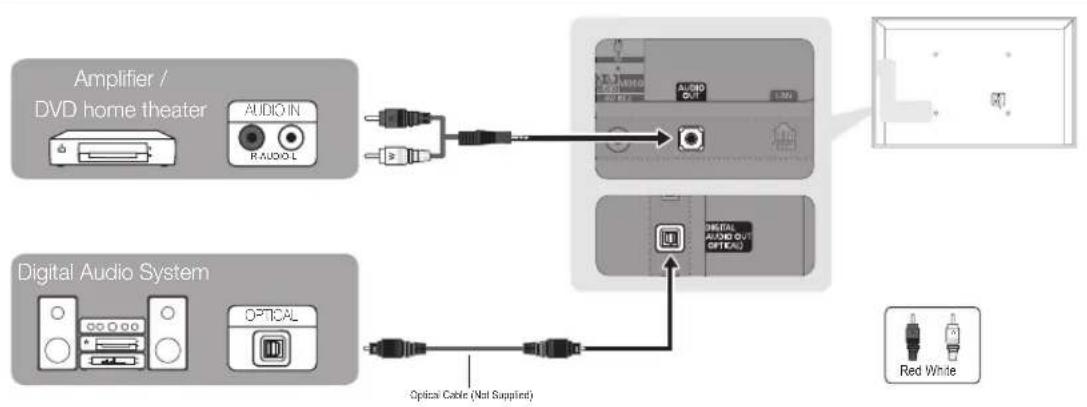

Using an Optical (Digital) or an Audio (Analog) Cable Connection

Available devices: Digital Audio System, Amplifier, DVD home theater

DIGITAL AUDIO OUT (OPTICAL)

• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.
  • 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
• When the receiver (home theater) is set to on, you can hear sound output from the TV's optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theater.

• When connecting, use the appropriate connector.
• When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the TV and adjust the volume level with the amplifier's volume control.

Connecting to a PC

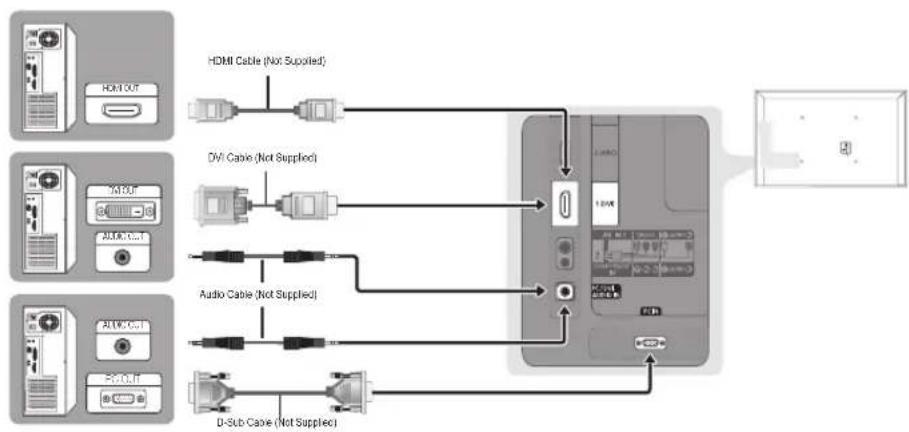

Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

Your PC may not support an HDMI connection.

PC Display Modes (D-Sub and an HDMI to DVI Input)

Optimal PC resolution is 1920 X 1080 @ 60 Hz. You can also select one of the standard resolutions listed in the Resolution column. The TV will automatically adjust to the resolution you choose.

Mode Resolution		Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
	1152 x 870	68.681	75.062	100.000	-/-
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1152 x 864	67.500	75.000	108.000	+/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1280 x 800	49.702	59.810	83.500	-/+
	1280 x 800	62.795	74.934	106.500	-/+
	1280 x 960	60.000	60.000	108.000	+/+
	1360 x 768	47.712	60.015	85.500	+/+
	1440 x 900	55.935	59.887	106.500	-/+
	1440 x 900	70.635	74.984	136.750	-/+
	1680 x 1050	65.290	59.954	146.250	-/+
VESA DMT / DTV CEA	1920 x 1080p 67.500 60.000 148.500 +/+

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.
•The interlace mode is not supported.
•The set may operate abnormally if you select a non-standard video format.
Separate and Composite modes are supported. SOG (Sync On Green) is not supported.

Changing the Input Source

Source

Use to select TV or an external input source such as a DVD player / Blu-ray player / cable box / STB satellite receiver.

1. Press the SOURCE button on your remote.
2. Select a desired external input source.

■TV / PC / AV1 / AV2 / COMPONENT / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB / AllShare

SOURCE

You can only choose external devices that are connected to the TV. In the Source display, connected inputs are highlighted.
In Source, PC is always stays activated.

Edit Name

Edit Name lets you associate a device name to an input source. To access Edit Name, press the TOOLS button In Source. The following selections appear under Edit Name:

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

If you have connected a PC to the HDMI IN 1 (DVI) port with an HDMI cable, select PC under Edit Name to enter a device name.
If you have connected a PC to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, select DVI PC under Edit Name to enter a device name.
If you connected an AV device to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, select DVI Devices under Edit Name to enter a device name.

Edit Favorites

In Source, press the TOOLS button to select Edit Favorites. You can set an external input source as a Favorites.

Information

You can see detailed information about the selected external device.

Refresh

In Source, If the external devices are not displayed, press the TOOLS button to select Refresh, then search for the connected devices.

Wired/Wireless Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or AP (typically a wireless IP Sharer - router or modem) to transmit an encrypted security code called an access key.

Your TV is compatible with the following security protocols:

• Authentication Mode: OPEN, SHARED, WPAPSK, WPA2PSK
• Encryption Type: WEP, TKIP, AES

If you select Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) on your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

Configuring the Network Connection - Wireless

The instructions below are for networks that use the Dynamic Host Configuration Protocol (DHCP) to configure network connections automatically. If your have a Static IP network, see your user's manual for configuration instructions.

To configure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your network as shown in the illustrations above.
2. Turn on your TV, press the MENU button on your remote, and then select Network → Network Settings.
3. Select the Wireless (General), press ENTER, and then press ENTER again.
4. The Network function searches for available wireless networks. When done, it displays a list of the available networks.
5. In the list of networks, press the ▲ or ▼ button to select a network, select Next, and then press ENTER.
6. If you have selected a wireless router that has security, the Security Key screen appears. Enter the Security key (Security key or PIN), select Next, and then press ENTER.

When you enter the Security Key (Security or PIN), use ▲ / ▼ / ◀ / ▶ buttons on your remote to select numbers and characters.

1. The Network Connection screen appears and verifies the network connection. When the connection has been verified, the "Internet connection successful." message appears. Network set up is complete.

For more detailed information, see "Wireless Network Connection" in the e-Manual.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

Network speed of lower of than 10 Mbps is not supported.

Configuring the Network Connection - Wired

Most home networks use the Dynamic Host Configuration Protocol (DHCP) to configure network connections. Home networks that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don't have to enter them manually.

To configure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your network as shown in one of the illustrations above.
2. Turn on your TV, press the MENU button on your remote, and then select Network → Network Settings. The Network Settings screen will appear.

3. Select Wired, press ENTER ↩, and then press ENTER ↩ again.

4. The Network Connection screen appears, and verifies the network connection. When the connection has been verified, the "Internet connection successful." message appears. Network set up is completed.

If your TV cannot acquire network the connection values automatically or if you want to set the connection manually, select IP Settings on the network test screen. Set Internet Protocol Setup to Manual. You must enter the IP Address, Subnet Mask, Gateway, and DNS Server manually.

Amore detailed information, see "Wired Network Connection" in the e-Manual.

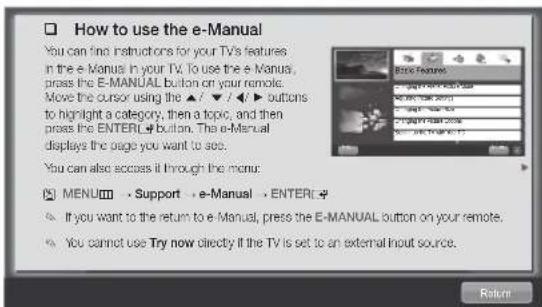

How to view the e-Manual

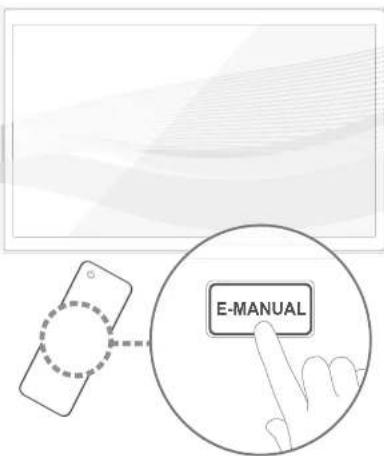

You can find instructions for your TV's features in the e-Manual in your TV. To use the e-Manual, press the E-MANUAL button on your remote. Move the cursor using the ▲ / ▼ / ◀/ ▶ buttons to highlight a category, then a topic, and then press the ENTER button. The e-Manual displays the page you want to see.

You can also access it through the menu:

MENU → Support → e-Manual → ENTER

If you want to the return to e-Manual, press the E-MANUAL button on your remote.

You cannot use Try now directly if the TV is set to an external input source.

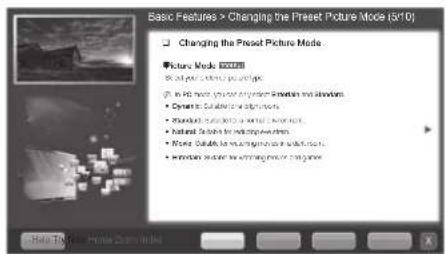

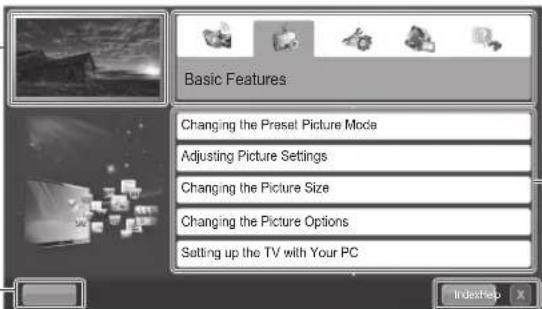

Screen Display

TV Screen: Displays the program, movie, video, etc. you are currently watching.

The category list. Press ◀ or ▶ button to select the category you want.

- Displays the sub-menu list. Use the arrow buttons on your remote to move the cursor. Press the ENTER button to select the sub-menu you want.

Help: Displays the e-Manual Guide or Product Guide. Press ENTER button.

Index: Displays index screen. X: Exit the e-Manual.

Using the Help

Display the e-Manual Guide & the Product Guide by pressing Help.

The e-Manual guide appears as above.

The product guide appears as above.

How to toggle between the e-Manual and the corresponding menu(s).

function is not enabled in some menus.

Method 1 Method 2

1. Select Try Now, if you want to execute the corresponding menu(s).

2. To return to the e-Manual screen, press the E-MANUAL button.

3. Press the ENTER button when a topic is displayed. "Do you want to execute this?" appears. Select Yes, and then press the ENTER button. The OSD window appears.

4. To return to the e-Manual screen, press the E-MANUAL button.

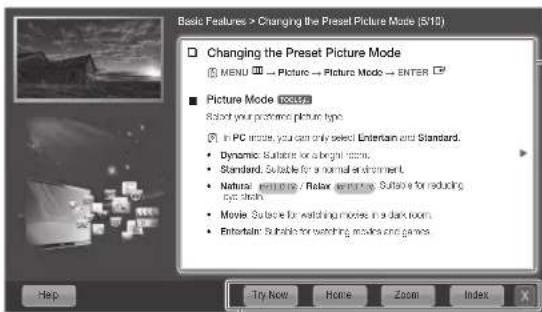

Viewing the Contents

Contents Area: Contains the topic contents if you selected a sub-menu. To move to the previous or next page, press the ◀ or ▶ button.

Try Now: Displays the OSD menu that corresponds to the topic. To return to the e-Manual screen, press the e-Manual button Home: Moves to the e-Manual home screen. Zoom: Magnifies a screen. Index: Displays index screen.

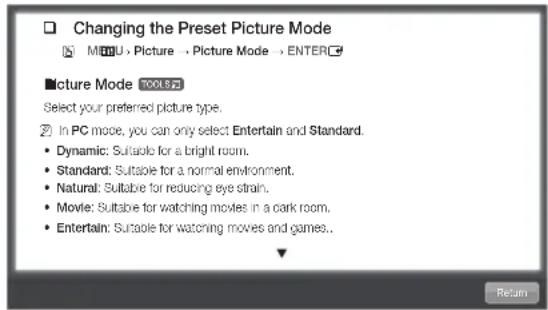

Using the Zoom mode

When you are viewing an e-Manual instruction page, press ENTER ☑ to magnify the screen. You can scroll through the magnified screen by using the ▲ or ▼ buttons.

To return to the screen to normal size, press the RETURN button.

How to search for a topic on the index page

This function may not be supported depending on the language.

1. To search for a topic, press the left or right arrow button to select a letter, and then press ENTER ☐. The Index displays a list of topics and keywords that begin with the letter you selected.
2. Press the up or down arrow button to select a topic or keyword you want, and then press the ENTER button to select a topic you want to see.
3. The e-Manual page with the topic appears.

To close the Index screen, press the RETURN button.

Troubleshooting

If the TV seems to have a problem, first review this list of possible problems and solutions. Also review the Troubleshooting section in the e-Manual. If none of the troubleshooting tips apply, visit "www.samsung.com," and then click on Support, or call Samsung customer service.

Issues Solutions and Explanations
The TV won't turn on.	Make sure the AC power cord is securely plugged in to the wall outlet and the TV.Make sure the wall outlet is working.Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.
There is no picture/video.	Check the cable connections. Remove and reconnect all cables connected to the TV and external devices.Set the video outputs of your external devices (Cable/Sat Box, DVD, Blu-ray etc) to match the TV input connections. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV.Make sure your connected devices are powered on.Be sure to select the correct input source by pressing the SOURCE button on the remote control.Reboot the connected device by unplugging and then reconnecting the device's power cable.
The remote control does not work.	Replace the remote control batteries. Make sure the batteries are installed with their poles (+/-) in the correct direction.Clean the sensor's transmission window on the remote.Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume.	Program the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

Some functions and pictures shown in this manual are available on specific models only.

To keep your TV in optimum condition, upgrade to the latest firmware on the Samsung web site by USB (samsung.com → Support → Downloads).

License

List of Features

• Excellent Digital Interface & Networking: Using its built-in HD digital tuner, you can view non-subscription HD broadcasts without a cable box or STB (Set-Top-Box) satellite receiver.
  • 3D: This exciting new feature enables you to view 3D content.
  • SMART HUB: Your Gateway to all your content, integrated in one place:

– Provides diverse entertainment choices.
- Lets you control your entertainment life with an easy-to-use, user friendly UI.
– Gives you easy access to diverse Apps, with more being added every day.
- Lets you customize your TV by grouping and sorting Apps to your taste.

- AllShare™: AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.

- Anynet+(HDMI-CEC): Allows you to control all connected Samsung devices that support anynet+ with your Samsung TV's remote.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability and safety, you can purchase and install the anti fall device as described below.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

NOTE

•Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
- Untie the string before moving the TV.

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

•The shape of the stand may vary depending on the model.

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

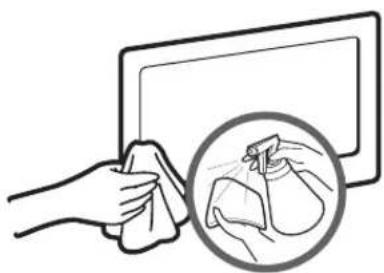

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Clean the product with a soft cloth dampened with a small amount of water.

Specifications

Display Resolution 1920 X 1080
Environmental Considerations
Operating Temperature	50°F to 104°F (10°C to 40°C)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-4°F to 113°F (-20°C to 45°C)
Storage Humidity	5% to 95%, non-condensing
Stand Swivel (Left / Right) -20° ~ 20°
Model Name UN40D6500 UN46D6500
Screen Size 40" Class		(40.0" measured diagonally)	46" Class(45.9" measured diagonally)
Power Consumption
Normal operation		130 W	150 W
Standby		<1 W	<1 W
Sound(Output) 10 W X 2 10 W X 2
Dimensions (WxDxH)
Body		36.7 X 1.2 X 21.6 inches(933.0 X 29.9 X 548.8 mm)	42.1 X 1.2 X 24.6 inches(1068.4 X 29.9 X 625.2 mm)
With stand		36.7 X 10.0 X 23.9 inches(933.0 X 255.0 X 608.2 mm)	42.1 X 10.8 X 26.9 inches(1068.4 X 275.0 X 683.6 mm)
Weight
Without Stand		23.6 lbs (10.7 kg)	29.1 lbs (13.2 kg)
With Stand		30.9 lbs (14.0 kg)	37.9 lbs (17.2 kg)
Model Name UN55D6500 UN60D6500
Screen Size 55" Class		(54.6" measured diagonally)	60" Class(60.0" measured diagonally)
Power Consumption
Normal operation		160 W	190 W
Standby		<1 W	<1 W
Sound(Output) 15 W X 2 15 W X 2
Dimensions (WxDxH)
Body		49.6 X 1.2 X 28.8 inches(1258.8 X 29.9 X 731.7 mm)	54.3 X 1.2 X 31.5 inches(1379.0 X 30.4 X 799.4 mm)
With stand		49.6 X 12.0 X 31.2 inches(1258.8 X 305.0 X 791.4 mm)	54.3 X 13.2 X 33.9 inches(1379.0 X 335.0 X 860.3 mm)
Weight
Without Stand		38.1 lbs (17.3 kg)	51.8 lbs (23.5 kg)
With Stand		47.4 lbs (21.5 kg)	64.2 lbs (29.1 kg)
Model Name UN40D6900 UN46D6900 UN55D6900
Screen Size 40" Class	(40.0" measured diagonally)	46" Class(45.9" measured diagonally)	55" Class(54.6" measured diagonally)
Power Consumption
Normal operation	130 W	150 W	160 W
Standby	<1 W	<1 W	<1 W
Sound (Output) 10 W X 2 10 W X 2 15 W X 2
Dimensions (WxDxH)
Body	36.4 X 1.2 X 21.3 inches(923.5 X 29.9 X 539.6 mm)	41.7 X 1.2 X 24.3 inches(1058.9 X 29.9 X 616.0 mm)	49.2 X 1.2 X 28.5 inches(1249.3 X 29.9 X 722.6 mm)
With stand	36.4 X 9.5 X 24.3 inches(923.5 X 241.3 X 617.4 mm)	41.7 X 10.8 X 27.5 inches(1058.9 X 276.6 X 698.8 mm)	49.2 X 12.1 X 32.5 inches(1249.3 X 309.5 X 824.4 mm)
Weight
Without Stand	23.4 lbs (10.6 kg)	28.9 lbs (13.1 kg)	37.9 lbs (17.2 kg)
With Stand	26.5 lbs (12.0 kg)	33.0 lbs (15.0 kg)	43.4 lbs (19.7 kg)

Design and specifications are subject to change without prior notice.

For information about the power supply, and more about power consumption, refer to the label attached to the product.

HDMI HDMI-DVI Componente Composto (AV) Coaxial (RF) VGA

Visualizando o Painel de controle

NOTA

DIGITAL AUDIO OUT (OPTICAL)
