USER MANUAL 943434 Hendi

CE

INDEX

1. SAFETY REGULATIONS....3
2. INTENDED USE .... 3
3. FIRST USE .... 3
4. TIPS FOR ENERGY SAVING 4
5. TECHNICAL DATA....4
6. INSTRUCTION FOR USE 4
7. CLEANING 4
8. TROUBLESHOOTING....4
9. WARRANTY....5
10. DISCARDING & ENVIRONMENT 5

Dear Customer,

Thank you for purchasing this Hendi appliance. Please read this manual carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very carefully.

1. Safety regulations

• Never touch uninsulated cables with bare hands. This applies esp-ecially to handling AC cables. Danger!
• Always ensure that the correct voltage is applied to the thermoelectric cooler & warmer. The voltage is stated on the cooling unit's data plate.
• The cooling device is not appropriate for transporting corrosive or solvent-comprising substances.
• Never obstruct vents to the heat exchanger.
• Never use abrasive or solvent based materials when cleaning the evaporator.
• When your refrigerator or cooling device comes to the end of its work-ing life, it should be disposed of by a specialist to ensure that it does not contaminate the environment.
• Prevent water spillage on the top of the unit.
• Do not fill the compartment with any liquid or ice.

Always pull the plug out of the socket before cleaning the appliance or before the maintenance.

2. INTENDED USE

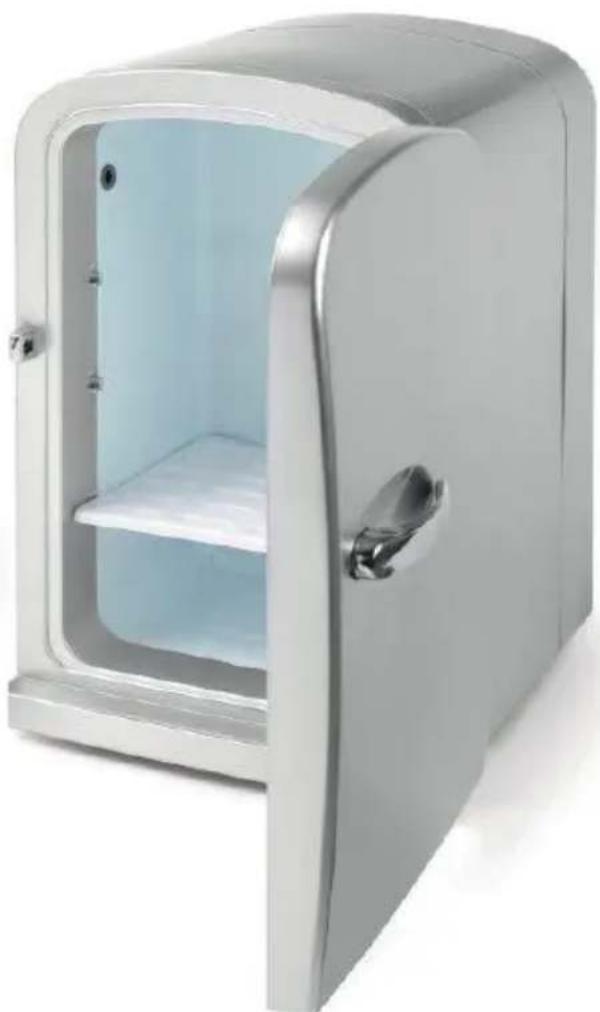

Your cooler is designed to refrigerate your food or to keep it warm. The cool box is also fit for use on camping trips. If you wish to refrigerate medicines or cosmetic, first check if the refrigerator's cooling capacity meets the demands of the respective articles. All materials, which have been used in the manufacture of these appliances, are generally recognized as fit for purpose.

3. FIRST USE

• After unpacking the device check that no parts are missing.
• Place the cooling device in a dry place which is protected against splashing water. The cool box may not be used in the open air and may not be exposed to rain.
• It should not be placed directly adjacent to sources of heat such as heating, gas oven,

hot-water pipes or under the blazing sun.

• The cooling device must be installed in such a way that the air which is warmed up can escape without problems. Keep the cooler at least 10cm away from the wall for better ventilation.
• Before the first use, clean the device with a cloth dampened with lukewarm water.

4. TIPS FOR ENERGY SAVING

• Mount the refrigerator in a cool dry place away from direct sunlight.

• Always allow food to cool before storing in the refrigerator.

• Do not open the refrigerator more often than necessary!

• Do not leave the door open any longer than necessary!

5. DANE TECHNICZNE

Code 943434 943441

Colo Black Silver
Outer dimension 213x275x(H)343 mm 213x275x(H)343 mm
Inner dimension (chamber 163x140x(H)283 mm 163x140x(H)283 mm
Power 50W 50W
Voltage	230V lub DC12V	230V lub DC12V

6. INSTRUCTION FOR USE

NOTE: Overvoltage could cause damage to the electronic of the units.

The cool box is delivered switched off. Switchover from cooling mode to heating mode is done by the switch of "cold" and "hot". The actual mode is shown by the integrated LEDs, green stands for cooling mode and red for heating mode

PUTTING OUT OF SERVICE

If you wish to cut out the cooling device for a longer period, remove the plug from the AC line or disconnect the cooling device cable from the battery. Clean the cooling device and leave the door slightly open to prevent the formation of mold.

8. CLEANING

NOTE: Always pull the plug out of the socket before cleaning the appliance or before the maintenance.

Your cooling device will be delivered cleaned from the factory - you nev-ertheless should clean prior to initial use. Take a cloth which has been slightly moistened with lukewarm water. Pay attention that no water drops into the seals and possibly damages the electronics. Dry off the cooling device with a cloth after cleaning. Clean the device periodically and as soon as it is dirty.

NOTE: Never use solvents or agents with sand or acid parts for cleaning the cooling tank. Never use brushes, graters or hard and sharp tools.

9. TROUBLESHOOTING

Equipment malfunctions are often due to simple causes that can be easily rectified without calling a service. Therefore, in case of failure follow the steps below.

Problem Reason Solution

Your box does not function and the fan wheel visible from the outside is not turning.	It is possible that the cigarette lighter in your vehicle is not receiving any current	Turn on the ignition
	Dirty cigarette lighter socket	Clean it by using a non-metal brush and solvent until the middle contact pin looks clea
Your box does not cool satisfactorily and the outside fan wheel is not turning.	The fan motor is probably defective.	Repair may only be carried out by an authorized service dealer.
Your box does not cool but the outside fan wheel is turning.	The Peltier unit is probably defective.	Repair may only be carried out by an authorized service dealer.

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

10. WARRANTY

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt)

11. WYCOFANIE Z UŻYTKOWANIA I OCHRONA ŚRODOWISKA

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system
