YN150Li - Lighting Yongnuo - Free user manual and instructions

Product type	LED video light
Brand	Yongnuo
Model	YN150Li
Power output	150W
Color temperature	3200K - 5600K adjustable
Color rendering index	≥96
TLCI	≥94
Dimming range	0% - 100%
Light source type	COB LED
Mount type	Bowens mount
Wireless control	2.4 GHz remote control
Input power	AC 100-240V 50/60Hz
Fan cooling	Intelligent silent fan
Dimensions	230 x 160 x 230 mm
Weight	2.5 kg
Body material	Aluminum alloy
Maintenance	Clean with a soft, dry cloth
Safety warning	Do not look directly at the light beam
Accessories included	Reflector and AC adapter
Removable parts	LED module is replaceable
Repairability	Professional repair service available

Frequently Asked Questions - YN150Li Yongnuo

What is the power consumption of the YN150Li?

The maximum power consumption is approximately 150W under full brightness. It is powered by an AC 100-240V adapter.

Can I adjust the color temperature?

Yes, the light color temperature can be continuously adjusted between 3200K and 5600K to match your ambient lighting.

Does the light support wireless remote control?

Yes, the YN150Li features a built-in 2.4GHz receiver, allowing you to adjust brightness and color temperature remotely with the optional controller.

What type of mount is used on the YN150Li?

It uses a standard Bowens mount, making it compatible with most softboxes, reflectors, and other light modifiers.

How should I clean the light fixture?

Always unplug the light before cleaning. Use a soft, dry cloth to gently wipe the housing and lens. Avoid using liquid cleaners or abrasive materials.

What safety precautions should I follow?

Do not look directly at the light beam, as it is very bright. Keep the light away from water and ensure proper ventilation around the fan intake. Allow it to cool before handling.

Is the cooling fan noisy?

The fan is designed to be silent and efficient, but at full power it may produce a low hum. The fan speed automatically adjusts based on temperature.

What is the maximum output of the light?

The maximum output is 150W from the COB LED, which delivers a high intensity beam suitable for video production and photography.

Can I use the light with a softbox?

Yes, the Bowens mount allows you to attach a softbox or umbrella. Make sure the softbox is properly secured to avoid damage.

What are the included accessories with the YN150Li?

The package typically includes the light head, AC adapter, and a basic reflector. Additional accessories may vary by retailer.

USER MANUAL YN150Li Yongnuo

Thank you for using YONGNUO products!

Please read this manual carefully before using the product and keep it properly for future reference.

Precautions

1. Please keep product away from children, do not place it in the children's activity area.

2. Please use this product under supervision, and power off when unsupervised.

3. Before use, please check whether the power voltage fits the voltage marked on the product.

4. It is recommended to use the original cables or accessories provided or sold by YONGNUO.

5. When the power cord is connected, please place it properly to avoid tripping people or blackout, and do not place it on the hot or damp surface.

6. When the product runs, please do not cover the dissipation hole to avoid product damage due to poor dissipation performance.

7. When the product runs, do not look straight at the lamp beads to avoid eyes discomfort due to strong lights.

8. When the product runs, lamp beads are at the heating state, do not touch it to avoid burning

9. When high-temperature warning occurs, please check whether the fan is faulty.

10. Use this product in dry environment. This product is not waterproof or fireproof. Do not use it in hot, rainy, damp or dusty environment.

11. Do not use this product near chemicals, flammable gases, inflammables and explosives.

-8--7-

1. Before storing the product, please turn off the power, unplug the power cord, wait for the product to cool down completely, and store it in a portable bag or a dry environment.
2. Please do not use the damaged power cord or the cracked product caused by falling off.
3. This product is not fall-proof, please use it carefully to avoid falling down or getting heavy hit.
4. Before cleaning the product, please ensure that the power is turned off, and please use a dry soft cloth for cleaning.
5. Please do not disassemble the product by yourself. In case of failure, problems shall be handled by the company or authorized maintenance personnel.

Product specification

Light Source	LED
Color temperature version	15W~120W: 2700K-6500K;150W: 3200K-5600K
Rated power	Constant power 150W (Color temperature changes with power unchanged)
External power source	DC 24V—6.25A, Interface size, φ5.5*2.1mm ⭕—⊕—⊕
APP Bluetooth control	≤50m
2.4G wireless control	≤100m
Average Service Life	50000H

English

Model	YN150	YN150Li
Built-in battery	/	14.8V/2500mAh (37WH)
charging time	/	2.5H
Product Net Size	12 2*8 8 * 8.8cm..	14 8*8 8 * 8.8cm..

service time of YN150Li built-in battery

Output power	Brightness	usage duration
15W	100%	2.0H
40W		0.8H
60W		0.5H
80W		0.4H
100W		0.3H

Note: The maximum output power of YN150Li is 100W when using built-in battery for power supply.

Check list

Single light version

Contents: Video light (1), User Manual (1).

Kit version

Contents: Video light (1), Power adapter (1), power line (1), Battery handle (1), Silicone Diffuser (1), Standard reflector cover (1), Portable case (1), User Manual (1).

Note: Please contact your dealer if anything missing.

-10--9-

Photometrics

Bi-color temperature version	Illumination Distance	Single light	Standard Reflector
120W 2700K	1m	3640lux	12000lux
	2m	1000lux	2850lux
	3m	537lux	1280lux

Bi-color temperature version	Illumination Distance	Single light	Standard Reflector
120W 5600K	1m	4610lux	15400lux
	2m	1260lux	3650lux
	3m	686lux	1630lux

Bi-color temperature version	Illumination Distance	Single light	Standard Reflector
120W 6500K	1m	4550lux	15000lux
	2m	1230lux	3560lux
	3m	666lux	1580lux

Bi-color temperature version	Illumination Distance	Single light	Standard Reflector
150W3200K	1m	4780lux	15800lux
	2m	1320lux	3840lux
	3m	718lux	1690lux

Bi-color temperature version	Illumination Distance	Single light	Standard Reflector
150W 5600K	1m	5300lux	18000lux
	2m	1470lux	4270lux
	3m	800lux	1890lux

Note: This is an averaged result, the number might be slightly different on each light.

English

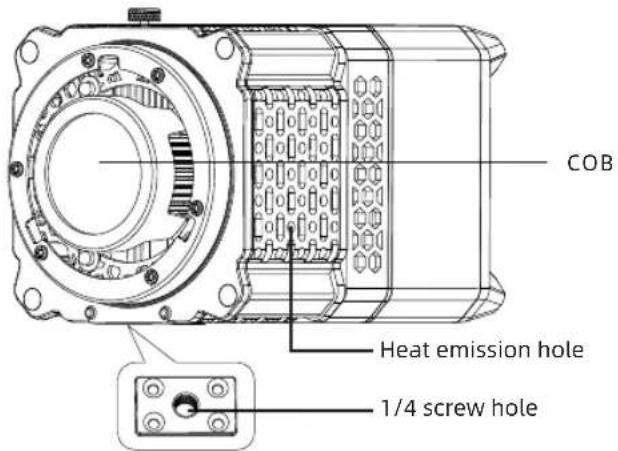

Product structure

Lampshade lock
Display screen
Parameter adjustment knob and Confirm key
brightness adjustment knob
Press to switch between 0.10% or 20% adjustment
charging indication light red brightens: charging Green light on: charging completed
Power switch Menu key
DC Power Supply Port Mode key
Note: The structure diagram is YN150Li.

Installation and use

1、Powered by power adapter.

Note: The lamp only version does not include a power adapter or power cord.

2、Power ON or OFF.

Note: The structure diagram is YN150Li.

-13--14-

English

3、Press the 《Mode》 button to switch and enter the color temperature setting.

MFC: Rotate the knob to adjust the color temperature parameters.

INT: Press the knob to switch between 0.10% or 20% adjustment amplitude, and rotate the knob to adjust the parameters.

4、Press the 《Mode》 button to switch to the special effects settings.

MFC: Rotate theknob to select special effects, press theknob to pause or start the special effects.

INT: Press theknob to switch between selecting frequency or brightness, Rotate theknob to adjust parameters.

5、Press the 《Menu》 button to enter the settings interface.

Channel: 256 control channels.

Group: Multiple lights can be edited into a group, supporting up to 64 control groups.

Bluetooth: Supports APP Bluetooth connection for wireless control.

2.4G: The lights support 2.4G wireless connection and can be controlled wirelessly through a 2.4G wireless remote control.

Power: Multiple optional power ranges from 15w to 150w, you can set the power according to your needs.

Correction: After turning on this function, the color temperature will be more accurate, the color temperature will be wider when turn off this function.

curve : 4 kinds of professional-grade dimming curve models settings.

YNC Mode: With YONGNUO APP, complex stage lighting arrangements can be achieved easily.

Language: Chinese and English.

Version: We will continue to update the software version, and you need to connect the camera light through the APP to complete the upgrade.

htmThe functions of this manual are based on test conditions of our company.

Further notice will not be given if the design and specifications change.

-15--16-

制造商：深圳市永诺电器有限公司

Manufacturer: Shenzhen YONGNUO Electronic Equipment Co., Ltd.

Manufacturer Address: Room 209 Building A1&F/2-5, Building A2, Block A, No.14 Jinxiu East Road, Xiuxin Community, Kengzi Street, Pingshan District, Shenzhen. 电话/Tel: [phone]

售后电话/After-Sale Service Tel: [phone]

网址/Web: www.hkyongnuo.com

执行标准：Q/YNDQ 001
