ROG Strix XG27AQWMG - Monitor ASUS - Free user manual and instructions

Product Type	Gaming Monitor
Brand	ASUS
Model	ROG Strix XG27AQWMG
Screen Size	27 inches
Resolution	2560 x 1440 (2K QHD)
Panel Type	IPS (In-Plane Switching)
Refresh Rate	170 Hz
Response Time	1 ms (GTG)
Brightness	400 cd/m²
Contrast Ratio	1000:1
Viewing Angles	178° / 178°
Connectivity	DisplayPort 1.4, HDMI 2.0 x2, USB 3.0 Hub, Headphone Jack
Stand Features	Tilt, Swivel, Pivot, Height Adjustment
VESA Mount Compatibility	100 x 100 mm
Power Consumption	Approx. 30 W (typical), 0.5 W (standby)
Power Supply	AC 100-240 V, 50/60 Hz
Dimensions (with Stand)	615 mm x 510 mm x 230 mm
Weight (with Stand)	6.5 kg
Included Accessories	Power cord, DisplayPort cable, HDMI cable, USB cable
Gaming Features	GamePlus, GameVisual, Adaptive-Sync, Extreme Low Motion Blur
Eye Care Technology	Flicker-Free, Low Blue Light
Cleaning Instructions	Wipe gently with a soft, dry microfibre cloth; use a mild screen cleaner if needed
Safety Precautions	Avoid exposing to moisture; do not install near heat sources; ensure proper ventilation
Spare Parts and Repairability	Replacement parts available via ASUS service centres; refer to user manual for disassembly instructions
General Information	This monitor is designed for gaming and professional use; model year 2024

Frequently Asked Questions - ROG Strix XG27AQWMG ASUS

How do I enable the ROG Strix XG27AQWMG's GamePlus overlay?

To enable GamePlus, press the GamePlus hotkey (usually the joystick or a dedicated button) on the monitor's OSD menu. Navigate to the GamePlus section and choose from options like crosshair, timer, FPS counter, or alignment mode. The overlay will appear on screen and can be toggled on or off.

What is the recommended cleaning method for the monitor screen?

Turn off the monitor and unplug it for safety. Use a soft, dry microfibre cloth to gently wipe the screen in circular motions. For stubborn stains, lightly dampen the cloth with distilled water or a dedicated screen cleaner. Never spray liquid directly on the screen and avoid using abrasive materials.

How can I reduce eye strain while using this monitor?

Activate the Low Blue Light and Flicker-Free functions from the OSD menu. These technologies minimize blue light emission and eliminate screen flicker, reducing eye fatigue during long sessions. Additionally, adjust the brightness to a comfortable level and take regular breaks using the 20-20-20 rule.

Can I wall-mount the monitor? What VESA size is used?

Yes, the ROG Strix XG27AQWMG is VESA mount compatible. It supports the standard 100 x 100 mm VESA pattern. You can attach an aftermarket monitor arm or wall mount bracket that meets this specification. Ensure the mounting screws are long enough to fit the bracket securely.

What should I do if the monitor does not display a signal?

First, check that the monitor is powered on and the power LED is lit. Verify that the cable (HDMI or DisplayPort) is securely connected to both the monitor and your device. Press the input source button on the monitor to cycle through available inputs. If the issue persists, try a different cable or port, and restart your PC or gaming console.

How do I adjust the monitor's height or tilt?

To adjust height, lift the monitor while pressing down on the stand base until it reaches the desired level. For tilt, hold the top or bottom edge of the screen and gently angle it forward or backward. The stand also allows swivel (left/right) and pivot (rotate 90°) for flexible positioning.

Does the XG27AQWMG support HDR content?

Yes, this monitor supports HDR via its DisplayPort and HDMI inputs. To enjoy HDR, enable the HDR mode in your operating system or on the device connected. The monitor's high brightness and contrast ratio deliver vivid colors and enhanced detail in HDR content.

How do I connect multiple devices to the monitor?

The monitor offers multiple video inputs: one DisplayPort 1.4 and two HDMI 2.0 ports. Connect each device to an available input. Use the input source menu on the monitor to switch between devices. A built-in USB hub provides additional USB 3.0 ports for peripherals.

What is the Adaptive-Sync feature and how do I activate it?

Adaptive-Sync (also known as FreeSync/G-Sync compatible) synchronizes the monitor's refresh rate with your graphics card to eliminate screen tearing and stuttering. To activate it, enable Adaptive-Sync in the monitor's OSD menu and in your graphics driver settings. Use a DisplayPort or HDMI cable that supports the feature.

How can I find spare parts or repair service for my ASUS monitor?

For spare parts or repairs, visit the official ASUS support website and enter the model number XG27AQWMG. You will find manuals, drivers, and service center locations. Contact an authorized ASUS service center for component replacement or warranty claims. Avoid opening the monitor yourself to prevent damage.

USER MANUAL ROG Strix XG27AQWMG ASUS

Takeback Services....x

1.1 Welcome 1-1

1.2 Package contents.... 1-1

1.3 Assembling the monitor....1-2

1.4 Connect cables.... 1-3

1.4.1 Rear of the OLED monitor....1-3

1.5 Monitor introduction.... 1-4

1.5.1 Using the Controls button 1-4

1.5.2 GameVisual Function 1-5

2.1 Adjusting the monitor.... 2-1

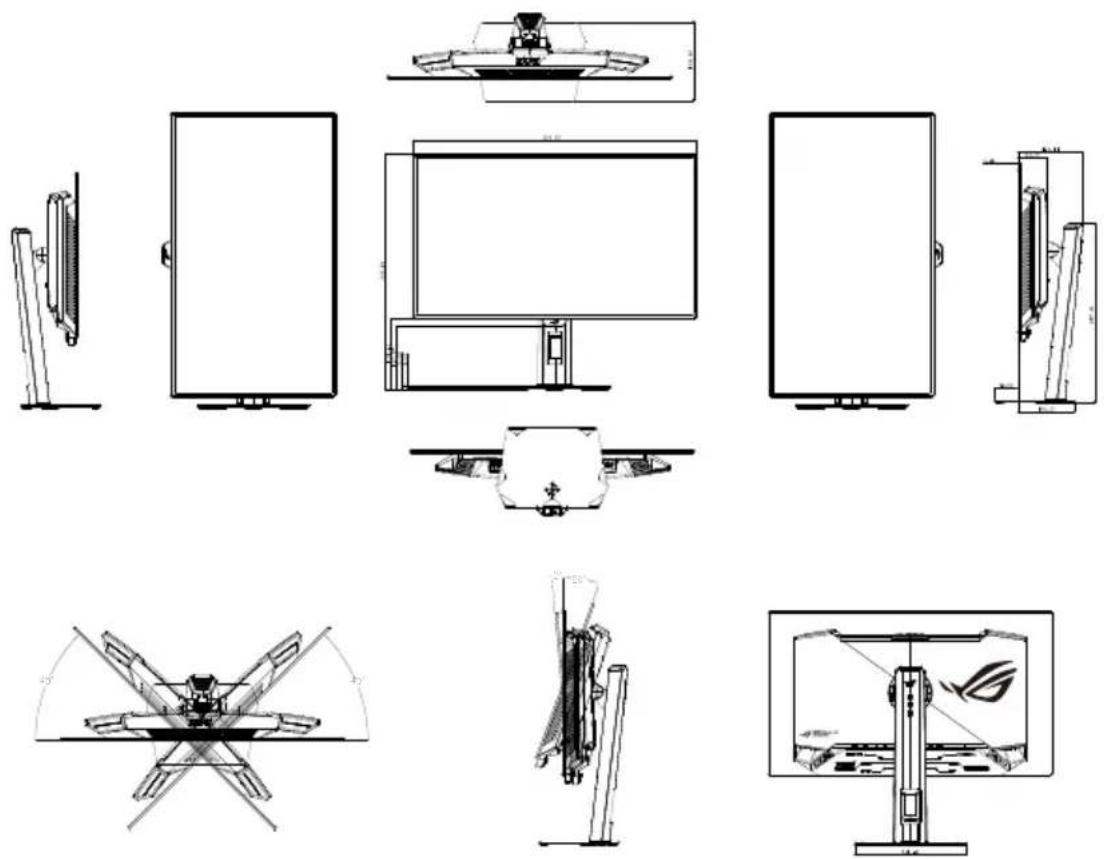

2.2 Outline dimension.... 2-2

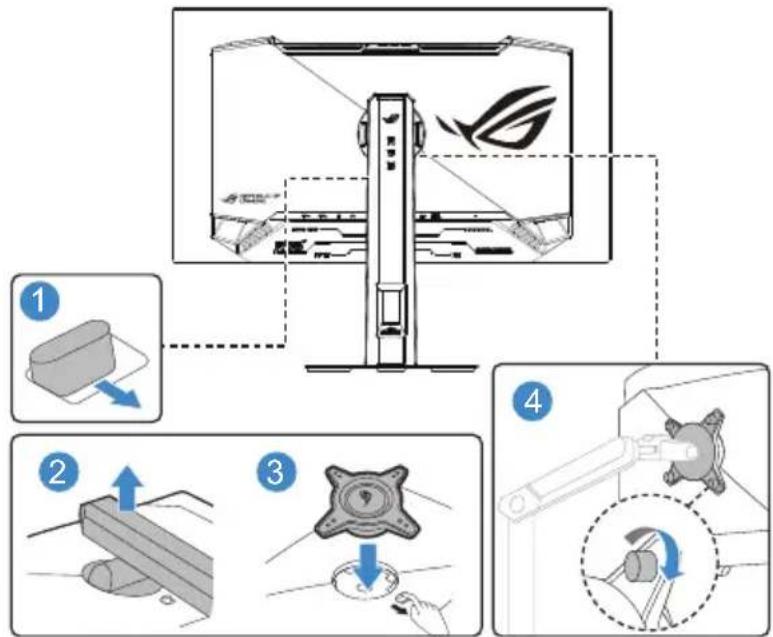

2.3 Detaching the arm/stand (for VESA wall mount) 2-3

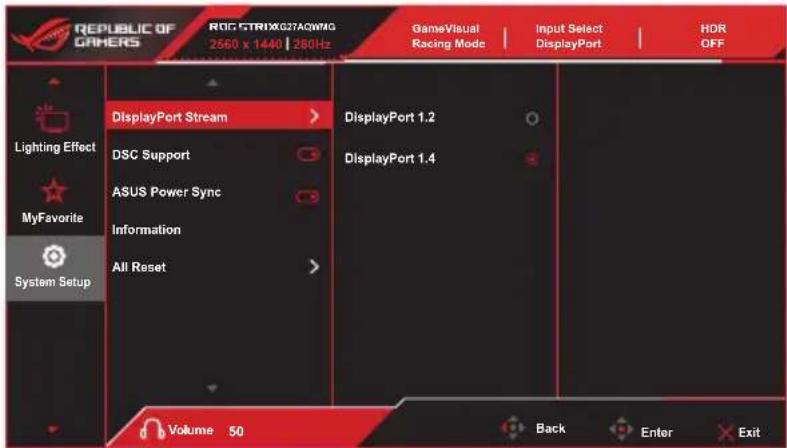

3.1 OSD (On-Screen Display) menu 3-1

3.1.1 How to reconfigure 3-1

3.1.2 OSD Function Introduction 3-2

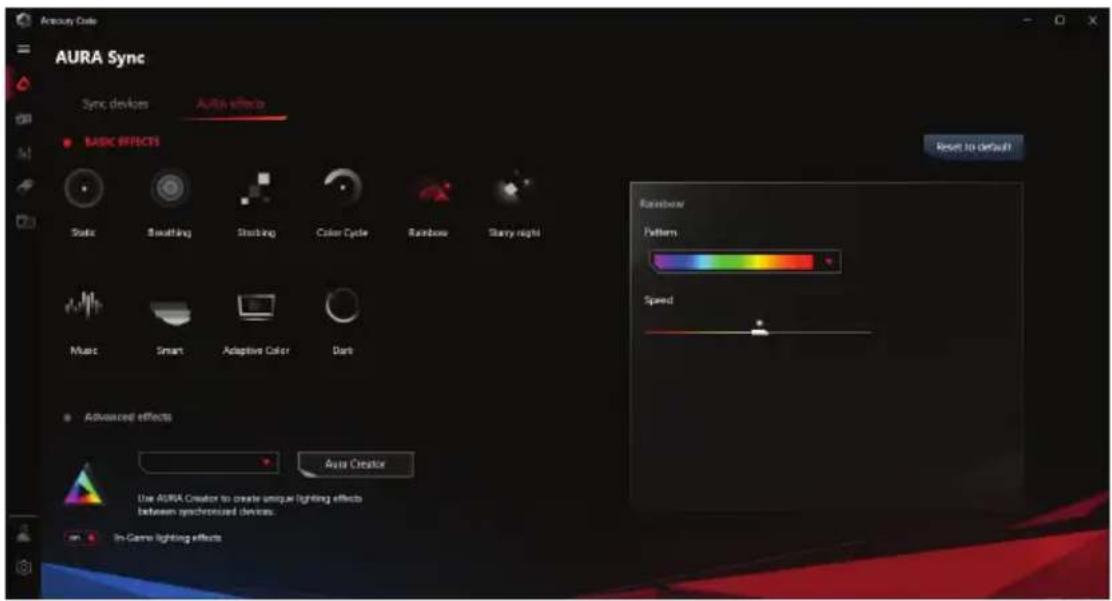

3.2 Aura Sync 3-15

3.3 Specifications.... 3-16

3.4 Troubleshooting (FAQ)....3-17

3.5 Supported Timing List.... 3-18

Copyright © 2025 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

This Class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.

Declaration of Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), REGULATION (EU) 2024/1781 and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union.

WEEE Symbol Statement

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The Monitor uses low blue light panel and compliance with TÜV Rheinland Low Blue Light Hardware Solution at factory reset/default setting mode.

TÜV Rheinland Flicker Free Certification.

This product to ascertain whether the display produces visible and invisible flicker for the human eye and therefore strains the eyes of users.

Safety information

- Before setting up the monitor, carefully read all the documentation that came with the package.

- To prevent fire or shock hazard, never expose the monitor to rain or moisture.

- Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

- If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

- Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

- Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.

- The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.

- Use the appropriate power plug which complies with your local power standard.

- Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

- Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.

- Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.

- Never push objects or spill liquid of any kind into the slots on the monitor cabinet.

- To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 \~ 240V AC.

- The socket-outlet shall be installed near the equipment and shall be easily accessible

- If you encounter technical problems with the monitor, contact a qualified servicer.

- Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.

• Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum).
• If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.

Stability Hazard

• The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions.
• A product may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• ALWAYS use cabinets or stands or installation methods recommended by the manufacturer of the product set.
  • ALWAYS use furniture that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the product or its controls.
• ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.
• NEVER place the product on cloth or other materials that may be located between the product and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the product or furniture on which the product is placed.
• If the existing product is going to be retained and relocated, the same considerations as above should be applied.

ASUS CONTACT INFORMATION
ASUSTeK Computer Inc.	ASUS Computer International (America)	ASUS Computer GmbH (Germany and Austria)
Address Address N8720, Kato Rd, Fremont, Lide Rd., Beitou Dist., Taipei City 112, Taiwan	CA 94538, USA	Address Harkortstr. 21-23 D-40880 Ratingen, Germany Telephone [phone]Telephone [phone] Website http://www.asus.de/ Online Contact http://www.asus.de/sales
Telephone [phone] Fax [phone]
Fax [phone]	Website http://usa.asus.com/
E-mail [e-mail]
Website http://www.asus.com.tw/
	Technical Support Technical Support
Technical Support	Telephone [phone] (English Only) Telephone [phone]
Telephone [phone]	[phone] (French Only) Support Fax [phone]
	Online Support http://support.asus.com/	Online Support http://support.asus.com/

WARNING

Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.

Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphones and headphones output voltage and therefore the sound pressure level.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

Restriction on Hazardous Substances statement (India)

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of Lead, Mercury, Hexavalent Chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers(PBDEs) in concentration exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule.

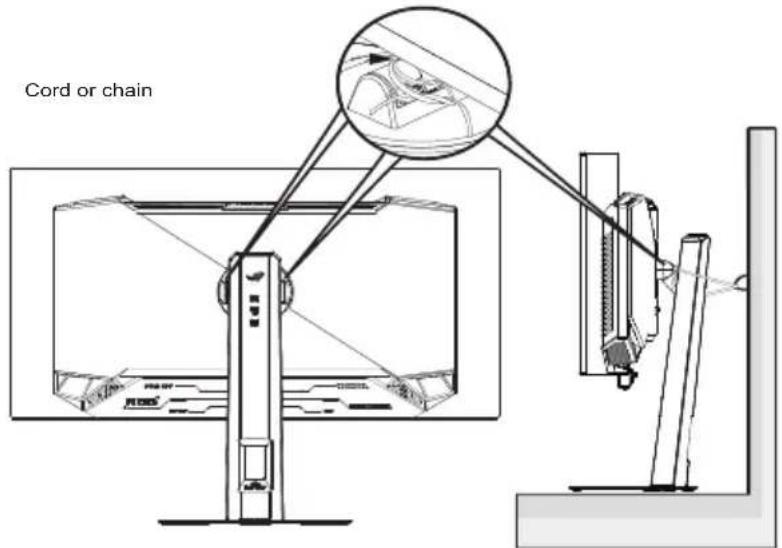

Prevent Tipping

When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling.

- Display design may differ from those illustrated.

- Installing must be done by a qualified technician, and please contact your supplier for more information.

- For the Models with net weight >=7kg. Please select the suitable way to Prevent Tipping.

- Please use the method above to tie the cord or chain to the stand and then fix it to the wall.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

3. Protect your eyes with ASUS EYE CARE Monitors

The latest ASUS monitors feature exclusive Blue Light Filter and Flicker free technologies to keep your eyes healthy in today's digital world. Refer to

https://www.asus.com/Microsite/display/eye_care_technology/

4. About Flicker:

https://www.asus.com/Microsite/display/eye_care_technology/

5. About Low Blue Light:

https://www.asus.com/us/support/FAQ/1009742/

Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

Please go to http://csr.asus.com/english/Takeback.htm for detail recycling information in different region.

Product information for EU energy label

1.1 Welcome

Thank you for purchasing the ASUS® OLED Gaming monitor!

The latest widescreen OLED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual experience that the monitor brings you!

1.2 Package contents

Check your package for the following items:

√ OLED Monitor
√ Monitor Stand
√ Monitor Base
√ Quick Start Guide
√ Warranty Card
√ Power Cord
√ DP Cable
√ HDMI Cable (optional)
√ USB Type B to Type A cable
√ ROG wall mount kit
√ ROG Sticker
√ ROG Pouch
√ Microfiber Cloth
√ Cleaning Card

- If any of the above items is damaged or missing, contact your retailer immediately.

1.3 Assembling the monitor

To assemble the monitor:

- While assembling the monitor arm/base, we recommend that you keep the monitor inside its EPS (Expanded Polystyrene) packaging.

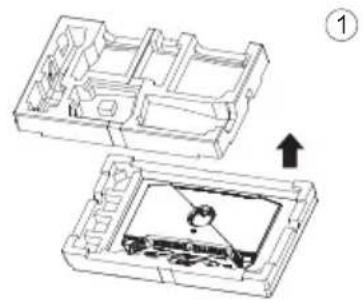

1. Take out all accessories from the EPS.
2. Align and install the stand to its compartment on the rear of the monitor.

3. Align and install the base to the stand. Then fix the base to the stand by fastening the bundled screw.

4. Remove the monitor from the bottom EPS.

- Please do not hold the panel. We recommend hold the monitor stand to pick up monitor.

- Base screw size: M6 x 15 mm

*Adjust the monitor to the angle that is most comfortable for you.

1.4 Connect cables

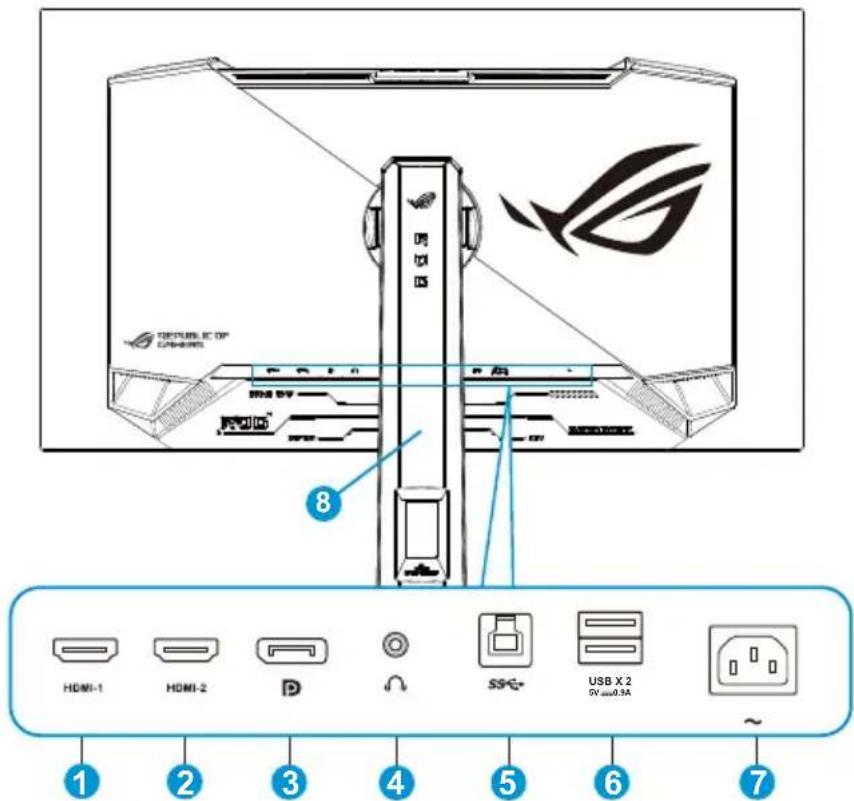

1.4.1 Rear of the OLED monitor

1. HDMI-1 Port
2. HDMI-2 Port
3. DisplayPort
4. Earphone Out Port
5. USB 3.2 Gen 1 Type-B Port
6. USB 3.2 Gen 1 Type-A Port
7. AC-IN Port
8. Kensington Lock

1.5 Monitor introduction

1.5.1 Using the Controls button

Use the control button on the back of the monitor to adjust the monitor settings.

1. Power Indicator:

- The color definition of the power indicator is as the below table.

Status	Description
Red ON
Amber	Standby mode
Amber flashing	Pixel cleaning
OFF OFF

- Neo proximity sensor: Measure the distance between the user and monitor.

2. Close Button:

- When the OSD menu is ON, press to exit the OSD menu.

3. (5-way) Button:

- Press this button to turn on the OSD menu.

- Increases/Decreases values or moves your selection up/down/left/right

4. Power Button:

- Press this button to turn the monitor off. Press any key to turn on the monitor.

- To change the hotkey function, go to the MyFavorite >Shortcut menu.

1.5.2 GameVisual Function

The GameVisual function helps you select among different picture modes in a convenient way.

To activate GameVisual:

1. Press the GameVisual hotkey. By default, the button up is set as GameVisual hotkey.

To change the hotkey function, go to the MyFavorite > Shortcut menu.

1. Move the button up/down to select among different modes.

- Scenery Mode: This is the best choice for scenery photo or movie displaying with GameVisual™ Video intelligence Technology.

- Racing Mode: This is the best choice for racing game playing with GameVisual™ Video intelligence Technology and for document editing. In this mode is applied reduced input lag (by pass FRC).

- Cinema Mode: This is the best choice for generic movie watching and movie watching with GameVisual™ Video intelligence Technology.

- RTS/RPG Mode: This is the best choice for generic game playing and Real-Time Strategy (RTS)/ Role-Playing Game (RPG) playing with GameVisual™ Video intelligence Technology.

- FPS Mode: This is the best choice for dark scenery game playing, movie watching, and First Person Shooter game playing with GameVisual™ Video intelligence Technology.

- sRGB Cal Mode: This is the best choice for viewing photos and graphics from PCs.

- MOBA Mode: This is the best choice for Multiplayer Online Battle Arena (MOBA) games playing with GameVisual™ Video intelligence Technology.

- Night Vision: This is the best choice for dark scenery playing with GameVisuall™ Video intelligence Technology.

- User Mode: More items are adjustable in the Color menu.

• In the sRGB Cal Mode, the Contrast and Color functions are not user-configurable.
• In the MOBA Mode, the Saturation, VividPixel and Six-axis Saturation functions are not user-configurable.

1. Press the button to confirm the selection.

2.1 Adjusting the monitor

• Peel off the protective film from the screen using the tear tab.
• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• Adjust the monitor follow the pictures for the most comfortable viewing for you.

It is normal that the monitor slightly shakes while you adjust the viewing angle.

2.2 Outline dimension

Unit: mm

2.3 Detaching the arm/stand (for VESA wall mount)

• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

The detachable stand of this monitor is specially designed for VESA wall mount.

To detach the arm/stand

1. Press the release button to detach the stand from the monitor.
2. Then remove the stand.
3. Install VESA wall mount kit if you need to use VESA wall mount.
4. Then install the monitor to the wall mount.

• The VESA wall mount kit (100 x 100 mm) is purchased separately.
• Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg (Screw size: M4 x 10 mm).

3.1 OSD (On-Screen Display) menu

3.1.1 How to reconfigure

1. Press the MENU button to activate the OSD menu.
2. Press the ▼ and ▲ buttons to toggle between options in the menu. As you move from one icon to another, the option name is highlighted.
3. To select the highlighted item on the menu press the center key.
4. Press the ▼ and ▲ buttons to select the desired parameter.
5. Press the center key to enter the slide bar and then use the ▼ or ▲ buttons, according to the indicators on the menu, to make your changes.
6. Press the ◀/▶ to move left / right menu.

3.1.2 OSD Function Introduction

1. Gaming

Configure your gaming preferences.

- Variable Refresh Rate: Allow an Adaptive-Sync supported graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.

• Variable Refresh Rate can only be activated within 41Hz\~280Hz for both HDMI and DisplayPort sources.
• The following functions will be disabled when Variable Refresh Rate is turned on:
• ELMB

- ELMB: Check to decrease motion blur and minimize ghosting part when on-screen objects are fast moving. ELMB is enabled if input V frequency is 140Hz.

• To activate ELMB, turn off Variable Refresh Rate function first.
• ELMB works on vertical frequency 140Hz only.
• The following functions will be disabled when ELMB is turned on:
- Variable Refresh Rate
- Uniform brightness
- Aspect Control
- Blue Light Filter
- HDR Setting

- GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games.

To active GamePlus:

• Press GamePlus Button to enter the GamePlus main menu.
• Activate FPS Counter, Crosshair, Sniper, Timer, Stopwatch or Display Alignment function.
• Move the ( ) button up/down to select and press ( ) to confirm the function needed. Press ✗ to go off, and exit.
• Crosshair/Timer/Stopwatch/FPS Counter is movable by pressing 📄-way key.

GamePlus Shortcut menu	GamePlus-FPS Game Plus-Crosshair
GamePlusFPSCounter>Crosshair>Sniper>Timer>StopwatchDispaly Alignment
GamePlus-Sniper GamePlus-Timer

• GameVisual: This function contains nine sub-functions that you can select for your preference.
• Shadow Boost : Dark color enhancement adjust monitor gamma curve to enrich the dark tones in an image making dark scenes and objects much easier be found.

- ASUS DisplayWidget Center: Learn more detail about ASUS DisplayWidget Center tool by scanning the QR code.

ASUS DisplayWidget Center is an app that allows you to tweak monitor settings with a mouse instead of using the buttons on the monitor. The app saves monitor settings and also provides system notifications and facilitates automatic updates.

2. Image

Configure the image settings.

• Brightness: Adjust the brightness level.
• Uniform Brightness: With the feature enabled, the system will not adjust the maximum brightness of the screen when the screen is displayed in a different screen size.
• Contrast: Adjust the contrast level.
• OLED Anti-Flicker: Designed to enhance your viewing experience by stabilizing the refresh rate within a specified range.

• OLED Anti-Flicker only supports in the limited refresh rate.
- This function is only available when the input source is DisplayPort.

- HDR Setting: Set the HDR mode to Gaming HDR, Cinema HDR, Console HDR, DisplayHDR 500 True Black and Adjustable HDR. The HDR brightness can be adjusted when the Adjustable HDR function is enabled.

• When displaying HDR content, the following functions are not available: GameVisual, Shadow Boost, Brightness, Contrast, Aspect Control, Blue Light Filter, Color Temp., Gamma, Saturation.
• The following functions will be disabled when HDR is turned on:
• ELMB
• Sniper
• GameVisual
• Shadow Boost
• Brightness
• Uniform Brightness
• Contrast
• Blue Light Filter
• Color Temp.
• Saturation
• Six-Saturation
• Gamma
• Power Saving

- HDR PQ curve will be affected when the brightness adjustment is ON under HDR mode.

- Aspect Control: Adjust the aspect ratio to 16:9, Square to enjoy different gaming scenario.

• SelectSquare to display the picture according to the original aspect ratio of the input source.
• The following functions will be disabled when Aspect Control is turned on:
• ELMB

- Blue Light Filter: Adjust the energy level of blue light emitted from OLED.

• OFF: No change.
• Level 1\~4: The higher the level, the less blue light is scattered. When Blue Light Filter is activated, the default settings of Racing Mode will be automatically imported. Between Level 1 to Level 3, the Brightness function is userconfigurable. Level 4 is optimized setting. The Brightness function is not user-configurable.

- When the user adjusts blue light filter bar to maximum level.

Please refer to the following to alleviate eye strains:

• Users should take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 mins) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a single longer break.
• To minimize eye strain and dryness in your eyes, users should rest the eye periodically by focusing on objects that are far away.
• Eye exercises can help to reduce eye strain. Repeat these exercises often. If eye strain continues please consult a physician. Eye exercises: (1) Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal.
• High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome).

- VividPixel: Enhance the outline of the displayed picture and generates high-quality images on screen.

3. Color

Select the image color you like from this function.

• Display Color Space: Contains three preset color modes sRGB, DCI-P3, and Wide Gamut Mode.
  • Color Temp.: Contains seven preset color modes (4000K, 5000K, 6500K, 7500K, 8200K, 9300K, 10000K) and User Mode.
  • Saturation: The adjusting range is from 0 to 100.
• Six-axis Saturation: Set R/G/B/C/M/Y saturation. The range is from 0 to 100.
• Gamma: Contains five gamma modes including 1.8, 2.0, 2.2, 2.4, 2.6.

- In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 \~ 100.

4. OLED Care

Configure the screen protection related settings.

- Screen Saver: Enable/Disable the screen saver function. The screen brightness will automatically decrease when there is no change on the screen.

- Pixel Cleaning: It calibrates any issues that may arise on the screen when your monitor has been turned on for a long time. The process will take approximately 4 minutes. This function will automatically activate when the monitor is turn off. Do not unplug the power cord while it is in progress. If you power on the monitor, the Pixel Cleaning will stop operating.

- Pixel Cleaning Reminder: Set a reminder for user to perform the Pixel Cleaning.

The screen may have mura and image sticking due to OLED characteristic during the initial use or re-used after a long time. It is advised to perform Pixel Cleaning while turning on monitor to make sure situation disappear.

- Screen Move: Select the screen movement level to prevent image sticking on the display panel.

- Auto Logo Brightness: Enable this function to allow the system to automatically adjust the logo brightness to correct the potential picture quality issues.

- Neo Proximity Sensor: If the function is enabled and the system does not detect the presence of object within 60 cm – 120 cm (depending on your selection) over the present time, the monitor will apply Screen-off.

Screen off time can be set as 5 minute, 10 minutes, or 15 minutes.

- Tailored mode: Allows users to customize the Neo Proximity Sensor detection distance. It is recommended to set the distance within 120cm. After a set period of time, the monitor will apply Screen-off.

• The angle and placement of the monitor sensor might affect the signal detection results.
• Before using the sensor, make sure the sensor window is clean and free of dirt, and ensure that no objects are covering the sensor window.

- OLED Usage Info: Record the number of times the Pixel Cleaning has been performed and displays the Pixel Cleaning interval information.

5. Input Select

Select your desired input source and toggle the Auto Input Detection function between on and off. The monitor input source will not automatically switch when the Auto Input Detection function is disabled.

6. Lighting Effect

Configure the lighting effect for the rear cover and base cover.

- Aura Sync: Allows you to turn on or off the Aura Sync function that synchronizes the Aura RGB light effect among all supported devices.

- Aura RGB: In this function you can select an Aura RGB light effect for the monitor and change settings for the light effect. Select "OFF" if you want to turn the Aura RGB light effect off.

- If the Aura Sync function is turned ON, the Aura RGB function will become unavailable.

7. MyFavorite

Assign a function to the shortcut button, save the current system configurations, or restore the system configuration.

- Shortcut: User can select from "GamePlus, GameVisual, Brightness, Mute, Shadow Boost, Contrast, Input Select, HDR Setting, Blue Light Filter, Color Temp., Volume (Earphone Out), Pixel Cleaning, Customized Setting-1, Customized Setting-2 and set as shortcut key.

- Customized Setting: Load/Save all settings on the monitor.

8. System Setup

Adjusts the system configuration.

• Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian, Ukrainian, and Vietnamese.

- Sound: Configure the sound related settings.

• Volume (Earphone Out): Adjust the volume level.
- Mute: Enable/Disable the mute function.

- USB Setup: Configure the USB port settings.

- USB Hub: Set the USB Hub availability during standby.

- Power Indicator: Turn the power LED indicator on/off.

• Power Key Lock: To disable / enable power key

• Key Lock: Disable all key functions. Pressing the down button for more than five seconds to disable key lock function.

- Power Setting: Use to select Performance Mode or Power Saving Mode.

• Please turn off HDR function before activating the Power saving mode.
• In order to comply with regulatory power consumption standards, the power saving mode is designed to be the most energy-efficient setting. However, this may cause some inconvenience during use. It is recommended to adjust the settings under the Performance mode to better suit your personal preferences.

- OSD Setup: Configure the OSD menu related settings.

• OSD Position: Set the OSD menu position.
• OSD Timeout: Adjust the OSD timeout.
• Transparency: Adjust the OSD background from opaque to transparent.
• DDC/CI: Enable/Disable the DDC/CI function.

- DisplayPort Stream: Select DisplayPort 1.2 if your graphics card is not compatible with DisplayPort 1.4.

- DSC Support: Enable/Disable the DSC (Display Stream Compression) function.

- To ensure proper display, the color depth, resolution, or color format may be automatically adjusted when the DSC (Display Stream Compression) function is turned off.

- ASUS Power Sync: Enables or disables the ASUS Power Sync function. To activate this function, please enable this function of the monitor via HDMI port.

- When Auto Input Detection is enabled, the monitor won't switch to DC OFF once the source device is turned off.

Please take a look at the ASUS website to check which devices are compatible with this function.

To enable monitor to turn on and off the hardware or vise versa, please set up your computer BIOS by the following.

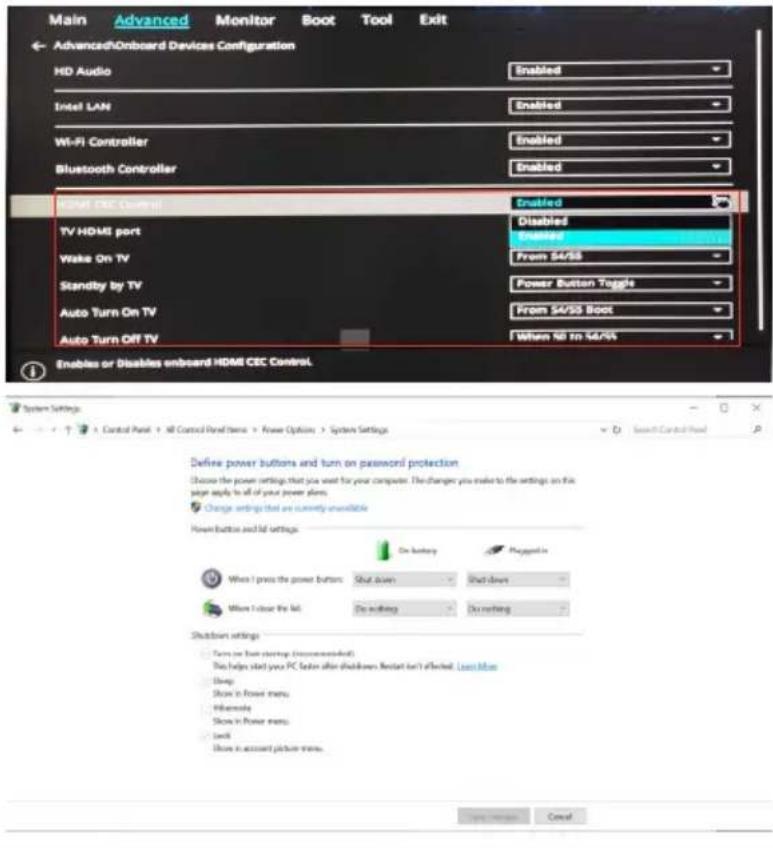

• BIOS set up instruction for ASUS NUC:

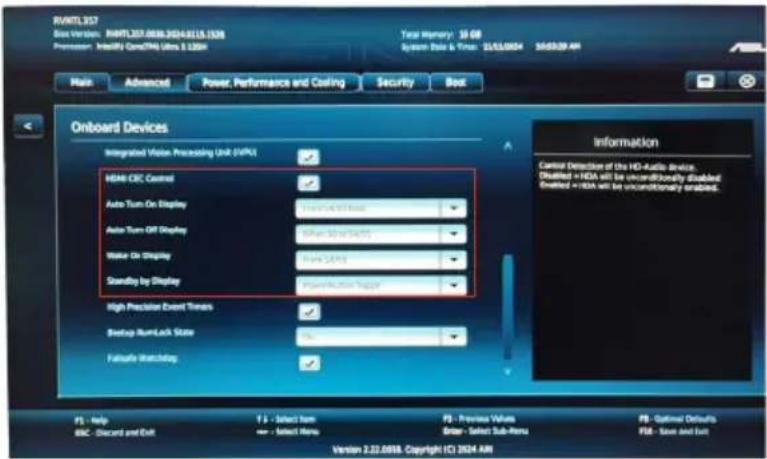

• BIOS set up instruction for ASUS Mini PC:

• Information: Display the monitor information.
- All Reset: Selects "Yes" to revert all settings to the factory default mode.

3.2 Aura Sync

Armoury Crate is a software program that controls the colorful LEDs on supported devices, such as monitors, motherboards, graphic cards, desktop PCs, etc. Aura allows you to adjust the color of the RGB LEDs on these devices and select different light effects. You can also correct or adjust the color of the LEDs by calibrating them.

To activate Aura:

1. Turn ON the Aura Sync function in the OSD menu.
2. Connect the Displayport port of the monitor to your computer.
3. Install Armoury Crate and then restart the computer.
4. Execute Armoury Crate.

Below is the overview of this program.

- If the Displayport connection between the monitor and computer is disconnected, to resume the Aura function, you need to re-connect the Displayport of the monitor to the computer and then restart the computer.

- Visit https://rog.asus.com/innovation/armoury_crate/ for more details.

3.3 Specifications

Model	XG27AQWMG
Panel Size	26.5"W (67.3cm)
Max. Resolution	2560x1440
Brightness	335nits (Typ.)/ 1500nits (HDR peak)
Intrinsic Contrast Ratio (Typ.)	1.5M:1
Viewing Angle (CR=10)	178°(V) /178°(H)
Display Colors	1.07B
Color Saturation	99.5% DCI-P3 (Typ.)
Response Time	0.03m (GTG)
Digital input	HDMI v2.1 x 2 , DisplayPort v1.4 x 1
Earphone Output	Yes
Sound from HDMI/DP	Yes
Power ON Consumption	26.8 W**
Chassis Colors	Black
Power saving mode	< 0.5W
Power off mode	< 0.3W
Tilt	-5° ~ +20°
Swivel	-45° ~ +45°
Height adjustment	110 mm
Phys. Dimension (WxHxD)	605 x 500 x 188 mm (highest)605 x 390 x 188 mm (lowest)
Phys. Dimension without stand (WxHxD) (For VESA Wall Mount)	605 x 368 x 63 mm
Box Dimension (WxHxD)	780 x 470 x 186 mm
Net Weight (Esti.)	6.7 kg
Net Weight (Esti. w/o stand)	4.8 kg
Gross Weight (Esti.)	8.8 kg
Voltage Rating	100~240V, 50/60Hz, 1.5A
Operational temperature	0~40°

*Specifications are subject to change without notice.

**Measuring a screen brightness of 200 nits wwithout audio/ USB/ Card reader connection.

3.4 Troubleshooting (FAQ)

Problem Possible Solution
Power LED is not ON	Press the button to check if the monitor is in the ON mode.Check if the power cord is properly connected to the monitor and the power outlet.Check Power Indicator function in main menu OSD. Select “ON” to turn on power LED.
The power LED lights amber and there is no screen image	Check if the monitor and the computer are in the ON mode.Make sure the signal cable is properly connected the monitor and the computer.Inspect the signal cable and make sure none of the pins are bent.Connect the computer with another available monitor to check if the computer is properly working.
Screen image is too light or dark	Adjust the Contrast and Brightness settings via OSD.
Screen image bounces or a wave pattern is present in the image	Make sure the signal cable is properly connected to the monitor and the computer.Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)	Inspect the signal cable and make sure that none of the pins are bent.Perform Reset via OSD.Adjust the R/G/B color settings or select the Color Temperature via OSD.
No sound or sound is low	Adjust the volume settings of both your monitor and computer.Make sure the computer sound card driver is properly installed and activated.Check the audio source.

3.5 Supported Timing List Support Timing

Timing Resolution HDMI DP
PC Timing 640x480-60Hz V V
PC Timing 640x480-75Hz V V
PC Timing 800x600-60Hz V V
PC Timing 800x600-75Hz V V
PC Timing 1024x768-60Hz V V
PC Timing 1024x768-75Hz V V
PC Timing 1280x720-60Hz V V
PC Timing 1280x960-60Hz V V
PC Timing 1280x1024-60Hz V V
PC Timing 1600x1200-60Hz V V
PC Timing 1920x1080-60Hz V V
Video Timing 640x480-60Hz V V
Video Timing 720x480-60Hz V V
Video Timing 720x576-50Hz V V
Video Timing 1280x720-50Hz V V
Video Timing 1280x720-60Hz V V
Video Timing 1920x1080-24Hz V V
Video Timing 1920x1080-25Hz V V
Video Timing 1920x1080-30Hz V V
Video Timing 1920x1080-50Hz V V
Video Timing 1920x1080-60Hz V V
Video Timing 1920x1080-100Hz V V
Video Timing 1920x1080-120Hz V V
Video Timing 3840x2160-24Hz V
Video Timing 3840x2160-25Hz V
Video Timing 3840x2160-30Hz V
Video Timing 3840x2160-50Hz V
Video Timing 3840x2160-60Hz V
Video Timing 3840x2160-100Hz V
Video Timing 3840x2160-120Hz V

24.5" Simulation Timing

Timing Resolution HDMI DP
Detail Timing 2368x1332-60Hz V V
Detail Timing	2368x1332-120Hz V V
Detail Timing	2368x1332-240Hz V V
Detail Timing	2368x1332-280Hz V V
Detail Timing	2560X1440-60Hz	V	V
Detail Timing	2560X1440-120Hz	V	V

Square Timing

Timing Resolution HDMI DP
Detail Timing 1024x768-280Hz V V
Detail Timing 1280x960-280Hz V V
Detail Timing 1440x080-280Hz V V
Detail Timing 1728x080-280Hz V V
Detail Timing 1920x440-280Hz V V
Detail Timing 2560x440-60Hz V V
Detail Timing 2560x440-120Hz V V

16:9 Timing

Timing Resolution HDMI DP
Detail Timing 1920x	080-240Hz V V
Detail Timing 1920x	080-280Hz V V
Detail Timing 2560x	440-60Hz V V
Detail Timing 2560x	440-120Hz V V
Detail Timing 2560x	440-140Hz V V
Detail Timing 2560x	440-240Hz V V
Detail Timing 2560x	440-280Hz V V

* The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables.

REPUBLIC OF GAMERS
