Product Type	Smart Wi-Fi LED Bulb
Model	Tapo TL63-5
Brand	TP-Link
Category	Lighting
Base Type	E26/E27 Standard
Brightness	800 lumens (equivalent to 60W incandescent)
Color Capabilities	Tunable white (2700K-6500K) and 16 million colors
Beam Angle	180 degrees
Connectivity	Wi-Fi 2.4GHz, IEEE 802.11b/g/n
Smart Hub Required	No, connects directly to router
Dimensions	Approximately 60 x 110 mm (2.36 x 4.33 in)
Weight	Approximately 60 g (2.12 oz)
Power Consumption	9W (typical)
Input Voltage	100-240V AC, 50/60Hz
Lifespan	Up to 15,000 hours
App Support	Tapo App for iOS and Android
Voice Control	Amazon Alexa and Google Assistant
Scheduling	Yes, includes timers and away mode
Working Temperature	-10°C to 40°C
Materials	Heat-resistant PC and aluminum
Maintenance	Wipe with a dry cloth; do not use liquids
Security Features	Overheat protection and CE/RoHS certified
Spare Parts	No user-serviceable parts inside; replace unit at end of life
General Information	Manufacturer: TP-Link Technologies Co., Ltd

Frequently Asked Questions - Tapo TL63-5 TP-LINK

How do I install the Tapo TL63-5 smart bulb?

Screw the Tapo TL63-5 into a standard E26/E27 socket, turn on the power switch, then open the Tapo app to add the device. The app will guide you through Wi-Fi connection and pairing.

Does the TP-Link Tapo TL63-5 require a separate hub?

No, the Tapo TL63-5 connects directly to your home Wi-Fi router. No extra hub or bridge is needed, making setup simple and cost-effective.

Which Wi-Fi networks are compatible with this bulb?

The Tapo TL63-5 supports 2.4GHz Wi-Fi networks only (IEEE 802.11b/g/n). It will not work on 5GHz networks. Ensure your router is set to broadcast a 2.4GHz signal.

Can I control the Tapo TL63-5 with voice assistants?

Yes, the bulb works with Amazon Alexa and Google Assistant. After setup in the Tapo app, you can enable the skill or action and control the light with simple voice commands.

How do I reset the Tapo TL63-5 to factory settings?

To reset the bulb, turn it off and on (using the physical switch) three times in quick succession. The bulb will blink to confirm. Alternatively, use the reset option in the Tapo app.

Is the brightness adjustable?

Yes, the Tapo TL63-5 is fully dimmable via the Tapo app or voice commands. You can adjust brightness from 1% to 100%. Note that it does not require an external dimmer switch.

What is the lifespan of this smart bulb?

The LED has a rated lifespan of up to 15,000 hours. Actual lifespan may vary depending on usage and environmental conditions. This is much longer than traditional incandescent bulbs.

Can I control the Tapo TL63-5 when I'm away from home?

Yes, as long as the bulb is connected to your home Wi-Fi and the router has internet access, you can control it remotely using the Tapo app from anywhere in the world.

Does the smart bulb consume power in standby mode?

The Tapo TL63-5 has a very low standby power consumption of less than 0.5W. This is negligible and designed to maintain Wi-Fi connectivity while not emitting light.

How should I clean and maintain the Tapo TL63-5?

Always turn off the light and wait for it to cool before cleaning. Use a dry, soft cloth to wipe the surface. Do not use water, solvents, or spray cleaners. There are no user-serviceable internal parts; replace the bulb if it fails.

USER MANUAL Tapo TL63-5 TP-LINK

About This Guide....1

Introduction 2

Appearance 3

Set Up Your Light Strip 4

Install Your Light Strip 6

Basic Device Control 8

Configure Your Light Strip....9

Smart Actions....16

Share Your Light Strip 18

Reset Your Light Strip 19

Groups 20

Third-Party Services 22

Voice Commands 24

About This Guide

This guide provides a brief introduction to Tapo Smart Light Strip and the Tapo app, as well as regulatory information.

Features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo experience.

Conventions

In this guide, the following convention is used:

Convention	Description
Blue	Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline	Hyperlinks are in teal and underlined. You can click to redirect to a website.
■ Note Ignoring this type of note might result in a malfunction or damage to the device.

More Info

• Specifications can be found on the product page at https://www.tapo.com.
  • Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
  • A Technical Community is provided for you to discuss our products at https://community.tp-link.com.

Introduction

The Tapo Smart Wi-Fi Light Strip is part of the Tapo smart home family of products, including plugs, switches, cameras and more. Over 16 million vibrant colors, warm white, or cool daylight are available for you to pick from and create your own scenes. Cut it to whatever length you want and attach it to any surface with the 3M adhesive. You can light up walkways, TV setups, bookshelves, bedrooms and so much more.

Whether you use your preferred Tapo app or Smart Voice Assistant, you can control the light strip easily. With Tapo, your home is never more than a few taps away.

• Remote Control - Instantly turn the light on/off wherever you are through the Tapo app.
• No Hub Required - Connect to your existing Wi-Fi router. No need for a hub or extra equipment.
• Flexible Installation* - Cut it to whatever length you want and attach it to any surface with the 3M adhesive.
  *Once cut, it cannot be reattached. Prevent accidental shocks by removing its power and then cutting along the strip's indicator lines.
• Sync-to-Sound - Coordinate your favorite music with your Tapo lights. Let the beat infuse your life with its vibrant colors.
• Timer - Set a countdown timer to automatically turn the light on or off after a certain amount of time.
• Schedule - Use Schedules to set your light to automatically turn on and off.
• Preset for Convenience - Save and preset your favorite lightings for multiple scenarios.
• Away Mode - Set a period of time during which the light will be randomly turned on and off to make it look like you're home.
• Sunrise and Sunset Mode - Automatically activate your light strip according to your time zone.
• Restore Last Light State - The light strip automatically returns to its previous power-off state.
  • Device Sharing - Invite your family members to manage the light strip together.

Appearance

The Tapo Smart Light Strip includes a power adapter, a control button, a controller, and the Light Strip.

Button Explanation

Control Button Description
Turn On/Off Press once to	turn on/off the light strip.
Switch Preset Lighting Effects	Press twice to switch preset lighting effects.
Soft Reset(Only reset Wi-Fi info)	Press and hold for 5s but no more than 10s, and release. The light strip will blink orange and green.
Factory Reset(Reset to factory settings)	Press and hold for at least 10s until the light strip turns solid white, then blinks orange and green.

LED Light Status

LED Status Description
Blinks orange and green Ready for setup
Blinks green and white Connecting to Wi-Fi
Blinks among several colors, then remains solid white	Connected to Wi-Fi and TP-Link server

Set Up Your Light Strip

Follow the steps below to get started with your new light strip.

Step 1. Download Tapo App

Get the Tapo app from the App Store or Google Play, or by scanning the QR code below.

Step 2. Log In

Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.

Step 3. Add Your Light Strip

Tap the Ⓐbutton in the app, tap Lights, and select your model. Then follow the app instructions to set up your device.

Step 4. Connect All Parts

Connect the Power Adapter, Controller, and the Light Strip before powering it up.

Note: Make sure the arrows on the light strip and the controller are pointing to each other. Otherwise, it will not be powered on.

Step 5. Power Up Light Strip

Plug in the power adapter and check the lights. Then follow app instructions to complete the setup.

Note: Do not roll up when using. Spread out the light strip before connect the power supply.

Install Your Light Strip

After you have set up the light strip via the Tapo app, you can cut it to length-fit and attach it to any surface with the 3M adhesive. To avoid damaging your light strip, please note the following Installation Tips before installing the light strip.

Cut Only On Specific Areas of Light Strip

You can custom tailor the length of your light strip with scissors. Unplug the Light Strip and cut only on these specific areas or your light strip will no longer function.

Avoid Bending on LED Beads

Avoid Sharp Turns

Carefully roll the light strip into a clover or use a gentle hill when making 90° turns like those need behind a TV. Sharp bends can damage your light strip.

Avoid Sharp Corners

Step 1. Choose Location

Choose a dry, clean, and smooth surface. Wipe off the dust. Otherwise, the light strip will be easily fall off.

Note. Choose a location that avoids static and stays away from water splashing.

INSTALL LIGHT STRIP

Step 3. Stick Light Strip

Stick the light strip and press over it about 10-15 seconds. Secure the controller with the adhesive pads. Do not move it to other place after it is attached.

Step 2. Remove Adhesive Tape

Unplug the light strip first. Peel away the 3M adhesive backing bit by bit and stick your light strip to the surface.

Note: Do not peel off the tape under the adhesive backing.

Step 4. Power Up Light Strip

Plug in the power adapter to power on your light strip.

Basic Device Control

After successfully setting up your light strip, you will see the home page of the Tapo app. Here you can view the status of all devices that you've added and manage them. You can tap on the device to control and manage.

Home Page

You can turn on or off the light strip anytime anywhere and tap the card to enter the status page.

Device Status Page

You can adjust brightness and colors, set lighting effects, create schedules, enable away mode, or set a timer to automatically control your device, view its runtime & energy usage, and more.

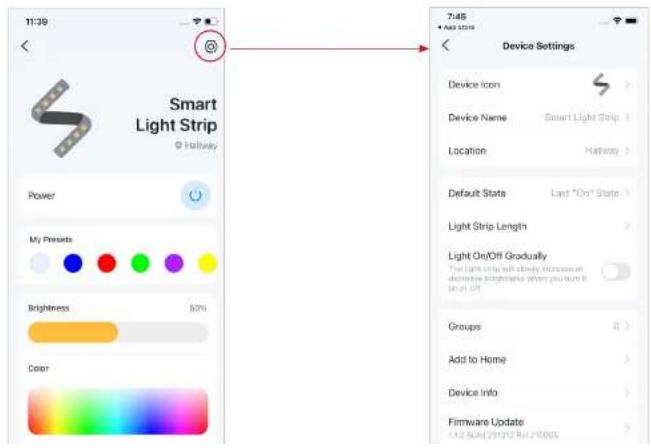

Device Settings Page

You can edit the basic information, set default state, enable gently on/off, update firmware, and more.

Configure Your Light Strip

You can configure your light strip by adjusting lighting settings and setting Presets, Schedule, Timer, Away Mode and more.

Power On/Off At One Tap

Quickly power on or off your light strip with a tap.

Adjust Brightness

Slide to dim your light strip with a range from 1% to 100%.

Change Color At One Tap

Quickly apply the color you like with a tap.

Change White At One Tap

Tap to set your light strip to the whiteness you feel comfortable with.

Presets

Tap on a preset to quickly apply your favorite colors or lighting effects.

To edit preset, just select one and tap Edit.

Check Runtime & Energy Usage

Slide up to check your light strip's runtime and engery use today, past 7 days or past 30 days.

Main Features

On the device status page, you can use the Effects, Sync-to-sound, Schedule, Timer, and Away Mode features.

Share Your Light Strip

You can invite your family members to manage your Tapo devices together by entering the TP-LinkID(email)youwanttosharetnedeVICESwith.

Effects

Tap Effects to create wonderful lighting effects to meet your need.

Option 1: Choose a Predefined Effect

You can tap to add predefined effects fit for different scenarios to your favorites for convenience.

Option 2: Create Your Own Effect

You can also tap Custom on the Light Effects page to create a new effect to your preference.

Sync to Sound

Tap Sync-to-sound to coordinate your favorite music with your Tapo lights.

Keep the Sync-to-sound page in the foreground to ensure audio reception.

Adjust the displayed color, brightness, and speed of your lighting effect according to the music.

Set Schedule

Tap Schedule to add a schedule for your light strip to automatically turn on/off and adjust the lighting settings to simplify your daily routine.

Set Timer

Tap Timer to set the timer and lighting settings, then your light strip will automatically turn on with the specific settings after the timer ends.

Away Mode

Tap Away to preset the Away Mode, set the start and end time, then your light strip will be randomly turned on/off during this period.

Device Default State

Set the state (color/brightness/effect) of your light strip, and then each time you turn on the light strip, your light strip will go to this set state.

Option 1: Last "On" State

When you turn off the light strip, the light strip will remember the state (color/brightness/effect) before it was turned off. Therefore, if you select Last "On" state, the light strip will go to the remembered state each time it's turned on.

Option 2: Custom

Set a preferred state (color/brightness/effects), and then you light strip will go to your preferred state each time it's turned on.

Smart Actions

Smart Actions automate repetitive tasks, allowing you to blaze through tedium with utmost ease. Set everything up once and never have to worry about it again. With Smart Actions, giving your home that level of intelligence is a snap. Shortcut lets you perform an action with a simple tap. Automation allows you to automate tasks to be performed at a set time. e.g. The light will light on at sunset.

Option 1: Edit based on the featured actions

1. Go to the Smart Actions page and you will see the Featured Actions (Shortcut or Automation).

2. Tap on a featured action. Change the settings as needed and tap Add to save changes.

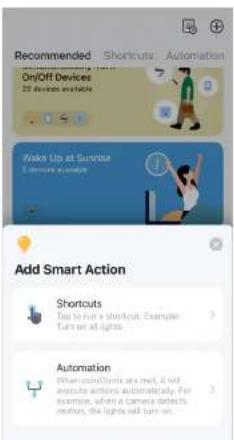

Option 2: Create your own actions

1. Go to Smart page. Tap + on the top right to add a simple and smart action.

1. For Shorcuts: Tap + to add action like turning on the smart light strip.

For Automation: Tap + to add triggers (When) like the trigger time, tap + to add conditions (If) and tap + to add action (Then) like turning on the smart light strip.

Share Your Light Strip

You can invite your family members to manage your Tapo devices together by entering the TP-Link ID (email) you want to share the devices with.

Option 1

On the home page, long press the Light Strip card and tap Share.

Option 2

Go to the Device Status page, slide up and tap Device Sharing.

Option 3

Go to the Me page and tap Device Sharing to view your shared devices and devices shared from others.

Reset Your Light Strip

There are two types of reset available: a soft reset which resets the Wi-Fi settings only, and a factory reset that erases all of your custom settings and restore them to factory defaults.

Soft Reset (without losing the configuration settings except Wi-Fi)

Press and hold the control button for more than 5 seconds but no more than 10 seconds and release. The light strip should animate orange and green.

Factory Reset (back to factory default settings)

Option 1:

Press and hold the control button for more than 10 seconds until the light strip turns solid white and then blinks orange and green.

Option 2:

On the home page in Tapo app, long press the card and tap Remove.

OR Go to the Device Settings page and tap REMOVE at the bottom.

Groups

Add your devices to a group and control them simultaneously in batch. Each device will still be individually controllable as well. You can tap a single action to control all devices belonging in a group and it is accessible in the home screen just like any other devices.

Step 1

Go to the Device Settings page and find Groups.

Step 2

Tap Add a Group to select your devices.

Step 3

Select the devices you want to group together and customize your group name and location.

Step 4

After creating a group, you can manage the group on the Home page or the Groups page. Tap the group card to check the details and configure them at the same time.

Third-Party Services

Control your smart devices through third-party services, including voice control. Free up your hands with simple voice commands to control your devices via Amazon Alexa or Google Assistant.

Go to Me page and tap Third-Party Services.

Select Amazon Alexa or Google Assistant. Follow the app instructions to control your device via voice.

Select Add to Siri and follow the app instructions to create a new, custom shortcut using the Shortcuts app for iPhone or iPad.

Voice Commands

After connecting your light strip to Amazon Alexa or Google Home, you can use simple voice commands to control your smart device.

For Google Home, refer to the voice commands in the FAQ: https://www.to-link.com/support/faq/2739/

For Amazon Alexa, refer to the voice commands in the FAQ: https://www.tp-link.com/support/faq/2738/

Authentication

FCC Compliance Information Statement

Product Name: Smart Wi-Fi Light Strip, Multicolor

Model Number: Tapo L900-5 / Tapo L900-10 / Tapo L920-5 / Tapo L930-5 / TL61-5 / TL61-10 / TL62-5 / TL63-5

Component Name Model FCC ID
Tapo Smart Wi-Fi Light Strip, Multicolor Tapo L	900-5 / Tapo L900-10 / TL61-5 / TL61-10 2AXJ4KL400
Tapo Smart Wi-Fi Light Strip, Multicolor Tapo L	920-5 / Tapo L930-5 / TL62-5 / TL63-5 2AXJ4KL420
I.T.E. Power T120100-2B1 / T120150-2B1 / S0	42-1A120330VU N/A

Responsible party:

TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618

Website: https://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-02-28

FCC Compliance Information Statement

Product Name: I.T.E. Power

Model Number: T120100-2B1 / T120150-2B1 / S042-1A120330VU

Responsible party:

TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618

Website: https://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-02-28

CE Mark Warning

CE

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY(the maximum transmitted power)

2400 MHz -2483.5 MHz(20dBm)

EU declaration of conformity

TP-Link hereby declares that the Smart Wi-Fi Light Strip, Multicolor is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tapo.com/support/ce/

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

Restricted to indoor use.

UK CA

UKCA declaration of conformity

TP-Link hereby declares that the Smart Wi-Fi Light Strip, Multicolor is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.

The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/

Canadian Compliance Statement

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CAN ICES-005(B)/NMB-005(B)

Korea Warning Statements

Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.

Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

CAUTION: To reduce the risk of fire, electric shock, or injury to persons:

• For indoor use only.
• Do not place in reach of children.
  • NOT FOR EMERGENCY LIGHTING.
• Light strips only connect to adjacent units.
• Suitable for surface and cabinet mounting.
• Operating Temperature: -20°C 40°C(-4°F 104°F)
• Operating Humidity: 10%\~90%RH, Non-condensing
• Use only insulated staples or plastic ties to secure cords.

• Not intended for recessed installation in ceilings, or soffit.

• Adapter shall be installed near the equipment and shall be easily accessible.

• The maximum distance to the receptacle is determined by the length of adapter cord.
• Only use the control provided with or specified by these instructions to control this device.
• Switch off the power supply to the device and allow sufficient time for it to cool before handling it.
• Suitable for dry and damp locations, keep the device away from water, fire, wet or hot environments.
• Route and secure cords so that they will not be pinched or damaged when the cabinet is pushed to the wall.
• Do not use damaged charger to charge the device. Do not use any other charger than those recommended.
• Avoid placing controller box in areas surrounded by mental or near other devices designed to receive or transmit radio signals.
• Position the portable cabinet light with respect to the cabinet so the lamp replacement markings are able to be read during replacing;
• Please disconnect this strip from AC outlet before cleaning. Do not use liquid or detergent to clean the product. Only use a dry cloth. Drop or fall could cause injury.
• Use only power supplies which are provided by manufacture and in the original packing of this product, if you have any questions, please don't hesitate to contact us.
• The National Electrical Code (NEC) does not permit cords to be concealed where damage to insulation may go unnoticed. To prevent fire danger, do not run cord behind walls, ceilings, soffits, or cabinets where it may be inaccessible for examination. Cords should be visually examined periodically and immediately replaced when any damage is noted.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

This product is intended for use in applications requiring high-quality colored light, and shall not be used for other applications.

This product contains a light source of energy efficiency class G.

Explanation of the symbols on the product label

Note: Symbols may vary from products.

SymbolExplanation
	Class II equipment
	Class II equipment with functional earthing
	Alternating current
[92XY]	DC voltage
	Polarity of output terminals
[DBHY]	Indoor use only
	Dangerous voltage
[BCHC]	Caution, risk of electric shock
	Energy efficiency Marking
[9HY7]	Protective earth
	Earth
	Functional earthing
	Caution, hot surface
	Caution
	Operator's manual
	Stand-by
	"ON"/"OFF" (push-push)
	Fuse
	Fuse is used in neutral N
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
[cw8z]	Caution, avoid listening at high volume levels for long periods

SymbolExplanation

m Switch of mini-gap construction
μ	Switch of micro-gap construction (for US version)Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
