Ceramiccare 14in1 Airglisse - Curling iron CECOTEC - Free user manual and instructions

Product type	Multi-function curling iron
Brand	Cecotec
Model	Ceramiccare 14in1 Airglisse
Styling technology	Ceramic and hot air flow
Number of functions	14
Adjustable temperature	Yes, multiple levels
Rapid heating	Ready in 30 seconds
Swivel cord	360° rotation
Cable length	1.8 m
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Weight	0.45 kg
Dimensions	32 x 4.5 x 4.5 cm
Maintenance	Unplug, allow to cool, clean with a soft cloth
Safety	Automatic shut-off, overheat protection
Included accessories	14 interchangeable styling attachments
Use	For dry or slightly damp hair
Domestic use	Yes, for residential use only
Warranty	2 years

Frequently Asked Questions - Ceramiccare 14in1 Airglisse CECOTEC

How to use the Cecotec Ceramiccare 14in1 Airglisse?

Use it on dry or slightly damp hair. Brush the hair then select the desired temperature. Allow the appliance to cool before storing it.

What are the 14 settings?

The appliance offers 14 combinations of temperature and airflow to suit all hair types, from the finest to the thickest.

Can I use it in a bathroom?

No, it is forbidden to use it near a bathtub, a shower, or any container containing water. This appliance must not be immersed.

How to clean the curling iron?

Unplug it and wait for it to completely cool. Wipe the surfaces with a slightly damp soft cloth. Never immerse the appliance in water.

What is the heating time?

The heating is very fast, the appliance is ready in 30 seconds.

Can it be used on wigs or extensions?

No, the appliance must not be used on wigs, natural extensions, artificial hair, or animal fur.

What to do if the cable is damaged?

If the cable shows visible damage, it must be replaced by Cecotec's official technical support service to avoid any danger.

Does the appliance have an automatic shut-off function?

Yes, as a safety measure, the appliance has an automatic shut-off to prevent overheating.

Can it be used on wet hair?

It is recommended to use it on dry or very slightly damp hair. To avoid damage, do not expose wet hair to hot air for prolonged periods.

What is the power of the appliance?

The appliance has a power of 1000 W, which allows effective hot air flow and rapid heating.

USER MANUAL Ceramiccare 14in1 Airglisse CECOTEC

Safety instructions 8

1. Parts and components 32
2. Before use 32
3. Operation 33
4. Cleaning and maintenance 34
5. Troubleshooting 35
6. Technical specifications 35
7. Disposal of old electrical and electronic appliances 35
8. Technical support and warranty 35
9. Copyright 36

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• If the appliance is to be used in a bathroom, it must be unplugged from the wall socket after use, as the proximity to water could be a risk even with the appliance switched off.
• As additional protection, it is recommended that a Residual Current Device (RCD) having a rated operating fault current not exceeding 30 mA be installed in the electrical circuit supplying the bathroom. We recommend you ask a qualified installer for advice.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

This icon means that the device must not be used in a bathtub, shower, or any other water-filled tank.
- WARNING: do not use the device near bathtubs, showers, sinks, or other water-filled containers.
- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
- This symbol means: warning, hot surface.
- Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any danger.
- Ensure that the air inlets and outlets are not blocked.
- Turn off and unplug the appliance from the power supply immediately after use.
- Immediately unplug the appliance from the socket in these cases:
- Abnormal operation.
- Cleaning.
- After use.
- Do not insert metal objects through the air inlets to avoid electric shocks.
- Do not wind the cable around the device.
- Keep your face, neck, and scalp away from the device.
- Do not leave the device on any surface while in operation.
- Do not use the appliance to comb wigs, natural hair extensions, fake hair, or animal hair.
- The air inlet ensures good ventilation of the appliance. Do not cover or obstruct it, as this may cause overheating.
- Do not insert objects in the air inlet.

INSTRUCTIONS DE SÉCURITÉ

1. Head
2. Air speed-change button
3. Temperature-change button
4. Power button
5. Air-inlet filter cover
6. 360° rotating cable
7. Head release tab

Heads (Fig. 2)

1. Left curling barrel
2. Right curling barrel
3. Spiked straightening brush
4. Plate straightening brush

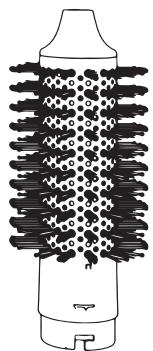

5. 50 mm round brush
6. 33 mm round brush
7. Drying head
8. 70 mm oval brush
9. Voluminising comb
10. Detangling brush
11. Retractable bristle brush
12. Concentrator nozzle
13. Diffuser
14. Curling tongs

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• CeramicCare 14in1 AirGlam Black / Champagne / Blue / Aluminum
• 14 heads
• Instruction manual

3. OPERATION

1. Wash and condition your hair.
2. Dry your hair with a towel and comb it.
3. Ensure that the mains voltage matches the voltage specified on the appliance rating label and that the plug is earthed. Plug the appliance to a power supply.
4. Align the desired head with the air outlet and turn it to fix it to the body of the appliance.
5. Press and hold the power button to switch on the appliance: the air speed and temperature will be set to 1 by default. If you change the settings, the device will save the last setting for later use.
6. Air speed: repeatedly press the air speed change button to adjust the air speed. When the speed is set to 1, the first speed LED indicator light will light up, from left to right. Press the button again to set the speed to 2: the first and second LED indicator lights will light up at the same time. Press the button a third time to set the speed to 3: all three LED indicator lights will light up at the same time. Press the button again to return to speed setting 1.
7. Air temperature: repeatedly press the temperature change button to adjust the temperature. When the temperature is set to 1, the first temperature LED indicator light will light up, from left to right. Press the button again to set the temperature to 2: the first and second LED indicator lights will light up at the same time. Press the button a third time to set the temperature to 3: all three LED indicator lights will light up at the same time. Press the button again to activate the cold air, the indicator lights will go out. Pressing it again will return to temperature setting 1.
8. Turn off the device by pressing and holding the power button and unplug it from the power outlet when you are finished using it.
9. Automatic cleaning function: with the appliance switched off, press, and hold the temperature change button for 5 seconds: the dryer will blow air out of the air inlet grille for 20 seconds.
10. To remove the head, slide the release tab down, rotate the head and pull it gently to remove it.

Using the curlers

1. With your hair at least 85% dry, place the curler on the side of the head whose hair you wish to curl first.
2. Separate the hair into approximately 2 cm strands.
3. Select a warm or hot temperature setting.
4. Bring a strand of hair close to the head at the ends of the hair, the curling head will attract the hair thanks to the Coanda effect and curl it.
5. Keep the hair wound on the curler for a few seconds and then release a shot of cold air to fix the hairstyle.
6. Switch off the appliance and unwind the hair from the top. Repeat these steps with the next strand until all hair on that side of the head is curled.
7. Replace the curler with the one fit for the hair on the opposite side of the head and do the same.

After use

1. Turn the appliance off and unplug it.
2. Place it on a heat-resistant surface until it cools down.
3. Remove the hair and dust from the appliance and attachments.
4. Make sure there is nothing obstructing the air inlet or outlet.
5. Clean the appliance with a soft cloth and store it in a dry place.

4. CLEANING AND MAINTENANCE

• Unplug the appliance from the power supply and allow it to cool down before cleaning.
• Use a soft, damp cloth to clean the surface of the device.
• Do not immerse the appliance in water or other liquids.
• Do not use abrasive cleaners or scouring pads to clean the device.
• Do not twist, bend, pull, or damage the power cable.
• Clean the dirt and hairs that may be clogging the device.

Cleaning the filter (Fig. 3)

• Turn the air-inlet filter cover to unlock it and gently pull it downwards.
• Use a soft brush or a cotton swab to clean the air inlet and the filter.
• Refit the cover by turning it to lock it in place.

5. TROUBLESHOOTING

Problem	Possible causes
It does not work properly	Check if the appliance is correctly plugged in.Check if the attachment is correctly fitted.Check if the appliance switched off due to overheating.Switch off the appliance, unplug it from the mains, and allow it to cool down properly.Before turning it back on, make sure that nothing is clogging the air inlet.

6. TECHNICAL SPECIFICATIONS

Product reference: 00251 / 00252 / 00253 / 00254

Product: CeramicCare 14in1 AirGlam Black / Champagne / Blue / Aluminum

Power: 1200-1400 W

Voltage and frequency: 220-240 V\~, 50/60 Hz

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
