USER MANUAL SENSE 8 EDILKAMIN

installation use maintenance

digital

for all updates visit www.edilkamin.com

APP The Mind Scan the QR-CODE

1. NOTE ON EDITION AND LANGUAGE 4

1.1. Note on the language of the manual 4
1.2. Digital online edition 4

2. CE MARKING INFORMATION......5

3. INTRODUCTION....6

3.1. Recipients of the manual....6
3.2. General notes....6
3.3. Meaning of the symbols 6
3.4. Product identification and warranty....7

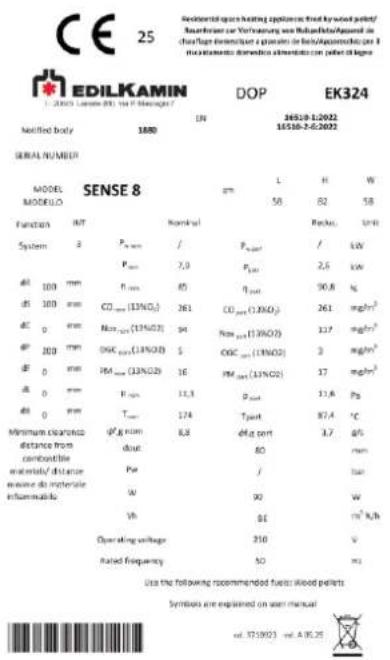

3.5. CE plate: Data and position 8
3.6. Symbols on data plate 9

4. SAFETY INFORMATION....10

4.1. General notes for the safe use of the product....10
4.2. Recommendations and prohibitions for the safe use of the product....11
4.3. Possible risks if the installation, operation and maintenance instructions are not followed...... 12

5. DIMENSIONS.... 13

5.1. Sense 8....13

6. TECHNICAL DATA....14

6.1. Technical data according to the product standard Sense 8....14
6.2. Technical data for sizing the chimney system Sense 8 15
6.3. Electrical data Sense 8....15
6.4. ECODESIGN technical data SENSE 8 16

7. UNPACKING....18

7.1. Notes on unpacking....18
7.2. Packaging disposal instructions 19
7.3. Remove from the pallet 20

8. INSTALLATION 21

8.1. Preliminary remarks on installation 21
8.2. Checking the suitability of the installation room 21
8.3. Heat protection and safety distances 21
8.4. Chimney system (Smoke duct, chimney flue and chimney pot) 22
8.5. Smoke duct, chimney flue 22
8.6. Smoke duct 22
8.7. The chimney flue 22
8.8. Ducted system....23
8.9. The chimney pot....23
8.10. External air intake....23
8.11. Indirect air intake 23
8.12. Direct air intake 23
8.13. Electrical connection 24

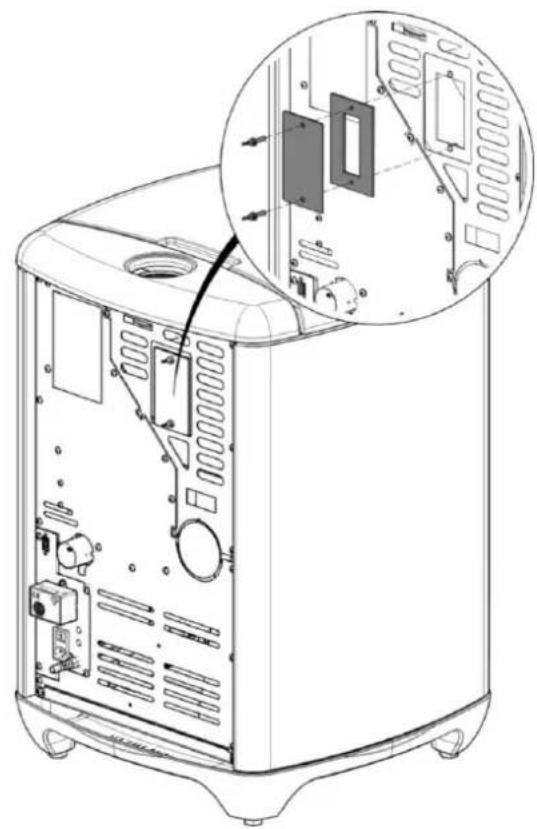

8.14. Rear smoke outlet kit....24

9. FUEL: WOOD PELLETS 25

9.1. Pellet storage 25

10. INSTRUCTIONS FOR USE 26

10.1. Training before use 27
10.2. Steps for the first start-up....27

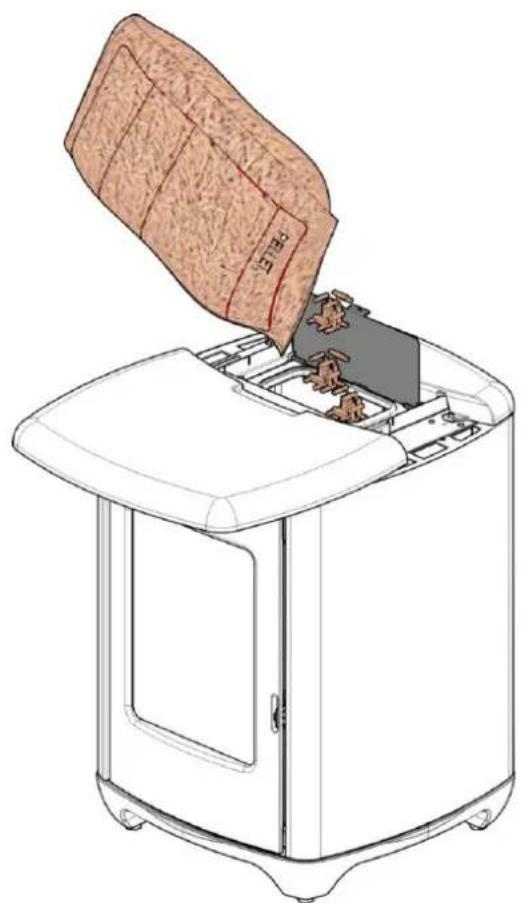

10.3. Loading pellets into the hopper 28

11. INTERFACE AND OPERATING MODES ...... 29

11.1. Operating modes....29
11.2. Interface....29
11.3. Remote control 30

11.3.1. Remote control energy saving 30

11.4. First power supply 33
11.5. Possible states of the product 33

11.6. Switch on screen 33

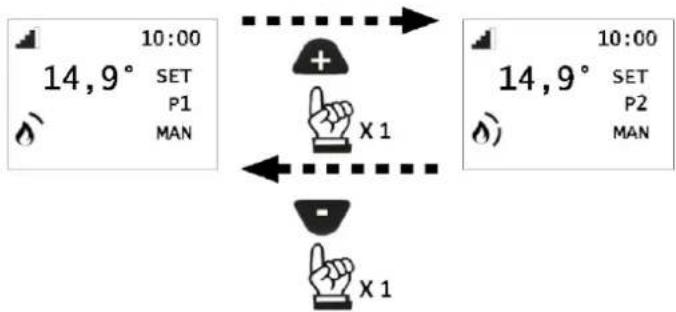

11.7. AUTOMATIC and MANUAL setting 34

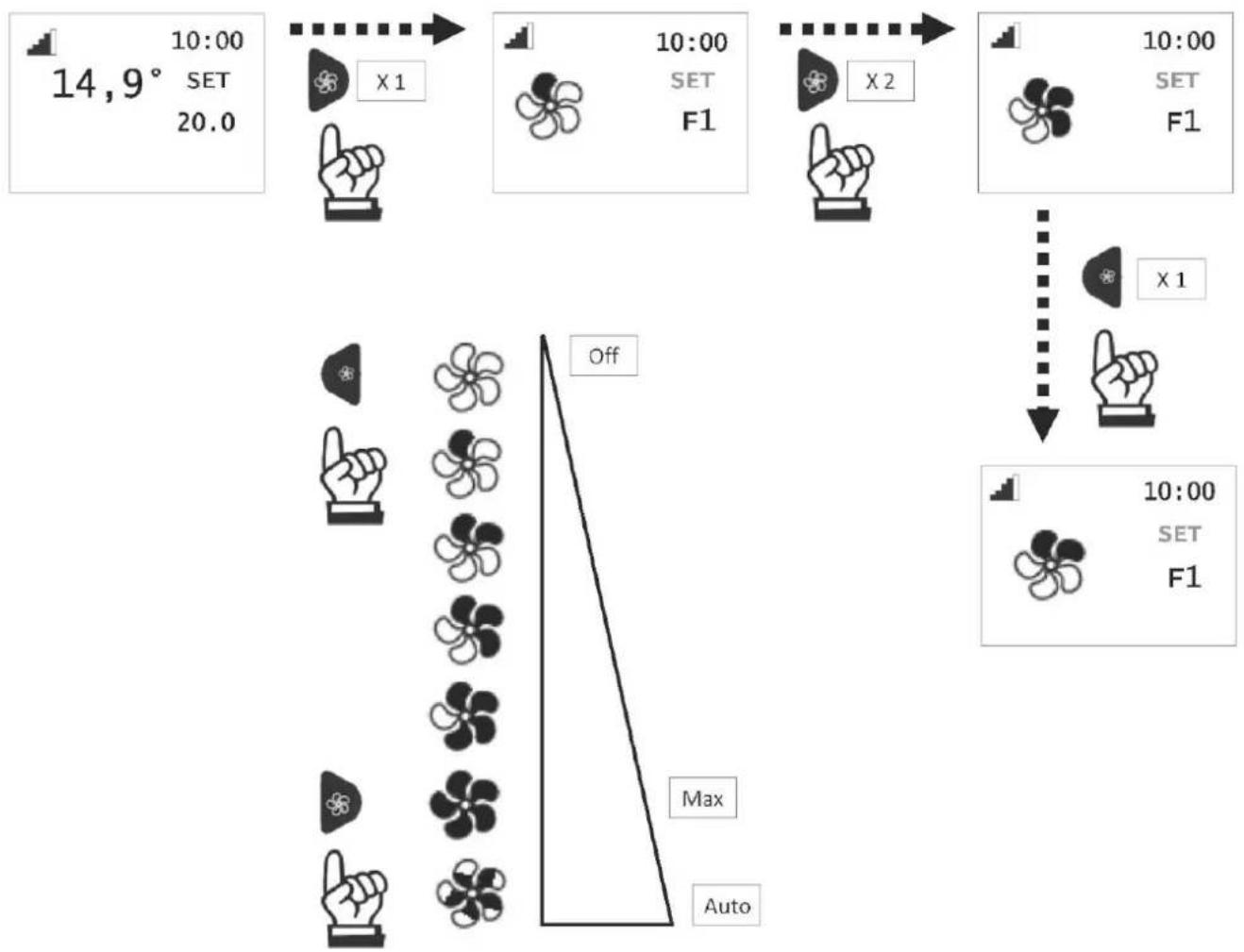

11.8. Ventilation....35
11.9. RELAX function (if present)....36
11.10. EASY TIMER function (delayed switch on and switch off)....36
11.11. CHRONO....37
11.12. Menu....37

11.12.1. How to access the menus....39
11.12.2. Stand-By 40
11.12.3. Access to the Menu and setting....40
11.12.4. Pellet load 42
11.12.5. Chrono prog. 43
11.12.6. Chrono temp. (T1-T2) 44

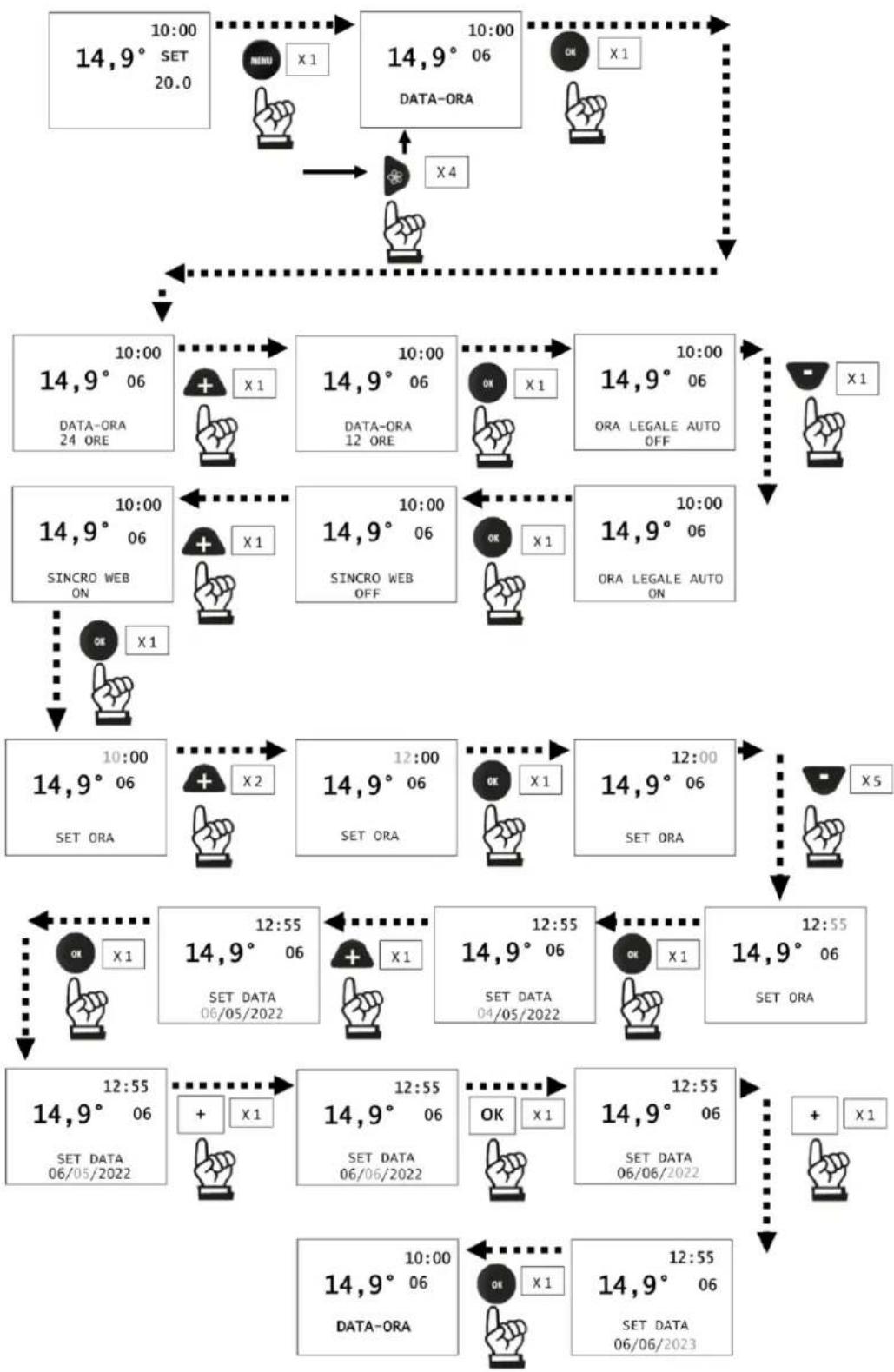

11.12.7. Date and time....45
11.12.8. Language 46
11.12.9. Display 47

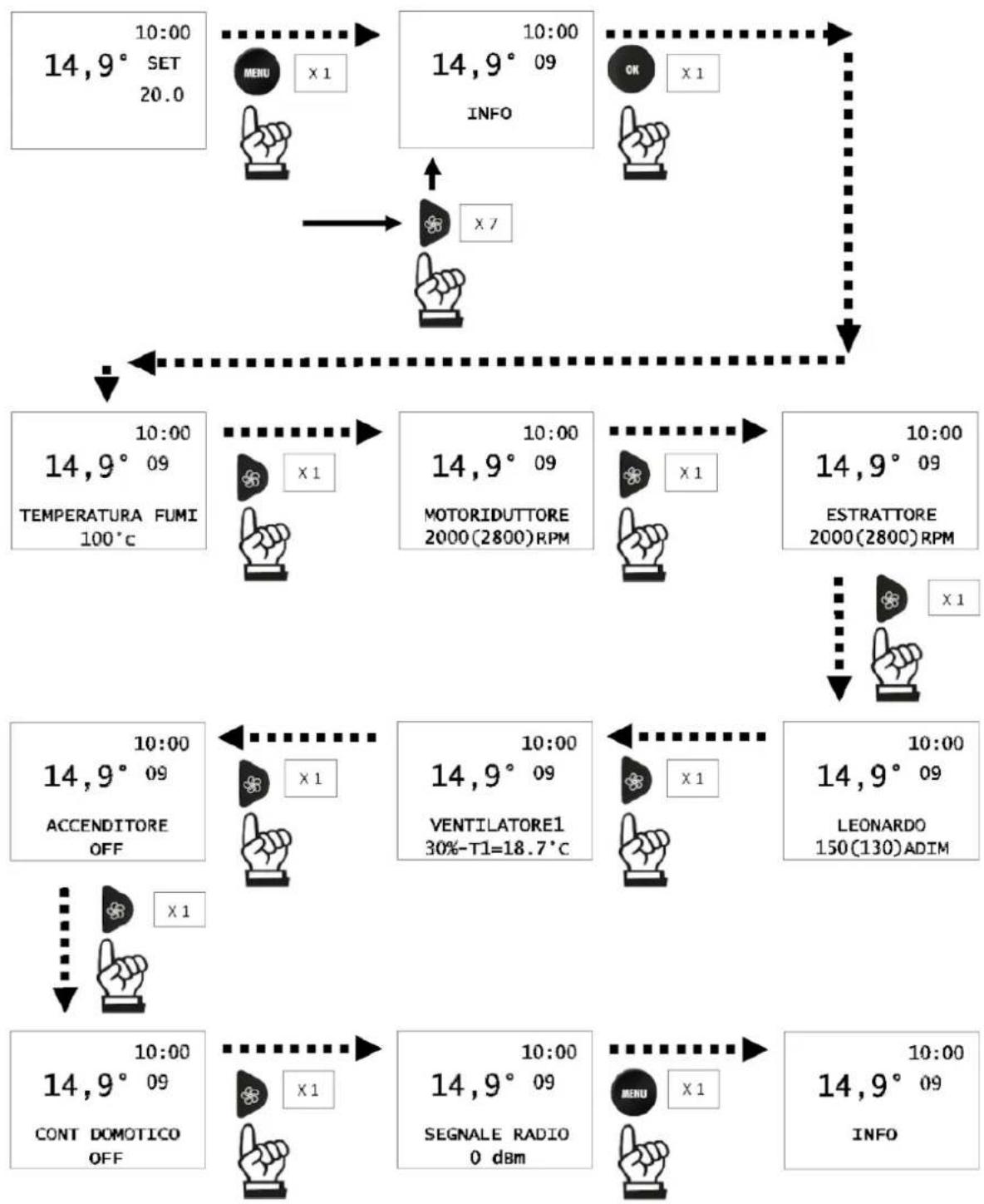

11.12.10. Info 48
11.12.11. Software....50
11.12.12. Data 51
11.12.13. Alarms....52
11.12.14. Pellet drop....52
11.12.15. Pellet sensor (if present)....53
11.12.16. Temperature set....54

11.13. Technical menu 55

11.14. Access to the Menu and setting 55

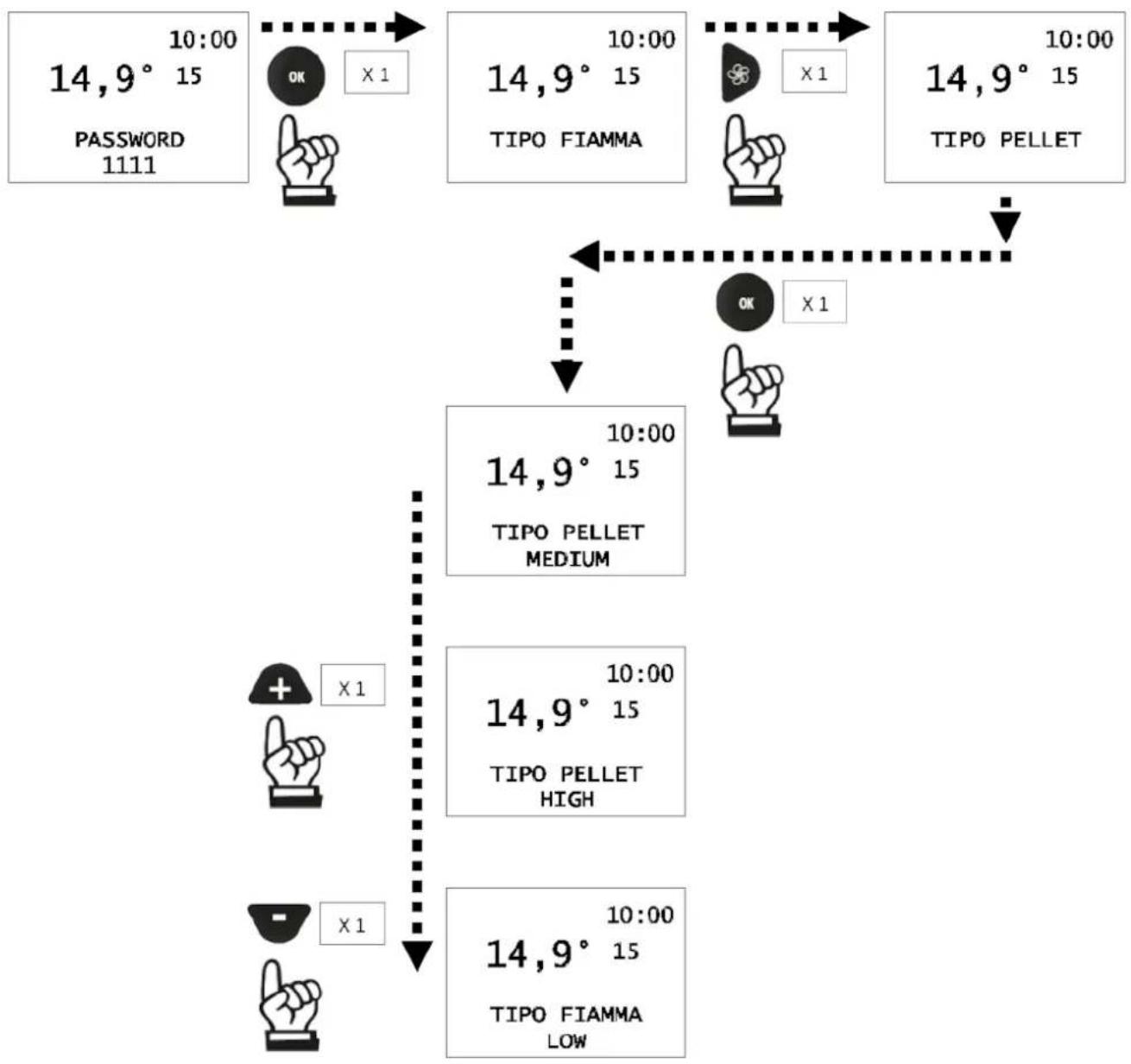

11.14.1. Flame type 56
11.14.2. Pellet type ....57
11.14.3. Chimney Sweep....58
11.14.4. Parameters....59

12. USER INSTRUCTIONS: SAVE PANEL 60

12.1. Functions....60

13. MAINTENANCE....62

13.1. Daily maintenance....62
13.1.1. Cleaning the glass....65
13.2. Periodic maintenance....65
13.3. Seasonal maintenance....70
13.4. Repairs....70
13.5. Summer break....70

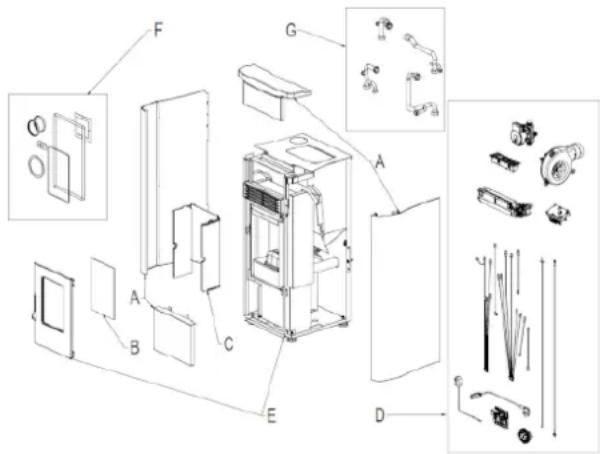

13.6. Spare parts....70

14. DISPOSAL 71

14.1. Warnings for the correct disposal of the product 71
14.2. Disposal of the components of the appliance at the end of its service life 71
14.3.WEEE72

15. ADVICE FOR POSSIBLE PROBLEMS....73

15.1. Display messages 73
15.2. Remote control battery level low 75
15.3. Maintenance (message that does not cause switch-off)....75
15.4. No communication....76
15.5. Pellet reserve light (where the sensor is present) 76
15.6. Black-out....77

1. NOTE ON EDITION AND LANGUAGE

1.1. Note on the language of the manual

Original edition in Italian. Manuals in other languages are translated from the original manual in Italian.

1.2. Digital online edition

Dear Customer/Installer

Please read this document carefully together with the user manual which can be found inside our product.

The information contained in it are suggestions which in no way replace the responsibility of the installer - maintenance technician.

All local and national laws and European Standards must be complied with as regards the correct sizing, installation, maintenance and use of the product.

For installation and for anything not expressly mentioned, please refer to local and national regulations in the country where the product is used.

The diagrams in this manual are purely indicative and in no way can the company be held liable.

How to download the manual:

• access the download area, www.edilkamin.com
• click on "Installation, use and maintenance manual".
• Select the language, the product type and the product name from the drop-down lists.
• Click on "download" to download the manual in pdf.

This document may be subject to changes dictated by the Manufacturer or by the regulations in force at the time of purchase.

The updated version that is currently in force will always be available from the download area of the website edilkamin.com.

2. CE MARKING INFORMATION

The writer EDILKAMIN S.p.a., with registered office in Via P. Moscati 8 - 20154 Milan - Fiscal Code/VAT No. 00192220192, declares under its own responsibility that the products shown on the cover comply with EU Regulation 305/2011 and with the harmonised European product standard in force

The declaration of performance is available on the website www.edilkamin.com

It also declares that:

the products shown on the cover meet the requirements (where applicable) of the following European Directives:

2014/35/EU-Low Voltage Directive (for products with electrical components)

2014/30/EU-Electromagnetic Compatibility Directive (for products with electrical components)

2014/53/EU:RED (for products with radio remote control)

2011/65/EU-RoHS Directive

2009/125/EU-Ecodesign

2010/30/EU-Labelling

3. INTRODUCTION

USER/INSTALLER

Dear Madam / Sir

We thank you and congratulate you for choosing our product. Please keep the manual for the entire service life of the product. If lost, ask your retailer for a copy or download it from the download area on the website www.edilkamin.com

3.1. Recipients of the manual

This manual is for:

• the person who uses the product at home ("USER")
• the technician who installs the product ("INSTALLER") who can find other material on the website

The recipient of the chapter (USER/INSTALLER) is indicated at the start of the chapter

3.2. General notes

After unpacking the product, check the integrity and completeness of the contents.

If any anomalies are found, immediately contact the retailer from whom it was purchased, to whom a copy of the warranty certificate and of the tax document must be given.

All local and national laws and European Standards must be complied with as regards the correct sizing, installation, maintenance and use of the appliance. For installation, maintenance and for anything not expressly mentioned, please refer to the local regulations in force in the country where the product is used.

The diagrams in this manual are purely indicative: they do not always strictly refer to the specific product and in no case are they contractual.

3.3. Meaning of the symbols

PROHIBITION:Indication of operations that must NOT be performed, to avoid damage.

ATTENTION:Carefully read and understand the message it refers to because failure to comply may result in serious damage to the product and put the user's safety at risk.

INFORMATION:Not following these instructions will compromise the use of the product.

VIDEO:Click on the symbol to watch the video

3.4. Product identification and warranty.

The product is uniquely identified by a number, the "warranty slip or serial number" which can be found on the warranty certificate. Please keep:

• The warranty certificate that you found in the product
  • The tax document issued by the retailer
  • The declaration of conformity issued by the installer. Check local and national regulations.

The warranty conditions are indicated in the warranty certificate which can be found in the product and on the website www.edilkamin.com

This document may be subject to changes dictated by the Manufacturer or by the regulations in force at the time of purchase.The updated version that is currently in force will always be available from the download area of the website edilkamin.com.

3.5. CE plate: Data and position

We recommend taking a photo of the CE plate, which shows the data according to the harmonised product standard and the warranty slip (serial number), for all required uses.

The CE plate can be found on the back of the product

3.6. Symbols on data plate

Symbols	Description
Pw nom	Rated water power
Pw part	Reduced water power
η nom	Rated yield
η part	Reduced yield
CO nom (13%O2)	Rated CO
CO part (13%O2)	CO ridotta
Nox nom (13%O2)	Reduced CO
Nox part (13%O2)	Rated NOX
OGC nom (13%O2)	Rated OGC
OGC part (13%O2)	Reduced OGC
PM nom (13%O2)	Rated dust emissions
PM part (13%O2)	Reduced dust emissions
p nom	Rated power
p part	Reduced power
T nom	Rated smoke temperature
T part	Reduced smoke temperature
φf,g nom	Rated mass flow rate
φf,g part	Reduced mass flow rate
dout	Fume outlet diameter
Pw	Maximum pressure
W	Rated electrical power according to EN 60335
Vh	Firebox classification according to pr EN 16510/Load loss
dR	Rear safety distance
dS	Side safety distance
dC	Upper safety distance
dP	Front safety distance
dF	Radiated floor safety distance
dL	Radiated side safety distance
dB	Floor safety distance

4. SAFETY INFORMATION

USER/INSTALLER

The characters of the safety information are larger according to the standards

4.1. General notes for the safe use of the product

For the safe use of the product, carefully read the operating instructions section of the manual.

If something is not clear, do not act on your own initiative but contact the retailer or the installer. The names of Edilkamin's contracted and licensed technical service centres are available ONLY at www.edilkamin.com

The product is not designed to be used by people, including children, with reduced physical, sensory or mental capabilities.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

The product is not designed for cooking.

The product is designed to burn category A1 wood pellets in accordance with UNI EN ISO 17225-2, in the amounts and in the manner described in this manual.

The product is designed for indoor use and in environments with a normal level of humidity. Therefore, keep the product in a dry place, protected from adverse weather conditions.

The product is designed to operate only with the covers fitted. Otherwise there is a risk of accessible live parts.

4.2. Recommendations and prohibitions for the safe use of the product

Use the product only after it has been installed by qualified technicians in a workmanlike manner and in accordance with local and national regulations.

Power up the product only after it has been fully assembled and the covers have been fitted.

Do not install in rooms where there is a risk of fire. There is a risk of damage to property and people.

Do not touch hot parts and, when the product is off but still hot, use suitable precautions (e.g. fire resistant gloves).

Do not access internal parts. When it is connected to the electrical power supply, there is a risk of electric shock.

Do not ignite or stoke the flame with liquid sprays or flame throwers. There is a risk of serious burns and damage to property and people.

Do not burn waste, plastic materials or anything other than wood pellets. There is a risk of soiling the product, causing a fire in the chimney and damaging the room.

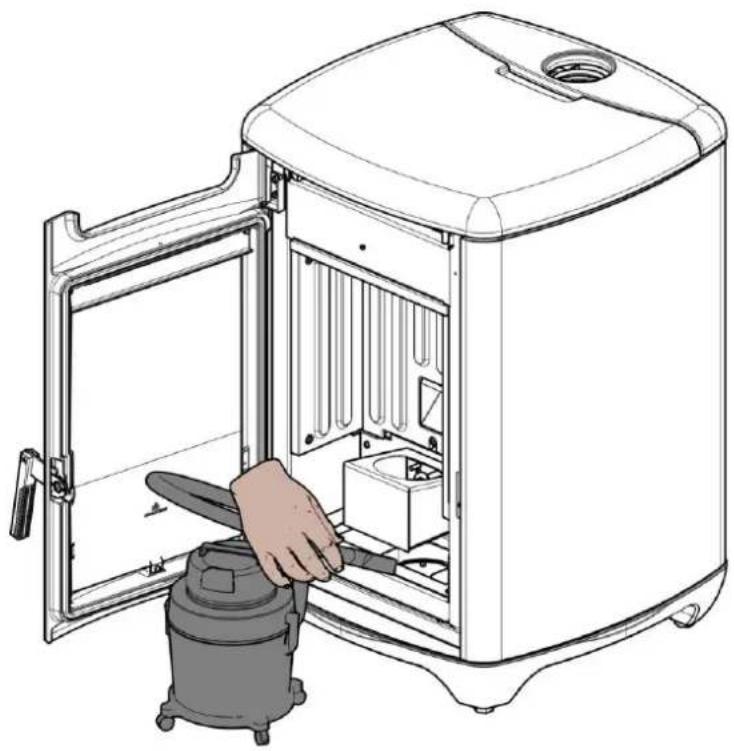

Do not vacuum hot ash. There is a risk of damaging the vacuum cleaner and possibly smoke in the room.

Do not clean using flammable or unsuitable products. There is a risk of fire or backdraught.

Do not clean the glass when it is hot or using unsuitable products. There is a risk of cracking the glass or causing irreversible damage to it.

Do not place flammable materials closer than the safety distances indicated in this manual and in the declaration of performance. For example, do not place drying racks closer than the safety distance. There is a risk of fire.

Do not keep any type of flammable liquid near the product. There is a risk of fire.

Do not block the ventilation openings in the room or the air inlets or chimney. There is a risk of smoke entering the room with the risk of causing damage to property and people.

Do not use the product as a support or as a ladder. There is a risk of damage to property and people.

Do not attempt to use the product with the door open or throw hot material out of the product. There is a risk of fire.

Do not use the product if the glass is broken.

Do not use water in case of fire and contact your local authorities.

4.3. Possible risks if the installation, operation and maintenance instructions are not followed

Risk of BURNS in case of contact with hot parts.

Risk of ELECTRIC SHOCK in case of contact with internal parts when connected to the electrical power supply.

Risk of INJURY to hands if used carelessly or by people with reduced skills, if the safety devices are removed or if access to the internal parts is attempted.

Risk of FIRE if the installation, operation and maintenance instructions are not followed.

Risk of ASPHYXIATION if failure to comply with the installation, operation and maintenance instructions results in the obstruction of the smoke exhaust and of the air intakes.

Risk of DAMAGE to property and people if the electrical system does not have an efficient earthing system.

5. DIMENSIONS

USER/INSTALLER

A: smoke outlet
B: combustion air inlet
C: air outlet for ducting (if present)
D: delivery (for hydro products)
E: return (for hydro products)
F: load (for hydro products)

Dimensions in cm

5.1. Sense 8

6. TECHNICAL DATA

USER/INSTALLER

6.1. Technical data according to the product standard Sense 8

The data shown is indicative and obtained during the certification phase at a notified body according to current regulations.

The results are obtained with calibration according to the installation or and possible closed glass cleaning. It is the responsibility of the installer to use the gasket supplied (if available) and to adjust the parameters.

Quantity
	SENSE 8
	Rated power	Reduced power
Output power	7,9	2,6	kW
Yield	85	90,8	%
CO emissions at 13% O2	0,018	0,021	%
Smoke temperature	174	87,4	°C
Fuel consumption	1,9	0,6	kg/h
Hopper capacity	15		kg
Draught	11,3	11,6	Pa
Autonomy	8	25	Hours
Minimum volume of installation room	26		m3
Heatable volume	205		m3
Smoke duct diameter	80		mm
Air intake duct diameter	40		mm
Weight with packaging	142		kg
Energy efficiency class (Regulation 1185/2015)	A+
Environmental Class according to the Italian Ministerial Decree 186	3 stars
Minimum distance of combustible materials from Back/Side/Front	50/50/800		mm
Minimum distance of combustible materials from Ceiling/Floor	NPD: (No declared performance)		mm

NOTES ON THE TECHNICAL DATA

• To calculate consumption, a heating value of 4.8 kW/Kg was used.
• The heatable volume is calculated considering a heat demand of 33Kcal / m³ per hour.
• The autonomy may vary depending on the use/installation/fuel characteristics and it is not a contractual obligation, nor is it a possible cause for dispute.
• The product can work safety also with a higher draught. However, an excessive draught may result in switch-off and/or decreased efficiency.

6.2. Technical data for sizing the chimney system Sense 8

Quantity
	SENSE 8
	Rated power	Reduced power
CO2	7	5,3	%
Smoke temperature at exhaust	209	105	°C
Minimum draught	0,01		Pa
Flue gas flow rate	8,8	3,7	g/s

The chimney system and the installation as a whole must comply with the instructions given in this manual and with all local and national regulations. The installer is responsible for the installation

6.3. Electrical data Sense 8

Quantity
	SENSE 8
Power supply	230	Vac
Frequency	50	Hz
Rated power consumption	60	W
Reduced power consumption	33	W
Power consumption in stand-by	3	W
Rated electrical power	90	W
Protection	Fuse 4 AT,250 Vac 5x20

The installation must comply with national and local regulations. For safety reasons, the electrical system must comply with legal standards. Correct earthing is essential.

6.4. ECODESIGN technical data SENSE 8

octeco

Indirect heating functionality: NO

Direct heat output: 7,9 kW (space heat output)

Indirect heat output: - kW (water heat output)

Fuel	Preferred fuel (only one):	Other suitable fuel(s):	η 3 [%]:	Space heating emissions at nominal heat output(*)				Space heating emissions at minimum heat output (*)**)
				PM	OGC	CO	NOx	PM	OGC	CO	NOx
				mg/m3 at 13% O2				mg/m3 at 13% O2
Log wood, moisture content ≤ 25 %	no	no
Compressed wood with moisture content < 12 %	yes	no	81,7	16	5	226	94	17	4	261	117
Other woody biomass	no	no
Non-woody biomass	no	no
Anthracite and dry steam coal	no	no
Hard coke	no	no
Low temperature coke	no	no
Bituminous coal	no	no
Lignite briquettes	no	no
Peat briquettes	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass and fossil fuel briquettes	no	no
Other blend of biomass and solid fuel	no	no

Characteristics when operating with the preferred fuel only:

Energy efficiency index EEI 120				Energy efficiency class: A+
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Heat output					Useful efficiency (NCV as received)
Nominal heat output	Pnom	7,9	kW		Useful efficiency at nominal heat output	ηth,nom	85,0	%
Minimum heat output (indicative)	Pmin	2,6	kW		Useful efficiency at minimum heat output (indicative)	ηth,min	90,8	%
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	elmax	0,060	kW		single stage heat output, no room temperature control		NO
At minimum heat output	elmin	0,033	kW		two or more manual stages, no room temperature control		NO
In standby mode	elsb	0,003	kW		with mechanic thermostat room temperature control		NO
Permanent pilot flame power requirement					with electronic room temperature control		NO
					with electronic room temperature control plus day timer		NO
Pilot flame power requirement (if applicable)	Ppilot	N.A.	kW		with electronic room temperature control plus week timer		YES
					Other control options (multiple selections possible)
					room temperature control, with presence detection		NO
					room temperature control, with open window detection		NO
					with distance control option		YES
Contact details	Name and address of the manufacturer or its authorized representative
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720045 Lainate (MI) - ITALY
(*) PM = particulate matter, OGCs = organic gaseous compounds, CO = carbon monoxide, NOx = nitrogen oxides(**) Only required if correction factors F(2) or F(3) are applied.

Issue date: May 20, 2025

Head of Test Laboratory

Dr.ssa Claudia Marcuzzi

Firmato

digitalmente da

MARCUZZI CLAUDIA

Data: 2025.05.20

17:30:18 + 02'00'

ACTECO s.r.l.- Via Amman, 41 - 33084 CORDENONS (PN) - Tel. 0434 / 43675-541343-43171 - www.acteco.it

Cap. Soc. € 78.000,00 i.v. - Iscr. Reg. Impr. n. 00218610939 - Cod. Fisc. e P.IVA 00218610939

7. UNPACKING

Only qualified personnel can unpack the product, in accordance with the safety regulations

INSTALLER

7.1. Notes on unpacking

The materials that compose the packaging are neither toxic nor harmful and as such do not require special disposal processes.

Storage, disposal or possibly recycling is the responsibility of the end user in accordance with the applicable laws. The packaging may be different in different countries for regulatory and transport reasons.

Perform all handling operations with the package upright, using suitable equipment and complying with current safety regulations. Do not overturn the package and take great care with the parts to be assembled.

DO NOT LEAVE PACKAGING WITHIN THE REACH OF CHILDREN. Packaging material (e.g. plastic, sheets of film) can be dangerous for children. There is a risk of suffocation.

7.2. Packaging disposal instructions

Guidance notes:

Comply with the local and national regulations

DESCRIPTION	INSTRUCTIONS FOR COLLECTION
Wooden pallet	Separate collection
Wooden crate	Wood
Wooden pellet	Check the regulations of the relevant authority
Cardboard box	Separate collection
Cardboard corner	Paper
Appliance bag	Separate collection
Accessory bag	Plastic
Bubble wrap	Check the regulations of the relevant authority
Protective sheet	Check the regulations of the relevant authority
Labels	Check the regulations of the relevant authority
Polystyrene	Separate collection
Straps	Separate collection
Adhesive tape	Plastic
Hardware	Separate collection
Staples for straps	Metal
Fixing bracket	Check the regulations of the relevant authority

7.3. Remove from the pallet

	Do not attempt to remove the product from the pallet before removing the screws. Only qualified personnel can remove the product from the pallet, in accordance with the safety regulations. The installer can find the complete instructions on the website.

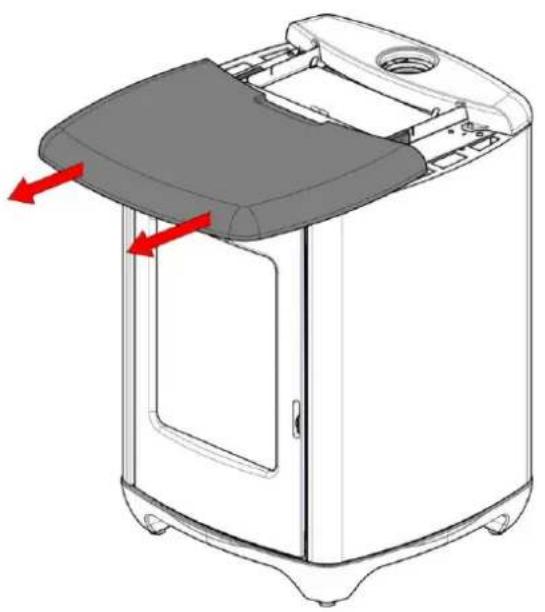

	THE DRAWINGS ARE INDICATIVE. THEY ARE USEFUL FOR ASSEMBLY, BUT THEY DO NOT ALWAYS REFER TO THE SPECIFIC MODEL.

8. INSTALLATION

INSTALLER

	The diameter of the smoke outlet is not the diameter of the chimney system. The chimney system must be sized according to national and local regulations.In particular, (non-exhaustive list) refer to EN 13384, EN 1443, EN 1856, EN 1457 and to all local regulations.
	Avoid the infiltration of condensation water through the chimney flue. If necessary, install an anti-condensation ring - ask your chimney sweep.Damage caused by condensation water is not covered by the warranty.
	In some countries, in special conditions, multiple chimney flue installations are allowed.According to regional regulations, additional safety systems are required when connecting to multiple chimney flues. Your chimney sweep/technician is available for further information.

8.1. Preliminary remarks on installation

Remember that:

• The installation must be performed by qualified personnel;
• All local and national laws and European Standards must be complied with when installing and using the product. In Italy the reference is the standard UNI 10683;
• In the case of installation in condominiums it is necessary an offer with positive recommendation of the administrator;
  • In the case of installation in public places, check and comply with local regulations for these installations.

The product is designed to operate in all weather conditions. In case of special conditions, as strong wind, safety systems may intervene forcing the switch off of the product.

Some indications of a general nature are given below, which do not replace the checking against the local standards and do not bring any liability concerning the installer's work.

8.2. Checking the suitability of the installation room

• The volume of the room must be greater than that indicated in the technical table
• The floor must be able to support the weight of the product and its accessories* (see the note in the paragraph on heat protection)
  • Make sure that the product is levelled
• Do not install in rooms where there is a risk of fire or explosion.
  • In Italy, check compatibility pursuant to UNI 10683 and UNI 7129 in the presence of gas products.

8.3. Heat protection and safety distances

All the surfaces of the building adjacent to the product must be protected against overheating.

The insulation measures to be taken depend on the type of surfaces present.

The product must be installed in accordance with the following safety conditions:

Minimum distance from any combustible materials: see the declaration of performance on the website

In the case of installation with a wall made of wood or other flammable material, the smoke exhaust pipe must be adequately insulated.

In the case of installation on a floor made of flammable and/or combustive material or with an insufficient load-bearing capacity, it is advisable to place the product on a load distribution plate.

8.4. Chimney system (Smoke duct, chimney flue and chimney pot)

This chapter is written in accordance with European Standards EN 13384, EN 1443, EN 1856, EN 1457.

The installer must take these Standards and any other local regulations into account.

This manual is in no way to be considered as a replacement for current regulations.

The product must be connected to a suitable smoke exhaust system that guarantees the safe and complete evacuation of the smoke produced by combustion.

Before positioning the product, the installer must make sure that the chimney flue is suitable.

8.5. Smoke duct, chimney flue

The smoke duct (duct connecting the fire box smoke outlet to the chimney flue inlet) and the chimney flue must, among other regulatory requirements, in general:

• Receive the smoke coming from only one product (it cannot receive the smoke coming from several products); in some countries there are specific regulations: it is the responsibility of the installer to assess compliance with local regulations.
• Have a predominantly vertical development.
• Not have any counter-sloping sections.
  • Have a preferably circular inner cross-section and in any case with a ratio between sides of less than 1.5.
• End on the roof with a suitable chimney pot: it is forbidden to discharge directly from the wall or towards enclosed spaces, even if outdoors.
  • Be made of materials with fire reaction class A1 pursuant to UNI EN 13501 or similar national Standard.
• Be suitably certified, with an appropriate chimney plate if metal.
• Maintain the initial section or vary it only immediately above the product outlet and not along the chimney flue

8.6. Smoke duct

In addition to the general requirements applicable to the smoke duct and to the chimney flue, the smoke duct:

• Must not be made of a flexible metal material.
• Must be insulated if it passes through unheated rooms or if it passes outside.
• It must not pass though rooms in which it is forbidden to install combustion heat generators or rooms where there is a risk of fire or rooms that cannot be inspected.
• It must allow the recovery of soot and it must be inspectable.
• In general, it must not have more than 3 bends with a maximum angle of 90° , the assessment of which is the responsibility of the technician in charge of sizing the system.
• In general, any horizontal section can have a maximum (average) length of 3 metres, depending on the draught. However, bear in mind that long sections facilitate the accumulation of dirt and are more difficult to clean; the assessment is the responsibility of the technician in charge of sizing the system.

8.7. The chimney flue

In addition to the general requirements applicable to the smoke duct and to the chimney flue, the chimney flue:

• Must only be used to discharge smoke.
• Must be correctly sized to meet smoke evacuation requirements (EN 13384-1 non-exhaustive example)
• Is preferably insulated, made of steel and with a circular inner cross-section. If rectangular, the edges must normally have a radius of not less than 20 mm and a ratio between internal dimensions <1.5.
• Normally have a minimum height of 1.5 metres.
• Maintain a constant cross-section.
• Be waterproof and thermally insulated to ensure draught.
• Preferably have a collection chamber for unburnt material and any condensation.
• If pre-existing, it must be cleaned, to avoid fire hazards.

- As a general guideline, it is advisable to duct the chimney flue if its diameter is greater than 150 mm, the assessment of which is the responsibility of the technician in charge of sizing the system.

8.8. Ducted system

In addition to the general requirements applicable to the smoke duct and to the chimney flue, the ducted system:

• Must operate under negative pressure.
• Must be inspectable.
• Must comply with local regulations.

8.9. The chimney pot

• Must be windproof.
• Must have an inner cross-section equivalent to that of the chimney flue and an outlet smoke passage cross-section equal to at least twice the inner cross-section of the chimney flue.
• In the case of paired chimney flues (which should be at least 2 m apart), the chimney pot that receives the solid fuel product discharge or that of the highest floor must be at least 50 cm above the other.
• Must go beyond the reflux area (in Italy, refer to Standard UNI 10683)
• Must allow for maintenance operations to be performed on the chimney

8.10. External air intake

In general, we suggest two alternative ways of ensuring the flow of essential air for combustion:

• indirect air intake
• direct air intake

8.11. Indirect air intake

Prepare, at floor level, an air intake with a useful surface area (net of any meshes or other protections) of at least 80 cm2 (diameter 10 cm).

In order to avoid draughts, it is advisable to place the air intake behind the stove or behind a radiator.

It is advisable not to have it in front of the product to avoid draughts.

8.12. Direct air intake

Prepare an air intake with a useful cross-section (net of any meshes or other protection) with a surface area at least equal to the cross-section of the air inlet hole behind the product.

Assess the diameter according to the pressure drops.

Connect the air intake to the hole with a pipe, even a flexible hose.

Increase the diameter of the pipe if the pipe is not smooth: assess the pressure drops.

It is advisable not to exceed 5 m and to have no more than 3 bends, depending on the chimney flue draught.

The inflowing air can come from an adjacent room provided that:

• The flow does not encounter any obstacles as it travels though permanent openings communicating with the outside
• The room adjacent to the installation room is never depressurised with respect to outside.
  • The adjacent room is not used as a garage or for activities causing a risk of fire, nor is it a bathroom or a bedroom.
• The adjacent room is not a common room of the building

In Italy, Standard UNI 10683 indicates that ventilation is sufficient even if the pressure difference between the external and the internal environment is maintained at 4 Pa or less (Standard UNI EN 13384-1 non-exhaustive example).

The installer who issues the declaration of conformity is responsible for this.

8.13. Electrical connection

Place the socket in an easily accessible position.

Voltage variations greater than 10% may compromise operation.

The electrical system must be in accordance with current regulations; in particular, check the efficiency of the earthing system.

The inefficiency of the earthing system causes malfunctions for which Edilkamin shall not be held responsible. The power line must have a suitable cross-section for the power of the appliance.

AVOID CONTACT BETWEEN THE POWER CABLE AND HOT PARTS OR THE EXHAUST PIPE.

The socket with switch at the back of the product features a 250v 4 AT 5 mm x 20 mm fuse

To power the product, move the switch from 0 to 1.

The product is supplied with a power cable to be connected to a 230V 50 Hz socket, preferably with a circuit breaker.

8.14. Rear smoke outlet kit

Optional kit contact the dealer

9. FUEL: WOOD PELLETS

USER/INSTALLER

Use class A1 wood pellets in accordance with Standard UNI EN ISO 17225-2 or similar local regulations that provide for the following characteristics.

diameter 6 mm;

length 3-4 cm

moisture <10 %

For the protection of the environment and for safety reasons, DO NOT burn, among other materials: plastic, painted wood, coal, bark waste.

The use of other fuels may damage the product.

DO NOT USE THE PRODUCT AS AN INCINERATOR.

9.1. Pellet storage

Pellets are hygroscopic, i.e. they absorb moisture.

It is therefore necessary to store the pellets in a dry place, in their original bag, away from moisture.

Pellets should normally be at least 1.5 metres away from visible fires.

Large quantities of pellets must be stored in ventilated places, in accordance with local regulations.

10. INSTRUCTIONS FOR USE

USER/INSTALLER

The use of fuel other than the recommended pellets may cause damage to the product

When the product is hot, do not place the pellet bag on the top. Use the special glove when loading the product while it is on and therefore hot.

Be careful not to touch the smoke exhaust pipe if hot.

Expansion Like all products, it heats up and cools down during the various phases. This results in normal expansion. This expansion may result in slight noises which are not a cause for complaint.

Smells During the first start-ups, you may smell paint, but the smell will disappear in a short time. Start the product in a well-ventilated room the first times it is used.

The product can be operated only after assembling the covers. Power up the product only after completing its assembly and the covers have been fitted. Otherwise there is a risk of accessible live parts.

10.1. Training before use

The technician is responsible for teaching the customer how to use and perform maintenance on the product.

In particular, to use it in the best way possible, we suggest discussing the following topics with the technician:

• Operation
• Fuel
• Ignition
  • What to do in the event of problems
• Use suitable for installation conditions

Do not make changes to the installation conditions on your own initiative (including air intakes)

10.2. Steps for the first start-up

• Be sure to have read and understood the contents of this manual.
• Remove all flammable components from the product (manuals, labels, etc.). In particular, remove any labels from the glass.
  • Make sure that the technician has performed the first start-up, filling the pellet hopper for the first time too.

10.3. Loading pellets into the hopper

To load the pellets.

Open the pellet loading hatch and pour in the pellets.

Make sure that the pellets do not spill out.

Should any leakage happen suction it when cold to prevent dust.

When the stove is hot, DO NOT pellet bag on the top

Use the glove the product while it is operating and hence hot to the touch.

11. INTERFACE AND OPERATING MODES

USER/INSTALLER

11.1. Operating modes

Mode	Settable parameters
MANUAL	Power levelVentilation level (the fans, if there is more than one, can be adjusted separately)*
AUTOMATIC	Desired room temperatureVentilation level* (as in manual mode)
CHRONO	Desired room temperature, chosen on the different days of the week/PowerVentilation level* (as in manual mode)

* by lowering ventilation, the product can also automatically modulate the power to maintain maximum performance and avoid overheating.

Where necessary, a safety function is provided: if for reasons of use or installation the set ventilation does not allow the necessary heat dissipation, ventilation is started automatically at maximum speed.

11.2. Interface

The Mind

The Mind App

The product can be managed alternatively through

- BLUETOOTH REMOTE CONTROL: can be used for all features, near the product. The remote control display indicates the signal strength (see the dedicated chapter)

Min.

Max.

• The Mind APP: To download to your Smartphone, for all features with direct connection or when you are not at home with Internet connection and registration
  • VOCAL COMMANDS with Edilkamin OPTIONAL ACCESSORIES: Alexa or Google Home
• SAVE PANEL: IN CASE OF NEED, it is possible to manage certain functions. The SAVE PANEL is located on the product

The minimum system requirements to use the The Mind App on mobile devices are the following:-Operating System iOS 14 or higher or Android 9.0 or higher.-On iPhone 6S, 7 and 8, the “zoom” function of the display cannot be used.Moreover, we would like to inform you that HUAWEI devices (and associated brands, such as: HONOR), are not compatible with the The Mind App.This information may be subject to changes or updates: always refer to www.edilkamin.com

11.3. Remote control

The remote control has specific functions for three distinct figures:

• USER of the product (operations not protected by password)
• INSTALLER (operations with dedicated password because any errors can jeopardise the product's operations and SECURITY)
• CAT Edilkamin technical assistance centre (operations with dedicated password because any errors can jeopardise the product's operation and SECURITY).

Characteristics:

• 2.4 Ghz frequency RF transceiver module
- Power supply with 3 x 1.5 Vdc AA batteries (capacity at least 1600mAh).

The use of rechargeable batteries is not recommended

Risk of explosion if the batteries are replaced with other unsuitable batteries.

11.3.1. Remote control energy saving

After a period of inactivity, the backlighting dims and the display turns off.

If any key is pressed with the display off, the display and the backlight will turn on again. This only refers to the remote control, not the product itself.

The life of the remote control batteries depends on use.

Edilkamin and the reseller will not consider claims for battery life under any circumstances.

Remote control

Wall mount

Key	Use	Use in the menus
	Switch from OFF to ON and vice versa	/
	Increase settable values	Scroll through items
	Decrease settable values	Scroll through items
	Access the Menus	Exit the menu
	Confirm	Access an item
	Adjust ventilation	Move through Menus
	Adjust ventilation	Move through Menus
	Activate or deactivate the RELAX function (if present)	/
	Activate or deactivate the AIRKARE function (if present)	/
	Activate or deactivate the EASY TIMER function	/
	Activate or deactivate the CRONO function	/
	AUTOMATIC or MANUAL mode	/

Symbol	Meaning
	Remote control Bluetooth communication. Signal strength
	Only on if the battery is running low
	Maintenance necessary symbol.Appears after a certain number of hours of operation. In any case, contact the TAC.
	The relative function is active (Relax - airKare - EasyTimer - Crono).EasyTimer and Crono cannot be activated simultaneously.
	Reserve indicator. It switches on if the function is active. The arrows switch on in sequence to signal that the tank must be filled.
	Presence of flame and stove power.
[SZY]	Switch on
	Power level 1
	Power level 2
	Power level 3
	Power level 4
	Power level 5
	Fan speed, if the product is not yet hot, no symbol is displayed
STAND-BY	Function not active (ONLY available in AUTO mode)
STAND-BY	Function active (ONLY available in AUTO mode)
STAND-BY	(Green)• Function active and product ON• Product shutting down due to STAND-BY• Product off due to STAND-BY
AUTO MAN	Automatic or Manual mode: the product's air power depends on the roc temperature or is set by the user.
SET	Setting. Indicates that the remote control is in the setting mode. The settable value will appear in the bottom bar.
SET22.5	Digits for SET-POINTS. Setting of the various SET-POINTS: temperature, power, fan speed.Bottom bar for “Weekly Hour Schedule” and “Messages
MON TUE WED THU FRI SAT SUN	Days of the week and time bar. They only appear if the timer (Crono) has been activated.
	Chimney sweep function active

11.4. First power supply

When switching on for the first time, if the language has not been set, the "Language, Date, etc." menus will appear (explained in the dedicated chapter)

11.5. Possible states of the product

• OFF: the product is "deactivated" and does not generate heat.
• ON: the product is "active" and able to meet the heat request.
• ALARM: see the paragraph "Advices for eventual inconveniences".
• ON/OFF WITH STAND-BY ACTIVE: If the product was working, it switches to minimum power and waits for the set time before switching off. If the product was being switched on, it completes the start-up phase, switches to minimum power and waits for the set time before switching off. If the product was OFF and is then switched to ON, the product goes immediately to stand-by, without carrying out the switch on.

11.6. Switch on screen

Ignition takes a few minutes, during which the flame should appear. Simply wait without taking any action

During ignition, the display shows the status (CLEANING; IGNITION; etc.)

11.7. AUTOMATIC and MANUAL setting

In AUTOMATIC mode:

Room temperature setting (measured by the remote control, which should be kept in the room where the product is installed). Change the temperature set-point using the "+" and "-" buttons.

The setting can be confirmed with the button or by waiting 5” without pressing any button. After confirming, SET will stop flashing.

In MANUAL mode:

Power setting. Change the power level using the "+" and "-" buttons.

The setting can be confirmed with the button or by waiting 5” without pressing any button. After confirming, SET will stop flashing.

With the chrono prog. active and the product switched off, neither the temperature nor the power can be adjusted

11.8. Ventilation

Adjusting ventilation

11.9. RELAX function (if present)

Natural convection function (without ventilation) with automatic power limiting. This function can be activated in all modes: automatic, manual or chrono prog.

The product reduces its power output and after a few minutes switches the fan off too.

With relax active it is not possible to set the maximum power

Activation on the display is indicated by the arrow relating to the button

11.10. EASY TIMER function (delayed switch on and switch off)

This function switches the product on/off after a set period from activation of the function. Useful if, for example, you go to sleep and want to switch off/switch on the product after a few hours.

By activating the Easy Timer function with the product on, the switch-off time can be set with 1/2 hour intervals. By activating the Easy Timer function with the product off, the user sets the switch-on time. Example: Switch-ON in 1/2 hours' time.

The Easy Timer function can be deactivated by pressing the dedicated button.

The display will show an arrow above the button and the countdown.

To vary the timer before the switching on or off, it must be deactivated and then reset.

11.11. CHRONO

After having set times, temperatures or powers in the CHRONO prog. MENU, if the product is in automatic mode, chrono prog. works with the room temperature, otherwise it works with power.

Pressing the button allows you to switch from temperature chrono to power chrono and vice versa.

Briefly pressing the button activates or deactivates the Chrono prog. (programmed in advance via APP or remote control).

The timer is programmed from the MENU. The CHRONO button is only used to activate/deactivate the function.

11.12. Menu

The items of the user menu are the following. The others are only for the technician or to be read under his/her guidance.

Next to the temperature, the progressive number of the Menu item (not sequential) is displayed, called "Set digit.

Below is the Menu item.

Example "(02 = digit; STAND BY)

• STAND-BY
• PELLET LOAD
• CRONO
  • TEMP. CRONO (T1-T2)
• DATE-HOUR
• LANGUAGE

Order and wording may vary slightly depending on the version

11.12.1. How to access the menus

: To enter the Menus

To go from one Menu to another

: To enter the Menu

How to access the menus

11.12.2. Stand-By

When the Stand-by function is active, when the temperature set-point is reached, the product switches off and switches on again when the room temperature drops below the desired temperature.

When the Stand-by function is not active, the product sets itself to minimum power when the temperature set-point is reached.

The product is programmed by default with a delta of 1° C to ensure best comfort.

The technician may vary this setting during the first ignition to meet specific requirements.

11.12.3. Access to the Menu and setting

As shown in the diagram, ON or OFF of the STAND-BY function is set and the minutes that must elapse before the product switches off (example 5 by default)

[zx8w]

Available in AUTO mode onlySTAND-BYFunction not activeSTAND-BYFunction active but product OFFSTAND-BYFunction active and product ONProduct shutting down due to STAND-BYProduct off due to STAND-BY

THE ROOM TEMPERATURE PROBE IS ON THE REMOTE CONTROLThe reading depends on where the remote control is; if it loses connection, the reading is made by a probe placed inside theproduct (except for inserts). The reading may be different.According to the needs, the temperature reading can be adjusted via the SET TEMPERATURE menu.

11.12.4. Pellet load

Allows for loading the pellets once the screw feeder has emptied completely. Useful for the technician during the initial start-up.

Available only in the OFF status. Any attempt to activate the function in other statuses will not be allowed.

11.12.5. Chrono prog.

To set the Chrono prog. function.

11.12.6. Chrono temp. (T1-T2)

To set the target temperatures of the Chrono prog.

11.12.7. Date and time

Can be used to set the current date and time

11.12.8. Language

Can be used to select the language

11.12.9. Display

Allows for choosing the level of brightness of the display.

11.12.10. Info

These readings should only be done when requested by the technician.

The technician understands the diagnostic meaning of the messages and values, and may ask you to read them to him/her if you experience problems.

Below is a description of the items

- Temperature of fumes: Indicates the temperature value read inside the product. To be read only with the guidance of the Technical Assistance Centre.

- Auger motor: Indicates the set and read speed. Useful to understand any anomalies of the pellet loading motor. To be read only with the guidance of the Technical Assistance Centre.

- Extractor: Indicates the set and read speed. Useful to understand any anomalies of the combustion chamber vacuum motor. To be read only with the guidance of the Technical Assistance Centre.

- Leonardo: Indicates the set and read target value. To be read only with the guidance of the Technical Assistance Centre.

• Fan: Indicates the output voltage. To be read only with the guidance of the Technical Assistance Centre.

- Ignition plug (glow plug): Indicates whether the ignition component is on or off. Useful during ignition to understand functionality.

• Home automation contact: Indicates whether ON or OFF. Useful to understand functionality.

- AUX relay: Indicates whether it is OPEN.

• Radio signal: Indicates the signal strength in decibel-milliwatts. Permissible values from 0 to -95 db

11.12.11. Software

These readings should only be done when requested by the technician.

11.12.12. Data

Allows for the product counters to be displayed.

These readings should only be done when requested by the technician.

11.12.13. Alarms

These readings should only be done when requested by the technician.

The alarms are arranged from the most recent to the oldest.

11.12.14. Pellet drop

To set the auger motor in continuous cycle or step operation. To be carried out only under the guidance of a technician.

Inappropriate changes can cause the product to seize up

11.12.15. Pellet sensor (if present)

Allows to set the pellet level sensor ON or OFF.

11.12.16. Temperature set

In order of scrolling, it can be found after the technical menu.

• ADJ T. AMB1: Plus or minus variation of the value read by the temperature probe on the product
• ADJ TEMP.AMB RC: Plus or minus variation of the value read by the temperature probe on the remote control

The function is useful for adapting to the temperature requirements in the house

Inappropriate changes can cause the product to seize up

THE ROOM TEMPERATURE PROBE IS ON THE REMOTE CONTROL.

The reading depends on where the remote control is; if it loses connection, the reading is made by a probe placed inside the product (except for inserts). The reading may be different. According to the needs, the temperature reading can be adjusted via the SET TEMPERATURE menu.

11.13. Technical menu

INSTALLER

The various sub-menus are the following:

• Flame type
• Pellet type
• Min chimney sweep (the function can be activated only with the product on)
• Nom chimney sweep (the function can be activated only with the product on)
• Parameters

11.14. Access to the Menu and setting

Only accessible by a technician with the correct password (1111)

Inappropriate changes can cause the product to seize up

11.14.1. Flame type

In correct installation conditions, with the Service Centre parameters appropriately adjusted, with high-quality pellets, the flame intensity is adjusted:

• Standard
• Eco
• Plus

11.14.2. Pellet type

In correct installation conditions, with the Service Centre parameters appropriately adjusted, with high-quality pellets, pellet loading is adjusted:

• Medium
  • High
• Low

11.14.3. Chimney Sweep

The various functions are the following:

• Min chimney sweep
• Nom chimney sweep

The product operates at maximum power or minimum power for 15 minutes, with fixed smoke extractor and auger motor revolutions

The function can be activated ONLY with the product on

11.14.4. Parameters

INSTALLER

• Pellet level sensor: Enables or disables the possibility for the end customer to view and choose the status of the pellet reserve indicator
• Airkare function: To select WHETHER Airkare is active and how big the room is (SMALL, less than 30 m ³ or BIG) or not active (OFF)
• Reset Airkare: Allows to reset the working hours of Airkare
• Number of fans: Enables or disables the possibility for the end customer to operate the fan, if present. Do not change unless in the presence of the Technical Assistance Centre
• Ducting 2: Enables the speed of the ducting fan to be set to maximum (ON-OFF)
• Ducting 3: Enables the speed of the ducting fan to be set to maximum (ON-OFF)
• Room input: To choose which item can be read and adjusted by the customer on the Home display. It depends on the type of system

• Probe: Room probe, standard in the product

- Thermostat: Enables the thermostat, which can be installed instead of the room probe.

- Room2/Cyli. input: To choose which item can be read and adjusted by the customer on the Home display. It depends on the type of system

• No input (default)
• Probe
• Thermostat

• Room/Cyl/se: Defines the item to be enabled according to the connected component

• No input (default)
• Probe
• Thermostat

• Chrono synch: Synchronises the chrono prog.

When active (ON), the set operating times apply in both automatic and manual mode

• Unpair bluetooth: Do not confirm with OK, the remote control is disconnected
• Extra tank: Not available for this model
  • Time extra tank: Not available for this model
  • P MAX AUTO: Used to limit the maximum power in automatic operation

12. USER INSTRUCTIONS: SAVE PANEL

USER/INSTALLER

	FUNCTION
A	“Power” button
B	Network present
C	"on-off" button

SAVE PANEL can compensate for the temporary absence of a remote control or Smartphone, or other product management devices.

It controls the product by pressing the buttons.

When the remote control or Smartphone re-establishes communication and sends a command to the product, product control goes back to the remote control or Smartphone.

The display is ONLY present if product control takes place via SAVE PANEL.

12.1. Functions

To switch on with the product off: Press the On-Off button for a few seconds

To set the power with the product on: Press the "power" button power once. Consecutive presses increase the power, and the setting is shown on the display: "P1" - "P2" - "P3" - "P4" - "P5" - "P1" - "P2" - ... The ventilation of all room fans automatically follows the product power and cannot be adjusted.

To switch off with the product on: Press the On-Off button for a few seconds

To unlock the product in the event of a blocking alarm: Press the On-Off button for a few seconds The table below explains the conditions in which the LED lights will come on:

LED 1	Voltage present
OFF	Absent
ON	Present

LED 2	EK Cloud connection
OFF	Absent
ON	Present

LED 4	LED 3	Wi-Fi router connection
OFF	OFF	None
ON	OFF	Poor
OFF	ON	Medium
ON	ON	Good

13. MAINTENANCE

USER/INSTALLER

Before performing any maintenance operation, disconnect the product from the mains power supply.

A lack of maintenance prevents the product from operating smoothly.

Any problems due to a lack of maintenance will invalidate the warranty.

The characters of the safety information are larger according to the standards

13.1. Daily maintenance

Operations to be performed, with the product switched off, cold and preferably disconnected from the mains.

A suitable vacuum cleaner is required.

The entire procedure takes a few minutes.

VIDEO:

Click on the symbol to watch the video

	The ash may contain parts that are still hot and/or embers
	Make sure that the crucible is correctly positioned in its housing after the maintenance, otherwise there will be problems to switch on the product.
	Do not discharge any cleaning residues into the pellet hopper.
	Using the product without having cleaned the burning pot can cause the gases inside the combustion chamber to ignite suddenly, resulting in detonation/breakage of the glass.

13.1.1. Cleaning the glass

Clean the glass only when it is cold. Use a dry brush and, if necessary, a specific detergent: spray a little detergent on the glass and clean with a cloth. There are specific products that can be used to clean the glass (see our Glasskamin price list).

Make sure that there are no abrasive elements in the ash that could damage the glass.

Do not spray the cleaning product onto the painted parts or on the door gaskets.

13.2. Periodic maintenance

USER/INSTALLER

The frequency of periodic maintenance depends on use, in agreement with the technician.

With the product switched off and cold

Put it back with care by placing it in its housing.

The deflector is a component subject to wear.

Neither Edilkamin nor the dealer shall be held liable should this component break, all the more if it breaks accidentally during handling operations.

Make sure you put it back on correctly and close the product.

If not performed correctly, the operation of the product may be compromised

INSTALLER

The frequency of periodic maintenance depends on use, in agreement with the technician.

With the product switched off and cold

Make sure you put it back on correctly and close the product.

If not performed correctly, the operation of the product may be compromised

13.3. Seasonal maintenance

USER/INSTALLER

Seasonal maintenance is performed by the technical service centre, in accordance with local and national regulations. The technician can find instructions on the website.

It consists of general internal and external cleaning.

Remember that seasonal maintenance by a qualified technician, and according to national and local regulations, is necessary.

In the case of very frequent use of the product, it is advisable to clean the smoke flue and duct every 3 months.

In any case, clean the chimney system at least once a year (check whether there are regulations in your country).

Periodically empty any TEE placed on the chimney system by the installer

We recommend that you DO NOT use compressed air to clean the combustion air inlet pipe

If regular inspections and cleaning are not carried out, there will be an increased risk of fire in the chimney.

13.4. Repairs

To be carried out only by licensed Edilkamin retailers/technical service centres. The names of the contracted and licensed Edilkamin technical service centres and retailers are available ONLY on www.edilkamin.com.

13.5. Summer break

During the period of non-use, leave all doors, hatches and covers of the product closed.

We recommend removing any pellets from the hopper.

In particularly humid areas, consider disconnecting the air inlet and the smoke fitting, and insert a suitable product in the combustion chamber to absorb the moisture (e.g. dehydrating salt bags, antioxidant tablets).

13.6. Spare parts

• For any spare parts, contact the retailer or the technician.
  • Have any repairs carried out only by licensed Edilkamin retailers/technical service centres.
• The names of the contracted and licensed Edilkamin technical service centres and retailers are available ONLY on www.edilkamin.com.
• The use of non-original components causes risks to the product and relieves Edilkamin from any liability for any resulting damage. It also invalidates the warranty, as it is considered tampering.
• Any unauthorised modifications are prohibited.

14. DISPOSAL

At the end of its service life, dispose of the product in accordance with current regulations.

14.1. Warnings for the correct disposal of the product

The demolition and disposal of the product are the sole responsibility of the owner who will have to act in compliance with the applicable laws in their country on safety, respect and protection of the environment.

Do not dispose of with municipal waste.

Do not throw it away.

14.2. Disposal of the components of the appliance at the end of its service life

The drawings are indicative

The following table lists the components of the appliance and the indications for correct separation and disposal. In particular, the electrical and electronic components must be separated and disposed of at the centres authorised for this activity, according to the WEEE directive 2012/19/EU.

A. EXTERNAL COVERS	C. INTERNAL LINING
If present, dispose of it separately according to the material it is made of:• Metal• Glass• Tiles or ceramics• Stone	If present, dispose of it separately according to the material it is made of:• Metal• Refractory materials• Insulating panels• Vermiculite• Insulating panels, vermiculite and refractory materials coming into contact with the flame or the exhaust gases (dispose of in mixed waste)
B. GLASS AND DOORS	D. ELECTRICAL AND ELECTRONIC COMPONENTS
If present, dispose of it separately according to the material it is made of:	If present, dispose of it separately according to the material it is made of:
• Ceramic glass (fire door): dispose of in inert or mixed waste• Tempered glass (oven door): dispose of in glass	• Wiring, motors, fans, pumps, display, sensors, spark plug, electronic boards.Dispose of separately at authorised centres, as indicated by the WEEE directive 2012/19/EU
E. METAL STRUCTUREDispose of separately in metal	G. HYDRAULIC COMPONENTSPipes, fittings, expansion tank, valves.If present, dispose of separately according to the material they are made of:• Copper • Brass • Steel • Other materials
F. NON-RECYCLABLE COMPONENTS.• Gaskets• Rubber hoses• Silicone or fibreDispose of in mixed waste

14.3. WEEE

Pursuant to art. 26 of Italian Legislative Decree of 14 March 2014, no. 49 "Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)".

The crossed bin symbol on the appliance or on its packaging indicates that the product at the end of its useful life must be collected separately from other waste.

The user must therefore deliver the equipment at the end of its life to suitable recycling centres for electronic and electro-technical waste.

Adequate separate collection for subsequent recycling, treatment and environmentally compatible disposal contributes to avoiding possible negative effects on the environment and on health and encourages reuse and/or recycling of the materials of which it is composed.

15. ADVICE FOR POSSIBLE PROBLEMS

In the event of problems, the product automatically performs the shutdown operation. The display shows the reason (see below).

15.1. Display messages

MESSAGE	PROBLEM	ACTIONS
A01	It is shown if the combustion air intake flow rate falls below a preset level	Make sure that the firebox door is closedMake sure that maintenance is carried out regularly on the productMake sure that the smoke outlet and combustion air intake duct are clean
A02	It is shown if the motherboard does not detect the correct smoke fan speed	Contact the technician
A03	It is shown if the thermocouple detects a smoke temperature lower than a set value, interpreting this as absence of flame	Check the absence of pallets in the tankContact the technician
A04	It is shown if ignition is not successful within the set time	The two cases below must be considered:The flame does NOT show up:Check the positioning and cleaning of the crucibleCheck the presence of pallets in the tank and in the crucibleTry to ignite with a little of solid ecological igniter (contact the technician before and follow scrupulously the instructions of the igniter supplier). The operation should be considered as a test only, under the guidance of the technicianThe flame appears:Contact the technician
A05	Switch-off due to broken air flow rate sensor	Contact the technician
A06	It is shown if the electronic motherboard detects that the smoke temperature thermocouple is broken or disconnected	Contact the technician
A07	Switch-off due to high smoke temperature	Check the pellet type (in case of doubt contact the technician)Contact the technician
A08	Switch-off due to excessive temperature in the product or, for the “CHERIE EVO AT/ATC” stove, pellet hopper door open	Check that the product is cleanFor the “CHERIE EVO AT/ATC” stove check that the pellet hopper loading door is closedContact the technician
A09	Shutdown due to pellet loading problem (auger motor).For airtight products (except for the “CHERIE EVO AT/ATC” stove), pellet hopper door open	For airtight products (except for the “CHERIE EVO AT/ATC” stove), check that the pellet hopper loading door is closedIn the PELLET LOAD sub-menu, select STEPContact the technician
A10	Switch-off due to electronic motherboard overheating.	Contact the technician
A11	Switch-off due to tripping of the safety pressure switch.For airtight products, open door indication	Check the cleaning of the product, of the dischargeCheck that the door is closed properlyContact the technician
A12	Room temperature probe faulty.	Contact the technician
A13	Fault in ducting room temperature probe 2 (if present).	Contact the technician
A14	Fault in ducting room temperature probe 3 (if present).	Contact the technician
A20	Triggers when the electronic board detects movement of the pellet loading auger motor when it does not require feeding	Contact the technician
A21	Black-outSwitch-off due to power failure; not normally a product defect	Check electrical connections and voltage dipsContact the technician
A24	2AT fuse faulty on electronic motherboard	Contact the technician
A25	Inconsistent status	Contact the technician

15.2. Remote control battery level low

If the battery level is low, the battery symbol appears on the remote control display

15.3. Maintenance (message that does not cause switch-off)

After 2000 hours of operation, a "wrench" symbol appears on the display

The product works, but maintenance must be carried out by the Edilkamin qualified technician

Remember that seasonal maintenance by a qualified technician, and according to national and local regulations, is necessary.

[HYWS]

EXPANSION:Like all products, the stove heats up and cools down during the various phases. This results in normal expansion. This expansion may result in slight noises which are not a cause for complaint.SMELLS:During the first start-ups, you may smell paint, but the smell will disappear in a short time.

15.4. No communication

In the event of a prolonged absence of communication between the product and the remote control, the signal icon shows the minimum value

Signal faible-App active?

Low signal-App running?

15.5. Pellet reserve light (where the sensor is present)

The function is available only if the pellet level sensor is installed and activated.

When the level sensor is triggered, the board emits a single "beep" (in any state of ignition or operation) and the moving reserve symbol appears

The arrows light up in sequence indicating the need for loading

After an interval of roughly 20/30 minutes, which varies depending on the model, the product switches off due to shortage of pellets.

If the user refills the product before the start of the switch-off procedure, the symbol disappears and the stove resumes its normal operation.

If the user fails to refill the product before the start of the switch-off procedure, the product switches off and the tank symbol remains steady lit with the 3 arrows on until the next refilling operation.

When the reserve symbol appears, the product cannot be restarted.

After reloading the pellets, the stove must be restarted manually.

If the pellets are reloaded and there is an ignition request coming from the timer, the product will restart.

f the sensor intervenes:

• with the product OFF or in Initial Cleaning mode (following manual emptying of the tank), the final symbol will immediately appear and the stove cannot be switched on;
• during the ignition phase, the ignition sequence will be completed even if it lasts more than the 20/30 minutes of residual autonomy.

If the pellets are not reloaded, the stove will then switch off.

15.6. Black-out

During a switch-off following a BLACK-OUT, the display will alternately show the words "Black-Out" and "OFF". Once the switch-off has been completed, the product will remain off and "Black-Out" will appear.

EDILKAMIN

iosonoilfuoco

www.edilkamin.com

The names of Edilkamin&Co. official, authorised technical assistance centres (CAT) and distributors are available ONLY a www.edilkamin.com

cod. 943004-GB I 05.25/A DIGITAL
