Model No. 425307x51A

Product Type

Mfg. No. Description

7800282 42" Murray CE Riding Mower

CAUTION: Read and

follow all instructions.

Manual Part No. 7102109

Revision 00

Rev. Date 03/2008

TP 199-4854-00-RD-R

International Pictorials....4

Limited Warranty 5

Owner's Information....6

Safe Operation Practices ....7

Assembly 9

Operation....13

Maintenance Chart 19

Maintenance 20

Troubleshooting Chart....31

1

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a circuit board with an open book and a power plug, no text or symbols present

Silhouette of a hand reaching toward grass on a surface (no text or symbols)

Symbol of a hand crossed out with a 'X' mark, representing prohibition or restriction (no text present)

10 MAX± 90N MAX± 150N

Black icon of a hand holding an open box with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

IMPORTANT: The following pictorials are located on your unit or on literature supplied with the product. Before you operate the unit, learn and understand the purpose for each pictorial.

Safety Warning Pictorials

1 WARNING
2 IMPORTANT: Read Owner's Manual Before Operating This Machine.
3 WARNING: Thrown Objects. Keep Bystanders Away. Read User Instructions Before Operating This Machine.
4 WARNING: Do Not Use This Machine On Slopes Greater Than 10 Degrees.
5 DANGER: Keep People, Especially Children, Away From Unit.
6 DANGER: No Step.
7 DANGER: Keep Feet And Hands Away From Rotating Blade.
8 DANGER: Disconnect Spark Plug Wire Before Servicing Unit.
9 WARNING: Hot Surface.
10 WARNING: Use Caution When Connecting Or Disconnecting Accessories.
11 WARNING: Crushed Fingers.
12 IMPORTANT: Follow Instructions In Owner's Manual To Level The Deck.
13 WARNING: Stay Clear Of Mower Blade As Long As Engine Is Running.

Control and Operating Pictorials

1 Engine Start
2 Lights
3 Engine Stop
4 Engine Run
5 Engine Run
6 Brake
7 Parking Brake
8 Clutch
9 Slow
10 Fast
11 Choke
12 Oil
13 Blade Rotation Control
14 Raise
15 Fuel

BRIGGS & STRATTON CORPORATION OWNER WARRANTY POLICY

Effective January 1, 2006 replaces all undated Warranties and all Warranties dated before January 1, 2006

LIMITED WARRANTY

Briggs & Stratton Corporation will repair or replace, free of charge, any part(s) of the product that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in your area. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.murray.com.

THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.

WARRANTY TERMS

Brand / Unit

Consumer Use

Commercial Use

Condition of Warranty Term

Riders / Tractors .... 2 years .... 90 days

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once product has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.

No warranty registration is necessary to obtain warranty on Murray branded products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply to the product if damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the serial number on the product has been removed or the product has been altered or modified.

This warranty covers product related defective material and/or workmanship only. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of product failure that the warranty does not cover.

• Normal Wear: Small Engine Powered Equipment, like all mechanical devices, needs periodic parts and service to perform well. Warranty does not cover repair when normal use has exhausted the life of the product or part.
• Installation: This warranty does not apply to product that has been subjected to improper or unauthorized installation, alteration or modification. Nor installations that prevent starting, cause unsatisfactory engine performance.
• Improper Maintenance: The life of this product depends upon the conditions under which it operates, and the care it receives. Recommended maintenance and adjustment intervals are stated in the Operator's Manual. Often product, such as tillers, edgers, rotary mowers, are used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, or other abrasive material entering the product because of improper maintenance is not covered by warranty. The warranty will not cover repairs due to problems caused by replacement parts that are not original manufactured part(s).
• Incorrect and/or insufficient fuel or lubrication: This warranty does not cover damage caused by the use of stale fuel, or altered gasolines. Damage to engine or engine components ie, combustion chamber, valves, valve seats, valve guides, burned starter motor windings caused by use of alternate fuels such as liquified petroleum, natural gas, are not covered unless engine is certified for this operation. Parts which are scored or broken because product was operated with insufficient, contaminated or incorrect grade of lubricating oil as well as product components damaged due to lack of lubrication are not covered.
• Operational Misuse: Proper operation of the product is stated in the Operator's Manual. Product damaged by overspeeding, overheating, or operation in a confined area without sufficient ventilation. Product broken by excessive vibration caused by a loose engine mounting, loose or unbalanced blades, impellers, overspeeding, or bent crankshaft due to striking of solid object. Damage or malfunctions resulting from accidents, abuse, or improper servicing or freezing or chemical deterioration, as well as operating in excess of recommended capacities as outlined in the Operator's Manual are not covered.
  • Routine tune-up, wear items or adjustments: This warranty excludes wear items such as oil, belts, blades, o-rings, filters, etc.
• Other exclusions: Repair or adjustments for part(s) that are not manufactured by Briggs & Stratton Corporation, are not covered, see warranty for respective manufacturers. This warranty excludes failures due to acts of God and other major forceful events beyond the manufacturers control. Also excluded are used, reconditioned, and demonstration products.

Warranty service is available only through Authorized Service Dealers. Locate your nearest dealer in our locator map at www.murray.com.

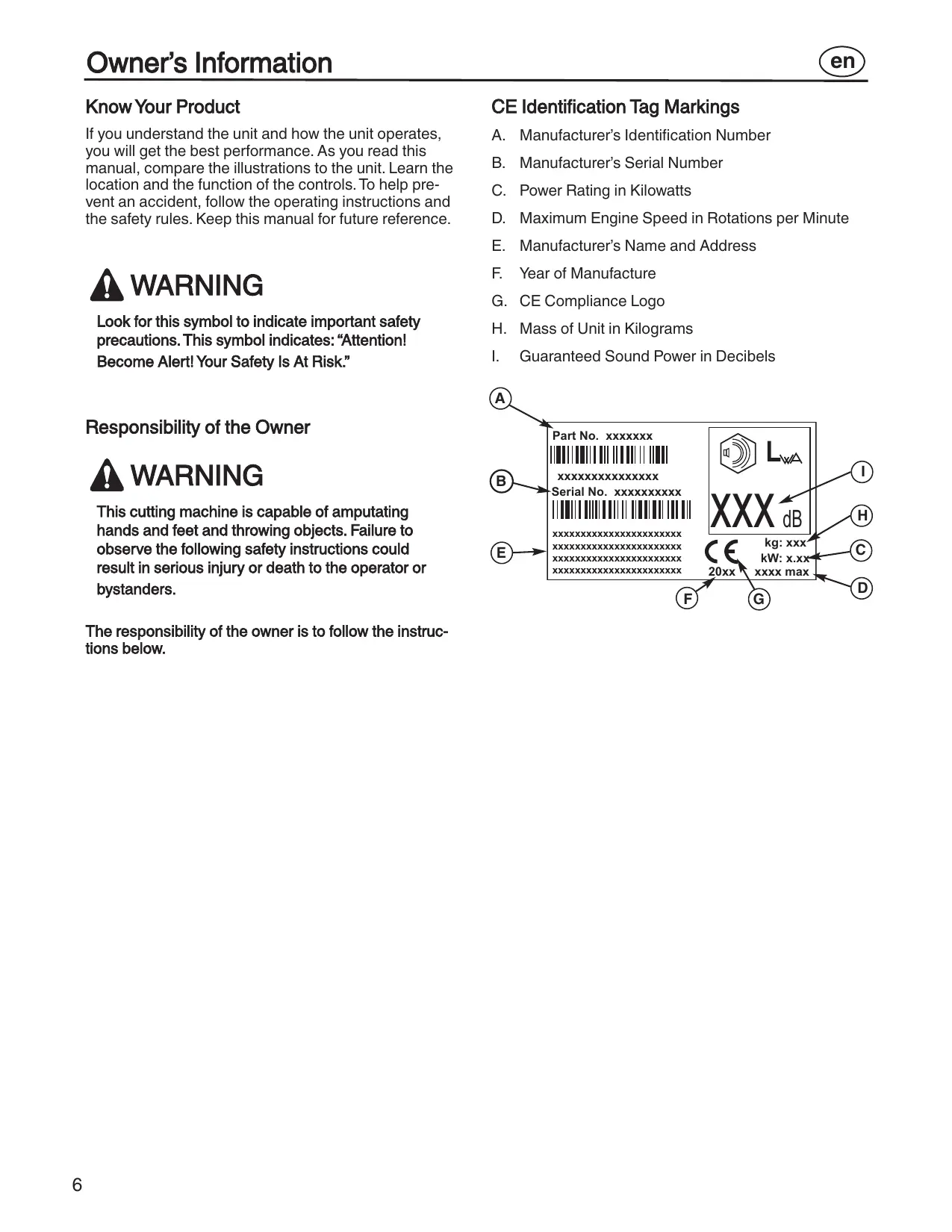

Know Your Product

If you understand the unit and how the unit operates, you will get the best performance. As you read this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an accident, follow the operating instructions and the safety rules. Keep this manual for future reference.

WARNING

Look for this symbol to indicate important safety precautions. This symbol indicates: "Attention! Become Alert! Your Safety Is At Risk."

Responsibility of the Owner

WARNING

This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death to the operator or bystanders.

The responsibility of the owner is to follow the instructions below.

CE Identification Tag Markings

A. Manufacturer's Identification Number
B. Manufacturer's Serial Number
C. Power Rating in Kilowatts
D. Maximum Engine Speed in Rotations per Minute
E. Manufacturer's Name and Address
F. Year of Manufacture
G. CE Compliance Logo
H. Mass of Unit in Kilograms

I. Guaranteed Sound Power in Decibels

For Ride-On (Riding) Rotary Mower Machines

Training

1. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
2. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
3. Never mow while people, especially children, or pets are nearby.
4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
5. Do not carry passengers.
6. All drivers should seek and obtain professional and practical instruction. Such instruction should emphasize:

a. the need for care and concentration when working with ride-on machines;
b. control of a ride-on machine sliding on a slope will not be regained by the application of the brake. The main reasons for loss of control are:

• insufficient wheel grip;
- being driven too fast;
- inadequate braking;
- the type of machine is unsuitable for its task;
- lack of awareness of the effect of ground conditions, especially slopes;
• incorrect hitching and load distribution.

Preparation

1. While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.
2. Thoroughly inspect the area where the equipment will be used and remove all objects which may be thrown by the machine.
3. WARNING-Petrol is highly flammable.

a. Store fuel in containers specifically designed for this purpose.
b. Refuel outdoors only and do not smoke while refuelling.
c. Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.

d. If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapors have dissipated
e. Replace all fuel tanks and container caps securely.

1. Replace faulty silencers.
2. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
3. On multi-blade machines, take care as rotating one blade can cause other blades to rotate.

Operation

1. Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
2. Mow only in daylight or in good artificial light.
3. Before attempting to start the engine, disengage all blade attachment clutches and shift into neutral.
4. Do not use on slopes of more than 10 degrees.
5. Remember there is no such thing as a "safe" slope. Travel on grass slopes requires particular care. To guard against overturning:

a. do not stop or start suddenly when going up or downhill;
b. engage clutch slowly, always keep machine in gear, especially when travelling downhill;
c. machine speeds should be kept low on slopes and during tight turns;
d. stay alert for humps and hollows and other hidden hazards;
e. never mow across the face of the slope, unless the mower is designed for this purpose.

1. Use care when pulling loads or using heavy equipment.

a. Use only approved drawbar hitch points.
b. Limit loads to those you can safely control.
c. Do not turn sharply. Use care when reversing.
d. Use counterweight(s) or wheel weights when suggested in the Instruction Book.

1. Watch out for traffic when crossing or near roadways.

2. Stop the blades rotating before crossing surfaces other than grass.

3. When using any attachments, never direct discharge of material toward bystanders nor allow anyone near the machine while in operation.

4. Never operate the mower with defective guards or shields, or without safety protective devices in place.
5. Do not change the engine governor settings or overspeed the engine. Operating an engine at excessive speed may increase the hazard of personal injury.
6. Before leaving the operator's position

a. disengage the power take-off and lower the attachments;
b. change into neutral and set the parking brake;
c. stop the engine and remove the key.

1. Disengage drive to attachments, stop the engine, and disconnect the spark plug wire(s) or remove the ignition key

a. before cleaning blockages or unclogging chute;
b. before checking, cleaning or working on the mower;
c. after striking a foreign object. Inspect the mower for damage and make repairs before restarting and operating the equipment;
d. if the machine starts to vibrate abnormally (check immediately).

1. Disengage drive to attachments when transporting or not in use.
2. Stop the engine and disengage drive to attachment

a. before refuelling;
b. before removing the grass catcher;
c. before making height adjustment unless adjustment can be made from the operator's position.

1. Reduce the throttle setting during engine run-out and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.
2. Before and when backing, look behind and down for small children.
3. Use extra care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

Maintenance and Storage

1. On multi-blade machines, take care as rotating one blade can cause other blades to rotate.
2. When machine will be parked, stored or left unattended, lower the cutting means unless a positive mechanical lock is used.
3. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
4. Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
5. Allow the engine to cool before storing in any enclosure.
6. To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.
7. Check the grass catcher frequently for wear or deterioration.
8. Replace worn or damaged parts for safety.
9. If the fuel tank has to be drained, this should be done outdoors.

All fasteners are in the parts bag. Do not discard any parts or material until the unit is assembled.

WARNING

Before doing any assembly or maintenance to the mower, remove the wire from the spark plug.

NOTE: In this instruction book, left and right describe the location of a part with the operator on the seat.

Install the Front Wheels

Use a knife and cut the four sides of the container. Install the front wheels (1) in the container (see Figure 1).

NOTE: Use a piece of wood about 4 feet (1.25 meters) long to raise the front of the tractor. If a piece of wood cannot be found, get another person to help lift the tractor. Be careful, do not let the tractor fall.

1 2 3 4 (17x192) 5 (30x49) 6 7 (17x195)

Figure 1

1. Raise the front of the tractor. Set a support (block of wood) under the tractor.
2. Make sure the valve stem (2) is to the outside of the tractor. Slide the front wheel (1) on the spindle (3).
3. Fasten each front wheel with washer (4), washer (7) and cotter pin (5). Bend the ends of the cotter pin apart to keep the front wheel on the spindle.
4. After the front wheels are installed, lift the tractor from the support. Roll the tractor off of the container.
5. If your tractor has hub caps (6), install the hub caps. Make sure the washers hold the hub caps in place.

Check the Tires

Check the air pressure in the tires. Tires with too much air pressure will cause the unit to ride rough. Also, the wrong air pressure will keep the mower housing from cutting level. The correct air pressure is: Front Tires 0,97 BAR (14 PSI), Rear Tires 0,69 BAR (10 PSI). The tires were over inflated for shipment.

Assemble the Mower Housing

1. Move the blade rotation control (1) to the DISENGAGE position (see Figure 2).
2. Move the lift lever (2) to the level adjustment position.

WARNING

The lift lever is spring loaded. Make sure the lift lever is locked in the LEVEL ADJUSTMENT position.

1. Attach the front hanger (9) to the deck with the fasteners. See illustration "F."
2. Push the mower housing under the right side of the unit.
3. Put the mower drive belt (7) around the stack pulley (8). See illustration "G."

NOTE: Make sure the "V" side of the mower drive belt is against the stack pulley. Also, make sure the mower drive belt is not twisted.

1. Attach the front hanger to the axle support. See illustration "F."
2. Make sure the mower drive belt is between the stack pulley and the two belt guides (10). See illustration “G.”
3. Attach the suspension links (4) to the lifter assembly. Fasten with the hair pins and washers. See illustrations "A" and "B."
4. Attach the right and left adjuster arms (3) to the suspension brackets. Fasten with the hair pins and the washers. See illustrations "C" and "D."
5. Attach the extension spring (5) to the blade control rod (6). See illustration "E."
6. Move the blade rotation control to the ENGAGE position. Make sure the mower drive belt is inside all the belt guides.
7. Make sure the mower housing is level. See "Level the Mower Housing."

Figure 2

1. Attach the gauge wheels (12) to the axle bolts (11) with the fasteners (see Figure 3).
2. Check the operation of the blade rotation control. See "Adjust the Blade Rotation Control."

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Figure 3

Install the Seat

1. Carefully remove the plastic bag from the seat.
2. Align the holes in the seat hinge (2) to the holes in the seat (1) (see Figure 4). Fasten the seat to the seat hinge with the fasteners (4) and (5).
3. Check the operating position of the seat. If the seat needs to be adjusted, loosen the two wing bolts (5). Slide the seat forward or backward along the seat adjusting holes (3). Tighten the wing bolts.

Labeled diagram of an electronic device showing internal components and wiring connections

Figure 4

Assemble the Steering Wheel

1. Make sure the front wheels point forward.
2. Slide the cover (3) over the steering post (2) (see Figure 5). Make sure the collar of the cover is on top.
3. Slide the steering wheel (1) onto the steering post.
4. Attach the steering wheel to the steering post with screw (4) and washer (6).
5. Some models have an optional insert (7) in the parts bag. Attach the insert to the center of the steering wheel.

Technical diagram of a mechanical device with numbered parts for identification

Figure 5

Maintenance Free Battery

IMPORTANT: Before you attach the battery cables to the battery, check the battery date. The battery date tells if the battery must be charged.

1. Check the top of the battery (1) for the location of the battery date (see Figure 6).
2. If the battery is put into service before the battery cables can be attached without charging the battery. See "Install the Battery Cables."
3. If the battery is put into service after the battery must be charged. See "Charge the Battery."

Technical diagram of an electrical switch assembly with numbered components for identification

Figure 6

Charge the Battery

WARNING

When you charge the battery, do not smoke. Keep the battery away from any sparks. The fumes from the battery acid can cause an explosion.

1. Remove the battery (1) and battery tray (3) (see Figure 6).
2. Remove the protective caps from the battery terminals.
3. Use a 12 volt battery charger to charge the battery. Charge at a rate of 6 amps for one hour. If you do not have a battery charger, have an authorized service center charge the battery.
4. Install the battery and battery tray. Make sure the positive (+) terminal (4) is on the left side.

Install the Battery Cables

WARNING

To prevent sparks, fasten the red cable to the positive (+) terminal before you connect the black cable.

1. Remove the protective caps from the battery terminals (see Figure 6).
2. Slide the terminal cover (2) onto the red cable (5). Fasten the red cable to the positive (+) terminal (4) with the fasteners (6) and (7).
3. Fasten the black cable (8) to the negative (-) terminal with the fasteners (6) and (7).

Prepare the Engine

NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil. Add oil as needed.

See the engine manufacturer's instructions for the type of petrol and oil to use. Before you use the unit, read the information on safety, operation, maintenance and storage.

WARNING

Follow the engine manufacturer's instructions for the type of petrol and oil to use. Always use a safety petrol container. Do not smoke when adding petrol to the engine. When inside an enclosure, do not fill with petrol. Before you add petrol, stop the engine. Let the engine cool for several minutes.

NOTE: Actual sustained horsepower will likely be lower due to operating limitations and environmental factors.

Check the Level of the Mower Housing

Make sure the level of cut is still correct. After you mow a short distance, look at the area that was cut. If the mower housing does not cut level, see “Level the Mower Housing” in the Maintenance section of this instruction book.

Important! Before You Start Mowing

• Check the engine oil.
  • Fill the fuel tank with petrol.
• Check the air pressure of the tires.
• Check the level of the mower housing.
• Attach the battery cables.

Location of Controls

Blade Rotation Control (1): Use the blade rotation control to start and stop the rotation of the blade (see Figure 7).

Clutch/Brake Pedal (2): The pedal has two functions. The first function is a clutch. The second function is a brake.

Headlight Switch (3): The headlight switch is the first part of the ignition switch. To use the lights with the engine running, turn the key to the position for the lights.

Ignition Switch (3): Use the ignition switch to start and stop the engine.

Shift Lever (4): Use the shift lever to change the speed of the unit.

Lift Lever (5): Use the lift lever to change the height of cut.

Parking Brake Lever (6): Use the parking brake lever to engage the brake when you leave the unit.

Throttle Control Lever (7): Use the throttle control lever to increase or decrease the speed of the engine.

Speed Control Pedal (8): Use the speed control pedal to change the speed of the unit.

Labeled diagram of a tractor interior showing numbered components for identification

Figure 7

Attachments

This unit can use many different attachments. This unit can pull attachments like a lawn sweeper, a lawn aerator or a hopper spreader. This unit cannot use attachments that engage the ground like a plough, a disk harrow or a cultivator.

For trailer and pull-behind attachments, the maximum weight is 250 lbs (113 kg).

Use the Throttle Control

Use the throttle control lever (7) to increase or decrease the speed of the engine (see Figure 7).

1. The FAST position is marked with a detent. For normal operation and when using a grass bagger, move the throttle control to the FAST position. For maximum charging of the battery and for a cooler running engine, operate the engine in the FAST position.
2. The engine governor is set at the factory for maximum performance. Do not adjust the governor to increase the speed of the engine.

Use the Blade Rotation Control

Use the blade rotation control (1) to engage the blade(s) (see Figure 7).

1. Before you start the engine, make sure the blade rotation control (1) is in the DISENGAGE position.
2. Move the blade rotation control to the ENGAGE position to rotate the blade(s).

NOTE: If the engine stops when you engage the blade(s), the seat switch is not activated. Make sure you sit in the middle of the seat.

1. Move the blade rotation control to the DISENGAGE position to stop the blade(s). Before you leave the operator's position, make sure the blade(s) has stopped rotating.
2. Before you ride the unit across a sidewalk or a road, move the blade rotation control to the DISENGAGE position.

WARNING

Always keep your hands and feet away from the blade, deflector opening and the mower housing when the engine runs.

Use the Speed Control Pedal

The drive system uses a variator pulley connected to a two speed transaxle. The variator drive is very easy to operate. This type of drive system has a two speed shift lever and a clutch/brake pedal (2) located beside the speed control pedal (8) (see Figure 7).

The direction of travel is controlled by the shift lever. Use the shift lever to select either REVERSE or one of the two forward gears. When operating, the speed is controlled by a single speed control pedal operated with your right foot.

Drive Forward

1. Completely push the clutch/brake pedal (2) forward to stop the unit (see Figure 7). Keep your foot on the pedal.
2. Move the shift lever (4) to one of the two FORWARD positions. Select Low position (TRIM) when going up or down steep hills and when operating attachments that require a very slow forward speed, such as snow throwers. Select High position (MOW) when mowing or when transporting the unit.
3. Slowly release your right foot from the clutch/brake pedal. Do not keep your foot on the clutch/brake pedal.
4. Move the throttle control lever (7) to the FAST position.
5. Slowly push the speed control pedal (8) forward to the desired speed.
6. To increase forward speed, slowly move the speed control pedal forward. To reduce forward speed, slowly release the speed control pedal until the unit slows to the desired speed.

Change Directions

CAUTION: Before you move the shift lever, completely push the clutch/brake pedal (2) forward to the stop the unit. If the unit is not stopped, the gearbox can be damaged (see Figure 7).

1. Completely push the clutch/brake pedal (2) forward to stop the unit. Keep your foot on the pedal.
2. Move the throttle control lever (7) to the SLOW position.
3. To go forward, move the shift lever (4) to one of the two FORWARD positions. To go backward, move the shift lever to the REVERSE position.
4. Slowly release your right foot from the clutch/brake pedal. Do not keep your foot on the clutch/brake pedal.
5. Move the throttle control lever to the FAST position.

Drive in Reverse

1. Look to the rear.
2. Completely push the clutch/brake pedal (2) forward to stop the unit (see Figure 7). Keep your foot on the pedal.
3. Move the shift lever (4) to the REVERSE position.
4. Slowly release the clutch/brake pedal.
5. Slowly push the speed control pedal (8) forward to the desired speed.
6. To increase reverse speed, slowly move the speed control pedal forward. To reduce reverse speed, slowly release the speed control pedal until the unit slows to the desired speed.

Speed Control Pedal Positions

The forward speed is controlled by the position of the shift lever (4) and the speed control pedal (8) (see Figure 7). The following chart provides functions along with the positions of the shift lever and the speed control pedal. Always operate the engine with the throttle control lever (7) in the FAST position.

FUNCTION	SHIFT LEVER POSITION	PEDAL POSITION	THROTTLE
Trimming, Snow Thrower, Steep Hills	Low (TRIM)	1/3
Bagging Grass	High (MOW)	1/3 to 1/2
Normal Mowing	High (MOW)	1/2 to 2/3
Easy Mowing Snow Blade	High (MOW)	1/2 to 3/4
Transport	High (MOW)	FULL
Pull Behind Attachments	High (MOW)	1/3 to 1/2

Use the Parking Brake

1. Completely push the clutch/brake pedal (2) forward (see Figure 7).
2. Lift the parking brake lever (6).
3. Remove your foot from the clutch/brake pedal and then release the parking brake lever. Make sure the parking brake will hold the unit.
4. To release the parking brake, completely push the clutch/brake pedal forward. The parking brake will automatically release.

WARNING

Before you leave the operator's position, move the shift lever to the neutral (N) position. Set the parking brake. Move the blade rotation control to the DISENGAGE position. Stop the engine and remove the ignition key.

Change the Cutting Height

To change the cutting height, raise or lower the lift lever (5) as follows (see Figure 7).

1. Move the lift lever (5) forward to lower the mower housing and back to raise the mower housing.
2. When you ride on a sidewalk or road, move the lift lever to the highest position and move the blade rotation control (1) to the DISENGAGE position.

Stop the Unit

1. Slowly remove your foot from the speed control pedal (8) and depress the clutch/brake pedal (2) (see Figure 7).
2. Move the blade rotation control (1) to the DISENGAGE position.
3. Set the parking brake lever (6).

WARNING

Make sure the parking brake will hold the unit.

1. Move the throttle control lever (7) to the SLOW position.
2. To stop the engine, turn the ignition switch (3) to the OFF position. Remove the key.

Transport the Unit

To transport the unit, follow the steps below (see Figure 7).

1. Move the blade rotation control (1) to the DISENGAGE position.
2. Raise the lift lever (5) to the highest position.
3. Move the throttle control lever (7) to the FAST position.
4. Release the clutch/brake pedal (2) and slowly push the speed control pedal (8) forward to the desired speed.

Change the Mulcher Plate

WARNING

To prevent the engine from starting, disconnect the wire from the spark plug. Make sure the blade rotation control is in the DISENGAGE position.

The mulcher plate lets you mulch the grass for a clean, fine cut. To discharge the grass out the side or into a grass bagger, remove the mulcher plate as follows.

Remove the Mulcher Plate

1. Raise the deflector (1) (see Figure 8). Remove the two wingnuts (2) and two carriage bolts (3).
2. Lift the mulcher plate (4) away from the mower housing.
3. Attach wingnuts and carriage bolts to the mulcher plate for future use.

Technical diagram of a car's internal components with numbered parts and an inset close-up view

Figure 8

Install the Mulcher Plate

1. Raise the deflector (1) (see Figure 8). Mount the bottom flange of the mulcher plate (4) to the mower housing.
2. Slide the top of the mulcher plate (4) under the deflector bracket (5) (see Figure 9).
3. Fasten the mulcher plate with two wingnuts (2) and two carriage bolts (3) (see Figure 8).

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

Figure 9

Mulching Tips

When you use a mulcher attachment, the grass is cut into very small pieces. These small pieces will quickly break down. Because the nutrients are returned to the soil, the lawn will need less fertilizer. To correctly mulch the grass, follow the steps below.

1. Set the throttle control lever (7) in the FAST position (see Figure 7). Operate the mower at a slower ground speed. If ground speed is too fast, the grass will not have an even cut.
2. Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown.
3. Make sure the grass is dry. Wet grass is difficult to cut.
4. Set the height of the mower housing so that only the top third of the grass is cut. If the grass is too high, set the height of the mower housing to the maximum height. Then, lower the mower housing for the second cut. Also, instead of using the full width of the mower housing, mulch at half the width.
5. Clean the bottom of the mower housing. Grass and other debris can keep the mower from working correctly.
6. If the grass grows fast, mulch more often.
7. If an area needs improvement, mulch a second time.

Operate with the Mower Housing

WARNING

The deflector is a safety device. Do not remove the deflector. The deflector forces the discharged material toward the ground. Always keep the deflector in the DOWN position. If the deflector is damaged, replace the deflector with an original equipment part from an authorized service center.

IMPORTANT: When you operate with the mower housing, always operate with the throttle control in the FAST position.

1. Start the engine.
2. Release the parking brake lever (6) (see Figure 7).
3. Move the lift lever (5) to a height of cut position. In high or thick grass, cut the grass in the highest position first and then lower the mower housing to a lower position.
4. Move the throttle control lever (7) to the SLOW position.
5. Slowly move the blade rotation control (1) to the ENGAGE position.
6. Move the throttle control lever to the FAST position.
7. Slowly push the speed control pedal (8) to the desired speed.

NOTE: When you mow in heavy grass or mow with a bagger, use a slow forward speed.

1. Make sure the level of cut is still correct. After you mow a short distance, look at the area that was cut. If the mower housing does not cut level, see “Level the Mower Housing” in the Maintenance section.

WARNING

For better control of the unit, select a safe speed.

Operate Automatic Drive Units on Hills

WARNING

Do not ride up or down slopes that are too steep to back straight up. Never ride the unit across a slope.

1. Do not stop or change speed settings on a hill. If you must stop, quickly push the clutch brake/pedal (2) forward and set the parking brake (6) (see Figure 7).
2. To help prevent an accident, slowly move the speed control pedal (8). Avoid sudden turns or changes in speed.
3. To reduce forward speed when going down a hill, slowly release the speed control pedal and, if necessary, depress the clutch/brake pedal.

Stop on a Hill

1. Avoid stopping on a hill. If you must quickly stop in an emergency, remove your right foot from the speed control pedal (8) and quickly depress the clutch/brake pedal (2) (see Figure 7).
2. Set the parking brake lever (6).
3. Before you dismount from the seat, move the throttle control lever (7) to the SLOW position, move the blade rotation control (1) to the DISENGAGED position, turn off the engine and set the parking brake.

Start Operation on a Hill

1. Start the engine.
2. Move the blade rotation control (1) to the ENGAGED position (see Figure 7).
3. Move the throttle control lever (7) to the FAST position.
4. Depress the clutch/brake pedal (2) to release the parking brake lever (6). Push the speed control pedal (8) to the desired speed.

NOTE: The parking brake must be disengaged before the speed control pedal is able to engage the transmission.

Before Starting the Engine

Check the Oil

NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil. Add oil as needed. See the engine manufacturer's instructions for the type of gasoline and oil to use.

1. Make sure the unit is level.

NOTE: Do not check the level of the oil while the engine runs.

1. Check the oil. Follow the procedure in the engine manufacturer's instructions.
2. If necessary, add oil until the oil reaches the FULL mark on the dipstick. The quantity of oil needed from ADD to FULL is shown on the dipstick. Do not add too much oil.

Add Gasoline

WARNING

Always use a safety gasoline container. Do not smoke when adding gasoline to the fuel tank. Do not add gasoline when you are inside an enclosure. Before you add gasoline, stop the engine and let the engine cool for several minutes.

Fill the fuel tank (1) to the FULL (2) position with regular unleaded gasoline (see Figure 10). Do not use premium unleaded gasoline. Make sure the gasoline is fresh and clean. Leaded gasoline will increase deposits and shorten the life of the valves.

Technical diagram showing a coiled spring component with labeled parts 1 and 2

Figure 10

Start the Engine

WARNING

The electrical system has an operator presence system that includes a sensor switch for the seat. These components tell the electrical system if the operator is sitting on the seat. This system will stop the engine when the operator leaves the seat if the blade rotation control is engaged or if the transmission is engaged. For your protection, always make sure this system operates correctly.

NOTE: The engine will not start unless you depress the brake pedal or engage the parking brake and move the blade rotation control to the DISENGAGE position.

1. Push the clutch/brake pedal (2) completely forward (see Figure 7). Keep your foot on the pedal.
2. Make sure the blade rotation control (1) is in the DISENGAGE position.
3. Move the throttle control lever (7) completely forward to the CHOKE or FAST position. Some models have a separate choke knob. Pull the choke knob to the full CHOKE position.
4. Turn the ignition switch (3) to the START position.

NOTE: If the engine does not start after four or five tries, move the throttle control to the FAST position. Again try to start the engine. If the engine will not start, see the TROUBLE SHOOTING CHART.

1. Slowly move the throttle control lever to the SLOW position.
2. Let a cold engine run for several minutes. Begin work when the engine is warm. To start a hot engine, move the throttle control lever to a position between FAST and SLOW.

Mowing and Bagging

1. For a lawn to look better, check the cutting level of the mower housing. See “Level the Mower Housing” in the Maintenance section.
2. For the mower housing to cut level, make sure the tires have the correct amount of air pressure.
3. Every time you use the unit, check the blade. If the blade is bent or damaged, immediately replace the blade. Also, make sure the nut for the blade is tight.
4. Keep the blade(s) sharpened. Worn blades will cause the ends of the grass to turn brown.
5. Do not cut or bag grass that is wet. Wet grass will not discharge correctly. Let the grass dry before cutting.
6. Use the left side of the mower housing to trim near an object.
7. Discharge the cut grass onto the mowed area. The result is a more even discharge of cut grass.
8. When you mow large areas, start by turning to the right so that the cut grass will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left turns until finished.
9. If the grass is very high, cut two times to decrease the load on the engine. First cut with the mower housing in the highest position and then lower the mower housing for the second cut.
10. For better engine performance and an even discharge of the cut grass, always operate the engine with the throttle in FAST position.
11. When you use a bagger, operate the engine with the throttle in FAST position and the speed control pedal pushed 1/3 to 1/2 forward.
12. After each use, clean the bottom and top of the mower housing for better performance. Also, a clean mower housing will help prevent a fire.

Frequency	Maintenance Required	Comments
Daily or before each use	Maintenance engine.	Refer to the Engine Owner's Manual.
	Examine blade(s).	Check for cracks, wear, and excessive damage.
	Remove debris from unit and moving parts.
	Examine all rotating and sliding parts.
	Check tire inflation.	Refer to the Maintenance section.
	Verify that the mower housing is level.	Refer to the Maintenance section.
	Examine V-belts.	Check for cracks, wear, and excessive damage.
	Check brake operation.	Refer to the Maintenance section.
After completion of first 5 hours	Change oil.	Refer to the Engine Owner's Manual.
After 25 hours	Maintenance engine.	Refer to the Engine Owner's Manual.
	Remove, examine, sharpen, and balance blade(s).	Refer to the Maintenance section.
	Check adjustments: a. Blade Rotation Control b. Brake c. Clutch d. Steering.	Refer to the Maintenance section.
	Lubricate chassis and mower housing.	Refer to Where to Lubricate instructions.
	Check the muffler: a. Torque b. For wear or burn out c. Condition of spark arrester (if applicable).	Refer to the Maintenance section.
Before storage of 30 days or more	Prepare engine for storage.	Refer to the Engine Owner's Manual.
	Drain fuel system.	Refer to Warnings in Owner's Manual.
	Add fuel stabilizer.	Refer to the Engine Owner's Manual.
	Prepare battery for storage: a. Remove from unit. b. Fully charge. c. Move to cool dry place.

General Recommendations

1. The owner's responsibility is to maintain this product. This will extend the life of the product and is also necessary to maintain warranty coverage.
2. Check the spark plug and drive brake, lubricate the unit, and clean the air filter once a year.
3. Check the fasteners. Make sure all fasteners are tight.
4. Follow the Maintenance section to keep the unit in good operating condition.

WARNING

Before you make an inspection, adjustment or repair to the unit, disconnect the wire to the spark plug. Remove the wire from the spark plug to prevent the engine from starting by accident.

NOTE: Torque is measured in foot pounds (metric Nm). This measurement describes how tight a nut or bolt must be. The torque is measured with a torque wrench.

Inspect the Blade

WARNING

Before you inspect or remove the blade, disconnect the wire to the spark plug. If the blade hits an object, stop the engine. Check the unit for damage. The blade has sharp edges. When you hold the blade, use gloves or cloth material to protect your hands.

If you keep the blade (1) sharp and inspect the blade for damage, the blade will cut better and be more safe to operate (see Figure 11). Frequently check the blade for excessive wear, cracks or other damage.

Frequently check the nut (3) that holds the blade (1). Keep the nut tight. If the blade hits an object, stop the engine. Disconnect the wire to the spark plug. See if the blade is bent or damaged. Check the blade adapter (5) for damage.

Before you operate the unit, replace damaged parts with original equipment parts. See the authorized service center in your area. Every three years, have an authorized service person inspect the blade or replace the old blade with an original equipment part.

Technical diagram of a mechanical assembly with numbered parts for identification

Figure 11

Remove and Install the Blade

1. Remove the mower housing. See "Remove and Install the Mower Housing".
2. Use a piece of wood to keep the blade from rotating.
3. Remove the nut (3) that holds the blade (1) (see Figure 11).
4. Check the blade and the blade adapter (5). See "Inspect the Blade." Replace a badly worn or damaged blade with an original equipment blade. See an authorized service center in your area.
5. Clean the top and bottom of the mower housing. Remove all the grass and debris.
6. Mount the blade and blade adapter on the mandrel (6).
7. Mount the blade so that the hi-lift edges (7) are up. If the blade is upside down, the blade will not cut correctly and can cause an accident.
8. Fasten the blade with the original washers and nut. Make sure the outside rim of the Belleville washer (2) is against the blade.

WARNING

Always keep the nut tight that holds the blade. A loose nut or blade can cause an accident.

1. Tighten the nut that holds the blade to a torque of 30 foot pounds (41,5 Nm).
2. Install the mower housing. See "Remove and Install the Mower Housing."

Adjust the Blade Rotation Control

WARNING

To prevent an injury, the blade rotation control must operate correctly.

In normal usage, the blade rotation control will not require an adjustment. However, if the cutting performance decreases or the quality of cut is poor, make the following changes.

1. When you mow, make sure the throttle control lever (7) is in the FAST position (see Figure 7).
2. Move the blade rotation control to the DISENGAGE position (1) (see Figure 12).
3. Stop the engine. Disconnect the wire from the spark plug.
4. Check the blade(s). Keep a sharp edge on the blade(s). A blade that is not sharp will cause the tips of the grass to become brown.

Technical diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or movement.

Figure 12

1. Disconnect the blade drive spring (2) from the blade control rod (1) (see Figure 13). Move the blade drive spring to the middle hole (4). This will increase the tension on the mower drive belt.
2. Attach the wire to the spark plug. Mow for a short distance and again check the quality of cut. If necessary, move the blade drive spring to the bottom hole (5).
3. Again check the quality of cut. If the quality of cut has not improved, replace the mower drive belt. See "Replace the Primary Mower Drive Belt." If replacing the belt does not correct the problem, take the unit to an authorized service center.

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

Figure 13

1. Move the blade rotation control (1) to the DISENGAGE position (see Figure 12). Stop the engine.
2. Check the operation of the blade brake. Rotate the pulleys with your hand. Make sure the brake pads (7) are pressed tightly against the pulleys (see Figure 14).

WARNING

If the brake pads do not press tightly against the pulleys, take the unit to an authorized service center.

1. Move the blade rotation control to the ENGAGE position (2) (see Figure 12).
2. Check the pads for the blade brake (7) (see Figure 14). If the pads are excessively worn or damaged, replace the brake pad assemblies. Correct replacement parts and assistance are available from an authorized service center.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Figure 14

1. Attach the wire to the spark plug. Mow for a short distance and again check the operation of the blade rotation control.
2. When you move the blade rotation control to the DISENGAGE position, all movement will stop within five seconds. If there is movement of the belt or the blades continue to rotate, engage and disengage the blade rotation control five times to remove any excess rubber from a new mower drive belt. If you need assistance, take the unit to an authorized service center.
3. If you replace the mower drive belt, move the blade drive spring (2) to the top hole (3) (see Figure 13).

Check and Adjust the Clutch

If the motion drive belt is loose, the clutch will slip when going up a hill or pulling a heavy load, or the unit will not move forward. Adjust the clutch as follows.

WARNING

Before you make an inspection, adjustment or repair to the unit, disconnect the wire to the spark plug. Remove the wire from the spark plug to prevent the engine from starting by accident.

1. Check the routing of the motion drive belt. Make sure the belt is installed correctly and is inside all the belt guides.
2. Remove the cotter pin (1), washer (2) and brake spring (3) from the adjustable nut (4) (see Figure 15).
3. Disconnect the adjustable nut from the brake lever assembly (5) and the parking brake latch (6).

4. Align the hole in the brake lever with the hole in the frame. Hold the brake lever in place with a 6 mm pin or bolt (7).

5. Pull the clutch rod forward until tight. Turn the adjustable nut until the nut will fit through the hole in the brake lever.

6. Assemble the adjustable nut to the parking brake latch, brake lever and brake spring. Fasten with the washer and cotter pin.
7. Remove the 6 mm pin or bolt.
8. If the belt still slips after the clutch has been adjusted, then the motion drive belt is worn or damaged and must be replaced. See “Replace the Motion Drive Belt.”

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Figure 15

Check and Adjust the Drive Brake

Completely push the clutch/brake pedal forward. Set the parking brake. Move the shift lever to the neutral (N) position. Push the unit. If the rear wheels rotate, adjust or replace the brake pads. Adjust the drive brake as follows.

1. The location of the drive brake (1) is on the right side of the gearbox (3) (see Figure 16).
2. Make sure the parking brake is set and the shift lever is in neutral (N). Turn the hex nut (2) in a clockwise direction until the rear wheels do not turn when the unit is pushed forward.
3. Release the parking brake and push the unit. If the unit does not roll, turn the hex nut in a counterclockwise direction until the unit rolls.
4. Set the parking brake. Push the unit. If the rear wheels do not turn, the drive brake is correctly adjusted. Release the parking brake.

WARNING

If you cannot correctly adjust the drive brake, replace the brake pads. Correct replacement parts and assistance are available from an authorized service center.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Figure 16

Remove the Battery

To charge or clean the battery (1), remove the battery from the unit as follows (see Figure 6).

WARNING

To prevent sparks, disconnect the black battery cable (8) from the negative (-) terminal before you disconnect the red cable (5).

WARNING

The battery contains sulphuric acid which is harmful to the skin, eyes and clothing. If the acid gets on the body or clothing, wash with water.

1. Disconnect the black cable (8) from the negative (-) terminal.
2. Disconnect the red cable (5) from the positive (+) terminal (4).
3. Lift the battery tray (3) and the battery (1) out of the unit.

Charge the Battery

WARNING

When you charge the battery, do not smoke. Keep the battery away from any sparks. The fumes from the battery acid can cause an explosion.

1. Before you charge the battery (1), remove the battery (see Figure 6).
2. To charge the battery, use a 12 volt battery charger. Charge at a rate of 6 amps for 1 hour.
3. Install the battery.

WARNING

To prevent sparks, fasten the red cable to the positive (+) terminal before you connect the black cable.

1. Fasten the red cable (5) to the positive (+) terminal (4) with the fasteners as shown.

2. Fasten the black cable (8) to the negative (-) terminal with the fasteners as shown.

Adjust the Gauge Wheels

The axle bolts for the gauge wheels were mounted in the LOW cut position. To change the position of the gauge wheels, move the axle bolts as follows.

IMPORTANT: Before you adjust the gauge wheels, you must do the following. Make sure the mower housing is level. Make sure the height of cut is set at the height you want for your lawn. Mow a short distance on a flat level area and look at the area that was cut. If the mower housing does not cut level, see “Level the Mower Housing.”

WARNING

Before you make an inspection, adjustment or repair to the unit, disconnect the wire to the spark plug. Remove the spark plug wire to prevent the engine from starting by accident.

1. Remove the gauge wheels (12) and axle bolts (11) (see Figure 3).

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded rod and spring-like features.

Figure 17

1. Mow a short distance on a flat level area to check the level of cut and the height of cut. Look at the height of cut position number 3 on the lift lever (1) (see Figure 17).
2. Look at each gauge wheel bracket (13) (see Figure 3). There are 3 holes in each bracket and is a number next to each hole. The number for the height of cut position on the lift lever indicates the correct hole to use on each gauge wheel bracket.

NOTE: Wheel bracket hole number 1 is equal to lift lever position number 1. Wheel bracket hole number 2 is equal to lift lever position number 2. Wheel bracket hole number 3 is equal to lift lever position numbers 3, 4, 5 and 6.

1. Assemble the axle bolts (11) to the gauge wheel brackets (13) using the correct hole in the bracket as indicated.

NOTE: If the height of cut position is changed by the lift lever, you must move the gauge wheels to the correct hole to keep a level height of cut.

Level the Mower Housing

If the mower housing is level, the blade will cut easier and the lawn will look better.

WARNING

Before you make an inspection, adjustment or repair to the unit, disconnect the wire to the spark plug. Remove the spark plug wire to prevent the engine from starting by accident.

1. Make sure the unit is on a hard, flat surface.
2. Check the air pressure in the tires. If the air pressure is incorrect, the mower housing will not cut level. Make sure the tires are inflated to: Front Tires 0,97 BAR (14 PSI), Rear Tires 0,69 BAR (10 PSI).
3. Move the lift lever (1) to the lowest cut position (2) (see Figure 17).

WARNING

The lift lever is spring loaded. Make sure the lift lever is locked in the lowest cut position.

Technical diagram showing hands operating a mechanical clamp or tool with numbered annotations indicating steps 1 and 2.

Figure 18

1. Loosen the left and right adjuster knobs (1) (see Figure 18). Push down on each side of the mower housing. Make sure both sides of the mower housing are sitting on a flat surface. Also, make sure the lift links are loose and can easily move up or down.
2. Push down on the lift links (2) and tighten the left and right adjuster knobs. Make sure the adjuster knobs are tight. If necessary, use a wrench to tighten the adjuster knobs.
3. Raise the lift lever (1) (see Figure 17).
4. Mow for a short distance. If the height of cut is not level, repeat the above steps.

Where to Lubricate

Models with grease fittings: Lubricate with grease gun (see Figure 19).

Apply grease with a brush to the areas shown.

Lubricate the areas shown with engine oil.

NOTE: Apply grease to the steering gear assembly.

CAUTION: If the unit is operated in dry areas that have sand, use a dry graphite spray to lubricate the unit.

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Figure 19

Check the Tires

Check the air pressure in the tires. Tires with too much air pressure will cause the unit to ride rough. Also, the wrong air pressure will keep the mower housing from cutting level. The correct air pressure is: Front Tires 0,97 BAR (14 PSI), Rear Tires 0,69 BAR (10 PSI).

Replace the Motion Drive Belt

Remove the Engine Drive Belt

1. Remove the battery.
2. Remove the mower housing. See "Remove and Install the Mower Housing."
3. Remove the snap-ring and the pinion gear (1) from the end of the steering column (see Figure 20). Slide the steering column up to allow removal of the engine drive belt.

Technical diagram of a mechanical assembly with numbered components for identification

Figure 20

1. Disconnect the pedal rod link (2) from the bell crank (3).
2. Unhook the idler bracket return spring (4) from the variator assembly bracket (5).

3. Remove the variator brake arm (6) from the top of the frame channel. The variator brake arm can be accessed through the battery box opening under the seat.

4. Remove the four screws (7) that hold the idler bracket assembly (8) (see Figure 21).

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figure 21

1. To access the idler belt guides (9), lower the idler bracket assembly (see Figure 22). The idler bracket assembly can not be removed until the engine drive belt (10) is removed from the idler pulleys (11). Remove both idler belt guides.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

Figure 22

1. Remove the idler bracket assembly (12) (see Figure 23).

Technical line drawing of a mechanical assembly with pulleys and bolts (no text or symbols)

Figure 23

1. Remove the two screws (13) on the right side of the variator assembly bracket (5) (see Figure 24). Loosen the two screws (14) on the left side of the variator assembly bracket.

Technical diagram of a mechanical assembly with numbered components and labeled parts

Figure 24

1. Lower the variator assembly bracket (5) and slide the engine drive belt (10) over the top of the variator pulley (15) (see Figure 25).
2. Remove the belt guide rod (16) (see Figure 26).

Technical diagram showing hands installing components of an electrical panel with numbered parts labeled 5, 10, and 15.

Figure 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or flow.

Figure 26

1. Slide the engine drive belt (10) toward the front of the unit. When the rear of the engine drive belt reaches the stack pulley (17), slide the rear of the belt between the stack pulley and the steering plate (18).

NOTE: To slide the engine drive belt between the stack pulley and the steering plate, the belt must be turned sideways.

1. A correct replacement belt and/or assistance is available from an authorized service center in your area.

Install the Engine Drive Belt

1. To install the engine drive belt (10), reverse the above steps (see Figure 25).
2. Make sure that the engine drive belt (10) is routed between the two belt guides located at the stack pulley (17) (see Figure 26). Also, make sure the "V" side of the engine drive belt is against the stack pulley.
3. Check the routing of the engine drive belt (10) at the steering column (19) (see Figure 27). Make sure that the engine drive belt is routed to the inside of the small idler (20) and underneath the L-shaped belt guide (21).

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Figure 27

1. Make sure the engine drive belt (10) is inside of the speed control arm (22) (see Figure 28).
2. Install the mower housing. See "Remove and Install the Mower Housing."

22 10

Figure 28

Remove the Transaxle Drive Belt

1. Remove the battery.
2. Remove the mower housing. See "Remove and Install the Mower Housing."
3. Remove the variator brake arm (23) at the top of the frame channel (see Figure 29). The variator brake arm can be accessed through the battery box opening under the seat.

Technical diagram of a mechanical assembly with numbered components, likely an engine or transmission system.

Figure 29

1. Remove the variator idler spring (24).
2. Remove the two screws (25) on the right side of the variator assembly bracket (5).
3. Loosen the two screws (26) on the left side of the variator assembly bracket.
4. Remove the shifter rod from the transaxle shifter link (27) (see Figure 30).

Technical line drawing of a mechanical assembly with spring and clamping components (no text or symbols)

Figure 30

1. Remove the transaxle drive belt (28) from the transaxle input pulley (29) (see Figure 31).

Technical diagram of a mechanical assembly with numbered components for identification

Figure 31

1. Slip the transaxle drive belt off of the variator idler pulley.
2. Slide the transaxle drive belt forward over the transaxle input pulley.
3. Next, slide the transaxle drive belt over the transaxle shifter link (27) (see Figure 30).
4. Pull down on the variator assembly (30) and remove the engine drive belt (10) from the variator pulley (15). Then, remove the transaxle drive belt (28) from the variator pulley (see Figure 31).
5. A correct replacement belt and/or assistance is available from an authorized service center in your area.

Install the Transaxle Drive Belt

1. To install the transaxle drive belt (28), reverse the above steps (see Figure 31).
2. Install the mower housing. See "Remove and Install the Mower Housing."

Replace the Primary Mower Drive Belt

1. Remove the mower housing. See "Remove and Install the Mower Housing."
2. Remove the three screws (1) from the left pulley cover (2) (see Figure 32). Remove the left pulley cover.

Technical diagram of a mechanical assembly with numbered components for identification

Figure 32

1. To remove the primary mower drive belt (3) from the left mandrel pulley (4), slide the primary mower drive belt between the left mandrel pulley and the belt guides (5).
2. Pull the belt retainer (6) away from the idler pulley (7). Remove the primary mower drive belt from the idler pulley.
3. Move the brake pad assembly (8) away from the stack pulley (9). Remove the primary mower drive belt from the stack pulley.

NOTE: Replace the primary mower drive belt with an original equipment belt. See an authorized service center in your area.

1. Install a new primary mower drive belt. Pull the brake pad assembly away from the stack pulley. Put the belt around the stack pulley. Make sure the primary mower drive belt is inside of the belt guide (10).

2. Pull the belt retainer away from the idler pulley. Put the flat side of the primary mower drive belt around the idler pulley.

3. Make sure the "V" side of the primary mower drive belt is against the left mandrel pulley as shown.

4. Make sure the primary mower drive belt is inside of belt guide (5) and belt guide (10).
5. Assemble the left pulley cover.
6. Install the mower housing. See "Remove and Install the Mower Housing."
7. Before you mow, check the blade rotation control. See "Adjust the Blade Rotation Control."

Remove Secondary Mower Drive Belt

1. Remove the mower housing. See "Remove and Install the Mower Housing."
2. Remove the primary mower drive belt (3) from the stack pulley (9) (see Figure 32).
3. Remove the two screws (1) from the right pulley cover (11). Remove the right pulley cover.
4. Pull the idler pulley (12) away from the secondary mower drive belt (13). Remove the belt from the idler pulley.
5. Remove the secondary mower drive belt from the right mandrel pulley.
6. Remove the secondary mower drive belt from the stack pulley.

NOTE: Replace the secondary mower drive belt with an original equipment belt. See an authorized service center in your area.

1. Install a new secondary mower drive belt. Put the belt around the bottom of the stack pulley. Make sure the secondary mower drive belt is inside the belt guide.
2. Put the secondary mower drive belt around the right drive pulley (14).
3. Pull the idler pulley toward the front. Install the flat side of the secondary mower drive belt against the idler pulley.

4. Make sure the "V" side of the secondary mower drive belt is around the right mandrel pulley.

5. Assemble the right pulley cover.

6. Put the primary mower drive belt around the stack pulley.
7. Install the mower housing. See "Remove and Install the Mower Housing."
8. Before you mow, check the blade rotation control. See "Adjust the Blade Rotation Control."

Remove and Install the Mower Housing

1. Move the blade rotation control (1) to the DISENGAGE position (see Figure 2).
2. Move the lift lever (2) to the level adjustment position.

WARNING

The lift lever is spring loaded. Make sure the lift lever is locked in the LEVEL ADJUSTMENT position.

1. Remove the hair pins and the washers from the suspension arms (3). See illustrations "C" and "D."
2. Remove the hair pins and washers from the lift links (4). See illustrations "A" and "B."
3. Disconnect the extension spring (5) from the blade control rod (6). See illustration "E."
4. Disconnect the front hanger (9) from the axle support. See illustration "F."
5. Remove the mower drive belt (7) from the stack pulley (8).
6. Pull the mower housing away from the right side of the unit.
7. To install the mower housing, reverse the above steps.

Replace the Fuse

If the fuse is blown, the engine will not start.

Remove the fuse and replace with a 15 amp automotive fuse.

Storage (over 30 days)

At the end of each year, prepare the unit for storage as follows.

1. Drain the fuel from the carburetor and the fuel tank. Change the engine oil. See the engine manufacturer's instructions.
2. Clean the entire unit.
3. Charge the battery.

Order Replacement Parts

The replacement parts are shown either on the back pages of this Instruction Book or in a separate Parts List Book.

Use only manufacturer's authorized or approved replacement parts. Do not use attachments or accessories not specifically recommended for this unit. In order to obtain proper replacement parts, you must supply the model number of your mower (see nameplate).

Replacement parts, except for the engine, transmission, transaxle or differential, are available from the store where the mower was purchased or a service shop recommended by the store.

Warranty service is available only through Authorized Service Dealers. Locate your nearest dealer in our locator map at www.murray.com.

Replacement parts for the engine, transaxle, or transmission are available from the manufacturer's authorized service center found in the commercial pages of the telephone directory. Also, see the individual engine or transmission warranties to order replacement parts.

When ordering, the following information is required:

(1) Model Number
(2) Serial Number
(3) Part Number
(4) Quantity

Problem	Solution
The engine will not start.	1. Follow the steps, “Start the Engine” in this book.
	2. Electric-Start Models: Clean the battery terminals. Tighten the cables.
	3. Check for a loose wire. Tighten the limit switches. (See the wiring diagram.)
	4. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.
	5. Remove the spark plug(s). Move the throttle to the SLOW position. Turn the ignition key to the ON position. Try to start the engine several times. Install the spark plug.
	6. Replace the spark plug.
	7. Adjust the carburetor.
The engine will not turn over.	1. Follow the steps, “To Start the Engine” in this book.
	2. Electric-Start Models: Charge the battery.
	3. Replace the fuse.
	4. Check the wiring harness for damage or a loose connection. Repair the damaged wire.
	5. Electric-Start Models: replace the solenoid. Recoil-Start Models: replace the module.
The engine is difficult to start.	1. Adjust the carburetor.
	2. Replace the spark plug.
	3. Replace the fuel filter.
The engine does not run smooth or has a loss of power.	1. Check the oil.
	2. Clean the air filter.
	3. Clean the air screen.
	4. Replace the spark plug.
	5. The engine is working too hard. Use a lower gear.
	6. Adjust the carburetor.
	7. Replace the fuel filter.
The engine does not run smooth at fast speed.	1. Replace the spark plug.
	2. Adjust the throttle control.
	3. Clean the air filter.
	4. Replace the fuel filter.
The engine stops when the blades are engaged.	1. Check the wiring harness for damage or a loose connection. Repair the damaged wire.
	2. Grass bag must be installed (applies only to model with rear discharge grass bag).
On slopes, the engine stops.	1. Mow up and down slopes. Never mow across a slope.
The engine will not idle.	1. Replace the spark plug.
	2. Clean the air filter.
	3. Adjust the carburetor.
	4. Adjust the throttle control.
	5. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.
A hot engine causes a decrease in power.	1. Clean the air screen.
	2. Check the oil.
	3. Adjust the carburetor.
	4. Replace the fuel filter.
Excessive vibration.	1. Replace the blade.
	2. Check for loose engine bolts.
	3. Decrease the air pressure in the tires.
	4. Adjust the carburetor.
	5. Check for a damaged belt or damaged pulley. Replace the damaged parts.
The grass does not discharge correctly.	1. Stop the engine. Clean the mower housing.
	2. Raise the height of cut.
	3. Replace or sharpen the blade(s).
	4. Move the shift lever to a lower speed.
	5. Move the throttle control to the FAST position.
	6. Replace the spring for the blade idler.
	7. Clean the extension tube and the connector tube (applies only to model with rear discharge grass bag).
The mower housing does not cut level.	1. Check the air pressure in the tires.
	2. Adjust the level of the mower housing.
	3. Check the front axle. If the front axle does not freely pivot, loosen the axle bolt(s).
The mower blades will not rotate.	1. Check the mower drive belt. Make sure the belt is installed correctly.
	2. Replace the mower drive belt.
The unit will not move when the brake is released and the speed control pedal is depressed.	1. Check the motion drive belt. Make sure the belt is installed correctly.
	2. Adjust the clutch.
	3. Replace the motion drive belt.
The unit moves slower or stops when the speed control pedal is depressed.	1. Adjust the clutch.
	2. Replace the motion drive belt.
When the brake pedal is released, belt noise can be heard.	1. Temporary belt noise does not change the operation of the unit. If belt noise is continuous, check the routing of the belt. Make sure the belt is inside all belt guides.
	2. If the noise is continuous, adjust the clutch.
The rear wheels spin over uneven terrain.	1. Check the front axle. If the front axle does not freely pivot, loosen the axle bolt(s).

MURRAY

MANUEL D'UTILISATION

Line drawing of a tractor with visible wheels, steering wheel, and dashboard (no text or symbols)

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and tool, no text or symbols present

Two black silhouette icons: one with a hand reaching for grass, the other with crossed hands and a cross (no text or symbols)

10 MAX± 90N MAX± 150N

Black-and-white icon of a hand holding a rectangular object with an upward arrow, no text or symbols present.

Simple line drawing of a hand holding a pen, no text or symbols present

Pure electrical circuit symbol with no text or labels

CONDITIONS DE LA GARANTIE

Technical diagram of a mechanical assembly with numbered parts and sectional views labeled A through G.

Figure 2

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Figure 3

Labeled diagram of an electronic device showing internal components and parts numbered 1 to 5

Figure 4

Montage du volant

Technical diagram of a mechanical device with numbered parts for identification

Figure 5

Technical diagram of an electrical switch assembly with numbered components for identification

Figure 6

Labeled diagram of a tractor interior showing numbered components for identification

Figure 7

Equipements

Technical diagram of a car interior with numbered components and an inset close-up view highlighting a specific area.

Figure 8

Diagram of a car interior with numbered parts indicating different components or parts, likely for maintenance or repair.

Figure 9

Technical diagram showing a coiled spring component with labeled parts 1 and 2

Figure 10

Technical diagram of a mechanical assembly with numbered parts for identification

Figure 11

Technical diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or movement.

Figure 12

Technical diagram showing labeled mechanical components with numbered parts and directional arrows

Figure 13

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or assembly instructions.

Figure 14

Technical diagram of a mechanical linkage assembly with numbered components and directional arrows indicating motion or movement.

Figure 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle suspension or mounting mechanism.

Figure 16

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

Figure 17

Technical diagram showing hands operating a mechanical clamp or tool with numbered annotations indicating steps 1 and 2.

Figure 18

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Figure 19

Contrôle des pneus

Technical diagram of a mechanical assembly with numbered components for identification

Figure 20

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figure 21

Mechanical assembly diagram showing components like brake calipers and pulleys (no text or labels)

Figure 22

Technical line drawing of a mechanical assembly with pulleys and bolts (no text or symbols)

Figure 23

Technical line drawing of a mechanical assembly with springs and bolts (no text or symbols)

Figure 24

Technical diagram showing a mechanical assembly with numbered components, likely for repair or installation instructions.

Figure 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or force.

Figure 26

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figure 27

Technical diagram of a mechanical assembly with labeled components and numbered parts

Figure 28

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

Figure 29

Technical line drawing of a mechanical spring assembly with no visible text or symbols

Figure 30

Technical diagram of a mechanical assembly with numbered components for identification

Figure 31

Technical diagram of a mechanical assembly with numbered components for identification

Figure 32

Line drawing of a tractor with driver's seat and steering wheel (no text or symbols)

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a circuit board with an open book and a power plug, no text or symbols present

Silhouette of a hand reaching toward grass on a surface (no text or symbols)

Symbol of a hand crossed out with a 'X' mark, representing prohibition or restriction (no text present)

10 MAX± 90N MAX± 150N

Black icon of a hand holding an open box with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

Technical diagram of a mechanical assembly with numbered parts and sectional views labeled A through G.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Abb. 3

Labeled diagram of an electronic device showing internal components and wiring connections

Abb. 4

Technical diagram of a cleaning or repair device with numbered parts labeled 1 through 7

Abb. 5

Technical diagram of an electrical component with numbered parts for identification

Abb. 6

Labeled diagram of a tractor interior showing numbered components for identification

Abb. 7

Zubehör

Technical diagram of a car's internal components with numbered parts and an inset magnified view highlighting a specific part.

Abb. 8

Technical diagram showing a hand operating a mechanical device with labeled parts 4 and 5

Abb. 9

Mulching-Tipps

Technical diagram showing a coiled spring component with labeled parts 1 and 2

Abb. 10

Technical diagram of a mechanical assembly with numbered parts for identification

Abb. 11

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a curved arrow indicating motion or direction.

Abb. 12

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Abb. 13

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or assembly instructions.

Abb. 14

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Abb. 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Abb. 16

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

Abb. 17

Technical diagram showing mechanical assembly steps with numbered annotations indicating components of a tool or device.

Abb. 18

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Abb. 19

Technical diagram of a mechanical assembly with numbered components for identification

Abb. 20

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Abb. 21

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

Abb. 22

Technical line drawing of a mechanical assembly with two pulleys and a hand operating a tool (no text or symbols present)

Abb. 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Abb. 24

Technical diagram showing mechanical assembly with numbered components and labeled parts

Abb. 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or flow.

Abb. 26

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Abb. 27

Technical diagram of a mechanical assembly with numbered components and labeled parts

Abb. 28

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

Abb. 29

Technical diagram of a mechanical spring assembly with no visible text or symbols

Abb. 30

Technical diagram of a mechanical assembly with numbered components for identification

Abb. 31

Technical diagram of a mechanical assembly with numbered components for identification

Abb. 32

Line drawing of a tractor with driver compartment and steering wheel (no text or symbols)

Modello N° 425307X51A

Tipo di prodotto

N° Mfg. Descrizione

7800282 Trattorino tosaerba Murray CE da 42 pollici

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a circuit board with an open book and a power plug, no text or symbols present

Silhouette of a hand reaching toward grass on a surface (no text or symbols)

Symbol of a hand crossed out with a 'X' mark, representing prohibition or restriction (no text present)

10 MAX± 90N MAX± 150N

Black-and-white icon of a hand holding an open box with an upward arrow, no text or symbols present.

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

Technical diagram of a mechanical assembly with numbered parts and sectional views labeled A through G.

Figura 2

Technical diagram of a mechanical device with numbered components and labeled parts

Figura 3

Technical diagram of a device with numbered components for identification

Figura 4

Technical diagram of a mechanical device with numbered parts for identification

Figura 5

Technical diagram of an electrical switch assembly with numbered components for identification

Figura 6

Labeled diagram of a tractor interior showing numbered components for identification

Figura 7

Attrezzi

Technical diagram of a cleaning or cleaning device with numbered parts and an inset close-up view

Figura 8

Diagram of a robotic car interior with numbered parts, likely for maintenance or repair instructions.

Figura 9

Technical diagram showing a coiled spring component with labeled parts 1 and 2

Figure 10

Technical diagram of a mechanical assembly with numbered parts for identification

Figura 11

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a curved tool and dashed line indicating motion or movement.

Figura 12

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Figura 13

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or assembly instructions.

Figura 14

Technical diagram of a mechanical assembly with numbered components and a magnified inset showing rotational motion.

Figura 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Figura 16

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded rod and spring mechanism.

Figura 17

Technical diagram showing hands using a tool to adjust or install a mechanical component, with numbered annotations indicating steps 1 and 2.

Figura 18

Technical line drawings of a vehicle's front and rear views, showing engine, motors, and suspension components (no text or labels)

Figura 19

Technical diagram of a mechanical assembly with numbered components for identification

Figura 20

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figura 21

Technical diagram of a mechanical assembly with numbered components labeled 9, 10, and 11

Figura 22

Technical line drawing of a mechanical assembly with two pulleys and a hand adjusting parts (no text or symbols)

Figura 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Figura 24

Technical diagram showing hands installing components of a mechanical assembly with numbered parts labeled 5, 10, and 15.

Figura 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

Figura 26

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figura 27

Technical mechanical diagram with numbered components and gear mechanisms

Figura 28

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

Figura 29

Technical line drawing of a mechanical spring assembly with no visible text or symbols

Figura 30

Technical diagram of a mechanical assembly with numbered components for identification

Figura 31

Technical diagram of a mechanical assembly with numbered components for identification

Figura 32

Line drawing of a grass lawn tractor with visible frame, steering wheel, and driver compartment (no text or symbols)

Model 425307X51A

Product Nr.

7800282

Beschrijving

42" Murray CE Zitmaaier

CAUTION: Read and

follow all instructions.

Manual Part No. 7102109

Herziening 00

Herzieningsdatum 03/2008

TP 199-4854-00-RD-R

Internationale Pictogrammen 4

Garantiebepalingen....5

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and tool, no text or symbols present

Two black-and-white pictograms: one with a hand reaching for grass, the other with a crossed hand and windmill (no text or symbols)

10 MAX± 90N MAX± 150N

Silhouette of a hand holding a device with an upward arrow, no text or symbols present

Simple line drawing of a hand holding a pen or stylus, no text or symbols present

Pure electrical circuit symbol diagram with no text or labels

Technical diagram of a mechanical assembly with numbered components and directional arrow indicating rotation or movement.

Figuur 3

Labeled diagram of a device interior with numbered components for identification

Figuur 4

Het stuur monteren

Technical diagram of a mechanical device with numbered parts for identification

Figuur 5

Technical diagram of an electrical switch assembly with numbered components for identification

Figuur 6

De accu opladen

WAARSCHUWING

Labeled diagram of a tractor interior showing numbered components for identification

Figuur 7

Hulpstukken

Technical diagram of a car's internal components with numbered parts and an inset magnified view highlighting a specific part.

Figuur 8

Diagram of a cleaning or repair procedure with labeled parts including tool, component, and motor

Figuur 9

Technical diagram showing a threaded component with labeled parts 1 and 2

Figuur 10

De motor starten

WAARSCHUWING

Technical diagram of a mechanical assembly with numbered parts for identification

Figuur 11

Technical diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or force

Figuur 12

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

Figuur 13

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Figuur 14

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Figuur 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Figuur 16

De accu verwijderen

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a screw and spring mechanism.

Figuur 17

Technical diagram showing hands operating a mechanical clamp or tool with numbered annotations indicating parts of the process.

Figuur 18

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Figuur 19

De banden controleren

Technical diagram of a mechanical assembly with numbered components for identification

Figuur 20

Technical diagram of a mechanical assembly with numbered components and bolted connections

Figuur 21

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

Figuur 22

Technical line drawing of a mechanical assembly with pulleys and gears (no text or symbols)

Figuur 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Figuur 24

Technical diagram showing mechanical assembly with numbered components, likely for maintenance or repair instructions

Figuur 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

Figuur 26

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Figuur 27

Technical schematic diagram of a mechanical assembly with labeled components and numbered parts

Figuur 28

Technical diagram of a mechanical assembly with numbered components for identification

Figuur 29

Technical diagram of a mechanical spring assembly with no visible text or symbols

Figuur 30

Technical diagram of a mechanical assembly with numbered components for identification

Figuur 31

Technical diagram of a mechanical assembly with numbered components for identification

Figuur 32

Line drawing of a grass lawn tractor with visible frame, steering wheel, and driver compartment (no text or symbols)

Model No. 425307X51A

Product Type

Mfg. No. Description

follow all instructions.

Manual Part No. 7102109

Revision 00

Rev. Date 03/2008

TP 199-4854-00-RD-R

Internationale Illustrationer .... 4

Garantibetingelser....5

Information Til Ejeren....6

Sikker Brug....7

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and tool, no text or symbols present

Two black-and-white pictograms: one with a hand reaching toward grass, the other with crossed hands and windmill (no text or symbols)

10 MAX± 90N MAX± 150N

Silhouette of a hand holding a device with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

Technical diagram of a mechanical assembly with numbered components and sectional views labeled A through G.

Figur 2

1. Fastgør trykrullerne (12) til akselboltene (11) med monteringsanordningerne (Figur 3). Se illustration "I".
2. Kontrollér driften for styreanordningen for knivrotation. Se instruktionerne under “Justering af s tyreanordningen for knivrotation”.

Diagram of a mechanical device with numbered components and labeled parts, likely illustrating a gear or wheel assembly.

Figur 3

Montering af sædet

Technical diagram of an electronic device with numbered components for identification

Figur 4

Samling af rattet

Technical diagram of a mechanical device with numbered parts for identification

Figur 5

Vedligeholdelsesfrit batteri

VIGTIGT: Inden batteriets kabler tilsluttes batteriet, skal batteriets dato kontrolleres. Batteriets dato viser, om batteriet skal oplades.

Technical diagram of an electrical switch assembly with numbered components for identification

Figur 6

Labeled diagram of a tractor interior showing numbered components for identification

Figur 7

Redskaber

Technical diagram of a car's internal components with numbered parts and an inset close-up view of the engine compartment.

Figur 8

Technical diagram of a cleaning or cleaning device with numbered components labeled 4, 5, and 6.

Figur 9

Tips vedrørende bioklipning

Technical diagram of a mechanical assembly with numbered parts for identification

Figur 11

Technical diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or movement.

Figur 12

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

Figur 13

1. Flyt styreanordningen for knivrotation til stillingen AFBRUDT. Stop motoren.
2. Kontrollér knivbremsens funktion. Drej remskiverne manuelt. Kontrollér, at bremseklodserne (7) (Figur 14) presses tæt mod remskiverne.

ADVARSEL

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Figur 14

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Figur 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Figur 16

Afmontering af batteri

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

Figur 17

Technical diagram showing hands operating a mechanical clamp or tool with numbered annotations indicating steps 1 and 2.

Figur 18

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Figur 19

Kontrol af dækkene

Technical diagram with numbered annotations indicating mechanical or structural components

Figur 20

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Figur 21

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

Figur 22

1. Afmonter beslaget (12) (Figur 23).

Technical line drawing of a mechanical assembly with two pulleys and threaded components (no text or symbols)

Figur 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Figur 24

1. Sænk variatorbeslaget (5), og skub motorens drivrem (10) over den øverste del af variatorremskiven (15) (Figur 25).
2. Afmonter stangen for remstyret (16) (Figur 26).

Technical diagram showing hands installing components of a mechanical assembly with numbered parts labeled 5, 10, and 15.

Figur 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Figur 26

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Figur 27

Technical diagram of a mechanical assembly with numbered components and gear mechanisms

Figur 28

Afmontering af transakslens drivrem

Technical diagram of a mechanical assembly with numbered components for identification

Figur 29

Mechanical assembly diagram showing a spring-loaded component with a numbered label (27) and no readable text or symbols.

Figur 30

1. Afmonter transakslens drivrem (28) fra transakslens indgangsremskive (29) (Figur 31).

Technical diagram of a mechanical assembly with numbered components for identification

Figur 31

Technical diagram of a mechanical assembly with numbered components for identification

Figur 32

Opbevaring (over 30 dage)

t the end of each year, prepare the unit for storage as follows.

Line drawing of a tractor with visible wheels, steering wheel, and dashboard (no text or symbols)

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an arrow and a pencil, next to an open book (no text or symbols)

Silhouette of a hand reaching toward grass on a surface, labeled with number 9 (no text or symbols on the hand or background)

Symbol of a hand crossed out with a 'X' mark, representing prohibition or resistance (no text present)

10 MAX± 90N MAX± 150N

Black-and-white icon of a hand holding an open box with an upward arrow, no text or symbols present.

Simple line drawing of a clipboard with a pen and eraser (no text or symbols)

Pure electrical circuit symbol with no text or labels

Technical diagram of a mechanical assembly with numbered components and detailed views of parts labeled A through G.

figur 2

Diagram of a mechanical device with numbered components and labeled parts, including wheel, wheels, and adjustment knob.

figur 3

Monter setet

Labeled diagram of an electronic device showing internal components and wiring connections

figur 4

Monter rattet

Technical diagram of a mechanical device with numbered parts for identification

figur 5

Vedlikeholdsfritt batteri

VIKTIG: Sjekk datoen på batteriet før du kobler til baterikablene. Datoen på batteriet informerer om batteriet må lades.

Technical diagram of an electrical switch assembly with numbered components for identification

figur 6

Batterilading

ADVARSEL

Ikke røyk i nærheten av ladingsstedet. Hold batteriet unna gnister. Gassene fra batterisyren kan forårsake en eksplosjon.

Labeled diagram of a tractor interior showing numbered components for identification

figur 7

Tilbehør

Technical diagram of a robotic car with numbered parts and an inset close-up view highlighting the component.

figur 8

Installer mulcherplaten

Diagram of a car interior with numbered parts, likely for maintenance or repair instructions

figur 9

Mulchertips

Technical diagram showing a coiled spring component with labeled parts 1 and 2

figur 10

Start motoren

ADVARSEL

Technical diagram of a mechanical assembly with numbered parts for identification

figur 11

Technical diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or movement.

figur 12

1. Frakoble knivens drivfjær fra bladkontrollstangen (1) (se figur 13). Flytt knivens drivfjær (2) til midthullet (4). Dette vil øke strammingen på drivbeltet til klipperen.
2. Tilkoble ledningen til tennpluggen. Klipp et kort stykke og kontroller igjen kvaliteten på klippen. Om nødvendig, flytt knivens drivfjær til bunnhullet (5).
3. Kontroller igjen kvaliteten på klippen. Hvis kvaliteten på klippen ikke har blitt bedre, bytt ut gressklipperens drivbelte. Se "Bytt ut klipperens drivbelte." Hvis utbyttingen av beltet ikke korrigerer problemet, ta enheten til et autorisert servicesenter.

Technical diagram showing labeled mechanical components with numbered parts, likely from an engineering or manufacturing context.

figur 13

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

figur 14

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

figur 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

figur 16

Fjern batteriet

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

figur 17

Technical diagram showing hands operating a mechanical clamp or tool with numbered annotations indicating steps 1 and 2.

figur 18

Technical line drawings of a vehicle's front and rear views, showing engine, motors, and suspension components (no text or labels)

figur 19

Kontroller dekkene

Technical diagram of a mechanical assembly with numbered components for identification

figur 20

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

figur 21

Technical diagram of a mechanical assembly with numbered components labeled 9, 10, and 11

figur 22

Technical line drawing of a mechanical assembly with two pulleys and a hand operating a workpiece (no text or symbols)

figur 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

figur 24

Technical diagram showing mechanical assembly with numbered components and labeled parts

figur 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or flow.

figur 26

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

figur 27

Technical schematic diagram of a mechanical assembly with numbered components and gear mechanisms

figur 28

Fjerne transaksel drivbelte

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

figur 29

Technical line drawing of a mechanical spring assembly with no visible text or symbols

figur 30

Technical diagram of a mechanical assembly with numbered components for identification

figur 31

Technical diagram of a mechanical assembly with numbered components for identification

figur 32

BRIGGSandSTRATTON Yard Power Products Group

Copyright © 2008 Briggs & Stratton Corporation

Milwaukee, WI USA. Alle rettigheter

MURRAY

ANVÄNDARHANDBOK

Line drawing of a tractor with open driver and steering wheel (no text or symbols)

Modell 425307x51A

Product Type

Mfg. No. Description

7800282 42" Murray CE Trädgårdtraktor

CAUTION: Read and

follow all instructions.

Manual Part No. 7102109

Revision 00

Rev. Date 03/2008

TP 199-4854-00-RD-R

Internationella Symboler 4

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and tool, no text or symbols present

Two black-and-white pictograms: one with a hand touching ground, the other with crossed hands (no text or symbols)

10 MAX± 90N MAX± 150N

Black-and-white icon of a hand holding a box with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

Safety Warning Pictorials

Technical diagram of a mechanical assembly with numbered components and sectional views labeled A through G.

Figur 2

Diagram of a mechanical device with numbered components and labeled parts, including wheel, pulley, and control panel.

Figur 3

Montering av sitsen

Labeled diagram of an electrical switchgear with numbered components

Figur 4

Montering av ratten

Technical diagram of a mechanical device with numbered parts for identification

Figur 5

Technical diagram of an electrical switch assembly with numbered components for identification

Figur 6

Ladda batteriet

WARNING

Labeled diagram of a tractor interior showing numbered components for identification

Figur 7

Bilagor

Technical diagram of a car interior with numbered components and an inset close-up view highlighting a specific area.

Figur 8

Technical diagram of a cleaning or repair device with numbered components labeled 4, 5, and 6.

Figur 9

Mulchertips

Technical diagram of a mechanical assembly with numbered parts for identification

Figur 11

Technical diagram showing a mechanical assembly with labeled parts ① and ②, including a curved tool and dashed line indicating motion or movement.

Figur 12

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

Figur 13

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or assembly instructions.

Figur 14

Technical diagram showing mechanical assembly steps with numbered components and a magnified inset highlighting rotational motion.

Figur 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

Figur 16

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring-like feature.

Figur 17

Technical diagram showing hands operating a mechanical device with labeled parts and directional arrows indicating process steps.

Figur 18

Technical line drawings of a vehicle's internal components and suspension system (no text or labels)

Figur 19

Technical diagram of a mechanical assembly with numbered components for identification

Figur 20

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Figur 21

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

Figur 22

Technical line drawing of a mechanical assembly with two pulleys and a numbered component (no text or symbols)

Figur 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Figur 24

Technical diagram showing hands installing components of a mechanical assembly with numbered parts labeled 5, 10, and 15.

Figur 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Figur 26

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Figur 27

Technical schematic diagram of a mechanical assembly with labeled components and numbered parts

Figur 28

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

Figur 29

Technical diagram of a mechanical assembly with spring and hook components (no text or labels)

Figur 30

Technical diagram of a mechanical assembly with numbered components for identification

Figur 31

Technical diagram of a mechanical assembly with numbered components for identification

Figur 32

Line drawing of a tractor with visible wheels, steering wheel, and dashboard (no text or symbols)

Model No. 425307X51A

Product Type

Mfg. No. Description

follow all instructions.

Manual Part No. 7102109

Revision 00

Rev. Date 03/2008

TP 199-4854-00-RD-R

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and a wrench, no text or symbols present

Two black-and-white pictograms: one with a hand holding grass, the other with crossed hands (no text or symbols)

10 MAX± 90N MAX± 150N

Silhouette of a hand holding a box with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

Technical diagram of a mechanical assembly with numbered parts and detailed views for assembly or maintenance.

Diagram of a mechanical device with numbered components and labeled parts, including wheel, pulley, and control panel.

3 ábra

Az ülés elhelyezése

Labeled diagram of a device interior with numbered components for identification

4 ábra

Technical diagram of a mechanical device with numbered parts for identification

5 ábra

Technical diagram of an electrical switch assembly with numbered components for identification

6 ábra

Labeled diagram of a tractor interior showing numbered components for identification

7 ábra

Kiegészítők

Technical diagram of a robotic car with numbered parts and an inset close-up view highlighting a specific component.

8 ábra

Technical diagram of a cleaning or cleaning device with numbered components labeled 4, 5, and 6.

9 ábra

Technical diagram of a mechanical assembly with numbered parts for identification

11 ábra

Technical diagram showing mechanical assembly with numbered parts and directional arrow indicating motion

12 ábra

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

13 ábra

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or assembly instructions.

14 ábra

Technical diagram of a mechanical clamp assembly with numbered parts and directional arrows indicating motion or movement.

15 ábra

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or mechanical assembly.

16 ábra

When you charge the battery, do not smoke. Keep the battery away from any sparks. The fumes from the battery acid can cause an explosion.

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

17 ábra

Technical diagram showing mechanical assembly steps with numbered annotations indicating components like '1' and '2'

18 ábra

Technical line drawings of a vehicle's front and rear views, showing engine, motors, and wheel assembly (no text or labels)

19 ábra

Technical diagram of a mechanical assembly with numbered components for identification

20 ábra

Technical diagram of a mechanical assembly with numbered components and bolted connections

21 ábra

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or pulley mechanism.

22 ábra

Technical line drawing of a mechanical assembly with two pulleys and a numbered component (no text or symbols)

23 ábra

Technical diagram of a mechanical assembly with numbered components and labeled parts

24 ábra

Technical diagram showing hands installing components of a mechanical assembly with numbered parts labeled 5, 10, and 15.

25 ábra

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

26 ábra

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

27 ábra

Technical schematic diagram of a mechanical assembly with labeled components and numbered parts

28 ábra

Technical diagram of a mechanical assembly with numbered components for identification

29 ábra

Technical diagram of a mechanical spring assembly with no visible text or symbols

30 ábra

Technical diagram of a mechanical assembly with numbered components for identification

31 ábra

Technical diagram of a mechanical assembly with numbered components for identification

32 ábra

Line drawing of a tractor with visible wheels, steering wheel, and dashboard (no text or symbols)

Model No. 425307X51A

Product Type

Mfg. No. Description

follow all instructions.

Manual Part No. 7102109

Revision 00

Rev. Date 02/2008

TP 199-4854-00-RD-R

Simple line drawing of an open book with no text or symbols on the pages

3

4 max 10°

5

6

7

Illustration of a mechanical device with an open book and tool, no text or symbols present

Two black-and-white pictograms: one with a hand reaching toward grass, the other with crossed hands and windmill (no text or symbols)

10 MAX± 90N MAX± 150N

Silhouette of a hand holding an open box with an upward arrow, no text or symbols present

Simple line drawing of a clipboard with a pen and handle (no text or symbols)

Pure electrical circuit symbol with no text or labels

BRIGGS & STRATTON CORPORATION, ĪPAŠNIEKA GARANTIJAS POLISE

Technical diagram of a mechanical device with numbered parts and exploded views, including labeled components like motors, gears, and springs.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Attels 3

Kā uzlikt sēdekli

Technical diagram of an electronic device with numbered components for identification

Attēls 4

Technical diagram of a mechanical device with numbered parts for identification

Attêls 5

Neapkalpojama akumulatoru baterija

Technical diagram of an electrical switch assembly with numbered components for identification

Attêls 6

Labeled diagram of a tractor interior showing numbered components for identification

Attêls 7

Pievienotās ierīces

Labeled diagram of a robotic car interior showing numbered parts and a magnified inset view

Attēls 8

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

Attêls 9

leteikumi par mulčēšanu

Technical diagram showing a coiled spring component with labeled parts 1 and 2

Attēls 10

Technical diagram of a mechanical assembly with numbered parts for identification

Attēls 11

Kā nonemt un uzlikt asmeni

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Attêls 12

Technical diagram showing labeled mechanical components with numbered parts 1 to 5

Attêls 13

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Attēls 14

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Attēls 15

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle suspension or mounting mechanism.

Attēls 16

Kā noņemt akumulatoru bateriju

Technical diagram showing a mechanical component with labeled parts 1 and 2, including a threaded screw and spring mechanism.

Attêls 17

Technical diagram showing mechanical assembly steps with labeled parts 1 and 2

Attēls 18

Technical line drawings of a vehicle's front and rear views, showing engine, motors, and suspension components (no text or labels)

Attēls 19

Pārbaudiet riepas

Technical diagram of a mechanical assembly with numbered components for identification

Attêls 20

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Attēls 21

Technical diagram of a mechanical assembly with numbered components, likely illustrating a vehicle or gear system.

Attêls 22

Technical line drawing of a mechanical assembly with two pulleys and a hand holding a tool (no text or symbols)

Attêls 23

Technical diagram of a mechanical assembly with numbered components and labeled parts

Attêls 24

Technical diagram showing hands installing components of an electrical panel with numbered parts labeled 5, 10, and 15.

Attêls 25

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Attêls 26

Technical diagram of a mechanical assembly with numbered components, likely a valve or pump component.

Attêls 27

Technical diagram of a mechanical assembly with numbered components, likely a transmission or lifting mechanism.

Attêls 29

Technical diagram of a mechanical spring assembly with no visible text or symbols

Attêls 30

Technical diagram of a mechanical assembly with numbered components for identification

Attêls 31

Technical diagram of a mechanical assembly with numbered components for identification

Attêls 32
