DANS-VOITURE TITULAIRE POUR IPOD MIN #F8Z050EA - Car Accessories BELKIN - Free user manual and instructions

Product type	Car mount for iPod mini
Brand	Belkin
Model	F8Z050EA
Compatible device	iPod mini only
Fixation method	Suction cup on windshield
Main material	ABS plastic and rubber
Dimensions (approx.)	10 x 8 x 5 cm
Weight	Approximately 100 g
Package contents	Mount, suction cup, alcohol wipes, cable clip, manual
Main function	Secure holding of iPod mini in the vehicle
Cable management	Integrated cable clip at the back
Installation	Clean windshield, attach suction cup, lock by rotating
Maintenance	Clean suction cup with soft cloth and alcohol if necessary
Safety	Do not obstruct driver's view; check attachment before use
Warranty	3 years limited (material and manufacturing defects)
Belkin France customer service	[phone]

Frequently Asked Questions - DANS-VOITURE TITULAIRE POUR IPOD MIN #F8Z050EA BELKIN

Which devices are compatible with this Belkin mount?

This mount is specifically designed for the iPod mini (first and second generation). It is not suitable for other iPod models or smartphones.

How to install the mount on the windshield?

First clean the windshield area with the provided alcohol wipe. Remove the protective film from the suction cup, place it against the glass, then turn the lever or knob to lock the suction cup by vacuum.

How to remove the mount from the windshield?

To remove the suction cup, unlock it by turning the lever in the opposite direction of installation. Gently lift the edge of the suction cup to release air, then remove the mount.

Can I use this mount on the dashboard?

No, this model is designed only for mounting on windshield. The suction cup requires a smooth and clean surface, such as glass.

How to attach the charging cable?

Turn the mount over. At the back, you will find a cable clip. Insert the car kit cable into it so that it stays in place when you remove the iPod mini.

Is the mount adjustable in angle?

The mount has a fixed tilt. Once the iPod mini is inserted, the screen angle is defined by the product design.

How to clean the suction cup if it no longer sticks?

Clean the suction cup with a soft cloth slightly dampened with isopropyl alcohol. Let it dry completely before reinstalling. Avoid abrasives.

What is the warranty period?

Belkin offers a limited warranty of 3 years against material and manufacturing defects. Keep the proof of purchase.

Are spare parts available?

Replacement suction cups can be purchased from Belkin customer service. Contact support to find out available parts.

What to do if the iPod mini does not hold well in the mount?

Make sure you insert the iPod mini correctly: first slide the left side into the mount, then gently push the right side into place. Ensure the tabs click properly.

USER MANUAL DANS-VOITURE TITULAIRE POUR IPOD MIN #F8Z050EA BELKIN

Mount, power, and charge your iPod mini as you drive

User Manual

F8Z050ea

EN

FR

DE

ES

IT

What's in the Box:

1. Window Mount
2. Alcohol Wipes
3. User Manual

EN

Package Contents | 01

Step 1: To attach the cable of the Belkin Auto Kit

1. Turn the In-car iPod mini holder upside down.
2. On the underside, toward the front of the iPod mini cradle, you'll find a cable snap.
3. Thread the Auto Kit cable through here so it stays in place when you take your iPod mini out of the In-car iPod holder.

Line drawing of a mechanical assembly with a cylindrical component and base, no text or symbols present

Installation | 02

Line drawing of a mechanical clamp or spring assembly with a connector (no text or symbols)

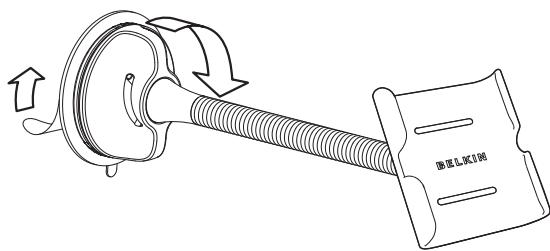

Step 2: Install on a windshield

1. Clean windshield with alcohol wipe.
2. Peel off protective plastic from the suction cup.
3. Push onto windshield and turn to lock.

EN

Installation | 03

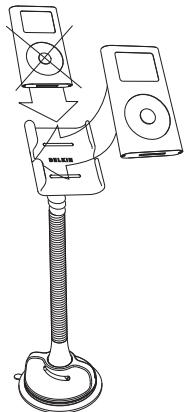

Step 3: To insert the iPod mini into the In-car iPod holder

1. Do not slide the iPod™ mini into the cradle from the top.
2. Snap the left side of the iPod ^TM mini into the left side of the cradle then gently push the iPod ^TM mini into place.

For safety, always be sure that the In-car holder is securely resting inside your car's cup holder

Installation | 04

Belkin Corporation Limited 3-Year Product Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for three years. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required. This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING, ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusion of implied warranties, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Warranty | 05

Line drawing of a handheld device mounted on a stand with a speaker nearby (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Installation | 14

Line drawing of a mechanical clamp or spring assembly with a hanging connector (no text or symbols)

DE

Installation

Line drawing of a mechanical assembly with a central threaded component and surrounding hands (no text or symbols)

Installazione | 26

Line drawing of a mechanical clamp or spring assembly with a hanging connector (no text or symbols)

Line drawing of a stand-mounted device with a speaker and control panel, no text or symbols present

501 West Walnut Street,

Compton, CA 90220-5221

USA

[phone]

[phone] fax

Belkin Ltd.

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

[phone]

[phone] fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk

The Netherlands

[phone]

[phone] fax

Belkin Tech Support

Europe: 00 800 223 55 460

Belkin GmbH

Hanebergstraße 2

80637 Munich

Germany

[phone]

[phone] fax

Belkin SAS

© 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

F8Z050ea

P74989ea
