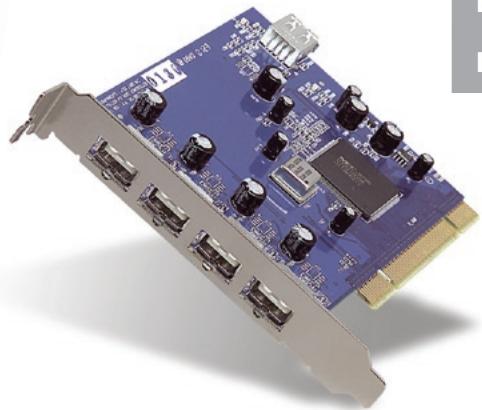

CARTE PCI USB 2.0 5 PORTS #F5U220VEA1 - USB expansion card BELKIN - Free user manual and instructions

Product Type	USB Expansion Card
Model	F5U220VEA1
Brand	Belkin
Interface	PCI (revision 2.1)
Number of Ports	5 USB 2.0/1.1 Ports
Maximum Data Transfer Rate	480 Mbps (USB 2.0)
USB Compatibility	USB 2.0 and USB 1.1
Built-in Controllers	1 EHCI Controller (USB 2.0) + 2 OHCI Controllers (USB 1.1)
Power per Port	500 mA
Supported Operating Systems	Windows 98SE, Me, 2000, XP
Plug-and-Play	Yes
Warranty	Lifetime (Limited) Warranty
Dimensions (approx.)	Approximately 120 x 80 mm (standard PCI card)
Weight (approx.)	Approximately 50 g
Package Contents	PCI card, user manual, installation CD-ROM
System Requirements	PC with free PCI slot, Windows 98SE/Me/2000/XP
Compliance	FCC, CE, OHCI, EHCI
Maintenance	Clean with a dry cloth; avoid moisture

Frequently Asked Questions - CARTE PCI USB 2.0 5 PORTS #F5U220VEA1 BELKIN

Which operating systems are compatible with the Belkin F5U220VEA1 card?

The card is compatible with Windows 98SE, Me, 2000, and XP. For Windows XP, the USB 2.0 driver is included in Service Pack 1 or via Windows Update.

How to install the Belkin PCI USB 2.0 card?

Turn off the computer, unplug the power cord, open the case, insert the card into a free PCI slot, secure it with a screw, close the case, reconnect and power on. Insert the installation CD and follow the on-screen instructions.

Does the card support USB 1.1 devices?

Yes, it is backward compatible with USB 1.1 devices. USB 1.1 devices will work at their normal speed (12 Mbps) on the same ports.

How to check that the card is properly installed?

In Device Manager, under 'Universal Serial Bus controllers', you should see two 'NEC USB Open Host Controller' entries, one 'Belkin USB 2.0 Hi-Speed Host Controller' entry, and two 'USB Root Hub' entries.

What is the maximum data transfer rate of the card?

The maximum data transfer rate is 480 Mbps for USB 2.0 devices, thanks to the built-in EHCI controller.

Can I connect up to 5 devices simultaneously?

Yes, the card has 5 USB ports allowing you to connect up to 5 devices at the same time, with 500 mA power per port.

What should I do if Windows does not detect the card?

Make sure the card is properly inserted into the PCI slot. Check that the installation CD is in the drive. If the problem persists, try another PCI slot or contact Belkin support.

Are there special drivers to install for Windows 2000?

For Windows 2000, drivers for USB 1.1 controllers are installed automatically. For the USB 2.0 controller, insert the CD and follow the wizard to install the 'Belkin USB 2.0 Hi-Speed Host Controller' driver.

Is the card compatible with Mac computers?

No, the card is designed for Windows-compatible PCs only. Supported operating systems are Windows 98SE, Me, 2000, and XP.

What to do if the installation CD is lost?

Drivers can be downloaded from the Belkin website (www.belkin.com) in the support section. Search for model F5U220VEA1.

USER MANUAL CARTE PCI USB 2.0 5 PORTS #F5U220VEA1 BELKIN

Connect up to 5 Hi-Speed USB 2.0 or 1.1 devices

Connect up to 5 Hi-Speed USB 2.0 or 1.1 devices

EN

Introduction 1

Overview 2

Features 2
Specifications 2
Package Contents 2
System Requirements 2

Operating System Compatibility 3

Hardware Installation 4

Driver Installation 5

Installation Procedure for Windows 98se .5
Verifying Proper Installation (Windows 98/98 SE) 6
Installation Procedure for Windows 2000 7
Verifying Proper Installation (Windows 2000) 8
Installation Procedure for Windows Me 9
Verifying Proper Installation (Windows Me) 10
Installation Procedure for Windows XP 11
Verifying Proper Installation (Windows XP) 12

Information 13

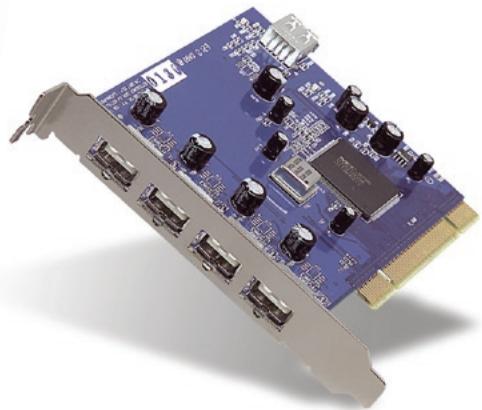

Thank you for purchasing the Belkin F5U220 Hi-Speed USB 2.0 PCI Card.

Now you can upgrade your computer with the latest USB technology. You will be able to take advantage of a host of new Hi-Speed USB 2.0 products that will be introduced soon! USB 2.0 products like hard drives, scanners, printers, video cameras and more will all work much faster than ever before. Your current USB devices will continue to work as they always have, and in some cases even better! Follow the simple installation instructions in this manual to get your card up and running, then enjoy the speed and convenience of USB!

EN

Features

• Three USB host adapters integrated into a single PCI Card, one USB 2.0 EHCI host controller providing 480Mbps of USB bandwidth and two USB 1.1 OHCI host controllers providing 12Mbps of USB bandwidth each.
• 5 downstream Hi-Speed USB ports.
• Allows connection of Low-Speed, Full-Speed and Hi-Speed devices simultaneously.
• Auto detects the connection of new devices and the speed of each device.
• Backwards compatible with USB 1.1 devices.
• Fully compliant with USB specifications.
• Plug-and-Play.
  Lifetime Warranty

Specifications

• OHCI compliant (USB 1.1 Host Controller)
• EHCI compliant (USB 2.0 Host Controller)
  PCI revision 2.1 compliant
• Current: 500mA per port
• USB revision 2.0 compliant
• Windows 98SE, Windows Me, Windows 2000, Windows XP compatible

Package Contents

Belkin 5-Port USB 2.0 PCI Card
- User Manual
- Driver Installation CD-ROM

System Requirements

• PC-compatible computer with available PCI slot.
• Windows 98SE, Windows 2000, Windows ME, Windows XP

Operating System	USB 1.x Support	USB 2.0 Support
Windows 98 SE	Yes	Yes
Windows 2000	Yes	Yes
Windows Me	Yes	Yes
Windows XP	Yes	Provided in Operating System

EN

(1) POWER OFF THE COMPUTER AND DISCONNECT THE POWER CORD.
(2) Remove the screws that secure the computer cover and remove the cover.
(3) Touch any part of the metal case to ground yourself. This will discharge any static electricity that could damage your PCI card or computer.
(4) Locate an empty PCI expansion slot
(5) Remove the port cover from the back of the PC that corresponds to the PCI slot you selected. If the port cover is secured with a screw, remove the screw and place it in a safe spot. You will need to reuse the screw to install the PCI card.
(6) Insert the PCI Card into the slot. Apply pressure as needed until the Card is fully seated.
(7) Now secure the PCI Card with the screw that you removed in step #5.
(8) Replace the computers cover.
(9) Replace your computer power cable and insert the Belkin USB 2.0 driver installation CD into your computers CD-ROM drive.
(10) Turn on power and start the Windows operating system.

Installation Procedure for Windows 98se

This installation procedure will install two USB 1.1 Host Controllers and one USB 2.0 Enhanced Host Controller.

(1) Windows will detect "NEC USB Open Host Controller" and the "Add New Hardware" dialog box will open. Click "Next".
(2) Select "Search for the best driver for your device" and click "Next".
(3) Uncheck all the boxes and Click "Next".
(4) Windows will find the driver for "NEC USB Open Host Controller". Click "Next".
(5) Windows may ask you for the Windows installation CD. If asked, insert the CD into the CD-ROM Drive and follow the prompts.
(6) After Windows installs the required drivers, installation of the first USB 1.1 Host Controller is complete. Click "Finish".
(7) The Add New Hardware Wizard will repeat the installation process for the second USB 1.1 Host Controller.

(8) After installation of the two USB 1.1 Host Controllers, Windows will detect "PCI Universal Serial Bus." This is the USB 2.0 EHCI Host controller.
(9) The "Add New Hardware Wizard" dialog box will open. Click "Next".
(10) Select "Search for the best driver for your device" and click "Next".
(11) Check the "CD-ROM drives" box. Click "Next".
(12) Windows will locate the driver for "Belkin USB 2.0 High Speed Host Controller" Click "Next".
(13) Windows will now install the Enhanced Host Controller driver. Click "Finish".
(14) After installation of the USB Host Controllers, Windows will detect "USB Root Hub" and automatically install the required driver support. This will repeat for each of the two USB OHCI Host Controllers.

Installation is now complete.

Verifying Proper Installation (Windows 98/98 SE)

Check the "Windows Device Manager" to verify that your PCI Card has been properly installed.

(1) Right-click on my computer and select properties.
(2) Select the Device Manager tab.
(3) Click on the plus-sign (+) next to Universal Serial Bus controllers".

The Device Manager list will now include two "NEC USB Open Host Controller" entries, one "Belkin USB 2.0 Hi-Speed Host Controller" entry, and two additional "USB Root Hub" entries.

Installation Procedure for Windows 2000

This installation procedure will install two USB 1.1 Host Controllers and one USB 2.0 Enhanced Host Controller.

(1) Windows will detect "NEC PCI to USB Open Host Controller" The required driver support will be automatically installed. No user input is required. This will repeat one more time
(2) Windows will detect "Universal Serial Bus (USB) Controller". This is the USB 2.0 EHCI Host controller.

The "Found New Hardware Wizard" window will appear. Select "Search for a suitable driver for my device (recommended)" and click "Next".

(3) Check the "CD-ROM drives" box. Click "Next".
(4) Windows will find "Belkin USB 2.0 Hi-Speed Host Controller". Click "Next".
(5) Windows will now install the Enhanced Host Controller driver. Click "Finish".

Installation is now complete.

Verifying Proper Installation (Windows 2000)

After installation, check the Windows Device Manager to verify that your PCI Card has been properly installed.

(1) Right-click on My Computer
(2) Select Properties
(3) Select he Hardware tab and click on the Device Manager button
(4) Click the plus-sign (+) next to Universal Serial Bus controllers

The Device Manager list will now include two "NEC USB Open Host Controller" entries, one "Belkin USB 2.0 Hi-Speed Host Controller" entry, and two additional "USB Root Hub" entries.

Installation Procedure for Windows Me

This installation procedure will install two USB 1.1 Host Controllers and one USB 2.0 Enhanced Host Controller.

(1) Windows will detect "NEC USB Open Host Controller (E13+)." The required driver support will be automatically installed. No user input is required.
(2) Windows will detect "PCI Universal Serial Bus". This is the USB 2.0 EHCI controller. The Add New Hardware Wizard window will appear.
(3) Select "Automatic search for a better driver (recommended)". Click "Next".
(4) Check the "CD-ROM Drives" box. Click "Next".
(5) Windows will locate the driver for "Belkin USB 2.0 High speed Host Controller". Click "Next".
(6) Windows will now install the USB 2.0 Enhanced Host Controller driver. Click "Finish".
(7) Windows will detect "NEC USB Open Host Controller (E13+)". The required driver support will be automatically installed. No user input is required.
(8) After installation of the USB Host Controllers, Windows will detect "USB Root Hub" and automatically install the required driver support. This will repeat one more time.

Installation is now complete.

Verifying Proper Installation (Windows Me)

After installation, check the Windows Device Manager to verify that the 5-Port USB 2.0 PCI Card has been properly installed.

(1) Right-click on my computer and select properties.
(2) Select the Device Manager tab.
(3) Click on the plus-sign (+) next to Universal Serial Bus controllers".

The Device Manager list will now include two "NEC USB Open Host Controller (E13+) entries, one "Belkin USB 2.0 Hi-Speed Host Controller" entry, and two additional "USB Root Hub" entries.

Installation Procedure for Windows XP

(1) Windows will detect "NEC PCI to USB Open Host Controller" The required driver support will be automatically installed. No user input is required. This will repeat one more time.

NOTE: USB 2.0 driver support is not included in the initial release version of Windows XP. These drivers will be included in Windows XP Service Pack 1. Beginning in early January 2002, the Windows XP USB 2.0 drivers will be available from Microsoft via "Windows Update". You must have a connection to the Internet in order to access "Windows Update".

(2) Windows will detect "Universal Serial Bus". If you have a connection to the Internet the Windows "New Hardware Installation" wizard will access "Windows Update" and automatically download and install the USB 2.0 Enhanced Host Controller driver.
(3) Windows will detect "USB Root Hub". The required driver support will be automatically installed. This will repeat 2 times.

Installation is now complete.

Verifying Proper Installation (Windows XP)

After installation, check the Windows Device Manager to confirm that the 5-Port USB 2.0 PCI Card has been properly installed.

(1) Right-click on My Computer.
(2) Select Properties.
(3) Select he Hardware tab and click on the Device Manager button.
(4) Click the plus-sign (+) next to Universal Serial Bus controllers.

The Device Manager list will now include two "NEC USB Open Host Controller" entries, one "NEC PCI to USB Enhanced Host Controller B1" entry, and two additional "USB Root Hub" entries.

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product:

F5U220 to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Belkin Corporation, declare under our sole responsibility that the F5U220, to which this declaration relates, is in conformity with Generic Emissions Standard EN 55022:1998 Class B, EN50081-1 and with Generic Immunity Standard EN50082-1 1992.

Belkin Corporation Limited Lifetime Product Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMplied. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTY, INCLUDING, WITHOUT LIMITATION, WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

Belkin Corporation

501 West Walnut Street
Compton, CA, 90220-5221, USA
[phone]
[phone] fax

Belkin Ltd.

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

[phone]
[phone] fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Netherlands

[phone]
[phone] fax

Belkin GmbH

Hanebergstrasse 2

80637 Munich, Germany
[phone]
[phone] fax

Belkin SAS

Please visit our website www.belkin.com for technical support or further information.

Disposal of Waste Equipment by Users in Private Households in the European Union:

For more information, go to www.belkin.com/environmental

© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

NN10 6GL, GroBbritannien

[phone]
[phone] Fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Niederlande
[phone]
[phone] Fax

Belkin GmbH

Hanebergstraße 2

80637 München, Deutschland
[phone]
[phone] Fax

Belkin SAS

130 rue de Silly
92100 Boulogne-Billancourt, Frankreich
[phone]
[phone] Fax

Belkin Iberia

Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes, Spanien
[phone]
[phone] Fax

De installment is nu voltooid.

Controleren of de installmente correct is verlopen (Windows Me)

Controleer na de installment in de Windows "Device Manager" (Apparaatbeheer) of de 5-poorts USB 2.0 PCI-kaart correct is geinstalleerd.

De installment is nu voltooid.

Controleren of de installment correct is verlopen (Windows XP)

Controller na de installmentie in de Windows "Device Manager" (Apparaatbeheer)

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

[phone]
[phone] fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax

Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax

Belkin SAS

Please visit our website www.belkin.com for technical support or further information.

Disposal of Waste Equipment by Users in Private Households in the European Union:

For more information, go to www.belkin.com/environmental

© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
