CARTE CARDBUS USB 2.0 À HAUT DÉBIT DE #F5U222FR - USB expansion card BELKIN - Free user manual and instructions

Product type	USB expansion card for laptop
Brand	BELKIN
Model	F5U222
Interface	CardBus Type II 32-bit
USB ports	2 high-speed USB 2.0 ports
Maximum data transfer rate	480 Mbit/s (USB 2.0 Hi-Speed)
Compatibility	Backward compatible with USB 1.1
Operating systems	Windows 98 SE, Me, 2000, XP
Power supply	5V DC, 3A power adapter (included)
Bus power	Possible for most devices (2A max)
Dimensions (approx.)	86 x 54 mm (CardBus Type II form factor)
Weight (approx.)	50 g
Package contents	CardBus card, installation CD, power adapter, manual
Main features	Connect USB 2.0 devices, Plug-and-Play, automatic detection
Certifications	FCC, CE
Warranty	Belkin limited lifetime warranty
Care and cleaning	Keep dry, clean with a soft cloth
Safety	Use only the supplied adapter, do not expose to moisture
Spare parts and repairability	No user-serviceable parts, contact Belkin support

Frequently Asked Questions - CARTE CARDBUS USB 2.0 À HAUT DÉBIT DE #F5U222FR BELKIN

How to install the card under Windows 98 SE?

Insert the CD, select "Install USB 2.0 Driver", follow the instructions, then insert the card into the CardBus slot. Windows will detect the controllers. See section 2 of the manual.

Is the card compatible with Windows XP?

Yes, with Windows XP Service Pack 1 or using the Belkin driver provided on the CD.

Can I connect a USB 1.1 device to this card?

Yes, the card is backward compatible with USB 1.1 devices.

What to do if the card is not detected?

Make sure the CardBus slot is compatible, the card is properly inserted, and the drivers are installed. Try restarting the computer.

Do I need to install drivers for Windows 2000?

Yes, you can use the Microsoft driver via Windows Update or the Belkin driver from the CD.

What devices can I connect?

Drives, scanners, printers, camcorders, etc. Any USB 2.0 or 1.1 device.

How to check if the installation was successful?

Open the Device Manager. You should see two NEC USB Open Host Controllers and one Belkin USB 2.0 Hi-Speed Controller, along with the root hubs.

Does the card require an external power supply?

Yes, the power adapter is included and necessary for high-power devices. For most devices, bus power is sufficient.

What if I lost the installation CD?

You can download the drivers from the Belkin website or use the built-in Windows drivers (for XP SP1+).

Is the card compatible with Mac?

The manual mentions Windows only. On Mac, compatibility is not guaranteed. Check the Belkin website.

USER MANUAL CARTE CARDBUS USB 2.0 À HAUT DÉBIT DE #F5U222FR BELKIN

Upgrade your notebook for ultra-fast performance

BELKIN

Hi-Speed USB 2.0

Notebook Card

Upgrade your notebook for ultra-fast performance

EN

Introduction 1

Overview 2

Features 2
Specifications 2
Package Contents 3
System Requirements 3

Operating System Compatibility 4

Installation 5

Installation Procedure for Windows 98 SE 5
Verifying Proper Installation (Windows 98 SE) 7
Installation Procedure for Windows Me 8
Verifying Proper Installation (Windows Me) 9
Installation Procedure for Windows 2000 10
Verifying Proper Installation (Microsoft Driver) 11
Installing the Belkin Driver 12
Installation Procedure for Windows 2000. 13
Verifying Proper Installation (Belkin Driver) 13
Installation Procedure for Windows XP 15
Verifying Proper Installation (Belkin Driver) 17
Installing a Hi-Speed USB 2.0 Hub 18

Information. 19

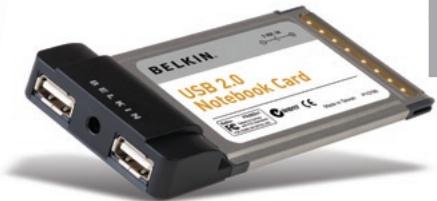

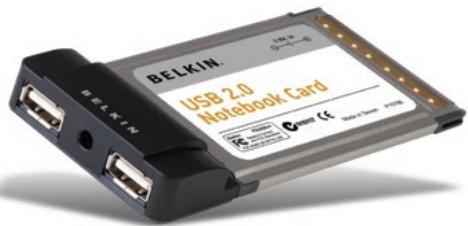

Welcome to Belkin Hi-Speed Connectivity!

Thank you for purchasing the Belkin Hi-Speed USB 2.0 Notebook Card (the Notebook Card).

Now you can upgrade your computer to the latest USB technology. You will be able to take advantage of a host of new Hi-Speed USB 2.0 products!

Connecting your USB 2.0 devices to your computer through the newest USB interface, Hi-Speed USB 2.0, allows them to work faster than ever. Use the Notebook Card to plug in your hard drives, scanners, printers, video cameras, and more. Your current or previous-version USB devices will continue to work as they always have, and in some cases, even better. Follow the simple installation instructions in this manual to get your Notebook Card up and working—then enjoy the speed and convenience of Belkin!

Features

• 2 Hi-Speed USB 2.0 ports
• Simultaneous connection capability for low-speed, full-speed, and high-speed devices
• Auto-detection of new devices as they are connected, along with the speed of each device
• Backward-compatibility with USB 1.1 devices
• Full compliance with USB specifications
  Plug-and-Play technology
• No power supply needed with most USB devices

Specifications

• Open Host Controller Interface-(OHCI-) compliant (USB 1.1 Host Controller)
• Enhanced Host Controller Interface-(EHCI-) compliant (USB 2.0 Host Controller)
  PCI revision 2.1-compliant
• Current: 2A max.
• USB revision 2.0-compliant
• 3.5mm DC power jack
  Power Supply: Input: 100-240VAC Output: 5VDC 3A Power Supply Polar

Package Contents

• User Manual
• Installation CD
  Power Supply

System Requirements

266MHz Pentium II
- 32MB RAM
- PC-compatible laptop computer with available 32-bit Type II CardBus slot
- Windows® 98 SE, 2000, Me, or XP operating system

Operating System	USB 1.x Support	USB 2.0 Support
Windows 98 SE	Yes	Yes
Windows 2000	Yes	Yes
Windows Me	Yes	Yes
Windows XP	Yes	Yes

Please refer to the section that corresponds to your version of the Windows operating system.

Note: The included power supply is not needed for bus-powered USB devices such as USB keyboards that do not include a built-in USB hub, mice, or self-powered USB devices such as certain hard drives, printers, etc. Bus-powered devices that draw large amounts of power directly from the USB bus such as webcams, keyboards with built-in USB hubs, and certain scanners may require the use of the power supply.

Installation Procedure for Windows 98 SE

This installation procedure will install two USB 1.1 OHCI controllers, one USB 2.0 EHCI host controller, and the associated USB root hubs.

Note: Do not insert the Notebook Card into your computer until instructed to do so.

1. Insert the F5U222 installation CD into your CD-ROM drive. After a few moments, the main menu should automatically appear.
2. Select "Install USB 2.0 Driver".
3. The setup utility will now install a CardBus eject utility for your USB 2.0 CardBus adapter. Make note of the information provided regarding the eject utility, then click "Next" to continue.
4. After the driver is installed, select "Yes, I want to restart my computer now." Click "Close".
5. After Windows restarts, locate your laptop computer's CardBus slot.
6. Insert the Notebook Card into the slot. Apply pressure as needed until it is fully seated.
7. After inserting the Notebook Card, Windows will detect the "NEC USB Open Host Controller" and the "Add New Hardware Wizard" dialog box will open. Click "Next".
8. Select "Search for the best driver for your device (Recommended)" and click "Next".

9. Uncheck all the boxes and click "Next". Windows will locate the drivers for "NEC USB Open Host Controller". Click "Next". (At this point Windows may prompt you to insert your Windows installation CD. If so, insert the CD into the CD-ROM drive and continue the installation procedure.)

10. Installation of the "NEC USB Open Host Controller" is now complete. Click "Finish".

11. The "Add New Hardware" wizard will repeat the installation process for the second OHCI host controller.
12. Repeat steps 7-10.
13. Windows will now detect "Belkin USB 2.0 High Speed Host Controller". Click "Next".
14. Windows will locate the required drivers and complete installation of the "Belkin USB 2.0 High Speed Host Controller" and "USB 2.0 Root Hub Device".

Installation of the Notebook Card is now complete.

Verifying Proper Installation (Windows 98 SE)

Check the "Windows Device Manager" to confirm that your Notebook Card has been properly installed.

1. Right-click on "My Computer" and select "Properties".
2. Select the "Device Manager" tab.
3. After installation of the Belkin USB 2.0 driver you will notice that an additional "Universal Serial Bus Controllers" heading has been added to the device list.

a) Click the plus sign (+) next to the original "Universal Serial Bus Controllers" heading. You will find that two "NEC USB Open Host Controller" entries and two "USB Root Hub" entries have been added to the list of devices.
b) Click the plus sign (+) next to the new "Universal Serial Bus Controllers" heading. You will find one entry for "Belkin USB 2.0 Hi-Speed Host Controller" and one entry for "USB 2.0 Root Hub Device".

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

Installation Procedure for Windows Me

This installation procedure will install two USB 1.1 OHCI controllers, one USB 2.0 EHCI host controller, and the associated USB root hubs.

Note: Do not insert the Notebook Card into your computer until instructed to do so.

1. Insert the F5U222 installation CD into your CD-ROM drive. After a few moments the main menu will automatically start.
2. Select "Install USB 2.0 Driver".
3. The setup utility will now install a CardBus eject utility for your USB 2.0 CardBus adapter. Take note of the information provided regarding the eject utility, then click "Next" to continue.
4. After the driver is installed, select "Yes, I want to restart my computer now." Click "Close".
5. After Windows restarts, locate your laptop computer's CardBus slot.
6. Insert the Notebook Card into the slot. Apply pressure as needed until it is fully seated.
7. After the Notebook Card is inserted, Windows will detect "NEC USB Open Host Controller (E13+) " and "Belkin USB 2.0 Hi-Speed Host Controller". The required driver support will be automatically installed. No user input is required.
8. After installation of the USB host controllers, the Windows OS will detect "USB Root Hub" and automatically install the required driver support. This step will repeat once again.
9. Restart your computer to complete the installation procedure.

Verifying Proper Installation (Windows Me)

After installation, check the Windows Device Manager to confirm that the Notebook Card has been properly installed.

1. Right-click on "My Computer" and select "Properties".
2. Select the "Device Manager" tab.
3. After installation of the Belkin USB 2.0 driver, you will notice that an additional "Universal Serial Bus Controllers" heading has been added to the device list.

a) Click the plus sign (+) next to the original "Universal Serial Bus Controllers" heading. You will find that two "NEC USB Open Host Controller (E13+) " entries and two "USB Root Hub" entries have been added to the list of devices.
b) Click the plus sign (+) next to the new "Universal Serial Bus Controllers" heading. You will find one entry for "Belkin USB 2.0 Hi-Speed Host Controller" and one entry for USB 2.0 Root Hub Device.

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

Installation Procedure for Windows 2000

This installation procedure will install two USB 1.1 OHCI controllers and one USB 2.0 EHCI host controller.

Important Note: There are two methods of installing the required USB 2.0 drivers in Windows 2000.

1. If you have an Internet connection: Windows 2000 will allow you to link to the Windows update website and download the most recent version of the Microsoft USB 2.0 support driver. Please proceed to the "Installing the Microsoft Driver" section.
2. If you do not have an Internet connection: USB 2.0 drivers will be installed from the Belkin Driver Installation CD. Please proceed to the "Installing the Belkin Driver" section.

Installing the Microsoft Driver

1. Locate your computer's CardBus slot.
2. Insert the Notebook Card into the slot. Apply pressure as needed until the Card is fully seated.
3. Turn on your computer.
4. After Windows has finished loading, the installation process will begin.

Note: Do not plug any devices into the Notebook Card until driver installation is completely finished.

Note: Depending on the speed of your computer, it may take up to 30-60 seconds for the Notebook Card to be detected.

1. Windows will now search for drivers for the "Universal Serial Bus Controller" and the "New Hardware Wizard" will start.

Click "Next".

1. Select "Search for suitable driver for my device (Recommended)". Click "Next".
2. Select "Microsoft Windows Update". Click "Next".

Note: If the "Microsoft Windows Update" option is not available, double-check your connection to the Internet. If you are having problems connecting to the Internet, proceed to the "Installing the Belkin Driver" section.

1. The driver for "Universal Serial Bus Controller" will be located. Click "Next".
2. The driver for "Standard Enhanced PCI to USB Host Controller" will now be installed. Click "Finish".

The Installation procedure is now complete.

Verifying Proper Installation (Microsoft Driver)

After installation, check the Device Manager to confirm that the Notebook Card has been properly installed.

1. Right-click the "My Computer" icon.
2. Select "Properties".
3. Select the "Hardware" tab and click on the "Device Manager" button.
4. Click the plus sign (+) next to "Universal Serial Bus Controllers".

The "Universal Serial Bus Controllers" list will now include two "NEC USB Open Host Controller" entries, two additional USB "Root Hub" entries, one "Standard Universal PCI to USB Host Controller" entry, and one "USB 2.0 Root Hub Device" entry.

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

Installing the Belkin Driver

Note: Do not insert the Notebook Card into your computer until instructed to do so.

1. Insert the F5U222 installation CD into your CD-ROM drive.
   After a few moments the main menu will automatically start.
2. Select "Install USB 2.0 Driver".
3. After the driver is installed, select "Yes, I want to restart my computer now." Click "Close".
4. After Windows restarts, locate your laptop computer's CardBus slot.
5. Insert the Notebook Card into the slot. Apply pressure as needed until it is fully seated.

Installation Procedure for Windows 2000

Note: Do not plug any devices into the Notebook Card until driver installation is completely finished.

Note: Depending on the speed of your computer, it may take up to 30-60 seconds for the Notebook Card to be detected.

1. After the Notebook Card is inserted, all required drivers will be automatically installed. After the installation is complete, you may be prompted to click "Finish" and to restart your computer.

Verifying Proper Installation (Belkin Driver)

After installation is complete, check the Windows Device Manager to confirm that all components of the Notebook Card have been properly installed.

1. Right-click on the "My Computer" icon.
2. Select "Properties".

3. Select the "Hardware" tab and click on the "Device Manager" button.

4. After installation of the Belkin USB 2.0 driver, you will notice that a second "Universal Serial Bus Controllers" heading has been added to the device list.

a) Click the plus sign (+) next to the original "Universal Serial Bus Controllers" heading. You will find that two "NEC USB Open Host Controller" entries and two "USB Root Hub" entries have been added to the list of devices.
b) Click the plus sign (+) next to the new "Universal Serial Bus Controllers" heading. You will find one entry for "Belkin USB 2.0 Hi-Speed Host Controller" and one entry for "USB 2.0 Root Hub Device".

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

Installation Procedure for Windows XP

Important Note: If you have already upgraded to Windows XP Service Pack 1, support for your Notebook Card is already installed on your computer. If you have not upgraded to Windows XP Service Pack 1, or if you wish to use the Belkin driver, proceed to the "Installing Belkin Driver" section.

Using the Windows XP Service Pack 1 Driver

This installation procedure will install two USB 1.1 OHCI controllers and one USB 2.0 EHCI host controller.

1. Locate your computer's CardBus slot.
2. Insert the Notebook Card into the slot. Apply pressure as needed until the Card is fully seated.
3. Turn on your computer.
4. When Windows restarts, the Notebook Card will be detected and drivers for the two USB OHCI host controllers and the EHCI host controller will be automatically installed. Installation is now complete.

Verifying Proper Installation (Microsoft Driver)

After installation, check the Device Manager to confirm that the Notebook Card has been properly installed.

1. Right-click on "My Computer".
2. Select "Properties".
3. Select the "Hardware" tab and click on the "Device Manager" button.
4. Click the plus sign (+) next to "Universal Serial Bus Controllers"

The "Universal Serial Bus Controllers" list will now include two "NEC USB Open Host Controller" entries, two additional "USB Root Hub" entries, one "Standard Universal PCI to USB Host Controller" entry, and one "USB 2.0 Root Hub Device" entry.

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

Installing the Belkin Driver

Note: Do not insert the Notebook Card into your computer until instructed to do so.

1. Insert the F5U222 installation CD into your CD-ROM drive. After a few moments the main menu will automatically start.
2. Select "Install USB 2.0 Driver".
3. After the driver is installed, select "Yes, I want to restart my computer now." Click "Close".
4. After Windows restarts, locate your laptop computer's CardBus slot.
5. Insert the Notebook Card into the slot. Apply pressure as needed until it is fully seated.

Note: Do not plug any devices into the Notebook Card until driver installation is completely finished.

Note: Depending on the speed of your computer, it may take up to 30-60 seconds for the Notebook Card to be detected.

1. Drivers for the "Belkin USB 2.0 Hi-Speed Host Controller" will now be located.
2. Installation of the "Belkin USB 2.0 Hi-Speed Host Controller" will now be completed.
3. Windows will now detect the "USB 2.0 Root Hub Device".
4. Drivers for the "USB 2.0 Root Hub Device" will now be located.
5. Installation of the "USB 2.0 Root Hub Device" will now be completed.

The installation procedure is now complete.

Verifying Proper Installation (Belkin Driver)

After installation is complete, check the Windows Device Manager to confirm that all components of the Notebook Card have been properly installed.

1. Right-click on "My Computer".
2. Select "Properties".
3. Select the "Hardware" tab and click on the "Device Manager" button.
4. After installation of the Belkin USB 2.0 driver, you will notice that a second "Universal Serial Bus Controllers" heading has been added to the device list.

a) Click the plus sign (+) next to the original "Universal Serial Bus Controllers" heading. You will find that two "NEC USB Open Host Controller" entries and two "USB Root Hub" entries have been added to the list of devices.
b) Click the plus sign (+) next to the new "Universal Serial Bus Controllers" heading. You will find one entry for "Belkin USB 2.0 Hi-Speed Host Controller" and one entry for "USB 2.0 Root Hub Device".

Note: If your computer features built-in USB ports, or if you have other USB PCI controller cards installed, you will see additional USB controller and root hub entries in the Device Manager list.

The installation procedure is now complete.

Installing a Hi-Speed USB 2.0 Hub

Note: During installation of the Hi-Speed USB 2.0 Notebook Card driver, a Hi-Speed USB 2.0 hub driver is also installed. For instructions regarding the installation of your Hi-Speed USB 2.0 hub, consult the documentation included with your hub

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product:

F5U222 to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Belkin Corporation, declare under our sole responsibility that the F5U222, to which this declaration relates, is in conformity with Generic Emissions Standard EN 55022:1998 Class B, EN50081-1 and with Generic Immunity Standard EN50082-1 1992.

Belkin Corporation Limited Lifetime Product Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTY, INCLUDING, WITHOUT LIMITATION, WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

Belkin Corporation
501 West Walnut Street
Compton, CA, 90220-5221, USA
[phone]
[phone] fax

Belkin Ltd.

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

[phone]
[phone] fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax

Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax

Belkin SAS

Please visit our website www.belkin.com for technical support or further information.

Disposal of Waste Equipment by Users in Private Households in the European Union:

For more information, go to www.belkin.com/environmental

BELKIN

Remark: The included power supply is not needed for bus-powered USB devices such as USB keyboards that do not include a built-in USB hub, mice, or self-powered USB devices such as certain hard drives, printers, etc. Bus-powered devices that draw large amounts of power directly from the USB bus such as webcams, keyboards with built-in USB hubs, and certain scanners may require the use of the power supply.

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

NN10 6GL, GroBbritannien

[phone]
[phone] Fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Niederlande
[phone]
[phone] Fax

De installmentprocedure is nu voltooid.

Controlleren of de installmente correct is verlopen (Microsoft-stuurprogramma)
Controller en de installmente in de "Device Manager" (Apparaatbeheer) of de notebookkaart correct is geinstalleerd.

De installmentprocedure is nu voltooid.

Controleren of de installment correct is verlopen (Belkin-stuurprogramma)

Controleer na de installmentie in de Windows "Device Manager" (Apparaatbeheer) of de notebookkaart correct is geinstalleerd.

De installmentprocedure is nu voltooid.

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

[phone]
[phone] fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax

Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax

Belkin SAS

Please visit our website www.belkin.com for technical support or further information.

Disposal of Waste Equipment by Users in Private Households in the European Union:

For more information, go to www.belkin.com/environmental

© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
