USER MANUAL LEGEND 1200 ARC 204101 BUSHNELL

In ranging distance and ballistic capability, no unit on the market packs this much power in such a handy, easy-touse package. Engineered with a compact, vertical configuration, the Legend ^*1200ARC^TM delivers instant distance readings to 1,200 yards, while calculating a true "shoots-like" distance based on terrain angle using Angle Range Compensation technology. In Rifle Mode, it tells you where to hold and VSI (Variable Sight-In) allows the rifle hunter to choose between four sight-in distances and provides holdover / bullet-drop data in inches, centimeters or MOA. Bow Mode eliminates guesswork with true horizontal distance from 5-99 yards. And weather is never an issue thanks to fully waterproof construction and Rainguard HD anti-fog lens coating technology.

This booklet will help you achieve optimum performance by explaining its adjustments and features as well as how to care for this device. To ensure optimal performance and longevity, please read these instructions before using you're Legend 1200 ARC laser rangefinder.

HOW OUR DIGITAL TECHNOLOGY WORKS

The Legend 1200ARC^TM emits invisible, eye safe, infrared energy pulses. The Legend 1200 ARC's Advanced Digital microprocessor and ASIC chip (Application-Specific Integrated Circuit) results in instantaneous and accurate readings every time. Sophisticated digital technology instantaneously calculates distances by measuring the time it takes for each pulse to travel from the rangefinder, to the target, and back.

RANGING ACCURACY

The ranging accuracy of the Legend 1200 ARC is plus or minus one yard/meter under most circumstances. The maximum range of the instrument depends on the reflectivity of the target. The maximum distance for most objects is 850 yards/777 meters while for highly reflective objects the maximum is 1200 yards/1097 meters. Note: You will get both longer and shorter maximum distances depending on the reflective properties of the particular target and the environmental conditions at the time the distance of an object is being measured.

The color, surface finish, size and shape of the target all affect reflectivity and range. The brighter the color, the longer the range. White is highly reflective, for example, and allows longer ranges than the color black, which is the least reflective color. A shiny finish provides more range than a dull one. A small target is more difficult to range than a larger target. The angle to the target also has an effect. Shooting to a target at a 90 degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses) provides good range while a steep angle on the other hand, provides limited ranging. In addition, lighting conditions (e.g. the amount of sunlight) will affect the ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit's maximum range will be. Conversely, very sunny days will decrease the unit's maximum range.

GETTING STARTED

INSERTING THE BATTERY

Remove the battery cap by lifting the battery door tab and then rotating counter clockwise. Insert a CR-2 3-volt lithium battery into the compartment positive end first, then replace the battery cap.

NOTE: It is recommended that the battery be replaced at least once every 12 months.

ADJUSTING THE EYEPIECE

Your Legend 1200ARC^TM is constructed with an adjustable eyepiece (+ / - 2 Diopter Adjustment) that allows one to focus the LCD display relative to the image. Simply rotate the eyepiece until the reticle and object distanced to are in focus to your eye.

OPERATIONAL SUMMARY

While looking through the 6x eyepiece, depress the power button once to activate the in-view Liquid Crystal Display (LCD). Place the aiming circle (located in the center of the field of view) upon a target at least 5 yards away, depress and hold the power button down until the range reading is displayed near the bottom of the in-view display. Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the power button. The crosshairs surrounding the aiming circle will disappear once the power button has been released (i.e. the laser is no longer being transmitted). Note: Once activated, the LCD will remain active and display the last distance measurement for 30 seconds. You can depress the power button again at any time to distance to a new target. As with any laser device, it is not recommended to directly view the emissions for long periods of time with magnified lenses. The maximum time the laser is transmitted (fired) is 10 seconds. To re-fire, press the button down again.

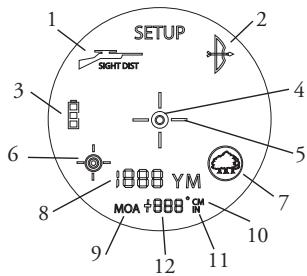

LIQUID CRYSTAL DISPLAY (LCD) INDICATORS

Your Legend 1200 ARC LCD incorporates the following illuminated indicators:

Angle Range Compensation Modes

Rifle Mode (1)

Bow Mode (2)

Battery Life Indicator (3)

Aiming Circle (4)

Active Laser (5)

Targeting Modes

BullsEye Mode (6)

Brush Mode (7)

Primary Numeric Display displays Line-of-sight Distance (8)

Holdover / Bullet-drop measure for Rifle Mode

MOA (9)

CM (10)

IN (11)

Secondary Numeric Display (12)

(Toggles from Degree of Angle to Holdover / bullet drop for Rifle mode)

(Toggles from Degree of Angle to True Horizontal Distance for Bow Mode)

ANGLE RANGE COMPENSATION

The Legend 1200ARC^m is an advanced premium laser rangefinder featuring a built-in accelerometer-based inclinometer that digitally displays the exact angle from -90 to +90 degrees of elevation and is +/- 1.0 degree accurate.

The Bushnell' Legend 1200 ARC solves a problem hunters have been faced with for years. The problem: Bow and rifle hunters have struggled with extreme uphill and downhill angles because of how these angles alter true horizontal distance to your target. The Solution: ARC's integrated inclinometer provides elevation angle to allow for distance compensation when targeting objects that are either uphill or downhill. This data is then combined with internal algorithmic ballistic formulas.

ARC (ANGLE RANGE COMPENSATION) MODES

Bow Mode (12) : Displays line of sight distance, degree of elevation, and true horizontal distance from 5-99 yards/ meters and a maximum inclination of +/- 90^ .

Rifle Mode ( ):Calculates and displays the amount of bullet drop, at the target in inches, centimeters or MOA. The amount of bullet drop is determined by the line of sight distance to the target, degree of elevation, along with the specific ballistic characteristics of the caliber and ammunition load. When you range your target, the line of sight, degree of elevation, and bullet-drop/holdover in inches, centimeters, or MOA will be displayed from 100 to 800 yards/meters with a maximum inclination of + / - 90^ . One of eight ballistic groups (identified as A,B,C,D,E, F,G,and H) for center fire rifles and two ballistic groups (Identified as I and J) for Black Powder/Muzzleloaders can be selected by the user, with each formula representing a given combination of caliber and loads. The ballistic groups are selected by the user in the SET-UP menu.

Regular Mode ( r : This mode does not provide any degree of elevation or compensated distance, but instead, line of sight distance only.

BATTERY LIFE INDICATOR

Battery Indicator:

Full charge

2/3 battery life remaining

1/3 battery Life remaining

Battery Indicator Blinks - Battery needs to be replaced and unit will not be operable.

UNIT OF MEASURE OPTIONS

The Legend* 1200 ARC^m can be used to measure distances in yards or meters. The unit of measure indicators are located in the lower right portion of the LCD.

ACTIVE LASER

Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the power button. The crosshairs surrounding the circle will disappear once the power button has been released (i.e. the laser is no longer being transmitted).

SELECTIVE TARGETINGTM MODES

The Legend 1200 ARC was especially designed with hunters in mind. The selective targeting modes allow you to adjust the performance parameters of the unit to suit your specific situation and environment. To move from one mode to another, press the POWER button once to turn on the unit. While looking through the eyepiece, press the MODE button and quickly release. The different targeting modes available and mode indicators are listed below:

Standard with Automatic SCAN (LCD Indicator - none) This setting allows most targets to be distanced up to 1200 yards. Used for moderately reflective targets that are typical of most distancing situations. The minimum distance in

the standard mode is 5 yards. To use the Automatic SCAN feature, simply hold down on the POWER button for approximately 3 seconds and move the rangefinder from object to object while leaving the POWER button depressed. Automatic SCAN will allow the range to be continuously updated as multiple objects are targeted.

BullsEye™ (LCD Indicator - © This advanced mode allows easy acquisition of small targets and game without inadvertently getting distances to background targets that have stronger signal strength. When more than one object has been acquired, distance of the closer object will be displayed and a crosshair will surround the BullsEye™ indicator informing the user that distance to the closer object is being displayed in the LCD. Once in this mode, press the POWER button to turn the unit on. Next, align the aiming circle onto the object (i.e. deer) that you want distance to. Next, press and hold the POWER button and move the laser slowly over the deer until crosshairs surround the BullsEye indicator. If the laser beam recognized more than one object (i.e. deer and background trees), distance of the closer object (i.e. deer) will be displayed and crosshairs will surround the BullsEye indicator informing the user that distance to the closer object is being displayed in the LCD (Figure 1). There may be times when only the laser beam only sees one object in its path. In this case, the distance will be displayed, but because more than one object was not acquired, crosshairs will not surround the BullsEye indicator.

Figure 1

TIP: While pressing the POWER button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the closest of the objects recognized by the laser.

Brush™ (LCD Indicator - This advanced mode allows objects such as brush and tree branches to be ignored so that distance only to background objects are displayed. When more than one object has been acquired, distance of the further object will be displayed and a circle will surround the Brush™ indicator informing the user that distance of the farthest object is being displayed in the LCD.

Once in this mode, press the POWER button to turn the unit on. Next, align the aiming circle onto the object that you want distance to. Next, press and hold the POWER button and move the laser slowly over the object until a circle surrounds the Brush indicator. If the laser beam recognized more than one object (i.e. close-up tree branch and a deer in the background), distance of the further object (i.e. deer) will be displayed and a circle will surround the brush indicator informing the user that distance to the farther object is being displayed in the LCD (Figure 2). There may be times when only the laser beam only sees one object in its path. In this case, the distance will be displayed, but because more than one object was not acquired, the circle will not surround the Brush indicator

Figure 2

TIP: While pressing the POWER button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the furthest of the objects recognized by the laser.

Once the device has shut off, the unit will always default back to the last targeting mode used.

MENU SETUP - SELECTION OF BOW, RIFLE, REGULAR MODES, UNIT OF MEASURE, SIGHT-IN DISTANCE, AND BALLISTIC CORRECTION

There are two ARC (Angle Range Compensation) modes and one REGULAR mode. The two ARC modes are BOW mode and RIFLE mode.

To select between these modes, first turn the unit "ON" by pressing and releasing the POWER button. Next, press and hold the MODE button for five seconds. The "SETUP" display icon will light and the current compensation mode will be identified by either the "BOW" symbol (12) , the "RIFLE symbol (") lit with one of the ballistic groups (A thru J) displayed and flashing, or no indicators lit and the message (rE6) flashing in the bottom of the LCD.

The modes can be cycled through in a circular fashion by pressing and releasing the mode button. The order of modes is a follows: BOW, RIFLE A, RIFLE B, RIFLE C, RIFLE D, RIFLE E, RIFLE F, RIFLE G, RIFLE H, RIFLE I, RIFLE J, REG, etc. When the bow selection is displayed, the "BOW" icon will flash and when a "RIFLE: selection is displayed, the "RIFLE" icon will be steady, but the ballistic group will be flashing toward the bottom of the LCD. When the (r - ) is displayed, the message (r - ) will flash near the bottom of the LCD.

Once the desired distance compensation mode is displayed, select it by pressing and releasing the POWER button. Following this selection, the current unit of measure, "Y" for yards or "M" for meters will flash in the LCD and the SETUP icon is still lit. Pressing the MODE button will toggle the unit of measure. When the desired unit of measure

is displayed, press the POWER button to accept the unit of measure.

If the user chooses RIFLE mode, and after having determined unit of measure, the user has two more options:

1. Variable Sight-In (VSI) - Allows the rifle hunter to choose from four sight-in distances (100, 150, 200, or 300 yards or meters). The "Sight Dist" indicator will turn on and the current Sight-In Distance number will blink in the bottom portion of the display (i.e. 100, 150, 200, or 300). The Sight-In Distance options can be cycled through in a circular fashion by pressing and releasing the mode button. Once the desired Sight-In Distance is displayed, select it by pressing and releasing the power button.
2. And finally, if RIFLE mode was chosen, and as long as unit of measure and a sight-in distance was selected, you have the option of determining how you would like hold-over/bullet-drop displayed. If measurement units are in yards, you will be able to choose between inches, or MOA. The "CM" for centimeters or "IN" for inches will flash in the LCD and the SETUP icon is still lit. Once the desired ballistic measure is displayed, select it by pressing and releasing the power button. If units of measure selected previously was Meters, then your hold-over / bullet-drop will automatically be displayed in centimeters.

Upon returning to the normal operating menu, the current compensation mode and unit of measure will be identified in the LCD as indicated below.

SETUP menu

Normal Operating Menu

When the unit automatically powers down, operation will always return to the normal operation (i.e. away from SETUP) with the last used ARC mode active (i.e. BOW, RIFLE, or REGULAR) along with the last used TARGETING modes active (Standard SCAN, BULLSEYE, or BRUSH). If the unit turns off while in the SETUP menu, the unit will always return to the last mode(s) still active.

Once the range is displayed, continue to hold the POWER button down for approximately 2 seconds while holding the aiming circle on the object and keeping the unit as steady as possible so as to allow the inclinometer enough time to measure angle. Then release the POWER button. Once you have released the power button, the line of sight will be displayed along with unit of measure. Beneath the line of sight distance and unit of measure, the degree of angle will be displayed for approximately 1.5 seconds, and will then automatically switch to the compensated range. The line of sight distance, unit of measure and automatic toggle from degree of angle to compensated distance will continue for 30 seconds at which time the display will automatically shut off.

BOW MODE EXAMPLE

Line of sight is 32 yards, angle is -44 degrees, and the Angle Range Compensated distance is 23 yards. The " ” means "play" or "shoot as," so instead of shooting as 32 yards, shoot as 23 yards. If you were to shoot as if 32 yards, you would shoot over the top of the deer because of the severe angle.

If in BOW mode, the line of sight distance will display in the primary numeric display and the inclination and horizontal distance will display in the secondary numeric displays. Bushnell determined through extensive testing and interviews with high-profile bow hunting experts that multiple bow ballistic groups were not necessary. Bow-hunters want to know true horizontal distance because that is how they practice shooting, and once they confidently know that, they can make any necessary adjustments. Giving the bow-hunter anything else other than horizontal distance creates additional confusion and uncertainty.

Many people mistakenly believe that uphill shots perform differently from downhill shots because of gravity. However, it is not due to gravity, but more of an aberration of the sighting system used on bows. The sighting pin on a bow resides several inches above the mechanical axis of the arrow. For example, when one is aiming 23 degrees up an incline, the arrow is at a different angle.

RIFLE MODE EXAMPLE

Line of sight is 376 yards, angle is -33 degrees, and the bullet-drop/holdover is 28 inches. ARC not only takes into account ballistic data based off your caliber and load from distances of 100-800 yards, but also compensates for any uphill and downhill angles which also affect bullet-drop.

If in RIFLE mode, the ballistic group will be displayed in the bullet drop numeric field anytime that the primary numeric display is showing dashes (i.e. no target acquired). When a target is acquired in RIFLE mode, the line of sight distance will display in the secondary numeric displays. The "IN" icon (i.e. inches) will light next to the bullet drop numeric display, if the unit of measure is set to Yards (Y). If the unit of measure is set to Meters (M), the bullet drop will be calculated and displayed in centimeters and the "IN" icon will be turned off. If the bullet drop / hold over number is blinking, this means the user should add 100 to the number blinking.

REGULAR MODE

This mode does not provide any degree of elevation or compensated distance, but instead, line of sight distance only. The will still appear below the line of sight numeric display, but there will not be any information displayed in this secondary numeric display.

KNOWING WHICH BALLISTIC GROUP TO SELECT

Bushnell engineers have worked with Sierra* Bullets' ballistic programs and grouped many of the most popular calibers and loads into eight ballistic groups (A,B,C,D,E,F,G,H). Once you know what caliber and load you are shooting simply look through the chart to determine which one of the eight ballistic groups match with your particular load and caliber. For Muzzleloaders, we have worked with PowerBelt Bullets to incorporate ballistic data into two ballistic groups (I and J).

POPULAR CALIBER & LOAD COMBINATIONS

Ballistic Group

Federal Cartridge .224 dia. 22-250 Rem, 55 gr. Bear Claw at 3600 fps G

Federal Cartridge .224 dia. 22-250 Rem, 60 gr. Partition at 3500 fps

Remington Arms .224 dia. 22-250 Remington Arms, 50 gr. V-Max at 3725 FPS H

Remington Arms .224 dia. 22-250 Remington Arms, 55 gr. PSP at 3680 FPS G

Winchester .224 dia. 22-250 Rem, 55 gr. Ballistic Silvertip at 3680 FPS H
Winchester .224 dia. 22-250 Rem, 55 gr. PSP at 3680 FPS G
Federal Cartridge .277 dia. 270 Win, 150 gr. Ballistic Tip at 3060 fps F
Federal Cartridge .277 dia. 270 Win, 150 gr. Partition at 3000 fps F
Remington Arms .277 dia. 270 Win, 140 gr. PSPCL Ultra at 2925 FPS E
Remington Arms .277 dia. 270 Win, 150 gr. SPCL at 2850 FPS D
Winchester .277 dia. 270 Win, 150 gr. Partition Gold at 2930 FPS E
Winchester .277 dia. 270 Win, 150 gr. PP-Plus at 2950 FPS E
Federal Cartridge .308 dia. 30-06 Spring, 180 gr. AccuBond at 2700 FPS D
Federal Cartridge .308 dia. 30-06 Spring, 180 gr. Bear Claw at 2700 FPS D
Remington Arms .308 dia. 30-06 Springfield, 180 gr. A-Frame at 2700 FPS D
Remington Arms .308 dia. 30-06 Springfield, 180 gr. BRPT at 2700 FPS D
Winchester .308 dia. 30-06 Sprg, 180 gr. FailSafe at 2700 FPS D
Winchester .308 dia. 30-06 Sprg, 180 gr. Partition Gold at 2750 FPS D
Federal Cartridge.308 dia. 300 WSM, 180 gr. AccuBond at 2960 fps F
Federal Cartridge.308 dia. 300 WSM, 180 gr. Bear Claw at 3025 fps
Winchester .308 dia. 300 WSM, 180 gr. Ballistic Silver Tip at 3010 FPS
Winchester .308 dia. 300 WSM, 180 gr. Fail Safe at 2970 FPS
Remington Arms .308 dia. 300 R.S.A.U.M., 180 gr. PSPCL Ultra at 2960 FPS E
Remington Arms .308 dia. 300 Wby Mag, 180 gr. PSPCL at 3120 FPS

Above are a few of the most popular caliber/load combinations. The enclosed Ballistics CD contains approximately 1000 caliber and load combinations. Simply load the CD into your computer CD drive and follow the instructions on your screen. This complete list can also be found on Bushnell's website (www.bushnell.com).

After you have determined which ballistic group corresponds to your caliber and load, select this ballistic group (See MENU SETUP above). The internal formula will determine amount of bullet drop/holdover in inches or centimeters based upon distance, angle, and ballistics of your caliber and load.

This state-of-the-art digital technology allows the hunter or shooter to know precisely where to hold for an effective shot. This information should be treated as a helpful guide or tool and in no way should it ever replace practice and familiarity with your rifle, cartridge and load. We encourage practice shooting at different ranges so you know how your rifle, cartridge and load will perform under various conditions. Always know what is behind your bullet; if you don't know, don't take the shot.

EXAMPLE

You have a 300 WSM and are shooting the following Winchester brand load: 180 gr. Ballistic Silver Tip bullet at 3010 FPS muzzle velocity. This combination falls under Ballistic Group "F". After setting the rangefinder to ballistic group "F", go to the range and sight in your riflescope at 100 yards. If you then take a shot at a target at 317 yds, the bullet drop will be 9 inches. If the shot is at angle of 27 degrees upward, then the corrected bullet drop will be 8 inches.

WHAT IF YOUR CALIBER IS NOT LISTED?

While we have taken great care to include as many calibers and brand names in our ballistics tables, new loads are always being developed. In addition, some shooters load their own ammunition with unique ballistic characteristics. If you cannot find your load in our ballistic tables, you can still use the bullet drop feature of the laser rangefinder. As above, sight in your rifle at 100 yds. Then shoot the rifle, without adjusting the riflescope, at 300 yds. Measure the bullet drop from the point of aim. Using this drop, select the ballistic group from below. If you will be shooting longer distances then you may want to check the bullet drop at 500 yds. Because there is enormous variation in rifle barrels, chambers, and hand loads, you should thoroughly test the ballistic setting before actual hunting. You may need to move up or down one group depending upon your tests.

If Bullet Drop is:	@300 yds	@300 m	@500 yds	@500 m
Use:
A	25-31 inches	63-79 cm	114-146 inches	291-370 cm
B	20-25 inches	50-63 cm	88-114 inches	225-291 cm
C	16-20 inches	40-50 cm	72-88 inches	182-225 cm
D	13-16 inches	34-40 cm	61-72 inches	155-182 cm
E	12-13 inches	30-34 cm	55-61 inches	139-155 cm
F	10-12 inches	25-30 cm	47-55 inches	119-139 cm
G	8-10 inches	20-25 cm	39-47 inches	99-119 cm
H	Less than 8 inches	Less than 20 cm	Less than 39 inches	Less than 99 cm

OPTICAL DESIGN

Magnification and Coatings

The Legend 1200ARC^TM features 6x magnification and Fully Multi-Coated optics. A liquid crystal display (LCD) is mounted within the optical system and when activated, displays a reticle for targeting, yards/meters, and Mode indicators. Inherent in the manufacturing process are small black spots that appear in the optical system. These are a natural characteristic of the LCD and cannot be fully eliminated in the manufacturing process. They do not affect the distancing performance of the unit.

RAINGUARD® HD

The outer surfaces of the objective and eyepiece lenses are coated with RainGuard HD. RainGuard HD is Bushnell's permanent, patented, hydrophobic (water repellant) lens coating that prevents fogging by causing condensation from rain, sleet, snow or even your own breath to bead up into much smaller droplets than on standard coatings. Smaller uniform droplets scatter less light which results in a clearer, brighter view.

TRIPOD MOUNT

Molded into the bottom of your Legend 1200 ARC is a threaded tripod mount that will allow you to attach a tripod for a more stable operation during long periods of use.

SPECIFICATIONS:

Dimensions: Measuring 4.0 × 2.6 × 1.7 inches

Weight: 7.4 oz.

Ranging Accuracy: +/- 1 yard

Range: 5-1200 Yards / 5-1097 Meters

Magnification: 6x

Objective Diameter: 24mm

Optical Coatings: Fully Multi-Coated

RainGuard* HD Coating

Display: LCD

Power Source: 3-volt lithium (included)

Field Of View: 314 ft. @ 1000 yards

Extra Long Eye Relief: 22.5mm

Exit Pupil: 4.8mm

Built-In Tripod Mount

Waterproof

Includes battery, carrying case and strap

CLEANING

Gently blow away any dust or debris on the lenses (or use a soft lens brush). To remove dirt or fingerprints, clean with a soft cotton cloth, rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.

TWO-YEAR LIMITED WARRANTY

Your Bushnell* product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN U.S.A. Send To:

Bushnell Outdoor Products

Attn.: Repairs

8500 Marshall Drive

Lenexa, Kansas 66214

IN CANADA Send To:

Bushnell Outdoor Products

Attn.: Repairs

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

In Europe you may also contact Bushnell at:

BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KÖLN

GERMANY

Tel: [phone] Fax: [phone]

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2009 Bushnell Outdoor Products

TROUBLE SHOOTING TABLE

If unit does not turn on - LCD does not illuminate:

• Depress POWER button.
• Check and if necessary, replace battery.

If unit powers down (display goes blank when attempting to power the laser):

• The battery is either weak or low quality. Replace the battery with a good quality 3-volt lithium battery.

If target range cannot be obtained:

Make sure LCD is illuminated.
- Make sure that the power button is being depressed.
- Make sure that nothing, such as your hand or finger, is blocking the objective lenses (lenses closest to the target) that emit and receive the laser pulses.
- Make sure unit is held steady while depressing power button.

NOTE: The last range reading does not need to be cleared before ranging another target. Simply aim at the new target using the LCD's reticle, depress the power button and hold until new range reading is displayed.

Specifications, instructions, and the operation of these products are subject to change without notice.

Bushnell

LASER RANGEFINDERS

LEGEND 1200

Model: 204100/204101

LIT. #: 98-1354/01-09

Portée: 5-1097 metres

Grossissement: 6x

Largeur de champ: 95 metres à 914 metres

Bushnell Outdoor Products

Bushnell Outdoor Products

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KÖLN

ALLEMAGNE

Tel: [phone] Télécopie: [phone]

©2009 Bushnell Outdoor Products

TABLEAU DE DÉPANNAGE

Secondary Numeric Display (12)

(toggles from Degree of Angle to Holdover / bullet drop for Rifle mode)

(toggles from Degree of Angle to True Horizontal Distance for Bow Mode)

Pantalla Numérica Secundaria (12)

Federal Cartridge .224 dia. 22-250 Rem, 55 gr. Bear Claw at 3600 fps G

Federal Cartridge .224 dia. 22-250 Rem, 60 gr. Partition at 3500 fps

Remington Arms .224 dia. 22-250 Remington Arms , 50 gr. V-Max at 3725 FPS H

Remington Arms .224 dia. 22-250 Remington Arms , 55 gr. PSP at 3680 FPS G

Winchester .224 dia. 22-250 Rem, 55 gr. Ballistic Silvertip at 3680 FPS H

Winchester .224 dia. 22-250 Rem, 55 gr. PSP at 3680 FPS G

Federal Cartridge .277 dia. 270 Win, 150 gr. Ballistic Tip at 3060 fps F

Federal Cartridge .277 dia. 270 Win, 150 gr. Partition at 3000 fps

Remington Arms .277 dia. 270 Win, 140 gr. PSPCL Ultra at 2925 FPS E

Remington Arms .277 dia. 270 Win, 150 gr. SPCL at 2850 FPS D

Winchester .277 dia. 270 Win, 150 gr. Partition Gold at 2930 FPS E

Winchester .277 dia. 270 Win, 150 gr. PP-Plus at 2950 FPS E

Federal Cartridge .308 dia. 30-06 Spring, 180 gr. AccuBond at 2700 FPS D

Federal Cartridge .308 dia. 30-06 Spring, 180 gr. Bear Claw at 2700 FPS D

Remington Arms .308 dia. 30-06 Springfield, 180 gr. A-Frame at 2700 FPS D

Remington Arms .308 dia. 30-06 Springfield, 180 gr. BRPT at 2700 FPS D

Winchester .308 dia. 30-06 Sprg, 180 gr. FailSafe at 2700 FPS D
Winchester .308 dia. 30-06 Sprg, 180 gr. Partition Gold at 2750 FPS D
Federal Cartridge.308 dia. 300 WSM, 180 gr. AccuBond at 2960 fps
Federal Cartridge.308 dia. 300 WSM, 180 gr. Bear Claw at 3025 fps
Winchester .308 dia. 300 WSM, 180 gr. Ballistic Silver Tip at 3010 FPS
Winchester .308 dia. 300 WSM, 180 gr. Fail Safe at 2970 FPS
Remington Arms .308 dia. 300 R.S.A.U.M., 180 gr. PSPCL Ultra at 2960 FPS E
Remington Arms .308 dia. 300 Wby Mag, 180 gr. PSPCL at 3120 FPS

Alcance: 5-1200 Yardas/5-1097 Metros

Aumentos: 6x

Bushnell Outdoor Products

Bushnell Outdoor Products

25A East Pearce Street, Unit 1

Lenexa, Kansas 66214

Richmond Hill, Ontario L4B 2M9

BUSHNELL Outdoor Products GmbH

European Service Centre (Centro Europeo de Servicios)

MORSESTRASSE 4

D-50769 KÖLN

ALEMANIA

Tel: [phone] Fax: [phone]

©2009 Bushnell Outdoor Products

ARC-(WINKELENTFERNUNGSKOMPENSION)-MODI

Sehfeld: 314 ft. @ 1000 yards / 103,63 m @ 1000 m

Extra-langer Augenabstand: 22.5mm

Austrittspupille: 4.8mm

Bushnell Outdoor Products

z.Hd.: Repairs

8500 Marshall Drive

Lenexa, Kansas 66214

IN KANADA versenden an:

Bushnell Outdoor Products

z.Hd.: Repairs

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KÖLN

GERMANY

Tel: [phone]

Fax: [phone]

©2009 Bushnell Outdoor Products

Holdover / Bullet-drop measure for Rifle Mode

MOA (9)

CM (10)

IN (12)

The Legend* 1200 ARC^TM is an advanced premium laser rangefinder featuring a built-in accelerometer-based inclinometer that digitally displays the exact angle from -90 to +90 degrees of elevation and is +/- 1.0 degree accurate.

The Bushnell' Legend 1200 ARC solves a problem hunters have been faced with for years. The problem: Bow and rifle hunters have struggled with extreme uphill and downhill angles because of how these angles alter true horizontal distance to your target. The Solution: ARC's integrated inclinometer provides elevation angle to allow for distance compensation when targeting objects that are either uphill or downhill. This data is then combined with internal algorithmic ballistic formulas.

Federal Cartridge.224 dia. 22-250 Rem, 55 gr. Bear Claw at 3600 fps G

Federal Cartridge.224 dia. 22-250 Rem, 60 gr. Partition at 3500 fps F

Remington Arms .224 dia. 22-250 Remington Arms , 50 gr. V-Max at 3725 FPS H

Remington Arms .224 dia. 22-250 Remington Arms, 55 gr. PSP at 3680 FPS G

Winchester .224 dia. 22-250 Rem, 55 gr. Ballistic Silvertip at 3680 FPS H

Winchester .224 dia. 22-250 Rem, 55 gr. PSP at 3680 FPS G

Federal Cartridge .277 dia. 270 Win, 150 gr. Ballistic Tip at 3060 fps

Federal Cartridge .277 dia. 270 Win, 150 gr. Partition at 3000 fps

Remington Arms .277 dia. 270 Win, 140 gr. PSPCL Ultra at 2925 FPS E

Remington Arms .277 dia. 270 Win, 150 gr. SPCL at 2850 FPS D

Winchester .277 dia. 270 Win, 150 gr. Partition Gold at 2930 FPS E

Winchester .277 dia. 270 Win, 150 gr. PP-Plus at 2950 FPS E

Federal Cartridge .308 dia. 30-06 Spring, 180 gr. AccuBond at 2700 FPS D

Federal Cartridge .308 dia. 30-06 Spring, 180 gr. Bear Claw at 2700 FPS D

Remington Arms .308 dia. 30-06 Springfield, 180 gr. A-Frame at 2700 FPS D

Remington Arms .308 dia. 30-06 Springfield, 180 gr. BRPT at 2700 FPS D

Winchester .308 dia. 30-06 Sprg, 180 gr. FailSafe at 2700 FPS D

Winchester .308 dia. 30-06 Sprg, 180 gr. Partition Gold at 2750 FPS D

Federal Cartridge.308 dia. 300 WSM, 180 gr. AccuBond at 2960 fps

Federal Cartridge.308 dia. 300 WSM, 180 gr. Bear Claw at 3025 fps

Winchester .308 dia. 300 WSM, 180 gr. Ballistic Silver Tip at 3010 FPS

Winchester .308 dia. 300 WSM, 180 gr. Fail Safe at 2970 FPS

Remington Arms .308 dia. 300 R.S.A.U.M., 180 gr. PSPCL Ultra at 2960 FPS E

Remington Arms .308 dia. 300 Wby Mag, 180 gr. PSPCL at 3120 FPS

Bushnell Outdoor Products

Attn.: Repairs

8500, Marshall Drive

Lenexa, Kansas 66214

Recapito in CANADA:

Bushnell Outdoor Products

Attn.: Repairs

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KÖLN

GERMANY

Tel: [phone] Fax: [phone]

©2009 Bushnell Outdoor Products

GUIDA ALLA SOLUZIONE DEI PROBLEMI

Bushnell Outdoor Products

At.: Repairs

8500 Marshall Drive

Lenexa, Kansas 66214

NO CANADÁ remeter para:

Bushnell Outdoor Products

At.: Repairs

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KÖLN

Alemanha

Telephone: [phone]

Fax: [phone]

©2009 Bushnell Outdoor Products

LABELA DE IDENTIFICacao E SOLUCAO DE PROBLEMAS

Se aunities nao liga n o LCD nao se ilumina:

©2009 Bushnell Outdoor Products
