Product type	Tumble dryer
Installation type	Freestanding
Drying system	Heat pump condenser
Maximum capacity	10 kg
Dimensions (H x W x D)	84.6 cm x 59.7 cm x 62.2 cm
Weight	45 kg
Power supply	220-240 V, 50 Hz
Rated power	800 W
Energy efficiency class	A++
Number of programs	15

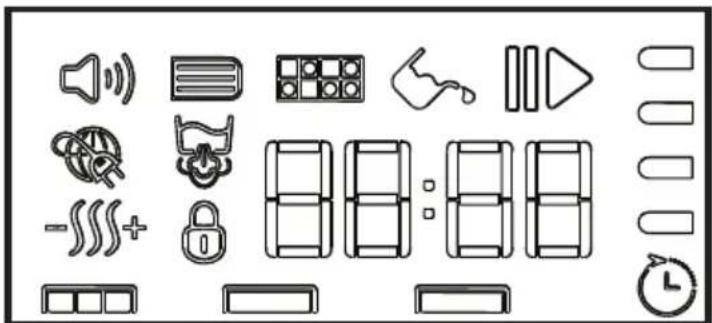

Display type	LED digital display
Delay start range	1 - 24 hours
Reverse tumbling	Yes
Anti-crease function	Yes (60 min anti-crease)
Moisture sensor	Yes (auto-sensing)
Drum light	Yes
Child lock	Yes
Maintenance	Fluff filter and condenser need regular cleaning; water tank must be emptied.
Safety features	Overheat protection, door lock, child lock
Spare parts and repairability	Common spare parts (filters, door seal, condenser, drum belt, electronic board) are widely available; repairability index rating is 8.0/10.

Frequently Asked Questions - DRZ1025B BEKO

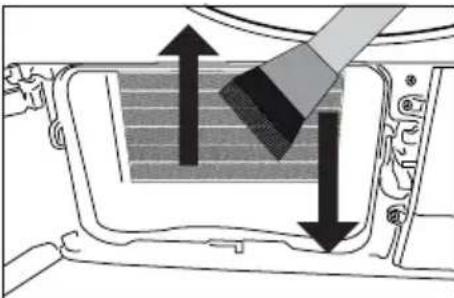

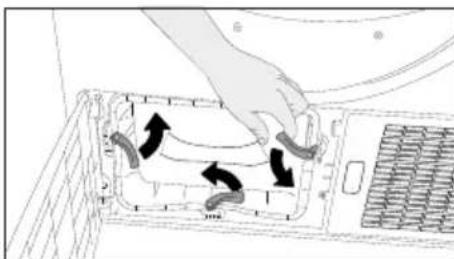

How do I clean the condenser filter?

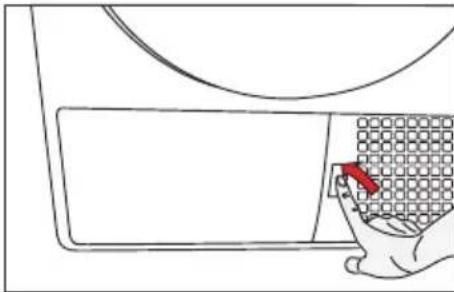

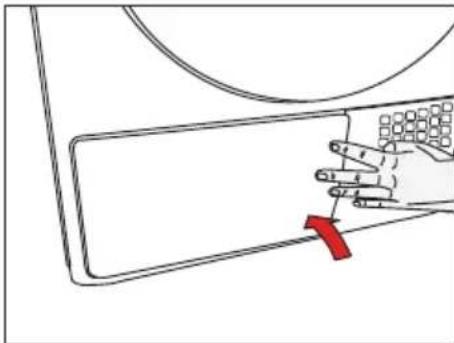

Open the access door at the bottom (or behind the flap), slide out the condenser unit, rinse it under running water, brush off fluff, and dry it before reinstalling. Regular cleaning keeps the heat pump efficient.

Why is my dryer not drying clothes completely?

Check that the fluff filter and condenser are clean, the water tank is empty, and the load does not exceed the recommended capacity. Also ensure the selected program matches the fabric type.

What is the maximum load capacity for cotton?

The maximum capacity is 10 kg for cotton. Reduce the load for delicates and synthetics to achieve optimal drying results and protect fabrics.

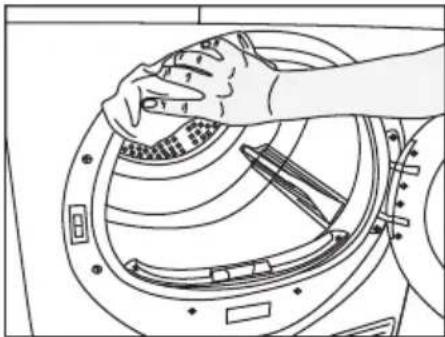

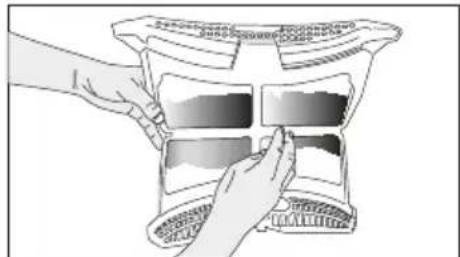

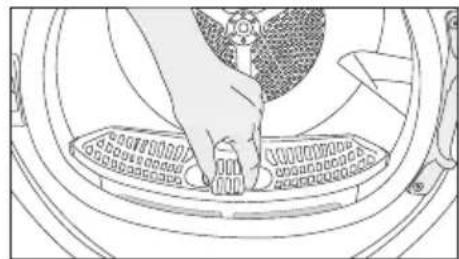

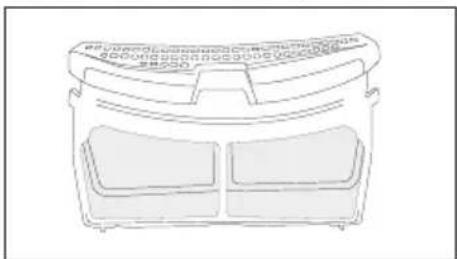

How do I clean the fluff filter?

After each cycle, open the door, pull the fluff filter, remove the lint by hand or with a soft brush, then rinse under water if necessary. Let it dry fully before putting it back. A clean filter reduces drying time and energy use.

Can I use the dryer without a drain hose connection?

Yes, this is a condenser dryer. The moisture is collected in a water tank. Empty the tank after every cycle. Alternatively, you can install the provided drain hose to direct water away, if your model supports it.

How do I activate the child lock?

Press and hold the child lock button for approximately 3 seconds until the indicator appears. To unlock, press and hold again. This prevents accidental setting changes during a cycle.

What should I do if the dryer stops during a cycle?

Check if the door is fully closed, the water tank is full, the filters are blocked, or the program has been interrupted. Press the Start/Pause button to continue. If the problem persists, contact after-sales service.

How can I reduce creasing in my laundry?

Use the anti-crease option, which rotates the drum at intervals for up to 60 minutes after the cycle ends. Also, remove clothes as soon as the cycle is finished and fold them immediately.

What is the energy consumption for a typical cycle?

For a 10 kg heat pump dryer, a full cotton cycle requires about 2.4 kWh. The energy efficiency class is A++, helping to save on electricity bills.

Can I dry wool or delicate items in this dryer?

Yes, select the delicate or wool program, which use lower temperatures and reduced drum action. Always check the care labels on garments before drying.

USER MANUAL DRZ1025B BEKO

DRZ1025B

IT | EN

2960311620_IT/300318.1723

beko

Installazione

Livello volume alto

Anti-piega 0 minuti

Tempo di fine

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning against electric shock.

Warning against hot surfaces.

Warning against fire hazard.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
  • Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

Important instructions for safety and environment

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician.
  Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

Important instructions for safety and environment

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried in the dryer considering fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer due to the fire hazard:

• Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
• Clothing cleaned with industrial chemicals. Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Important instructions for safety and environment

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.

Use softeners and similar products in accordance with the instructions of their manufacturers.

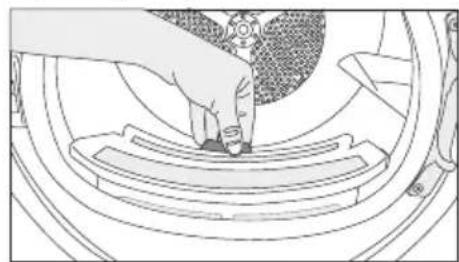

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

- Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.

- There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.

• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)

- Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.

- Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.

- The lint must not be allowed to accumulate around the tumble dryer

Important instructions for safety and environment

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm	49 cm	45 cm	40 cm
54 cm	Can be installed					Can be installed	Cannot be installed
60 cm	Can be installed					Cannot be installed

Important instructions for safety and environment

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel.

(See Child lock)

- Keep loading door closed even when the dryer is not in use.

Important instructions for safety and environment

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with highquality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important instructions for safety and environment

1.8 Technical Specifications

EN

Height (Min. / Max.) 84,6 cm /	86,6 cm*
Width 59,7 cm
Depth 65,4 cm
Capacity (max.) 10 kg**
Net weight (± 4 kg) 52 kg
Model code	See type label***Voltage
Rated power input

* Min. height: Height with adjustable feet are closed. Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing. *** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

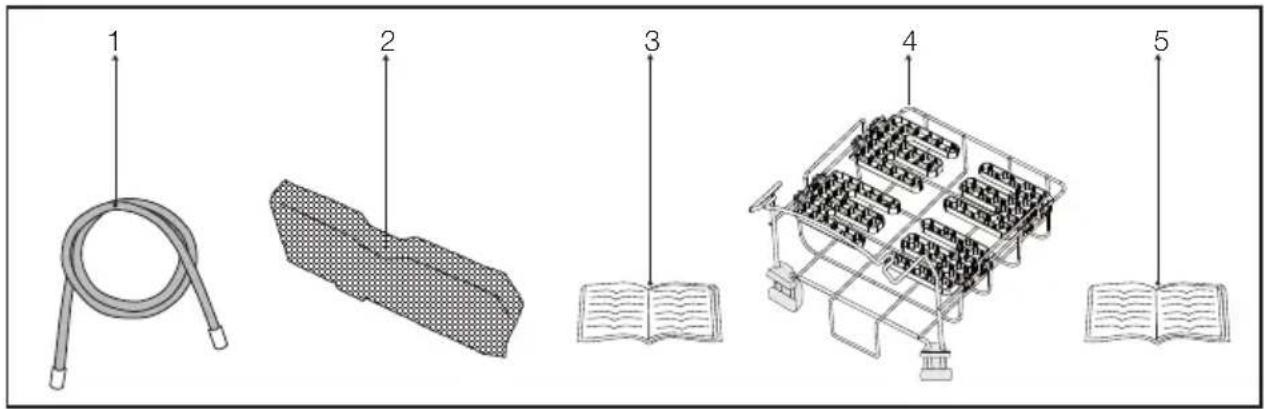

2.1 Package Contents

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual. (See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is the owners responsibility.

Prior to installation, visually check if the dryer has any defects on it. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface. Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.

- Do not cover the ventilation grills of the dryer.

- There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.

- Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).

- Place the dryer at least 1 cm away from the edges of other furniture.

- Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

- The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

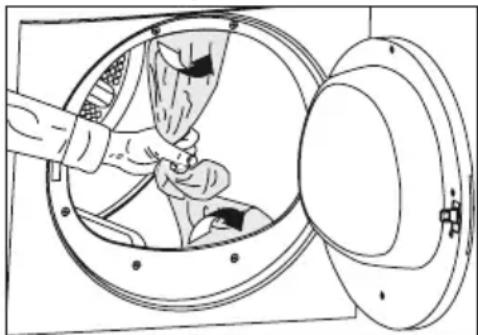

Remove the transportation safety assembly before using the dryer for the first time.

• Open the loading door.
• There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
• Pull the nylon towards yourself and remove the transportation safety assembly.

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle. You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Installation

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.

4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.4 Adjusting the feet

- In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.

- Turn the feet to left or right until the dryer stands level and firmly.

Never unscrew the adjustable feet from their housings.

3.5 Electrical connection

For specific instructions for electrical connection required during installation (see

1.1.1 Electrical Safety)

3.6 Transportation of the dryer

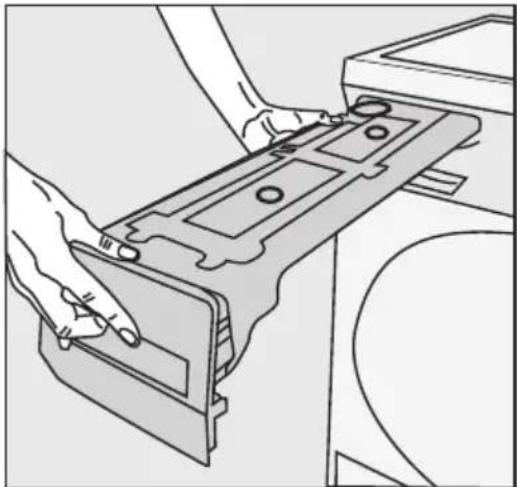

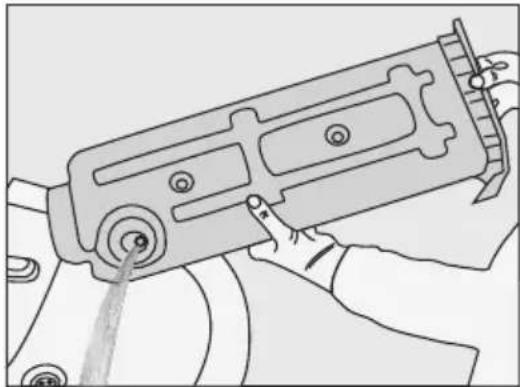

Unplug the dryer before transporting it. Drain all water that has remained in the dryer.

If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

Installation

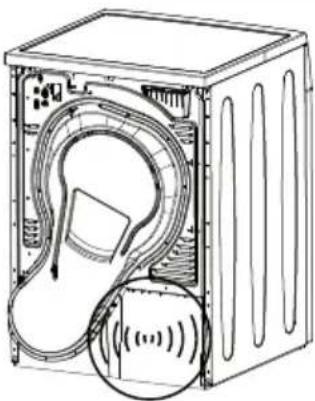

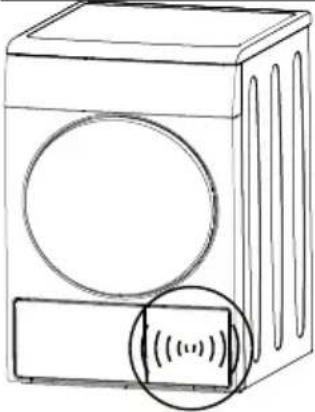

3.7 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

3.8 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer		No Iron		Sensitive / Delicate dry		Do not dry with dryer		Do not dry
	Drying Settings
		e	re		e
		At any	At hig	At metemp	At low	Witho	Hang	Lay to	Hang	Lay in shadow to dry	Dry-cl
	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature		Don iron	Iron hout
	Maximum temperature			200°C 150		°C 110		°C

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

- Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.

- Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.

- Follow the instructions in the user manual for programme selection.

- Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.

- Do not add wet laundry while the dryer is in operation

Preparation

• Clean the lint filter before or after each drying cycle. (See 6.1 Cleaning Lint Filter / Loading Door Inner Surface)
• Clean the filter drawer periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol « 📄» available. (See 6.4 Cleaning the filter drawer)
• Ventilate the room, where the dryer is located, well during drying.

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10 pieces)	100
T-Shirts 125

*Dry laundry weight before washing.

5 Operating the product

5.1 Control panel

1. Programme Selection knob
2. Dryness Level Adjustment button
3. Audio Warning Level button
4. Display
5. On /Off/Cancel button
6. Start/Pause button
7. End Time button
8. Favourite button
9. Timer Programmes Selection button
10. Anti-creasing button

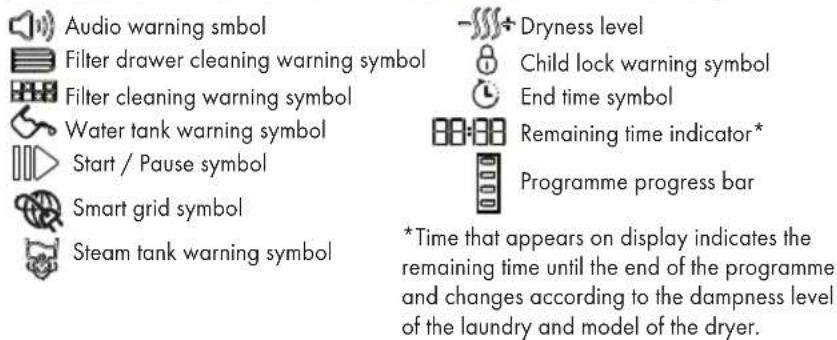

5.2 Display symbols

Operating the product

5.3 Preparing the machine

1. Plug in your machine.
2. Place the laundry in the machine.
3. Press the On/Off/Cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons.)

Pressing the On/Off/Cancel button does not mean that the programme has started. Press Start / Pause button to start the program.

5.4 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard Dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see "Programme selection and consumption table".

5.5 Main programmes

Depending on the fabric type, the following main programmes are available.

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

5.6 Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the features of your machine.

To obtain better results from your dryer, your laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine..

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mix

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Wool Refresh

You can use this program to ventilate and soften your woolen laundry that can be washed in the washing machine. Do not use this program to dry your laundry completely. Take out your laundry and ventilate them immediately after the program is over.

- Sport

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

Operating the product

- Ekspres

You can use this programme to dry your cotton laundry that you have spun at high speeds in your washing machine. This programme dries 1 kg cotton laundry (3 Shirts / 3 T-shirts) in 50 minutes.

- BabyProtect

This programme is used for baby clothes that bear machine dryable approval on its label.

- Daily

This programme is used to dry cottons and synthetics daily, and lasts for 100 minutes.

- Shirts

Use this programme to make 2 shirts ready for ironing in 30 minutes.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Delicates

You can dry your highly delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to avoid certain delicate garments and laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the programme ends in order to prevent them being creased.

- Freshen Up

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodorize unpleasant odors thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

Operating the product

5.7 Programme selection and consumption table

EN

Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry 10 1000 % 60 225
	Cupboard dry 10 / 5 1000 % 60 215 / 120
	Iron dry 10 1000 % 60 160
Babyprotect		3 1000 % 60 95
Shirts		0,5 1200 % 60 30
Jeans		4 1200 %50 110
Daily		4 1200 %50 100
Mixed		4 1000 %60		105
Sport		4 1000 %60		105
Ekspres		1 1200 %50		50
Delicates		2 600		%40	55
Wool Refresh		1,5 600		%50	8
Synthetics
	Cupboard dry	5 800 % 40 80
	Iron dry	5 800 % 40 75
Energy consumption values
Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen Ready to wear*		10 / 5 1000 % 60 2,37 / 1,25
Cottons Ready to iron		10 1000 % 60 1,6
Synthetics Ready to wear		5 800 % 40		0,7
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.R134a / 0,34 kg - GWP:1430 - 0,486 tCO2e

„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

* : Energy Label standard program (EN 61121:2012)

All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

Operating the product

5.8 Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

You can change the sound level either before the programme starts or while the programme is in progress.

Volume level low

Volume level high

Dryness level adjustment selection

### Dryness level adjustment button is used to adjust the required dryness level. Programme duration can change depending on the selection.

You can activate this function only before the programme has started.

Drying level damp

Drying level normal

Drying level extra

Anti-creasing

Anti-creasing programme duration may be changed with the Anti-creasing selection button. You can use Anti-creasing function to prevent laundry from creasing if you will not take the laundry out after the program has come to an end. This programme rotates the laundry in every 240 second for selected time to prevent creasing. Following images identify the level changes.

Operating the product

Anti-creasing 0 minute

Anti-creasing 30 minute

Anti-creasing 60 minute

Anti-creasing 120 minute

	Press Anti-creasing button to activate this function.
	Anti-creasing symbol will illuminate at the end of the programme if Anti-creasing function is activated.

Favourite selection button

A programme with the set auxiliary function is saved with Favourite selection button. When the product is switched on and off, features of the saved programme is displayed by means of Favourite selection button.

1. Select the programme with the programme button; select the auxiliary functions such as Anti-creasing, Dryness Level etc.
2. Press and hold the Favourite selection button for about 3 seconds. Features of set programme will be saved.

End time

With the End Time function, the end time of the programme may be delayed up to 24 hours. The time on the display is the total of normal drying time and end time.

• Open the loading door and put the laundry in.
• Select the drying program.

Press End Time button to set the desired time delay.

• Press Start/Pause button. Time Delaying starts countdown and the time delaying symbol lights up on the display. The “;” in the middle of the displayed delay time will flash.
  • Additional laundry may be loaded / taken out during the End Time period. At the end of the End Time countdown process, End Time symbol disappears, drying

Operating the product

process starts and the programme duration is displayed.

If loading door is opened and closed during the End Time duration, the programme will switch to pause mode. End Time function should be resumed with pressing Start/Pause button.

Changing the End time

If you want to change the time during countdown:

• End Time is deactivated when the dryer is switched off and on with On/Off/Cancel button. Restart the dryer and repeat the End Time procedure for the desired time.
• When your dryer is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Canceling End time function

If you want to cancel the End Time countdown and start the programme immediately:

• End Time is deactivated when the dryer is switched off and on with On/Off/Cancel button.
• Press Start/Pause button to start the programme you have previously selected.

5.9 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear continuously indicating that the filter needs to be cleaned.

For detailed information, see 6 Maintenance and cleaning.

If the filter cleaning symbol flashes continuously, see 7 Troubleshooting.

Draining the water tank

When the programme is completed, a warning symbol will appear continuously to remind that the water tank needs to be drained.

For detailed information, see 6 Maintenance and cleaning.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and the dryer will pause. Drain the water in the water tank and press Start / Pause button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning the filter drawer

Warning symbol flashes to remind that the filter drawer needs to be cleaned.

For detailed information, see 6 Maintenance and cleaning.

Operating the product

Loading door open

This warning symbol Pause appears and programme progress symbol flashes when the loading door of the dryer is open.

5.10 Starting the programme

Press the Start/Pause button to start the program.

Start symbol will light up to indicate that the programme has started and “:” symbol in the middle of the remaining time will keep flashing. Drying and programme progress bar will be displayed alternately.

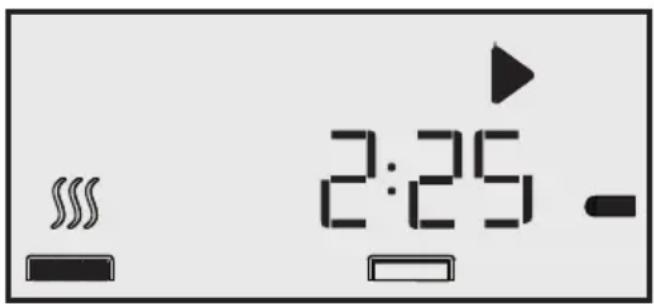

5.11. Progress of programme

5.12 Child Lock

Machine is equipped with a Child Lock which prevents interfering with the current programme flow by pressing any button.

To activate the Child Lock:

• Press and hold Childproof Lock button for 3 seconds.
• Child Lock symbol will appear on the display when the Child Lock is activated.

• All buttons except the On/Off/Cancel and Child Lock button on the control panel are deactivated when the Child Lock is active.
• Display symbols will not change even if the position of Programme Selection knob is changed while the child lock button is active.
• When the programme selection knob is turned and function buttons are pressed. Child Lock warning will be displayed.
• To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated.

To deactivate the childproof lock:

• Press and hold Child Lock button for 3 seconds.
• Child Lock is deactivated when the dryer is switched off and on with On/Off/Cancel button.

5.13 Changing the programme after it has started

• After the dryer starts operation, you can change the selected programme and dry your laundry in a different programme.
- Press and hold Start / Pause button for 1 seconds to pause the programme.
- Select desired programme by turning the Programme Selection knob.
- Press the Start/Pause button to start the program.

Adding / removing laundry while the dryer is in operation

• In order to add or take out laundry after the drying programme has started:
• Press the Start/Pause button to switch the dryer to Pause mode. Drying process will pause.
• While in Pause mode, open the loading door, add or take out laundry and close the loading door.
• Press the Start/Pause button to resume the program.

Operating the product

	Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.
	You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.
	If you select a new programme by turning the Programme Selection knob while your drier is in Pause mode, then the current program is aborted and new programme information is displayed.
	Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Drum surface and dryer air within is hot.

5.14 Canceling the programme

To cancel the programme after the dryer is started:

• Press and hold Start / Pause button for 1 seconds to pause the programme and turn the programme selection knob.
• Press and hold On / Off / Cancel Button for 3 seconds and the programme will be cancelled.

As the dried laundry will be excessively hot when you cancel the programme while the dryer is running, activate the Refresh programme to cool them down.

5.15 End of programme

When the programme comes to an end Lint filter cleaning and Water tank warning symbols light up in the programme follow-up indicator. To turn off the dryer press On / Off / Cancel button.

	2-hour Anti-creasing program will be activated if the laundry is not taken out after the program has come to an end.
	Clean the lint filter after each drying. See 6.1 Cleaning lint filter and loading door inner surface.
	Drain the water tank after each drying cycle. See 6.3 Draining the water tank.

6 Maintenance and cleaning

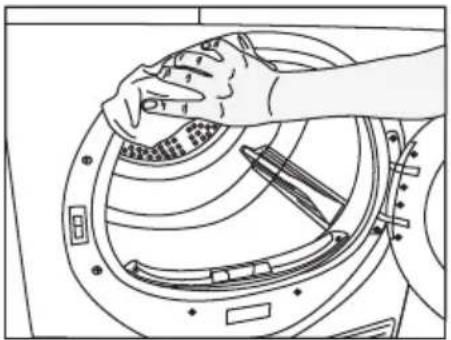

6.1 Loading Door Inner Surface

The hair and fibres that are separated from the laundry during drying process is collected by the Fibre Filter.

	Fibres are formed during wearing and washing clothes.
	After each drying cycle, clean the fibre filter and the inner surface of the loading door.
	You can clean the filter slot with a vacuum cleaner.

To clean the fibre filter:

- Open the loading door.

- Hold the first part (inner filter) of the two part fibre filter and remove it by pulling it upwards.

- Collect the hair, fibres and cotton balls with hand or with a soft cloth.

- Remove the second part (outer filter) by pulling it upwards.

Ensure that hair, fibre and cotton balls do not fall into the slot where the filters are installed.

- Open both fibre filters (inner and outer filters) remove the hair, fibre, cotton balls with your damp hand or a vacuum cleaner or a cloth.

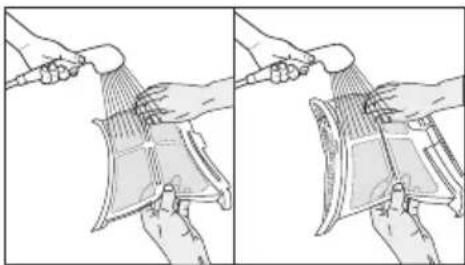

- Clean both filters under water running in reverse direction of fibre accumulation or with a soft brush. Dry the filter before placing it back.

- Insert the fibre filters on one another and place it back in its place.

Maintenance and cleaning

- Clean the loading door interior and its washer with a soft damp cloth.

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not. To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.

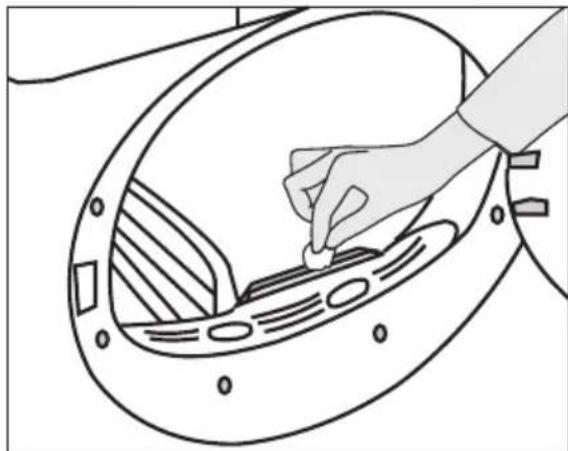

• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

	Condensed water is not drinkable!
	Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank: Pull the drawer and remove the water tank carefully.

Maintenance and cleaning

- Drain the water in the tank.

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the evaporator

The hair and fibres that are not caught by the fibre filter goes to the fins of the evaporator behind the toe board and accumulates here. If the evaporator icon is flashing or in 6 month periods, clean the evaporator. Open the toe board by pressing on it.

- To open the air routing door, move the release latch.

- Clean the fibres on the evaporator with a damp cloth / vacuum cleaner with a brush by moving upwards and downwards.

• After the cleaning process is completed, place the air router door to its place, move the latches to close it and close the toe board.

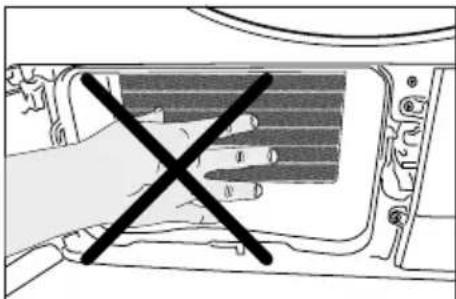

You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands.

Maintenance and cleaning

Cleaning by left to right movements may damage the evaporator fins. This may lead to drying issues.

7 Troubleshooting

Drying operation takes too long.

Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry.

Evaporator front side may be clogged. >>> Clean the front side of the evaporator.

The ventilation grills in front of the machine may be closed. >>> Remove any object in front of the ventilation grills that blocks air.

Ventilation may be inadequate because the are the machine is installed in is too small. >>> Open the door or windows to prevent the room temperature from rising very high.

A lime layer may have accumulated on the humidity sensor. >>> Clean the humidity sensor.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

Laundry that comes out at the end of the drying process feels more humid than it actually is.

A program not suitable for the laundry type may have been used.>>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra.

Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the filters with warm water and dry.

Evaporator front side may be clogged. >>> Clean the front side of the evaporator.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the power cord is plugged in.

Loading door might be open. >>> Ensure that the loading door is properly closed.

A program might not be set or Start / Pause / Cancel button might not be pressed. >>> Check that the program is set and it is not in Pause position..

Child lock may be activated. >>> Turn off the child lock.

Program terminated prematurely for no reason.

Loading door might be closed completely. >>> Ensure that the loading door is properly closed.

There might be a power outage. >>> Press the Start / Pause / Cancel button to start the program.

Water tank may be full. >>> Empty the water tank.

Clothes have shrunk, hardened or spoiled.

A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Troubleshooting

Loading door opens by itself.
Loading door might be closed completely. >>> Push the loading door until the closing sound is heard.
Water tank warning symbol is on/flashing.
Water tank may be full. >>> Empty the water tank.Water discharge hose might have collapsed. >>> If the product is connected directly to the water drain check the water discharge hose.
The lighting inside the drying machine does not turn on. (In models with lamp)
The drying machine might not have been turned on using On/Off button. >>> Check that the drying machine is turned on.Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.
Anti-crease icon is lit.
Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry.
Fibre filter cleaning icon is lit.
Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry..A layer may be formed on the fibre filter pores that leads to clogging. >>> Wash the filters with warm water and dry.Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.An audible warning is heard from the machine
Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.
Evaporator warning icon is flashing.
Evaporator front side may be clogged with fibres. >>> Clean the front side of the evaporator.Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.
The lighting inside the drying machine turns on. (In models with lamp)
If the drying machine is plugged to the power outlet, the On/Off button is pressed and the door is open; the light turns on. >>> Unplug the drying machine or bring the On/Off button to Off position.
	If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.
	In an event that you encounter an issue on any part on your appliance, you can ask for a replacement by contacting the authorized service with the appliance model number.Operating the appliance with non-authentic parts may lead the appliance to malfunction.Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		Beko
Model name		DRZ1025B
Rated capacity (kg)		10
Type of Tumble Dryer	Air Vented	-
	Condenser	●
Energy efficiency class (1)		A++
Annual Energy Consumption (kWh) (2)		281
Type of Control	Automatic	●
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		2,37
Energy consumption of the standard cotton programme at partial load (kWh)		1,25
Power consumption of the off-mode for the standart cotton programme at full load, Po (W)		0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme (3)
Programme time of the standard cotton programme at full load, Tdry (min)		215
Programme time of the standard cotton programme at partial load, Tdry1/2 (min)		120
Weighted programme time of the standard cotton programme at full and partial load ( Ti )		161
Condensation efficiency class (4)		A
Average condensation efficiency of the standard cotton programme at full load, Cdry		91%
Average condensation efficiency of the standard cotton programme at partial load, Cdry1/2		91%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, Ct		91%
Sound power level for the standard cotton programme at full load (5)		66
Built-in		-

• : Yes -: No

(1) Scale from A+++ (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Scale from G (lest efficient) to A (most efficient)
(5) Weighted average value — L_WA expressed in dB(A) re 1 pW
