Product type	Wii controller battery charger
Brand	THRUSTMASTER
Model	T-CHARGE DUO NW
Power supply	USB port (Wii console or other self-powered USB device)
Number of slots	2 (for two Wiimotes)
Battery type	Rechargeable AAA NiMH batteries (supplied with adapter pack)
Battery capacity	900 mAh each
Charging time	4 hours for one Wiimote (900 mAh batteries)
Battery life	12 to 15 hours depending on use
LED indicator	Blue LED on during charging, blinking when fully charged
Safety function	Integrated heat sensor for continuous charging
Compatibility	Nintendo Wii Remote (Wiimote) with or without T-Protection NW cover
Care instructions	Clean with a soft, dry cloth
Weight	Approx. 150 g (estimated)
Dimensions	Approx. 15 x 10 x 5 cm (estimated)
Warranty	2 years (material and manufacturing defects)
Environmental information	Do not dispose of with household waste, recycle at a WEEE collection point

Frequently Asked Questions - T-CHARGE DUO NW THRUSTMASTER

How long does it take to charge a Wiimote with the T-CHARGE DUO NW?

Full charging time is approximately 4 hours for a Wiimote equipped with 900 mAh batteries.

What does the blinking blue LED mean?

The blue LED blinks when the batteries are fully charged. It remains solid during charging.

Can I use the charger with a Wii in standby mode?

Yes, make sure the console is in active mode (green LED) or standby with WiiConnect24 enabled (orange LED). For other devices, consult their documentation.

What type of batteries can be used?

The charger works with rechargeable AAA NiMH batteries with a recommended capacity of at least 900 mAh. The supplied battery pack is specific.

Can I leave the charger plugged in permanently?

Yes, the T-CHARGE DUO NW is equipped with a heat sensor that ensures safe charging even when plugged in continuously.

What should I do if the LED does not turn on?

Check the positioning of the Wiimote, the presence and polarity of the batteries, that the USB cable is properly connected and that the host device is on. If the problem persists, contact technical support.

How do I install the battery pack in the Wiimote?

Remove the original cover and batteries, insert the rechargeable batteries into the pack respecting polarity, then place the pack in the compartment. Replace the original cover if necessary.

Is the charger compatible with Wii U controllers?

The T-CHARGE DUO NW is specifically designed for the original Nintendo Wii Wiimote. It may not be compatible with Wii U controllers without adaptation.

Where can I find drivers or technical support?

Visit the website http://ts.thrustmaster.com for the FAQ, drivers and technical support. You can also contact support by phone depending on your country.

How to recycle the product at the end of its life?

Do not dispose of the device with household waste. Take it to a WEEE collection point for recycling.

USER MANUAL T-CHARGE DUO NW THRUSTMASTER

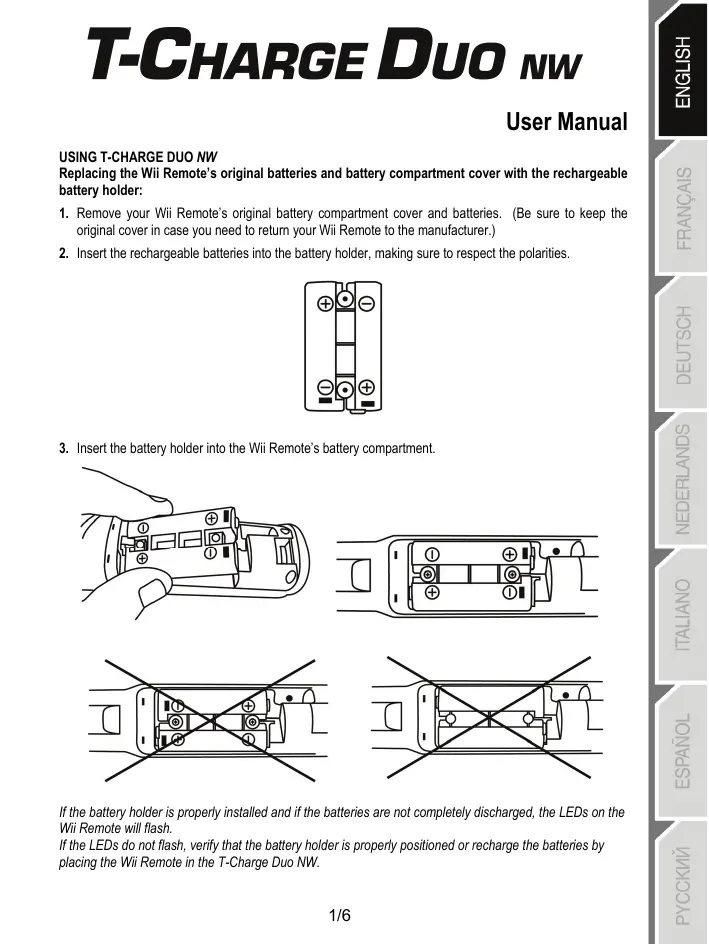

USING T-CHARGE DUO NW

Replacing the Wii Remote's original batteries and battery compartment cover with the rechargeable battery holder:

1. Remove your Wii Remote's original battery compartment cover and batteries. (Be sure to keep the original cover in case you need to return your Wii Remote to the manufacturer.)
2. Insert the rechargeable batteries into the battery holder, making sure to respect the polarities.

1. Insert the battery holder into the Wii Remote's battery compartment.

If the battery holder is properly installed and if the batteries are not completely discharged, the LEDs on the Wii Remote will flash.

If the LEDs do not flash, verify that the battery holder is properly positioned or recharge the batteries by placing the Wii Remote in the T-Charge Duo NW.

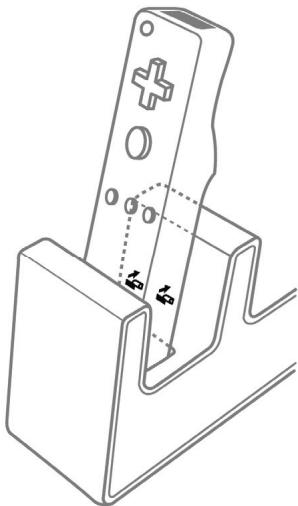

RECHARGING A WII REMOTE

1. Connect the USB connector on the T-Charge Duo NW to the USB plug (on your Nintendo® Wii™ console or on any other device with a self-powered USB port.
2. Ensure that your Nintendo® Wii™ console (or your device) is in active or standby mode. (For the Wii™: green LED = active mode, orange LED = standby mode with WiiConnect24 enabled*. For other devices: please refer to the manufacturer's documentation.)
3. Place your Wii Remote in one of the two dedicated slots on the T-Charge Duo NW, making sure that the wrist strap does not interfere with the proper positioning of the contacts on the Wii Remote with the contacts on the T-Charge Duo NW.

The blue LED corresponding to the occupied slot lights up. When the batteries are completely recharged, the blue LED flashes.

Full charging time for two 900 mAh batteries: 4 hours (for 1 Wii Remote). Average battery life = 12 to 15 hours, depending on the type of use.

We recommend that you always put the Wii Remote back in its slot in the T-Charge Duo NW when it is not in use.

For your security, the T-Charge Duo NW is equipped with a heat sensor, allowing you to leave it plugged in permanently.

• Please refer to your Wii™'s instructions for information on how to enable WiiConnect24 mode.

TROUBLESHOOTING

Problem

Probable cause

The LED on the T-Charge Duo NW does not light up ...

· The Wii Remote is not properly positioned in the T-Charge Duo NW. · There are no batteries in the battery holder. · The polarities are not properly aligned. · You are not using AAA rechargeable batteries. · The Wii™ console or device is powered off. · The USB cable is not connected properly. · The USB port is defective. · Battery life may diminish over time. If need be, you can purchase replacement AAA NiMH rechargeable batteries from a retailer (Recommended power ≥ 900 mAh).

Attention:

Be sure to always follow the Wii Remote's instructions for use found in your Wi^TM manual.

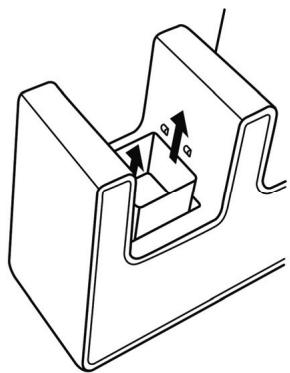

If your Wii Remote is equipped with the T-Protect NW protection system -specially designed by Thrustmaster to be compatible with the T-Charge Duo NW-, you must first remove the removable support before inserting the Wii Remote in the T-Charge Duo NW (Please refer to the diagram below).

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click Technical Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you can contact the Thrustmaster products technical support service ("Technical Support"):

By email:

In order to take advantage of technical support by email, you must first register online. The information you provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in theUsername and Password fields and then click Login.

By telephone:

United Kingdom	08450800942Charges at local rate	Monday to Friday from Noon to 4pm and 5pm to 10pm Saturday from 9am to Noon and 1pm to 7pm Sunday from 9am to Noon and 1pm to 4pm
United States	1-866-889-5036Free	Monday to Friday from 7am to 11am and from Noon to 5pm Saturday and Sunday from 7am to Noon (Eastern Standard Time)
Canada	1-866-889-2181 Gratisuit / Free	Monday to Friday from 7am to 11am and from Noon to 5pm Saturday and Sunday from 7am to Noon (Eastern Standard Time)
Denmark	80887690Free	Monday to Friday from 1pm to 5pm and 6pm to 11pm (English) Saturday from 9am to 1pm and 2pm to 8pm Sunday from 10am to 1pm and 2pm to 5pm
Sweden	0200884567Free	Monday to Friday from 1pm to 5pm and 6pm to 11pm (English) Saturday from 9am to 1pm and 2pm to 8pm Sunday from 10am to 1pm and 2pm to 5pm
Finland	0800 913060Free	Monday to Friday from 2pm to 6pm and 7pm to Midnight (English) Saturday from 10am to 2pm and 3pm to 9pm Sunday from 11am to 2pm and 3pm to 6pm

WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A. ("Guillemot") warrants to the consumer that this Thrustmaster product will be free from material defects and manufacturing flaws for a period of two (2) years from the original date of purchase. Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product will, at Technical Support's option, be either repaired or replaced. Where authorized by applicable law, the full liability of Guillemot and its subsidiaries (including for indirect damages) is limited to the repair or replacement of the Thrustmaster product. The consumer's legal rights with respect to legislation applicable to the sale of consumer goods are not affected by this warranty.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause not related to a material defect or manufacturing flaw; (2) in the event of failure to comply with the instructions provided by Technical Support; (3) to software not published by Guillemot, said software being subject to a specific warranty provided by its publisher.

Additional warranty provisions

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. Any applicable implied warranties, including warranties of merchantability and fitness for a particular purpose, are hereby limited to two (2) years from the date of purchase and are subject to the conditions set forth in this limited warranty. In no event shall Guillemot Corporation S.A. or its affiliates be liable for consequential or incidental damage resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of incidental/consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State or Province to Province.

COPYRIGHT

© 2008 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Wii is a trademark of Nintendo Co., Ltd. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

FAQs, tips and drivers available at www.thrustmaster.com
