Product type	Wall-mounted split air conditioner
Brand	MITSUBISHI
Model	MSZ-FD09NA
Cooling capacity	9000 BTU/h (estimated)
Power supply	230 V / 50 Hz (standard)
Cooling operation range	Indoor: 67°F to 90°F (19.4°C to 32.2°C); Outdoor: 14°F to 115°F (-10°C to 46.1°C)
Heating operation range	Indoor: 70°F to 80°F (21.1°C to 26.7°C); Outdoor: 5°F to 75°F (-15°C to 23.9°C)
Main functions	Cooling, heating, dehumidification, ventilation, auto mode, powerful mode, i-see, zone, timer (on/off), auto restart
Temperature control	Adjustment in increments of 1°F/1°C, selectable unit
i-see sensor	Detects room and surface temperature to adjust comfort
Zone setting	Left, center, right zone selection with i-see sensor
Airflow direction	Adjustable vertical and horizontal; automatic oscillation possible
Air filter	Washable, cleaning recommended every 2 weeks
Air purification filter	Reference MAC-418FT-E (annually) or MAC-308FT-E (replace if persistent odor)
Maintenance	Clean filters regularly; do not use gasoline, thinner, abrasive powder; cut power before cleaning
Safety	Ground fault circuit interrupter, grounding mandatory, do not insert objects into air inlets/outlets
Spare parts	Filters available (references above); consult an authorized dealer for any other parts
Repairability	User should not repair; contact an authorized professional
Remote control batteries	2 AAA batteries (estimated), battery life about 1 year

Frequently Asked Questions - MSZ-FD09NA MITSUBISHI

What to do if the indoor unit does not turn on?

First, check that the circuit breaker is on and the power plug is properly inserted. Also make sure the timer (ON) is not programmed. If nothing works, contact an authorized dealer.

Why does mist come out of the indoor unit?

Mist is normal in cooling mode: the cold air rapidly cools ambient humidity, creating a fine vapor. This phenomenon usually disappears after a few minutes.

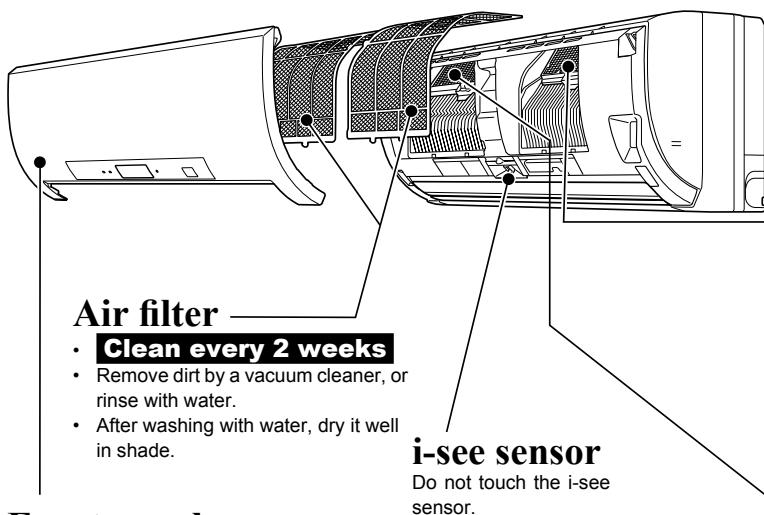

How to clean the air filter?

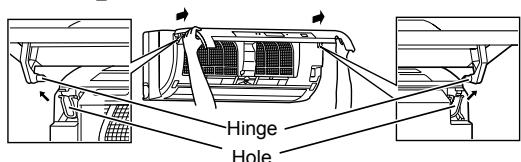

Turn off the power. Open the front panel, remove the filter and clean it with a vacuum cleaner or lukewarm water (max 50°C). Let it dry completely in the shade before reinstalling. It is recommended to clean it every 2 weeks.

The air conditioner does not heat enough, what to do?

Check the temperature setting (should be above room temperature). Set the fan speed to higher. If the filters are dirty, clean them. In case of very low outdoor temperatures, the heating capacity may decrease.

Why does the outdoor unit fan sometimes stop?

In cooling mode in cold weather, the fan operates intermittently to maintain sufficient pressure. In heating mode, it may stop during defrosting. This is normal.

What does the flashing indicator mean?

A flashing operation indicator indicates a malfunction. Turn off the power and contact an authorized dealer. Do not attempt to repair yourself.

How to use the i-see function?

Press the i-see button on the remote control in cooling mode. The sensor measures the room and surface temperature to automatically adjust the setpoint and improve comfort. Press again to cancel.

The air conditioner restarts automatically after a power outage, is that normal?

Yes, this model is equipped with an auto restart function. If you wish to disable it, contact a professional.

What types of batteries to use for the remote control?

Use two identical alkaline AAA (LR03) batteries. Do not use manganese or rechargeable batteries. Replace both as soon as they are weak.

How to adjust the airflow direction?

Press the vertical or horizontal direction button on the remote control. You can select a fixed position or automatic oscillation. In cooling mode, direct the air upward to avoid condensation.

USER MANUAL MSZ-FD09NA MITSUBISHI

SPLIT-TYPE AIR CONDITIONERS

INDOOR UNIT

MSZ-FD09NA

MSZ-FD12NA

OPERATING INSTRUCTIONS

For user

• To use this unit correctly and safely, be sure to read these operating instructions before use.

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure to read these "Safety Precautions" before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
• After reading this manual, keep it together with the installation manual in a handy place for easy reference.
• Be sure to receive a guarantee card from your dealer and check that the purchased date and shop name, etc. are entered correctly.

Marks and their meanings

WARNING: Incorrect handling could cause serious hazard, such as death, serious injury, etc. with a high probability.
CAUTION: Incorrect handling could cause serious hazard depending on the conditions.

WARNING

Do not connect the power cord to an intermediate point, use an extension cord, or connect multiple devices to a single AC outlet. ·This may cause overheating, fire, or electric shock.

Make sure the power plug is free of dirt and insert it securely into the outlet. ·A dirty plug may cause fire or electric shock.

Do not bundle, pull, or modify the power cord, and do not apply heat or place heavy objects on it. ·This may cause fire or electric shock.

Do not turn the breaker OFF/ON or disconnect/connect the power plug during operation. ·This may create sparks, which can cause fire. ·After the indoor unit is switched OFF with the remote controller, make sure to turn the breaker OFF or disconnect the power plug.

Do not expose your body directly to cool air for a prolonged length of time. ·This could be detrimental to your health.

The unit should not be installed, relocated, or repaired by the user. ·An improperly handled air conditioner may cause fire or electric shock.

Do not insert your finger, a stick, or other objects into the air inlet or outlet. ·This may cause injury, since the fan inside rotates at high speeds during operation.

Meanings of symbols used in this manual

: Be sure not to do.
: Be sure to follow the instruction.
: Never insert your finger or stick, etc.
: Never step onto the indoor/outdoor unit and do not put anything on them.
: Danger of electric shock. Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut off the power.

In case of an abnormal condition (such as a burning smell),stop the air conditioner and disconnect the power plug or turn the breaker OFF. · A continued operation in the abnormal state may cause a malfunction, fire, or electric shock. In this case, consult your dealer.

When the air conditioner does not cool or heat, there is a possibility of refrigerant leakage. In this case, consult your dealer. If a repair involves recharging the unit with refrigerant, ask the service technician for details. · The refrigerant used in the air conditioner is safe. Normally, it does not leak. However, if refrigerant leaks and comes in contact with a heat source such as a fan heater, kerosene heater, or cooking stove, it will create a harmful gas.

CAUTION

Do not touch the air inlet or the aluminum fins of the indoor/outdoor unit. · This may cause injury.

Do not use insecticides or flammable sprays on the unit. · This may cause a fire or deformation of the unit.

Do not expose pets or houseplants to direct airflow. · This may cause injury to the pets or plants.

Do not place other electric appliances or furniture under the indoor/outdoor unit. · Water may drip down from the unit, which may cause damage or malfunction.

Do not leave the unit on a damaged installation stand. · The unit may fall and cause injury.

SAFETY PRECAUTIONS

CAUTION
Do not step on an unstable bench to operate or clean the unit. ·This may cause injury if you fall down.	Do not charge or disassemble the batteries, and do not throw them into a fire. ·This may cause the batteries to leak, or cause a fire or explosion.
Do not operate the unit for more than 4 hours at high humidity (80% RH or more) and/or with windows or outside door left open. ·This may cause the water condensation in the air conditioner, which may drip down, wetting or damaging the furniture. ·The water condensation in the air conditioner may contribute to growth of fungi, such as mold.	Do not use the unit for special purposes, such as storing food, raising animals, growing plants, or preserving precision devices or art objects. ·This may cause deterioration of quality, or harm to animals and plants.
Do not expose combustion appliances to direct airflow. ·This may cause incomplete combustion.	Before cleaning the unit, switch it OFF and disconnect the power plug or turn the breaker OFF. ·This may cause injury, since the fan inside rotates at high speeds during operation.
When the unit will be unused for a long time, disconnect the power plug or turn the breaker OFF. ·The unit may accumulate dirt, which may cause overheating or fire.	Replace all batteries of the remote controller with new ones of the same type. ·Using an old battery together with a new one may cause overheating, leakage, or explosion.
If the battery fluid comes in contact with your skin or clothes, wash them thoroughly with clean water. ·If the battery fluid comes in contact with your eyes, wash them thoroughly with clean water and immediately seek medical attention.	Ensure that the area is well-ventilated when the unit is operated together with a combustion appliance. ·Inadequate ventilation may cause oxygen starvation.
Turn the breaker OFF when you hear thunder and there is a possibility of a lightning strike. ·The unit may be damaged if lightning strikes.	After the air conditioner is used for several seasons, perform inspection and maintenance in addition to normal cleaning. ·Dirt or dust in the unit may create an unpleasant odor, contribute to growth of fungi, such as mold, or clog the drain passage, and cause water to leak from the indoor unit. Consult your dealer for inspection and maintenance, which require specialized knowledge and skills.

A	Do not operate switches with wet hands. ·This may cause electric shock.
	Do not clean the air conditioner with water or place an object that contains water, such as a flower vase, on it. ·This may cause fire or electric shock.
B	Do not step on or place any object on the outdoor unit. ·This may cause injury if you or the object falls down.

IMPORTANT

Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.

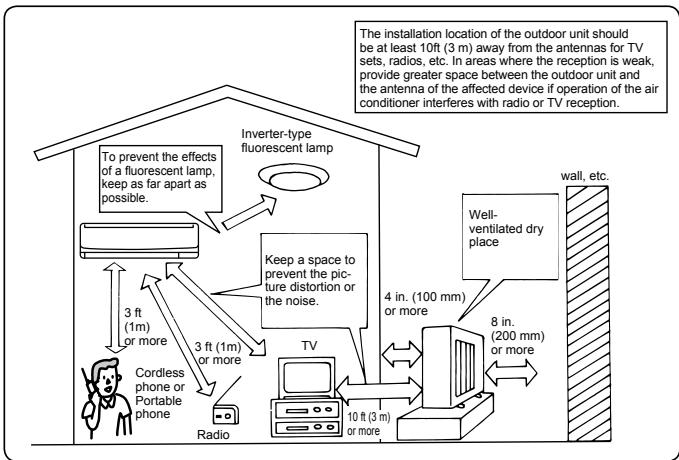

For installation

WARNING
	Consult your dealer for installing the air conditioner. ·It should not be installed by the user since installation requires specialized knowledge and skills. An improperly installed air conditioner may cause water leakage, fire, or electric shock.
	Provide a dedicated power supply for the air conditioner. ·A non-dedicated power supply may cause overheating or fire.
	Do not install the unit where flammable gas could leak. ·If gas leaks and accumulates around the unit, it may cause an explosion.
	Ground the unit correctly. ·Do not connect the ground wire to a gas pipe, water pipe, lightning rod, or a telephone ground wire. Improper grounding may cause electric shock.
CAUTION
	Install a Ground Fault Interrupt (GFI) circuit breaker depending on the installation location of the air conditioner (such as highly humid areas). ·If the Ground Fault Interrupt (GFI) breaker is not installed, it may cause electric shock.
	Ensure that the drain water is properly drained. ·If the drain passage is improper, water may drip down from the indoor/outdoor unit, wetting and damaging the furniture.
In case of an abnormal condition Immediately stop operating the air conditioner and consult your dealer.

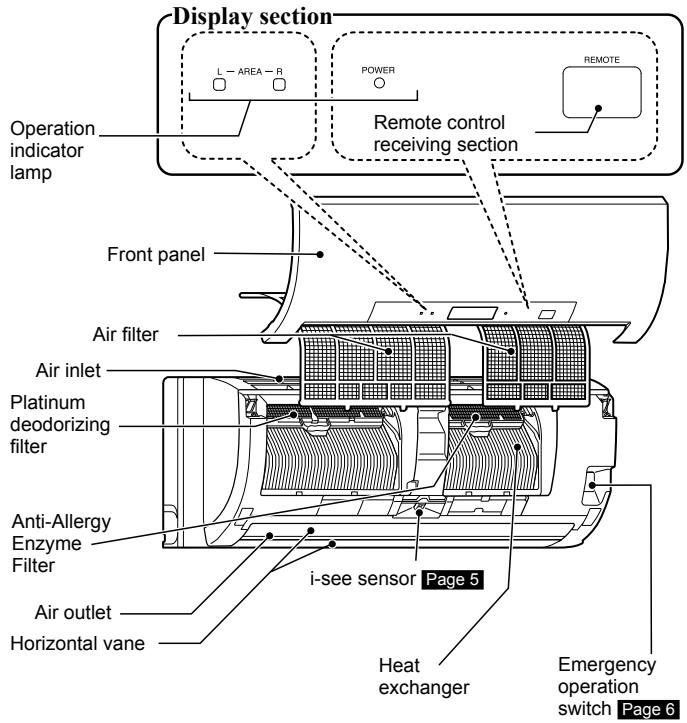

NAME OF EACH PART

Indoor unit

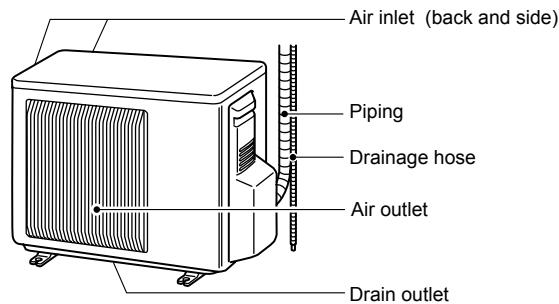

Outdoor unit

Outdoor units may be different in appearance.

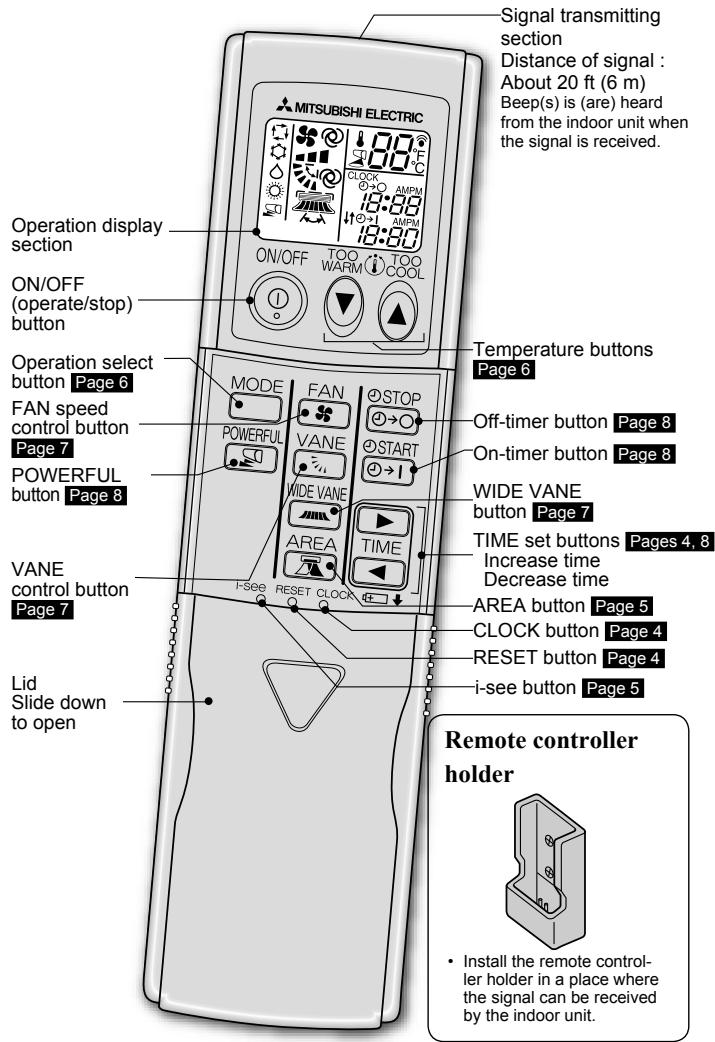

Remote controller

Only use the remote controller provided with the unit. Do not use other remote controllers.

Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.

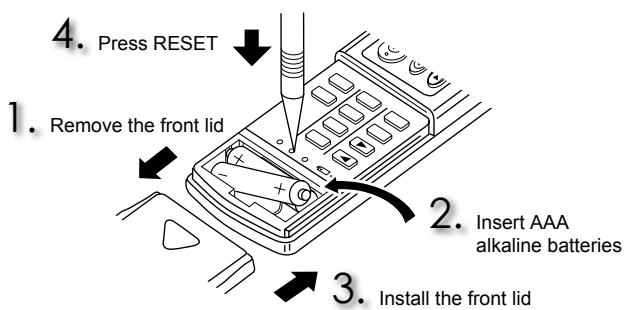

Installing the remote controller batteries

Be sure to set the installation position before installing the batteries. Page 5

Make sure the polarity of the batteries is correct.
- Do not use manganese batteries. The remote controller could malfunction.
- Do not use rechargeable batteries.
- Replace all batteries with new ones of the same type.
- Batteries can be used for approximately 1 year. However, batteries with expired shelf lives last shorter.
- Press RESET gently using a thin instrument.

If the RESET button is not pressed, the remote controller may not operate correctly.

Setting current time

1. Press CLOCK

1. Press CLOCK again

Press the TIME buttons to set the time Each press increases/decreases the time by 1 minute (10 minutes when pressed longer)

• Press CLOCK gently using a thin instrument.

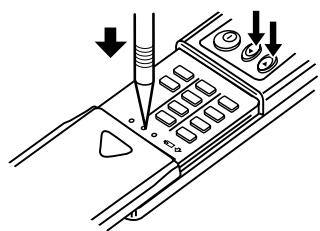

Changing temperature units (^ F ^ C)

Unit is preset with ^ F

1. Press RESET while the temperature buttons are pressed.

• Press RESET gently using a thin instrument.
• To change temperature unit from ^ C to ^ F , press RESET.

Setting the installation position

Be sure to set the slide switch inside the remote controller in accordance with the installed position of the indoor unit.

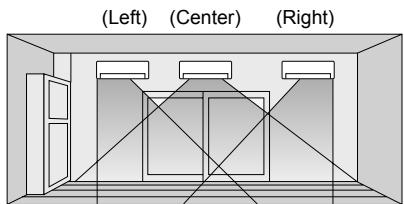

Installation position:

Left: Distance to objects (wall, cabinet, etc.) is less than 19-11/16 in. (50 cm) to the left
Center: Distance to objects (wall, cabinet, etc.) is more than 19-11/16 in. (50 cm) to the left and right
Right: Distance to objects (wall, cabinet, etc.) is less than 19-11/16 in. (50 cm) to the right

Area	Left	Center	Right
Slide switch	L.C.R	L.C.R	L.C.R
Remote controller display

i-see Press during COOL mode to activate i-see control operation.

• Press gently using a thin instrument.
  lights. (Operation display section)

i-see Press again to release i-see control operation.

i-see control operation

The sensors constantly measure the room and floor/wall temperature to automatically adjust to the set temperature by estimating the temperature actually perceived by a person inside the room ("sensible temperature").

i-see sensor

When the AREA setting is not activated, the sensing range of the i-see sensor differs depending on the installation location of the air conditioner.

Installation position	Left	Center	Right
Sensing range

Note:

Do not touch the i-see sensor. This may cause malfunction of the i-see sensor.

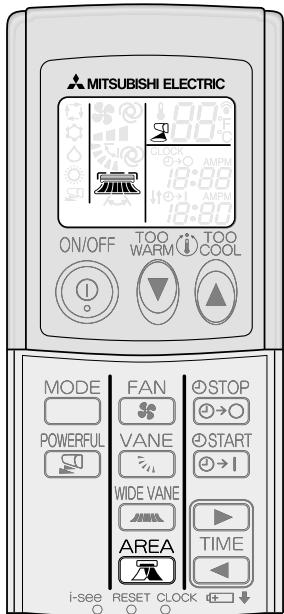

AREA SETTING

Press AREA to select AREA. Each press changes AREA in the following order:

• The i-see control operation has to be active to select AREA.
  Horizontal airflow direction cannot be selected when AREA is set. WIDE VANE
  *1 Horizontal airflow direction set by. Page 7

AREA Press until "Cancel" is selected to release AREA setting. WDE VANE Pressing also releases AREA setting.

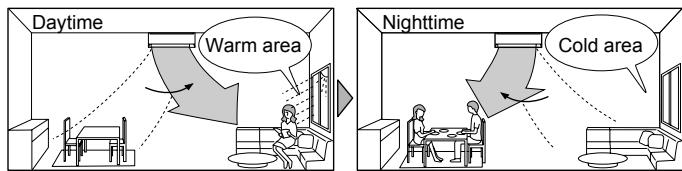

Area

(AUTO)....The i-see sensor detects temperature disparities, efficiently cooling and heating the whole room.

In COOL mode:

(LEFT)/RIGHT)

Select the desired area to be air conditioned.

Indoor unit display

Horizontal airflow direction:

Lighted

Not lighted

1 Press ON/OFF to start the operation.
2 Press MODE to select operation mode. Each press changes mode in the following order:

3 Press or to set the temperature. Each press raises or lowers the temperature by 1^ (1^)
ON/OFF Press to stop the operation. The same setting is selected the next time by simply pressing ON/OFF

AUTO mode (Auto change over)

The unit selects the operation mode according to the difference between the room temperature and the set temperature. During AUTO mode, the unit changes mode (COOL HEAT) when the room temperature is 4^ ( 2^ ) away from the set temperature for more than 15 minutes.

Note:

• Two or more indoor units can be operated by one outdoor unit. When several indoor units are operated simultaneously, the unit may not be able to switch operation mode between COOL and HEAT. In this case, the indoor unit becomes standby mode.
• Auto Mode is not recommended if this indoor unit is connected to a MXZ type outdoor unit.

COOL mode

Enjoy cool air at your desired temperature.

Do not operate COOL mode at very low outside temperatures.

(less than 14^ [-10^] )

Water condensed in the unit may drip and wet or damage furniture, etc.

DRY mode

Dehumidify your room. The room may be cooled slightly.

Temperature cannot be set during DRY mode.

HEAT mode

Enjoy warm air at your desired temperature.

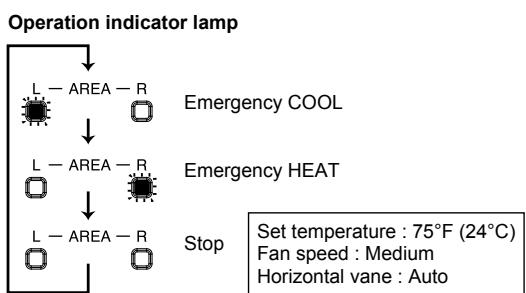

Emergency operation

When the remote controller cannot be used...

Emergency operation can be activated by pressing the emergency operation switch (E.O.SW) on the indoor unit.

Each time the E.O.SW is pressed, the operation changes in the following order:

Note:

The first 30 minutes of operation is test run. Temperature control does not work, and fan speed is set to High.

Auto restart function

If a power failure occurs or the main power is turned off during operation, "Auto restart function" automatically starts operation in the same mode as the one set with the remote controller just before the shutoff of the main power. When timer is set, timer setting is cancelled and the unit starts operation when power is resumed.

If you do not want to use this function, please consult the service representative because the setting of the unit needs to be changed.

Multi system operation

Two or more indoor units can be operated by one outdoor unit. When several indoor units are operated simultaneously, cooling and heating operations cannot be done at the same time. When COOL is selected with one unit and HEAT with another or vice versa, the unit operated later becomes standby mode. The power lamp blinks (display section).

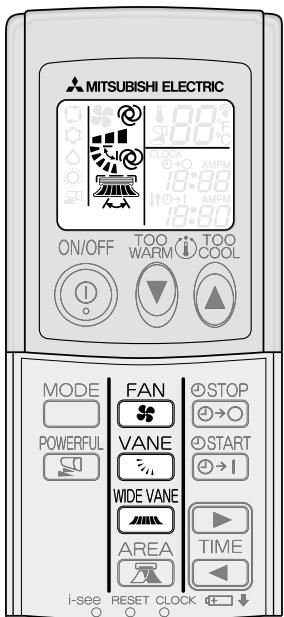

FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT

Press FAN to select fan speed. Each press changes fan speed in the following order:

• Two short beeps are heard from the indoor unit when set to AUTO.

Press VANE to select vertical airflow direction. Each press changes airflow direction in the following order:

• Two short beeps are heard from the indoor unit when set to AUTO.

WIDE VANE Press to select horizontal airflow direction. Each press changes airflow direction in the following order:

Vertical airflow direction

@ (AUTO)

The vane is set to the most efficient airflow direction. COOL/DRY:horizontal position. HEAT:downward position.

(Manual)

For efficient air conditioning, select upper position for COOL/DRY, and lower position for HEAT. During COOL/DRY, when the vane is set to position (4) or (5), the vane automatically moves to horizontal position after 1 hour to prevent any condensation from dripping.

(Swing)

The vane moves up and down intermittently.

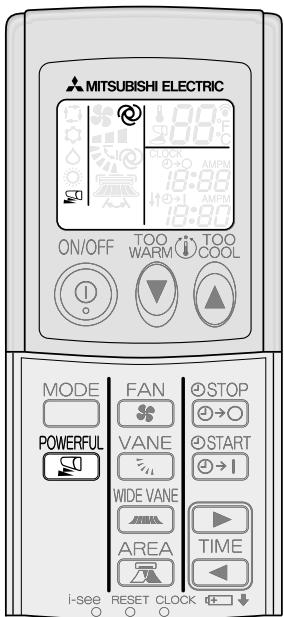

POWERFUL OPERATION

POWERFUL

Press during COOL or HEAT mode Page 6 to start POWERFUL operation.

Fan speed : Exclusive speed for POWERFUL mode
Horizontal vane : Set position, or downward airflow position during AUTO setting
- Temperature cannot be set during POWERFUL operation.

Press again to cancel POWERFUL operation.

• POWERFUL operation also is cancelled automatically in 15 minutes, or when the ON/OFF or, FAN button is pressed.

Press 0 1 or 0 0 during operation to set the timer.

START

( 1) (ON timer): The unit will turn ON at the set time.

( ) (OFF timer): The unit will turn OFF at the set time.

l or O blinks.
* Make sure that the current time is set correctly. Page 4

Press (Increase) and (Decrease) to set the time of timer.
Each press increases or decreases the set time by 10 minutes.

START
or ( )
again to cancel timer.

Note:

• ON and OFF timers can be set together. ↓↑ mark indicates the order of timer operations.
• If power failure occurs while ON/OFF timer is set, see Page 6 "Auto restart function"

CLEANING

Instructions:

• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.

• Do not use benzine, thinner, polishing powder, or insecticide.

• Use only diluted mild detergents.

• Do not expose parts to direct sunlight, heat, or fire to dry.
• Do not use water hotter than 120^ (50^)

Anti-Allergy Enzyme Filter

Every 3 months:

• Remove dirt by a vacuum cleaner.
  When dirt cannot be removed by vacuum cleaning:
• Soak the filter and its frame in lukewarm water before rinsing it.
  After washing, dry it well in shade.

Every year:

• Replace it with a new air cleaning filter for best performance.
• Parts Number MAC-418FT-E

Platinum deodorizing filter

Every 3 months:

• Remove dirt by a vacuum cleaner, or soak the filter in lukewarm water (86 to 104^ [30 to 40^] ) for about 15 minutes. Rinse well.
  After washing, dry it well in shade.
• Deodorizing feature recovers by cleaning the filter.

When dirt or smell cannot be removed by cleaning:

• Replace it with a new air cleaning filter.
• Parts Number MAC-308FT-E

Front panel

1. Lift the front panel until a "click" is heard.

2. Hold the hinges and pull to remove as shown in the above illustration.

3. Wipe with a soft dry cloth or rinse it with water.

4. Do not soak it in water for more than two hours.

5. Dry it well in shade before installing it.

6. Install the panel by following the removal procedure in reverse. Close the front panel securely and press the positions indicated by the arrows.

Important

• Clean the filters regularly for best performance and to reduce power consumption.
• Do not touch the i-see sensor.
• Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.

WHEN YOU THINK THAT TROUBLE HAS OCCURRED

Even if these items are checked, when the unit does not recover from the trouble, stop using the air conditioner and consult your dealer.

Symptom	Explanation & Check points
Indoor Unit
The unit cannot be operated.	·Is the breaker turned on? ·Is the power supply plug connected? ·Is the ON timer set? Page 3
The horizontal vane does not move.	·Are the horizontal vane and the vertical vane installed correctly? Page 9
The unit cannot be operated for about 3 minutes when restarted.	·This protects the unit according to instructions from the microprocessor. Please wait.
Mist is discharged from the air outlet of the indoor unit.	·The cool air from the unit rapidly cools moisture in the air inside the room, and it turns into mist.
The swing operation of the HORIZONTAL VANE is suspended for a while, then restarted.	·This is for the swing operation of the HORIZONTAL VANE to be performed normally.
The air flow direction changes during operation. The direction of the horizontal vane cannot be adjusted with the remote controller.	·When the unit is operated in COOL or DRY mode, if the operation continues with air blowing down for 0.5 to 1 hour, the direction of the air flow is automatically set to position (1) to prevent water from condensing and dripping. ·In the heating operation, if the air flow temperature is too low or when defrosting is being done, the horizontal vane is automatically set to horizontal position.
The operation is stopped for about 10 minutes in the heating operation.	·Defrosting of the outdoor unit is being done. Since this is completed in max.10 minutes, please wait. (When the outside temperature is too low and humidity is too high, frost is formed.)
The unit starts operation by itself when the main power is turned on, though it isn't operated with the remote controller.	·These models are equipped with an auto restart function. When the main power is turned off without stopping the unit with the remote controller and is turned on again, the unit starts operation automatically in the same mode as the one set with the remote controller just before the shutoff of the main power. Refer to "Auto restart function". Page 6
Multi system
The indoor unit which is not operating becomes warm and a sound, similar to water flowing, is heard from the unit.	·A small amount of refrigerant continues to flow into the indoor unit even though it is not operating.
When heating operation is selected, operation does not start right away.	·When operation is started during defrosting of outdoor unit is done, it takes a few minutes (max. 10 minutes) to blow out warm air.
Outdoor Unit
The fan of the outdoor unit does not rotate even though the compressor is running. Even if the fan starts to rotate, it stops soon.	·When the outside temperature is low during cooling operation, the fan operates intermittently to maintain sufficient cooling capacity.
Water leaks from the outdoor unit.	·During COOL and DRY operations, pipe or pipe connecting sections are cooled and this causes water to condense. ·In the heating operation, water condensed on the heat exchanger drips down. ·In the heating operation, the defrosting operation makes water frozen on the outdoor unit melt and drip down.

Symptom	Explanation & Check points
Outdoor Unit
White smoke is discharged from the outdoor unit.	• In the heating operation, vapor generated by the defrosting operation looks like white smoke.
Remote controller
The display on the remote controller does not appear or it is dim. The indoor unit does not respond to the remote control signal.	• Are the batteries exhausted? Page 4 • Is the polarity (+,-) of the batteries correct? Page 4 • Are any buttons on the remote controller of other electric appliances being pressed?
Does not cool or heat
The room cannot be cooled or heated sufficiently.	• Is the temperature setting appropriate? Page 6 • Is the fan setting appropriate? Please change fan speed to higher setting. Page 7 • Are the filters clean? Page 9 • Is the fan or heat exchanger of the indoor unit clean? • Are there any obstacles blocking the air inlet or outlet of the indoor or outdoor unit? • Is a window or door open?
The room cannot be cooled sufficiently.	• When a ventilation fan or a gas cooker is used in a room, the cooling load increases, resulting in an insufficient cooling effect. • When the outside temperature is high, the cooling effect may not be sufficient.
The room cannot be heated sufficiently.	• When the outside temperature is low, the heating effect may not be sufficient.
Air does not blow out soon in the heating operation.	• Please wait as the unit is preparing to blow out warm air.
Airflow
The air from the indoor unit smells strange.	• Are the filters clean? Page 9 • Is the fan or heat exchanger of the indoor unit clean? • The unit may suck in an odor adhering to the wall, carpet, furniture, cloth, etc. and blow it out with the air.
Sound
Cracking sound is heard.	• This sound is generated by the expansion/contraction of the front panel, etc. due to change in temperature.
"Burbling" sound is heard.	• This sound is heard when the outside air is absorbed from the drain hose by turning on the range hood or the ventilation fan, making water flowing in the drain hose to spout out. This sound is also heard when the outside air blows into the drain hose in case the outside wind is strong.
Mechanical sound is heard from the indoor unit.	• This is the switching sound in turning on/off the fan or the compressor.
The sound of water flowing is heard.	• This is the sound of refrigerant or condensed water flowing in the unit.
Hissing sound is sometimes heard.	• This is the sound when the flow of refrigerant inside the unit is switched.

In the following cases, stop using the air conditioner and consult your dealer.
- When water leaks or drips from the indoor unit.

• When the POWER lamp blinks.
• When the breaker trips frequently.
• The remote control signal is not received in a room where an electronic ON/OFF type fluorescent lamp (inverter-type fluorescent lamp, etc.) is used.
• Operation of the air conditioner interferes with radio or TV reception. An amplifier may be required for the affected device.
• When an abnormal sound is heard.

WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME

Set to the highest temperature in manual COOL mode, and operate for 3 to 4 hours. Page 6

This dries the inside of the unit.
- Moisture in the air conditioner contributes to favorable conditions for growth of fungi, such as mold.

to stop the operation.

Turn off the breaker and/or disconnect the power supply plug.

Remove all batteries from the remote controller.

When using the air conditioner again:

Clean the air filter.

Page 9

Check that the air inlet and outlet of the indoor and outdoor units are not blocked.

Check that the ground wire is connected correctly.

INSTALLATION PLACE AND ELECTRICAL WORK

Installation place

Avoid installing the air conditioner in the following places.

• Where there is much machine oil.
• Salty places such as the seaside.
• Where sulfide gas is generated such as a hot spring.
• Where oil is splashed or where the area is filled with oily smoke.
• Where there is high-frequency or wireless equipment.
• Where the air from the outdoor unit air outlet is blocked.
• Where the operation sound or air from the outdoor unit does not bother the house next door.

Electrical work

• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.

If you have any questions, consult your dealer.

SPECIFICATIONS

Guaranteed operating range

		Indoor	Outdoor
Cooling	Upper limit	90°F (32.2°C) DB	115°F (46.1°C) DB
		73°F (22.8°C) WB	—
	Lower limit	67°F (19.4°C) DB	14°F (-10°C) DB
		57°F (13.9°C) WB	—
Heating	Upper limit	80°F (26.7°C) DB	75°F (23.9°C) DB
		—	65°F (18.3°C) WB
	Lower limit (USA model)	70°F (21.1°C) DB	5°F (-15°C) DB
		—	4°F (-15.6°C) WB
	Lower limit (Canada model)	70°F (21.1°C) DB	14°F (-10°C) DB
		—	13°F (-10.6°C) WB

DB：DryBulb

WB:Wet Bulb

INDICE
