Product Type	Cinema Lens
Brand	Canon
Model	CN-E24mm T1.5 FP X
Focal Length	24mm
Maximum Aperture	T1.5
Minimum Aperture	T22
Lens Mount	PL
Format Coverage	Super 35mm / APS-C
Optical Construction	12 elements in 10 groups
Minimum Focus Distance	0.3 m (11.8 in)
Iris Blades	9
Front Diameter	114 mm
Dimensions (D x L)	121.5 x 95.8 mm
Weight	1.1 kg (2.43 lb)
Focus Control	Manual, geared (0.8 module)
Iris Control	Manual, geared (0.8 module)
Operation	No electrical power required
Maintenance	Use a soft dry cloth; use a blower for dust
Safety Warning	Do not point the lens at the sun or intense light sources
Spare Parts	Available from Canon authorized service centers
Repairability	Serviced by Canon certified technicians

Frequently Asked Questions - CN-E24mm T1.5 FP X CANON

What lens mount does the Canon CN-E24mm T1.5 FP X use?

The lens features a PL mount, the standard for professional cinema cameras. You can adapt it to EF or EOS R systems with third-party adapters.

Which sensor size is compatible with this lens?

It covers Super 35mm and APS-C formats, ensuring high sharpness for 4K and 8K video production.

How do I focus the CN-E24mm T1.5 FP X?

The lens uses manual focus with a standard 0.8 module gear ring, allowing follow focus systems for precise control.

What is the aperture range of this lens?

The aperture goes from T1.5 (maximum) to T22 (minimum), with a 9-blade iris for smooth bokeh.

How can I clean the lens safely?

Use a soft brush or blower to remove dust, then wipe with a microfiber cloth and lens cleaning solution if needed. Avoid harsh chemicals.

Is the lens compatible with Canon EF cameras?

The PL mount means you need an adapter to mount it on EF cameras. Some adapters support electronic communication, but this lens is fully manual.

Can I use this lens for still photography?

Yes, it can be used for photography with an adapter, but expect manual focus and aperture. Its optical quality is excellent for video and photo.

What is the minimum focus distance?

The minimum focus distance is 0.3 meters (11.8 inches), measured from the image sensor.

Does the lens have optical image stabilization?

No, this lens does not include image stabilization. It relies on camera stabilization or external rigs.

What is the front filter thread size?

The front diameter is 114mm for the lens hood. There's no screw-in filter thread; instead use a matte box for filters.

USER MANUAL CN-E24mm T1.5 FP X CANON

Read this operation manual before using the product.

Keep the manual in place for future reference.

This lens is a full manual lens for shooting movies. When used to shoot still images or when manual operations are performed in AE or other Auto modes, the lens may not operate properly or the indications may not be correct. In addition, do not operate the lens during initialization of the camera settings. For details, check the latest support information at the corresponding sales company website.

Also check the website for other latest product information.

注意事项

2

レンズを取り付けます。

レンズを取り外す

1

レンズを取り外します。

2

『ご注意ください』

Names of Parts ......E7

Mounting and Detaching the Lens ....E8

Available Accessories ......E10

Dimensions of Parts ......E11

Specifications ......E13

Appendix

External view ...... apx. 2

Index apx. 17

Digital Cinema Lens CN-E14mm T3.1 L F, CN-E20mm T1.5 L F, CN-E24mm T1.5 L F, CN-35mm T1.5 L F, CN-E50mm T1.3 L F, CN-E85mm T1.3 L F, CN-E135mm T2.2 L F only.

FCC REGULATIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A., Inc.

One Canon Park, Melville, NY 11747, USA

Tel No.1-800-OK-CANON(1-800-652-2666)

Digital Cinema Lens CN-E14mm T3.1 L F, CN-E20mm T1.5 L F, CN-E24mm T1.5 L F, CN-35mm T1.5 L F, CN-E50mm T1.3 L F, CN-E85mm T1.3 L F, CN-E135mm T2.2 L F only.

Canadian Radio Interference Regulations

CAN ICES-3(B)/NMB-3(B)

Digital Cinema Lens CN-E14mm T3.1 L F, CN-E20mm T1.5 L F, CN-E24mm T1.5 L F, CN-35mm T1.5 L F, CN-E50mm T1.3 L F, CN-E85mm T1.3 L F, CN-E135mm T2.2 L F only.

Only for European Union and EEA (Norway, Iceland, and Liechtenstein)

This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU) and national legislation. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service.

For more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/weee.

Canon Europa N.V.

Amstelveen, The Netherlands

GENERAL SAFETY INFORMATION

The safety warnings and cautions provided on the product or in this operation manual must be observed.

Meaning of Symbols

WARNING

This indicates a potentially hazardous situation which, if not heeded, may result in death or serious injury to you or others. Be sure to heed all warning notices to ensure safe operation at all times.

CAUTION

This indicates a potentially hazardous situation which, if not heeded, may result in a minor injury to you or others, or damage to property. Be sure to heed all caution notices to ensure safe operation at all times.

NOTE

This indicates cautions and recommendations for operation.

HANDLING THE PRODUCT

WARNING

Do not stare at the sun or other bright objects through the lens. It may injure your eyes.

CAUTION

Inspect mountings regularly (about every six months to one year) to ensure they are securely tightened. If a mounting becomes loose, parts may fall off and cause injury.

NOTE

Take measures to avoid sudden changes in temperature where the lens is used, which may prevent operation temporarily if condensation forms in the lens.

STORAGE

NOTE

Immediately wipe off any moisture on the lens from misty or foggy environments, using a dry cloth. Seal the lens in a plastic bag with a desiccant (preferably new) to prevent moisture inside. Otherwise it may cause the mold or the malfunction of the product.

TO THE CUSTOMER

1. Canon shall bear no responsibility for damage resulting from improper operation of this product by the customer.
2. The product specifications, configuration, and appearance are subject to change without prior notice.
3. For further information on repairs, maintenance, or adjustments not mentioned in this operation manual, contact your Canon sales representative or dealer.
4. Note that Canon may be unable to undertake servicing or repair of a product if it is modified without consulting your Canon sales representative or dealer.

All rights reserved.

No part of this operation manual may be reproduced or copied in any form or by any means without the written permission of Canon Inc.

Product Configuration

Lens body ....1

Lens cap ....1

Rear lens cap ....1

Operation Manual

The illustrations in this book show CN-E24mm T1.5 L F unless otherwise specified.

Actual forms may vary depending on models and specifications.

Names of Parts

Focus drive gear Iris drive gear

Mounting and Detaching the Lens

See your camera's instructions for details on mounting and detaching the lens.

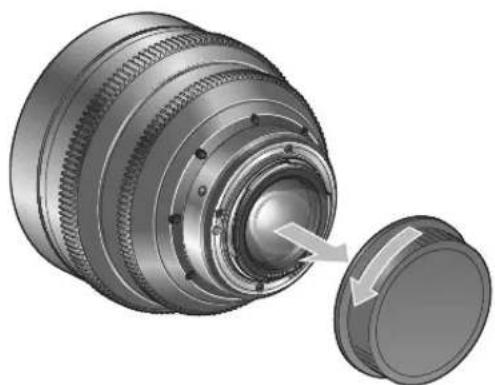

Mounting the lens

1

Remove the rear lens cap.

2

Mount the lens on the camera.

Detaching the lens

1

Detach the lens from the camera.

2

Attach the rear lens cap to the detached lens.

NOTE

• After detaching the lens, place the lens with the rear end up to prevent the lens surface and contacts from getting scratched.
• If the contacts get soiled, scratched, or have fingerprints on them, corrosion or faulty connections can result. The camera and lens may not operate properly.
• If the contacts get soiled or have fingerprints on them, clean them with a soft cloth.

Available accessories

A variety of professional camera accessories are available. Be sure to check the mounted condition before use.

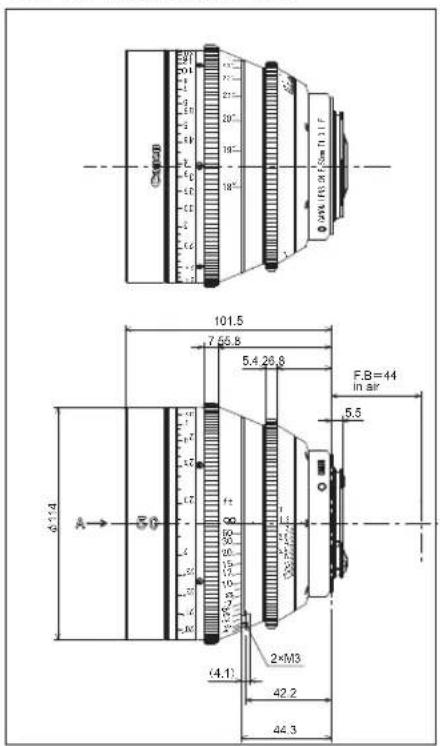

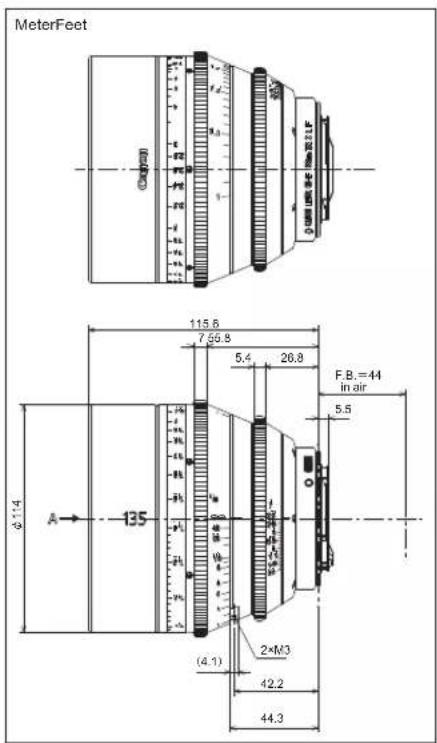

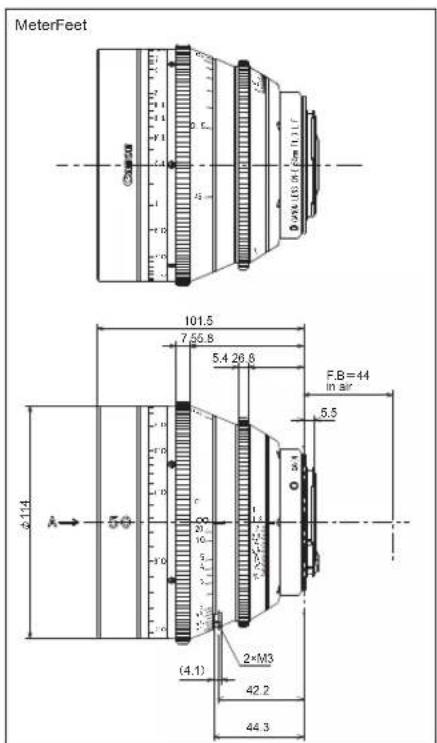

Dimensions of parts

EF mount

Unit: mm

*CN-E14mm T3.1 L F cannot be used with a filter.

Spur gear specifications

	Focus drive gear Iris drive gear
Number of teeth 146 126
Module 0.8 0.8
P.C.D. 116.8 mm 100.8 mm
Angular rotation 300 degrees 36 degrees

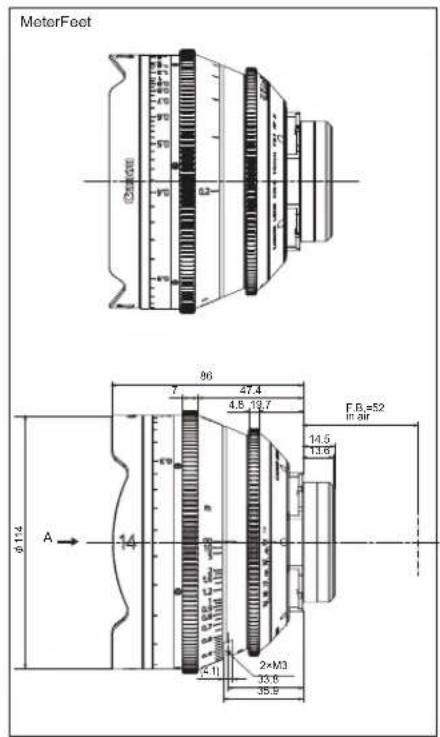

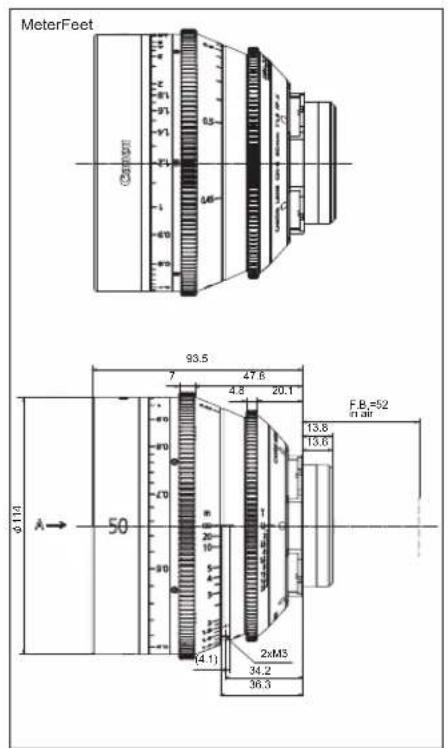

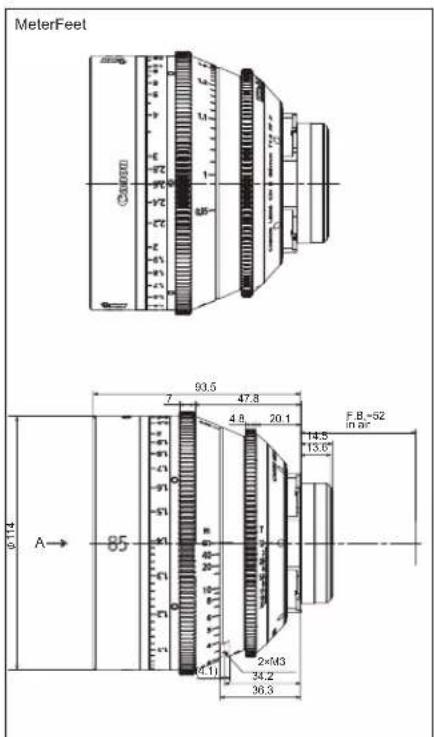

Dimensions of parts

PL mount

Unit: mm

*CN-E14mm T3.1 FP X cannot be used with a filter.

Spur gear specifications

	Focus drive gear Iris drive gear
Number of teeth 146 126
Module 0.8 0.8
P.C.D. 116.8 mm 100.8 mm
Angular rotation 300 degrees 36 degrees

Specifications

			CN-E14mm	CN-E20mm	CN-E24mm		CN-E35mm	CN-E50mm
Lens Mount			Canon EF
Focal Length			14 mm 20 mm	24 mm			35mm	50mm
Maximum T-stop			1:3.1 1:1.5					1:1.3
Iris Blades			11 pieces
Coverage	35mm full sizeImage Circle / H x V (1.5:1)		φ 43.3 mm / 36.0 x 24.0 mm
Angular Field of View (H / V)			104.3° / 81.2°	84.0° / 61.9°	73.7° / 53.1°		54.4° / 37.8° 39.6° / 27.0°
Coverage	Image Circle / H x V (1.78:1)		φ 28.2 mm / 24.6 x 13.8 mm
Angular Field of View (H / V)			82.6° / 52.5°	63.2° / 38.1°	54.3° / 32.1°		38.7° / 22.3°	27.6° / 15.7°
Coverage	Image Circle / H x V (1.9:1)		φ 29.6mm / 26.2 x 13.8mm
Angular Field of View (H / V)			86.2° / 52.5°	66.4° / 38.1°	57.3° / 32.1° 41.0° / 22.3° 29.4° / 15.7°
Minimum Object Distance (M.O.D.)[from the image sensor]			0.2 m / 8"	0.3m / 12"				0.45m / 18"
Object Dimensions at M.O.D.		1.5:1	24.8 x 16.5 cm	33.8 x 22.5cm	28.8 x 19.2 cm	20.1 x 13.4 cm		24.9 x 16.6cm
		1.78:1	16.9 x 9.5 cm	23.1 x 13.0cm	19.7 x 11.0 cm	13.7 x 7.7 cm		17.0 x 9.5cm
		1.9:1	18.0 x 9.5cm	24.6 x13.0cm 21.0 x 11.0cm		14.6 x 7.7 cm 18.1 x 9.5cm
Focus Angular Rotation			300 degrees
Spur Gear Module			0.8
Front Diameter			φ 114 mm
Length			94 mm 101.5 mm
Weight			Approx. 1.2 kg Approx. 1.1 kg
Operation method			Manual

- A variety of professional camera accessories are available. Be sure to check the mounted condition before use.

- This lens is compatible with cameras that have a 35mm full-size sensor. When mounted on a camera with a different image size, the angle of view changes.

			CN-E85mm CN-E135mm
Lens Mount			Canon EF
Focal Length			85mm 135mm
Maximum T-stop			1:1.3 1	:2.2
Iris Blades			11 pieces
Coverage	35mm full sizeImage Circle / H x V (1.5:1)		φ 43.3 mm / 36.0 x 24.0 mm
Angular Field of View (H / V)			23.9° / 16.1°	15.2° / 10.2°
Coverage | image Circle / H x V (1.78:1)			φ 28.2 mm / 24.6 x 13.8 mm
Angular Field of View (H / V)			16.5° / 9.3°	10.4° / 5.9°
Coverage | image Circle / H x V (1.9:1)			φ 29.6mm / 26.2 x 13.8mm
Angular Field of View (H / V)			17.5° / 9.3°	11.1° / 5.9°
Minimum Object Distance (M.O.D.)[from the image sensor]			0.95m / 3'2" 1m	/ 3'4"
Object Dimensions at M.O.D.		1.5:1	34.3 x 22.9cm	21.1x 14.1cm
		1.78:1	23.4 x 13.1cm	14.4x 8.1cm
		1.9:1	25.0 x 13.1cm	15.4 x 8.1cm
Focus Angular Rotation			300 degrees
Spur Gear Module			0.8
Front Diameter			φ 114 mm
Length			101.5 mm 115.6 mm
Weight			Approx. 1.3 kg Approx. 1.4 kg
Operation method			Manual

• A variety of professional camera accessories are available. Be sure to check the mounted condition before use.
• This lens is compatible with cameras that have a 35mm full-size sensor. When mounted on a camera with a different image size, the angle of view changes.

			CN-E14mm	CN-E20mm	CN-E24mm		CN-E35mm	CN-E50mm
Lens Mount			PL
Focal Length			14 mm 20 mm	24 mm			35mm	50mm
Maximum T-stop			1:3.1 1:1.5					1:1.3
Iris Blades			11 pieces
Coverage	35mm full sizeImage Circle / H x V (1.5:1)		φ 43.3 mm / 36.0 x 24.0 mm
Angular Field of View (H / V)			104.3° / 81.2° 84.0° / 61.9° 73.7° / 53.1°				54.4° / 37.8° 39.6° / 27.0°
Coverage	Image Circle / H x V (1.78:1)		φ 28.2 mm / 24.6 x 13.8 mm
Angular Field of View (H / V)			82.6° / 52.5° 63.2° / 38.1° 54.3° / 32.1°				38.7° / 22.3°	27.6° / 15.7°
Coverage	Image Circle / H x V (1.9:1)		φ 29.6mm / 26.2 x 13.8mm
Angular Field of View (H / V)			86.2° / 52.5° 66.4° / 38.1° 57.3° / 32.1° 41.0° / 22.3°				29.4° / 15.7°
Minimum Object Distance (M.O.D.)[from the image sensor]			0.2m / 8" 0.3m / 12"					0.45m / 18"
Object Dimensions at M.O.D.		1.5:1	25.2 x 16.8 cm 33.8 x 22.5 cm 28.8 x 19.2 cm 20.2 x 13.5 cm					25.0 x 16.7cm
		1.78:1	17.2 x 9.7 cm 23.1 x 13.0 cm 19.7 x 11.0 cm 13.8 x 7.7 cm					17.1 x 9.6cm
		1.9:1	18.3 x 9.7 cm 24.6 x 13.0 cm 21.0 x 11.0 cm				14.7 x 7.7 cm 18.2 x 9.6cm
Focus Angular Rotation			300 degrees
Spur Gear Module			0.8
Front Diameter			φ 114.0 mm
Length			86.0 mm 93.5 mm
Weight			Approx. 1.2 kg Approx. 1.1 kg
Operation method			Manual

• A variety of professional camera accessories are available. Be sure to check the mounted condition before use.
• This lens is compatible with cameras that have a 35mm full-size sensor. When mounted on a camera with a different image size, the angle of view changes.

		CN-E85mm	CN-E135mm
Lens Mount		PL
Focal Length		85mm 135mm
Maximum T-stop		1:1.3 1	:2.2
Iris Blades		11 pieces
Coverage	35mm full sizeImage Circle / H x V (1.5:1)	φ 43.3 mm / 36.0 x 24.0 mm
Angular Field of View (H / V)		23.9° / 16.1°	15.2° / 10.2°
Coverage | image Circle / H x V (1.78:1)		φ 28.2 mm / 24.6 x 13.8 mm
Angular Field of View (H / V)		16.5° / 9.3°	10.4° / 5.9°
Coverage | image Circle / H x V (1.9:1)		φ 29.6mm / 26.2 x 13.8mm
Angular Field of View (H / V)		17.5° / 9.3°	11.1° / 5.9°
Minimum Object Distance (M.O.D.)[from the image sensor]		0.95m / 3'2" 1m	/ 3'4"
Object Dimensions at M.O.D.	1.5:1	34.4 x 22.9cm	21.1 x14.1cm
	1.78:1	23.5 x 13.2cm	14.4 x 8.1cm
	1.9:1	25.0 x 13.2cm	15.4 x 8.1cm
Focus Angular Rotation		300 degrees
Spur Gear Module		0.8
Front Diameter		φ 114 mm
Length		93.5 mm 107.6 mm
Weight		Approx. 1.3 kg Approx. 1.4 kg
Operation method		Manual

• A variety of professional camera accessories are available. Be sure to check the mounted condition before use.
• This lens is compatible with cameras that have a 35mm full-size sensor. When mounted on a camera with a different image size, the angle of view changes.

Reference Information

This lens is a full manual lens for shooting movies.

- EF Cinema lenses were developed primarily for movie production, and have a color balance typical for movies. This means that the color reproduction is warmer (shifted toward yellow in the CCI coordinate system) than that of EF lenses which are basically used to shoot still images. Therefore, when using both types of lens together, adjust the color balance (redo the white balance etc.) as necessary.

- In general, the depth of field becomes shallow and the focusing range becomes extremely narrow near the widest aperture and when shooting a subject at close range. In addition, this tendency increases for lenses with longer focal lengths. When shooting images, carefully check the focusing condition using the zoom mode of the finder or other means, and shoot a sufficient number of test images before performing focus operations.

memo

中文

⚠️ 安全使用须知 ……C2

产品配置 C4

各部位名称 C5

安装到摄像机、从摄像机卸下 ......C6

可以利用的附件 ......C8

各部位尺寸 C9

规格 C11

Appendix（附录）

External view（外部视图） ...... apx. 2

Index（索引） apx. 17

安全使用须知

2

安装镜头。

卸下镜头

1

卸下镜头。

2

为卸下的镜头安装镜头后盖。

须知

2

Демонтаж объектива

1

2

ПРИМЕЧАНИЕ

2

Объективті ажырату

1

2

ECKEPIM

apx. 5

CN-E50mm T1.3 L F

apx. 6

CN-E85mm T1.3 L F

(Unit: mm)

CN-E135mm T2.2 L F

apx. 8

CN-E14mm T1.5 FP X

apx. 9

CN-E20mm T1.5 FP X

apx. 10

CN-E24mm T1.5 FP X

apx. 11

CN-E35mm T1.5 FP X

apx. 12

CN-E50mm T1.3 FP X

apx. 13

CN-E85mm T1.3 FP X

apx. 14

CN-E135mm T2.2 FP X

apx. 15

memo

索引

アイリスドライブギア 5,9

アクセサリーの取付け寸法....9

イメージサークル 11

M.O.D. 11

カメラへの取付け、取外し……6

Index

Dimensions of parts ......E11

Focal length ...... E13

Focus drive gear ...... E7, E11

Image circle ...... E13

Iris drive gear ...... E7, E11

索引

安装到摄像机、从摄像机卸下 C6

产品配置 C4

成像圈 C11

各部位尺寸 C9

光圈驱动齿轮 C5, C9

焦点距離 11

商品構成 4

T ナンバー 11

フォーカスドライブギア 5,9

Maximum T-stop E13

Minimum object distance (M.O.D.) ...... E13

Mounting and detaching the lens E8

Product configuration ...... E6

焦点距离 C11

聚焦驱动齿轮 C5, C9

至近距离 C11

最大光圈系数 ......C11

memo

Please contact your dealer or the contacts below, if you have questions on the products.

Canon Mexicana,S.de R.L.de C.V.

SOUTH & SOUTHEAST ASIA

Canon Singapore Pte. Ltd.

http://www.canon-asia.com/bctv

TAIWAN

Canon Marketing (Taiwan) Co., Ltd.

http://www.canon.com.tw/index.aspx

EUROPE, MIDDLE EAST, AFRICA

Canon Europe Ltd.

http://www.canon-europe.com

Tel:[phone]

OCEANIA

AUSTRALIA

Canon Australia Pty. Ltd.

http://www.canon.com.au

NEW ZEALAND

Canon New Zealand Ltd.

http://www.canon.co.nz

Canon

キャノン株式会社

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

修订 :2019.5.1

Pub No. BT1-B008-F ©2019.05 CANON INC.

原产地：日本
