UBTV-20C - TV Mount BOSE - Free user manual and instructions

Product type	Center speaker mount for flat screen
Brand	BOSE
Model	UBTV-20C
Main material	Steel with plastic coating
Color	Black
Dimensions (W x H x D)	Approximately 450 x 60 x 200 mm
Weight	Approximately 1.2 kg
Maximum load	Up to 5 kg
TV compatibility	All flat screens with VESA mount
Speaker compatibility	BOSE center speakers from 5.1 systems
Use	Complement to UBTV-20 mount
Installation	Wall mounting via UBTV-20, screws provided
Maintenance	Clean with a soft dry cloth
Safety	Check mounting every 6 months
Country of origin	Made in China
Warranty	2 years
Package contents	UBTV-20C mount, screw kit, manual

Frequently Asked Questions - UBTV-20C BOSE

Is the UBTV-20C mount compatible with my Samsung 55-inch TV?

Yes, it is compatible with any flat screen using a standard VESA mount, typically up to 75 kg, but check your TV's dimensions.

What is the maximum load of the speaker I can install?

The maximum recommended load is 5 kg. For a BOSE center speaker, this works perfectly.

Can I use this mount without the UBTV-20?

No, the UBTV-20C is an accessory designed to be used exclusively with the UBTV-20 wall mount to attach the center speaker.

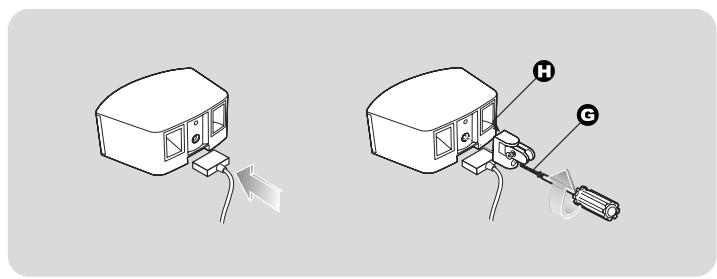

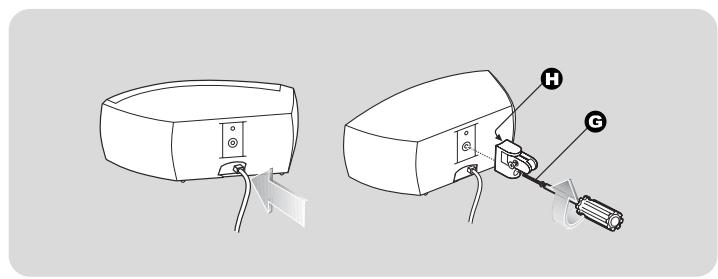

How to install the center speaker on the mount?

First attach the UBTV-20C mount to the back of the speaker using the provided screws, then hang the assembly on the UBTV-20 mount already fixed to the wall.

Does the mount allow orienting the speaker?

Yes, the system allows tilt adjustment to direct sound to the listening area.

What tools are needed for installation?

A Phillips screwdriver and possibly a drill for the UBTV-20 wall mount (not included).

How to clean the mount?

Use a slightly damp soft cloth, avoid abrasive products or solvents.

Does the mount fit a speaker from another brand?

No, it is specifically designed for BOSE center speakers from 5.1 home theater systems.

Is there a risk of the speaker falling?

If installed correctly according to the manual, the mount is secure. Check the fixings regularly.

What is the lifespan of the mount?

Under normal conditions, the mount can last many years. Check for corrosion or looseness.

USER MANUAL UBTV-20C BOSE

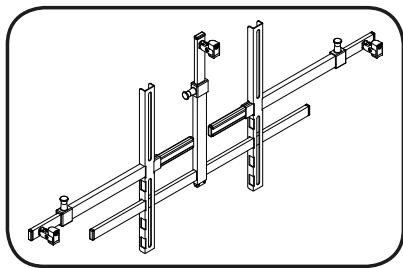

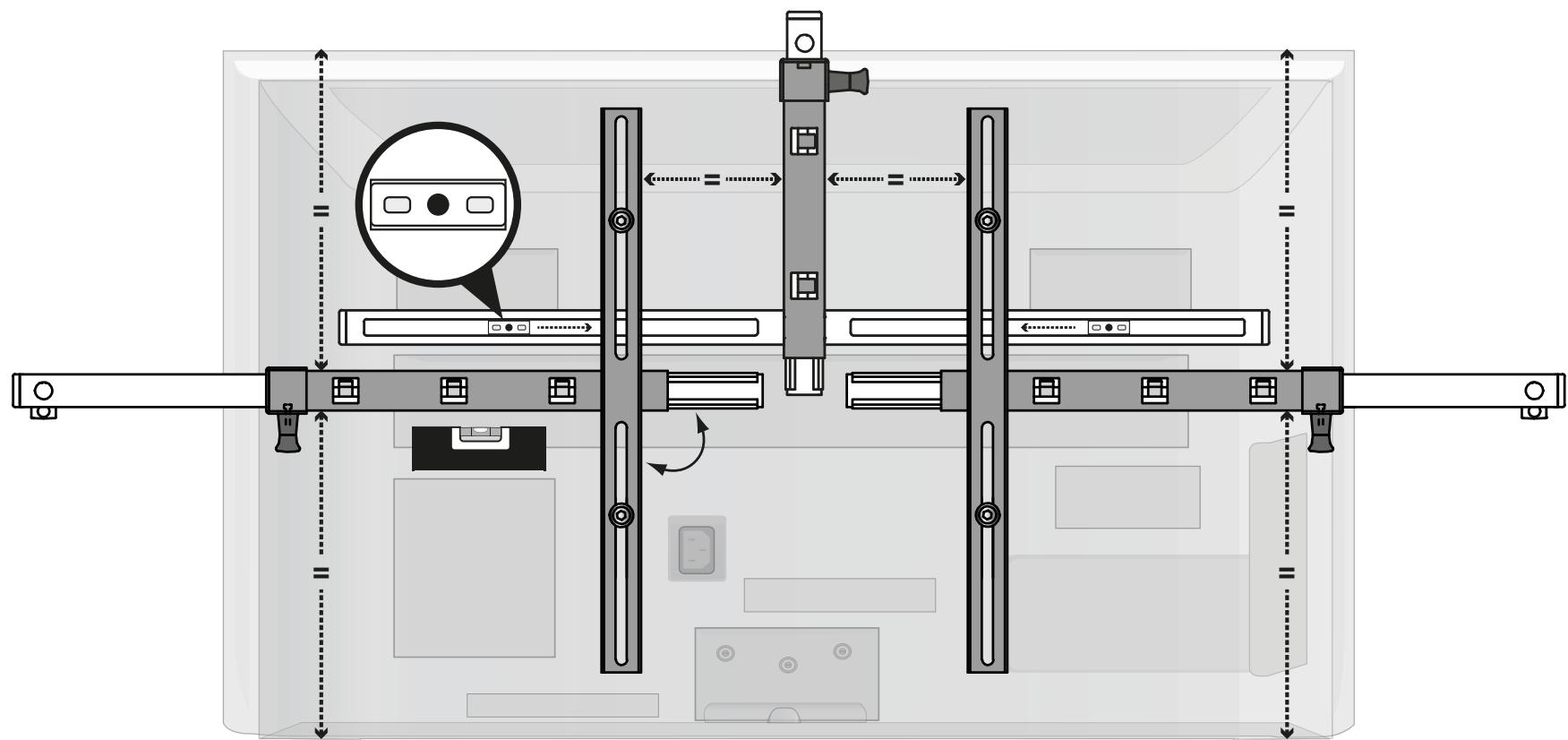

BOSE® centre speaker bracket for flatscreen TV

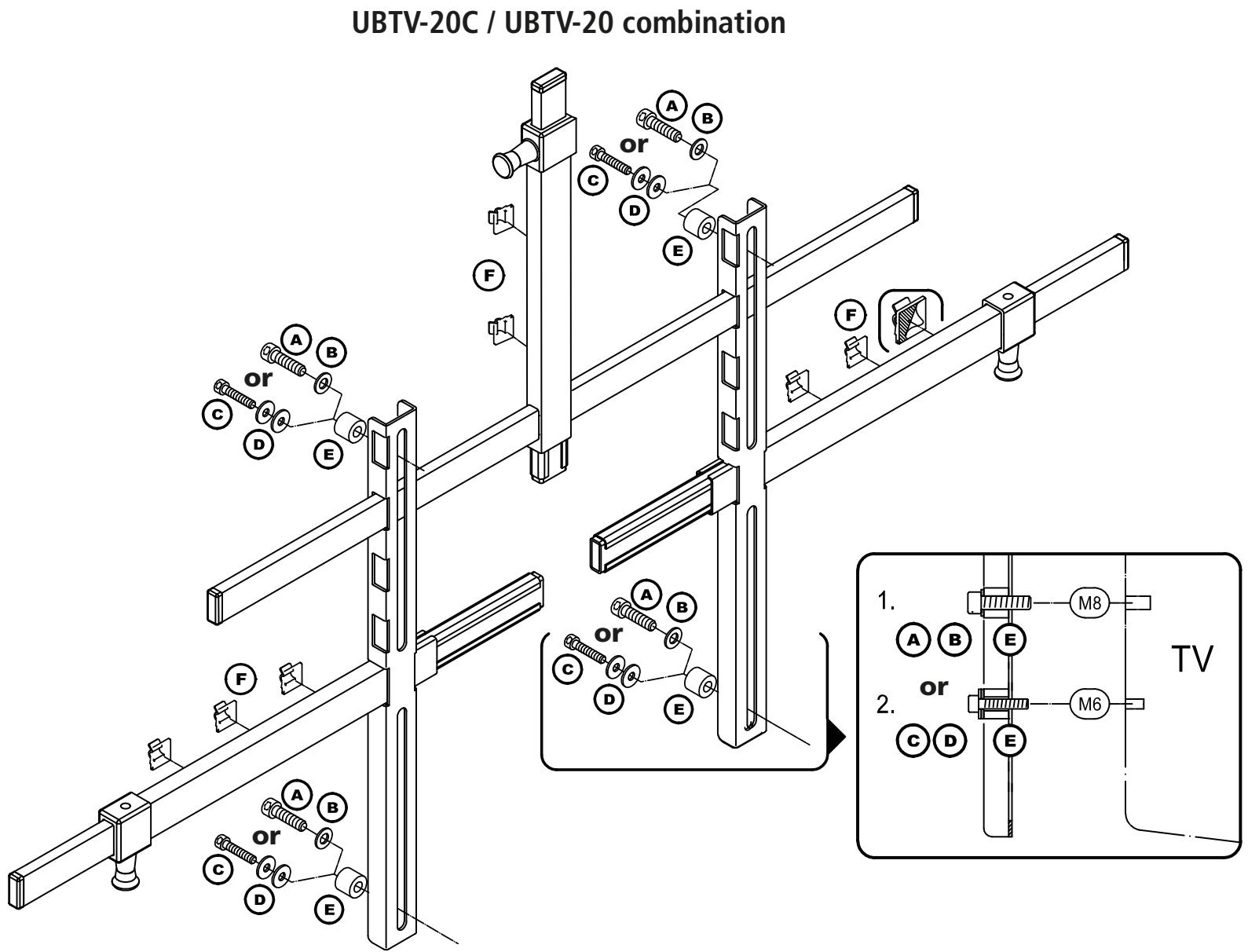

Elegant bracket to attach a BOSE® centre speaker array to your flatscreen TV*. Fits all 5.1 BOSE® home entertainment systems and 5.1 BOSE® home cinema speaker systems. To be used exclusively with the UBTV-20.

BOSE® centre speaker bracket for flatscreen TV

BOSE® centre speaker bracket for flatscreen TV

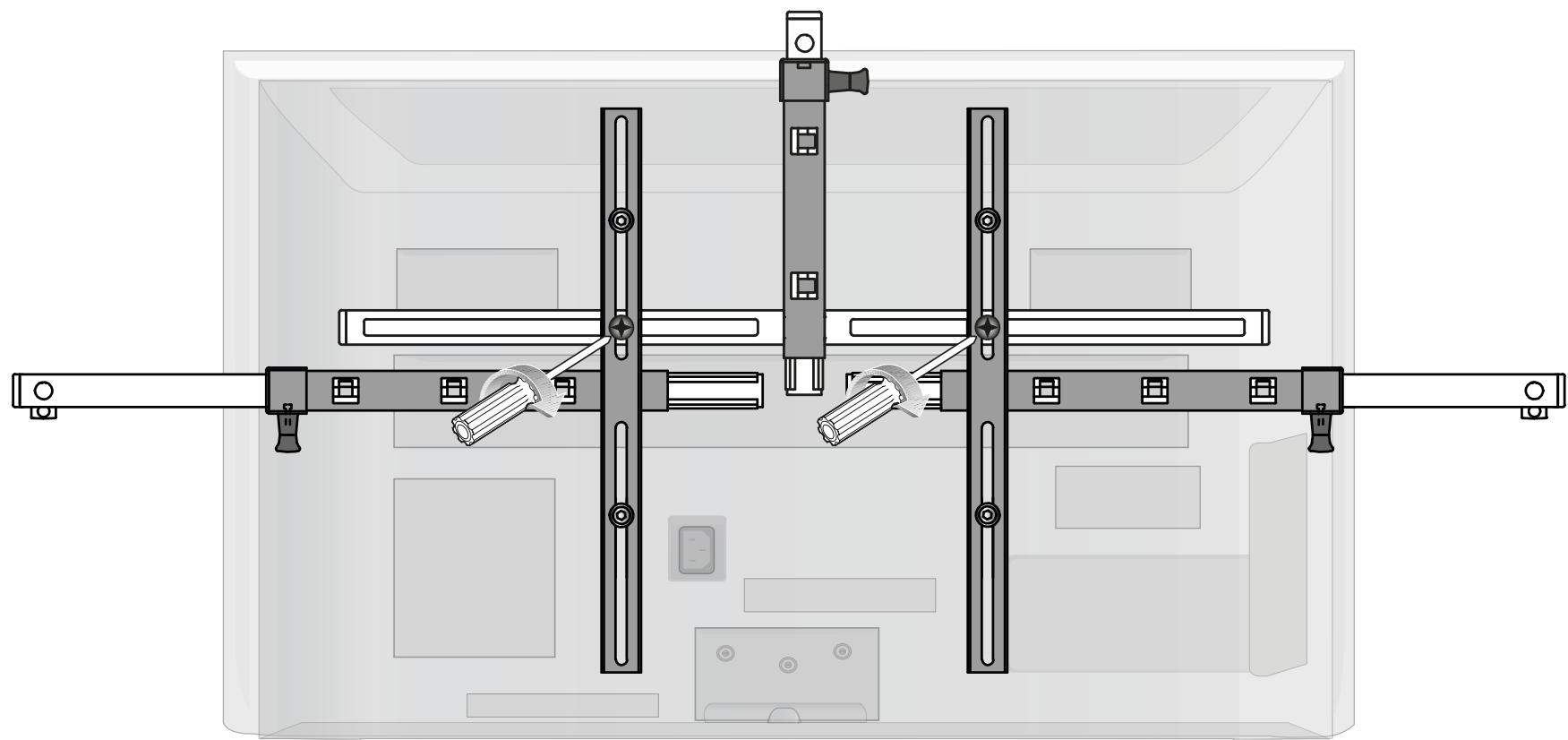

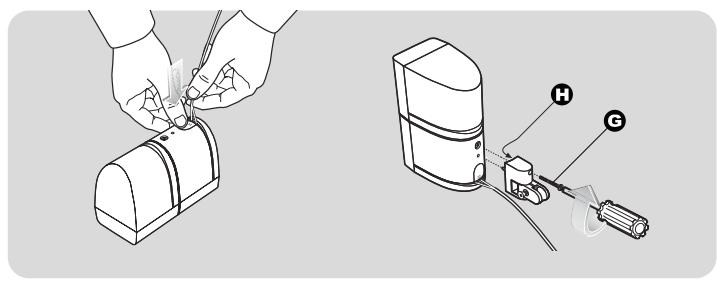

part 6

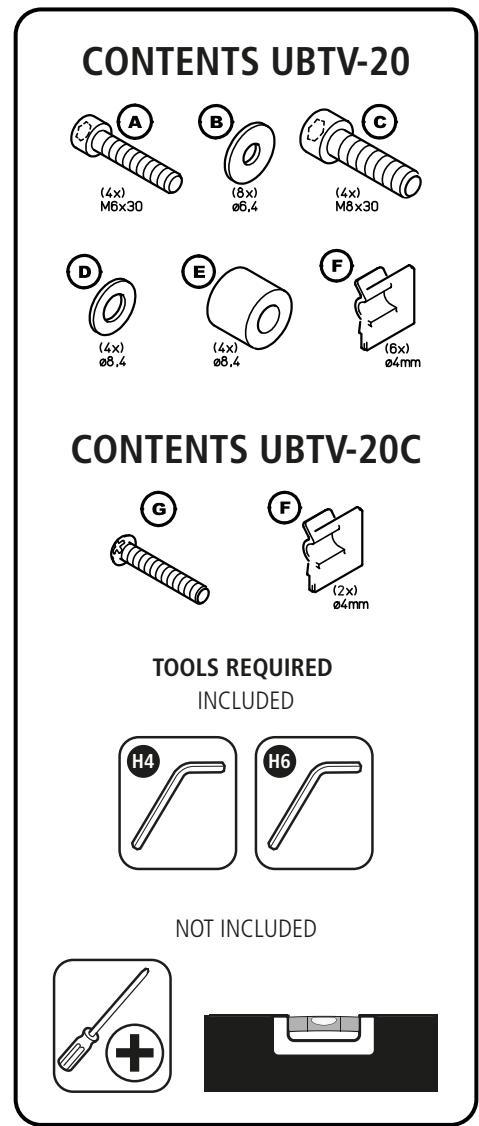

CONTENTS

BOSE® centre speaker bracket for flatscreen TV

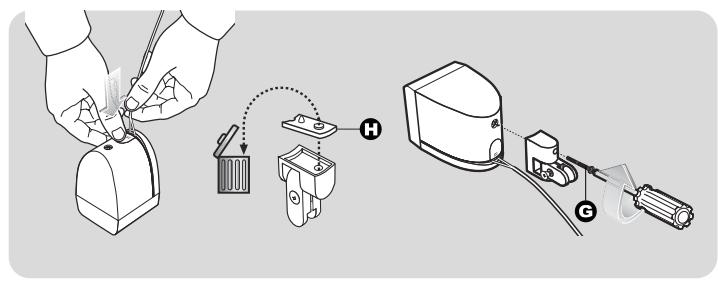

part 8

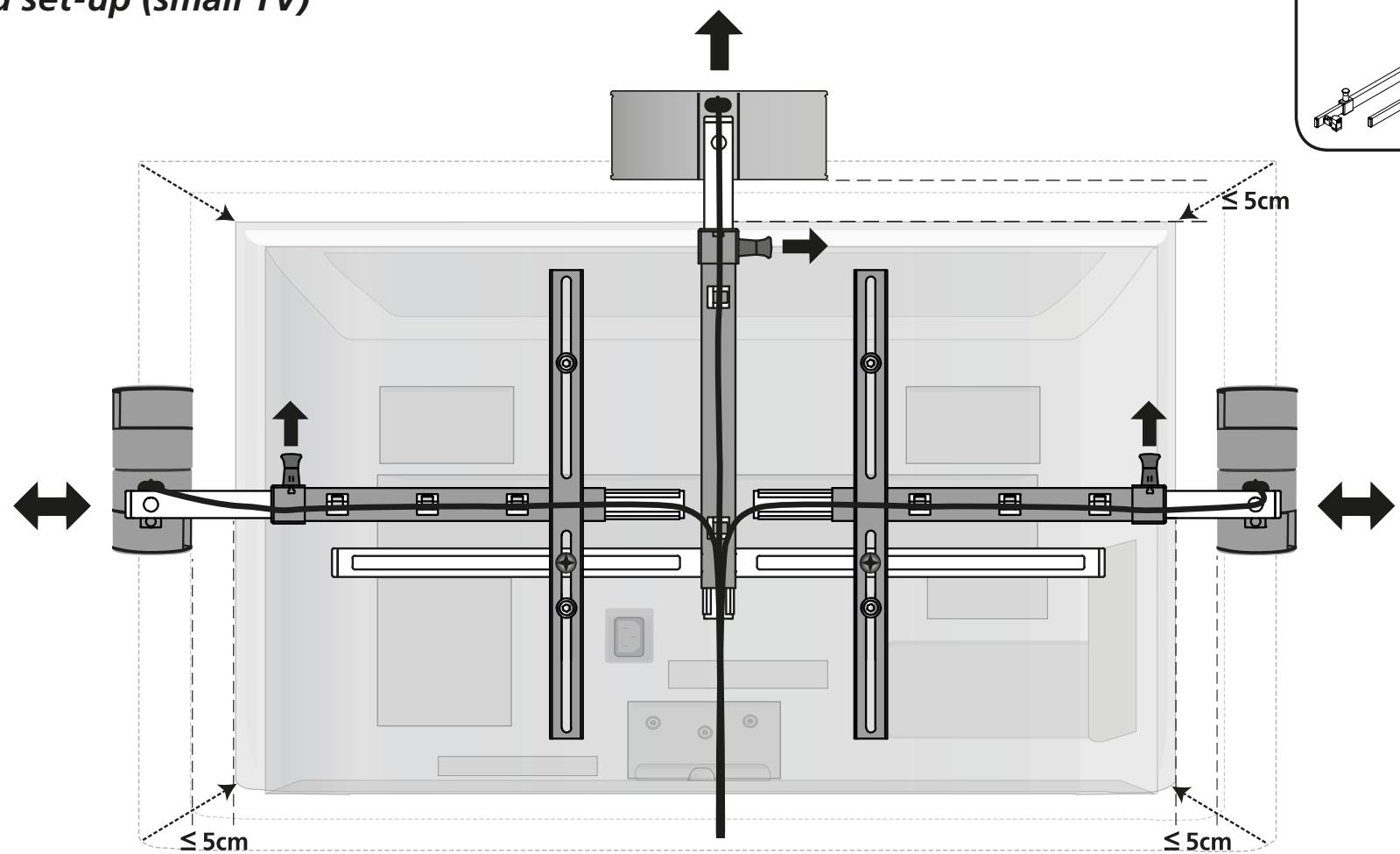

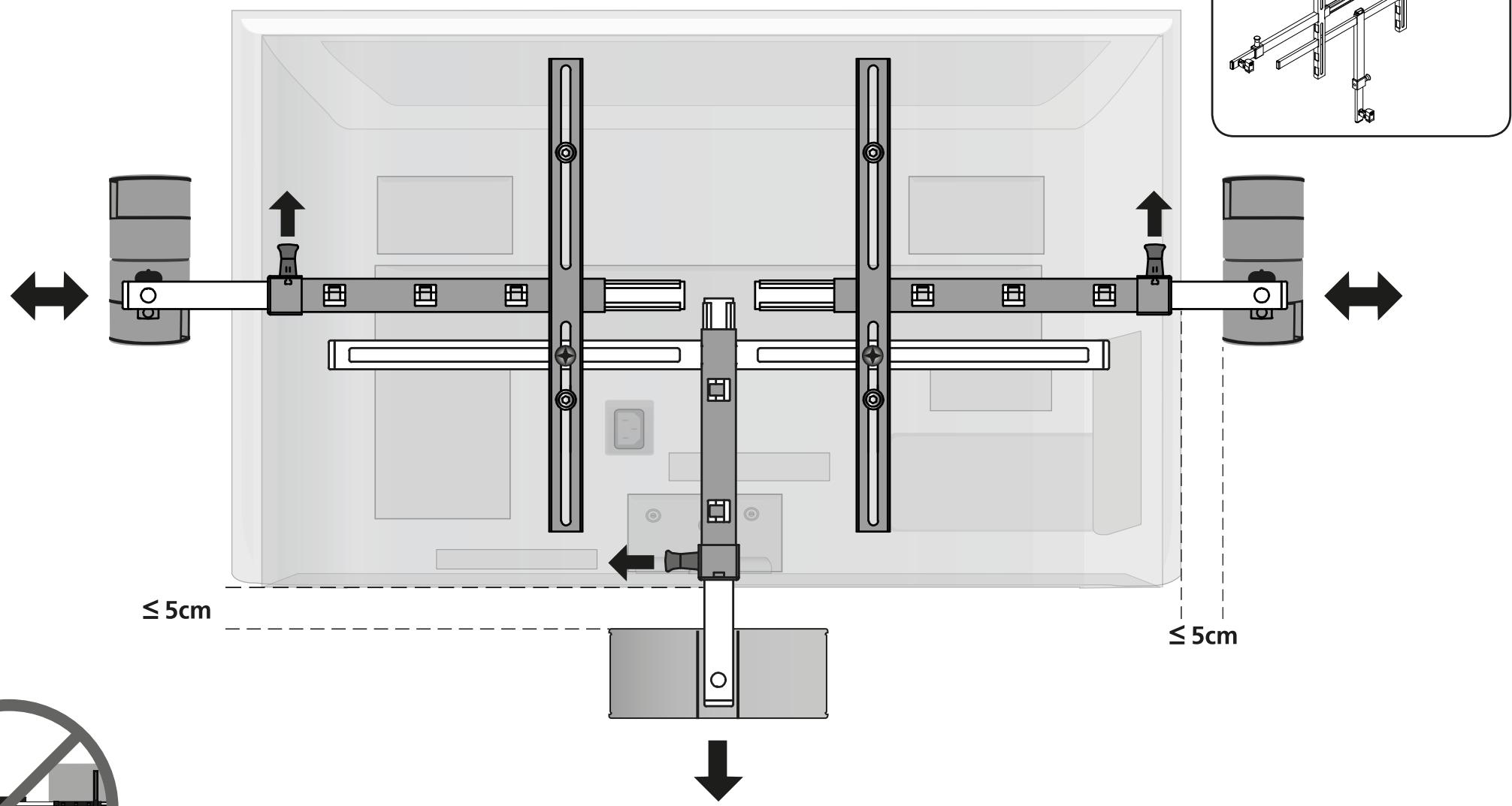

Table stand set-up (small TV)

BOSE® centre speaker bracket for flatscreen TV

part 9

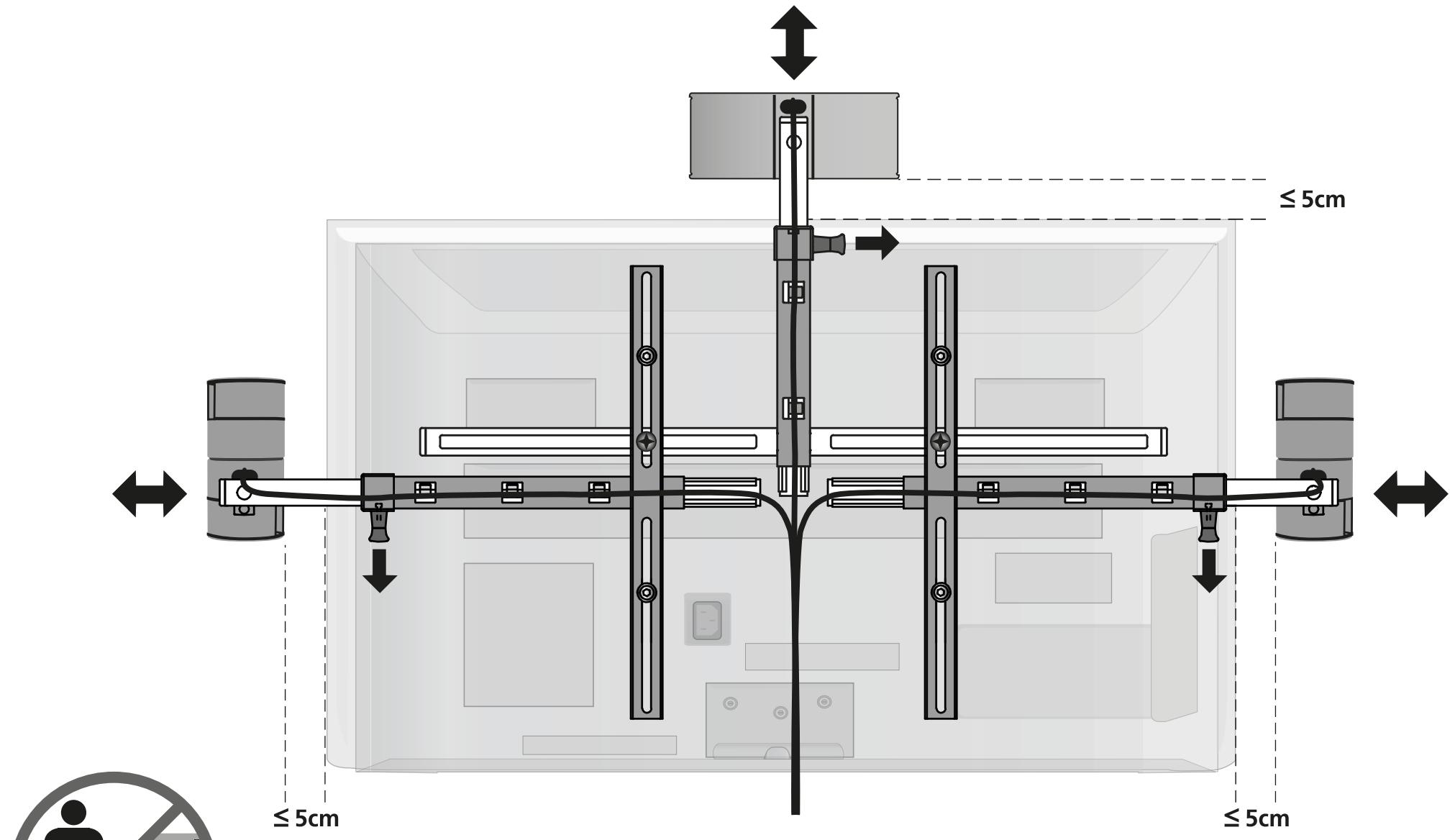

TV wall bracket set-up

BOSE®

Better sound through research
