M3 - Gps Nextar - Free user manual and instructions

Product Type	Portable GPS Navigator
Brand	Nextar
Model	M3
Screen Size	3.5 inches
Display Type	TFT LCD touchscreen
Screen Resolution	320 x 240 pixels
GPS Chipset	SiRF Star III
Maps	Preloaded regional maps
Voice Guidance	Yes
Route Planning	Turn-by-turn directions
Memory Card Slot	SD/MMC expandable
Battery	Rechargeable lithium-ion
Battery Life	Up to 3 hours using internal battery
Power Supply	12V vehicle charger included
Connectivity	USB 2.0 and 3.5mm audio output
Dimensions	4.1 x 3.0 x 0.7 inches (10.5 x 7.5 x 1.8 cm)
Weight	Approximately 5.3 ounces (150 grams)
Operating Temperature	-10°C to 60°C
Maintenance	Clean with a soft dry cloth; avoid solvents or abrasive cleaners
Safety	Do not mount in a location that obstructs driver visibility or affects airbag deployment
Spare Parts	Replacement car chargers, mounts, and SD cards are commercially available

Frequently Asked Questions - M3 Nextar

How do I update the maps on my Nextar M3?

Map updates are typically performed by downloading the latest version from the manufacturer's website and transferring them via a USB cable to the GPS internal memory or SD card.

How do I reset the device to factory default?

To perform a factory reset, go to the Settings menu, select System Reset, and confirm. Alternatively, a tiny reset button on the back or bottom can be pressed with a pointed object.

Can I replace the battery?

The M3 has an internal rechargeable battery that is not user-replaceable; however, a qualified technician or service center can replace it. The device can also be run directly using the in-car charger.

How do I mount the GPS in my car?

Use the included suction cup mount. Attach the mount to the windshield, press firmly to ensure a secure grip, then slide the GPS into the mount until it clicks into place.

How do I charge the GPS?

Plug the 12V car adapter into the vehicle's accessory port and connect the other end to the mini-USB port on the GPS. The battery icon will indicate charging.

The screen is unresponsive; what should I do?

Make sure the screen lock is off. If it remains unresponsive, try restarting the device by pressing the power button for 10 seconds. If the issue persists, a factory reset may be necessary.

How do I use the SD card slot?

The SD card slot allows you to expand storage for additional maps or media. Insert a microSD card (up to 32GB, depending on model) with the card label facing down until it clicks.

Does the device support voice guidance?

Yes, the Nextar M3 provides voice-guided turn-by-turn directions. You can adjust the volume and language from the Settings menu.

How do I set a home address?

From the main menu, select Navigate, then Home. Choose Set Home Location and enter the address. Once saved, you can navigate home with a single tap.

Where can I find additional safety information?

Always keep your focus on the road and set up your GPS before driving. See the Safety and Usage section of the manual for full details, including proper mounting and battery handling.

USER MANUAL M3 Nextar

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN!

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

POWER SUPPLY:

Connect the supplied adapter to the side of the unit in the slot marked "DC 5V IN". Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time, disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Important Safety Instructions

NOTES

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Warning

Failure to avoid the following potentially hazardous situations may result in injury or property damage.

The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving.

Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose requiring precise measurement of direction, distance, location, or topography. This product should not be used to determine ground proximity for aircraft navigation.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

The batteries (or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the Global Positioning System (“GPS”) hardware, operating software or other aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety [Note-Consider referencing specific UL standard].

UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software.

UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Important Safety Instructions

Note: This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
3. Consult the dealer or an experience radio/TV technician for help.

The images in this manual are only for reference and they may be different from the actual ones.

Accessories

Accessories List

ITEM	NAME
	Owner's Manual 2
	AC Adaptor 1
	Car Adaptor 1
	Mounting Bracket 1
	USB Cable 1
	Mounting cradle 1
	Touch Pen 1
	Dashboard mount disk 1
	SD Card 1
	Pouch	1

NOTE

Accessories and their parts numbers are subject to modification without prior notice due to improvements.

Contents

Important Safety Instructions

Accessories

View of Main Unit

System Connections

Power Supply Preparation

General Setup

Playing Music

Photo Viewer

Use of the Mount Accessories

Troubleshooting

Specifications

......1

......5

......7

......8

......10

12

......16

18

......20

......21

......23

1. POWER button

Press for a longer time to enter or exit the standby mode.

1. Card Port

Insert the SD card into the port.

1. Earphone Jack

Used to connect earphones for private listening. When the earphones are connected to this jack, the speaker will be turned off automatically.

1. DC 5V Input Jack

Used to connect to the supplied adapter.

1. LCD Screen

2. USB port

Used to connect to the USB device.

1. RESET button

Press to reset the system.

System Connections

● Always ensure that the unit and any other external device connected to the unit are switched off and unplugged from the power supply before you attempt to connect the unit to any external device.

Connecting to PC

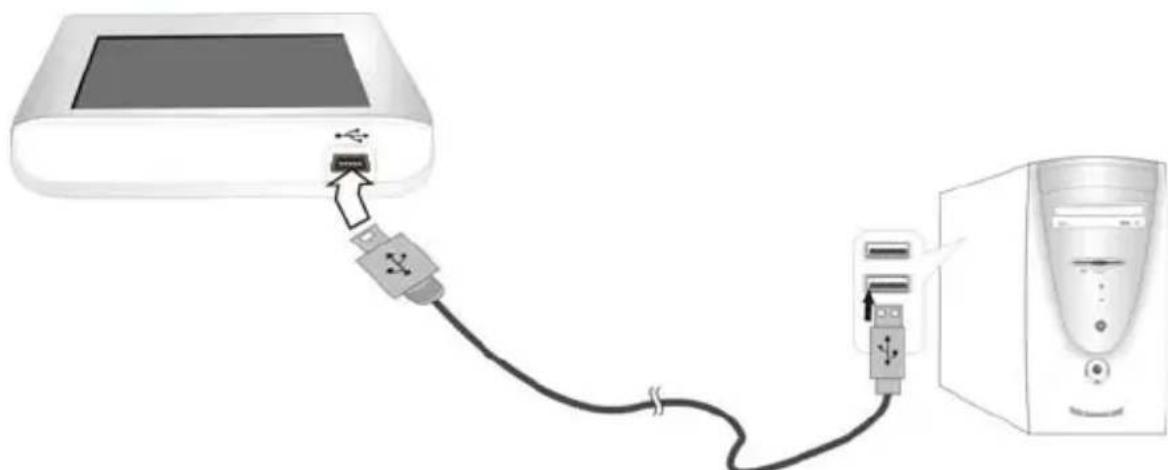

The unit is designed with a USB port which allows you to connect the unit to PC for map updating. See the below figure for details:

System requirements:

-Windows 98SE, ME, 2000 and XP

(Driver required for Windows 98SE)

-DVD Rom Drive (for map upgrade purposes)

-Intel Pentium II 233 Mhz

-64 MB RAM

-50 MB available hard drive space

-Available serial port and/or USB Port

-256-color display adapter and monitor

(16 bit color required)

System Connections

Inserting SD Card

The unit is designed with SD Card jack which allows you to insert the SD card into the unit as shown below:

To remove the card, gently press the card in with your fingernail. The card unlocks and protrudes slightly. Then remove the card.

Connecting to Earphones

Connect the earphones to the right side of the unit for private listening.

When earphone is connected, the speakers will automatically turn off.

Note: Excessively loud volume could damage your hearing. So turn down the volume before you connect the earphones, and then raise the volume to comfortable level.

Power Supply Preparation

Using the AC Adaptor

The unit is supplied with an AC adaptor for powering it and charging its battery.

1. Connect AC adaptor to the right side of the unit in the jack marked DC 5V IN, as shown on the right.
2. Plug the two-prong end of the power cord into a grounded electrical outlet.

Note:

Turn unit's power off before unplugging.
In the case of using the adaptor, the LCD screen will be brighter than with the rechargeable battery.

Using of Car Adaptor

The unit is supplied with a Car Adaptor for powering it while in a vehicle.

Connect the Car Adaptor Power Plug to the unit's power jack and plug the other end to the vehicle's 5V accessory/ cigarette socket, as shown on the right figure.

Attention

Place the unit in a proper position for viewing.
➢ Disconnect the unit from the Car Adaptor when starting the vehicle.

Your portable GPS unit comes with a built-in rechargeable battery. Please see details in the following segment.

Power Supply Preparation

Working conditions and precautions for the rechargeable battery

Battery should only be used and charged when temperatures are between 32°-100° F.
Maintain well-ventilated conditions around the product to avoid overheating. Don't put the product on a bed, sofa or anything that may block ventilation to the product.
When the battery is weak, an indication menu will appear on the LCD screen and after a little while, the unit will power OFF automatically.

Charging the Battery Pack

The battery must be charged by using the supplied adaptor.

General Setup

System Main Menu

When in navigation mode, tap button in the Menu screen. A confirmation message appears asking if you want to exit the program now, as shown below.

In the confirmation screen, tap 📋 and the system main menu appears.

In the main menu, there are four items for selecting. Touch the corresponding item to enter.

Tap 📄 to enter navigation mode; tap 🔒 to enter the MP3 player; tap 🔒 to enter the Photo Viewer; tap 🔒 to enter the setting menu.

Setting Menu

In the main menu, tap to enter the setting menu, the screen will display as below:

In the menu, tap 📄 to return to the main menu.

General Setup

Language

Tap 📋 in the setting menu to enter Language setting menu for language selecting, as shown below:

Tap the ◀▶ buttons to select language. Then tap √ to confirm or tap ✗ to cancel.

Backlight

Tap in the settings menu to enter Backlight setting menu for backlight adjusting, as shown below:

Tap the first group ◀▶ buttons to adjust the backlight level.

Tap the second group ▶ buttons to adjust the sleep time. There are 6 choices for sleep time (--/5/10/30/60/120).

--: The system will keep backlight always on and will not enter sleep mode.

5: The system will keep backlight on for 5 minutes and then enter sleep mode.

10: The system will keep backlight on for 10 minutes and then enter sleep mode.

30: The system will keep backlight on for 30 minutes and then enter sleep mode.

60: The system will keep backlight on for 1 hour and then enter sleep mode.

120: The system will keep backlight on for 2 hours and then enter sleep mode.

After setting, tap √ to confirm or tap ✗ to cancel.

General Setup

Date & Time

Tap in the settings menu to enter Date & Time setting menu for changing to the current time zone, as shown below:

Tap the ◀▶ buttons to select the proper Time Zone. Tap the ▲▼ buttons of Date group to change the corresponding date and tap the ▲▼ buttons of Time group to change the corresponding time. Tap 🔍 to return.

Power

Tap in the settings menu to enter Power menu for the current battery status, as shown below:

The power menu will display the current battery status. Tap 🔒 to return.

General Setup

Calibrate

Tap in the settings menu to calibrate, the screen will display as below:

This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear after having moved through a cycle (center→top left→bottom left→bottom right→top right). Tap the screen to return to the settings menu.

Note: If “+” doesn’t disappear, you should calibrate again.

Volume

Tap in the settings menu to enter Volume settings menu for volume adjusting, as shown below:

Tap the ◀▶ buttons to adjust the volume. Then tap √ to confirm or tap ✗ to cancel.

Playing Music

The unit is designed with SD card slot and supports MP3 and WMA format files playback. You can insert the SD card with MP3 or WMA files in the unit for music enjoyment.

Note: Do not store MP3 or WWA format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost.

Warning: For your own safety, do not use the earphones when driving.

Take the following steps to play:

Loading MP3 format files:

1. Insert the SD card with MP3 files.
2. Turn on the unit.

A note regarding the MP3 function:

The unit has the ability to play your favorite MP3 music files. This is accomplished by using the unit's SD card slot, located on the right side.

MP3 files should previously reside on the users SD card.
MP3 files can be imported to the users SD card on a PC, using a variety of programs such as Windows Media Player.
This process should be performed independent of the navigation unit.

Do not attempt to use the unit to read and burn MP3 files from an external source.

Playing Music.

In the main menu, tap to enter the MP3 Player screen, as shown below:

In the MP3 player screen, tap ✗ in the top left corner to exit.

Playing Music

In the screen, tap the MENU button to enter the MP3 play list menu, as shown below:

When you open the play list, the system will look for audio files on its SD memory card and create a play list automatically. If the play list consists of more than one screen, tap the up arrow △ for the previous page and the down arrow ▽ for the next page.

In the play list, double tap the songs to start playback.

Tap ; when the button changes to orange, the player will repeat all the songs in the play list.

Tap ☐; when the button changes to orange, the player will play the songs in the list randomly.

Tap to return to the MP3 main screen.

On the playback screen as shown right, the MP3 player has standard playback features:

Tap 📄 button to start playing the songs in the play list.

Tap to stop the playback.

Tap 📂 to pause the playback, and then tap 📃 to resume the playback.

Tap 📂 to back to the previous song; tap 📋 to skip to the next song.

Use vol to adjust the volume of the speaker.

Tap to select the desired playback starting time.

Photo Viewer

The unit is designed with SD card slot and supports JPEG format files playback. You can insert the SD card with JPEG files in the unit for picture view.

Note: Do not store JPEG format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost.

It lags when reading high-resolution JPEG files in SD Card. We suggest low-resolution (within 640*480) pictures playback.

Take the following steps to play:

Loading JPEG format files

1. Insert the SD card with JPEG format files.
2. Turn on the unit.

Playing Picture

In the main menu, tap to enter the Photo Viewer main screen, as shown below:

In the menu, tap 📋 to enter the folder menu, as shown below:

Photo Viewer

In the folder menu, double tap the memory card icon to open it, the pictures stored in the memory card will be listed on the screen.

If the pictures list consists of more than one screen, tap the up arrow 🎨 for the previous page and the down arrow 🎨 for the next page. Tap 🎨 to return to previous menu. Tap a picture to select it and tap 🎨 to confirm your selection.

In the pictures list, double tap a picture to play it on screen, as shown below.

On the playback screen, the Photo Viewer has following playback features:

Tap to rotate the picture.

Tap 📋 to back to previous picture; tap 🖼 to switch to next picture.

Tap, to zoom the picture in or out.

Tap to play the picture in full-screen mode; double tap the screen again to return to Photo Viewer main screen.

Tap to return to the pictures list.

Tap in the top right corner of the menu to exit.

Use of the Mount Accessories

When using the unit in vehicle, you can use the supplied mount accessories (mount bracket, mount cradle and dashboard mount disk) to mount the unit in the vehicle. Take the following steps to operate:

1. See Fig. 1. According to the arrow to slide the mount cradle to fix it to the mount bracket.
2. See Fig. 2. First, set the bottom edge of the unit onto the mount cradle. Then press the two buttons in arrow ① direction and meanwhile push the mount cradle forwards to embed it in the unit.
3. See Fig. 3. Lift the suction cup lever and then press the suction cup to the windshield. According to arrow ① to press down the suction cup lever. Then rotate the knob to adjust the unit to proper position. To mount to dashboard, use the included adhesive disk. Choose a clean, dry spot on your dashboard, peel off protection liner from the back of the disk, and then attach the disk to your dashboard.

Warning:

The device must not be mounted so that it impairs the driver's view of the road. Please take extra precaution to ensure the airbags are not obstructed by the device.

Troubleshooting

Take steps described in the tables below to solve simple problems before contacting customer service.

If you suspect something wrong with this unit, immediately turn the power off and disconnect the power connector from the unit. Never try to repair the unit yourself because it is dangerous to do so.

PROBLEM

Users can't turn on the unit.

There is no sound.

Dark screen.

The unit can't receive satellite signals or can't orient.

POSSIBLE CAUSE

The adaptor doesn't connect well.

The built-in rechargeable battery is weak.

The volume may be turned down or mute.

The brightness may be turned down.

The unit may be obstructed by buildings or metal block.

POSSIBLE SOLUTION

Connect the adaptor correctly.

Use the adaptor to supply power or charge the battery.

Turn up the volume or turn on the sound output.

Adjust the brightness of the LCD.

Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem.

Troubleshooting

PROBLEM

The unit can receive signals now but can't then or signals received are not stable.

POSSIBLE CAUSE

POSSIBLE SOLUTION

The built-in rechargeable battery is weak.	Use the adaptor to supply power or charge the batteryv .
The unit may be obstructed by veil, such as heat insulation paper.	Remove the veil.
Swing of the unit is too great.	Avoid great swing of the unit.
System software of the unit fails to function by change.	Turn on the unit again.

Other possibilities:

Static or other external interference may cause the unit function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the unit. If the problems still exist, please cut off the power supply and consult your service center or the qualified technician.

Specifications

	sehcni 5.3 ezis neercs TFT
Frequency Response 20Hz	- 20kHz
Audio Signal-to-noise Rate ≥65dB
Audio distortion+noise ≤-20dB (1kHz)
Channel Separation ≥70dB (1kHz)
Dynamic Range ≥80dB (1kHz)
Power AC 100-240V - 50/60Hz; DC 5V
Power Consumption	< 8W
Dimensions	103mmX77mmX23mm (L*W*D)
Weight	About 0.16kg

Design and specifications are subject to change without notice.

© 2008 Nextar (Hong Kong) Limited. Nextar is a trademark and service mark of Nextar (Hong Kong) Limited. All other brand names, trademarks and service marks are property of their owners.

Nextar may find it necessary to modify, amend or otherwise change or update this manual.

We may reserve the right to do this at any time, without any prior notice.

All specifications and features are subject to change without notice.

www.nextar.com

Or write us at:

Nextar Inc.

1661 Fairplex Dr.

La Verne, CA91750

USA
