USER MANUAL CSB800E CUISINART

1. Advice from the chefs 11
2. Cleaning and maintenance. 11
3. Safety precautions 12

INHALTSVERZEICHNIS

2. CARACTERISTIQUES PRODUIT

Congratulations on your purchase!

For over 30 years, Cuisinart® has been developing a full range of kitchen appliances that allow both kitchen enthusiasts and great chefs to express their creativity to the fullest.

All Cuisinart® appliances are the result of a close working relationship between engineers and great names in Cuisine, like Paul Bocus, the brand's charismatic ambassador. Every product combines strength, innovation, performance and ergonomics.

Made with professional materials like brushed stainless steel, our products fit easily into every kitchen thanks to a simple and elegant design.

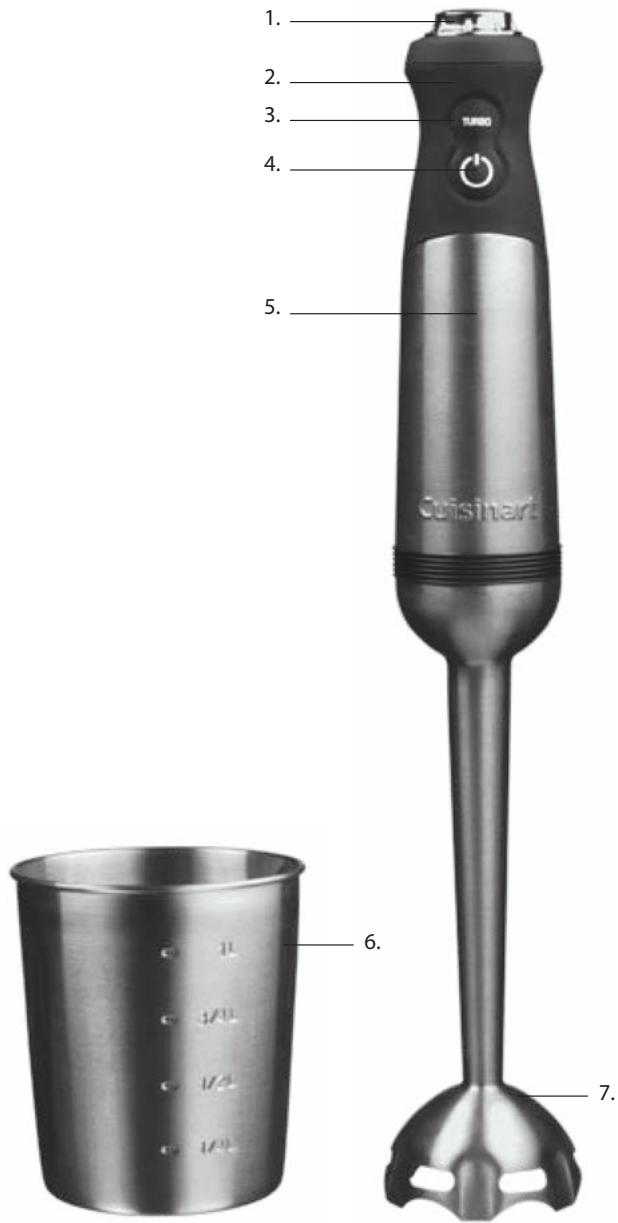

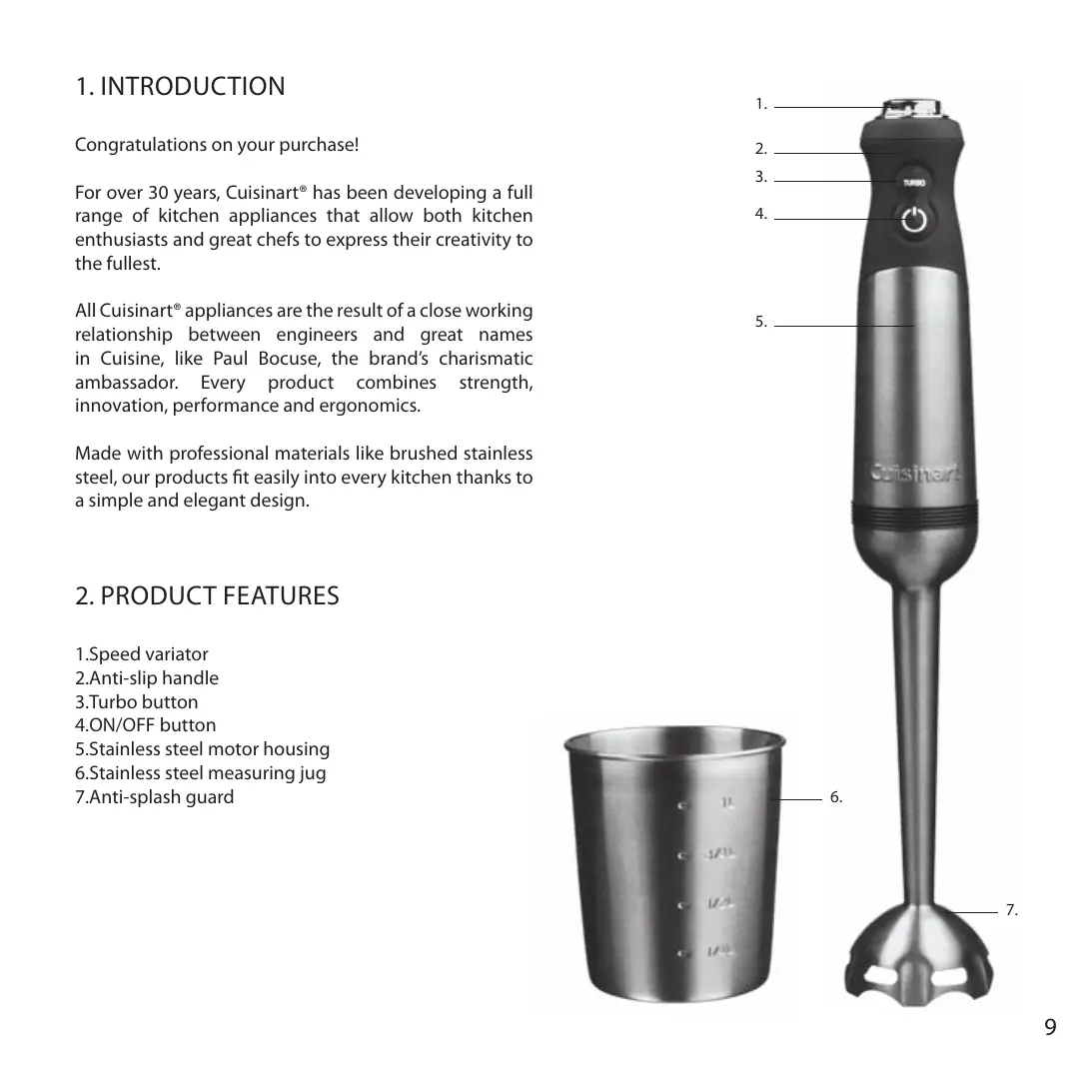

2. PRODUCT FEATURES

1.Speed variator
2.Anti-slip handle
3.Turbo button
4.ON/OFF button
5.Stainless steel motor housing
6.Stainless steel measuring jug
7.Anti-splash guard

3. USE

The hand blender lets you mix and blend while adding as little air as possible to your preparation. All you need to do is move it slightly up and down to prepare the tastiest of recipes. To prevent splashes, never remove the hand blender from your preparation while it is running.

A. ASSEMBLING THE HAND BLENDER

• To attach the blender shaft, line it up with the body and twist in a clockwise direction to lock into place.
• Plug the unit into the mains.

B. USE THE HAND BLENDER

• Place the blender into the preparation to be mixed while ensuring that the base of the shaft is sufficiently immersed.
• Select the lowest speed, press and hold the ON button (1).

The blender will continue to operate as long as the button

is pressed. During operation, increase the speed if necessary.

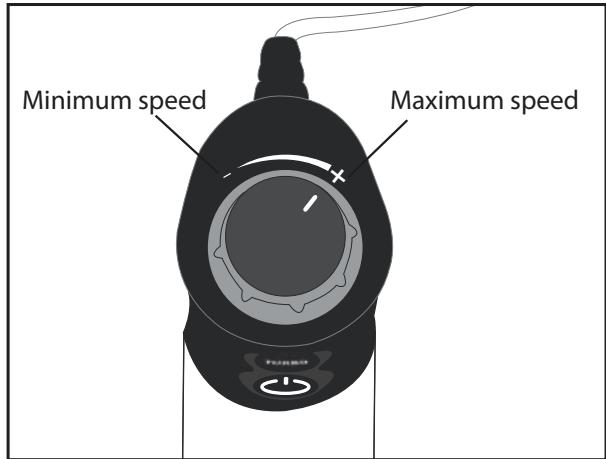

• Always begin by using the lowest speed, then turn the ring toward the ^ + ^ to increase the speed.
• By pressing the 'Turbo' button, you can attain the highest operating speed. You can also use this button in short bursts during operation, working in pulses, without touching the speed variator (see figure 1).

figure 1

• To stop the blender, release the ON ( ) or turbo button.
• Unplug the unit after use.

N.B. Do not hold the button on for longer than 60 seconds at a time.

4. ADVICE FROM THE CHEFS

• Never immerse the motor housing in water or any other liquid.
• The base of the blender should never be fully immersed, leave a space of approximately 2.5cm below the motor housing.
• When using the blender on a non-stick surface, take care not to damage the coating with the blender.
• Cut most solid foods into 2.5cm cubes to blend them easily.
• You can also pour liquid ingredients into the measuring jug.
• To avoid splashes, make sure the base of the shaft is always immersed when the unit is running.
• Never leave the hand blender in a pot on a hot hob.
• Never include pieces of hard fruit, bone or any other hard matter in your ingredients to be blended. These could damage the blades
• The level of the preparation will increase when blended, so the amount of liquid used should be adjusted.
• The addition of hot liquids speeds up the mixing process of solids and liquids.
• For recipes that call for ice, use crushed ice for best results.
  Gently move the blender up and down to mix and

blend the ingredients evenly.

• The blender can also be used to make milk froth for your cappuccino or latte.
• Also use the blender to prepare your gravies and sauces.
• For best results when adding celery to a sauce, remove the celery's hard fibres using a peeler before blending.
• The blender cannot be used to prepare dough or pastry.

5. CLEANING AND MAINTENANCE

Always clean the motor housing and the blender shaft carefully after each use.

Never immerse the motor housing in water or any other liquid.

• Unplug the unit.
• Remove the blender shaft from the motor housing.
• Clean the motor housing with a damp sponge or cloth.

Never use abrasive cleaning products which could scratch the surface.

• Clean the blender shaft by hand in warm water with soft soap. Handle the blender shaft carefully. The blades are sharp and could cause injury.
• Clean the measuring jug in warm, soapy water or in the dishwasher.

6. SAFETY PRECAUTIONS

• CAUTION: The polythene bags over the product or packaging may be dangerous. To avoid all danger of suffocation, keep out of the reach of babies and children. These bags are not toys.

• Never immerse the base of the unit in water or any other liquid.

• Always turn the unit off and unplug it after use and before assembling, dismantling or cleaning it. Never leave the appliance unsupervised while plugged in. To unplug, pull on the plug and never on the lead.
• Never place the unit on or near a heat source.
• Never allow the lead to hang over the work top; store it by rolling it under the base of the unit. Never allow the lead to come in contact with hot surfaces.
• Never touch the blades when the unit is plugged in.
• Only use this unit according to the instructions in this manual.
• Never overload the blender. If the motor locks, switch the unit off and unplug it. Remove some of the ingredients, then switch on again.
• Stop using the unit if it has fallen or if it appears to have been damaged.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified people to avoid any danger.
• The user should not attempt to repair the unit.
• This unit is not intended for use by people (including children) whose physical, sensory or mental capacities are reduced, or by people who lack experience or knowledge, unless they are supervised or have been given instructions beforehand on the use of the unit by a person responsible for their safety. Children should be supervised to make sure they do not use the unit as a toy.

• This unit meets the basic requirements of Directives 2004/108/CE (electromagnetic compatibility) and 2006/95/CE (safety of domestic electrical equipment).

• Use this appliance only for the use described in this manual and according to the instructions.

• This appliance is strictly intended for domestic use only.

ELECTRICAL AND ELECTRONIC EQUIPMENT AT THE END OF LIFE.

In everybody's interest and to participate actively in protecting the environment:

Do not discard these products with your household waste. Use return and collection systems available in your country.

Some materials can in this way be recycled or recovered.
