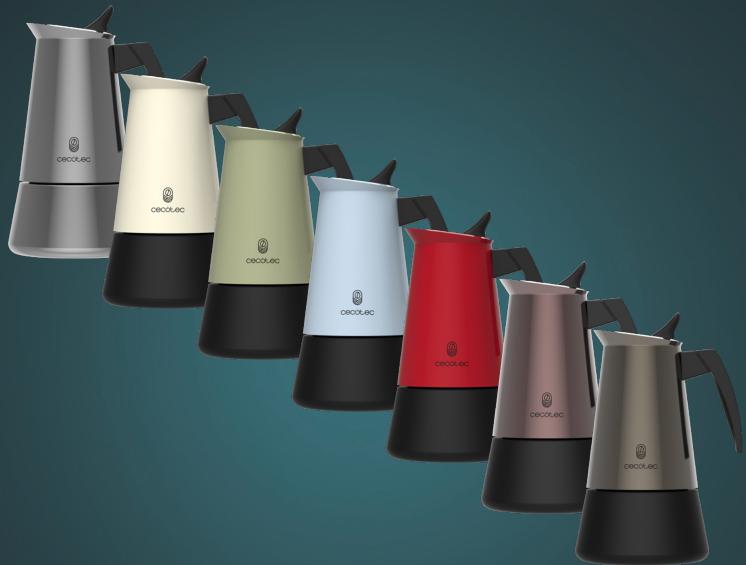

Piccolina 200 A01 Eu01 113697 - Coffee maker CECOTEC - Free user manual and instructions

Brand	Cecotec
Model	Piccolina 200
Product type	Moka-type espresso coffee maker
Capacity	200 ml (2 cups)
Material	Aluminium
Usage	Compatible with all types of heat sources (gas, electric, ceramic, induction)
Main function	Ground coffee preparation by percolation
Pressure	Steam (without pump)
Safety	Insulated handle, safety valve
Maintenance	Dishwasher safe (except rubber gasket)
Gasket	Rubber, replaceable
Filter	Permanent stainless steel filter
Available colors	Beige, Green, Blue, Red, Bronze, Gold
Dimensions (approx.)	Height 15 cm, Diameter 8.5 cm
Box contents	Coffee maker, instruction manual
After-sales service	Contact Cecotec at [phone]
Warranty	Compliant with applicable regulations
Country of origin	China (designed in Spain)
Number of cups	2

Frequently Asked Questions - Piccolina 200 A01 Eu01 113697 CECOTEC

How to use the Piccolina 200 coffee maker?

Fill the water reservoir up to the air valve, place the funnel with medium ground coffee without tamping, screw on the coffee container, heat on medium-high heat. Serve after the coffee has risen.

What type of ground coffee to use?

Use a medium grind (not too fine nor too coarse). Do not tamp the coffee in the funnel.

Why is my coffee bitter?

Bitterness may be due to too fine a grind, excessive coffee, or overheating. Check the grind and heating time.

How to clean the coffee maker?

Wash the parts with warm soapy water or in the dishwasher (except the rubber gasket). Dry thoroughly before storing. Do not use solvents.

Can the coffee maker be used on induction?

Yes, the Piccolina 200 is compatible with all types of heat sources, including induction.

How to replace the rubber gasket?

The gasket is removed from the filter after unscrewing. Replace with an identical gasket (Cecotec ref.). It is available via after-sales service.

What to do if the coffee does not rise?

Check that the grind is not too fine, the coffee is not tamped, and the gasket is properly in place. Make sure the heat is sufficient.

How many cups can be prepared?

The Piccolina 200 model can prepare 2 cups of coffee (approx. 100 ml total).

Is the coffee maker dishwasher safe?

Yes, the coffee maker can be washed in the dishwasher, but remove the rubber gasket which must be washed by hand.

Where to find spare parts?

Contact official Cecotec After-Sales Service at [phone] to order parts like the gasket or filter.

USER MANUAL Piccolina 200 A01 Eu01 113697 CECOTEC

PICCOLINA 200/400/600/900

Cafetera italiana | Italian coffee maker

1. Parts and components 29
2. Before use 29
3. Operation 29
4. Cleaning and maintenance 31
5. Technical specifications 31
6. Technical support and warranty 32

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Keep the moka pot out of the reach of children during use.
• Make sure to stay far enough away from the steam emitted.
• Use the moka pot only for its intended purpose.
• Remove the moka pot from the heat source and let it cool down before opening it.
• Do not touch the hot surfaces of the moka pot. Use the handle and lid knob.
• Do not use the moka pot with the bottom chamber empty.
• Follow the instructions for use to choose the appropriate heat source(s)
• Use only spare parts from the manufacturer according to the model.
• Do not overheat the moka pot or allow the flame to rise up its sides. This could damage the product's handle.
• Do not use the moka pot to store espresso coffee.

• Do not use the appliance if all parts and components are not included and assembled.

• The temperature of accessible surfaces may be high while the appliance is in use and could cause burns. Do not touch hot surfaces during operation or immediately after. Use protection to avoid burns.

• Keep the moka pot away from children when in use and if it contains hot substances.
• Do not use extracts or substances other than coffee.
• Do not press coffee down.
• This appliance is designed to be used with water only.
• Allow the appliance to cool down before opening it.
• Hold the appliance by the handle during use to avoid burns.

Note: the moka pot will stain on the inside due to coffee and water minerals, and on the outside due to direct exposure to heat. This is a normal process that will take place over time.

INSTRUCTIONS DE SÉCURITÉ

1. Water container
2. Funnel and filter
3. Filter gasket
4. Coffee spout
5. Valve
6. Coffee collector

WARNING: the graphics in this manual are schematic representations that may not correspond exactly to reality.

2. BEFORE USE

• Take the appliance out of the box and remove all labels.
• Make sure the appliance is in good conditions and that there are no parts missing.
• Wash the appliance with warm, soapy water to remove any dirt or oil.
• Dry the appliance thoroughly before using it again.

Box content

• Piccolina moka pot
• Instruction manual

3. OPERATION

Assembly and disassembly

- To place the funnel over the water container, simply drop it into the water container until it locks into place.

ENGLISH

• The coffee filter is placed concave in the base of the coffee collector and the rubber gasket is placed on top of it until it fits snugly. You will notice that the filter base fits perfectly with the rubber gasket.
• The coffee collector, with the filter and gasket in place, is screwed to the water container at the top of the container, which is fixed and stable.

Operation

Fig. 2

• After cleaning the moka pot, fill the water container with water up to the valve.
• Place the funnel in the base of the moka pot. Fill the funnel with ground espresso.

NOTE: the coffee grind should be medium and should not be pressed once it has been placed and distributed in the funnel. The more coffee you pour in, the more pressure the water will exert on the coffee and the more intense the taste will be. If too much ground coffee is used, the coffee will not be prepared.

• Place the coffee collector on top of the water container and close it tightly.
• Set the heat of the appliance you are using to heat the coffee to medium-high.

WARNING: when using a gas-flame stove, make sure the moka pot's handle is not exposed directly to the flame.

• After a few minutes, the water will start to boil, and the coffee will filter to the top chamber of the moka pot.
• Pour the coffee carefully.
• Once the moka pot has cooled down, unscrew the top chamber, and clean it thoroughly.

WARNING: do not allow the moka pot to come into contact with salty or acidic substances.

NOTE: these coffee machine models are suitable for any type of heating surface.

Attached below is an information table with each Piccolina reference and the number of people and the number of cups that can be prepared:

Piccolina	200	400	600	900
Number of cups	2	4	6	9

4. CLEANING AND MAINTENANCE

• Do not pour cold water into the moka pot when hot. Sudden changes in temperature can affect the material, causing bending and deformation.
• Use specific cleaning agents for metallic surfaces to clean the surface of the moka pot.
• Always wash it after each use.
• Dry it thoroughly before storing it to avoid stains.
• Do not use abrasive or chemical products to clean the appliance.
• The coffee machine can be washed in the dishwasher, remember to take care with the rubber gasket.

5. TECHNICAL SPECIFICATIONS

Product reference:

01847 - Piccolina 200 / 01848 - Piccolina 400 / 01849 - Piccolina 600 /

ENGLISH

01850 - Piccolina 900 / 00099 - Piccolina 200 Beige / 00100 - Piccolina 400 Beige / 00101 - Piccolina 600 Beige / 00102 - Piccolina 900 Beige / 00103 - Piccolina 200 Green / 00104 - Piccolina 400 Green / 00105 - Piccolina 600 Green / 00106 - Piccolina 900 Green / 00107 - Piccolina 200 Blue / 00108 - Piccolina 400 Blue / 00109 - Piccolina 600 Blue / 00110 - Piccolina 900 Blue / 00111 - Piccolina 200 Red / 00119 - Piccolina 400 Red / 00113 - Piccolina 600 Red / 00114 - Piccolina 900 Red / 00115 - Piccolina 200 Bronze / 0011 - Piccolina 400 Bronze / 00117 - Piccolina 600 Bronze / 00118 - Piccolina 900 Bronze / 00164 - Piccolina 200 Gold / 00165 - Piccolina 400 Gold / 00166 - Piccolina 600 Gold / 00167 - Piccolina 900 Gold

Made in China | Designed in Spain

6. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys./Obr.1

5

6

Fig./Img./Abb./Afb./Rys./Obr. 2

www.cecotec.es
