Product type	Gas cooker
Brand	Cecotec
Model	Bolero Squad Gn 5200s
Dimensions (W x D x H)	60 cm x 60 cm x 85 cm
Weight	About 50 kg
Power supply	Natural gas or propane (depending on kit provided)
Number of burners	5 gas burners
Oven type	Gas oven with grill function
Oven capacity	Approximately 70 L
Total power	Approx. 10 kW (gas)
Main functions	Gas cooking, grill, natural convection
Safety	Gas safety device (thermocouple) on burners and oven
Ignition	Integrated ignition (push-button)
Hob material	Tempered glass or stainless steel
Maintenance and cleaning	Easy-clean enamel surface, removable grates
Oven door	Removable double glazing
Oven lighting	Yes, interior lamp
Energy class	A (for the oven)
Country of manufacture	China (probably)
Warranty	2 years
Spare parts and repairability	Available through Cecotec after-sales service

Frequently Asked Questions - Bolero Squad Gn 5200s CECOTEC

How to install the Cecotec Bolero Squad Gn 5200s gas cooker?

Installation must be carried out by a certified professional. Ensure compliance with safety distances (at least 5 cm from walls) and connect the appliance to a compliant gas outlet. Refer to the full manual for detailed diagrams.

How to light the burners?

Turn the burner knob to the ignition position (flame symbol) and simultaneously press the integrated ignition button. Hold for 5 seconds to activate the thermocouple safety device.

What to do if the oven does not heat?

Check that the gas supply is open and the cylinder is not empty. If the problem persists, the thermocouple or ignition spark plug may be defective. Contact technical support.

How to clean the glass hob?

Use a soft cloth and a special ceramic hob cleaner. Avoid abrasive sponges. For stubborn stains, apply a degreasing product and let it sit.

Can the cooker be used with a butane gas cylinder?

Yes, the model is compatible with butane or propane gas. You must use the supplied conversion kit (appropriate nozzles) and adjust the pressure according to the instructions in the manual.

What is the oven capacity?

The oven has a capacity of approximately 70 litres, allowing you to cook large dishes. It is equipped with 5 shelf levels.

How to use the grill function?

Place the grill at the top level and turn the oven knob to the grill position (wavy symbol). Preheat for 5 minutes before placing food inside. Monitor cooking to avoid burning.

Is the oven door removable for cleaning?

Yes, the door is removable. Open it fully, lift the hinges, and remove it. The inner glass can be cleaned with a mild product.

What to do if the burner flame is yellow or irregular?

This indicates incomplete combustion. Check that the burners are clean and dry. If the problem persists, have a professional check the gas supply and nozzle adjustment.

Where to find spare parts for this model?

Spare parts are available from Cecotec's after-sales service or on their website. Refer to the model number to order the correct parts.

USER MANUAL Bolero Squad Gn 5200s CECOTEC

SAFETY INSTRUCTIONS....5

ESPAÑOL....107

ENGLISH....122

FRANÇAIS....136

DEUTSCH....151

ITALIANO....166

PORTUGUÊS....181

NEDERLANDS....196

POLSKI....210

ČEŠTINA....224

MAGYAR....238

ΕΛΛΗΝΙΚΑ......252

TÜRKÇE....267

العربية....281

CATALÀ....294

FIGURES....322

NOTA

EU01_127657 Placa de gas Bolero Squad GN 1200S Inox EU01_127665 Placa de gas Bolero Squad GN 2200S Inox EU01_127673 Placa de gas Bolero Squad GN 3200S Inox EU01_127683 Placa de gas Bolero Squad GN 4200S Inox EU01_127691 Placa de gas Bolero Squad GN 5200S Inox

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Icon	Type	Meaning
	WARNING	Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Risk of dangerous voltage
	FIRE	Warning: Risk of fire/flammable materials
	CAUTION	Risk of injury or damage to property
	IMPORTANT/NOTE	Correct system use

• ⚠️ WARNING: The installation and connection of the appliance must be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- WARNING: The appliance and its accessible parts

may become hot during or after use. Be careful with the heating elements. Children under 8 years of age should be kept away from the appliance unless continuously supervised.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.

- Do not use the appliance if the cord, plug (NOT INCLUDED) or housing is damaged or malfunctioning, if it is partially disassembled or if components are missing or damaged.

- Do not allow children to play with the appliance.

- Before installation, make sure that the local distribution conditions (gas type and pressure) are compatible with those of the appliance.

- The setting conditions for this appliance are indicated on the rating plate.

- This gas hob is not connected to any flue-gas evacuation system. It must be installed and connected in compliance with current installation regulations. Pay particular attention to the relevant ventilation requirements.

- ⚠️ WARNING: During use, a gas hob emits heat, moisture, and flue gases into the room where it is installed. Make sure that the room is well ventilated, especially when the hob is in operation. Keep natural ventilation channels open or install a

mechanical-ventilation device (for example, an extractor hood).

- Intensive and prolonged use of the appliance may require additional ventilation, e.g. opening a window, or increasing the extractor hood power.

- This appliance can be used by children aged 8 years and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- The appliance is not intended to operate by means of an external timer or a separate remote-control system.

- WARNING: Unattended cooking on a greasy or oily gas hob can be dangerous and may result in a fire. NEVER attempt to extinguish fire with water. Switch off the appliance and cover the flames, e.g., with a fireproof lid or blanket.

- CAUTION: The cooking process must be supervised. Continuously monitor cooking during operation.

- WARNING: Fire hazard: do not place objects on the cooking surfaces. The appliance could accidentally ignite or still be hot, which means that objects could

melt, heat up or catch fire.

• WARNING: Only use the pan supports supplied with the appliance or indicated as suitable by Cecotec. The use of unsuitable pan supports can cause accidents.
• The appliance must not be installed behind a decorative door to avoid overheating.
• Do not modify the appliance in any way.
• The gas hob cannot be used as a support or work surface.
• The appliance must be earthed in accordance with local regulations.
• Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.
• Turn off the burners after use.
• Monitor the cooking of very fatty or oily foods to avoid fire.
• Be careful not to burn yourself while or after using the appliance.
• Make sure that no cable of any fixed or mobile appliance touches the burner or hot cookware.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Make sure the appliance is sufficiently ventilated according to these instructions.
• Do not allow objects of any size to fall onto the appliance.
• Do not leave empty cookware on the burners.
• Never store flammable objects (e.g., aerosols) in the

space under the gas hob. Drawers/cabinets and their contents must be heat resistant.

- Precautions in the event of a fault: if you notice a fault, switch off and unplug the appliance.

- Repair of the appliance must be carried out by qualified professionals. Do not try to fix the appliance yourself.

- Always make sure that the cookware is well centred on the burner. The bottom of the cookware should cover the burner as much as possible.

- Always place the cookware on the pan support, never on the burner cap or directly on the burner itself.

- Intensive and prolonged use of the appliance may require additional ventilation, e.g. opening a window, or increasing the extractor hood power.

- This appliance is designed for cooking only. It must not be used for other purposes, e.g. for heating rooms.

- Never immerse burner caps or pan supports in cold water. Fast cooling can damage the enamel.

• Always use suitable cookware.

- Regular cleaning of the burner parts is recommended to ensure optimum and safe operation.

- Keep any textiles such as gloves or tea towels away from the burner flame.

- Do not use baking griddles or trays.

- The appliance can only work efficiently if the burner components have been installed correctly, ensuring that cooking utensils (frying pans, pots, pans, among others) can be placed in a stable position.

• Aluminium trays or aluminium foil are not suitable as cooking utensils. Both burner caps and pan supports may be damaged.
• Never flambé under an extractor hood. High flames can cause a fire, even if the extractor hood is switched off.
• When the hob is used for the first time, you will notice some odour, do not worry, this is normal and will disappear with use.
• The appliance must not be placed or used outdoors.
• Do not use the appliance at room temperatures below 5 °C.
• The distance between the frying pan and a non-heat resistant wall should always be more than one centimetre. For shorter distances, the high temperature may cause the wall surface to discolour or warp.
• The burner components are hot during and immediately after use. Do not touch them and avoid contact with non-heat resistant materials.
• Never open the housing of the appliance.
• Do not use a pressure washer or steam cleaner to clean the hob.
• Never heat closed cans. Pressure build-up could cause an explosion.
• If you use a worktop protector, make sure it is suitable.
• WARNING! Cecotec accepts no liability for incidents or damage caused by improper use outside the rules set out in this instruction manual, or by

non-compliance of these safety instructions and warnings.

- Possible damage produced by incorrect installation, setting or use is not covered by the warranty.

- Cecotec is not responsible for any damage, accident, or incident resulting from the misuse of this device. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.

- We are constantly working on the development and improvement of our appliance models and ranges. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and ranges without prior notice.

• ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ٍ ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ن ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه ⚠ه

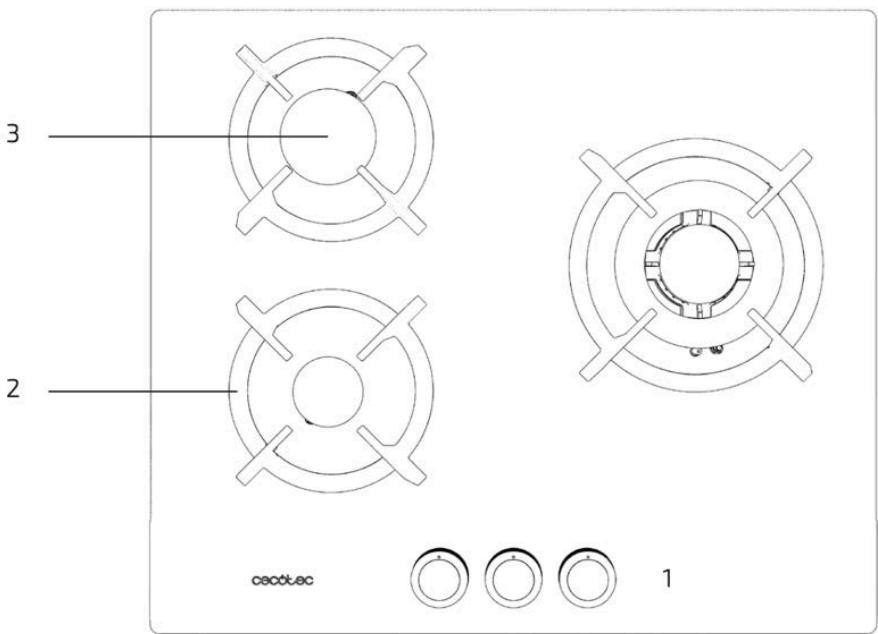

1. Parts and components

Fig. 1

1.- Operation knobs
2.- Burner and cap assembly
3.- Pan support

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

NOTE:

Figure 1 is a general graphical representation of all gas hob models included in this instruction manual.

Each hob varies in the number and arrangement of burner(s) and operation knob(s).

NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• To get the most out of the appliance, all accessories (burner, cap, etc.) must be correctly positioned.
  ● Accessories may vary depending on the gas hob model.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

Gas hob
● Accessories (burners, caps, pan supports, etc., depending on the model)
● Assembly kit (depending on the model)

- Instruction manual

3. Installation

This hob is designed to operate solely and exclusively with natural gas.

If you wish to operate the hob using butane/propane gas, an authorised gas installer must carry out the conversion, replacing the natural gas injectors with butane/propane gas injectors (included in a separate bag). In addition, appropriate adjustments must be made to ensure optimal operation of the appliance.

Incorrect adjustment of the injectors may result in serious personal injury and property damage: burns, fire hazards, gas leaks, damage to burners, pan supports, and cookware, etc.

● WARNING: The installation must be carried out by a qualified technician (authorised gas installer).
- The technician must show you the location of the gas valve and how to close it in case of emergency.
- Ensure all packaging materials are removed from the hob before putting it into operation to avoid possible fire hazards.
- Observe the minimum clearances to combustible surfaces indicated in this manual. These must match the information on the rating plate and comply with local regulations and standards.
- If the hob is installed near a window, appropriate precautions must be taken to prevent curtains from blowing over the burners, as this would pose a serious fire hazard.
- When choosing the location of the hob, take into account the position of the gas and electricity supply pipes.
● Both the gas supply and electrical power must be closed during installation.
- Do not install another hob next to this appliance.
- Check the underside of the worktop to ensure there are no protrusions. Make sure the worktop is solid, can support the weight of the hob and is level.
● Make sure that the location where you place the hob is well ventilated. Make sure ventilation is not obstructed by bulky objects, etc.
- Remember to glue the sealing gasket to the hob panel before installing it on the worktop.

ENGLISH

● RISK OF CUTS. Please note that the edges of the stainless steel hobs can cause cuts, extreme caution must be taken when handling.

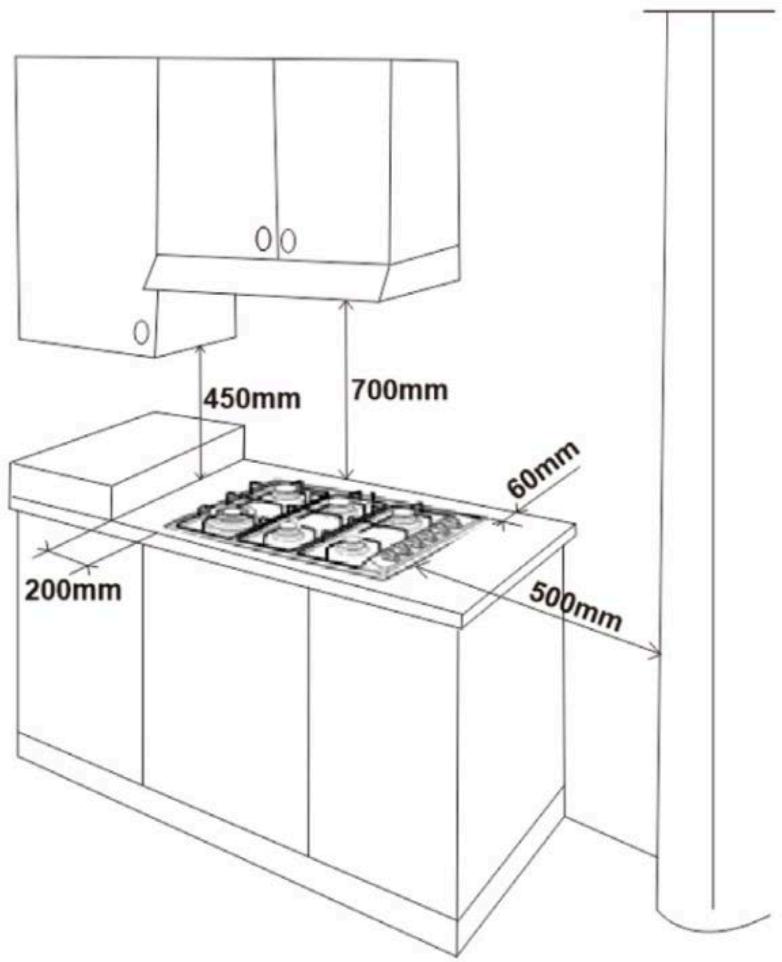

● Figure 2 shows the safety distances to be observed when installing the hob.

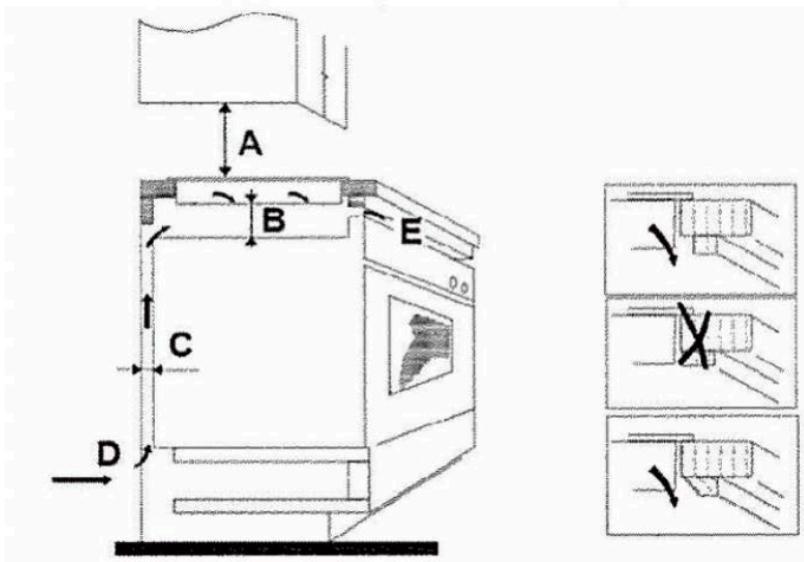

Installation of the hob under a piece of furniture

● Always make sure the hob is well ventilated and that the air inlet and outlet are not blocked. Make sure the hob works properly.
● The following table shows the installation dimensions corresponding to figure 3:

A	B	C	D	E
700 mm	Min. 100 mm	Min. 20 mm	Air inlet	Air outlet 5 mm

Note: The safety distance between the hob and a cabinet over the hob must be at least 700 mm.

WARNING: In case of breakage of the hob glass (depending on the model):

Immediately switch off all burners and any electrical heating elements and disconnect the appliance from the mains. Do not touch the surface of the appliance. Stop using the hob.

Installation on a worktop

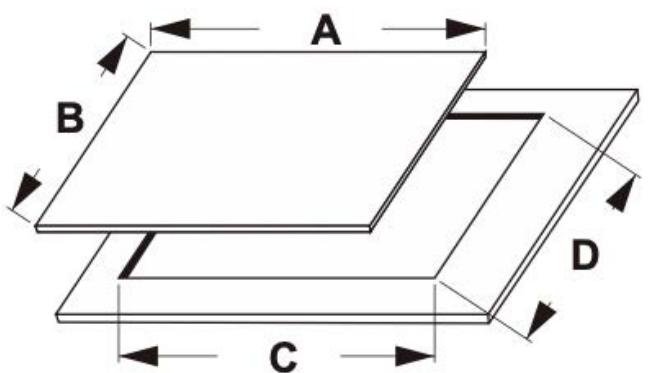

The following table shows the appliance dimensions and the cutting dimensions of the worktop, corresponding to figure 4.

	Appliance dimensions		Worktop recess dimensions
	A (mm)	B (mm)	C (mm)	Depth (mm)
EU01_127657	290	500	270	480
EU01_127665	290	500	270	480
EU01_127673	580	500	560	480
EU01_127683	580	500	560	480
EU01_127691	750	500	560	480

Gas supply connection

The gas connection between the supply point and the hob can be made via a metal bellows or a rubber gas supply pipe (the length of which must not exceed 1.5 m). For kitchen

ENGLISH

applications requiring a steriliser, oven, microwave or similar appliance under the hob, a metal bellows must be used and the connection tube must be fixed.

IMPORTANT: Gas hobs using liquefied petroleum gas (LPG) must be connected by means of a rubber gas hose.

• If a rubber hose is to be used for the connection, please note that a universal air inlet connector is required.
• The two ends of the gas hose are connected to the hob and the inner gas valve (the inner diameter of the hose is 9.5 mm).
• Make sure that the gas hose is not pinched, twisted or kinked. Once the connection has been completed, it must be ensured that no gas leaks occur. Do not expose the gas hose to high temperatures.

• It is recommended that the gas hob is regularly checked for leaks every year.
  ● Always check that the rubber gas hose is in good condition, without cracks or damage and replace it regularly.

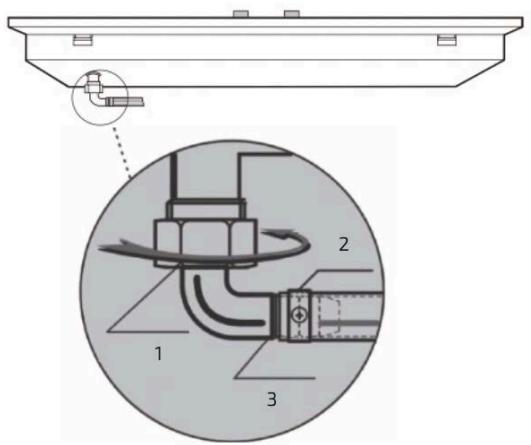

  Fig. 5 key:

• Universal air inlet connector

• Clamp
• Red line

NOTE: Gas hobs using natural and syngas must be connected by means of a metal bellows.

● The metal bellows must meet the following requirements: CJ/T197-2010.
- Install strictly in accordance with the installation method and procedure of the "Stainless steel flexible special gas connection pipe".
- Do not expose the gas hose to high temperatures.
● Gas leak detection must be carried out after the connection has been completed.

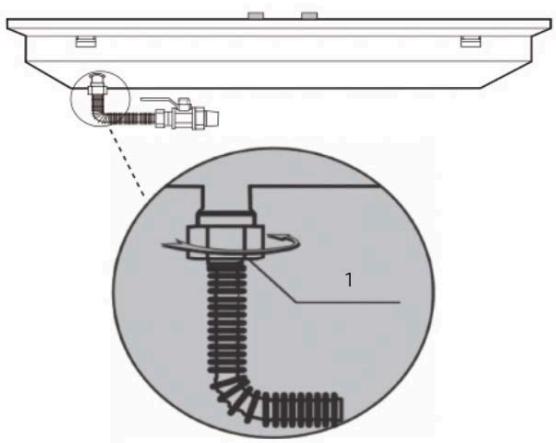

Fig. 6 key:

1.- Metal bellows

Important!

• The gas hose must be inserted up to the red line of the universal air inlet connector and secured with a clamp.
• A rubber gasket must be fitted between the intake elbow and the gas connection pipe to ensure the safety of the installation.

Gas leak detection

Leak detection with soapy water:

ENGLISH

Wet the gaskets with soapy water using a soft brush and open the gas valve to see if bubbles are generated. If this happens, close the gas valve immediately, tighten the connection and try again until no bubbles are generated.

Fitting the accessories

• Ensure that the operation knobs, burner assembly and pan supports are correctly installed. Incorrect installation can seriously affect the normal use of the appliance and shorten its lifespan.
• When fitting the burners, make sure that they are correctly inserted into the ignition needle and the thermocouple. During this process, make sure that the stainless steel surfaces of the appliance are not scratched and that the ignition needle is not accidentally broken. Damage caused in this way is not covered by the warranty.

IMPORTANT: Gas hobs are adapted for use with natural gas, if you wish to use them with another type of gas, such as butane gas, the burner nozzles must be replaced by a qualified technician.

The burner nozzles for butane gas are supplied separately with the hob.

Electric connection

Connect the 3*0.75 mm2 power cable to an earthed socket as shown in figure 7.

Fig. 7 key:

1. Phase L > brown cable
2. Neutral > blue cable
3. Earth > yellow/green cable

Notes:

• For power cable connections, never use adapters, reducers or multiple connectors, as they can overheat and catch fire.
• If the installation requires modification of the power wiring system or the plug does not fit the type of outlet available, it is recommended that a qualified technician be called in to replace it. The technician must also check that the cross-section of the cable in the plug matches the power rating of the appliance.
• Never replace the power cable, contact the official Cecotec Technical Support Service or a qualified technician.

4. Operation

Note: By using a thicker cookware, you can improve heat distribution, especially when using a small burner. The larger the size of the cookware used, the higher the efficiency of the hob. If food is to be left unattended on the hob for a short period of time, set the flame to the

ENGLISH

minimum. This will reduce the risk of food burning and save energy. When using large cookware, be sure to leave a minimum distance of 25 mm around it. Also, note that the distance between it and the operation knob must be at least 50 mm.

Operation of the operation knobs (Fig. 8)

Fig. 7 key:

1. Press the knob.
2. Turn the knob to the left by holding it down.
3. Press and hold for approximately 3 seconds.
4. High temperature setting.
5. Low temperature setting.

If no flame is generated, turn the knob to the off position (0/OFF) and repeat the previous steps. This time hold down the knob for a longer time (up to 10 seconds maximum).

Danger of deflagration

If the flame still does not ignite after 15 seconds, turn off the burner and open a nearby window or door. After waiting at least one minute, try lighting the burner again.

Safety system

Some models have a safety system (thermocouple) to prevent gas leakage when the burner is accidentally turned off.

Fig. 9 key:

1. Ignition needle.
2. Thermocouple.

Before using the appliance, make sure that the safety system is activated. Carry out the following steps:

1. Switch on the appliance.
2. Do not let go of the operation knob once the flame is lit; keep pressing it firmly. Press and hold for about 4 seconds.

Switching off a burner

To switch a burner off, turn its corresponding operation knob clockwise to the off position (0/OFF).

Note:

• It is normal to hear a slight crackling noise during burner operation.
• It is normal for it to give off a strange smell during the first use. This is not dangerous and does not indicate any malfunction. These phenomena will disappear on their own.

ENGLISH

• An orange flame is normal. This is due to dust or splashes of liquid in the environment.
• If the flame goes out accidentally, turn the burner knob to the off position (0/OFF). Wait at least one minute before relighting the burner.
• A few seconds after the burner has been switched off, you will hear a "knock" sound. This is not a problem, it is simply that the security system has stopped working.
• Keep the burner as clean as possible. If the ignition needle is dirty, no flame will ignite. Use a soft brush to clean this part regularly. Avoid knocking or hitting the ignition needle.

5. Cleaning and maintenance

Warning: Explosion risk

Before cleaning the hob, make sure that it has cooled down completely and that the gas valve is not supplied. Do not disassemble the safety system or watertight components.

When removing the burner cap, be careful not to strike the ignition needle to prevent it from cracking (Fig. 10).

Cleaning the panel and burner cap

Use a damp cloth or a very soft scouring pad. Do not use metallic scouring pads or scouring pads with rough or coarse surfaces or acidic cleaning agents.

Pan supports, caps and burners are not dishwasher safe.

Burner cleaning

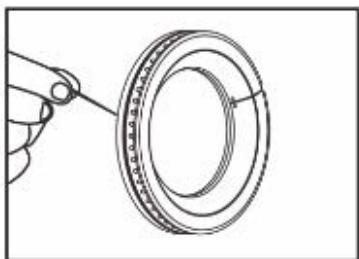

It is recommended to clean the burner and its cap at least once a month. Especially if the flame is irregular. Remove the burner and use a steel needle to remove dirt and carbon deposits from the burner holes (Fig. 11).

Do not rinse the burner directly with water. Make sure it is completely dry before using it again.

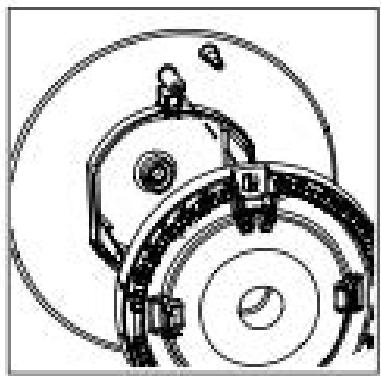

Cleaning the ignition needle and thermocouple

Use a soft brush to clean the surface of the ignition needle and thermocouple.

Avoid knocking or hitting the ignition needle during cleaning. After cleaning, make sure that all parts are dry and then install them correctly.

The warranty will not cover the burner housing or burner and cap assembly if scratched due to improper installation or handling.

1. Troubleshooting

Problem	Cause	Solution
The burner does not switch on The flame is irregular.	Irregular flame due to incorrect gas power setting.	Contact a qualified technician with your gas supply company to check the gas hose.
The flame suddenly changes its appearance	The parts of the hob are not correctly positioned.	Properly assemble all the parts.
The burner takes a long time to ignite	The parts of the hob are not correctly positioned.	Properly assemble all the parts.
The flame goes out as soon as it is lit	You have not held down the knob for long enough.	Hold down the knob for a longer period of time.
The pan support has discoloured	This is a frequent phenomenon due to high temperatures.	Clean the pan support with a specific cleaning product.
The power supply is interrupted	The fuse may be blown or a safety device (thermal switch, circuit breaker...) may be deactivated.	Check the fuse box in your home.
There is a problem with the burner ignition	There is food or cleaning agent residue between the ignition needle and the burner.	Clean up this debris.

The hob makes a lot of noise when it is switched on or when it is in operation.	The burner cap is not fitted correctly.	Position it correctly.
The flame is too high and is yellow in colour	Some burner holes are blocked.	Clean the dirt.
The flame is red	There is a problem with the gas supply or the room environment is humid.	This is normal.
The gas hob gives off a strange smell	Gas hose is worn or damaged.	The gas hose must be replaced by a qualified technician.
	The burner is not lit.	Turn it back on when the smell has dissipated.
The diameter of the cookware does not match the diameter of the pan support	The bottom of the cookware is too close to the burner.	Use an auxiliary pan support.

WARNING: Risk of personal injury

All repairs must be carried out only by qualified personnel. Do not attempt to disassemble or repair the appliance yourself.

• Do not repair or replace any part of the appliance unless specifically instructed to do so in this instruction manual. It may lead to a dangerous incident that endangers your health and/or damages property.
• In the event of a malfunction, please contact the official Cecotec Technical Support Service.

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the appliance yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. Repairs must be carried out by an authorised technician using only original spare parts.

Some of these instructions are intended for qualified technicians; do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by incorrect repair voids the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

7. Technical specifications

Product reference:

EU01_127657

EU01_127665

EU01_127673

EU01_127683

EU01_127691

Product:

Bolero Squad GN 1200S Inox Gas hob

Bolero Squad GN 2200S Inox Gas hob

Bolero Squad GN 3200S Inox Gas hob

Bolero Squad GN 4200S Inox Gas hob

Bolero Squad GN 5200S Inox Gas hob

Product type	Gas hob			CEPIN CODE: 2531DP-0077
Reference	EU01_127657EU01_127665EU01_127673EU01_127683EU01_127691
HB	Class 3

ENGLISH

Manufacturer	CECOTEC INNOVACIONES, S.L. Av. Reyes Católicos, 60, 46910, Alfajar (Valencia) - SPAIN
	G20		G30
Type of gas:	I2H(20), I2E(20)		I3B/P(30)
Burner type	Heating power (kW)	Injector size (mm)	Heating power (kW)		Injector size (mm)
Wok burner	3.6	1.45	3.4kW:247g/h		0.93
Rapid burner	3.0	1.29	3.0kW:218g/h		0.87
Semi-rapid burner	1.75	0.99	1.75kW:127g/h		0.65
Auxiliary burner	1.0	0.78	1kW:73g/h		0.5
Supply pressure	20 mbar		30 mbar
Country code	FR, IT, DK, IE, GB, GR, ES, PT, AT, FI, SE, CZ, EE, HU, LV, LT, SK, SI, IS, NO, CH, TR, BG, HR, RO, DE, LU, PL, NL		LU, NL, DK, FI, SE, CY, CZ, EE, LV, LT, MT, SK, SI, BG, IS, NO, HR, HU, IT, RO, BE, GB, FR
Voltage/Frequency /Power (Nominal)	AC 220-240 V, 50 Hz, 3.6 W

Burner type (model)	Wok burner	Rapid burner	Semi-rapid burner	Auxiliary burner
EU01_127657	1	-	-	-
EU01_127665	1	-	1	-
EU01_127673	1	-	1	1
EU01_127683	1	-	2	1
EU01_127691	1	1	2	1

Please use the appropriate cookware for each burner.

In the following table you can check the sizes by reference:

Burner type	Maximum size	Minimum size
Wok burner	260 mm	110 mm
Rapid burner	200 mm	110 mm
Semi-rapid burner	200 mm	110 mm

ENGLISH

Auxiliary burner

200 mm

110 mm

ERP tables

Reference	EU01_127657
Gas type	I3B/P(30)/I3+(28-30)/37
Burner type	Wok
EE burner	57.40%
EE gas hob	57.40%
Reference	EU01_127657
Gas type	I2H(20)/ I2E(20) / I2E+
Burner type	Wok
EE burner	54.30%
EE gas hob	54.30%

Reference	EU01_127665
Gas type	I3B/P(30)/I3+(28-30)/37
Burner type	Wok	Semi-fast
EE burner	57.40%	61.60%
EE gas hob	59.50%
Reference	EU01_127665
Gas type	I2H(20)/ I2E(20) / I2E+
Burner type	Wok	Semi-fast

ENGLISH

EE burner	54.30%	60.90%
EE gas hob	57.60%

Reference	EU01_127673
Gas type	I3B/P(30)/I3+(28-30)/37
Burner type	Wok	Rapid	Semi-fast
EE burner	57.40%	58.90%	61.60%
EE gas hob	59.30%
Reference	EU01_127673
Gas type	I2H(20)/ I2E(20) / I2E+
Burner type	Wok	Rapid	Semi-fast
EE burner	54.30%	57.60%	60.90%
EE gas hob	57.60%

Reference	EU01_127683
Gas type	I3B/P(30)/I3+(28-30)/37
Burner type	Wok	Semi-fast 1	Semi-fast 2
EE burner	57.40%	61.60%	60.80%
EE gas hob	59.93%
Reference	EU01_127683
Gas type	I2H(20)/ I2E(20) / I2E+

ENGLISH

Burner type	Wok	Semi-fast 1	Semi-fast 2
EE burner	54.30%	60.90%	60.00%
EE gas hob	58.40%

Reference	EU01_127691
Gas type	I3B/P(30)/I3+(28-30)/37
Burner type	Wok	Rapid	Semi-fast 1	Semi-fast 2
EE burner	57.40%	58.90%	61.60%	60.80%
EE gas hob	59.68%
Reference	EU01_127691
Gas type	I2H(20)/ I2E(20) / I2E+
Burner type	Wok	Rapid	Semi-fast 1	Semi-fast 2
EE burner	54.30%	57.60%	60.90%	60.00%
EE gas hob	58.20%

IMPORTANT: Technical specifications may change without prior notice to improve product quality.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the refrigerator.

ATTENTION: These data is subject to regulatory changes.

Made in China | Designed in Spain

8. Disposal of old electrical and electronic appliances

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any incident with the product or have any query, please contact Cecotec's Official Technical Support Service on [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

EU01_127657
EU01_127665
EU01_127673
EU01_127683
EU01_127691

Produkt :

EU DECLARATION OF CONFORMITY

Document identification number: CECDDOC002733.v00

Manufacturer: CECOTEC INNOVACIONES S.L.

Address: Av. Reyes Católicos No. 60 - 46910, Alfajar (Valencia), Spain

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Object of the declaration:

Brand: CECOTEC

Appliance description: Gas hobs

Appliance reference: A01_EU01_127657, A01_EU01_127659, A01_EU01_127661, A01_EU01_127663, A01_EU01_127665, A01_EU01_127667, A01_EU01_127669, A01_EU01_127671, A01_EU01_127673, A01_EU01_127675, A01_EU01_127677, A01_EU01_127679, A01_EU01_127683, A01_EU01_127685, A01_EU01_127687, A01_EU01_127689, A01_EU01_127691, A01_EU01_127693, A01_EU01_127695, A01_EU01_127697.

Appliance category: I2H(20), I2E(20), I2E+(20), I3+(28-30/37), I3B/P(30), I3B/P(50)

Gas pressure (mbar): 20 mbar, 20/25 mbar (28-30) mbar, (28-30/37) mbar, 50 mbar

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

☒	2016/426/EU	☒	2011/65/EU and its amendments
☒	2014/35/EU	☒	66/2014/EU and its amendments
☒	2014/30/EU and its amendments

List of the applicable harmonised standards used:

EN 30-1-1:2021, EN 30-2-1:2015

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021 + A16:2023

EN 60335-2-102:2016

EN 62233:2008

EN IEC 55014-1:2021 EN IEC 61000-3-2:2019 +A1:2021

EN IEC 55014-2:2021 EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022

Notified Body No. 2531, DBI Certification with address Jernholmen 12 DK-2650 Hvidovre, Denmark, has carried out the conformity assessment according to MODULE B: EU type-examination - production type, and issued the certificate number 2531-GAR-CGC1134B, dated 08-2024, that remains valid until 08-2033 unless suspended or withdrawn, and according to MODULE D: Conformity to type based on the quality assurance of the production process, and has issued the following certificate: 2531-GAR-CGA10431

The undersigned is responsible for compiling the technical file and makes this declaration on behalf of CECOTEC INNOVACIONES S.L.

Signed for and on behalf of:

Alfafar (Valencia), Spain, 19/12/2025

Signed by: José Orts

Position: C.B.O

DÉCLARATION DE CONFORMITÉ UE

DEKLARACJA ZGODNOŚCI UE

PROHLÁŠENÍ O SHODĚ EU

EU MEGFELELŐSÉGI NYILATKOZAT

AB UYGUNLUK BEYANI

.A01_EU01_127693, A01_EU01_127695, A01_EU01_127697

(12 H( 20), 12 E( 20), 12E+(20), 13+(2B-30/37), 13B/P ( 30), 13B/P ( 50 : لثة الجهاز

FIGURES
FIG 1

FIG 2

FIG 3

FIG 4

FIG 5

FIG 6

FIG 7

FIG 8

FIG 9

FIG 10

FIG 11

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
