Power Titanium 2300max - Kitchen appliance CECOTEC - Free user manual and instructions

Product type	Multifunctional food processor (blender)
Brand	Cecotec
Model	Power Titanium 2300max
Power	2300 W
Bowl capacity	2.0 L
Blade material	Titanium
Number of speeds	10 speeds + pulse
Main functions	Mix, chop, crush, puree, smoothies, soups
Dimensions (L x W x H)	28 x 22 x 45 cm
Weight	4.2 kg
Cord length	1.2 m
Control type	Touch electronic
Safety	Safety lock if not properly closed and overheating protection
Bowl material	BPA-free tempered glass
Non-slip base	Yes, suction cups
Care and cleaning	Bowl and lid dishwasher safe
Spare parts and repairability	Replacement blades available, Cecotec after-sales service
Warranty	2 years

Frequently Asked Questions - Power Titanium 2300max CECOTEC

How to use the Cecotec Power Titanium 2300max to make a smoothie?

Add fruits and liquid to the bowl, close the lid, select the desired speed or use Pulse mode for a smooth result.

What is the maximum capacity of the bowl?

The bowl has a capacity of 2.0 L, ideal for family preparations. Do not exceed the maximum level mark.

Are the blades made of titanium?

Yes, the blades are made of titanium, ensuring superior durability and cutting efficiency.

Is the bowl dishwasher safe?

Yes, the glass bowl and lid are dishwasher safe for easy cleaning.

How to clean the blender base?

Unplug the appliance and wipe the base with a damp cloth. Never immerse the motor unit.

What to do if the blender does not start?

Check that the bowl is properly locked onto the base. The safety system prevents operation if the bowl is not correctly placed.

Is the appliance noisy?

Like any powerful blender, it produces some noise. Use moderate speeds to reduce noise.

Can I blend hot ingredients?

The tempered glass bowl can withstand heat, but let liquids cool to a maximum of 80°C before blending.

How to replace the blades?

Contact Cecotec after-sales service for replacement blades. Replacement requires a specific tool.

What is the power of the appliance?

The motor delivers 2300 W, allowing easy crushing of hard ingredients like ice.

USER MANUAL Power Titanium 2300max CECOTEC

1. Parts and components 9
2. Before use 9
3. Operation 10
4. Cleaning and maintenance 10
5. Copyright 11
6. Simplified EU Declaration of Conformity 11

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

A. Main unit
B. Control panel
C. Jug base
D. Sealing ring
E. Blade assembly
F. 1.8 L glass jug
G. Lid
H. 85 mL measuring cap
I. Filter

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact the Cecotec's Official Technical Support Service immediately.
• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

Box content

• Jug blender
• Cast glass jug
• Smoothie filter
• Instruction manual

- Clean all parts that come into contact with food before using the blender for the first time.

- Place the blender on a flat, dry and stable surface.

ENGLISH

3. OPERATION

Warnings:

• The maximum capacity allowed by the product is 1.8 litres; do not exceed this amount.
• Do not use the blender when it is empty. It is recommended to fill with 2 parts fruit to 3 parts water.
• The maximum continuous operation time is 2 minutes. Do not exceed this maximum operating time.

Speed knob

1. Position "0" indicates the blender is switched off.
2. Positions "1" and "2" indicate the blender is switched on and operating, with speed in position "2" being faster than position "1".
3. Position "P" indicates the blender is operating at maximum speed.

Product features and protection systems

• Safety switch:
  The product will not operate if the jug is not properly fitted or is removed during use. To reset, place the jug, set the dial to "0" and switch on again.
• Overheating protection:
  If the motor becomes overloaded, the thermal limiter stops the product to prevent damage. Allow the motor to cool down for 30 minutes before using it again. If the LED light flashes and does not work, wait another 10-20 minutes.
• Overcurrent protection:
  If the blade becomes blocked by very hard or large food items, the current limiter stops the appliance. Switch off, remove the food items and resume use.

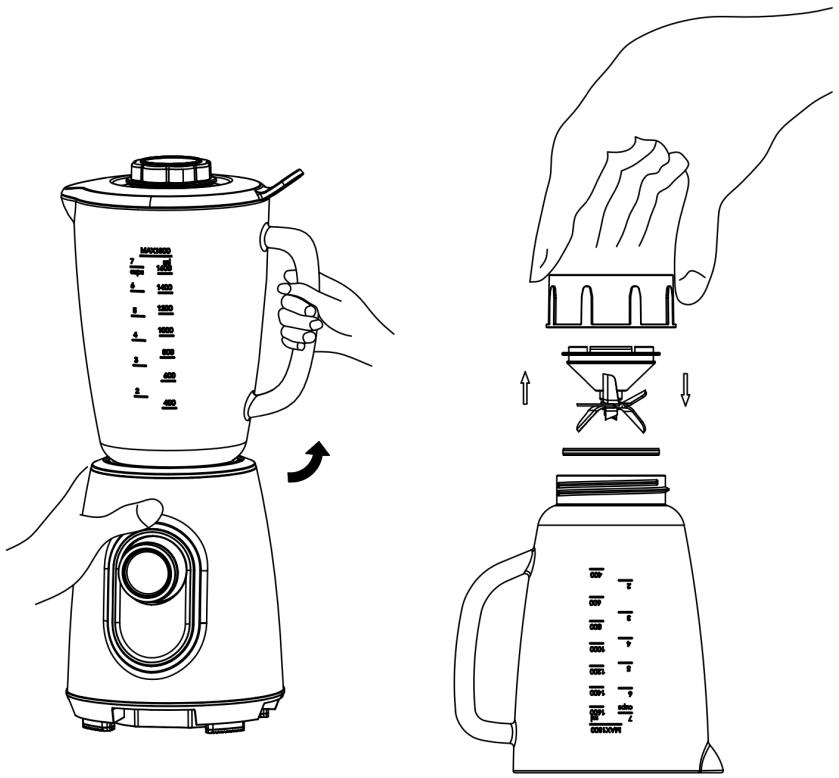

Blender jug base disassembly method (Fig. 2)

1. Remove the blender jug lid, place the blender upside down with the rim on a flat, dry surface. Hold the appliance body with one hand and grip the glass jug handle with the other to unscrew it anticlockwise.
2. Turn the jug base anticlockwise to disassemble and release the blade assembly and sealing ring for cleaning.
3. To assemble, place the blade assembly with the sealing ring in the glass jug base, and firmly screw it clockwise onto the glass jug.
4. Then, screw the glass jug clockwise onto the blender base.

4. CLEANING AND MAINTENANCE

Cleaning

- To clean the blades properly, first rinse the jug with water. Fill the jug with 400 ml of

lukewarm water and add some detergent soap. Close the jug with the lid and operate the appliance in Turbo function (P) in 2-second intervals. Repeat the process as many times as necessary.

• Set the knob in the "0" position, place the switch in the off position and unplug the appliance after each use and before cleaning.
• Use water to clean the jug. Do not use chemical or harsh abrasive cleaning agents.
• Use a dry, soft cloth to clean the motor base. Do not clean this part with a wet cloth.

Maintenance

If the product does not operate properly, makes unusual noises or shakes more than usual, stop using the product and contact Cecotec's Official Technical Support Service. Do not carry out maintenance tasks yourself.

Storage

• After cleaning the blender, make sure to dry it carefully before storing it.
• After using the product, store it in a dry, safe place. Avoid direct exposure to sun light.
• Make sure it is stored in a place out of the reach of children.

5. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

6. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this product complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2
