Purearoma 3000 Navy Sound - Humidifier CECOTEC - Free user manual and instructions

Product Type	Ultrasonic Humidifier with Aroma Diffuser
Brand	Cecotec
Model	Purearoma 3000 Navy Sound
Dimensions (approx.)	25 x 25 x 35 cm
Weight (approx.)	1.5 kg
Water Tank Capacity	3 liters
Humidification Capacity	300 ml/h
Power Supply	220-240 V, 50/60 Hz
Power Consumption	25 W
Noise Level	≤ 35 dB
Aromatherapy Function	Yes, with essential oil tray
Lighting	LED night light with multiple colors
Water Level Indicator	Yes, transparent tank or external indicator
Auto Shut-off	Yes, when water runs out
Cleaning	Recommended weekly cleaning with vinegar solution
Filter Type	Replaceable ceramic or cotton filter (optional)
Safety Features	Overheat protection, tip-over switch
Spare Parts Availability	Water tank, filter, aroma tray available
Repairability Index	Score 7.5/10 (modular design, common parts)
Color	Navy (blue) with sound? No, model name includes 'Navy Sound' but likely a color
Warranty	2 years

Frequently Asked Questions - Purearoma 3000 Navy Sound CECOTEC

How do I clean the Cecotec Purearoma 3000 Navy Sound humidifier?

To clean the humidifier, unplug it and remove the water tank. Use a soft cloth dampened with a mixture of water and white vinegar (1:1 ratio) to wipe the interior and exterior. Rinse thoroughly with clean water. Clean the aroma tray separately. For stubborn mineral deposits, soak with vinegar solution for 15 minutes. Perform cleaning weekly to prevent bacteria growth.

What essential oils can I use with this humidifier?

You can use any water-soluble essential oil. Add 3-5 drops into the aroma tray (not into the water tank). Avoid thick oils like cinnamon or clove as they may clog the tray. Always use oils suitable for ultrasonic diffusers.

Can the humidifier run all night?

Yes, the Purearoma 3000 Navy Sound has an auto shut-off when water runs out, making it safe for overnight use. The noise level is low (≤35 dB), suitable for sleeping. The LED light can be turned off if desired.

How do I change the LED light color?

The humidifier features a button on the control panel to cycle through colors (e.g., blue, green, purple, or a color fade mode). Press and hold for 3 seconds to turn the light off. Refer to the manual for specific sequences.

Why is the humidifier producing white dust?

White dust is caused by minerals in hard water. Use distilled or demineralized water to prevent this. Alternatively, you can use a water softener cartridge. Regular cleaning also helps reduce buildup.

How do I replace the filter?

The Cecotec Purearoma 3000 may have an optional ceramic or cotton filter. If your model includes one, remove the old filter from the base and insert a new one (ensure correct orientation). Filters typically last 3-6 months depending on water quality.

What does 'Navy Sound' mean in the model name?

'Navy Sound' designates the color variant (navy blue) and may also indicate that the device has sound features? Actually, it is a color name. The humidifier does not produce sound; it is silent with up to 35 dB.

How do I maximize the humidifier's mist output?

Place the humidifier on a flat, stable surface. Ensure the air inlet and outlet are clear. Use cool water (not hot). Set the mist level to high. The output is around 300 ml/h, optimal for rooms up to 30 m².

Is the humidifier safe for pets?

Yes, the humidifier is safe for pets. Use only pet-safe essential oils (e.g., lavender, chamomile) in small amounts. Ensure the unit is placed where pets cannot knock it over. The tip-over switch automatically shuts it off if tipped.

What spare parts are available for this model?

Spare parts include replacement water tank, aroma tray, filter (if applicable), and power adapter. Contact Cecotec customer support or authorized dealers. The repairability score is 7.5/10, indicating ease of repair.

USER MANUAL Purearoma 3000 Navy Sound CECOTEC

Manual de instrucciones Instruction manual

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Do not allow non-technical personnel to modify, disassemble or repair the product. Contact Cecotec's Official Technical Support Service.
• Do not puncture, twist or stretch the power adapter cable, or place the electrical cable in high-temperature areas. Do not place heavy objects on the cable or attempt to secure or repair it.
• Discontinue use if the adapter cable is damaged or the plug is loose.
• If you notice unusual odours, noise or abnormal operation, the product or adapter may be faulty. Unplug the adapter from the mains socket and discontinue use.
• Do not immerse the adapter in water or

sticky liquids.

- Do not place the adapter in humid locations such as bathrooms, changing rooms, greenhouses, etc.

- For hygiene purposes, remove the essential oil bottle and clean it with a cloth after each use.

- Essential oil can cause staining; if accidentally spilled, clean immediately with a cloth.

- Do not allow the spray nozzle to spray directly onto furniture, clothing or walls.

- Avoid direct sunlight. Do not place near air conditioners, fans or in high-temperature areas.

- Place on a flat surface; do not position on soft surfaces such as carpets and pillows.

- Do not place on electronic devices such as televisions or audio equipment.

- Do not cover the mist outlet, as this will cause oil blockages and damage.

- After extended operation, the product should be switched off for several hours.

- Do not use thick or corrosive liquids in the machine.

- Keep out of reach of children and ensure they understand it is not a toy.

- This appliance should not be operated by children or individuals who have not read the user manual.

- This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

- The product can only be used with 100 % natural essential oil. Do not use oils containing chemicals, spices or impurities as these could cause product damage.

- If not used for an extended period, remove the essential oil bottle, store any remaining essential oil, clean the head and keep in a dry environment.

- Ensure the diffuser operates with essential oils; it will not automatically turn off if there are no oils inside.

- Fragrance effects vary depending on different types of essential oils, humidity, temperature and airflow. Clean the

diffuser according to the maintenance method before switching to a different essential oil.

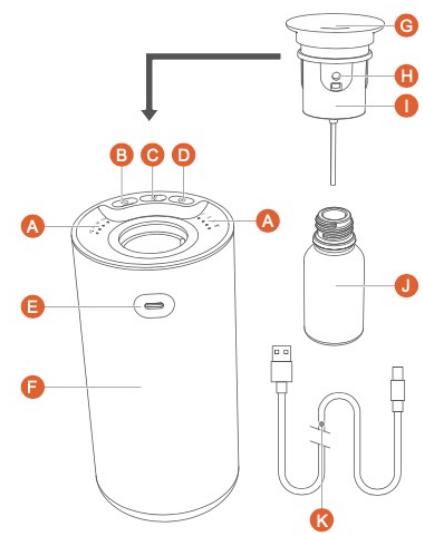

1. PARTS AND COMPONENTS

Fig. 1

A. Indicator lights

B. Timer button

C. Light button

D. Power button

E. USB Type-C port

F. Diffuser body

G. Outlet nozzle

H. Inlet nozzle

I. Nozzle head

J. Essential oil bottle

K. USB Type-C cable

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

- This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.

- Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

- Appliance

- USB Type-C cable

- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

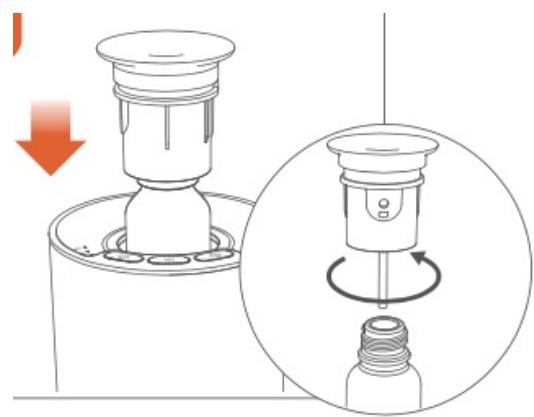

Filling the essential oil bottle:

1 Remove the nozzle head.

2 Unscrew the empty essential oil bottle. Fill the bottle with essential oil and screw it onto the nozzle. Then, align the nozzle with the slot and reinsert the nozzle vertically into the diffuser body. (Fig. 2)

Note:

To prevent essential oil leakage, do not tilt or turn the nozzle upside down after screwing the filled bottle onto the nozzle.

Power button

1st press: Default setting is low mode (10s on, 60s off, first indicator light illuminates, warm ambient light at 60% brightness).

a) Bluetooth automatically activates when the product is switched on. The Bluetooth indicator will flash. When Bluetooth connection is successful, the indicator light remains steady.

b) If Bluetooth does not connect within 3 minutes, it will automatically switch off, and the corresponding indicator light will turn off.

c) 2nd press: Activates medium mode (10s on, 40s off, second indicator light illuminates, warm ambient light at 80% brightness).

d) 3rd press: Activates high mode (10s on, 20s off, third indicator light illuminates, warm ambient light at 100% brightness).

e) 4th press: Turns off the diffuser, light returns to initial state.

To switch off the product at any time, press and hold the power button for 2 seconds.

Light button

1st press: Activates ambient light, which cycles through three gradient colours (white, pink, light blue, off).

Press the button to change colours.

To switch off the light at any time, press and hold the light button for 2 seconds.

Timer button

1st press: 1-hour off timer;

2st press: 2-hour off timer;

3st press: 4-hour off timer;

4st press: 8-hour off timer;

5th press: Deactivates timer function, corresponding white indicator light turns off.

To switch off the timer at any time, press and hold for 2 seconds.

Charging instructions

Connect the USB cable to the Type-C port and plug the adapter into a domestic power socket.

When the battery level falls below 10%, the indicator light will flash red, indicating charging is required. While charging, the indicator will display a flashing white light. Once fully charged, the indicator will show a steady white light.

4. TROUBLESHOOTING

1 Powers on but doesn't operate:

Problem: Low battery.

Solution: Please charge the product when the battery indicator is flashing; use after fully charged.

2 No mist:

Problem: Check if the essential oil bottle is properly fitted or if the spray head is loose.

Solution: Touch the mist outlet and verify airflow.

3 Blocked or low mist output:

Problem: Mist blockage or low mist output.

Solution: Clean the spray head.

5. CLEANING AND MAINTENANCE

The diffuser should be cleaned every 5-6 uses or after 3-5 days as follows:

Turn off the power, unplug the power cable and remove the spray head.

Unscrew the essential oil bottle from the head.

Use a damp tissue or cloth to clean any residual oil from the head.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its

shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical

and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of applicable European Union regulations. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

[Non-Text]

NOTA

EU01_117771_PureAroma 3000 Sound

EU01_119135_PureAroma 3000 Navy Sound

EN · The coding in this manual is generic and applies to all code variants of the appliance.

EN · Scan the QR code to access the instruction manual in more languages.
