Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 352 Blackbee
Blade diameter	132 cm (52 inches)
Housing height	30 cm
Net weight	5.5 kg
Power supply	220-240 V ~ 50/60 Hz
Motor power	50 W
Motor type	Silent DC (direct current)
Number of speeds	6
Reverse function (summer/winter)	Yes
Controls	Included infrared remote control
Mounting	Flat or sloped ceiling (up to 15°)
Blade material	ABS (plastic) - matte black finish
Maximum noise level	≤ 28 dB
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Thermal protection (automatic shut-off in case of overheating)
Spare parts	Available on the official Cecotec website
Repairability	Repairability index not provided; motor and remote control replaceable
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 352 Blackbee CECOTEC

How to install the Cecotec Energysilence Aero 352 Blackbee ceiling fan?

Installation requires fixing the mounting bracket to the ceiling, connecting the electrical wires (live, neutral, ground) according to the color code, then attaching the motor and blades. Please refer to the complete manual for detailed steps. It is recommended to call a qualified electrician.

How to reverse the fan rotation for winter?

Use the reverse button on the remote control or the fan housing. In summer mode, the blades rotate counterclockwise to create a cooling breeze. In winter mode, they rotate clockwise to redistribute heat from the ceiling to the floor.

How to pair the remote control with the fan?

Turn off the power to the fan, then restore it. Within 30 seconds, press the 'Pair' button on the remote (or hold down the stop button) until the light flashes. The fan is then paired. If pairing fails, repeat the operation.

How to clean the fan blades?

Use a soft, dry or slightly damp cloth to wipe off dust. Never use chemicals, abrasives, or solvents as they could damage the finish. Regular cleaning helps maintain performance and lifespan.

The fan makes an abnormal noise, what to do?

Check that all screws are tight and the blades are balanced. A grinding noise could come from a mounting defect. If the noise persists, contact Cecotec after-sales service. The DC motor is designed to be quiet (< 28 dB).

The fan wobbles or vibrates, how to fix it?

Ensure the mounting bracket is securely attached to the ceiling and the blades are properly installed. Use the provided balancing kit (small adhesive weights) by placing them on the highest blade. If wobbling persists, check that the ceiling is level.

What is the electrical power of the fan?

The DC motor consumes about 50 W at full speed, making it very energy efficient. Consumption varies depending on the selected speed.

Can the fan be used on a sloped ceiling?

Yes, the fan is compatible with sloped ceilings up to 15 degrees. Make sure to use the appropriate mounting bracket provided to ensure safe installation.

Where to find spare parts for the Cecotec Energysilence Aero 352 Blackbee?

Spare parts (remote control, blades, mounting kit) are available on the official Cecotec website or from authorized dealers. Use the model number to find compatible parts.

What to do if the fan does not turn on?

Check that the wall switch is on and that the fuse or circuit breaker has not tripped. Make sure the remote control has working batteries. If the problem persists, there may be a wiring fault; contact an electrician or Cecotec customer service.

USER MANUAL Energysilence Aero 352 Blackbee CECOTEC

SAFETY INSTRUCTIONS....5

ESPAÑOL....60

ENGLISH....69

FRANÇAIS....77

DEUTSCH....86

ITALIANO....95

PORTUGUÊS....104

NEDERLANDS....113

POLSKI....122

ČEŠTINA....131

MAGYAR....140

ΕΛΛΗΝΙΚΑ......149

TÜRKÇE....158

العربية....167

CATALÀ....174

FIGURES....183

NOTA

EU01_123465 EnergySilence Aero 352 BlackBee

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

- Do not use the appliance if its cable or housing are

damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or

other objects it may become entangled with.

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes

into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
  • Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

1. Parts and components

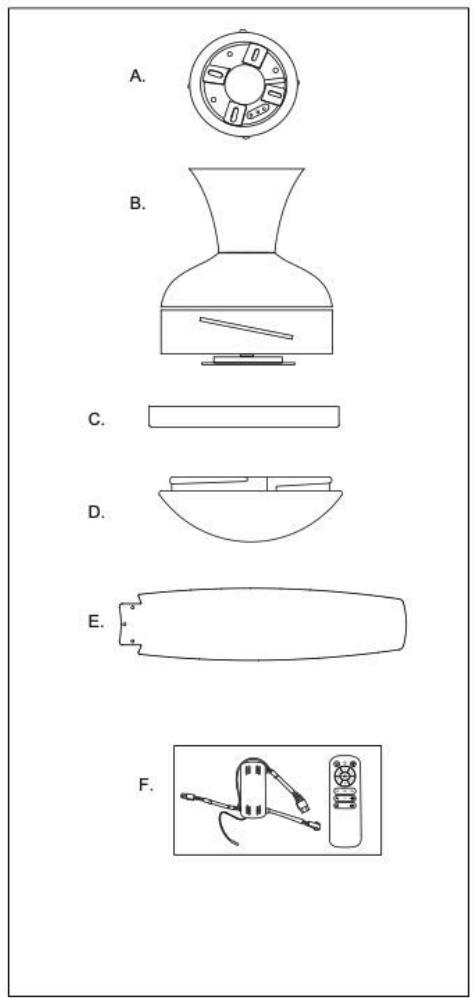

Figure 1:

A. Mounting bracket
B. Fan motor assembly
C. Light kit
D. Lampshade
E. Fan blade
F. Receiver and remote control

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

- This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.

- Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

Product
- Remote control
- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

1. SECURING THE FAN BLADES

Secure the blades to the fan motor assembly using the blade screws and fibre washers.

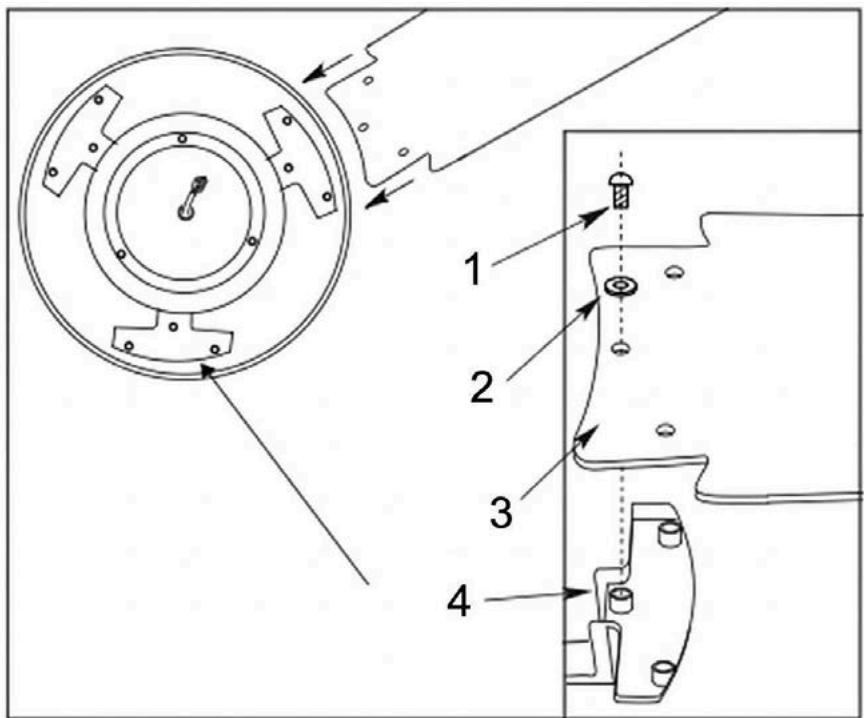

Figure 2:

1. Blade screw
2. Fibre washer
3. Blade
4. Blade bracket

2. INSTALLING THE LIGHT KIT

• Remove the screws from the motor light kit.
• Connect the polarised connectors on the light kit to the corresponding connectors on the switch housing.
  ● Install the light kit using the screws removed in the previous step.

Figure 3:

1. Screws
2. Light kit
3. Cable connectors

3. INSTALLING THE MOUNTING BRACKET

• Secure the mounting bracket and rubber seals to the junction box.
  ● Hang the fan on the temporary hook and install the safety cable.

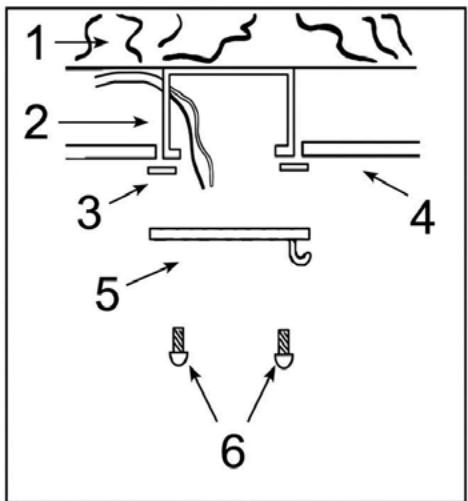

Figure 4:

1. Wooden beam
2. Junction box
3. Rubber seal
4. Ceiling
5. Mounting bracket
6. Junction box screws (not included)
7. Fan motor assembly
8. Temporary hook

4. ELECTRICAL CONNECTION

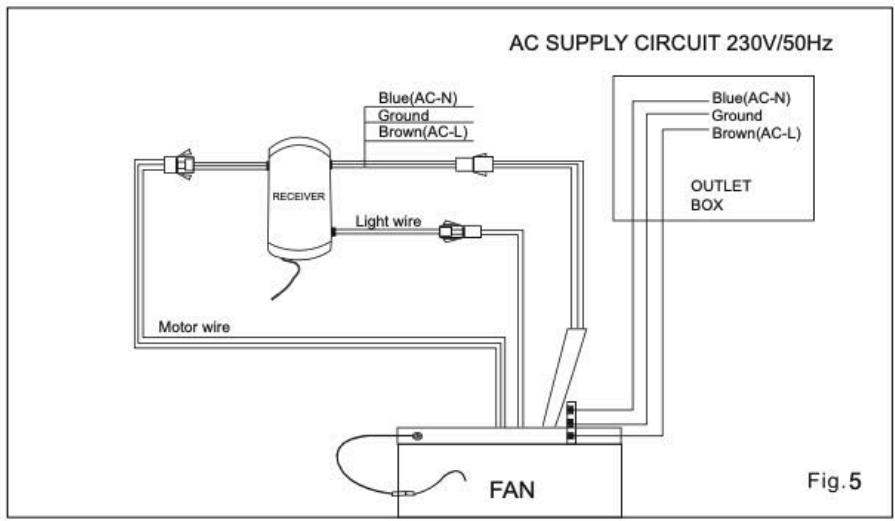

A. Terminal connections (Figure 5)

• Insert the controller connection cable terminals correctly.
• Insert the light kit terminals into the receiver terminals.
• Insert the motor terminals into the receiver terminals.
• Insert the mounting bracket terminals.

NOTE: Once the earth cables are connected, carefully insert all cables and connectors into the metal box. Ensure that the cables do not interfere with the hemisphere or the downrod when placed in the mounting bracket.

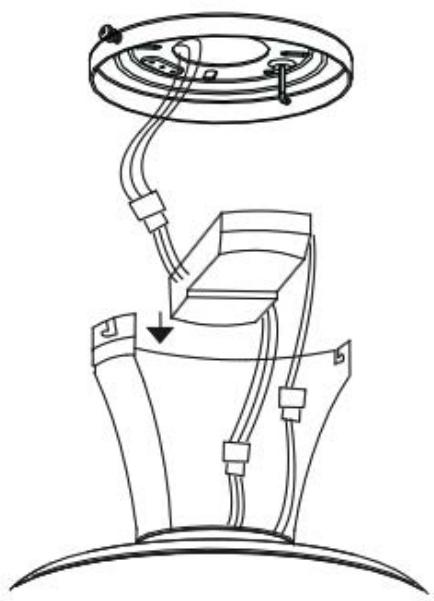

B. Placing cables and receiver (Figure 6)

● Push all connected cables inside the ceiling box.
● Place the receiver in the mounting bracket as shown in the diagram.
- When installing the canopy/ceiling trim, ensure that it does not compress the aerial.
● Ensure that all earth cables are connected.

Pairing instructions (learning code) - Remote control

• If the ceiling fan does not respond to the transmitter, press and hold the power button for 3–5 seconds to pair the remote control within 15 seconds of switching it on. When pairing is successful, the buzzer will emit three short beeps.
• If the transmitter cannot control the receiver, check that the batteries make good contact, the polarity (positive/negative) and the charge level (high or low).
• If the transmitter cannot control the receiver, check whether there is another similar transmitter nearby controlling other products, sharing the same frequency may cause interference.
• Remove the batteries from the transmitter if it is not to be used for an extended period.
• When installing the fan, the ceiling trim must not compress the aerial (or other cable), as this could damage the cable and cause a short circuit.
• Remove the battery compartment cover from the transmitter.
  ● Install two 1.5 V AAA batteries in the transmitter.
• Replace the battery compartment cover on the transmitter.

5. ASSEMBLING THE CANOPY (Figure 7)

- Position the mounting bracket on the canopy, aligning the slots with two screws

ESPAÑOL

and washers (marked A), and rotate to lock.

- Ensure that the slots on the canopy and mounting bracket are aligned, and insert two screws and washers (marked B).

Figure 7:

1. Screws and washers

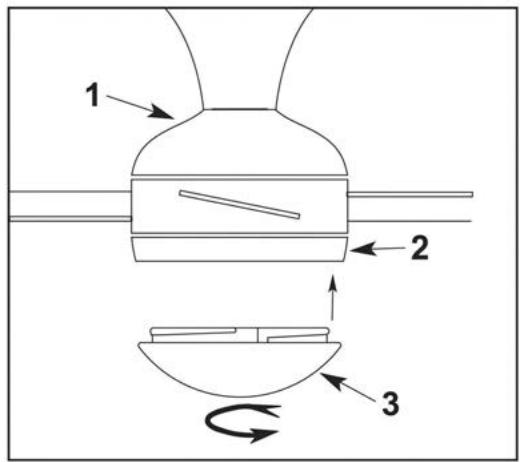

6. ASSEMBLING THE LIGHT KIT (Figure 8)

Screw the lampshade upwards onto the light kit until it is secure.

Figure 8:

1. Fan motor assembly
2. Light kit
3. Lampshade

WARNING!

Ensure that all connections, set screws and screws are firmly tightened.

4. Operation

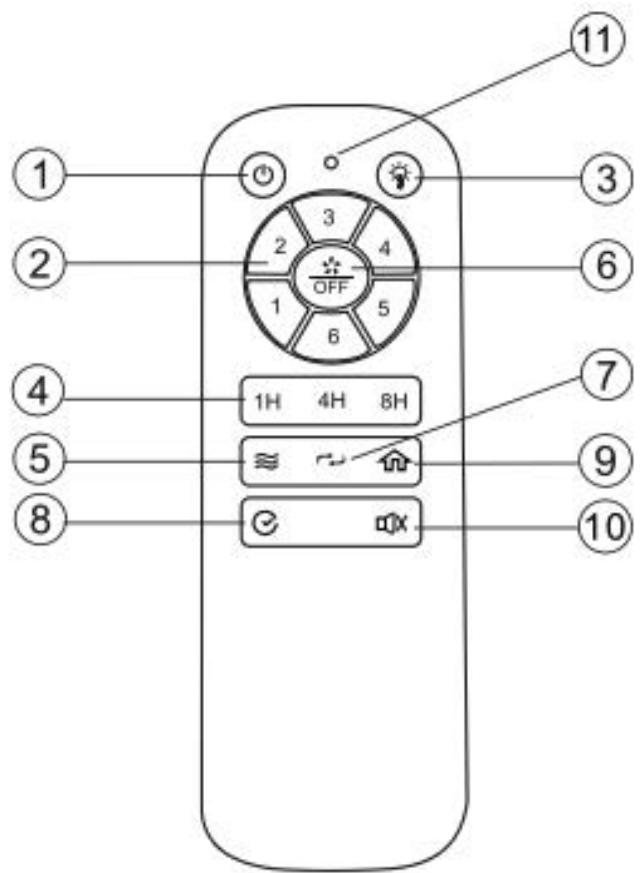

Remote control functions (Figure 9):

1. Power / Pairing button
2. Fan speed
3. Light ON/OFF
4. Sleep timer
5. 5.Comfortable breeze
6. Fan ON/OFF
7. Forward / reverse rotation
8. 5-minute timer
9. Anti-theft mode
10. Silent mode
11. LED indicator light

5. Cleaning and maintenance

1. The natural movements of the fan can loosen some connections. A clicking or rattling noise is a clear sign of loose screws. Check the supplied connections, brackets and blade fixings twice a year and tighten screws as necessary. Ensure that the screws holding the glass to the light kit bracket are hand-tight. Do not use a screwdriver or pliers to tighten the glass screws.
2. Clean the fan periodically. Use only a cloth moistened with a mild detergent solution. Never use solvents. Remove dust with a soft cloth or brush. Metal finishes have a lacquer coating to prevent tarnishing.
3. The fan does not require lubrication. Its permanently sealed bearings will provide silent, trouble-free operation for many years.
4. Ensure that the power supply is disconnected at the main fuse or consumer unit before attempting any repairs.

6. Troubleshooting

If you have difficulty operating your new ceiling fan, it may be due to incorrect assembly, installation or wiring. In some cases, these errors may be mistaken for defects. If you experience any faults, please review this troubleshooting guide.

Problem	Recommended solution
1. The fan does not work.	1. Check the fuses or circuit breakers on the main circuit and branch circuit.2. Check the line cable connections to the fan and the switch cable connections in the switch housing.CAUTION: Ensure that the main power supply is disconnected.3. Ensure that the forward/reverse switch is firmly in the up or down position. The fan will not operate if the switch is in the intermediate position.4. Ensure that the wall controller is in the "ON" position.
2. The fan makes noise.	1. Ensure that all motor housing screws are tightened securely (without over-tightening).2. Ensure that the screws fixing the fan blade bracket to the motor are tight.3. Ensure that the splice connectors (caps) in the switch housing are not rattling against each other or against the inside wall of the switch housing.CAUTION: Ensure that the main power supply is disconnected before accessing the switch housing.4. If using an optional ceiling fan light kit, check that the screws holding the glass are hand-tight. Ensure thatthe bulb is screwed securely into the socket and does not touch the lampshade. If glass vibration persists, remove the glass and install a 1/4" wide rubber band around the glass neck as insulation. Replace the glass and tighten the screws against the rubber band.5. Some fan motors are sensitive to signals from solid-state variable speed controls. DO NOT USE a solid-state variable speed control.6. Allow a 24-hour "running-in" period. Most noises associated with a new fan will disappear after this period.
3. The fan wobbles.	All blades are weighted and grouped by weight. Natural woods vary in density, which may cause the fan to wobble even if all the blades are matched by weight. The following procedures should eliminate most wobbling. Check for wobbling after each step.1. Check that all blades are firmly screwed to the blade brackets.2. Check that all blade brackets are tightened securely to the motor.3. Ensure that the canopy and mounting bracket are firmly fixed to the ceiling junction box, and that the box is firmly mounted to the ceiling beam.4. Most wobbling problems are caused by the blades not being at the same level. Check the level by selecting a point on the ceiling above the tip of one of the blades. Keep the measurement within 1/8" and rotate the fan until the next blade is in the measurement position. Repeat for each blade. If the blade levels are not the same, you can adjust them as follows:a. To lower a blade tip, insert a washer (not included) between the blade and blade bracket at the screw.b. To raise a blade tip, insert a washer (not included) between the blade and blade bracket at the two screws furthest from the motor.5. If wobbling is still noticeable, swapping two adjacent blades (side by side) may redistribute the weight and provide smoother operation.
4. The light does not work.	1. Check the blue cable from the fan and ensure it is connected to the phase cable of the installation.2. Check for loose or disconnected cables in the fan switch housing.3. Check for loose or disconnected cables in the light kit.4. Check whether the bulbs are defective.CAUTION: Ensure that the main power supply is disconnected before accessing the switch housing.

7. Technical specifications

Product: EU01_123465

Product reference: EnergySilence Aero 352 BlackBee

Voltage: 230 V\~

Frequency: 50 Hz

Motor power: 15 W

Power light: 18 W LED

Description	Symbol	Value	Unit
Maximum fan airflow rate	F	68	m^3/min
Fan input power	P	10	W
Service value	SV	6.8	(m^3/min)/W
Standby power consumption	P_SB	0.43	W
Fan sound power level	L_WA	43	dB (A)
Maximum air speed	C	10	m/sec
Seasonal electricity consumption	Q		kWh/a
Service value measurement standard	IEC 60879
Contact details for further information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910Alfafar, Valencia (Spain)

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the

essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of

Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://storececotec.it/it/information/declaration-of-conformity

PORTUGUÊS

Product: EU01_123465

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

https://cecotec.es/es/information/declaration-of-conformity

ČEŠTINA

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

Producte: EU01_123465

https://cecotec.es/es/information/declaration-of-conformity

FIGURES
Fig. 1:

Fig. 2:

Fig. 3

Fig. 4:

Fig.5:

Fig. 6:

Fig. 7:

Fig. 8:

Fig. 9:

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
