Energysilence Aero 2440 Invisible Pure - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 2440 Invisible Pure
Blade diameter	122 cm (48 inches)
Total height	Approximately 40 cm
Net weight	6.5 kg
Power supply	220-240 V ~ 50 Hz
Motor power	55 W
Number of speeds	3
Reversing switch (summer/winter)	Yes
Remote control included	Yes
LED lighting	No (model without light)
Maximum noise level	35 dB
Maximum airflow	150 m³/min
Blade material	ABS plastic
Color	White
Blade pitch angle	12°
Mounting type	Standard ceiling (rod included)
Maintenance and cleaning	Clean with a soft dry cloth
Warranty	2 years
Spare parts available	Remote control, mounting kit, blades

Frequently Asked Questions - Energysilence Aero 2440 Invisible Pure CECOTEC

How to install the Cecotec Energysilence Aero 2440 ceiling fan?

Follow the steps in the manual: fix the bracket to the ceiling, connect the electrical wires (phase, neutral, ground), mount the motor and blades, then install the remote control. Ensure the ceiling can support the weight (6.5 kg) and turn off the power before installation.

How to clean the fan blades?

Use a soft dry or slightly damp cloth. Do not use abrasive products or solvents. Unplug the appliance before cleaning.

The remote control does not work, what to do?

Check the batteries (AAA type) and their polarity. Make sure no obstacle blocks the signal. If the problem persists, reset the remote control by removing the batteries and waiting 30 seconds.

How to reverse the rotation direction for winter?

Use the reverse button on the motor housing or on the remote control (depending on the model). In winter, the blades should rotate clockwise (viewed from below) to push warm air downward.

What is the noise level of this fan?

The maximum noise level is 35 dB, which is very quiet. At lower speeds, it is even lower.

Can I use this fan with a light dimmer?

No, this model is not compatible with standard light dimmers. Use only the provided remote control to adjust the speed.

What is the power consumption of the fan?

The motor power is 55 W, corresponding to a consumption of approximately 0.055 kWh per hour at full speed.

The fan is making noise, is this normal?

A slight operating noise is normal. If the noise is loud or intermittent, check that the blades are well balanced and all screws are tight. A balancing kit may be necessary.

What are the exact dimensions of the fan?

The blade diameter is 122 cm (48 inches). The total height (with standard rod) is approximately 40 cm. The rod can be shortened if necessary.

Where can I find spare parts?

Contact Cecotec customer service or visit their website. Available parts include the remote control, blades, mounting kit, and motor.

USER MANUAL Energysilence Aero 2440 Invisible Pure CECOTEC

SAFETY INSTRUCTIONS....6

ESPAÑOL....41

ENGLISH....48

FRANÇAIS....54

DEUTSCH....61

ITALIANO....68

PORTUGUÊS....75

NEDERLANDS....82

POLSKI....89

ČEŠTINA....96

MAGYAR....102

ΕΛΛΗΝΙΚΑ......109

TÜRKÇE....116

العربية....122

CATALÀ....128

FIGURES....134

NOTA

EU01_124548 EnergySilence Aero 2440 Invisible Pure White EU01_124549 EnergySilence Aero 2440 Invisible Pure Black EU01_124550 EnergySilence Aero 2440 Invisible Pure Steel

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

Cleaning and user maintenance must not be carried out by children without supervision.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

- If the power cord is damaged, it must be repaired by Cecotec's Official Technical Support Service to avoid any hazard.

- Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

- The appliance must be installed in accordance with national wiring regulations.

- Never insert objects or body parts between the rotating fan blades.

- To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.

• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Producto: EU01_124548/ EU01_124549/ EU01_124550

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

1. Parts and components

Fig. 1

1. Mounting bracket
2. Cover
3. Coupling cap
4. Downrod
5. Fan motor assembly
6. Lampshade
7. Accessory bag for support
8. Electrical connectors
9. Remote control
10. Remote control screw package
11. Installation screws package

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Ceiling fan
• Remote control
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

Tools required for ceiling fan installation: ladder, pliers, wire strippers, screwdrivers, drill (optional) and drill bit (optional).

Note: In case of mounting the device on a support structure, it will be necessary to use the optional tools as well.

The following are the steps required for proper installation of the ceiling fan. Be sure to follow the specific instructions according to the type of roof where the installation will take place.

Wooden ceiling

If it is a wood ceiling, 4 self-tapping screws must be installed to attach the suspension bracket to the ceiling. Fig. 2

Note: Use the accessory bag for the suspension bracket.

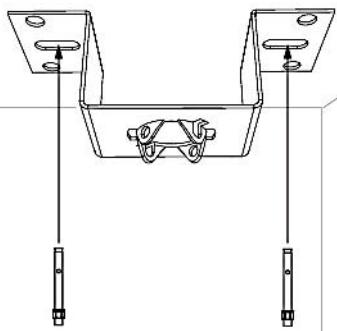

Concrete ceiling

If it is a concrete ceiling, 2 expansion bolts must be installed to attach the suspension bracket to the ceiling. Fig. 3

Note: Use the accessory bag for the suspension bracket.

Once the suspension bracket is securely installed, proceed with the fan assembly by following these steps:

1. Insert the motor downrod into place. As shown in figure 4, secure the downrod with three screws and insert the pin. Use the accessory kit for this installation.
2. Attach the cover and coupling cap to the downrod as appropriate. Fig. 5.
3. Secure the two screws on the downrod in opposite directions. Be sure not to over-tighten them. Use the accessory kit to complete this installation. Fig. 6.
4. Insert the fan light parts into the suspension bracket according to the holes. Then rotate it approximately 15 degrees downward and attach it to the bracket. Fig. 7
5. Tighten the two screws of the accessory kit as shown in figure 6, and secure the screws of step 3 at the same time. Fig. 8
6. Connect the receiver cables: G (yellow-green), L (black) and N (blue) to the power supply using the electrical connectors. Fig. 9
7. Place the cover over the suspension bracket ensuring a tight fit. Fig. 10
8. Mount the lampshade on the fan motor assembly. Tighten properly to complete the installation. Fig. 11
9. Installation successfully completed.

4. Operation

Remote control

Using the remote control

1. Insert 2 AAA batteries (not included) into the remote control to operate the fan. Make sure that the polarities are correct.

ENGLISH

1. If the controller is not to be used for an extended period of time, remove the batteries to avoid possible damage.
2. Store the remote control in a dry place, away from extreme temperatures and humidity.
3. The LED indicator will flash each time a button is pressed, confirming the action.
4. Hold the desired state of the lights and fan for at least 15 seconds to activate the memory function and save your preferences.

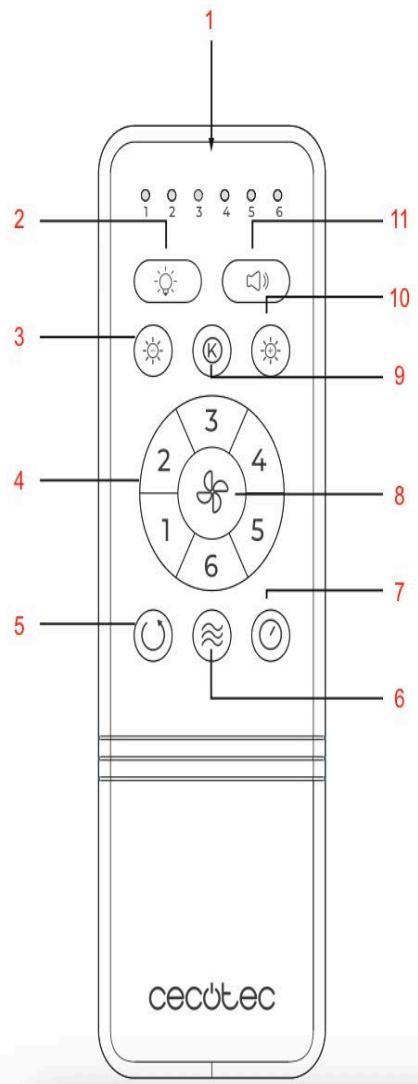

Fig. 12

1. Speed indicator light
2. Light button
3. Brightness adjustment button (minus)
4. Speed selection buttons
5. Reverse rotation button
6. Natural mode button
7. Timer button
8. Fan on/off button
9. Colour temperature button
10. Brightness adjustment button (more)
11. Sound on/off button

Buttons description

Remote control button	Description
Speed indicator light	Displays the selected fan speed level
Light button	Turns the light on or off, remembering the last color temperature and brightness setting.Press and hold for 3 seconds to pair the code; the light will flash and the appliance emit a sound when paired correctly.
Brightness adjustment button (minus)	Reduces brightness by one level, with a minimum of level 1.
Speed selection buttons	You can choose between 6 speed levels.
Reverse rotation button	Toggles between forward and reverse mode to change the direction of air flow.
Natural mode button	Simulates a natural breeze by alternating between different speed levels.
Timer button	Set the timer in 1-hour increments, up to a maximum of 6 hours. The indicator lights show the selected duration.
Fan on/off button	Controls fan operation with a single touch.
Colour temperature button	It changes the color temperature of the light between 2700K and 6500K.
Brightness adjustment button (more)	Increases brightness by one level, up to a maximum of 6 levels.
Sound on/off button	Enables or disables the sound of the remote

5. Cleaning and maintenance

1. Clean the fan regularly
2. When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
3. Do not use abrasive cleaning agents as they could damage the appliance.

Warning: Do not use solvents to clean the fan. Doing so could damage the motor and may result in a risk of electric shock.

RECOMMENDATION: Periodically check that the blades are securely fastened to the motor with the screws.

6. Troubleshooting

Wobble

Note that not all ceiling fans are the same (not even those that are the same model), some move more than others. The fact that the fan moves a couple of centimetres does not indicate that it will fall over.

Even if all blades are ballasted and grouped by weight, it is impossible to completely avoid wobble. This is not a problem. Ceiling fans tend to move during operation.

To reduce wobble try the following:

1. Check that all of the blade mounting screws are tightened and secure.
2. Fan wobble may be caused by the unevenness of the fan blades. To check the blade level, measure the distance from each blade tip to the ceiling.
   If measurements are irregular:
3. Be sure the blade mount screws are not too tight or too loose, which may cause wobbling due to an unleveled blade tip.
4. A deformed blade can cause wobbling. Check by removing the blade and placing on a flat surface.
5. Blade tracking may be checked simply by use of a household ruler. Place the ruler vertically against the ceiling and even with the outside leading edge of a blade. Note the distance of the edge of a blade compared to the others. Turn the blade slowly by hand to check the remaining blades.

If a blade is not in alignment, the blade is either out of shape, warped or the blade screws are not evenly tightened or either loose.

7. Technical specifications

Product: EU01_124548/ EU01_124549/ EU01_124550

Product reference:

EnergySilence Aero 2440 Invisible Pure White

EnergySilence Aero 2440 Invisible Pure Black

EnergySilence Aero 2440 Invisible Pure Steel

Voltage: 110-240 V\~

Frequency: 50/60 Hz

Motor power: 32 W

Light power: 32 W LED

Description	Symbol	Value	Unit
Fan maximum airflow	F	95.65	m^3/min
Fan power consumption	P	23.5	W
Service value	SV	4.1	(m^3/min)/W
Power consumption on standby mode	P_SB	0.4	W
Fan noise power level	L_WA	43.3	dB (A)
Maximum air speed	c	13.3	m/sec
Seasonal electricity consumption	Q	8.05	kWh/a
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar, Valencia, Spain

The power consumption in standby mode is 0,4 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

This product features a light source with an energy efficiency grade E.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities. Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://storececotec.it/it/information/declaration-of-conformity

PORTUGUÊS

Se as medidas forem irregulares:

Modelo: EU01_124548/ EU01_124549/ EU01_124550

https://cecotec.pt/pt/information/declaration-of-conformity

NEDERLANDS

Product: EU01_124548/ EU01_124549/ EU01_124550

Productreferentie:

EnergySilence Aero 2440 Invisible Pure White

EnergySilence Aero 2440 Invisible Pure Black

EnergySilence Aero 2440 Invisible Pure Steel

Spanning: 110-240 V\~

Frequentie: 50/60 Hz

Motorvermogen: 32 W

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

ΕΛΛΗΝΙΚΑ

Προϊόν: EU01_124548/ EU01_124549/ EU01_124550

Αναφορά προϊόντος:

EnergySilence Aero 2440 Invisible Pure White

EnergySilence Aero 2440 Invisible Pure Black

EnergySilence Aero 2440 Invisible Pure Steel

Táση: 110-240 V\~

Συχνότητα: 50/60 Hz

Ürün: EU01_124548/ EU01_124549/ EU01_124550

Ürün referansı:

EnergySilence Aero 2440 Invisible Pure White

EnergySilence Aero 2440 Invisible Pure Black

EnergySilence Aero 2440 Invisible Pure Steel

Voltaj: 110-240 V\~

Frekans: 50/60 Hz

Motor gücü: 32 W

https://cecotec.es/es/information/declaration-of-conformity

CATALÀ

1. Peces i components

Figura 1

Producte: EU01_124548/ EU01_124549/ EU01_124550

https://cecotec.es/es/information/declaration-of-conformity

FIGURES
FIG 1

FIG 2

FIG 3

FIG 4

FIG 5

FIG 6

FIG 7

FIG 8

FIG 9

FIG 10

FIG 11

FIG 12

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
