Energysilence Aero 5230 - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 5230 Blacklightwood
Diameter	132 cm (52 inches)
Height	Approx. 45 cm (depending on rod)
Net weight	6.5 kg
Power supply	220-240 V, 50 Hz
Motor power	60 W
Speeds	3 adjustable speeds
Special features	Energysilence silent motor, summer/winter reverse switch, remote control included, integrated LED light (16 W)
Blade material	Composite wood imitation wood
Color	Black and light wood (Blacklightwood)
Blade pitch angle	12 degrees
Maximum airflow	150 m³/min
Noise level	35 dB (max)
Care and cleaning	Clean with a soft dry or slightly damp cloth. Do not use abrasive products or solvents.
Safety	Automatic shut-off in case of overheating, balanced blades to prevent vibrations
Spare parts and repairability	Remote control, blades, mounting kit, LED bulb (available on request)
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 5230 CECOTEC

How to install the Energysilence Aero 5230 ceiling fan?

Installation must be carried out by a qualified professional. Make sure to cut the power before any intervention. Follow the steps in the manual: fix the bracket to the ceiling, connect the electrical wires (phase, neutral, ground), mount the blades and the light kit, then install the remote control.

How to use the remote control?

The remote control allows you to adjust the speed (3 levels), activate summer/winter mode (rotation direction reversal), turn the light on/off, and set a delayed shut-off. Insert the batteries (AAA, not included) before first use.

What to do if the fan does not turn on?

Check that the power supply is properly turned on/off. Check the fuses or circuit breaker. Ensure the remote control is correctly paired (follow the procedure in the manual) and that the batteries are charged.

How to reverse the summer/winter rotation direction?

Press the 'Reverse' button on the remote control. In summer, the blades rotate counterclockwise to create a cooling airflow. In winter, clockwise to redistribute heat from the ceiling to the floor.

The fan makes noise, what to do?

Check that all screws are tight and the blades are balanced. A slight noise may come from the motor, but the Energysilence model is designed to be silent. If the noise persists, contact customer service.

How to clean the blades and the fan?

Unplug the device or cut the power. Use a soft slightly damp cloth to wipe the blades and the housing. Never use abrasive products, alcohol, or solvents. For hard-to-reach areas, a feather duster may suffice.

Can I use the fan without the light?

Yes, you can turn the light on/off independently with the remote control. The fan continues to work even if the light is off.

How to balance the blades if they vibrate?

Use the balancing kit provided (small weight clips). Attach a clip to a blade, then test. Move it until the vibrations disappear. If the kit is not provided, contact customer service to get one.

What is the minimum ceiling height required?

The fan must be installed at least 2.3 meters from the floor to ensure optimal air circulation and avoid any contact. The distance between the blades and the ceiling must be at least 30 cm.

Where can I find spare parts?

Spare parts (remote control, blades, mounting kit, LED bulb) are available from Cecotec customer service or on their official website. Always keep the model number (Energysilence Aero 5230) to identify the correct part.

USER MANUAL Energysilence Aero 5230 CECOTEC

1. Parts and components 44
2. Before use 44
3. Operation 45
4. Operation 47
5. Cleaning and maintenance 48
6. Technical specifications 48
7. Disposal of old electrical and electronic appliances 49
8. Technical support and warranty 49
9. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they

can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Voltaje: 220 - 240 V

1. Canopy
2. 25 cm downrod
3. Mounting bracket
4. Blades
5. Motor housing
6. Motor
7. Remote control and remote-control receiver
8. 15 cm downrod
9. Assembly kit
10. LED light plate
11. Lampshade

Note:

The graphics in this manual are schematic representations and may not exactly match the appliance

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual
• Remote control
• Assembly kit

3. OPERATION

Assembly preparation

• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 2
• Ensure that the junction box is securely fastened to the building structure and can support the full weight of the fan.
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length of the fan can be extended with a longer rod. Fig. 3
• Installation requires the following tools: screwdriver, flat screwdriver, adjustable pliers or spanner, ladder, wire cutters and electrical tape.

Fig. 3 key:

A Standard assembly
B Angle assembly

Installation

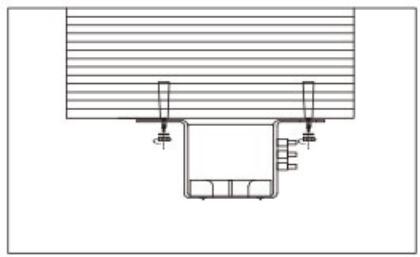

Fig. 4 key:

A Concrete ceiling
1. Self-tapping mounting holes
2. Expansion screws mounting holes

B. Wooden ceiling

1. 4 self-tapping screws
2. Mounting bracket

Fig. 10 key:

1. Canopy fixing screws
2. Mounting bracket
3. Canopy
4. Use a flat screwdriver to tighten the screws.

Mounting bracket installation

1. Place the mounting bracket in the position where it is to be installed and mark the point where the holes are to be drilled.
2. Using a drill, drill two 8 mm holes 240 mm deep and then insert two plugs.

Note:

- Use plugs or self-tapping screws depending on the roof material.

ENGLISH

• Do not place the mounting bracket directly on a thin wooden or concrete surface. When the mounting bracket is in place, make sure that it can withstand more than 60 kg of vertical tension to avoid any risk. Fig. 4
• You do not need to drill any holes if you are installing in a solid wood ceiling. In this case, you only need to insert 4 self-tapping screws into the four mounting holes in the corners of the mounting bracket. Fig. 4
• Remove the plugs, nuts and gaskets, and secure the mounting bracket to the plugs. Fig. 5
• Place the gaskets on the plugs and tighten the nuts. Make sure that the installation has been carried out correctly, otherwise the fan may fall down.

Installing the blades and the LED light plate

1. Align the holes in the blades with the holes in the motor and fix the blades. Fig. 6.
2. Align the LED light plate with the holes in the motor connection plate. Next, fix the light plate. Fig. 6.

Installing the downrod

1. Pass the canopy through the cover of the downrod, then pass the power cables through the downrod. Fig. 7
2. Loosen the downrod base fixing screws and align the holes in the downrod with the holes in its base. Then, fit the pin and clevis. Fig. 7
3. Use a flat screwdriver to tighten the screws at the base of the downrod. Fig. 7
4. Fit the downrod cover. Fig. 7

Note: make sure that the pin and clevis are correctly positioned to prevent the fan from falling.

Fan suspension

1. Grasp both sides of the lamp body with both hands, align the downrod with the hole in the mounting bracket and then fit the mounting bracket. Fig. 8
2. Turn the lamp body counterclockwise until it is in the correct position.
3. Move the lamp body to the right and to the left to ensure that it is correctly positioned.
4. Insert the controller into the mounting bracket. Fig. 8

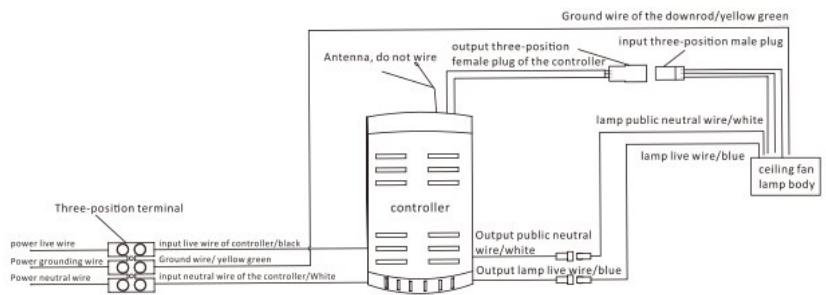

Wiring connections. Fig. 9

1. Connect the white plug of the controller motor wires to the white plug of the ceiling fan motor wires.
2. Connect the white wire and the blue wire of the controller to the corresponding wires of the ceiling fan via the wiring terminals.
3. Strip the power cable (N: neutral, L: line) by 6 to 8 mm.
4. Connect the neutral/line input wire from the controller, the earth wire from the mounting bracket, and the earth wire from the ceiling fan to the appropriate wiring holes on the

mounting bracket. Afterwards, tighten the screws of the wiring terminals with a flat screwdriver.

1. Connect the neutral/line cable and the earth cable to the corresponding wiring holes on the mounting bracket. Afterwards, tighten the screws of the wiring terminals with a flat screwdriver.
2. Arrange the cables.

Note: the remaining length of the cables can be placed in the cover of the mounting bracket. If the cables are too long, cut them.

Installing the canopy

1. Loosen the fixing screws of the mounting bracket canopy by 2 to 5 mm. Then, hold the canopy with both hands and carefully insert the fixing screws into the mounting holes. Fig. 10
2. Turn the canopy counterclockwise until it is in the correct position.
3. Tighten the canopy fixing screws with a flat screwdriver. Fig. 10
4. Use a flat screwdriver to tighten the screws.

Installing the lampshade

1. Hold both sides of the lampshade with both hands. Align it with the fan and position it. Fig. 11
2. Turn it counterclockwise until it is completely fixed. Move the lampshade to the right and to the left to ensure that it is correctly positioned. Fig. 11

4. OPERATION

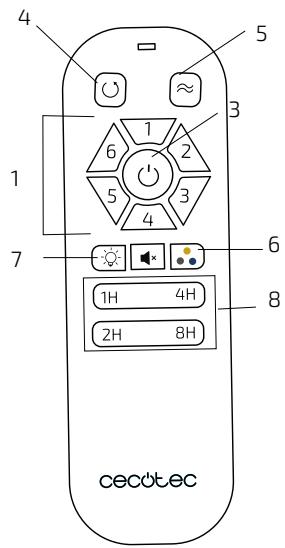

Fig. 12 key:

1. Speed buttons
2. Silence function
3. Off button
4. Reverse rotation button
5. Natural breeze function button
6. Light shade change button
7. Light power button

8. Timer buttons

9. Use the speed buttons to select the power level.

10. Press the off button to switch the appliance off.
11. Use the timer buttons to select the operation time of the appliance. The fan will turn off once the selected time has elapsed.

Light power button

Use the light button to select the desired light.

Reverse rotation

Press button 4, to reverse the direction of rotation.

• If the blades start to rotate clockwise, then winter mode is activated (causing warm air to be distributed throughout the room).
• If the blades start to rotate counterclockwise, then summer mode is activated (creating a cool breeze).

Natural breeze

Activate this mode by pressing button 5. The fan will progressively vary the power level in cycles, providing a feeling of fresh air.

Changing the remote-control battery

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

Silence function

Activate this function to disable the receiver sounds when controlling the fan. In this way, the receiver will not make any sound when pressing the remote-control buttons.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08554/ 08555/ 08556/ 08557

Product:

EnergySilence Aero 5275 DarkWood

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

Power: 40 W

LED: 18 W

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Voltage: 220 - 240 V

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Tensão: 220 - 240 V

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Voltage: 220 - 240 V

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

EnergySilence Aero 5275 Black&WhiteWood

EnergySilence Aero 5275 White&BlackWood

EnergySilence Aero 5275 WhiteWood

Napětí: 220-240 V

Frekvence: 50/60 Hz

Výkon: 40 W

LED: 18 W

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./ Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

www.cecotec.es
