Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 5200 Palm
Blade span	132 cm (52 inches)
Number of blades	5
Blade material	ABS with wood imitation finish
Motor	Silent and reversible DC motor
Speeds	6 adjustable speeds
Winter/summer function	Yes, rotation direction reverse
Remote control	Yes, included
Timer	Yes, programmable 1/2/4/8 hours
Lighting	No (model without light)
Power supply	220-240V ~ 50/60Hz
Power	35 W
Net weight	5.2 kg
Minimum installation height	2.3 m
Noise level	< 35 dB (silent)
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not insert objects into the blades. Unplug before servicing.
Spare parts	Blades, remote control, mounting kit available

Frequently Asked Questions - Energysilence Aero 5200 Palm CECOTEC

How to install the Cecotec Energysilence Aero 5200 Palm ceiling fan?

Follow the steps in the manual: attach the bracket to the ceiling, connect the electrical wires (live, neutral, ground), then assemble the blades and motor. It is recommended to hire a qualified electrician.

How to reverse the rotation direction for winter?

Use the remote control: press the reverse button (often symbolized by a circular arrow). The fan will rotate clockwise to redistribute heat.

What to do if the remote control does not work?

Check the batteries (CR2032 type) and replace them if necessary. Make sure the remote is pointed at the receiver. If the problem persists, reset the device by cutting power for 10 seconds.

How to clean the fan blades?

Use a slightly damp soft cloth or a duster. Never use chemical or abrasive products. Always unplug the fan before cleaning.

The fan is making noise. What to do?

Check that the blades are properly secured and balanced. Tighten the screws. Ensure the bracket is firmly anchored to the ceiling. A slight hum may be normal for a DC motor, but excessive noise indicates an imbalance.

What is the minimum ceiling height required?

The recommended minimum height is 2.3 meters from the floor to the blades for optimal safety.

Can I use this fan with a dimmer?

No, this model is not compatible with light dimmers. Use only the supplied remote control to adjust speed.

How to set the timer?

Press the timer button on the remote control. Choose the duration among options: 1h, 2h, 4h or 8h. The fan will turn off automatically.

Where can I buy replacement blades?

Contact Cecotec customer service or check with authorized dealers. Replacement blades are available under the reference suitable for the Aero 5200 Palm model.

Is this fan suitable for outdoor use?

No, this model is designed for indoor use only. Moisture and weather can damage the motor and create an electrical risk.

USER MANUAL Energysilence Aero 5200 Palm CECOTEC

Safety instructions 7

1. Parts and components 44

2. Before use 44

3. Assembly 45

4. Operation 46

5. Cleaning and maintenance 47

6. Troubleshooting 47

7. Technical specifications 48

8. Disposal of old electrical and electronic appliances 49

9. Technical support and warranty 49

10. Copyright 49

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they

can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket
2. Canopy
3. Downrods
4. Canopy cover
5. Coupling cover
6. Motor
7. Blades
8. Blades bracket
9. Decorative element
10. Decorative cover
11. Remote control and remote control receiver
12. Assembly kit

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual
• Assembly kit
• Remote control
• Batteries (2*AAA)

3. ASSEMBLY

Installation of the mounting bracket

Fig. 2 key:

A Concrete ceiling

B Wooden ceiling

1. Drill a 8 mm hole in the ceiling and insert the bolt. Align the mounting bracket with the hole and tighten it with the nut.
2. Remove the clevis pin and clevis from the downrod. Fig. 3
3. Slide the downrod through the canopy and the coupling cover. Fig. 4
4. Pass the fan wires and the earth wire through the downrod. Fig. 5
5. Loosen the screws of the downrod bracket and then place the downrod in its bracket. Align the holes in the clevis pin of the downrod with the holes in the bracket. Make sure to insert the straight part of the clevis pin through the hole in the end of the clevis pin and press until the crimped part snaps into position. Fig. 6.
6. Finally, retighten the screws.

WARNING

It is very important that the downrod bracket clevis pin is correctly installed and that the screws are tightened securely. If the pin, clevis or screws are not correctly positioned, the fan may fall down.

Installing the blades

1. Remove the motor screws and set them aside to use them in the next step. Fig. 7

2. Place the blades on the bracket and fix them using the screws. Place the blade bracket on the motor assembly. Next, tighten the screws. Fig. 8

Installing the decorative cover

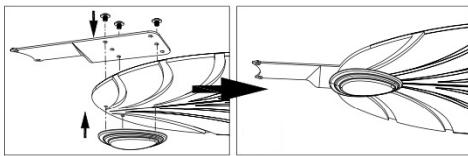

1. Place the decorative cover on the fan motor. Fix it securely by turning it counterclockwise. Fig. 9

Hanging the fan

Fig. 10 key:

1. Clip
2. Slot

3. Mounting bracket

4. Lift the fan carefully and install the downrod and hanging ball into the mounting bracket attached to the ceiling. Make sure that the groove in the hanging ball is properly aligned with the tab on the mounting bracket.

ENGLISH

Warning: The fan must be placed at a minimum distance of 230 cm from the floor.

Connection of the remote control receiver

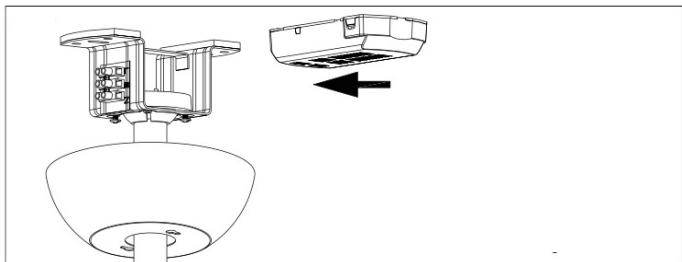

1. Insert the receiver into the mounting bracket as shown in Fig. 11.

Warning: To avoid the risk of electric shock, be sure to disconnect the mains supply from the switchboard before connecting the cables.

Receiver wiring

1. You must follow the electrical diagram shown in Fig. 12.

Installing the canopy

1. Fit the canopy by tightening the two screws. Fig. 13

4. OPERATION

Remote control

Fig. 14 key:

1. Power indicator light
2. Speed buttons
3. Fan off button
4. Blade reversal button
5. Natural Breeze button
6. Pairing button

7. Timer buttons

8. Switch on the receiver and press the pairing button on the remote control once. If you hear two beeps, pairing has been successful.

9. Use the speed buttons to select the power level.
10. Press the off button to switch the appliance off.
11. Use the timer buttons to select the operation time of the appliance. The fan will turn off once the selected time has elapsed.

Winter/Summer function

• Use the blade reversal button to activate the reverse rotation.
• Winter function: the blades start to rotate clockwise, causing warm air to be distributed throughout the room.
• Summer function: the blades start to rotate counterclockwise, generating a cool breeze.

Remote control pairing

• Turn on the receiver and press the Light on/off button on the remote control once. If you hear two beeps, it means that pairing has been made successfully.
• RF digital wireless transmission technology is adopted to realise one-to-one control by providing a code-matching rate of less than 1/50000. The transmitter and receiver have the same code number at the back, so in the event of a fault, a receiver and transmitter with the same code number must be returned to the manufacturer.

Note

1. If the remote control cannot control the receiver, check if the batteries make contact, if they are inserted correctly and if they are not flat.
2. If the remote control cannot control the receiver, check if there are other appliances operating with a remote control nearby, as they may cause interference. If you remove these appliances from the room where the fan is located, the remote control will work properly again.
3. Use this appliance with the correct voltage. If the voltage is too low, the remote control will not work.
4. If you are not going to use the remote control for a long period of time, remove the batteries.

5. CLEANING AND MAINTENANCE

1. Clean the fan regularly
2. When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
3. Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

RECOMMENDATION:

Periodically check that the blades are securely fastened to the motor with the screws.

WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.

6. TROUBLESHOOTING

Wobble

Note that not all ceiling fans are the same (not even those that are the same model), some move more than others. The fact that the fan moves a couple of centimetres does not indicate that it will fall over.

ENGLISH

Even if all blades are ballasted and grouped by weight, it is impossible to completely avoid wobble. This is not a problem. Ceiling fans tend to move during operation.

To reduce wobble try the following:

1. Check that all of the blade mounting screws are tightened and secure.
2. Fan wobble may be caused by the unevenness of the fan blades. To check the blade level, measure the distance from each blade tip to the ceiling.

If measurements are irregular:

• Be sure the blade mount screws are not too tight or too loose, which may cause wobbling due to an unleveled blade tip.

• A deformed blade can cause wobbling. Check by removing the blade and placing on a flat surface.

• Blade tracking may be checked simply by use of a household ruler. Place the ruler vertically against the ceiling and even with the outside leading edge of a blade. Note the distance of the edge of a blade compared to the others. Turn the blade slowly by hand to check the remaining blades.

If a blade is not in alignment, the blade is either out of shape, warped or the blade screws are not evenly tightened or either loose.

7. TECHNICAL SPECIFICATIONS

Product reference: 08558

Product: EnergySilence Aero 5200 Palm

Voltage: 200 - 240 V

Frequency: 50 / 60 Hz

Power: 36 W

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
