Energysilence Aero 5200 Natural Palm - Ceiling fan CECOTEC - Free user manual and instructions

Product Type	Ceiling Fan
Brand	Cecotec
Model	Energysilence Aero 5200 Natural Palm
Blade Diameter	132 cm
Number of Blades	5 blades in natural material
Net Weight	6.2 kg
Power Supply	220-240 V, 50 Hz
Motor Power	55 W
Maximum Airflow	5,200 m³/h
Speeds	3 adjustable speeds
Winter/Summer Function	Reversible rotation for summer and winter
Noise Level	Less than 35 dB at minimum speed
Control	Remote control included
Timer	Available with programmed shut-off
Inclination Angle	Non-adjustable (fixed)
Installation	Ceiling mount, mounting kit included
Maintenance and Cleaning	Clean the blades with a soft, dry cloth
Safety	Silent and balanced motor, automatic shut-off in case of overheating
Spare Parts and Repairability	Parts available on the manufacturer's website
Material	Palm wood blades, metal structure

Frequently Asked Questions - Energysilence Aero 5200 Natural Palm CECOTEC

How to install the Energysilence Aero 5200 fan?

Fix the mounting plate to the ceiling, connect the electrical wires according to the provided diagram, then assemble the blades. Use screws and anchors suitable for your ceiling. Refer to the manual for more details.

How to use the remote control?

The remote control allows you to adjust the speed (3 levels), activate reversible rotation (summer/winter), and set a timer. Insert the provided batteries and point it at the fan.

How to reverse the rotation direction for winter?

Press the reversibility button on the remote control. In winter, the fan should rotate clockwise (viewed from below) to redistribute heat downward.

Why is the fan making noise?

Check that the blades are properly balanced and all screws are tightened. A slight noise at maximum speed is normal, but abnormal noise may indicate an imbalance. Contact customer service if necessary.

How to clean the wooden blades?

Use a soft, slightly damp or dry cloth. Avoid abrasive products or excess water to avoid damaging the wood. Unplug the device before cleaning.

What is the minimum ceiling height required?

The fan must be installed at least 2.30 meters above the floor for safety reasons. Make sure the blades do not risk hitting obstacles.

Can I use the fan without the remote control?

No, the fan is designed to operate only with the remote control. If lost, you can order a replacement remote from the manufacturer.

What to do if the remote control stops working?

Check the batteries, replace them if necessary. Make sure there is no obstacle between the remote and the receiver. If the problem persists, reset the device by turning off power for 10 seconds.

How to set the timer?

Press the timer button on the remote control to set an automatic shut-off duration (usually 1, 2, 4, or 8 hours). The fan will turn off after the selected time.

Where can I find spare parts?

Spare parts (batteries, remote control, mounting kit) are available on the official Cecotec website or from authorized dealers. Contact customer service for more information.

USER MANUAL Energysilence Aero 5200 Natural Palm CECOTEC

1. Parts and components 45
2. Before use 45
3. Assembly 46
4. Operation 47
5. Cleaning and maintenance 49
6. Technical specifications 49
7. Disposal of old electrical and electronic appliances 50
8. Technical support and warranty 50
9. Copyright 51

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Blades
8. Blades bracket
9. Remote control and remote-control receiver
10. Assembly kit

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual
• Assembly kit
• Remote control
• Batteries (2*AAA)

ENGLISH

3. ASSEMBLY

Assembly preparation

• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 2
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length of the fan can be extended with a longer rod. Fig. 3
• Ensure that the junction box is securely fastened to the building structure and can support the full weight of the fan.
• Installation requires the following tools: screwdriver, flat screwdriver, adjustable pliers or spanner, ladder, wire cutters and electrical tape.

Fig. 3 key:

A Standard assembly
B Sloped ceiling assembly

Installation of the mounting bracket

Wooden ceiling. Fig. 4

Concrete ceiling. Fig. 5

1. Drill a 8 mm hole in the ceiling and insert the bolt. Align the bracket with the hole and tighten it with the nut.

Fan assembly and suspension. Fig. 6.

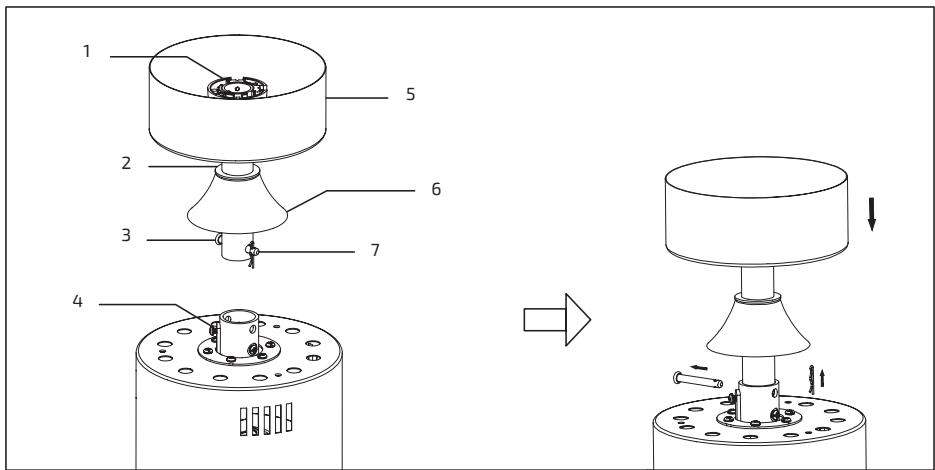

Fig. 6 key:

1. Electric wiring
2. Hanging ball holes
3. Clevis pin
4. Adapter
5. Canopy
6. Decorative cover

7. Clevis

8. If you want the fan to hang lower, you must remove the hanging ball from the supplied 6-inch downrod for use with a longer rod (included). (If you wish to use the 6-inch downrod, follow the steps below).

9. To remove the hanging ball, loosen the suspension ball locking screw and remove the pin and clip. Lower the hanging ball and remove the clevis pin. Slide the hanging ball off the downrod, and slide it onto the longer rod (note that the top of the rod has a hole for the

locking screw). Insert the clevis pin into the top of the extended downrod and raise the hanging ball. Make sure the clevis pin is aligned with the holes on the inside of the hanging ball and tighten the fixing screw securely.

Tip: to prepare for passing the electrical wires through the rod, attach a small piece of electrical tape to the ends of the electrical wires to hold them together when passing them through the rod.

1. Loosen the main-body attachment fixing bolts and nut at the top of the motor housing. Remove the clevis pin and downrod clip (if you have not already done so). Slide the rod down through the canopy.
2. Pass the electrical wires through the rod and pull the wires protruding from the top of the rod end.
3. Place the main-body attachment downrod into the main body anchorage of the motor housing and insert the clevis pin and clip previously removed. Tighten the fixing bolts and the main-body attachment nut securely. Lower the canopy onto the motor housing

Remote control connection. Fig. 7

Canopy assembly. Fig. 8

1. Lift the canopy up to the mounting bracket, aligning the loosened screws in the bracket with the holes in the canopy. Turn the canopy to lock it. Re-insert the screws and secure them all with a screwdriver.
2. Once you have secured the mounting bracket to the connection cover, you can hang the fan. Hold the fan firmly with both hands. Slide the downrod through the opening in the mounting bracket and allow the ball to rest on the bracket. Rotate the hole in the hanging ball until it aligns with the tab on the mounting bracket.

Tip: have someone else hold the ladder securely and bring the fan closer to you once it is on the ladder.

Blade assembly. Fig. 9

1. Place the blades brackets on the blades and screw them on.
2. Once the brackets are secured, attach the blades to the motor.
   Note: do not tighten them completely until they are all in place.
3. When all three blades are correctly installed, tighten the screws completely.

4. OPERATION

This ceiling fan can only be operated with the remote control provided in the box.

ENGLISH

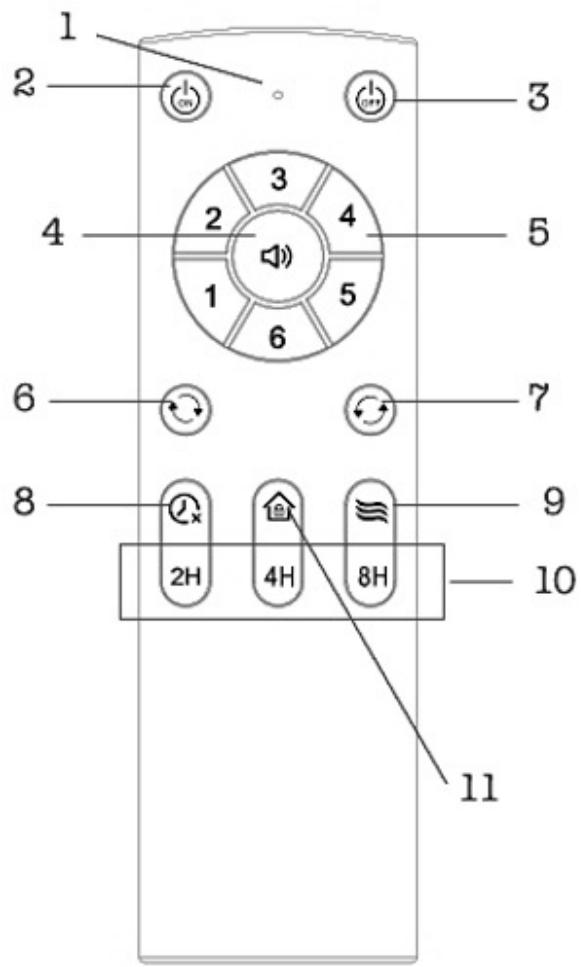

Fig. 10

1. Operation indicator light
2. On button
3. Off button
4. Mute button
5. Speeds buttons
6. Winter mode button
7. Summer mode button
8. Cancel timer button
9. Natural Breeze mode button
10. Timer buttons

11. Programmed auto mode button

12. To switch on the fan function, press button 2.

13. The operation indicator light indicates that the fan is operating correctly.
14. The fan has 6 speeds, 1 is the lowest and 6 is the most powerful.
15. To switch off the fan, press button 3.
16. The timer buttons will allow you to select between 2, 4 and 8 hours of operation.
17. Once the selected time has elapsed, the fan will switch off automatically.
18. To deactivate the timer before it has completed its operation press button 8.
19. Natural Breeze mode simulates the natural variations of the wind, providing a feeling similar to that of a gentle breeze. The ceiling fan automatically alternates between different speeds to mimic the feeling of a cool, natural breeze.
20. Programmed auto mode button. Programme the fan to turn on and off automatically at specific times; in this case, the fan will run at speed 1 and turn on for 5 minutes every 2 hours.
21. To mute the sound of the buttons when pressed, press button 4 on the remote control.
22. The winter/summer mode allows you to adjust the direction in which the fan blades rotate to suit seasonal needs. To activate winter mode, press button 6. To activate summer mode, press button 7.

Remote control pairing

1. Turn on the fan and within 5 seconds, press the Off button on the remote control for 3 seconds. You will then hear a long beep; this means that the pairing has been successful. Now you can operate the fan normally.
2. If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
3. This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.

4. If the batteries in the remote control are dead, replace them so that you can continue to use it normally.

5. Remove the batteries from the remote control if you are not going to use it for a long period of time.

6. Make sure that the earth wire is properly connected.
7. When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Changing the remote-control batteries

The remote control requires 2 x 1.5 V-3 AAA batteries.

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

Reminder

• The receiver must be correctly installed in the fan mounting bracket.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• The isolation switch must be switched on.
• If the power is cut off (e.g. due to a blackout) the light will go out. When the power is restored, the light will switch on again.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08541

Product: EnergySilence Aero 5200 Natural Palm

Voltage: 220 - 240 V

Frequency: 50 Hz

Power: 42 W

ENGLISH

Description	Symbol	Value	Unit
Fan maximum flow	F		m3/min
Fan power consumption	P		W
Service value	SV		(m3/min)/W
Power consumption on standby mode	PSB		W
Fan sound power level	LWA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar(Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

www.cecotec.es
