Product Type	Ceiling Fan
Brand	Cecotec
Model	Energysilence Aero 5200 Blackwood
Blade Diameter	132 cm (52 inches)
Blade Material	Wood (Blackwood)
Number of Blades	5
Color	Black
Motor Type	Silent reversible DC motor
Motor Power	50 W
Speeds	6 adjustable speeds
Special Functions	Winter/Summer, timer, remote control included
Remote Control	Yes, with wall mount
Power Supply	220-240 V ~ 50 Hz
Recommended Mounting Height	2.5 to 3 meters
Net Weight	5.5 kg
Maximum Noise Level	< 35 dB(A)
Maximum Airflow	200 m³/min
Maintenance and Cleaning	Clean blades with a soft, dry cloth; do not use abrasive products
Safety	Unplug before any maintenance; do not insert objects into the housing
Spare Parts and Repairability	Contact Cecotec customer service for spare parts

Frequently Asked Questions - Energysilence Aero 5200 CECOTEC

How to install the Energysilence Aero 5200 Blackwood ceiling fan?

Follow the steps in the manual: attach the mounting plate to the ceiling, connect the electrical wires (live, neutral, ground), assemble the blades and motor, then secure the assembly. Make sure to cut the power before installation.

How to use the winter/summer function?

On the remote, press the reversibility button to reverse the rotation direction. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise to redistribute heat from the ceiling to the floor.

How to clean the wooden blades?

Use a soft, dry or slightly damp cloth. Never use harsh cleaners, solvents, or abrasive products that could damage the wood finish.

Why is my fan making noise?

Check that the blades are properly balanced and all screws are tight. If the noise persists, the motor may be defective. Consult the manual for diagnostic steps or contact support.

How to pair the remote control with the fan?

Turn off power to the fan for 10 seconds, then restore it. Within 30 seconds, press the 'PAIR' button on the remote (usually under the battery cover) until the fan beeps.

The fan does not turn on, what to do?

First check the circuit breaker and that the wall switch is on. Replace the remote batteries. If nothing works, inspect the electrical connections in the ceiling box.

What is the range of the remote control?

The remote has a range of about 10 meters in direct line of sight. Avoid metal obstacles or thick walls that may reduce range.

Can I use the fan with a light bulb?

This model is not equipped with an integrated lighting kit. It is intended for ventilation only. No bulb addition option is available.

What is the warranty of the fan?

Cecotec typically offers a 2-year warranty for manufacturing defects. Keep your receipt and register your product on the Cecotec website to activate the warranty.

Can the suspension rod be shortened?

Yes, the suspension rod can be shortened for lower ceilings. Follow the instructions in the manual to adjust the length safely.

USER MANUAL Energysilence Aero 5200 CECOTEC

Safety instructions 7

1. Parts and components 48

2. Before use 48

3. Assembling the appliance 49

4. Operation 50

5. Cleaning and maintenance 51

6. Troubleshooting 51

7. Technical specifications 52

8. Disposal of old electrical and electronic appliances 53

9. Technical support and warranty 53

10. Copyright 53

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.

• The cable must be properly earthed to avoid possible accidents.

• The appliance must be installed in accordance with national wiring regulations.

• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.

• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Fixing bracket
2. Mounting bracket
3. Fixing screws
4. Hanging ball
5. Downrod
6. Canopy
7. Canopy cover
8. Decorative cover
9. Clevis
10. Motor housing
11. Blades
12. Blades fixing screws
13. Decorative cover
14. Clevis pin
15. Motor
16. Receiver
17. Remote control
18. Assembly kit

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Assembly kit

• Remote control

• Batteries 2 x AAA

• Instruction manual

3. ASSEMBLING THE APPLIANCE

1. Drill a 8 mm hole in the ceiling and insert the bolt. Align the fixing bracket with the hole and tighten it with the nut.

Fig. 2

A. Concrete ceiling
B. Wooden ceiling

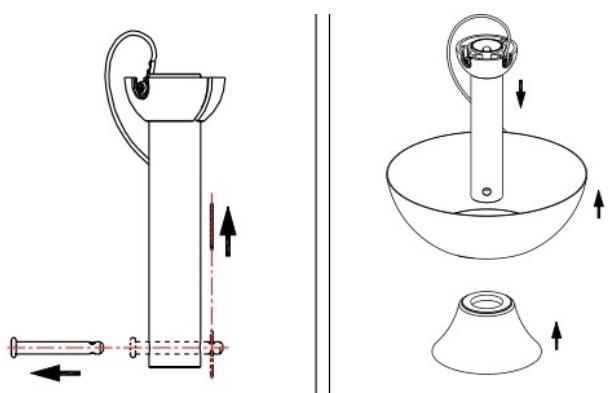

2. Remove the clevis pin and clevis from the downrod. Pass the downrod through the canopy and the decorative cover Fig. 3

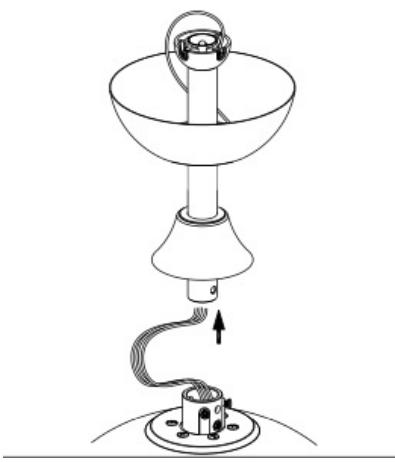

3. Pass the electrical wires and the earth wire through the downrod. Fig. 4
4. Loosen the two fixing screws of the downrod bracket. Next, place the downrod in the bracket. Align the holes in the downrod clevis pin with the holes in the downrod bracket.

Fig. 5

NOTE: be sure to insert the straight end of the clevis through the hole near the end of the clevis pin until the curved part of the clevis fits into the clevis pin.
5. Finally, retighten the two fixing screws. Once the downrod is installed, cover the joint properly with the decorative cover. Fig. 6.

WARNING

It is essential that the downrod bracket clevis screw is correctly installed and that the fixing screws are tightened securely. Failure to check that the clevis screw, clevis clip and fixing screws are correctly installed may cause the fan to fall.

Installing the blades

1. Unscrew the fixed screws and store them in a safe place. Fig. 7
2. Attach the blades to the fan body using the screws provided, making sure to tighten them correctly. Fig. 8
3. Place the decorative cover in the installation hole to give a finishing touch to the appearance of the ceiling fan. Fig. 9

With these simple steps, the installation of the fan blades will be effectively completed.

Hanging the fan

1. Lift the fan carefully and place the downrod and hanging ball assembly in the mounting bracket attached to the ceiling. Fig. 10

ENGLISH

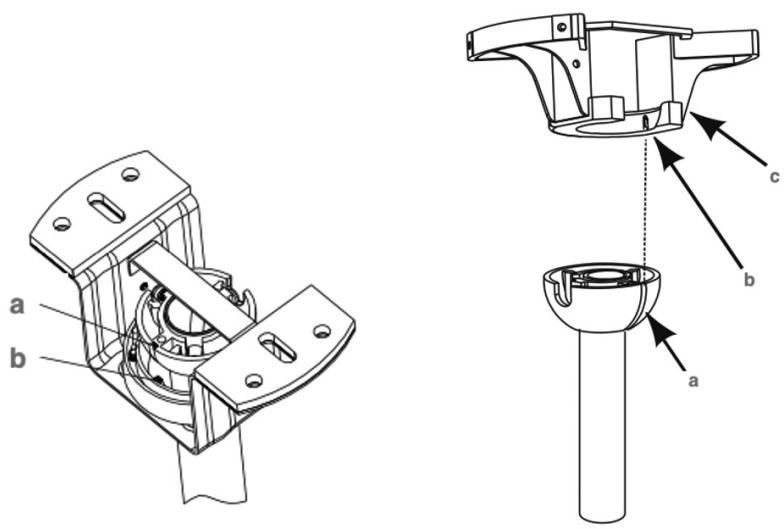

NOTE: make sure that the groove (a) of the hanging ball is correctly aligned with the tab (b) of the mounting bracket (c). Fig. 11

WARNING: the fan must be hung with at least 230 cm clearance from the floor to the blades.

Connecting the remote-control receiver cables

WARNING

To avoid possible electric shock, make sure that the power is disconnected at the main fuse box before wiring.

Insert the receiver into the mounting bracket as shown in figure 12 so that the remote control can pair with the remote control and operate correctly.

Receiver wiring

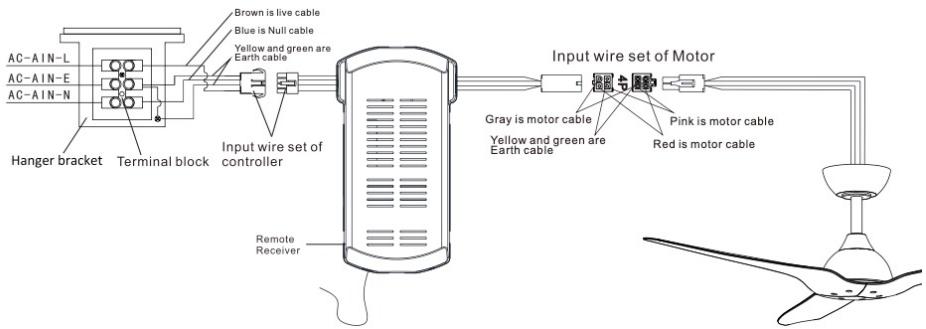

The receiver wiring method shall follow the following scheme in Figure 13.

Installing the decorative cover

To mount the cover, tighten the two screws provided in the assembly kit as shown in Figure 14.

4. OPERATION

Remote control

Fig. 15

1. Power indicator light
2. Speed buttons
3. Off button
4. Reverse rotation button
5. Natural Breeze button
6. Pairing button

7. Timer buttons

8. The operation indicator light on the receiver is used to indicate whether the fan is on or off. When you switch on the fan from the remote control, the receiver will receive the signal and activate the fan motor. At the same time, the indicator light will light up, indicating that the fan is in operation. When you switch off the fan, the indicator light will go out.

9. The speed buttons allow you to switch on the fan and choose the desired speed. It has 6 speeds to regulate the intensity of the air flow.

10. The off button will allow you to switch off the fan completely.

11. Reverse rotation button. A motor reversing system is available to perform the summer/winter function. Rotating in one direction, you can enjoy a pleasant breeze in summer, and, in the opposite direction, the fan will blow warm air to the floor and complement your heating system in winter.
12. Natural Breeze button. It allows for the 6 speeds to be randomly interchanged.
13. Timer buttons. Up to 8 hours of operation can be selected, after which the fan will switch off.

NOTE: once you press the timer button, do not press any other button. Otherwise, the function will be cancelled.

WARNING: to synchronise the receiver with the remote control, switch on the receiver and press the pairing button on the remote control at the same time. Synchronisation is successful when a double beep is heard.

5. CLEANING AND MAINTENANCE

WARNING:

• Before cleaning or repairing the fan, disconnect it from the mains.

• To avoid risk of fire and electric shock, only use the switch provided with this fan.

• It is recommended to check at least once a year the connecting parts of the fan, such as the fastening screws and blades, to ensure that they are completely fixed.

• Clean the ceiling fan regularly. To remove dust from the surface, use a soft brush or cloth.
• If the fan has grease on it, wipe it off with a slightly damp cloth. Do not rinse the fan directly with water.
• The motor bearing is already greased, do not add lubricating oil.

6. TROUBLESHOOTING

The fan does not switch on	1. Check whether the fuse in the external power supply line of the ceiling fan has blown, the automatic protection switch has tripped, or the circuit has been interrupted.2. Check if the voltage is much lower than the nominal voltage of the fan.3. Check the internal wiring of the fan for loose or faulty contacts.
Fan makes noise	1. Before mounting the fan, make sure that it is not damaged.2. Make sure that the mounting bracket is correctly positioned and that the screws are securely fastened.3. Some new ceiling fans make noise for the first 24 hours, after which they stop making noise.4. It is not recommended to install this fan on wooden ceilings, steel structures or prefabricated slabs, as they amplify the sound of the fan.
The fan moves	1. Check that the mounting bracket is completely fixed.2. Check that the screws on the blades are tightened securely.

7. TECHNICAL SPECIFICATIONS

Product reference: 08565 / 08566

Product:

EnergySilence Aero 5200 WhiteWood

EnergySilence Aero 5200 BlackWood

Voltage: 220-240 V

Frequency: 50/60 Hz

Power: 40 W

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfajar(Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the

local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
