Product type	4-door refrigerator (American)
Brand	Cecotec
Model	Bolero Coolmarket 4d 503 E
Height	178 cm
Width	91 cm
Depth	70 cm
Net weight	85 kg
Total capacity	520 L (refrigerator 340 L, freezer 180 L)
Energy class	E (old label)
Annual consumption	300 kWh/year
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a
Defrosting	No Frost (automatic) in both compartments
Functions	External water dispenser, touch control panel, door alarm, LED lighting
Safety	Child lock, automatic shut-off in case of overheating
Cleaning and maintenance	Antibacterial surfaces, replaceable water filter, clean with a soft cloth
Spare parts and repairability	Water filter, shelves, bins, door seals available
General information	2-year warranty, made in China

Frequently Asked Questions - Bolero Coolmarket 4d 503 E CECOTEC

How to set the refrigerator temperature?

Use the touch panel on the front. Press the Refrigerator or Freezer button, then adjust with the + and - arrows. The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

What to do if the appliance stops cooling?

First check the power supply and fuse. Ensure the doors close properly. If the problem persists, clean the condenser coils at the back. If nothing works, contact technical support.

How to clean the water dispenser?

Remove the internal water reservoir (located in the refrigerator) and wash it with warm soapy water. Rinse and dry. For the spout, use a soft brush. Reassemble everything.

How to change the water filter?

Locate the water filter in the lower grille (or inside). Turn it a quarter turn counterclockwise to remove it. Insert the new filter by turning clockwise. Reset the replacement indicator if necessary.

Why is the appliance making noise?

Gurgling or clicking noises are normal (gas circulation). If the noise is loud or irregular, check that the appliance is level and not touching furniture. Fan noises may indicate dirt buildup.

How to install the appliance correctly?

Place the appliance in a dry, well-ventilated area. Leave at least 5 cm of space at the back and sides. Level it using the adjustable feet. Wait 6 hours before plugging it in.

What does error code E1 on the display mean?

Code E1 indicates a faulty temperature sensor. Unplug the appliance for 5 minutes then plug it back in. If the error persists, contact customer service.

How to defrost the freezer?

This model is No Frost, it does not require manual defrosting. If frost appears, check that the door closes properly and the seal is not damaged.

How to save energy with this appliance?

Set the recommended temperature (4°C / -18°C). Do not open the door unnecessarily. Let food cool before storing. Clean the condenser every 6 months.

What to do in case of a power outage?

Avoid opening the doors. Food remains cold for about 4 hours. If the outage lasts longer, consume perishable foods first. Do not refreeze thawed foods.

USER MANUAL Bolero Coolmarket 4d 503 E CECOTEC

Safety instructions 11

1. Parts and components 106

2. Before use 106

3. Installation 107

4. Operation 109

5. Instructions on food storage 113

6. Cleaning and maintenance 115

7. Troubleshooting 116

8. Technical specifications 118

9. Disposal of old electrical and electronic appliances 119

10. Technical support and warranty 119

11. Copyright 120

12. Simplified EU Declaration of Conformity 120

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep the packaging material away from children, as there is a risk of suffocation.

- WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.

- WARNING: when positioning the appliance, make sure the power cord does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- Keep the ventilation openings clear from obstructions.

- Do not place carbonated or fizzy drinks in the freezer

compartment, as this creates pressure in the container, which could explode and damage the appliance.

• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on top of the refrigerator and do not get it wet.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.

• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the appliance carefully to avoid any damage on it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• To avoid food contamination, please follow the instructions below:

A. Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.

B. Regularly clean the surfaces that come into contact with food and with the accessible draining systems.

C. If your refrigerator features a dispenser, clean the water tank if it has not been used for 48 hours.

D. Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
E. The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
F. Compartments with one, two, or three stars are not suitable for freezing fresh food.

• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the mains plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• Use the appliance only for the purposes described in this manual. Incorrect or improper use can damage the appliance and be dangerous for the user.

Temperature range

The appliance temperature range information can be found on its marking. It indicates the optimum room temperature for proper operation of the appliance.

Climate range	Optimum room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

Note:

- Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated room temperature range), it may not be able to maintain the desired compartment temperatures.

Refrigerant

- Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

- WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only do so at an authorised waste-disposal facility. Do not expose it to flames.

- WARNING: the appliance contains refrigerant and gases in

the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

- This symbol means: warning, risk of fire/flammable materials.

- If the refrigeration circuit is damaged:

A. Avoid open flames and sources of ignition.
B. Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

Modo ECO/Fast Cooling/Fast Freezing

Ajuste de los modos

1. Top hinge
2. Glass shelves
3. Drawers cover
4. Drawers
5. Door shelves
6. Centre hinge
7. Upper drawers
8. LED light
9. Centre drawers
10. Lower drawers
11. Feet

Control panel. Fig. 2

1. Child lock indicator light
2. Temperature display
3. ECO mode indicator light
4. Fast Cooling mode indicator light
5. Fast Freezing mode indicator light
6. Refrigerator compartment icon
7. Freezer compartment icon
8. FreshNessFlexHub variable compartment icon (right drawer)
9. "Green" fruit and vegetable mode indicator light
10. "Chill" cold drinks mode indicator light
11. "Fresh" meat and fish mode indicator light
12. Mode selection icon
13. OK/Lock icon

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all

packaging materials are recycled accordingly.

• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.
• To make the most out of the appliance in terms of energy efficiency, place all the shelves and drawers in their original position, that is, as shown in Figure 1.

Box content

• Refrigerator
• Egg tray
• Ice cube tray
• Instruction manual

3. INSTALLATION

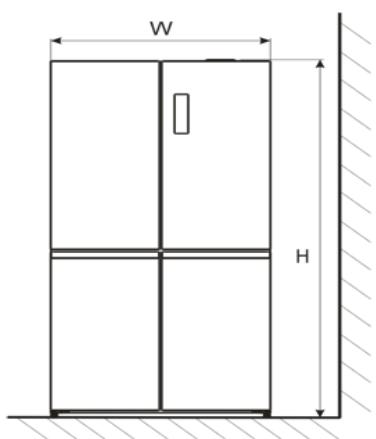

Installation location. Fig. 3

• The location you choose to install the refrigerator should be well ventilated.
• Do not place the refrigerator near heat sources, like a hob, and avoid direct sunlight to ensure the cooling effect and save on energy consumption.
• Do not place the refrigerator in a damp place to avoid rust or loss of power.
• The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8 g/m ^3 .
• Note: The amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

• During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 50 mm of free space at the back, and more than 100 mm on both sides.
• The following table shows the dimensions (in mm) of figure 3.

W	D	H	A	B	C (°)	E	F
850	700	1775	1310	1040	115	50	100

Note: Figure 3 only illustrates the space required for the installation of the refrigerator.

ENGLISH

Stable surface

• Place the freezer on a solid, flat surface to keep it stable, otherwise vibrations and noises will occur. When the refrigerator is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed underneath the refrigerator to avoid colour change due to heat dissipation.
• The place where the refrigerator is installed must be well ventilated.

Levelling

• Make sure that the refrigerator is level with the front feet. If it is not level, performance will be affected.
• After installing the refrigerator, wait four hours before using it to allow the refrigerant to stabilise.

Preparing for use

Waiting time

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Wait at least four hours before starting it up.

Cleaning

Check that all refrigerator accessories are securely in place and wipe the inside with a soft cloth.

Switching on the refrigerator

Connect the plug into a power socket to switch on the compressor. After one hour, open the refrigerator door. If you notice that the temperature inside the refrigerator compartment is much colder than the room temperature, it means that the refrigeration system is working normally.

Food storage

• When the refrigerator has been operating for a considerable period of time, you can adjust the internal temperature. Once the refrigerator has cooled down completely, put the food in. It will take 2 to 3 hours for the food to cool down. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator door as rarely as possible).
• If the refrigerator is installed in a damp place, be sure to check if the earth wire and the leakage circuit breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the refrigerator as far away from these objects as possible.

4. OPERATION

Functions

• This refrigerator has five zones (including the FreshNessFlexHub and HumidityFlexHub compartments) with different temperatures.
• The upper compartment is a refrigerator.
• Inside the upper part, the right-hand drawer (HumidityFlexHub) is an area with adjustable temperature and humidity. To its left is the FreshNessFlexHub zone, with humidity control only.
• The two lower compartments are freezer compartments.
• When the cooling system is connected to the mains for the first time, all indicator lights and icons on the display will light up for 5 seconds.
• If the doors are closed, the display will automatically switch off if no operation is performed after 15 seconds.
• If the display is off, it will light up upon opening a door or pressing a icon.

Lock function

• When you activate the Lock function, you cannot change the temperature or activate any additional modes or functions.
• If 15 seconds pass without any operation, the Lock function will be activated automatically.
• Press and hold the Lock icon OK for 3 seconds to deactivate the lock function.

Temperature setting

- Before changing the temperature setting, make sure that the control panel is not locked.

- If the ECO, Fast Cooling or Fast Freezing mode is activated, the first time you press

Fridge or Freezer, you will not be able to set the temperature of the refrigerator or freezer compartment (a beep will sound to indicate that this operation is not possible). You will have to press these icons a second time (within 10 seconds of the first press) to deactivate the mode and therefore be able to adjust the temperature.

Setting the refrigerator compartment temperature

• Press Fridge to set the refrigerator compartment temperature. When you have selected the desired temperature, press and hold OK for 5 seconds to confirm the setting (you can also wait 5 seconds without performing any operation). At this point, the temperature indicator will stop flashing.
• The temperature setting cycle of the refrigerator compartment is as follows: 5^ 6^ 7^ 8^ 0F 2^ 3^ 4^ 5^
• The "OF" setting means that the refrigerator and HumidityFlexHub compartments will stop cooling. The °C indicator light will turn off.
• Be sure to remove all food from the refrigerator and HumidityFlexHub compartments before setting the temperature to "OF".

Setting the freezer compartment temperature

• Press Freezer to set the freezer compartment temperature. When you have selected the desired temperature, press and hold OK for 5 seconds to confirm the setting (you can also wait 5 seconds without performing any operation). At this point, the temperature indicator will stop flashing.
• The freezer temperature setting cycle is as follows: -18^ -17^ -16^ -24^ -23^ -22^ -21^ -20^ -19^ -18^

HumidityFlexHub compartment settings

Press Fresh Flex shortly (less than 3 seconds) to select the desired mode.

The setting cycle of the selectable modes of the HumidityFlexHub compartment is as follows:

• The "Green" mode is suitable for fruit, vegetables and similar food items.
• The "Chill" mode is suitable for soft drinks and other cold beverages.
• The "Fresh" mode, which is cooler, is suitable for meat, fish and similar products.
• When the temperature setting of the refrigerator compartment is "OF", the Fresh mode will be deactivated, and the compartment will stop cooling.

Note: You will not be able to press Fresh Flex when the temperature setting of the

refrigerator compartment is OF.

when the temperature setting of the

ECO/Fast Cooling/Fast Freezing modes

Modes settings

• Press and hold Fresh Flex for 3 seconds to access the menu.
• If you want to exit it, press and hold [icon: Fresh Flex] again for 3 seconds. Each time the display is switched on again (after being off), you will have to access the menu again.

ECO mode

• When this mode is activated, the refrigerator compartment temperature will be 5 °C, and the freezer compartment temperature will be -18 °C. This ensures that food is properly preserved and that the refrigerator operates with optimum efficiency and performance.

• When ECO mode is activated, you cannot change the temperature setting of the refrigerator compartment or freezer compartment.

• Activating the ECO mode

• Press and hold Fresh Flex for 3 seconds until the ECO mode indicator light (1) starts flashing. Then, press OK (or wait 5 seconds without performing any operation) to confirm the setting. The ECO mode indicator light (1) will remain lit.
• Deactivating the ECO mode
• Press and hold ≡ for 3 seconds until the ECO mode indicator light (Q) starts flashing. Then, press OK (or wait 5 seconds without performing any operation) to confirm the

setting. The ECO mode indicator light ⏻ will switch off.

• When Fast Freezing or Fast Cooling mode is activated, ECO mode will be deactivated automatically.
• You can also deactivate the ECO mode by pressing 📄 Fridge or 📋 Freezer twice.

Fast Cooling mode

• When this mode is activated, the refrigerator compartment temperature will be 2 °C. This will cause the food to cool more quickly. This mode will be automatically deactivated after 8 hours from its activation. Fast Cooling mode preserves the taste, freshness and nutritional value of food.

• When Fast Cooling mode is activated, you cannot change the temperature setting of the refrigerator compartment.

• Activating the Fast Cooling mode

• Press and hold 📄 Fresh Flex for 3 seconds to access the menu. Next, press 📄 Fresh Flex shortly (less than 3 seconds) until the Fast Cooling indicator light flashes. After that, press OK to activate the mode or wait 5 seconds without performing any operation. The Fast Cooling mode indicator light 📄 will remain lit.

• Deactivating the Fast Cooling mode
• This mode will be automatically deactivated after 8 hours from its activation.
• When the Fast Cooling mode is activated, press and hold 📋 Fresh Flex for 3 seconds to access the menu. Next, press this icon again shortly (less than 3 seconds) until the Fast Cooling indicator light 🔒 flashes. Then, press OK (or wait 5 seconds without performing any operation) to confirm the setting. The Fast Cooling mode indicator light 🔒 will switch off.
• If ECO mode is activated, Fast Cooling mode will be automatically deactivated.
• You can also deactivate the Fast Cooling mode by pressing Fridge twice.

Fast Freezing mode

• When you activate Fast Freezing mode, the temperature of the freezer compartment will drop to -32 °C automatically. This mode will be automatically deactivated after 26 hours from its activation. This mode ensures that the food retains its freshness and does not lose nutrients.

• When Fast Freezing mode is activated, you cannot change the temperature setting of the freezer compartment.

• Activating the Fast Freezing mode

• Press and hold Fresh Flex for 3 seconds to access the menu.

• Press [icon: Fresh Flex] shortly (less than 3 seconds) until the Fast Freezing indicator light

ENGLISH

flashes. After that, press OK to activate the mode or wait 5 seconds without performing any operation. The Fast Freezing mode indicator light 🙏 will remain lit.

1. Deactivating the Fast Freezing mode

2. This mode will be automatically deactivated after 26 hours from its activation.

3. When the Fast Freezing mode is activated, press and hold Fresh Flex for 3 seconds to access the menu. Next, press Fresh Flex again shortly (less than 3 seconds) until the Fast Freezing indicator light flashes. Then, press OK (or wait 5 seconds without performing any operation) to confirm the setting. The Fast Freezing mode indicator light will switch off.
4. if ECO mode is activated, Fast Freezing mode will be automatically deactivated.
5. You can also deactivate the Fast Freezing mode by pressing Freezer twice.

Open door alarm

If any of the doors are left open for more than 3 minutes, an alarm will sound. To stop the beeping, press any icon. Please note that if you keep the door open for another 3 minutes, the alarm will sound again.

The alarm will stop beeping when all doors are properly closed.

Memory function

If there is a power failure, once the power is restored, the refrigerator will restart and remember the previous settings.

Delayed start-up for safety reasons

If there is a power failure lasting less than 5 minutes, the refrigerator compressor will not start immediately after switching on to prevent damage to the compressor. If the power failure lasts longer than 5 minutes, it will start immediately.

Overheating warning (only after a power failure)

When the cooling system of the appliance is turned on, if the temperature of the freezer compartment sensor is higher than -10 ^ , the temperature digits of the freezer compartment will flash on the display. You can see the temperature of the freezer compartment by pressing any icon. The display will return to its normal state when you press any icon again or if 10 seconds pass without any operation being performed.

Fault warning

If "E0", "E1", "E2", "EH", "EE" or "EC" appears on the display, it means that the refrigerator is faulty. If this happens, please contact Cecotec's official Technical Support Service.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• If you select a high temperature for the freezer, the food may defrost.
• Information on the temperature range can be found on the rating plate.
• Temperature may be affected by factors such as the location of the refrigerator, room temperature and how often the door is opened.
• Do not put carbonated drinks in the freezer.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different. This should be taken into account when placing the food.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.
• The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment

- Shelves: to remove the shelves, first lift them up and then pull them out. To reposition them, place them in the guides and push them down. Make sure that food does not come into contact with the walls of the refrigerator. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.

- Crisper drawer: after using or cleaning the bottom shelf of the refrigerator compartment (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Using the humidity regulator

The humidity regulator in both drawers is designed to keep the moisture and freshness of vegetables. If you slide it to the right, the humidity level in the drawer will be lower. If you slide it to the left, the humidity level in the drawer will be higher.

Tips for food storage

• Clean and dry food thoroughly before placing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
  Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food in the refrigerator compartment, do not stick it to any wall to prevent it from freezing.

ENGLISH

Storing food by category

Place your most frequently consumed foods at the front of the shelves, so that you keep the door open as little as possible.

Energy-saving tips

Let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it. Frozen food helps to cool fresh food, which saves energy.

Storing fruits and vegetables

Store fruit and vegetables in the crisper drawer.

Using the freezer compartment

• Store food that you want to keep for a long period of time in the freezer drawers.
• Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer.
• Do not place liquids in glass or canned containers in the freezer; if you do, they may explode.
• Divide food into small portions.
• It is best to package food before freezing. Make sure that the container to be used is dry. Food should be packaged or covered with durable, non-toxic, non-polluting, tasteless, air- and water-tight materials to prevent cross-contamination and odour transfer.

Tips for buying frozen food

• When buying frozen food, pay attention to the storage instructions on the package.
• Check the temperature of the freezer of the shop where you buy them.
• Make sure that the packaging of frozen food is in perfect condition.
• When you go to the supermarket, buy frozen products last.
• Try to keep frozen foods together while shopping and on the way home, as this will keep them fresher.
• Do not buy frozen foods unless you can freeze them immediately. Isothermal bags are available in most supermarkets and department stores. In them, frozen food is kept cold for a longer period of time.
• Some foods do not require defrosting before cooking. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be placed in a pan and heated gently until thawed.
• Use quality foods and alter them as little as possible. When food is frozen in small quantities, it takes less time to freeze and thaw.
• Calculate the amount of food to be frozen. When freezing large quantities of food, lower the freezer compartment temperature. This way, food can be frozen quickly maintaining its freshness.

6. CLEANING AND MAINTENANCE

Before cleaning the refrigerator, disconnect it from the mains. Do not touch the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the refrigerator, so that it does not rust or cause an accident. Do not reach into the bottom of the refrigerator, as this may cause damage.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause unpleasant odours, so you should clean the refrigerator regularly. Clean the refrigerator compartment at least once a month.
• Remove all shelves and drawers and clean them with a soft cloth or sponge dampened with lukewarm water. You can also use a little neutral detergent.
• If you have used detergent, be sure to rinse it off with clean water. Next, dry it with a dry cloth.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.

Do not use any abrasive materials or corrosive products to clean the refrigerator. Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. To refit the gasket after cleaning, first fix the four corners and then push it into the slot a little at a time.

Power failure or cooling system fault

• If the freezer compartment stops working for a long period of time, the food may defrost.
• Try to open the refrigerator door as little as possible, so that you can keep food in good condition for hours, even in summer.

• If you know that a power cut is going to occur in advance:

• Select the highest temperature one hour in advance, so that the food is completely frozen. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.

• You can also place ice in an airtight container to extend the shelf life of food.

Note: It is best not to interrupt the operation of the refrigerator; this could affect its lifespan.

Defrost

This freezer includes an automatic defrost function, so there is no need to defrost it manually.

If the refrigerator will not be used for a long period of time

- Turn off the refrigerator and unplug it from the power supply.

ENGLISH

• Remove all the food.
• Clean and dry the interior completely. To avoid mould or unpleasant odours, leave the door slightly open.
• Install the refrigerator in a dry, ventilated place away from heat sources. Place it carefully and avoid placing heavy objects on top of it.
• Keep the refrigerator out of the reach of children, so that they do not play with it.

Replacing the light bulb

The refrigerator has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Cecotec Technical Support Service.

Safety check after maintenance

• Check that the power cable is not broken or damaged.
• Check that the plug is correctly inserted into the socket.
• Check that the plug does not overheat.

Note: If the power cord and plug are damaged or dusty, electric shock and fire may

occur. If there is any malfunction, disconnect the cable and contact the official Cecotec

Technical Support Service.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The refrigerator does not cool	It is not plugged into the mains.Circuit breakers or fuses are damaged.There is no electricity.	Reconnect it to the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not levelled.	Set the adjustable feet of the refrigerator.
	The refrigerator is in contact with the wall.	Separate the refrigerator from the wall.
Cooling is insufficient	The food inside is hot or there is too much food.	Store food in the refrigerator when at room temperature.
	You open the door too often.	Keep the door closed.
	The door gasket has objects that do not allow to close it completely.	Remove the objects that prevent the door from closing.
	The refrigerator receives direct sunlight or is close to a heat source.	Remove the refrigerator from the heat source.
	The place where the refrigerator is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Select a suitable temperature.
Unpleasant smells in the refrigerator	There is spoiled food inside.	Dispose of food which is spoiled.
	The inside of the refrigerator is dirty.	Clean the refrigerator.
	Food with a strong odour stored inside the refrigerator.	Pack the strong smelling foods.
The icons do not work	Check whether the Child lock function is activated.	Press and hold the Lock icon OK for 3 seconds to deactivate the lock function. For more information, see “Operation” section.
The temperature cannot be changed	Check whether the ECO, Fast Cooling or Fast Freezing modes are activated.	If the ECO, Fast Cooling or Fast Freezing modes are activated, you will not be able to set the temperature of the affected compartment. Deactivate the activated mode to be able to adjust the temperature. For more information, see “Operation” section.
The temperature flashes on the display	Check if there has been a power failure.	Press any icon to make the overheating warning disappear (see “Overheating warning” section for more information). Check whether the food in the refrigerator and freezer compartment has spoiled.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the refrigerator yourself. All repairs must be carried out by qualified personnel. Contact the official Cecotec Technical Support Service. Repairs must be carried out by an authorised technician and only original spare parts must be used.

When the refrigerator is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

8. TECHNICAL SPECIFICATIONS

Product	Bolero CoolMarket 4D503 Inox E	Bolero CoolMarket 4D503 Dark E	Bolero CoolMarket 4D503 Black Glass E
Reference	00238	00239	00240
QR code

Rated voltage	220 - 240 V~
Rated frequency	50 / 60 Hz
Rated current	2,5 A
Climate class (*)	SN / N / ST / T
Refrigerant	R600a (80 g)
Insulator	Cyclopentane

This appliance features four G energy efficient light sources.
(*) Refrigerating appliance intended for use at room temperatures between 10 °C and 43 °C.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec's official Technical Support Service at [phone].

ENGLISH

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

Mode ECO/Fast Cooling/Fast Freezing

Réglage des modes

Fresh Flex

Mode Fast Freezing (Congélation rapide)

Modo ECO/Fast Cooling/Fast Freezing

Definição dos modos

ECO/Fast Cooling/Fast Freezing

7. PROBLEEMOPLOSSING

Tryb Eco/Fast Cooling/Fast Freezing

Ustawienia trybów

ECO modu Fast Cooling/Fast Freezing

Modlari ayarlama

Mode ECO/Fast Cooling/Fast Freezing

Ajust dels modes

The quick brown fox jumps over the lazy dog.

Chill

Fresh

Green

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

www.cecotec.es

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that
