Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 450 Goldblack
Color	Black and gold (Goldblack)
Blade diameter	45 cm
Blade material	ABS
Number of blades	3
Total height	Approximately 25 cm (without rod)
Net weight	2.5 kg
Power supply	220-240 V ~50 Hz
Motor power	35 W
Motor type	Silent DC motor
Speeds	6 adjustable speeds
Reverse function	Yes (winter/summer)
Remote control	Yes, included
Timer	Yes, adjustable
Lighting	Not integrated
Noise level	< 35 dB (silent)
Installation	Recommended by a qualified electrician
Maintenance	Clean the blades with a damp cloth
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 450 Goldblack CECOTEC

How to install the Energysilence Aero 450 ceiling fan?

Installation must be carried out by a qualified electrician. Follow the instructions provided in the manual. Ensure the ceiling support is sturdy and that the power supply is cut off before installation.

Does the remote control work immediately?

Yes, insert batteries (AAA, not included) into the remote control. Point it towards the fan receiver. If it does not work, check the batteries or the range (max 10 m).

How to reverse the fan's rotation direction?

Press the reverse button on the remote control or on the housing. In summer, the blades rotate counterclockwise to cool; in winter, clockwise to redistribute heat.

The fan is noisy, what to do?

Check that the blades are well balanced and the screws are tight. Slight noise may be normal. If the noise persists, contact Cecotec customer service.

What is the recommended minimum ceiling height?

The fan must be installed at least 2.30 m from the floor and 30 cm from walls or obstacles for optimal airflow.

Can I use the fan without the remote control?

No, the remote control is necessary to change speeds and activate functions. A wall switch can cut off power, but does not control settings.

How to clean the fan?

Turn off the fan and wait for it to stop. Use a soft, slightly damp cloth to wipe the blades and motor. Never use abrasive products or water directly on the motor.

Is the fan compatible with a light dimmer?

No, do not use a dimmer with this fan. This could damage the motor. Use only the supplied remote control.

What is the motor lifespan?

The DC motor is designed to operate for more than 30,000 hours without special maintenance, subject to normal use.

Where to find spare parts?

Contact Cecotec customer service or visit their website. Blades, remote control, and mounting bracket are available as spare parts.

USER MANUAL Energysilence Aero 450 Goldblack CECOTEC

Safety instructions 7

1. Parts and components 39

2. Before use 39

3. Product assembly 40

4. Operation 42

5. Cleaning and maintenance 42

6. Troubleshooting 43

7. Technical specifications 44

8. Disposal of old electrical and electronic appliances 45

9. Technical support and warranty 45

10. Copyright 45

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not use the appliance if any of its parts are damaged or does not work properly, has been dropped, or damaged.
• The cable must be properly earthed to avoid possible accidents.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance shall be installed in accordance with national wiring regulations.
• The electrical wiring must be in accordance with the local regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided by Cecotec.
• Turn off the mains power by turning off the circuit breakers before installing your fan to avoid risk of electric shock.
• To control the speed of the fan blades, only use the means for speed control provided by Cecotec, do not use solid-state ones.
• Be careful when near the rotating fan blades.
• Do not bend the blade-attachment system during the installation or cleaning process.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• If you are mounting the fan to a joist, make sure it is strong enough to support the moving weight of the fan (at least 50 kg).
• After installing the fan, make sure all the connections are secured.
• Turn the fan off and wait for it to stop before reversing the fan direction.
• To reduce the risk of injury, only use the screws and washers provided or indicated in this manual.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• Make sure the installation location you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 2 m from the floor to the trailing edge of the blades.
• Never install the fan in a damp or wet room.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off the appliance and unplug it from the main power supply before cleaning it.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the

hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

INSTRUCTIONS DE SÉCURITÉ

1. Installation bracket
2. Hanging ball
3. Downrod
4. Screws I
5. Canopy
6. Screws II
7. Clevis pin
8. Mounting plate
9. Motor
10. Nut and washer
11. Blades
12. Blade bracket
13. Screws III
14. Light base plate
15. Lamp support
16. Lamp holder
17. Lamp

Note:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.
• Carefully open the ceiling fan's box, take all the components out, and place them on a cloth or soft surface to avoid damage. Do not lay the motor's box on its sides to avoid damage to the housing.

Box content

• Fan main body
• Assembly kit
• Instruction manual

3. PRODUCT ASSEMBLY

The following tools are required to carry out the installation: screwdriver, flat-head screwdriver, adjustable pliers or wrench, stepladder, wire cutter, epoxy resin, and rated electrical tape.

Warning

To avoid electric shocks, turn the household power supply off before installing the ceiling fan.

General assembly instructions

If you hang the fan on a hook, the latter must withstand at least 100 kg.

Assembly according to the type of ceiling (Fig. 2):

1. Low ceilings
2. Normal ceilings
3. Sloped ceilings (might require a longer downrod, not supplied by Cecotec)

To assemble this ceiling fan, follow the steps below (Fig. 3-12).

1. Remove the lower and upper pins from the downrod and release the hanging ball at the top of the rod.
2. Pass the wiring from the main body through the downrod.
3. Attach the downrod to the main body by inserting the pin through the downrod and the main-body attachment. Tighten the screws provided on the main-body attachment to properly secure the downrod.
4. Remove the 4 screws that fix the upper canopy and the installation bracket. Insert the upper canopy through the downrod. Fig. 3
5. Insert the pin through the pin holes located on the upper end of the downrod. Once inserted, slide the hanging ball upward to the upper end of the downrod and fix it with one of the screws provided.
6. Make sure the pin fits in the slots located inside the hanging ball before screwing it.
7. Mark the centre of the installation bracket and use both self-tapping screws provided with their corresponding washers and pressure washers to fix the installation bracket to a wooden ceiling.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan

to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

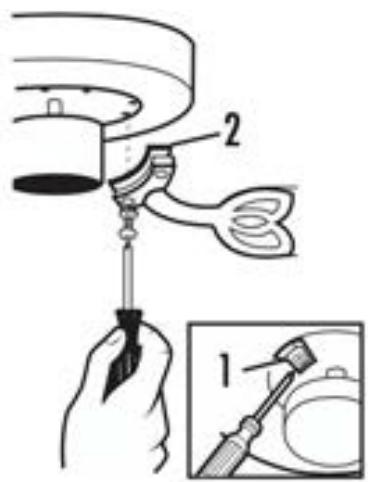

1. Remove the screws located on the lower part of the motor through the lamp support.
2. Screw the blade brackets to the motor through the hole in the lamp support paying attention to the warning sticker located on one of the blade brackets. Fig. 4

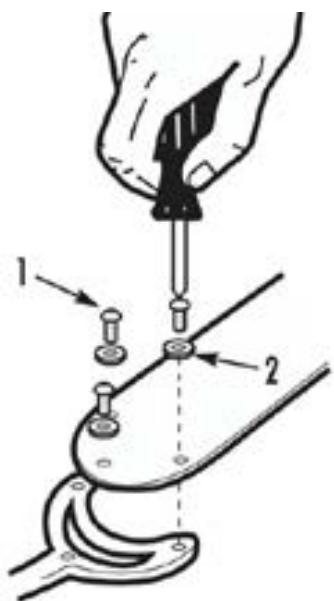

3. Screw the blades to the blade brackets using the screws, washers, and nuts provided. Because blades are reversible, choose the side you wish to be visible and screw them in such way that the nuts are located on the top part of the blade. Fig. 5
4. Once the installation bracket is screwed, connect the wiring. First connect the quick-connect cable to the terminal block on the installation bracket. Following the colour code (Fig. 6). From the opposite end of the terminal block, connect the wiring from the installation of your home.

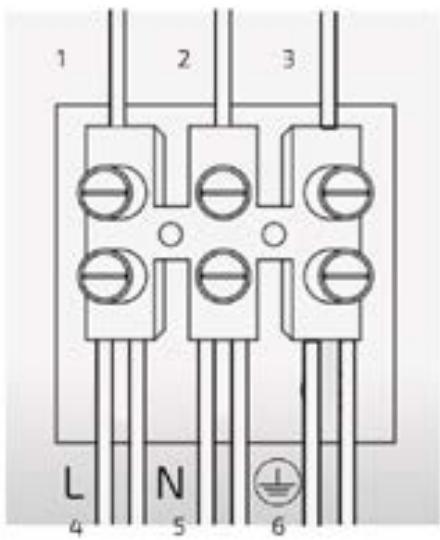

Fig. 6 key:

1. Black and Blue
2. White
3. Earth
4. Phase (Brown/Black)
5. Neutral (Blue)

6. Earth

7. Lift the fan previously mounted to the installation bracket and insert the hanging ball through the installation-bracket hole. Fig. 7

8. Connect the cables that come out from the downrod to those from the installation bracket using both quick connectors.
9. Slide the canopy upwards so that all the connections are stored inside it and screw it to the installation bracket using the 4 screws (2 to each side) removed at the beginning of the installation process. Fig. 8

Please note

The reversible blades have 2 different high-quality finishes.

By inverting the blades, the appliance produces a decorative effect and adapts to different room designs.

1. Tighten the bulb to the lamp holder (not included). Fig. 9

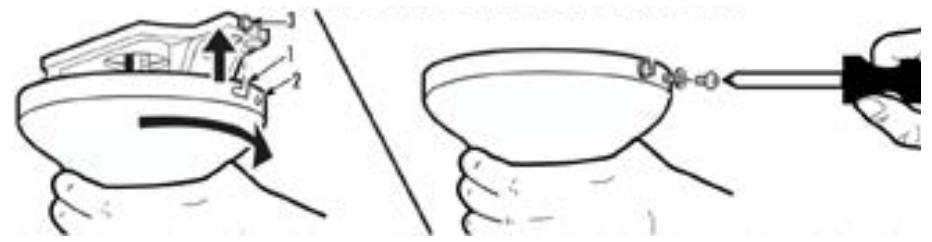

2. Place the lamp on the bottom of the appliance inserting the tabs of the lamp support into the glass so that it is fully secured. Fig. 10

3. Attach the chain. To do so, fix the long chains with the corresponding end parts of the fan chains by introducing the long chain end into the connecting piece.

4. Make sure that the chains are safely fixed by pulling on them carefully from the connecting piece. Fig. 11

Warning

The important safety precautions and instructions stated in this manual are not meant to cover all possible conditions and situations that may occur. Bear in mind that common sense and caution are necessary factors in the installation and operation of this fan.

4. OPERATION

To switch the fan on or off:

• When it is turned off (OFF position), pull from the switch chain until the fan turns on. To switch it off, pull from the chain again.
• Function sequence from OFF position:

o Pull 1 time for high speed.
o Pull again: medium speed.
o Pull once more: low speed.
o Pull one last time to turn it off.

The commutator on the fan body is a switch that moves to the left or right depending on the mode and is used to change the rotation direction (clockwise or counterclockwise) of the fan blades.

Winter/Summer function

• Winter function: move the switch to the clockwise position, then the blades will start to rotate clockwise causing the warm air to be distributed throughout the room. Fig. 12
• Summer function: move the switch to the counterclockwise position, then the blades will start to rotate counterclockwise causing a cool breeze. Fig. 12

Warning

Before using the commutator, turn the fan off and make sure it has completely stopped moving to avoid personal and product damage.

5. CLEANING AND MAINTENANCE

NOTE:

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.

Cleaning

• Clean with a soft, dry cloth.
• Do not use chemical or harsh abrasive cleaning agents.
• Do not allow condensation to come in contact with the electrical components.

Replacing the light bulb

• Turn the appliance off (preferably, turn it off at the power circuit breaker) and wait until it cools down.
• Remove the bulb by holding it firmly and turning it counterclockwise. To do this, hold it firmly and turn it counterclockwise.

NOTE: be careful, the bulbs can reach very high temperatures during use.

• Take a new bulb and put it carefully into the lamp holder. Screw it clockwise.
• Turn the power supply on again and switch the lamp on.

Important

This fan uses 1 E27 / Max bulb. 60 W (not included).

6. TROUBLESHOOTING

If the fan does not turn on:

• Check the fuses or circuit breakers at the electric panel.
• Check the fan cables.
• Warning: make sure the main supply is off
• Make sure that the commutator is firmly in position. The fan will not work if the switch is in the middle position.
• If the fan does not work, please contact the official Cecotec Technical Support Service. Do not try to repair the internal electric connections.

If the fan makes a lot of noise:

• Check that all screws on the motor housing are properly fixed (do not overtighten them).
• Check that the screws fixing the blade bracket are tight enough.
• Allow the fan to run for 24 hours. Most of the noises produced by the fan will disappear after this time.

• Ensure that all blades are firmly screwed to the blade brackets.
• Check that all blade brackets are firmly fixed to the motor.
• Make sure that mounting bracket is firmly fixed to the ceiling.
• If blade oscillation is still visible, it is possible that swapping two adjacent blades (side by

side) will redistribute the weight and make operation smoother.

If the light does not work:

• Check if the bulb is defective.
• Make sure that the electric connections are correct.
• If the problem persists, contact the official Technical Support Service of Cecotec.

7. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 450 / EnergySilence Aero 450 IronWhite/ EnergySilence Aero 450 IronBlack / EnergySilence Aero 450 FullBlack/ EnergySilence Aero 450 FullWhite/

EnergySilence Aero 450 GoldBlack/ EnergySilence Aero 450 GoldWhite

Product reference: 05940/08459/08460/08461/08562/08463/08464

Power: 50 W

Voltage: 220-240 V \~

Frequency: 50 Hz

1XE27 Max 60 W (not included)

Description	Symbol	Value	Unit
Fan maximum flow	F	92.0	m^3/min
Fan power consumption	P	45.3	W
Service value	S_v	2.0	(m^3/min)/W
Power consumption on standby mode	P_SB	-	W
Fan sound power level	L_WA	45	dB (A)
Maximum air speed	C	1.8	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

The appliance power consumption when off is 0,0 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/knob of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1.

1XE27 Max 60 W (non incluse)

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 5

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 8

Fig./Img./Abb./Rys./Obr. 10

Fig./Img./Abb./Rys./Obr. 9

Fig./Img./Abb./Rys./Obr. 11

Fig./Img./Abb./Rys./Obr. 12

www.cecotec.es
