USER MANUAL R24AI ZOOM

AUDIO INTERFACE MANUAL

(=—{ 58e | 4 © ZOOM Corporation Reproduction of this manual, in whole or in part, by any means, is prohibited.

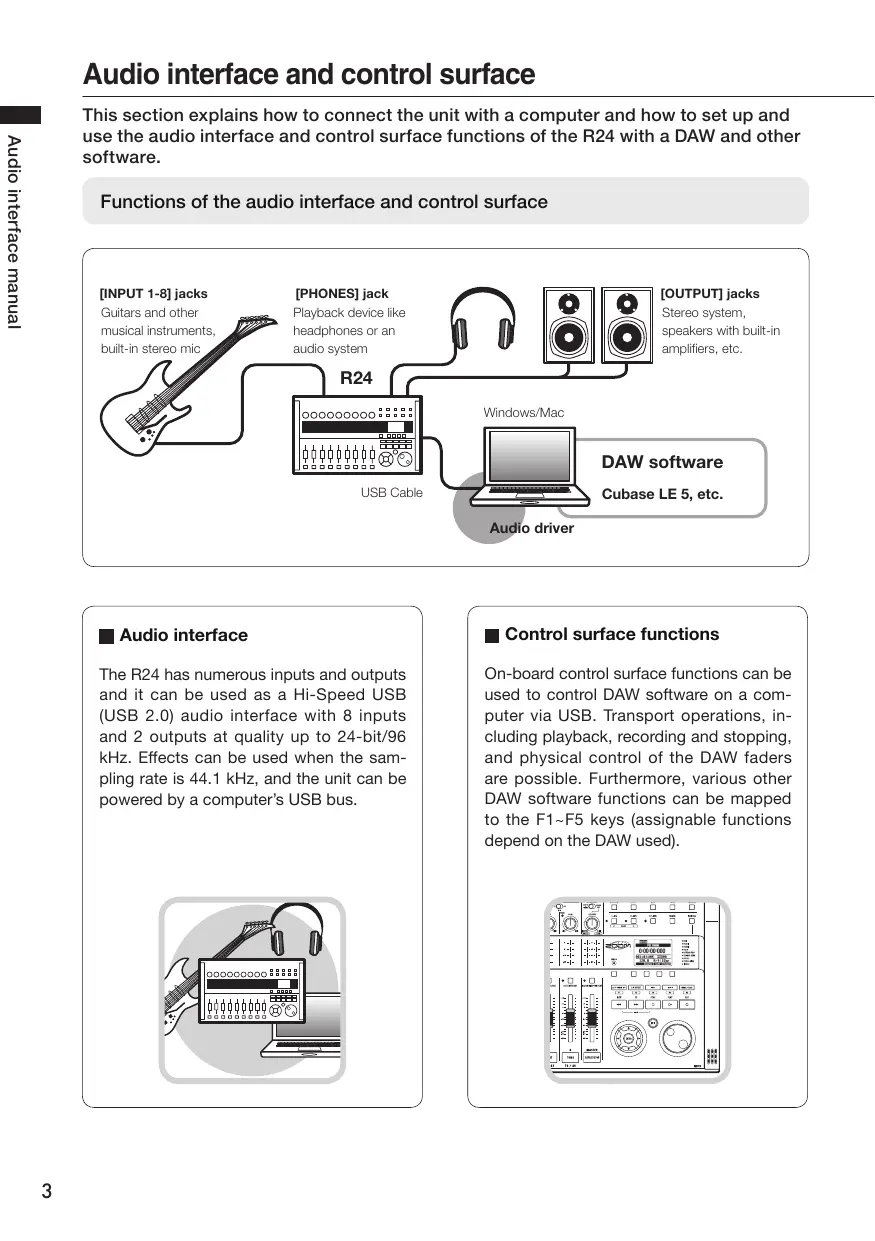

lenuewu 298HeqUI OIpny || Audio interface and control surface This section explains how to connect the unit with a computer and how to set up and use the audio interface and control surface functions of the R24 with a DAW and other software. Functions of the audio interface and control surface LINPUT 1-8] jacks Guitars and other musical instruments, buit-in stereo mic IPHONES] jack Playback device Ike headphones or an audio system o LOUTPUT] jacks o|o speakers with buit-in ampifiers, ete.

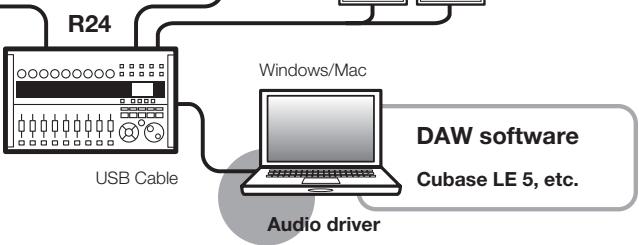

USB Cable Let (—— Windows/Mac bn DAW software Cubase LE 5, etc. Audio driver M Audio interface The R24 has numerous inputs and outputs and it can be used as a Hi-Speed USB {USB 2.0) audio interface with 8 inputs and 2 outputs at quality up to 24-bit/96 kHz. Effects can be used when the sam- pling rate is 44.1 kHz, and the unit can be powered by a computer's USB bus.

M Control surface functions On-board control surface functions can be used to control DAW software on a com- puter via USB. Transport operations, in- cluding playback, recording and stopping, and physical control of the DAW faders are possible. Furthermore, various other DAW software functions can be mapped to the F1-F5 keys (assignable functions depend on the DAW used).

MH Supports input from a variety of sources, including guitars, mics and line level instruments The 8 onboard jacks accept XLR and standard phone plugs and include one high-impedance input and two inputs with phantom power (24V or 48). Many sources are supported from high- impedance guitars and basses to dynamic and condenser microphones and line- level devices like synthesizers. In addition, built-in high- performance condenser microphones are convenient for recording acoustic guitars and vocals. M Versatile effect functions Built-in insert effects can be applied to specific channel paths, and two-types of send/return effects work via the mixer send/return. These effects can be applied when recording, of course, but they can also be applied to only the monitor output. For example, when recording vocals, you can apply reverb only to the monitor sig- nal to make singing easier. M Comprehensive built-in mixer Using the R24's mixer, you can make a mix for monitoring. When simultaneously recording guitar and vocals, for example, you can adjust volume balance, panning and reverb levels. Moreover, you can also adjust the balance between the built-in mixer and the sound sent from a computer. M Multifunction tuner In addition to standard chromatic tuning, the on-board multifunction tuner also sup- ports 7-string guitar, 5-string bass and various drop tunings.

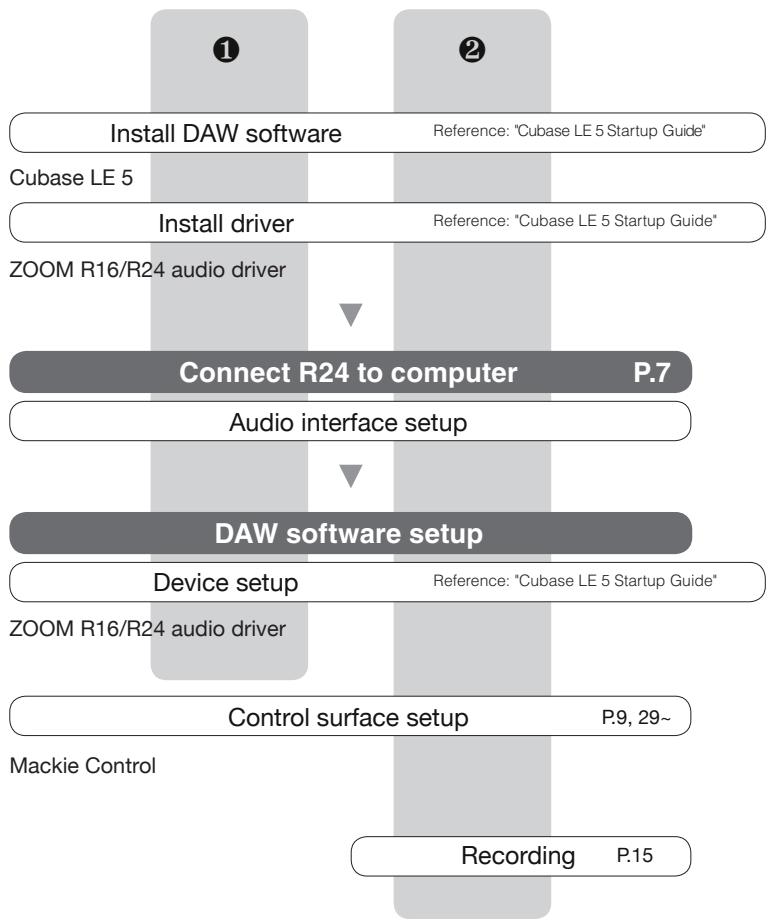

lenuewu 2,ejiequl oIpny || Cubase LE 5 installation overview To use the R24 with DAW software, after installing that software, a driver must be installed and set to recognize it. We explain how to do this with Cubase LE 5. © Audio interface © Control surface By using the R24 between a computer and Using the faders and keys on the R24, you can external audio devices and instruments, their control transport operation and mixing in digi- signals can be recorded using a DAW or other tal audio workstation (DAW) software on your software. Instruments and mics that require computer. Hi-Z or phantom power can also be connected. o 2] C Install DAW software Reference: Cubase LE 5 Startup Guide ) Cubase LE 5 Ç Install driver Reference: *Cubase LE 5 Siartup Guide* ) ZOOM R16/R24 audio driver

R24 Audio Interface system requirements R24 Audio Interface system Cubase LE 5 installation gl requirements Windows Please refer to the Cubase LE 5 Startup Guide Windows® XP SP2 or later (32-bit) for detailed instructions for installing the R16/ Windows® Vista SP1 or later (32-bit, 64-bit) R24 audio driver and Cubase LE 5. Windows® 7 (32-bit, 64-bit) 32-bit: Intel® Pentium® 4 1.8 GHz or faster 64-bit: Intel® Pentium® Dual Core 2.7 GHz or faster 32-bit: RAM 1 GB or faster 64-bit: RAM 2 GB or faster Intel Mac OS X 10.4.11 or later/10.5 or later/10.6 Intel® Core Duo 1.83 GHz or faster RAM 1 GB or faster Both USB 2.0 compatible port + USB hubs are not supported. +_Intel” chipsets recommended. Note about descriptions and images This manual was prepared based on use with Win- dows systems. Special functions related to Mac OS X are indicated separately. The screen images are of the Windows version. About trademarks + The SD symbol s> and #2 SDHC symbol are trademarks. + Windows®, Windows” XP, Windows Vista® and Windows 7° are registered trademarks of Microsoft‘ in the USA. + Macintosh® and Mac OS° are trademarks of Apple Inc. + Steinberg and Cubase are registered trademarks of Steinberg Media Technologies GmbH Inc. + Intel” and Pentium” are trademarks of Intel Corporation. + MACKIE Control is a registered trademark of LOUD Technologies. + Logic is a trademark of Apple Inc. + SONAR is a trademark of Cakewalk, Inc. + Ableton Live is a trademark of Ableton AG. + Digital Performer is a registered trademark of Mark of the Unicorn. + All other product names, registered trademarks, and company names mentioned in this documentation are the property of their respective owners. In order to improve the product, specifications might be changed without advance notice. lenueuw 8,epIejUI oIpny I

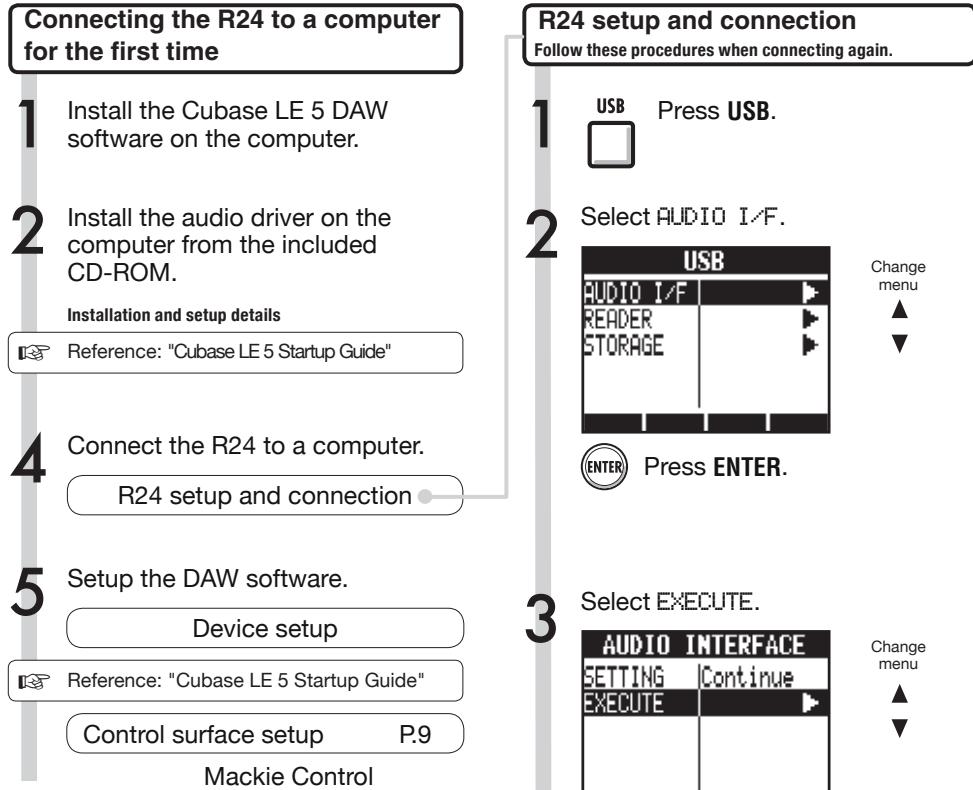

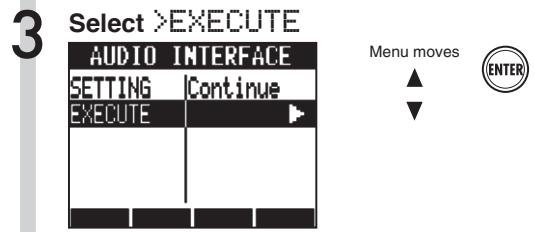

lenuewu 298HeqUI OIpny || Connecting and disconnecting in audio interface mode This is an overview of connecting and disconnecting the R24 to a computer with a USB cable. For details, see the included Cubase LE 5 Startup Guide guide. Connecting the R24 to a computer R24 setup and connection for the first time Follow these procedures when connecting again. ] Install the Cubase LE 5 DAW ] USB Press USB. software on the computer. Q 2 Install the audio driver on the 2 Select AUDIO IF. computer from the included CD-ROM. Change Installation and setup details A [1 Reference: "Cubase LE 5 Startup Guide ] Y Connect the R24 to a computer.

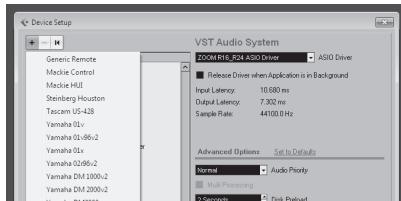

(Gontrol surface setup P9 } Mackie Control Press ENTER. NOTE + The ZOOM R16/R24 audio driver is essential for using the R24 as an audio interface with DAW software such as Cubase LE 5. When downloading it, follow the included instal- lation guide to install it correctiy. Download the latest R24 audio driver from the Zoom Corporation website. http:/Auww.zoom.co.jp/

Connect the USB cable to the R24. Connect the USB cable to the computer. (Pisconnecting ) 2 Select Terminate Change âre You Sure? À ŸES Y Press ENTER. 3 Disconnect the USB cable NOTE Select CONTINUE to use the same settings as last time. + INSERT EFFECT settings + SEND RETURN EFFECT settings: + Mixer setings + TUNER settings Select RESET to restore default settings for each item. The audio interface and control surface func- tions of the R24 can be used by drawing power through a USB cable from the USB bus. + We recommend always using the latest R24 system software. When using phantom power, we recommend using batteries or an AC adapter even when the unit is used as an audio interface.

lenuewu 2,ejiequl oIpny || Using control surface functions When using the R24 connected by USB as an audio interface, the R24 keys and faders can be used to control Cubase LE 5's transport and mixer. About the control surface Control surface setup In control surface mode the keys and knobs on the R24 can be assigned to particular Cubase LE 5 functions. { ‘Transport section P10 ) { About banks pi ) { Fader section pti ) LENT Assigning keys For a list of functions that can be assigned to the knobs and keys of the R24, as well as other trans- port/function keys that are supported by Cubase LE 5, please consult the “Control surface functions quick reference guide” in this manual. See R24 setup and connection steps 1-5 on P7-8 6 Then, launch Cubase LE 5. From the Cubase LE 5 “Devices” menu, select “Device setup...” Open the “Device Setup..." window. 8 At the top left of the Device setup window [+], [-] and [<] buttons appear. Click the [+] and select “Mackie Control” 9 Set the MIDI input and output MIDI input: MIDI output:

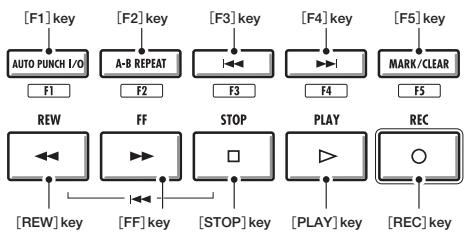

Transport section By setting up the control surface, the R24S transport section keys can be assigned to indi- vidual functions in Cubase LE 5. [Filkey [F2]key (F3]key (F4]key [FSJkey eu eo cho cost 9 C9 CS CS CE LIT Le Le] IREWIkey [FFlkey ISTOPIkey [PLAYIKey [RECIkoy

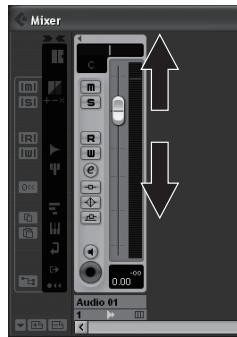

lenuewu 298HeqUI OIpny || Fader section operation Using the faders and status keys of the fader section, you can adjust the volume of corresponding Cubase LE 5 tracks, mute and solo them, and arm them for recording. About banks ] Operating the fader section After setting up control surface operation, the main parameters of Cubase LE 5 can be oper- ated using the R24' fader and status keys. A group of tracks operated by the faders and status keys is called a “bank.” With the R24, one bank of 8 adjacent tracks can be con- trolled. For example, if fader 1 is assigned to Cubase LE 5 track 1, tracks 1-8 can be controlled as shown in the following diagram. CSN 2 5 4 5 6 7 8 Mac mi M2 MS MA NS MS M7 M8 As the diagram shows, when tracks 1-8 are selected, pressing the [9-16tr (Bank>)] key once switches the assignments as shown be- low. CSN ‘ 2 3 | 4 5 6 7 8 Mac mo io Mit 12 A8 TMi4 MAS T6 1-87 ° 0 1-87r (< BANK) key Tracks (channels) assigned to the fader section are moved backward by eight tracks. 9-167r

9-167r (BANK >) key Tracks (channels) assigned to the fader section are moved forward by eight tracks. ] Assign the Cubase LE 5 tracks (channels) that you want to control to the fader section. 2 Use the faders to control the volumes of the corresponding tracks. The faders control the volumes of their re- spective tracks. Change the master volume by moving the [Master] Fader. à 4 3 To change the function of the status keys for all the tracks, press the soft key for the desired function. ps | AUDIO INTERFACE Sanple Rate

R24 level meters (Audio interface use)

1/9/17 1! MASTER 8/16 / 24 Each level meter other ‘The master level than the MASTER displays meter displays the the signal immediately returning signal from before sending it to the the computer. computer. Checking DAW recording levels Set “REC SIGMHAL” (in the INSERT EFFECT menu) to “HET” (signal with effect) or “DR*"” (no effect) to send signals to the computer with or without being processed by the insert effects. The recording levels of the sent signals are dis- played on the level meters. The signal shown on the master level meter differs from that shown on each level meter.

— [| __ Redlight Adjust the levels so that the (clipping)_ red (0 dB) clipping indicators 0 on the meters do not light.

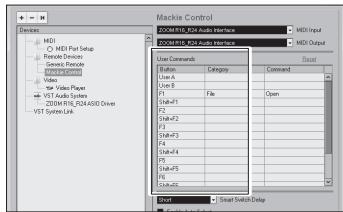

lenuewu 298HeqUI OIpny || Setting the function keys The five keys above the transport keys can be used as function keys (F1-F5) and assigned as desired. Open the “Device setup.” dialog in Cubase LE 5. VST Ai Sata 2 Select “Mackie Control”. Commands can be assigned using the three columns displayed on the right side of the window. 3 From the “Button” column choose the function key (F1-F5) to be assigned a Cubase LE 5 function. Click on the “Category” column for that control. Function key setup ]

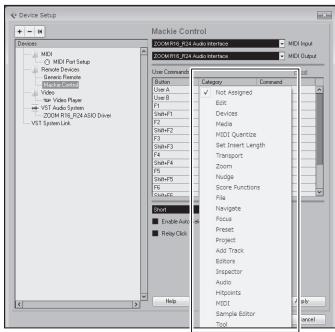

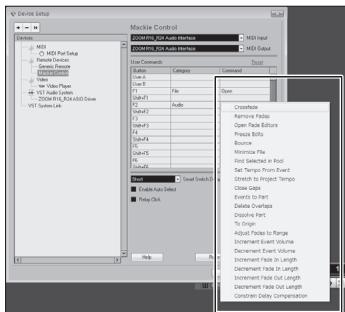

Choose the type of Cubase LE 5 function from the Category pop-up menu. Click on the “Command” column and select the desired Cubase LE 5 function from the pop-up menu. The items in this pop-up menu will differ depending on the category chosen. Press the “Apply” button.

Control surface functions quick reference guide These functions work with Cubase LE 5, Cubase 5, Logic Pro, SONAR, Ableton Live and Digital Performer. Status keys ‘Tums mute, solo or record arming onfof for the track Faders Control the volume of the corresponding tracks MASTER Fader Master volume operation Soft keys Change functions of status keys/End connection (EXIT) Cursor keys Periorms the same functions as the computer arrow keys* DL Moves the project cursor position REWkey Rewind FFkey Fast forward STOP key Stop PLAY key Pay REC key Record AUTO PUNCH 1/0 key. Depends on the [F1] key setting AB REPEAT key. Depends on the [F2] key setting He maker) key Depends on the [F3] key setting D (marker) key Depends on the [F4] key setting IMARKUCLEAR key. Depends on the [F5] key setting 1-8Trkey Moves ane bank fonwari 9467 key Moves ane bank backwardi “Scrolls window in Digital Performer ENo function in Digital Pertormer lenueuw 8,epIejUI oIpny I

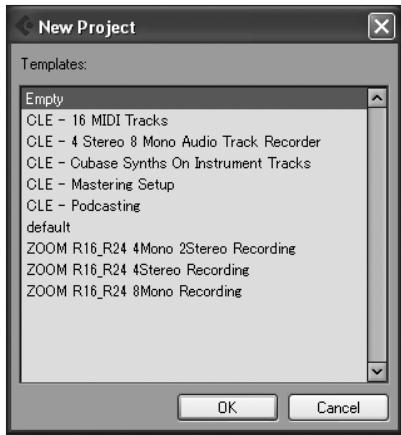

lenuewu 298HeqUI OIpny || Recording with Cubase LE 5 Create a new project ] Copy the ZOOM R24 project templates to the computer. From the CubaseLE5_template folder on the CD included with R24, copy the templates to the location where Cubase LE 5 is installed. Windows C:\Program Files\Steinberg\Cubase LE 5\tem- plates Macintosh /Applications/CubaseL E5.app/Contents/tem- plates/ Launch Cubase LE 5. Choose “New Project” from the File menu. Choose a new project template from the New Project Window. In this chapter, we explain how to record into Cubase LE 5 using the R24. Create a new project After copying the R24 project templates to the designated folder, the R24 project tem- plates will be displayed when creating a new project. By choosing these templates you will be able to easily create projects with audio track input and output settings already ar- ranged for the R24. New Project Templates. OLE - 16 MIDI Tracks OLE - 4 Steren 8 Moro Audb Track Fecarder GLE - Cubace Synthe On Instrument Tracks GLE - Masterine Setue GLE - Podcacthe defaut Z00M RI6.R24 Mono 2Stereo Recordine Z00M RIB.R24 {Stereo Recording Z00M RI6.R24 Mono Recerdine Template names and details ZOOM R16_R24 8Mono Recording Project with Cubase LE 5 mono tracks 1-8 assigned to R24 INPUTS 1-8 ZOOM R16_R24 4Stereo Recording Project with Cubase LE 5 stereo tracks 1-4 assigned to R24 INPUTS 1/2 - 7/8 ZOOM R16_R24 4Mono 2Stereo Recording Project with Cubase LE 5 mono tracks 1-4 assigned to R24 INPUTS 1-4 and Cubase LE 5 stereo tracks 5-6 assigned to R24 INPUTS 5/6 and INPUTS 7/8

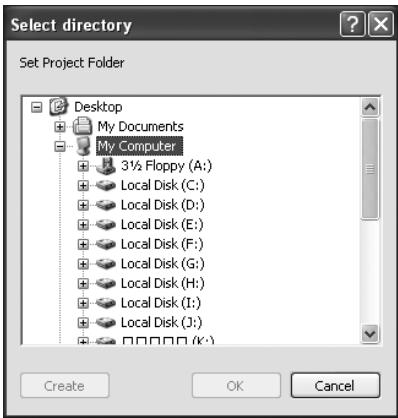

Set the save location and click the “OK” button (“Choose” button on Mac OS X). The project file save location window is displayed Select directory, Set Project Folder 8 8 54 Fopov (a) 1 <8 Local Die (€) 5e Local Dik (D) 4 Local Dit (Es) <> Local Dik EF: 1 <e Local Dik (63) 15e Local DK (+) #3 Local Disk () 1 <e Local Dit This will create a new project and the project window where most Cubase LE 5 operations are conducted will open. | Create a new audio track 5 Set-up the audio tracks that were made as follows. To add a new audio track, select ‘Add Track” from the “Project menu and then choose “Audio” from the sub-menu that appears. Inspector area allows setting of detaled tra information Ithe inspector is not shoun, click here to showihide the inspector Select the track input/output bus. The names of the R24 buses assigned in the VST Connections (Devices menu) will be displayed Click here to choose a different bus from the menu NOTE The inspector displays information about the track currently selected. If it does not display anything click on a track to see that track's status.

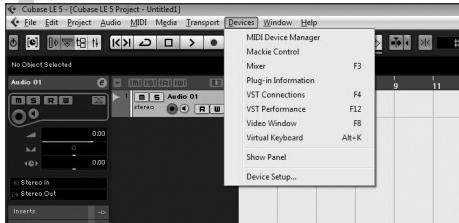

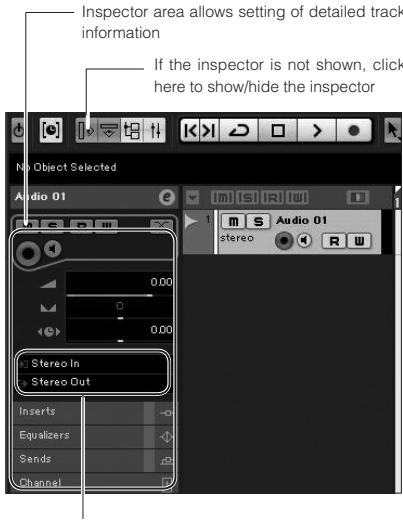

lenuewu 298HeqUI OIpny || Recording With Cubase LE 5 [rx Reference: R24 Operation Manual Connect an instrument ] 8 Enable the track for recording. Channel corresponding 6 Le to an audio track Master Channel Connect an instrument such as a guitar to an R24 INPUT jack and choose an effect patch. The chosen effect patch will be applied to the signal and recorded on the computer via the USB port See the following for information about how to choose the R24 input signal

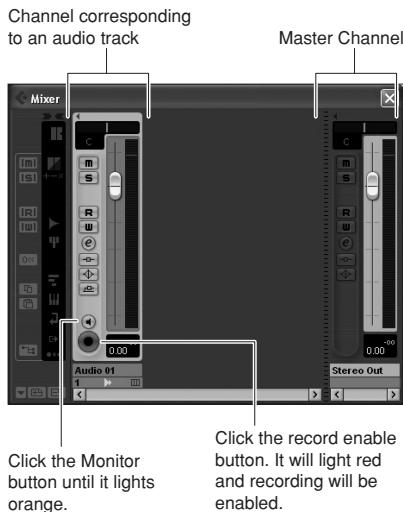

Selecting an input signal Selecting an effect patch Click the record enable Click the Monitor button. lt will light red U button until it lights and recording will be orange. enabled. Select “Mixer” from the Cubase LE 5 “Devices” menu.

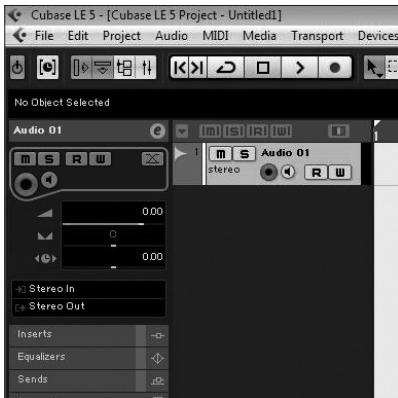

The mixer window opens, showing the channels corresponding to the created tracks and the master channel. LENT When the Monitor button is it, the audio track input level will be displayed in the level meter next to the fader. When the light is off, the audio track output level will be displayed:

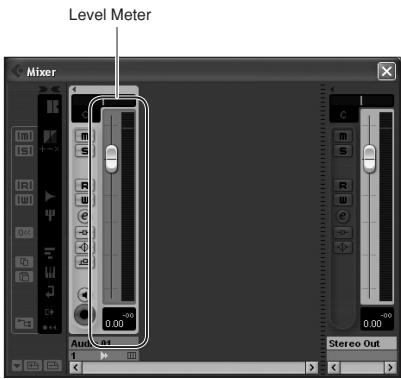

Adjust the recording level While playing the instrument, adjust the R24 input level and set the Cubase LE 5 recording level. Level Meter The recording level for Cubase LE 5 can be checked by viewing the level meter of the corresponding channel of the recording-enabled track. Please set it as high as possible without making the meter peak. When adjusting the level, do not move the Cubase LE 5 fader, but instead use the fader and adjust the gain on the R16. NOTE +_lfthe Monitor button is on, the R24 input signal and the signal returning to the R24 via the computer will both be output from the R24 at the same time. This can create a flanger-like sound. To monitor aceurately while adjusting the recording level, turn the BALANCE knob toward DIRECT. + The meter above shows the signal level after it has been processed internally by Cubase LE 5. For this reason, a slight delay might ocur from the time a string is plucked until the level meter moves: this is not a defect. ] After adjusting the recording level, click the Monitor button to turn off the light.

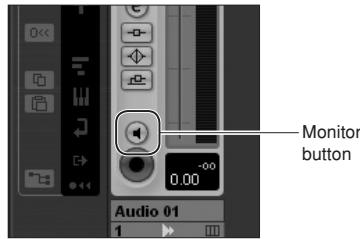

Monitor — button This tums off display of the input level, and mutes the signal from the computer to the R24. When the Monitor button is off, the signal just before it is sent to the computer can be monitored from the R24 PHONES and DUTPUT jacks. Confirm that the Transport Panel is displayed

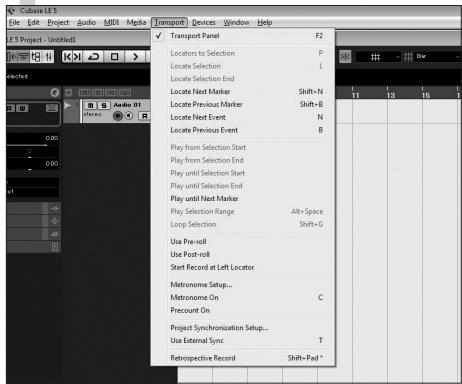

Hthe Transport Panel is not displayed, select “Transport Panel" from the “Transport menu: Fe ee que bn den (ao qu lenueuw 8,epIejUI oIpny I

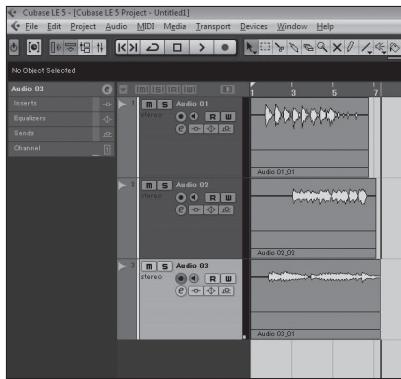

lenuewu 298HeqUI OIpny || Recording with Cubase LE 5 Recording ] Check the recording (playback) ] Click the Record button on the Transport Panel to start recording. Stop button As you play the instrument, a recorded wavetorm is drawn in real time in the project window. To stop recording, click the Stop button in the transport panel. Le] ED COPIE DIX 1 Lower the master channel fader. Stereo Dut Click the |< button in the Transport Panel to return to the beginning of the project. Return to the beginning of the project Click the Play button in the Transport Panel to begin playback. Play button

Raise the master channel fader to a suitable playback level. Stereo Out ENT If no sound comes out after clicking the Play button following recording, recheck the VST Connections (step 6 in the Cubase LE 5 Startup Guide). In addition, confirm that the BALANCE control is at the center. Tips to improve performance When using Cubase LE 5, application perfor- mance could become extremely delayed or error messages such as “cannot synchronize with USB audio interface” might be dis- played. Should such occurrences become frequent, the following measures might im- prove the situation © Terminate programs other than Cubase LE 5 that are running. In particular, confirm that many background applications are not running. @ Reduce the use of plug-ins (effects, virtual instruments) If a large number of plug-ins are running, the computer processing capacity might not be able to keep up. In addition, reducing the number of simultaneous playback tracks might be effective. © Use the R24 AC adapter When devices draw power from the USB bus, on rare occasions computer perfor- mance can suffer. Try using the AC adapter. If the sound breaks up, please increase the Audio Buffer Size in the Device Setup. menu > VST Audio System window. For details, see Step 5 of the Cubase LE 5 Startup Guide. Moreover, if the application performance is extremely slow and regular computer op- eration is affected, we recommend quitting Cubase LE 5 and disconnecting the R24 USB port from the computer once, and then reconnecting the USB port and relaunching Cubase LE 5. lenueuw 8,epIejUI oIpny I

lenuewu 298HeqUI OIpny || Importing audio data into Cubase LE 5 By connecting a computer and the R24 with a USB cable and setting the R24 to function as a card reader, you can import audio data as WAV files into Cubase LE 5 audio tracks. Importing by drag & drop ] Connect the computer and the R24 DEVICE port with a USB cable. 2 0 Press USB. 3 Select READER. Change

Press Enter. Access the R24 from the computer.

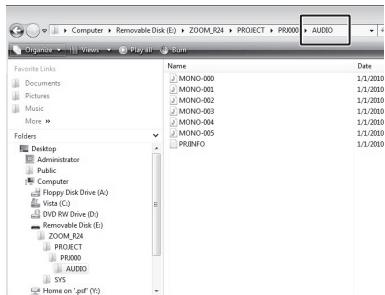

Launch Cubase LE 5. Open the Cubase LE 5 project into which you want to import audio data. Open the R24 SD card from the computer and open the “AUDIO” folder of the project from which you want to import audio data.

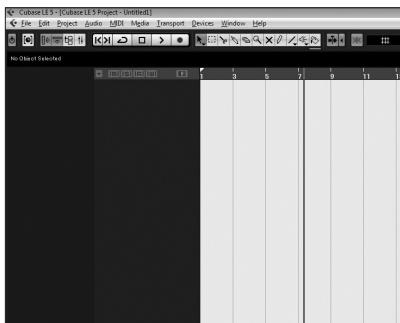

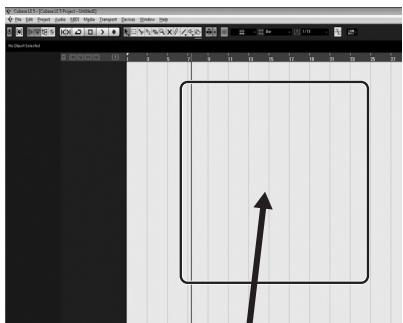

Select the file (or files) that you wish to import from the “AUDIO” folder and drag and drop them into the Cubase LE 5 project window. In the “Import Options” window click the “Copy Files to Working Directory” check box, and click the OK button.

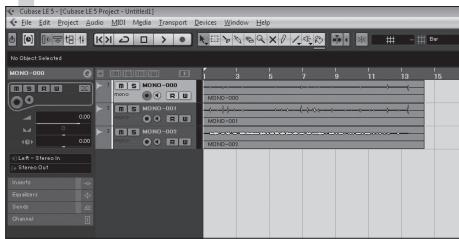

The audio files are loaded into Cubase LE 5 tracks. a on] LENT When a fie is dragged and dropped, a window will open asking how Cubase LE 5 should place the file. When dragging multiple files at one time, select either “Different Tracks” or “One Track” as the import method. General, select “Different Tracks” to automati- cally create one track for each fille. The files will be arranged vertically in the project window. Select “One track” to create one track with the audio files arranged horizontally € aise

This window where you can select the import method appears. + The USB cable can be connected even when the computer or the R24 is on. Ifthe R24 is connected when off, it can be run on USB bus power. Project data is stored in folders for each project in the PROJECT folder in the ZOOM_R24 folder. Audio recordings are stored as WAV files in the “AUDIO” subfolders of each project folder. Each AUDIO folder also contains a file called “PRJINFO.TXT” that lists the names of files assigned to tracks. Master tracks and stereo tracks are stereo WAV files. To copy a WAV file from a computer, copy it to the AUDIO subfolder of the desired project folder Use the R24 to assign the files to tracks.

Importing audio data into Cubase LE 5 Using the “Import” command Connect the computer and the R24 DEVICE port with a USB cable. lenuewu 298HeqUI OIpny || 2 0 Press USB. 3 Select READEF. Change

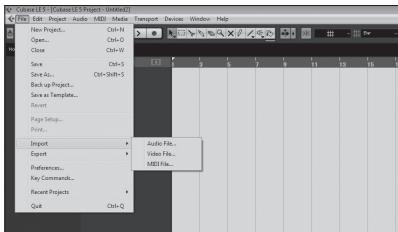

Open the Cubase LE 5 project into which you want to import audio data. From the Cubase LE 5 “File” menu select “Import” and “Audio File...” The “import Audio” window opens.

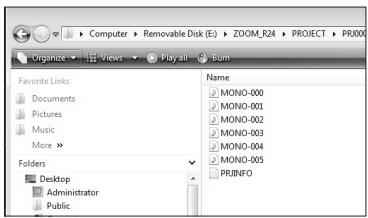

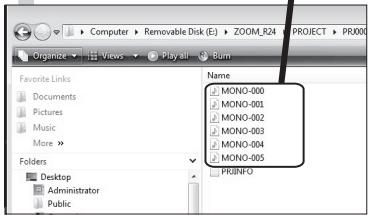

Select the desired audio file (or files) from the “AUDIO” folder of the project from which you wish to import. Click “Open.” GEL » core PmomenE) » 200 à MORT » Importing files will cause the “Import Options" window to appear. In the “Import Options” window click the “Copy File to Working Directory” check box, and click the OK button. When a file is imported, a window will open asking how Cubase LE 5 should place the file. When importing multiple files at one time, select either “Different Tracks” or “One Track” as the import method. ‘The audio data is assigned to one or more Cubase LE 5 tracks. Generally, select “Different Tracks” to automatically create one track for each file. The files will be arranged vertically in the project window. Select “One track” to create one track with the audio files arranged horizontally. ENT + The USB cable can be connected even when the computer or the R24 is on. Ifthe R24 is connected when off, it can be run on USB bus power. Project data is stored in folders for each project in the PROJECT folder in the ZOOM_R24 folder. Audio recordings are stored as WAV files in the “AUDIO” subfolders of each project folder. Each AUDIO folder also contains a file called “PRJINFO.TXT” that lists the names of files assigned to tracks. Master tracks and stereo tracks are stereo WAV files. To copy a WAV file from a computer, copy it to the AUDIO subfolder of the desired project folder Use the R24 to assign the files to tracks. lenueuw 8,epIejUI oIpny I

lenuewu 298HeqUI OIpny || The mixer in audio interface mode In audio interface mode you can make a mix for monitoring using the R24's internal mixer. In addition, you can adjust the balance of the internal mixer and the sound from the computer. Volume, reverb send, pan Stereo link You can be adjust the reverb send, pan, vol- ume and stereo link settings as in recorder mode. Operation is the same as in recorder mode. (Reference: OPERATION MANUAL) PAN/EQ menu VOLUME Adjust the volumes of INPUTS 1-8. Tneuti } AH Lg 0-127 (increments of 1) EU SEND [Off Defauit value: 100

UOLUH REV SEND Adjust the reverb send levels of INPUTS 1-8. 0-100 (increments of 1) Default value: 0 Reverb only affects the monitored signal (as in recording mode). PAN (BALANCE) Adjust the pan for INPUTS 1-8. L100-R100 increments of 2) Default value: Center (as in recording mode) Link even and odd numbered INPUTS to handle them as stereo pairs. Inout17? Ono# Default setting: Of By setting up a stereo link, volume, reverb send and pan track parameters can be shared by pairs of even and odd inputs simultaneousiy (as in recording mode) (Reference: Operation Manual) Balance knob In audio interface mode, the balance of the in- put monitoring signal and the signal from DAW software (the computer) can be adjusted with the BALANCE knob.

Left Right One eur On DA un Pa NOTE The reverb send, pan, volume and stereo link settings are all saved when you terminate (EXIT) audio interface mode and can be used again the next time.

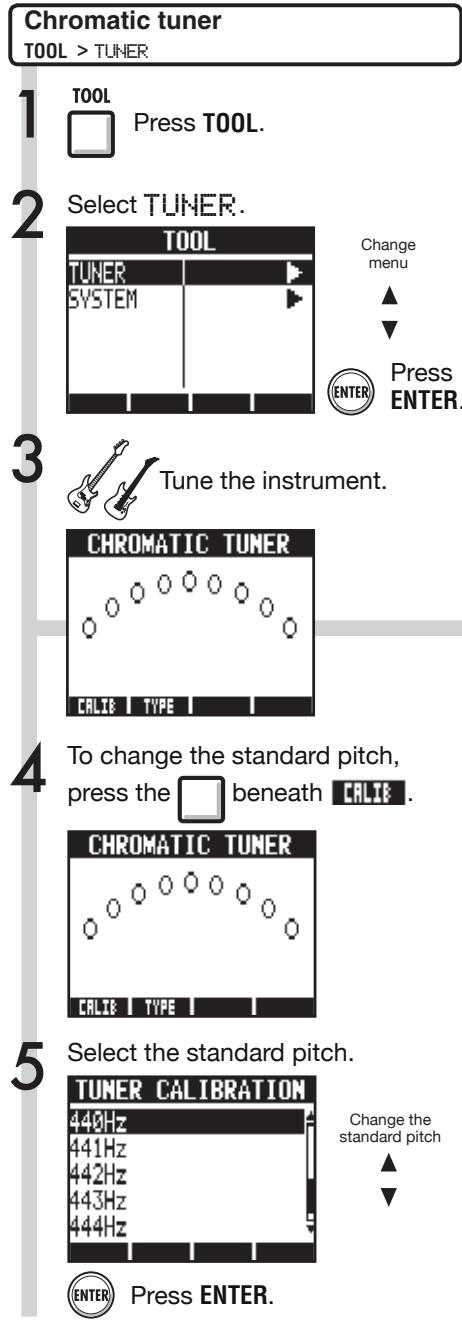

Tuner The R24 tuner can be used as when recording. For details, see the Operation Manual. Chromatic tuner TOOL > TLHER TOOL ] O Press TOOL. 2 Select TLIHEF:. Change À To change the standard pitch, press the O beneath KIA. 5 Select the standard pitch. Change the Standard pitch

Press ENTER. LENT + The default value of the standard pitch is 440 Hz. + Tuners other than the chromatic tuner can also be used. Reference: Operation Manual) NOTE Tuner settings are saved when you terminate (EXIT) audio interface mode and can be used again the next time. EF Reference: Operation Manual Tuner To change the tuner type, press the Q beneath CHROMATIC TUNER Change the tuner type Press ENTER.

lenuewu 298HeqUI OIpny || Effects in audio interface mode The R24's insert and send-return effects can both be used when the sampling frequency is set to 44.1 kHz. Basic operation is the same but there are a few differences in the menus. Insert effect Send return effect As in recording mode, you can select the insert location and the insert effect algorithm, as well as the effect patches to be applied to the sig- nal being recorded. INSERT EFFECT menu Select the insert location As in recorder mode, use the SEND REUERE menu to change the patch and use the PAN/EC menu to set the REU SEND level that adjusts the reverb depth. Setting the reverb send level REVERB SEND Insert on any INPUT 1-8. Reference: Operation Manual ) Apply the effect only to monitoring The effect can be set to only be applied to the monitoring signal and to not affect signals recorded in DAW software. INSERT EFFECT Reference: Operation Manual }

Adjust the amount of reverb using the REU SEXD level of the PRN/EG menu. (Reference: Operation Manual ) (Reference: Audio intertace manual - Mixer) NOTE + Effects can only be used when the sampling rate is 44.1 KHz. At all other times it is turned OFF. + Insert and send return effect settings are saved when you terminate (EXIT) audio interface mode and can be used again the next time.

Working with patches After making many changes, you can restore a patch to its pre-edited settings by initializing it. This will return it to its factory preset condition. Patch operations For both insert and send return effects Patch operation menu Selecting insert effect/reverb patches To use an insert effect, select an algorithm and a patch. To use a send reverb effect, select a patch. (Reference: Operation Manual) Editing patches (EDIT) By adjusting effect module parameters and levels, you can create the desired result. (Refer- ence: Operation Manual ) Importing patches (IMPORT) All effect algorithms (and reverb patches) or a single one can be imported from a selected project on the R24. (Reference: Operation Manual ) In audio interface mode, one complete set of effect data is saved for the mode. There are no project based settings. Saving patches (SAVE) Edited patches can be saved. (Reference: Operation Manual } Initializing patches (INITIAL) Restores patches to their original factory set- tings (only available in audio interface mode). Changing patch names (RENAME) The name of the currently selected patch can be changed. Patch initialization (factory reset) EFFECT > INITIAL EFFECT 1 O Press EFFECT. Turning effects on/off Insert effect Press the Q beneath HE. Send return efect Press the O beneath FE The following example is of an insert effect. 2 Turn the effect Cri. INSERT EFFECT Ghange Change

Press ENTER. Select ES. BATCH INITIAL Change âre You Sure? A YES Y Press ENTER.

Control surface setup for other DAWs M You can set up the R24 as a controller for use with a variety of DAW software besides lenueuwu 29LIeqUI opny ( Logic Control surface setup Select “Preferences” > “Control surfaces” > “Setup...” from the “Logic Pro” menu. This opens the “Setup” window. Click on the top left “New” and select “Install” from the pull-down menu. Select “Mackie Designs/Mackie Control/Logic Control” from the list in the “Install” window and click the “Add” button. “Mackie Control” will be added to the setup window. Click the “Mackie Control” icon. Then, from the top of the list at the left set “Out Port” and “Input” to “ZOOM R16_R24” using their pull- down menus.

Cubase LE 5. Please refer to the manual for the software that you are using. Function key setup Select “Preferences” > “Control surface” > “Controller Assignments…” from the “Logic Pro” menu. This opens the “Controller Assignments” window. From the “Zone” column select “Control Surface: Mackie Control.” Change the functions as you like. Controls F1-F5 correspond to the F1-F5 keys on the R24. The above procedures are for Logic Pro 9. The names of the menus, for example, might be different in a different version of Logic. Please refer to the manual for the version of Logic that you are using for details.

(SoNaR ] Control surface setup Select “Controller/Surface” from the “Options” menu to open the “Controller/Surface” dialog. If a controller/surface has already been selected, click on the “Delete” button to delete it. Click the “Add” button and open the “Controller/Surface Setup” dialog. Choose “ZOOM R16_R24” from the drop-down menu of the “Controller/ surface” column. Select “ZOOM R16_R24” in the input/output port column. For Cakewalk SONAR, installation of a control surface plug-in is necessary. Please install it when installing the driver. Function key setup ] Choose “Option key bind” to open the “Key bind” dialog. 2 Press “Search for the key” in “Setup”. want to setup to see the currently assigned function. Change that function as necessary. 3 Press the F1-F5 key that you The above procedures are for Sonar 7. The names of the menus, for example, might be different in a different version of Sonar. Please refer to the manual for the version of Sonar that you are using for details. L'HINT lenueuw 8,epIejUI oIpny I The F1-F5 keys on the R24 are labeled as follows. F1: AUTO PUNCH 1/0 key F2: A-B REPEAT koy F8: ga (marker) key F4: pe (MArKEr) key F5: MARK/CLEAR key

Control surface setup for other DAWs ( Live ] lenuewu 298HeqUI OIpny ||

Control surface setup Select “Preferences” from the “Option” (Windows) or “Live” (Mac) menu. The Preferences window will open. Click the “MIDI” setting tab on the left side of Preferences window to select it. The setup window related to MIDI will open. Select “Mackie Control” in the pull- down menu of the Control Surface column. Select “ZOOM R16_R24” from the pull-down menus of the Input and Output columns. In the MIDI Ports section below, turn “On” the Remote column button for the “Input: Mackie Control Input (Zoom R16_R24)" item. Function key setup Press the MIDI button at the top right of the main LIVE window to open MIDI map mode. Interface elements that can be assigned will be highlighted in blue. Click on a parameter that you want to control. Press the F1-F5 key of the R24 that you want to use to control the selected parameter in Live. The above procedures are for Ableton Live 8. The names of the menus, for example, might be different in a different version of Live. Please refer to the manual for the version of Live that you are using for details. LENT The F1-F5 keys on the R24 are labeled as follows. F1: AUTO PUNCH 1/0 key F2: A-B REPEAT key F3: 1e (marker) key FA: pepe (MATK Or) KEy F5: MARK/CLEAR key

( Digital Performer ]

oO Où BB © Control surface setup Launch the Audio MIDI Setup application (/Applications/Utilities). Open the MIDI Studio window (Window > Show MIDI Window) and confirm that “ZOOM R24” is displayed. Click “Add Device.” A “new external device” will be added. Click the “new external device” to select it, and then click the “Show Info” button. Enter the name “R24” in the “Device Name” field. Click and drag the downward arrow of the original “ZOOM R24” icon and connect it to the downward arrow of the “R24” icon that you added. Use same method to connect the upward arrows. Launch Digital Performer Select “Control Surface Setup” from the “Setup” menu to open the Control Surface window. Click the “+” icon in the Control Surface window and select “Mackie Control” from the “Driver” pull- down menu. ] Select “Mackie Control” from the “Unit” pull-down menu that will be displayed at bottom. Select “R24” from the “MIDI” pull- down menu of the Control Surface window and select “R24-1” from the menu list.

12 Click the “OK” button. The above procedures are for Mac OS X 10.6 and Digital Performer 5. The names of the menus, for example, might be different in a different version of Digital Performer. Please refer to the manual for the version of Digital Performer that you are using for details. Function key setup The functions are already assigned in Digital Perormer and cannot be changed AUTO PUNCH 1/0 key: _ Selects YES in dialog boxes A-B REPEAT key Selects NO in dialog boxes He (marker) key: Creates groups/track groups »>1 (marker) key: No assignment MARK/CLEAR key: No assignment Refer to sections about Mackie Control dialog boxes and track groups in the manual for the version of Digital Perlormer that you are using. lenueuw 8,epIejUI oIpny I

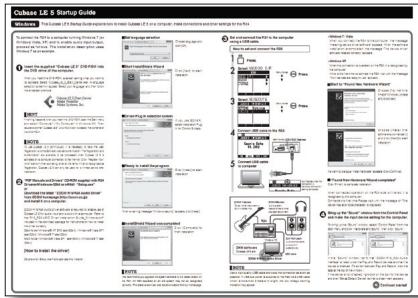

Cubase LE 5 Startup Guide | Windows | This Cubase LE 5 Startup Guide explains how to install Cubase LE 5 on a computer, make connections and other settings for the R24. To connect the R24 to a computer running Windows 7 (or Windows Vista, XP) and to enable audio input/output, proceed as follows. The installation description uses Windows 7 as an example. Insert the supplied “Cubase LE 5” DVD-ROM into the DVD drive of the computer. When you insert the DVD-ROM, a screen asking what you want to do appears. Select 'Cubase LE 5 Start Center.exe'. À language selection screen will appear. Select your language, and then follow the on-screen prompts. Cubase LE 5 Start Center @ dote Prosctor Adobe Systems, Inc. LHINT I nothing happens when you insert the DVD-ROM, open the Start menu and select “Computer” (“My Computer” in Windows XP). Then double-click the “Cubase LE 5° DVD-ROM icon to display the contents of the DVD-ROM NOTE To use Cubase LE 5 continuousWy, it is necessary to have the User Registration and the Software License Authentication. The Registration and Authentication are available to be processed when Cubase LE 5 is activated on a computer connected to the interet. Click “Register now” which is shown when activating, enter all he items. Ifitis not recognized as Registration, Cubase LE 5 can only be used for a limited period after installation. “PDF Manuals and Drivers” CD-ROM supplied with R24 Drivers>Windows>32bit or >64bit “Setup.exe”

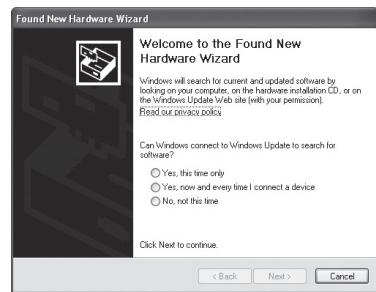

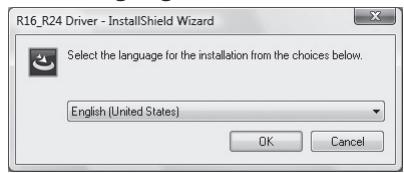

Download the latest “ZOOM R16/R24 Audio Driver” from ZOOM homepage (http:/zoom.co.jp) and install it on a computer. ZOOM R16/R24 Audio Driver software is required lo enable use of Cubase LE 5 for audio input and output with a computer. Refer to the "R16_R24 ASIO Driver Installation Guide_Windows.pdf” included in the download package for instructions on how to install the driver correct. 32bit folder:Windows® XP SP2 later(32bit) / Windows® Vista SP1 later(32bit) /Windows® 7 later(32bit) 64bit folder:Windows® Vista SP1 later(64bit) (Windows® 7 later (Gabit) [How to install the driver] Double-click Setup.exe file to activate the installer. Set language selection FE RAIDS im Vend ÆS) Choose language and Sec he longuege fer he irctalaion fi he choc lon: click [OK] (Enashlun ie =

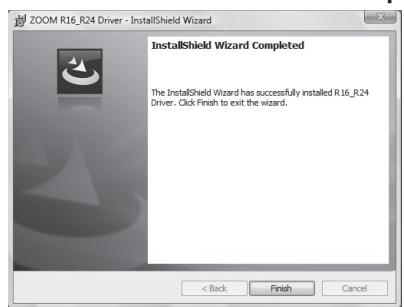

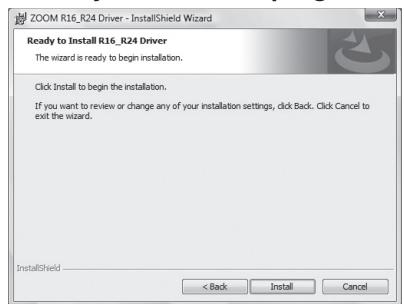

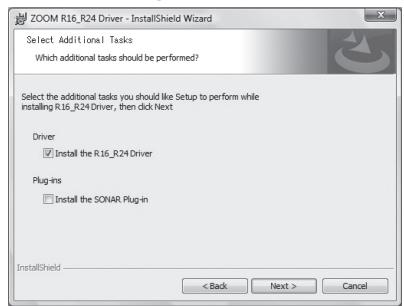

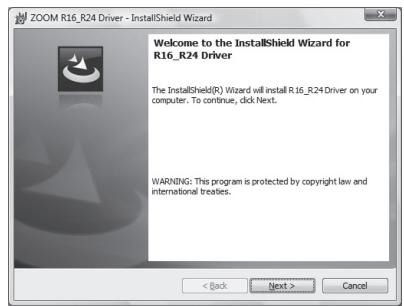

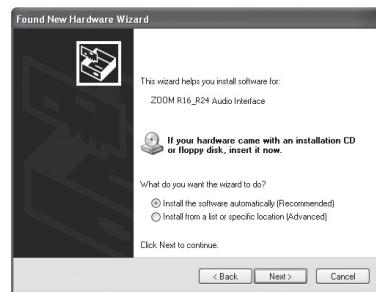

Start InstallShield ard are ESS Click [Next] to start | ee installation: EDriver-Plug In selection screen FR CCE 1 you use SONER, Mnssenesue—+ oo select Installation Plug ne _. In for Control Surface. tenu BReady to install the program rnennne Ennne ES Click [Install] to start En DEN cc When a waming message “Windows security" appears, click [Install] minstallShield Wizard was completed f ES Click [Complete] to PES Tee Tel RAR Mr compet finish installation. NOTE We recommend you upgrade the system software to the latest version on the R24. An R24 operated on an old system may not be recognized correctiy. The latest version can also be downloaded from our homepage. Set and connect the R24 to the computer using a USB cable. { How to set and connect the R24 uss ] O Press. 2 Select *AUDID I‘F USB

Connect USB cable to the R24 USB indicator [DEVICE] flashes Connect USB cable to computer connection is AUDIO INIERFACE ENPUT 1-8]Jack IPHONES]Uack Guitar, other instrument or Audio system buit-in stereo headphones or other playback equipment

LOUTPUTIJack Audio components, amp buit-in DAW software speakers etc Cubase LE 5 etc Windows PC USB cable ZOOM R16/A24/Audio Driver NOTE Use a high-quality USB cable and keep the connection as short as possible. 1f USB bus power is supplied to the R24 via a USB cable which is more than 3 meters in length, the low voltage warning indication may appear. Icon flashes when the complete Connection -Windows 7 / Vista When you connect the R24 to the computer, the message "Installing device driver software" appears. When the software installation is completed, the message ‘The device driver software installed correctiy" appears. «Windows XP When the connection is operated on the R24, it is recognized by the computer Ifthis is the first time to connect the R24, wait until the message “Your devices are ready to use” appears. Start to “Found New Hardware Wizard” in mime en Choose [No, not this come oe Found Ken timeJof Windows Update Para ie semenemmeses | and click[Next] Creer ere Choose [Install the software automatically] eme and click [NextJto start pre installation Cas CE Ce Ia waming dialogue ‘install hardware” appears, click [Continue] &‘Found New Hardware Wizard completed” Click [Finish] to complete installation When connected operation on the R24 side is finished, it is recognized by the computer. Connects the first time Please wait until the message of ‘The device was able to be prepared" is displayed Bring up the “Sound” window from the Control Panel and make the input device setting for the computer. To bring up the “Sound” window, select “Control Panel” from the Start menu and click "Hardware and Sound”, then click “Sound”. CET LES = == me In the “Sound” window, verify that *ZOOM R16_R24 Audio Interface” is listed under the Play and Record devices and that the device is checked. (To switch between Play and Record, click the tabs at the top of the window.) If the device is not checked, right-click on the icon for the device and click “Set as Default Device” so that a check mark appears. @ Continued overleaf Cubase LES5 Starting Manual R24-E-1

Continued from front @ [Windows | [Mac OS x This Cubase LE 5 Startup Guide explains how to install Cubase LE 5 on a computer, make connections and other settings for the R24. Start Cubase LE 5. Then access the “Devices” To connect the R24 to a computer running Mac OS X and to menu, select “Device Setup...” and click “VST enable audio input/output or control R24 as control surface {INPUT 1-8jlack (PHONESLack (CAC "VST Audio System i ” ne | EEE «00 Audio System for Cubase LE 5, proceed as follows Guitar, other instrument Audio system, Me - bun at headph th Le CO nie Der ane Alan sound The installation description uses Mac OS X v10.5 as an 2rorenseeemne Da eQuOmEnt mersnes Ioput Later 1950 ms To start Cubase LE 5, double-click the Cubase LE 5 shorteut mn (Ouiout Lance 6.735 ma example. EU enr samplenme 21000 icon which was created on the desktop. After startup, select “ZOOM R16_R24 ASIO Driver” as the ASIO driver in the right section of the Device Setup window. When you change the ASIO driver selection, a confirmation message appears. Click the “Switch' button. ASIO Driver The device indication in the left section of the window now shows “ZOOM R16_R24 ASIO Driver” as the ASIO driver. Click on this indication to select it, and then click the “Control Panel” button in the right section of the Device Setup window. Clicking here … This button is clicked.

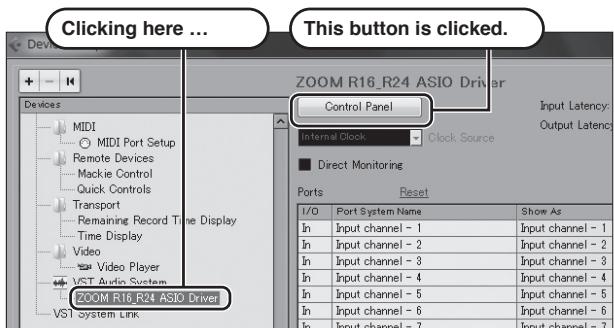

GS ME Pet Een pas chama qu aan! Fou chama ut chart = 2 put char a chaa= 3 rot che € ur chan 2 out chamal= © ut cha = & put care & a ha 2 The window which appears lets you set the buffer size for the ASIO driver. The buffer size should be set to a value which is as low as possible without causing sound dropouts during recording and playback The sampling frequency can be changed in Cubase LE 5 in Project Settings. When the setting is complete, click the OK buttons in the respective windows to return to the startup condition of Cubase LES From the “Devices” menu of Cubase LE 5, select “VST Connections” and set INPUT(Input channel

1 - Input channel 8) as the input port to be used

and Output channel 1, Output channel 2 as Output port on the displayed window.

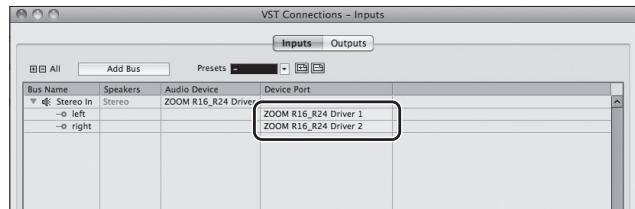

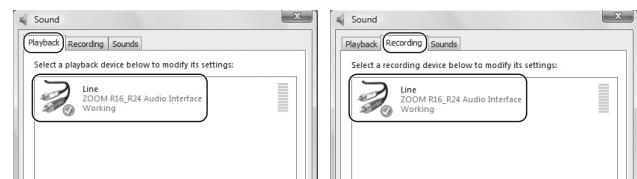

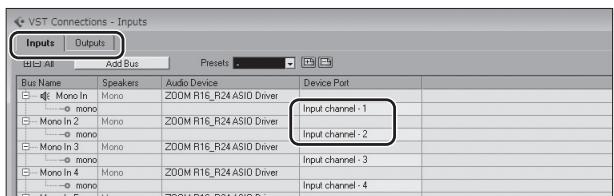

HOME RUE Fee HONTE RESORer ren à Use the tabs at top left to switch between input and output, and verify that ‘Input channel 1 - Input channel 8 / Output channel 1, Output channel 2' are selected as device ports: If another device is selected, click the device port field and change the selection Insert the supplied “Cubase LE 5” DVD-ROM into the DVD drive of Macintosh. And start installation. The contents of the DVD-ROM will be shown automatically. If they are not shown automatically, double-click “Cubase LE 5° icon displayed on the desktop. When the content is displayed, use LC “Cubase LE 5 Start Center to perform the Cubase LE 5 Start Center installation. “PDF Manuals and Drivers” CD-ROM supplied with R24 Drivers/Mac “ZOOM R16/R24 Driver”

Download the latest “ZOOM R16/R24 Driver” from ZOOM homepage (http:/zoom.co.jp) and install it on a computer. ZOOM R16/R24 Driver software is required to enable use of Cubase LE 5 for audio input and output with a computer. Double-click installer (ZOOM R16_R24 Driver.pkg) icon. Start install it according to the instruction. AIG RAADiver ok Set and connect the R24 to Macintosh using a USB cable. { How to set and connect the R24 ) ] = Press. 2 Select “AUDIO IF Menu moves

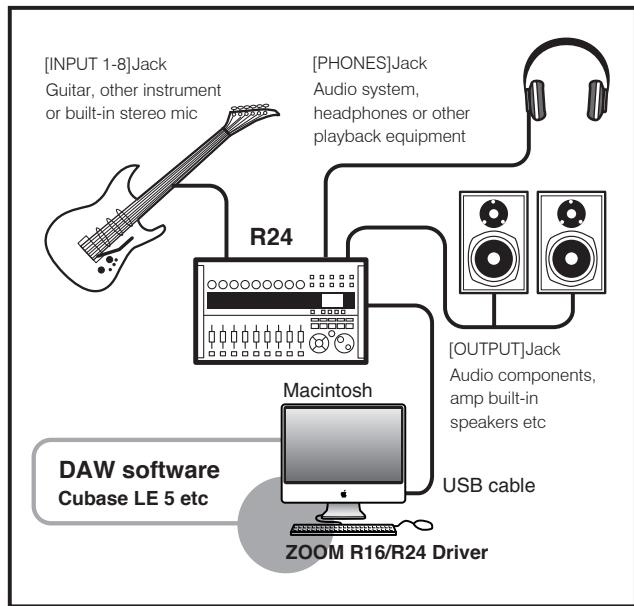

Press. À Connect USB cable to the R24 CE | US8 indicator (DEVICE tashes AUDIO INTERFACE Sample Rate 44, IkHz 5 Connect USB cable to computer LE _{ Icon flashes when

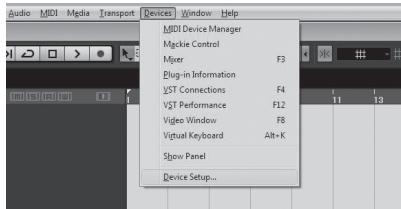

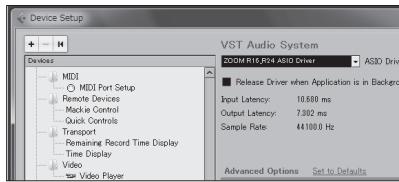

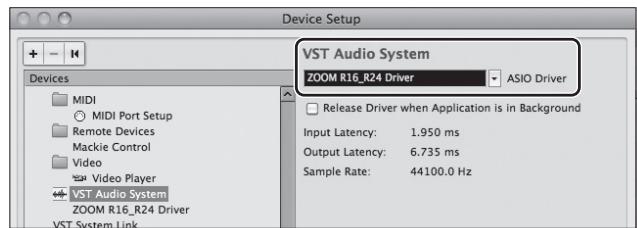

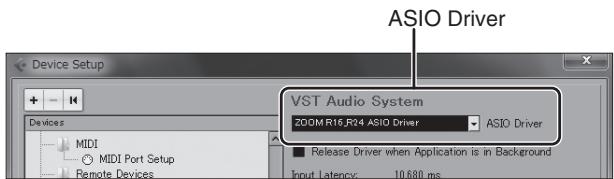

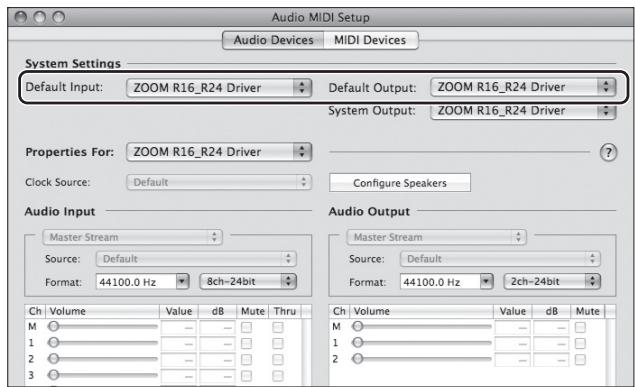

complete Connection setting completed LOUTPUTUack Audio components, amp buit-in speakers etc DAW software Cubase LE 5 etc USB cable (6) From the “Devices” menu of Cubase LE 5, select EL ST Audio system If another device is selected, use the pull-down menu to change the selection to “ZOOM R16_R24 Driver”. When the setting is done, click OK button and close the window. “VST Connections” and select the device containing the string “ZOOM R16_R24 Driver 1 - 8” as input port and output port. R16/R24 Driver a mon [un | "EE CR RS I RE — When the connection is operated on the R24, it is recognized by er É the computer NOTE Use a high-quality USB cable and keep the connection as short as possible. 1f USB bus power is supplied to the R24 via a USB cable which is more than 3 meters in length, the low voltage warning indication may appear. Open the “Applications” folder and then the es” folder, and double-click “Audio MIDI The Audio MIDI Setup screen appears. Click "Audio Devices” and check that *ZOOM R16_R24 Driver" is selected as default input/default output:

Properties For. (ZOOM RTE 24 Der 18} © oisoues (rar + contour sposer _| {Audi input Auéio Output fm [noce DC 9 | | su Gunon De wo wo If another device is selected, use the pull-down menu to change the selection to “ZOOM R16_R24 Driver”. When the setting is done, close Audio MIDI Setup. Start Cubase LE 5. Then access the “Devices” menu, select “Device Setup...” and click “VST Audio System”. To start Cubase LE 5, double-click the Cubase LE 5 icon in the “Applications” folder. After startup, be sure to verify that "ZOOM R16_R24 Driver" is selected in the right section of the Device Setup window. Use the labs at top center to switch between input and output, and verify that “ZOOM R16_R24 Driver 1 — 8" is selected as device port If another device is selected, click the device port field and change the selection For optimum enjoyment While using Cubase LE 5, other applications may slow down drastically or a message such as “Cannot synchronize with USB audio interface” may appear. If this happens frequently, consider taking the following steps to optimize the operation conditions for Cubase LE 5

1) Shut down other applications besides Cubase LE 5.

In particular, check for resident software and other utiities.

2) Reduce plug-ins (effects, instruments) used

by Cubase LE 5. When there is a high number of plug-ins, the computer's processing power may not be able lo keep up. Reducing the number of tracks for simultaneous playback can also be helpful

3) Power the R24 from an AC adapter.

When a device designed to use USB power is powered via the USB port, the current supply may sometimes fluctuate, leading to problems. See if using an AC adapter improves operation. Please set latency from the device menu when the sound cutting occurs. Refer: Install Guide-step5 about details. If applications still run very slowly or the computer itself does not function properly, disconnect the R24 from the computer and shut down Cubase LE 5. Then reconnect the USB cable and start Cubase LE 5 again.
