Product type	Robot vacuum cleaner
Brand	Cecotec
Model	Conga X80 Pro
Dimensions (L x W x H)	34 x 34 x 9 cm
Weight	3.2 kg
Power supply	Rechargeable lithium-ion battery, 14.4 V, 2600 mAh
Battery life	Approximately 120 minutes in silent mode
Charging time	Approximately 5 hours
Dust bin capacity	500 ml
Suction power	Up to 2200 Pa
Main functions	Automatic cleaning, scheduling, suction, brushing, carpet detection
Sensors	Drop sensors, infrared sensors, gyroscope
Brushes	Rubber main brush and side brushes
Filtration	Washable HEPA filter
Noise level	Approximately 55 dB in silent mode
Maintenance and cleaning	Empty the bin after each use, clean the brushes and filter regularly
Safety	Automatic shut-off when lifted, obstacle detection
Spare parts and repairability	Filters, brushes, batteries, and bin available as spare parts
General information	Designed for hard floors and carpets, compatible with automatic charging station

Frequently Asked Questions - Conga X80 Pro CECOTEC

How to schedule cleaning on the Conga X80 Pro?

Use the remote control or mobile app to set a scheduled cleaning time. Make sure the robot is in standby and connected.

What to do if the robot does not charge?

Check that the charging contacts are clean and the robot is correctly positioned on the base. If the problem persists, the battery may be defective.

How to clean the HEPA filter?

Remove the bin, take out the filter and tap it gently to remove dust. Wash it with warm water and let it dry completely before reinstalling.

The robot vacuum does not detect carpets, what to do?

Check that the sensors are clean. Carpet mode must be activated in the settings. If the problem persists, contact technical support.

What is the actual battery life of the Conga X80 Pro?

In normal use, the battery life is approximately 90 to 120 minutes depending on the mode and surface. On thick carpet, it may be reduced.

How to change the side brushes?

Lift the robot, remove the worn brushes by turning them, then insert the new ones by snapping them in. Use compatible models.

The robot makes an abnormal noise, what to do?

Stop the robot and check that no object is stuck in the brushes or wheel. Clean the brushes and bin.

Can I use the robot on carpet?

Yes, the Conga X80 Pro is designed for hard floors and short-pile carpets. On thick carpet, suction may be less effective.

How to reset the robot to factory settings?

Press and hold the power button for 10 seconds until the indicator flashes. Release, the robot restarts in factory mode.

The robot does not return to the charging dock, why?

Check that the dock is properly plugged in and the path is clear. Clean the infrared sensors on the robot and the dock.

USER MANUAL Conga X80 Pro CECOTEC

cecòtec

Safety instructions 8

1. Parts and components 64

2. Before use 65

3. Installation 65

4. Operation 66

5. Cleaning and maintenance 68

6. Troubleshooting 70

7. Technical specifications 71

8. Recycling of electrical and electronic equipment 71

9. Technical support and warranty 72

10. Information on data stored by connected products in accordance with Regulation (EU)

2023/2854 ("Data Regulation") 72

1. Copyright 72

2. EU Declaration of Conformity 73

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance must be used in accordance with these operating instructions. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.
• Ensure that the mains voltage matches the voltage stated on the product's rating label and that the socket is properly earthed.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by Cecotec's Official Technical Support Service to avoid any hazard.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

• Do not attempt to repair the appliance yourself. Contact Cecotec's Official Technical Support Service for any query or repair.

• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use this appliance on concrete, asphalt, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Switch off and ensure the appliance is unplugged from the mains power supply when not in use for extended periods, before cleaning, before assembling or disassembling components and before removing the battery. To unplug the appliance, pull the plug, not the cord.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• Never touch the cord or the power socket with wet hands.

• Do not expose the appliance to direct sunlight, fire, water, or moisture.

• Do not sit or place sharp or heavy objects on top of the appliance.
• Before operating the robot vacuum cleaner, prepare the room and supervise it. To do so, remove any objects and cables that may affect its operation.
• Keep the appliance away from clothing, curtains, and similar materials.
• Always place the appliance on a flat and stable surface. Avoid placing it on unstable surfaces it could fall from (such as tables or chairs).
• Before switching on the robot vacuum cleaner, check that all connections, both on the robot and on the self-emptying base, are in good condition.
• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• The appliance must only be used with the battery supplied with the appliance or with compatible charging units approved by Cecotec.
• Non-rechargeable batteries must not be recharged.
• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Make sure the self-emptying base is not connected to a power outlet before cleaning.

Battery instructions

• The appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Should that be the case, do not touch the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with

clean water for at least 10 minutes and seek medical attention. Wear gloves when handling the battery and dispose of it immediately in accordance with local regulations.

• Avoid contact between batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Never modify the battery in any way.
• Batteries must be removed from the appliance for safe disposal.
• Keep batteries out of the reach of children if they can be swallowed.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• WARNING: to recharge the battery, use only the self-emptying base supplied with the appliance.
• The batteries' supply terminals must not be short-circuited.
• If the appliance is to be stored for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted in the correct position. Pay attention to polarity when inserting it.

INSTRUCTIONS DE SÉCURITÉ

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

1. PARTS AND COMPONENTS

Fig. 1

1. Top cover
2. Dust container
3. Charging contacts
4. Air outlet
5. Anti-collision sensors
6. Side brush
7. Ultrasonic sensor
8. Omnidirectional wheel
9. Battery
10. Main brush
11. Wheels
12. Spin mops
13. Tank opening tab
14. Mixed tank lid
15. Filter

16. Suction inlet

17. Dust container release button

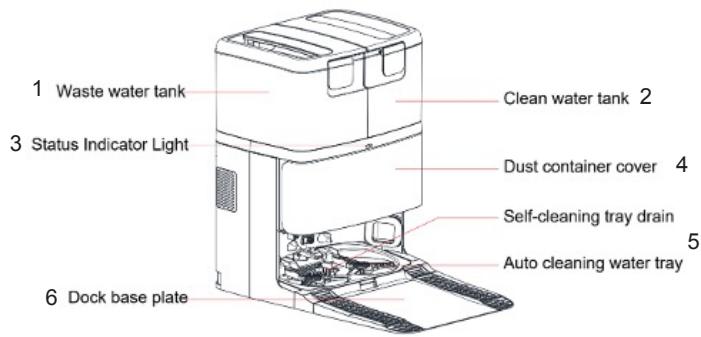

Fig 2.

1. Dirty water tank
2. Clean water tank
3. LED indicator light
4. Dust container lid
5. Self-cleaning tray
6. Self-cleaning base ramp
7. Dust bag closure
8. Dust bag
9. Infrared sensor
10. Charging contacts
11. Detergent cap
12. Detergent tank

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Robot vacuum cleaner
• Self-emptying base
• Mop pad
• Mop holder
• Side brush
• Self-cleaning brush
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Installing the self-emptying base

• Leave a space of at least 0.6 m to the left and right and 1.5 m in depth. Fig. 3
• Make sure the location has good Wi-Fi access to enhance the mobile app experience. Connect the base and verify that the status indicator light is on.

Note:

• Place the base against a wall on a hard, level surface (wood, tile, etc.).
• Pick up any cables, hard or sharp objects (such as nails and glass) and loose items from the floor, and move any unstable, fragile, valuable or hazardous items that could block or slow down the robot vacuum cleaner's operation.

When using the robot in elevated area, always use a physical safety barrier to prevent accidental falls that could result in personal injury or property damage.

ENGLISH

Installing the clean water tank

• Lift the clean water tank, open the top cover, and fill it with tap water.
• Once full, close the lid and replace the clean water tank on the base.

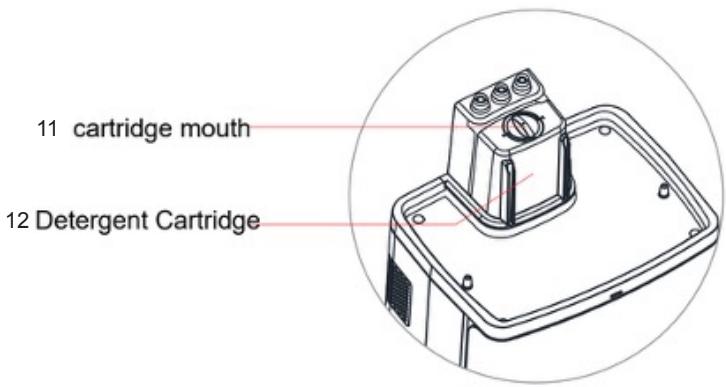

Detergent usage

Step 1: Remove the dirty water tank and clean water tank.
Step 2: Turn the tank lid to open it and add detergent.
Step 3: Replace the clean and dirty water tanks.

Note

To ensure all functions operate correctly and achieve the best cleaning results:

• Fully charge the robot before first use.
• Fill the clean water tank with water before the first operation.

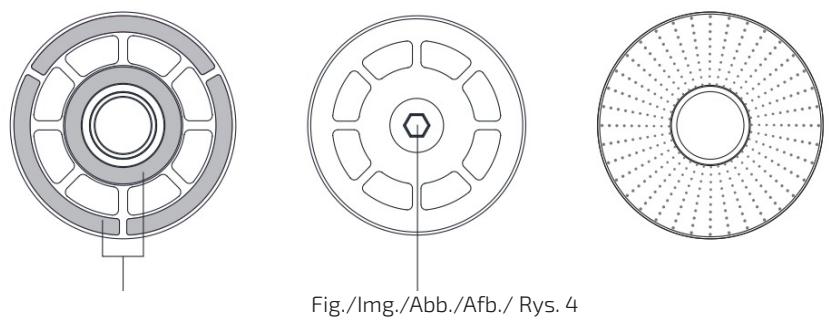

Installing the mop pad

Fig. 4

1. Attach the mop pad to the mop holder in the correct position and firmly.
2. Align and install the mop holder on the robot until you hear a "click".

4. OPERATION

Switching on/off

- Press and hold the power button to switch the robot on or off. The power indicator light will illuminate when the robot is switched on.

Note:

To ensure proper operation and achieve the best cleaning result:

• Fully charge the robot before first use.
• Fill the mixed tank with water before the first operation, as indicated above.

Pause

- When the robot is running, press any button to pause it. Press the power button to resume cleaning. Press the Back Home button to send it back to the self-emptying base.

Note:

- Placing the paused robot manually on the self-emptying base will end the cleaning cycle in progress.

Charging

• After cleaning, the robot vacuum cleaner will automatically return to the self-emptying base to recharge.
• In Pause mode, press the Back Home button to send the robot back to the base.

Starting operation

• Press the power button to start cleaning. The robot will plan the route based on its recognition of the layout, divide the room into zones, first delimit the edges of each zone, and then fill them in with a zigzag pattern.
• In this way, the robot cleans all areas one by one, efficiently cleaning the home. Ensure that the mopping cloths are correctly installed.

Notes:

• For the robot to clean and automatically return to the self-emptying base, start it from the self-emptying base. Do not move the self-emptying base during cleaning.
• Cleaning cannot begin if the battery level is too low. Allow the robot to charge before starting.
• Before cleaning, pick up cables (including the base power cord) and valuable objects from the floor. The robot may drag them along and cause electrical appliances to disconnect or damage cables and property.
• If the battery runs low during cleaning, the robot will automatically return to the base. After recharging, it will resume cleaning where it left off.
• Before each cleaning task, ensure the mop pad is correctly installed on the mop holder.

Standby mode

• If no operation is performed for 10 minutes, the robot will automatically enter sleep mode, and the power indicator light will turn off.
• In standby mode, press any button on the robot to reactivate it.
• If no operation is performed for hours, the robot will automatically switch off.

Do Not Disturb mode

• It can be modified or cancelled from the app.
• When this mode is activated, the robot does not automatically resume cleaning and does not self-empty into the self-emptying base after finishing cleaning; furthermore, the power indicator and voice prompts remain disabled.

ENGLISH

5. CLEANING AND MAINTENANCE

Side brush. Fig. 5

1. Pull the side brush upwards to remove it.
2. Remove debris from the side brush.
3. Reinstall the side brush by pressing down until you hear a "click".

Main brush. Fig. 6

1. Press in the latches on the main brush cover and release the main brush cover latch to remove the cover.
2. Remove the main brush and remove any hair and dirt accumulated on the brush and its ends.
3. Replace the main brush and close the cover until you hear a "click", securing the main brush cover latch (14).

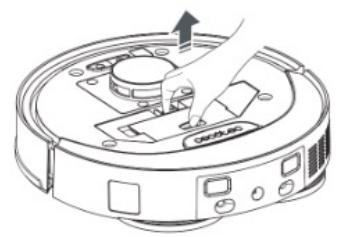

Dust container and filter. Fig. 7

1. Press the dust container release button and remove the mixed tank.
2. Open the mixed tank and empty its contents into a rubbish bin.
3. Use the self-cleaning brush to clean the interior of the mixed tank.
4. Open the filter cover, remove the filter and tap it gently to remove any dust. Then reinstall the filter and close the filter cover.
5. Reinstall the mixed tank on the robot until the dust container release button is locked.

Note:

Do not touch the surface of the filter with your hands, brushes or hard objects to avoid damage.

Sensors

Clean all sensors with a soft, dry cloth: Laser, object recognition sensor, wall sensor and anti-collision sensors.

Note: the laser is a sensitive sensor. Do not use force, insert objects, or attempt to adjust it. Do not sit on or place objects on the robot's top cover.

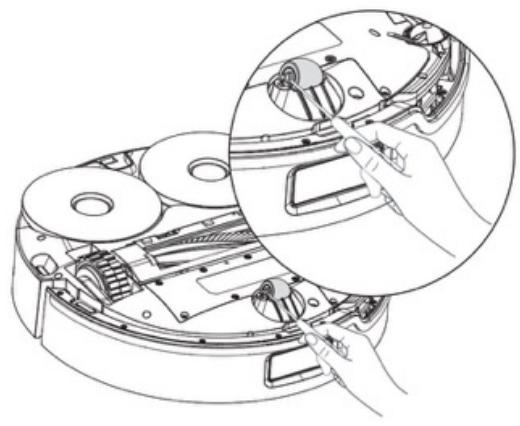

Omnidirectional wheel. Fig. 8

1. Using a flat-head screwdriver as a lever, firmly grasp the omnidirectional wheel and pull it outwards.
2. Clean the omnidirectional wheel and all its components, including the wheel assembly and housing.
3. Press the omnidirectional wheel down to lock it in place.

Replacing the disposable dust bag

To change the dust collection bag, open the base cover, pull the handle, remove the bag and discard it.

Mopping assembly maintenance

1. Remove the mop holder with the mop pad from the robot.
2. Open the mixed tank lid and empty the mixed tank through the same opening as the water inlet.
3. Gently shake to remove any residue accumulated on the mop holder.
4. Wash the mop pad with clean water. Allow all parts to air dry before reinstalling.

Note

- Empty the mixed tank after each use to avoid possible water damage.

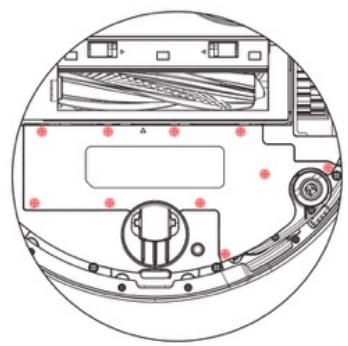

Charging and battery replacement. Fig. 9

1. Using a Phillips screwdriver, open the battery compartment.
2. Disconnect the old battery, connect the new one and screw the compartment cover back on.

Note

• To extend battery life, leave the robot vacuum cleaner charging on the self-emptying base whenever not in use.
• If the robot is not to be used for an extended period of time, remove the battery and store it in a safe, dry place.
• Do not use this product's rechargeable battery in other devices.

Table – Recommended maintenance frequency

Item	Maintenance method	Frequency	Replacement
Mixed tank (18)	Cleaning	Daily	—
Filter (20)	Cleaning	Weekly	Every 3-6 months
Side brush (9)	Cleaning	Weekly	Every 3-6 months
Main brush (10)	Cleaning	Weekly	Every 3-6 months
Sensors (1, 5, 7, 8)	Cleaning	Weekly	—
Omnidirectional wheel (11)	Cleaning	Weekly	—
Battery (13)	Replacement	—	Every 12-24 months

1. TROUBLESHOOTING

Problem	Solution
The robot does not switch on.	Low battery. Place the robot on the self-emptying base and charge it before use.
	The battery temperature is too high or too low. Use the robot only within 0-40°C range.
Unable to charge battery.	The self-emptying base is not connected to the mains. Check that both ends of the power cord are properly connected.
	Poor contact. Clean the charging connectors on the robot and the charging contacts on the self-emptying base.
	Confirm that the status indicator on the self-emptying base is illuminated.
The robot cannot be docked.	There are too many obstacles near the self-emptying base. Move it to an open area.
	The robot is too far away from the self-emptying base. Bring it closer and try again.
	The base locating element may be dirty. Clean it with a dry cloth.
Unable to connect to Wi-Fi.	Wi-Fi disabled. Reset the Wi-Fi and try again.
	Weak Wi-Fi signal. Move the robot to an area with good coverage.
	Abnormal Wi-Fi connection. Reset the Wi-Fi, download the latest version of the mobile app and try again.
	The Wi-Fi connection is unstable. Reset the router, check if there are any app updates and try again.
Noise during cleaning.	The main brush, side brush, drive wheels or omnidirectional wheel may be blocked. Switch off the robot with the power button and clean these components.
Cleaning does not resume after recharging.	Check that the robot is not in Do Not Disturb mode.
	The “Skip carpets” option is enabled in the app. Check the settings in the app.
The programmes are not effective.	Check that the robot is not in Do Not Disturb mode.
	Programmes only run when the battery level is above 20%.
The robot does not perform self-emptying.	The self-emptying function is deactivated. Check it in the app.
	The disposable dust bag is not properly installed in the self-emptying base. Check and install correctly.
	Self-emptying is not activated if the robot returns to the self-emptying base without having performed a cleaning cycle.
The robot does not perform self-emptying.	With the Do Not Disturb mode activated, the robot does not self-empty when returning to the self-emptying base. Set the cleaning or Do Not Disturb mode duration, or start the emptying manually from the app.
Self-emptying with reduced performance or unusual noises.	The main brush or its cover is not properly installed. Check the installation and secure the main brush cover latch.
	The filter, self-emptying base air duct, suction inlet, base air inlet, mixed tank or disposable dust bag are clogged. Clean to remove blockages.
Mopping is not effective.	Check the water flow rate setting in the app.
	Check that the mixed tank has been refilled as required by opening the mixed tank filling cap and using the water inlet.

7. TECHNICAL SPECIFICATIONS

Product: Conga X80

Product reference: EU01_122037

Self-emptying base input: 220-240 V AC 50/60 Hz.

Self-emptying base output: 19 V = 1.2 A.

Self-emptying base rated power: 1000 W.

Robot input: 19 V = 1.2 A.

Battery rated capacity: 14.4 V CC 5200 mAh 74.88 Wh.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10.

INFORMATION ON DATA STORED BY CONNECTED PRODUCTS IN ACCORDANCE WITH REGULATION (EU) 2023/2854 (“DATA REGULATION”)

Cecotec's connected products and related services are those that generate different data and information during use. In accordance with the provisions of the Data Regulation, through this document Cecotec provides you with information about your rights concerning the data generated and about how to access such data.

This right allows you to use the data for any lawful purpose, including, among others, product and/or service optimisation or contracting post-sale services with third parties.

As a user, you may exercise your right of access, within the limits provided for by the Data Regulation, through the email address [e-mail]. To protect the generated data—and in order to prevent fraud or identity theft—CECOTEC may require additional information to verify your status as a user.

Data is stored for a determined period of time.

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

12. EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this robot vacuum cleaner, model EU01_122037 – Conga X80, is in conformity with the Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found on the following

website:

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

1. PIÈCES ET COMPOSANTS

Image 1:

https://storececotec.de/de/information/declaration-of-conformity

1. PARTI E COMPONENTI

Figura 1:

https://storececotec.it/it/information/declaration-of-conformity

1. PEÇAS E COMPONENTES

Figura 1:

https://cecotec.pt/pt/information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

Afbeelding 1:

https://cecotec.es/es/information/declaration-of-conformity

1. CZĘŚCI I KOMPONENTY

Rysunek 1:

https://cecotec.es/es/information/declaration-of-conformity

1. SOUČÁSTI A KOMPONENTY

Obrázek 1:

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

1. MEPH KAI E≡APTHMATA

Σχήμα 1:

https://cecotec.es/es/information/declaration-of-conformity

CATALÀ

1. PECES I COMPONENTS

Figura 1:

.4 . Four pieces of the Shines

.5 مخرج الهواء

https://cecotec.es/es/information/declaration-of-conformity

C€

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 5

1

2

3

4

5

6

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

www.cecotec.es
