Product Type	Under Cabinet Range Hood
Brand	Zephyr
Model	ZOME30ABS
Width	30 inches
Depth	20 inches
Height	18 inches (adjustable)
Weight	45 lbs
Power Supply	120 V / 60 Hz
CFM Rating	600 CFM
Noise Level	42 dB (low) - 62 dB (high)
Filter Type	Stainless Steel Baffle Filters (dishwasher safe)
Lighting	LED, 2 x 3W
Controls	Electronic touch controls with 3 speeds
Installation Type	Under cabinet or wall mount (ductless/ducting available)
Duct Size	6 inches round (top or back)
Material	Stainless steel
Energy Consumption	120 W (motor) + 6 W (lights)
Warranty	1 year parts and labor
Certifications	UL, ENERGY STAR
Ductless Conversion Kit	Included (charcoal filters)

Frequently Asked Questions - ZOME30ABS Zephyr

How do I clean the stainless steel baffle filters?

Remove the filters and wash them in the dishwasher or soak in hot soapy water. Ensure they are fully dry before reinstalling.

Can this range hood be used in ductless mode?

Yes, the ZOME30ABS can be used with recirculation. A ductless conversion kit with charcoal filters is included.

What is the recommended installation height?

For optimal performance, install the hood 24 to 30 inches above the cooktop for gas ranges, or slightly lower for electric.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Contact Zephyr support for assistance.

What is the noise level on high speed?

At the highest speed, the hood operates at approximately 62 dB, which is comparable to a normal conversation.

Does the hood have a remote control?

No, the ZOME30ABS comes with touch controls on the unit itself. Remote control is not included.

What size duct is required?

Use a 6-inch round duct for optimal airflow. Ensure it is as short and straight as possible.

Can I install this hood over a microwave?

No, this is a standalone range hood and should not be installed above a microwave. It is designed for cooktops only.

How often should I replace the charcoal filters?

Charcoal filters should be replaced every 3 to 6 months, depending on usage and cooking habits.

My hood is not turning on. What should I check?

First, check the circuit breaker and power cord. Then ensure the control panel is not locked. If the issue persists, contact Zephyr customer service.

USER MANUAL ZOME30ABS Zephyr

Ombra is the perfect combination of form and function with its capacitive touch controls and optional hybrid baffle filters. Ombra features a powerful 600 CFM blower with our exclusive Airflow Control Tech-

nology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.

ACT ^TM

	INTERNAL BLOWER STANDARD	INTERNAL BLOWER with ACTTM AIRFLOW CONTROL TECHNOLOGYTM*
Min. - Max. CFM	200 - 600	200 - 390	200 - 290
Min. - Max. Sones	1 - 6	1 - 4	1 - 3

*AIRFLOW CONTROL TECHNOLOGY™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.

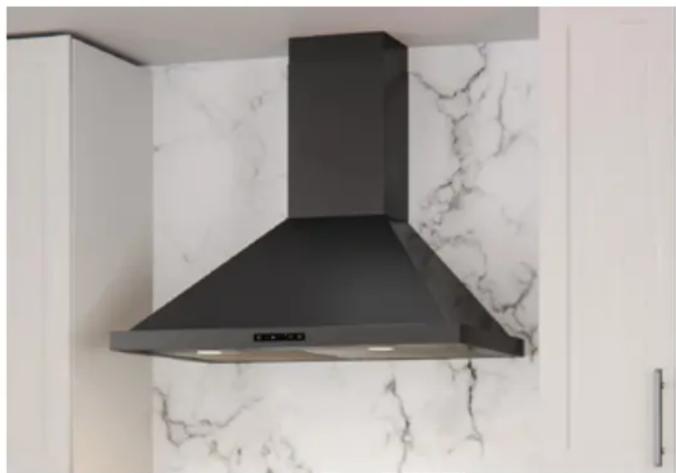

Shown in Black Stainless Steel

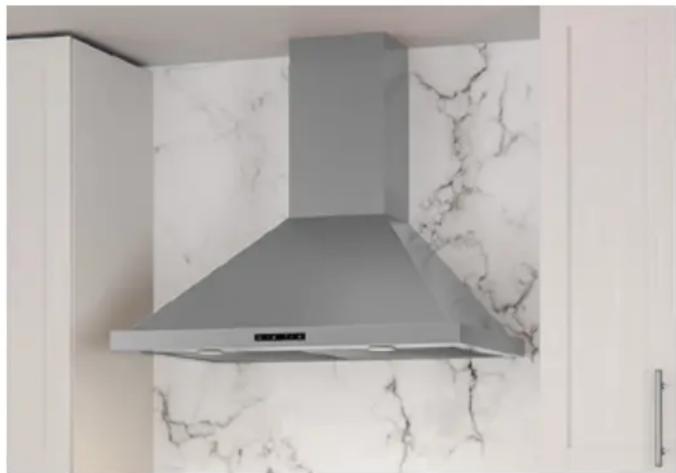

Shown in Stainless Steel

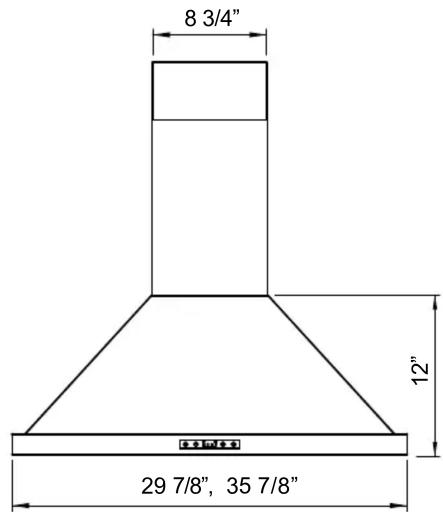

FRONT

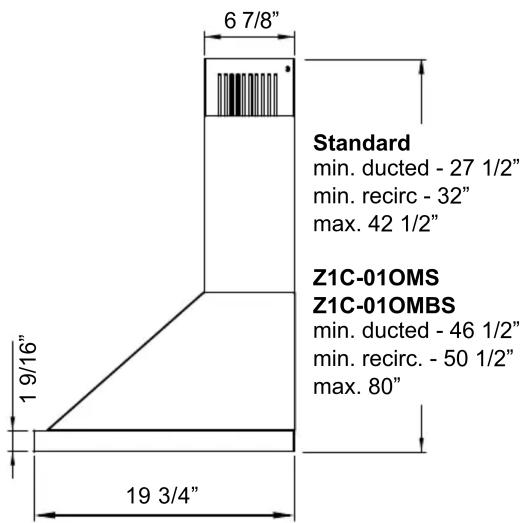

SIDE

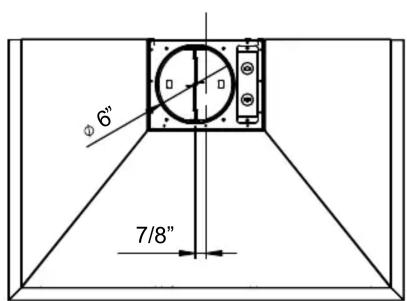

TOP

MODEL
Stainless Steel	ZOM-E30AS	ZOM-E36AS
Black Stainless Steel	ZOM-E30ABS	ZOM-E36ABS
Size	30"	36"
Blower CFM (Min. - Max.)	200 - 600	200 - 600
Sones (Min. - Max.)	1 - 6	1 - 6
ACT 390 CFM (Min. - Max.)	200 - 390	200 - 390
ACT 390 Sones (Min. - Max.)	1 - 4	1 - 4
ACT 290 CFM (Min. - Max.)	200 - 290	200 - 290
ACT 290 Sones (Min. - Max.)	1 - 3	1 - 3
FEATURES
ACTTM Technology	Yes	Yes
Controls	Capacitive Touch	Capacitive Touch
Speed Levels	4*	4*
Auto Delay-Off	Yes	Yes
Lighting	Halogen, 35W x2	Halogen, 35W x2
Dual-Level Lighting	Yes	Yes
Filters	Aluminum Mesh x2	Aluminum Mesh x2
Recirculating Option	Yes	Yes
Duct Cover Extension Option	Yes, Up to 12' Ceiling	Yes, Up to 12' Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower	6" Round	6" Round
Horizontal Internal Blower	NA	NA
AC POWER	120V, 60Hz at Max. 3.5A	120V, 60Hz at Max. 3.5A
OPTIONAL ACCESSORIES
Recirculating Kit	ZRC-01OM	ZRC-01OM
Duct Cover Extension	Z1C-01OMS (ss)	Z1C-01OMS (ss)
	Z1C-01OMBS (black ss)	Z1C-01OMBS (black ss)
BloomTM GU10 LED	Z0B0040	Z0B0040
Hybrid Baffle Filter Kit	Z0F-B002	Z0F-B002
Make-Up Air Kit	MUA006A	MUA006A
MOUNTING HEIGHT RANGE**	26" - 34"	26" - 34"
WARRANTY	3 years parts, 1 year labor	3 years parts, 1 year labor

CEILING HEIGHT		8'	8.5'	9'	9.5'	10'	10.5'	11'	12'
STANDARD DUCT COVER	Ducted Mounting Height**	26" - 33.5"	26" - 34"	29.5" - 34"	NA	NA	NA	NA	NA
	Recirc Mounting Height**	26" - 28.5"	26" - 34"	29.5" - 34"	NA	NA	NA	NA	NA
DUCT COVER EXTENSION	Ducted Mounting Height**	NA	NA	26" - 30.5"	26" - 34"	26" - 34"	26" - 34"	26" - 34"	28" - 34"
	Recirc Mounting Height**	NA	NA	26" - 26"	26" - 32"	26" - 34"	26" - 34"	26" - 34"	28" - 34"

*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36" tall cooking surface and bottom of hood.
