USER MANUAL KS 66 PLUS METABO

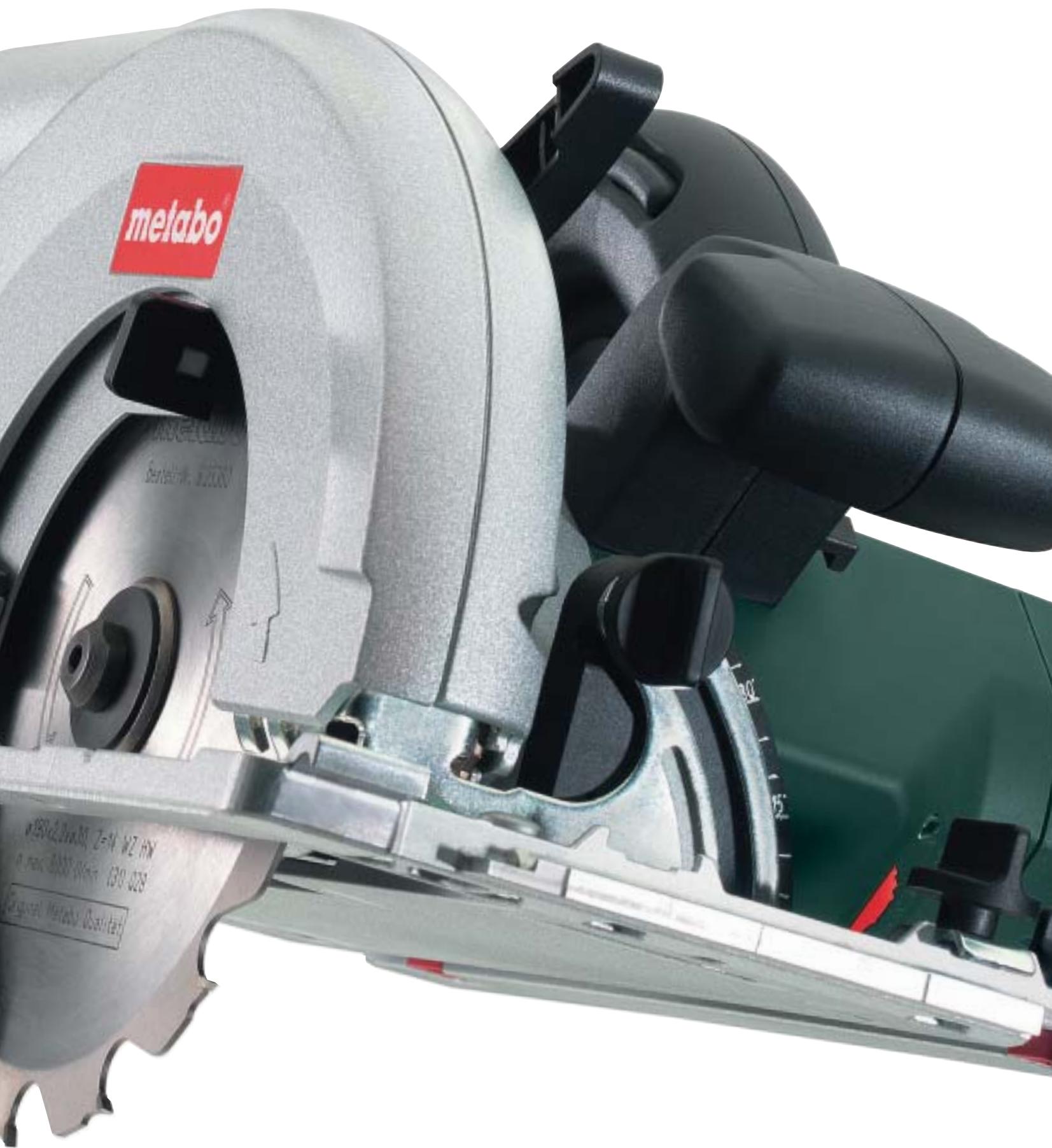

THE NUMBER ONE CHOICE FOR THE PROFFESSIONAL

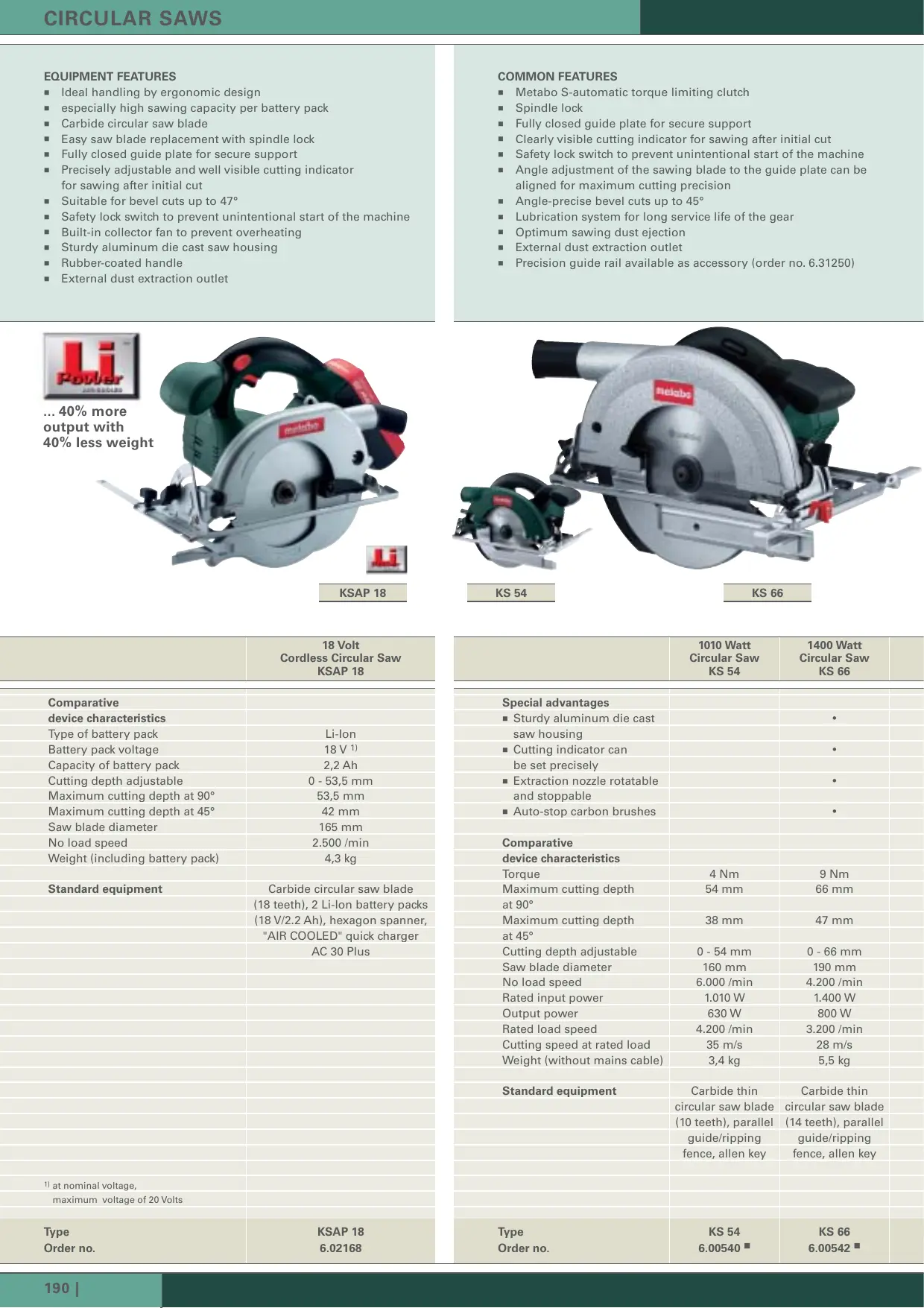

The Metabo circular saw range is built for outright precision and quality. Built tough for the demands of the professional, machines with long life motors, safety clutches, large rip fences, solid all metal gear housings, riving knives and quick cut blades fitted as standard are available within the range. Metabo. Work. Don't play.

EQUIPMENT FEATURES

• Ideal handling by ergonomic design
  especially high sawing capacity per battery pack
  Carbide circular saw blade
  Easy saw blade replacement with spindle lock
  Fully closed guide plate for secure support
• Precisely adjustable and well visible cutting indicator for sawing after initial cut
  Suitable for bevel cuts up to 47^
  Safety lock switch to prevent unintentional start of the machine
  Built-in collector fan to prevent overheating
  Sturdy aluminum die cast saw housing
  Rubber-coated handle
  External dust extraction outlet

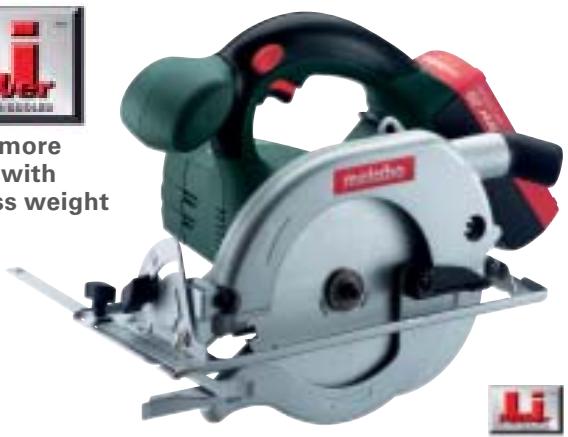

... 40 % more output with 40 % less weight
KSAP 18

COMMON FEATURES

Metabo S-automatic torque limiting clutch
Spindle lock
Fully closed guide plate for secure support
Clearly visible cutting indicator for sawing after initial cut
Safety lock switch to prevent unintentional start of the machine
Angle adjustment of the sawing blade to the guide plate can be aligned for maximum cutting precision
Angle-precise bevel cuts up to 45^
Lubrication system for long service life of the gear
Optimum sawing dust ejection
External dust extraction outlet
Precision guide rail available as accessory (order no. 6.31250)

KS 54
KS 66

	18 Volt Cordless Circular Saw KSAP 18
Comparative
device characteristics
Type of battery pack	Li-lon
Battery pack voltage	18 V 1)
Capacity of battery pack	2,2 Ah
Cutting depth adjustable	0 - 53,5 mm
Maximum cutting depth at 90°	53,5 mm
Maximum cutting depth at 45°	42 mm
Saw blade diameter	165 mm
No load speed	2.500 /min
Weight (including battery pack)	4,3 kg
Standard equipment	Carbide circular saw blade (18 teeth), 2 Li-lon battery packs (18 V/2.2 Ah), hexagon spanner, "AIR COOLED" quick charger AC 30 Plus
1) at nominal voltage, maximum voltage of 20 Volts
Type	KSAP 18
Order no.	6.02168

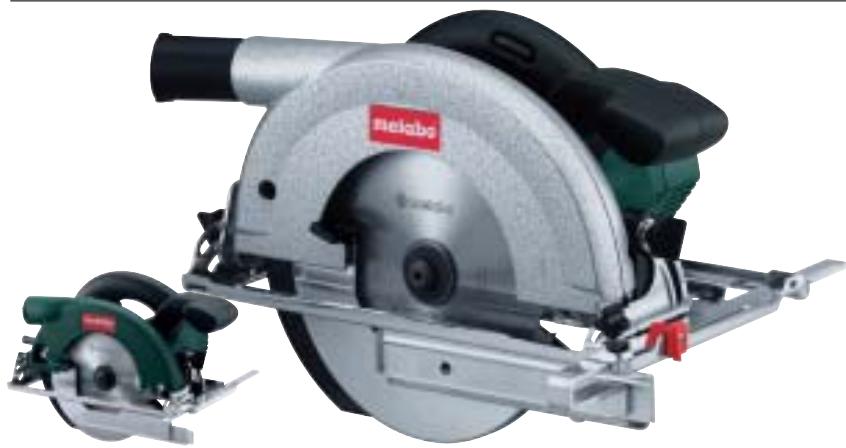

	1010 Watt Circular Saw KS 54	1400 Watt Circular Saw KS 66
Special advantages
■ Sturdy aluminum die cast saw housing		●
■ Cutting indicator can be set precisely		●
■ Extraction nozzle rotatable and stopbable		●
■ Auto-stop carbon brushes		●
Comparative device characteristics
Torque	4 Nm	9 Nm
Maximum cutting depth at 90°	54 mm	66 mm
Maximum cutting depth at 45°	38 mm	47 mm
Cutting depth adjustable	0 - 54 mm	0 - 66 mm
Saw blade diameter	160 mm	190 mm
No load speed	6.000 /min	4.200 /min
Rated input power	1.010 W	1.400 W
Output power	630 W	800 W
Rated load speed	4.200 /min	3.200 /min
Cutting speed at rated load	35 m/s	28 m/s
Weight (without mains cable)	3,4 kg	5,5 kg
Standard equipment	Carbide thin circular saw blade (10 teeth), parallel guide/ripping fence, allen key	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key
Type Order no.	KS 54 6.00540	KS 66 6.00542

COMMON FEATURES

Metabo S-automatic torque limiting clutch
Spindle lock
Sturdy aluminum die cast saw housing
Sturdy guide plate made from light-weight magnesium die cast
Fully closed guide plate for secure support
- Stylish rubber insert on the top handle to aid a comfortable and secure grip
- Long double-guided parallel rip fence, can be used left or right
Clearly visible cutting indicator for sawing after initial cut
Safety lock switch to prevent unintentional start of the machine
Angle adjustment of the sawing blade to the guide plate can be aligned for maximum cutting precision
Angle-precise bevel cuts up to 45^

Lubrication system for long service life of the gear
Optimum sawing dust ejection
External dust extraction o
- Extraction nozzle rotatable and stoppable
Auto-stop carbon brushes
- Precision guide rail available as accessory (order no. 6.31213)
- Adjustment of machine without tools for using on the precision guide rail 6.31213

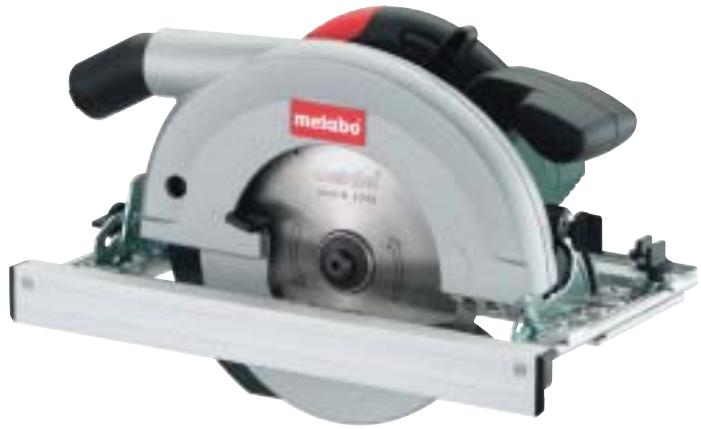

KS 66 Plus
NEW

KSE 68 Plus
NEW

	1400 Watt Circular Saw KS 66 Plus	1600 Watt Electronic Circular Saw KSE 68 Plus
Special advantages
■ Quick stop of saw blade on shutting off the machine		●
■ Vario Tacho Constamatic (VTC) full-wave electronics		●
■ Thumbwheel for preselection of speed		●
■ Electronic soft start		●
■ Overload protection		●
■ Two position riving knife lift point		●
Comparative device characteristics
Torque	9 Nm	11 Nm
Maximum cutting depth at 90°	66 mm	68 mm
Maximum cutting depth at 45°	47 mm	48 mm
Cutting depth adjustable	0 - 66 mm	0 - 68 mm
Saw blade diameter	190 mm	190 mm
No load speed	4.200 /min	2.000 - 4.200 /min
Rated input power	1.400 W	1.600 W
Output power	800 W	850 W
Rated load speed	3.200 /min	4.200 /min
Cutting speed at rated load	28 m/s	42 m/s
Weight (without mains cable)	5,5 kg	5,6 kg
Standard equipment	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key
		KSE 68 Plus 6.00545
Type Order no.	KS 66 Plus 6.00544

Accessories

		Order no.
NEW	Precision guide rail	6.31213
	Clean-cut edges with no splintering thanks to the guide rail's plastic-extrusion strip edging - even with bevel cuts up to 45°
	Guide rail made of sturdy, anodised Aluminium extrusion
	Anti-slip backing provides safe and reliable support and protects the workpiece surface against scratches
	Guide rule, adjustable to eliminate play
	suitable for: Metabo jig saws, circular saws and router models OFE 738 and Of E 1229 Signal (when using the appropriate accessories; KS 66 Plus, KSE 68 Plus can be used)
	Overall length: 1.500 mm
Connector	For joining together two precision guide rails	6.31211
NEW
New	Set of two clamps	6.31031
	For fixing the precision guide rail on the workpiece or work table
NEW	Guide plate	6.31019
	For use with the KSAP 18, KS 54 and KS 54 SP circular saws on the 6.31213 guide rail.
	Complete guide plate with 2 mounted aluminium threaded bushes for the circular saws
↓ ↓	Adapters	6.31020
NEW	For use with the KS 66 and KSE 68 Plus circular saws (alt. Order No. 6.00543) on the 6.31213 guide rail.
NEW	Sawdust ejection nozzle	6.30924
	Can be rotated
	For fitting the suction hose on the circular saw KS 54 and KSE 55 Plus
NEW	Suction hose	6.31938
	With connector Ø 58 mm for bayonet fitting and rubber connector (internal Ø 30 mm, outside Ø 35 mm) Connector Ø: 58/35 mm Hose length: 3,5 m Suction hose Ø: 27 mm
New	Metabox IV
	Extremely robust, unbreakable boxes with a wide carrying handle
	Carefully thought-out organisation system within the box... ensures that the correct accessory is always with the right tool - special inserts for storing accessories and small parts... and transferring them from box to box - boxes can be stacked and connected - well-structured, clearly arranged storage system, for the workshop, the car, anywhere
	The Metabox stays in shape - even at extreme temperatures (-40° to +90°C)
	No protruding parts, and thus no danger of getting caught up, e.g. on building sites
	Dimensions: 395 x 295 x 315 mm
	For KS 54, KSE 55 Plus, KS 66	6.24595
	For KS 66 Plus, KSE 68 Plus	6.24598

Work benches

New		Order no.
Flexo 500 universal table ■ For the stationary use of Metabo jig saws, routers and circular saws (when using appropriate accessories) ■ With foldable stand and height adjustment ■ Sturdy steel construction and a large table top made from continuous strand casting	0910064304 GB
Special accessories for Flexo 500
	Order no.
NEW	Circular saw set For Metabo KS 54, KSE 55 Plus, KS 66, KSE 68 Plus circular saws Packaging dimensions (LxHxW): 750 x 280 x 130 mm	0910064398 GB
	Table width extension ■ Increases the supporting surface; ideal for large boards ■ Enables cuts with parallel guide of up to 610 mm ■ Height adjustable Length: 674 mm Width: 501 mm	0910064401 GB
	Parallel guide/ripping fence ■ For long cuts or for cutting large boards ■ Long attachment profile for guiding the work piece safely	0910063707 GB
	Mitre guide ■ Length of rule: 250 mm ■ Angle area: +/- 60°	0910064410 GB
	Chip and dust extraction unit ■ Extraction at two points: at chip box and at the top on the guard ■ Clear view of the work piece ■ Cleaner working environment Extraction nozzle Ø: 100 mm	0910064371 GB

FOR CIRCULAR SAWS

Carbide-tipped circular saw blades

"power cut"

NEW

• For fast, coarse and semi-fine cuts with continuous feed rates
• Good cutting results for straight cuts in solid wood
• Partly usable for construction wood with nails and concrete residue
• With coated wood or other composites only coarse cut quality is possible

Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-Ø mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
152	2,4	1,6	20	12	Flat top tooth	15°	Ks 0852 S	6.28001
160	2,2	1,4	20	10	Alternately bevel-ground tips	22°	KS 54 / KSE 55 Plus	6.28002
167	2,4	1,6	20	12	Flat top tooth	15°	Ks 1155 S	6.28003
190	2,6	1,8	20	14	Alternately bevel-ground tips	25°	Ks 1266 S / Ks 1468 S	6.28004
190	2,2	1,4	30	14	Alternately bevel-ground tips	25°	KS 66 / KSE 68 Plus	6.28005
190	2,2	1,4	30	16	Flat/trapezoid tooth	12°	KS 66 / KSE 68 Plus	6.280061)
210	2,6	1,8	30	16	Flat top tooth	25°	Ks E 1678 S-Signal	6.28007
230	2,6	1,8	30	18	Flat/trapezoid tooth	10°	KS 85	6.280101)
230	2,6	1,8	30	24	Alternately bevel-ground tips	20°	KS 85	6.280111)

1) exceptionally nail-proof saw blade

Carbide-tipped circular saw blades

"precision cut"

NEW

• Very wide range of uses in woodworking
• For very good, clean cut results with straight or cross cutting in softwood and hardwood
  Well suited for solid and plywoods, chipboards untreated, coated or veneered, MDF, composite materials
• The circular saw must have a high performance motor

Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-Ø mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
160	1,6	1,1	20	24	Alternately bevel-ground tips	22°	KSAP 18	6.28030
160	2,2	1,4	20	24	Alternately bevel-ground tips	20°	KS 54	6.28031
167	2,4	1,6	20	20	Alternately bevel-ground tips	20°	Ks 1155 S	6.28032
167	2,4	1,6	20	40	Alternately bevel-ground tips	10°	Ks 1155 S	6.28033
190	2,6	1,8	20	48	Alternately bevel-ground tips	10°	Ks 1266 S/ Ks 1468 S	6.28034
190	2,2	1,4	30	48	Alternately bevel-ground tips	15°	KS 66 / KSE 68 Plus	6.28035
210	2,6	1,8	30	56	Alternately bevel-ground tips	10°	Ks E 1678 S-Signal	6.28040
230	2,6	1,8	30	56	Alternately bevel-ground tips	15°	KS 85	6.28044

Carbide-tipped circular saw blades

"multi cut"

NEW

Universal use for demanding materials
- For the highest standards in cutting quality, e.g. laminate, plastic, aluminium, copper and bronze materials
- Ideally suited for many applications in interior work
- Perfect cutting results, also when crosscutting, in solid wood, coarse, coated or veneered chipboards, MDF
- The circular saw must have a very high performance motor
- Requires steady and relatively slow feed rates

Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-Ø mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
150	2,4	1,6	20	36	Alternately bevel-ground tips	10°	Ks 0852 S	6.28000
152	2,4	1,6	20	54	Flat/trapezoid tooth	5° neg.	Ks 0852 S	6.28070
160	2,2	1,4	20	30	Alternately bevel-ground tips	5°+/-1.5	KS 54 / KSE 55 Plus	6.28071
160	2,2	1,4	20	42	Alternately bevel-ground tips	15°	KS 54 / KSE 55 Plus	6.28072
160	2,2	1,4	20	54	Flat/trapezoid tooth	8°	KS 54 / KSE 55 Plus	6.28073
167	2,4	1,6	20	42	Flat/trapezoid tooth	6° neg.	Ks 1155 S	6.28074
190	2,2	1,4	30	36	Alternately bevel-ground tips	5°+/-1.5	KS 66 / KSE 68 Plus	6.28075
190	2,6	1,8	20	54	Flat/trapezoid tooth	5° neg.	Ks 1266 S / Ks 1468 S	6.28076
190	2,2	1,4	30	56	Flat/trapezoid tooth	8°	KS 66 / KSE 68 Plus	6.28077
210	2,6	1,8	30	54	Flat/trapezoid tooth	5° neg.	Ks E 1678 S-Signal	6.28078
210	2,8	2,0	30	60	Alternately bevel-ground tips	5° neg.	Ks E 1678 S-Signal	6.28079
210	2,8	2,0	30	60	Flat/trapezoid tooth	5° neg.	Ks E 1678 S-Signal	6.28080
230	2,6	1,8	30	60	Alternately bevel-ground tips	5°	KS 85	6.28085
230	2,6	1,8	30	60	Flat/trapezoid tooth	8°	KS 85	6.28086

OTHERS SOMETIMES JUST DON'T CUT IT.

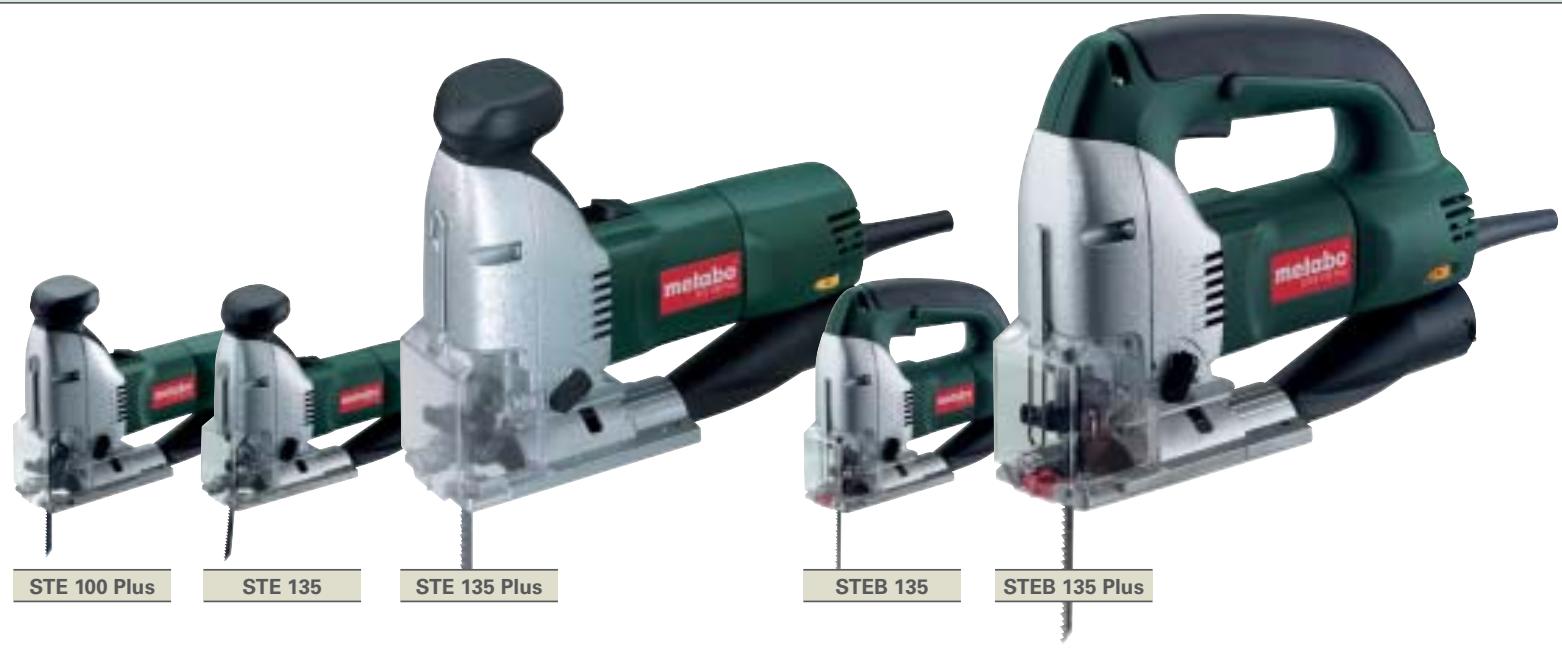

Metabo offer a solid range of Jigsaws from entry level through to top end professional machines. Backed up with an extensive range of accessories these machines are capable of cutting a whole host of materials from wood, metals, plastics, brick and breeze block to fiber

glass and rubber. Important features include high powered motors, tough gear housings, solid blade supports and variable speed electronics to enable the right speed selection for the job in hand.

Powerful for continuous professional use

The 720-Watt electronic orbital jigsaws enable saw cuts of up to 135mm thickness in wood.

Absolutely straight or circular cuts

Additional accessories such as guide rails or circular guides expand the range of applications of the Metabo jigsaws.

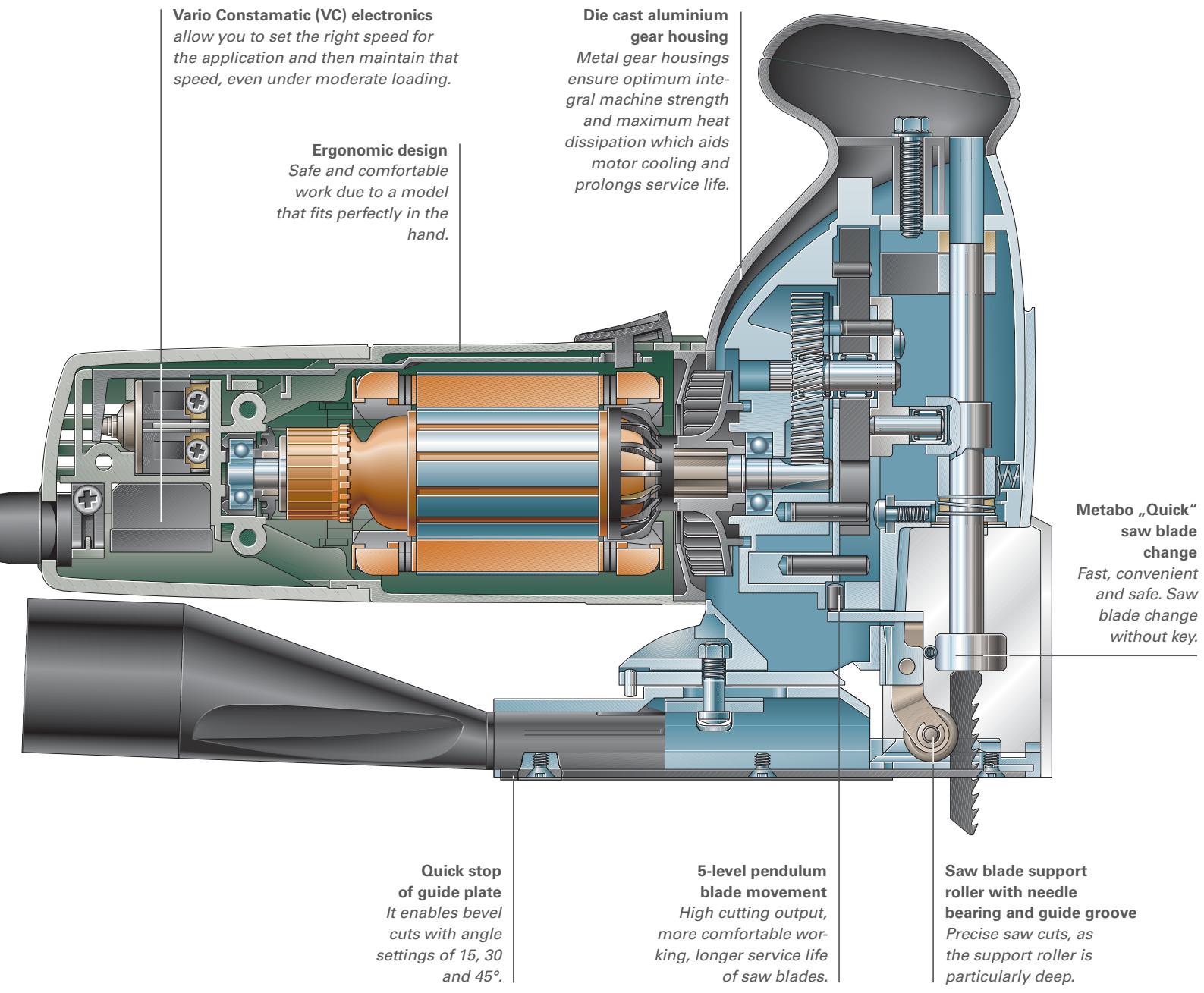

Vario Constamatic (VC) full-wave electronics

The number of strokes can be adapted individually to the material to be cut. For metal, for example, it is low, for wood it is high.

COMMON FEATURES

• Robust gear and motor design
  Easier and quicker saw blade change
  Low lying saw blade supporting roller
  Quick locking of guide plate for bevel cuts
  Ideal handling by ergonomic design
  Full grip bow type handle
  Blower for free view of cutting line
  Upward slidable grip-guard

Adjustable pendulum stroke
External dust extraction outlet
Auto-stop carbon brushes
Chip break guard in the guide plate
- Precision guide rail and guiding device available as accessory
Case for allen key

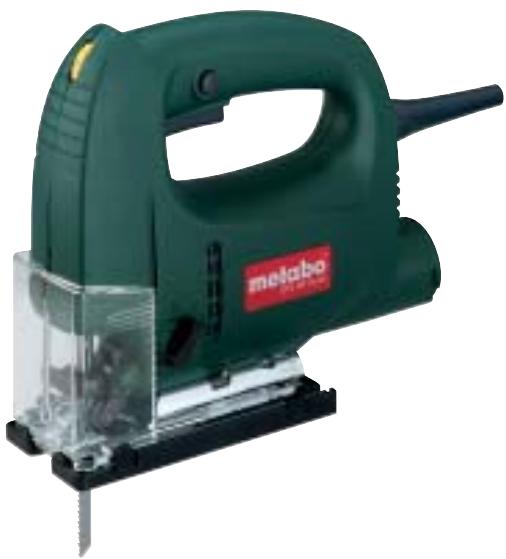

ST 50 Pendix

STE70

STE 80 Quick

	400 Watt Orbital Jig Saw ST 50 Pendix	570 Watt Electronic Orbital Jig Saw STE 70	610 Watt Electronic Orbital Jig Saw STE 80 Quick
Special advantages
■ Metabo "Quick" saw			●
blade change
■ Vario Constamatic (VC)		●	●
full-wave electronics
■ Thumbwheel for preselection		●	●
of number of strokes
Comparative device characteristics
Torque	4 Nm	5 Nm	5,5 Nm
Maximum thickness of material in
- Wood	50 mm	70 mm	80 mm
- Nonferrous metals	10 mm	20 mm	25 mm
- Sheet steel	3 mm	6 mm	8 mm
Levels of pendulum stroke	4	4	4
Strokes at no load	3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min
Rated input power	400 W	570 W	610 W
Output power	240 W	340 W	360 W
Weight (without mains cable)	2,2 kg	2,2 kg	2,3 kg
Standard equipment	Grip-guard, chip break guard plate, jig saw blade, allen key	Protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Protective glass, grip-guard, attachable guard plate with chip break guard plate, jig saw blade, allen key
	ST 50 Pendix 6.04000	STE 70 6.05700	STE 80 Quick 6.06100
Type Order no.

COMMON FEATURES

• Robust gear and motor design
  Low lying saw blade supporting roller
  Quick locking of guide plate for bevel cuts
  Ideal handling by ergonomic design
  Blower for free view of cutting line
  Upward slidable grip-guard
  Vario Constamatic (VC) full-wave electronics
• Thumbwheel for preselection of number of strokes

Adjustable pendulum stroke
Die cast aluminium gear housing
External dust extraction outlet
Auto-stop carbon brushes
Chip break guard in the guide plate
- Precision guide rail and guiding device available as accessory
Case for allen key

	680 Watt Electronic Orbital Jig Saw STE 100 Plus	720 Watt Electronic Orbital Jig Saw STE 135	720 Watt Electronic Orbital Jig Saw STE 135 Plus	720 Watt Electronic Orbital Jig Saw STEB 135	720 Watt Electronic Orbital Jig Saw STEB 135 Plus
Special advantages
■ Powerful cutting in wood up to 135 mm thickness		●	●	●	●
■ Easier and quicker saw blade change		●		●
■ Metabo "Quick" saw blade change	●		●		●
■ Rubber-coated full grip bow-type handle				●	●
■ Slim motor housing and additional knob	●	●	●
Comparative device characteristics
Torque	6 Nm	7 Nm	7 Nm	7 Nm	7 Nm
Maximum thickness of material in
- Wood	110 mm	135 mm	135 mm	135 mm	135 mm
- Nonferrous metals	25 mm	35 mm	35 mm	35 mm	35 mm
- Sheet steel	8 mm	10 mm	10 mm	10 mm	10 mm
Levels of pendulum stroke	5	5	5	5	5
Strokes at no load	1.000 - 2.800 /min	1.000 - 3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min
Rated input power	680 W	720 W	720 W	720 W	720 W
Output power	400 W	450 W	450 W	450 W	450 W
Weight (without mains cable)	2,6 kg	2,5 kg	2,5 kg	2,6 kg	2,6 kg
Standard equipment	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key
Type Order no.	STE 100 Plus 6.10501	STE 135 6.11100	STE 135 Plus 6.10900	STEB 135 6.11200	STEB 135 Plus 6.11000

Jigsaw blade assortments with single lug bayonet shank Suitable for Metabo, AEG, Atlas Copco, Black & Decker, Bosch, DeWalt, Eu, Festo, Hitachi, Holz-Her, Kress, Makita, Skil ...		Order no.	Connector ■ For joining together two precision guide rails	6.31211
Jigsaw blade assortment 1 ■ For wood and metal ■ HCS saw blades/ HSS saw blade Consisting of 1 saw blade each: 6.23634, 6.23633, 6.23637 Material suitability: Wood, Metal Number of parts: 3	6.23968	New	Set of two clamps ■ For fixing the precision guide rail on the workpiece or work table	6.31031
Jigsaw blade assortment 2 ■ For wood, metal and plastic ■ HCS saw blades/ HSS saw blade Consisting of 1 saw blade each: 6.23633, 6.23635, 6.23632, 6.23631 und 6.23637 Material suitability: Wood, Plastics, Metal Number of parts: 5	6.23645	New	Jigsaw bench mounting plate With clamp for fixing on the workbench Table-top dimensions: 183 x 255 mm	6.23689
Jigsaw blade assortment 3 ■ For wood, metal and plastic ■ HCS saw blades/ HSS saw blades Consisting of 2 jigsaw blades each: 6.23634, 6.23633, 6.23646, 6.23637, 6.23638 Material suitability: Wood, Metal, Plastics Number of parts: 10	6.23600	New	Flexo 500 universal table ■ For the stationary use of Metabo jig saws, routers and circular saws (when using appropriate accessories) ■ With foldable stand and height adjustment ■ Sturdy steel construction and a large table top made from continuous strand casting	0910064304 @
Jigsaw blade assortment 4 ■ For wood ■ HCS saw blades Consisting of 10 saw blades 6.23633 and 6.23635 and 5 saw blades 6.23649 Material suitability: Wood Number of parts: 25	6.23698	New	Table width extension ■ Increases the supporting surface; ideal for large boards ■ Enables cuts with parallel guide of up to 610 mm ■ Height adjustable Suitable for: UK 333, UK 290, Flexo 500 Length: 674 mm Width: 501 mm	0910064401 @
Accessories		Order no.	Lubricating stick ■ For lubricating the jigsaw blades when sawing metal	6.23443
Guard plate ■ For fitting on the base plate of jigsaws. The guard plate protects sensitive workpiece surfaces from scratches	6.23664	New	3 chip break guard plates Suitable for: ST 50 Pendix, STE 70, STE 80 Quick	6.31208
Circle-cutting and parallel guide ■ For cutting circles of 0 100 to 0 360 mm and for cutting parallel to an edge (maximum distance from the edge 210 mm)	6.31340	New	3 chip break guard plates Suitable for: STE 100 Plus, STE 135, STE 135 Plus, STEB 135, STEB 135 Plus	6.23665
Guiding device ■ For using jigsaws in conjunction with the guide rail 6.31250/ 6.31213	6.31249	New	Suction hose With connector Ø 58 mm for bayonet fitting and rubber connector (internal Ø 30 mm, outside Ø 35 mm) Hose length: 3.5 m Suction hose Ø: 27 mm	6.31938
Precision guide rail ■ Clean-cut edges with no splintering thanks to the guide rail's plastic-extrusion strip edging - even with bevel cuts up to 45° ■ Guide rail made of sturdy, anodised Aluminium extrusion ■ Anti-slip backing provides safe and reliable support and protects the workpiece surface against scratches ■ Guide rule, adjustable to eliminate play Overall length: 1.500 mm	6.31213	New	Carry case For ST 50 Pendix, STE 70, STE 80 Quick	6.25450
METABO ■ Care case For STE 100 Plus, STE 105 Plus, STEB 105 Plus, STE 135, STE 135 Plus, STEB 135, STEB 135 Plus	6.25446		Metabox I for ST 50-STEB 135 For ST 50 Pendix, STE 70, STE 80 Quick, STE 100 Plus, STE 135 Plus, STEB 135 Plus Dimensions: 395 x 295 x 105 mm	6.24639

The features of the Metabo jig saw blades

Colour

The colour indicates for which material the blade is suited best.

Yellow for wood

Yellow with blue lettering for wood with nails

Blue for metal

Black for special applications

Basic blade material

HCS carbon steel, for cutting soft wood, hardboards, plastics

HSS High yielding high-speed steel, suitable for metal, aluminium work

BiM Bimetal especially flexible mix of HCS and HSS. The saw blades have a much higher life expectancy (bimetal) than HCS and HSS and have proven their worth when there is danger of shaft-breaking

HM Hard-Metal (carbide) applicable to stainless steels, glass, re-inforced plastic, plastics, gypsum plaster or cement fibre boards. Saw blades with HM-coating are suitable for cutting ceramic tiles

Quality class

classic< series good results and very good service life

professional< series fast, clean and precise angle-cutting with long service life

pionier< series cuts fast through all materials ("through thick & thin")

expert< series for special applications

Type

Teeth milled, offset for clearance gap A relative rough cut, fast progress in cutting on hard and soft wood, aluminium, NE-metals and plastics

Teeth milled,
waved for clearance
gap

A relative rough cut, fast progress in cutting hard and soft wood, aluminium, NE-metals and plastics

Teeth ground, offset for clearance gap

Fast cutting in hard and soft wood

Teeth ground, offset for clearance angle and clearance gap

Fine and clean cut in wood and plastics

Shank forms

The jig-saw blades from Metabo are produced to all shank forms matching the jig saws available from other brand names.

Jig saw blades with single lug bayonet shank

Suitable for Metabo, AEG, Atlas Copco, Black & Decker, Bosch, DeWalt, Elu, Festo, Hitachi, Holz-Her, Kress, Makita, Skil ...

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corresponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
23631 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards 2-15 mm, Plastics, Insulating material	Milled, Crimped	HCS	51	2,0 mm	T 119 B	5
23620 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards 2-15 mm, Plastics, Insulating material, Saw blade with insertion head	Milled, Crimped	HCS	66	1,9 - 2,3 mm/23-17 TPI/progressiv	T119B	5
23648 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 2-20 mm, Fibre boards 2-20 mm, Plastics, Insulating material, Especially for curved cuts	Milled, Crimped	HCS	51	2,0 mm	T 119 BO	5
							25
							25
							100
23632 HCS	Hardwood, Soft wood, Plastics, 4-50 mm, For quick, rough cuts	Milled, Crossed	HCS	74	3,0 mm	T 111 C	3
							5
							6.23632
							25
							6.23606
							6.23714
FOR WOOD, "PROFESSIONAL" SERIES
23633 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, For quick cuts	Ground, Crossed	HCS	74	4,0 mm	T 144 D	3
							5
							6.23633
							25
							100
23641 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, For quick cuts, Saw blade with insertion head	Ground, Crossed	HCS	74	4-5,2 mm/6-5 TPI/progressiv	T 144 D	5
							6.23921
							3
							6.23966
							5
							6.23649
							25
							6.23607
							100
23649 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, Especially for curved cuts	Ground, Crossed	HCS	74	4,0 mm	T 244 D	5
							6.23960
							5
							6.23678
							6.23603
23618 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, Especially for curved cuts, Saw blade with insertion head	Ground, Crossed	HCS	74	4-5,2 mm/6-5 TPI/progressiv	T 244 D	5
							5
							6.23678
							6.23603
							5
23617 HCS	Hardwood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards, For quick cuts	Ground, Crossed	HCS	126	4,0 mm	T 344 D	5
							6.23678
							6.23603
							5
23616	Hardwood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Constructional wood, Extra thick	Ground, Crossed	HCS	150	4,0 mm	T 744 D	5
							6.23603
							6.23603
Soft wood, Plywood, Plastics, 1.5-5 mm, Especially for curved cuts, For clean cuts	Clearance angle ground, Tapered	HCS	57	1,4 mm	T 101 AO	5	6.23651
						25	6.23624
2304 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	74	2,5 mm	T 101 B	3	6.23961
						5	6.23634
						25	6.23691
						100	6.23703
2305 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts, Saw blade with insertion head	Clearance angle ground, Teeth ground	HCS	74	2,7 mm/ 9 TPI	T 101 B	5	6.23969
2306 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Coated boards, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground, Reverse toothed	HCS	74	2,5 mm	T 101 BR	5	6.23650
						25	6.23608
						100	6.23705
2307 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood 10-45 mm, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	74	4,0 mm	T 101 D	3	6.23962
						5	6.23635
						25	6.23609
						100	6.23704
2308 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood 10-45 mm, Fibre boards 10-45 mm, For clean cuts, Saw blade with insertion head	Clearance angle ground, Teeth ground	HCS	74	4-5,2 mm/ 6-5 TPI/progressiv	T 101 D	5	6.23923
2309 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood 4-60 mm, Fibre boards 4-60 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	91	3,0 mm	T 301 CD	5	6.23654
2310 HCS Professional Holswood® metabo
Hard wood, Soft wood, Doors, Kitchen worktops 5-50 mm, For angle-precise cuts, Extra thick	Ground, Crossed	HCS	74	4,0 mm	T 144 DP	5	6.23694
2311 HCS Professional Holswood® metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-100 mm, Fibre boards 5-100 mm, For angle-precise cuts, Extra thick	Ground, Teeth ground	HCS	104	4,0 mm	T 344 DP	5	6.23679
2312 HCS Professional Holswood® metabo
Kitchen worktops, Hard wood 3-65 mm, Soft wood 3-65 mm, Doors, For angle-precise cuts, Extra thick	Clearance angle ground, Teeth ground	HCS	91	2,5 mm	T 301 BCP	5	6.23685
FOR WOOD, "PROFESSIONAL" SERIES, BIM
2313 HCS BIM
Hard wood, Soft wood, Coated boards, 5-50 mm, For quick cuts	Ground, Crossed	BiM	74	4,0 mm	T 144 DF	5	6.23976
2314 HCS BIM
Hard wood, Soft wood, Wood with nails, Coated boards, 5-50 mm, For quick cuts, Saw blade with insertion head	Ground, Crossed	BiM	74	4-5,2 mm/6-5 TPI/progressiv	T 144 DF	5	6.23933
2315 HCS BIM
Hard wood, Soft wood, Coated boards, 5-100 mm, For quick cuts	Ground, Crossed	BiM	126	4,0 mm	T 344 DF	5	6.23980
2348 BIM Professional/Hol wood metahe
Especially for laminate, Laminated flooring, Hard wood, Soft wood, Coated boards, Plywood, Especially for curved cuts, For clean cuts	Clearance angle ground, Teeth ground, Tapered	BiM	57	1,4 mm	T 101 AOF	5	6.23695
2348 BIM Professional/Hol wood metahe
Especially for laminate, Laminated flooring, Hard wood, Soft wood, Coated boards, Plastics, 2-30 mm, For clean cuts	Clearance angle ground, Teeth ground, Tapered	BiM	74	1,7 mm	T 101 AIF	5	6.23948
2348 BIM Professional/Hol wood metahe
Hard wood, Soft wood, Laminated flooring, Coated boards, Plastics, 3-30 mm, For clean cuts, Saw blade with insertion head	Clearance angle ground, Teeth ground	BiM	74	2,7 mm	T 101 BF	5	6.23975
2348 BIM Professional/Hol wood metahe
Especially for laminate, Laminated flooring, Kitchen worktops 3-30 mm, Coated boards, For clean cuts	Clearance angle ground, Teeth ground, Reverse toothed	BiM	74	2,5 mm	T 101 BRF	5	6.23686
2348 BIM Professional/Hol wood metahe
Hard wood, Soft wood, Coated boards, 4-60 mm	Clearance angle ground, Teeth ground	BiM	91	3,0 mm	T 301 CDF	5	6.23696
2347 BIM Professional/Hol wood metahe
Hard wood, Soft wood, Chipboards, Glued woods 5-80 mm, Fibre glass reinforced plastics, 5-30 mm, For quick cuts	Clearance angle ground, Teeth ground	BiM	105	3,0 mm	T 301 CLF	5	6.23977
2349 BIM Professional/Hol wood metahe
Hard wood, Soft wood, Wood with nails, Non-ferrous metals, Plastics	Ground	BiM	90	2,5 mm	T 111 HF	5	6.23949
FOR WOOD, "PIONEER" SERIES
2347 BIM Professional/Hol wood metahe
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, For quick cuts	Clearance angle ground, Teeth ground	HCS	91	2,0-3,0 mm, progressive	T 234 X	5	6.23675
						25	6.23617
UNIVERSAL, "PIONEER" SERIES
2347 BIM Professional/Hol wood metahe
Wood, Wood with nails, Metal, Non-ferrous metals, Plastics	Crossed, Milled	BiM	106	2,4-5,0 mm, progressive	T 345 XF	5	6.23677
						25	6.23621
FOR METAL, "CLASSIC" SERIES
2347 BIM Professional/Hol wood metahe
Sheet steel, 0.5-1.5 mm, Non-ferrous metals	Milled, Crimped	HSS	66	0,7 mm	T 118 G	3	6.23967
						5	6.23636
						25	6.23693
2347 BIM Professional/Hol wood metahe
Sheet steel, 1-3 mm, Non-ferrous metals	Milled, Crimped	HSS	51	1,2 mm	T 118 A	3	6.23965
						5	6.23637
						25	6.23692
						100	6.23706
2347 BIM Professional/Hol wood metahe
Sheet steel, 1-3 mm, Non-ferrous metals, Especially for curved cuts	Milled, Crimped	HSS	51	1,2 mm	T 218 A	5	6.23647
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	HSS	66	1,1-1,5 mm/23-17 TPI/progressiv	T 118 A	5	6.23924
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Non-ferrous metals, Especially for curved cuts, Saw blade with insertion head	Milled, Crimped	HSS	66	1,1-1,5 mm/23-17 TPI/progressiv	T 218 A	5	6.23926
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Non-ferrous metals, sandwich materials	Milled, Crimped	HSS	106	1,2 mm	T 318 A	5	6.23629
						25	6.23623
						100	6.23716
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	HSS	51	2,0 mm	T 118 B	5	6.23638
						25	6.23618
						100	6.23707
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	HSS	66	1,9-2,3 mm/13-11 TPI/progressiv	T 118 B	5	6.23925
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	HSS	106	2,0 mm	T 318 B	5	6.23697
FOR METAL, "PROFESSIONAL" SERIES
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Non-ferrous metals	Milled, Crimped	BiM	57	1,2 mm	T 118 AF	5	6.23971
						100	6.23708
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	BiM	66	1,1-1,5 mm/23-17 TPI/progressiv	T 118 AF	5	6.23950
2018 BIM Metal/Plated Metabo
Sheet steel, 1-3 mm, Sandwich materials 2-65 mm, Non-ferrous metals, Plexiglas	Milled, Crimped	BiM	106	1,1 mm	T 318 AF	5	6.23978
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Sandwich materials 2-65 mm, Non-ferrous metals, Plexiglas	Milled, Crimped	BiM	106	1,8 mm	T 318 BF	5	6.23979
2018 BIM Metal/Plated Metabo
Sheet steel, 1.5 4 mm, Especially for curved cuts	Milled, Crimped	BiM	57	1,5 mm	T 118 EOF	5	6.23970
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	BiM	57	2,0	T 118 BF	5	6.23973
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	BiM	66	1,9-2,3 mm/13-11 TPI/progressiv	T 118 BF	5	6.23929
2018 BIM Metal/Plated Metabo
Sheet steel, 2.5-6 mm, Sandwich materials 2-120 mm, Non-ferrous metals, Plexiglas	Milled, Crosssed	BiM	150	2,0 mm	T 718 BF	5	6.23604
2018 BIM Metal/Plated Metabo
Sheet steel, 2-5 mm, Non-ferrous metals	Milled, Crimped	BiM	50	1,5 mm	T 118 EF	5	6.23972
FOR METAL, "PIONEER" SERIES
23476 HBC >Pioner< Metalmetals> metabo
Sheet steel, 1.5-10 mm, Non-ferrous metals up to 30 mm	Milled, Crossed	HSS	74	1,4 - 2,6 mm, progressive	T 123 X	5	6.23676
						25	6.23620
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
2348 HBC >Pioner< Alu> metabo
Aluminium 3-15 mm, Non-ferrous metals 4-20 mm, Plastics, For quick cuts	Milled, Crossed	HSS	74	3,0 mm	T 127 D	5	6.23639
						25	6.23622
						100	6.23709
2348 HBC >Pioner< Alu> metabo
Aluminium 3-15 mm, Non-ferrous metals 4-20 mm, Especially for curved cuts	Milled, Crossed	HSS	74	3,0 mm	T 227 D	5	6.23648
23476 HBC >Pioner< Alu> metabo
Aluminium 3-15 mm, Non-ferrous metals 4-20 mm, Plastics, For quick cuts	Milled, Crossed	BiM	75	3,0 mm	T 127 DF	5	6.23974
FOR STAINLESS STEEL, "EXPERT" SERIES
2348 HBC >Pioner< Alu> metabo
Stainless steel sheets (Inox) 1-2 mm, Non-ferrous metals	Ground	carbide	57	1,1 mm	T 118 AHM	3	6.23662
2348 HBC >Pioner< Alu> metabo
Stainless steel sheets (Inox) 2-4 mm, Non-ferrous metals	Ground	carbide	57	1,4 mm	T 118 EHM	3	6.23663
FOR PLASTICS, "EXPERT" SERIES
23476 HBC >Pioner< Kunststoffplastics> metabo
Fibre glass reinforced plastics, Corian 4-60 mm	Ground	carbide	91	3,3 mm	T 301 CHM	3	6.23687
FOR GYPSUM CARTON/CEMENT MATERIALS, "EXPERT" SERIES
2348 HBC >Pioner< GYPSUM plaste> metabo
Gypsum plaster, Cement fibre boards 5-50 mm, Fibre glass reinforced plastics, 5-20 mm,	Ground	carbide	74	4,3 mm	T 141 HM	1	6.23652
2348 HBC >Pioner< GYPSUM plaste> metabo
Gypsum plaster, Cement fibre boards 5-80 mm, Fibre glass reinforced plastics, 5-50 mm,	Ground	carbide	106	4,3 mm	T 341 HM	1	6.23688
						3	6.23671
FOR PLEXIGLAS, "EXPERT" SERIES
2348 HBC >Pioner< Flexiglas> metabo
Flexiglas, Polycarbonate 2-20 mm, Non-ferrous metals 2-10 mm	Clearance angle ground, HSS Teeth ground	74	2,0 mm	T 101 A	5	6.23640
FOR SOFT MATERIALS, "EXPERT" SERIES
2348 HBC >Pioner< Karton/carton> metabo
Expanded polystyrene, Cardboard, Leather, Rubber, Carpet up to 50 mm	Knife-blade ground, Straight	HCS	74	T 113 A	5	6.23641
2348 HBC >Pioner< Karton/carton> metabo
Expanded polystyrene, Cardboard, Leather, Rubber, Carpet up to 50 mm	Knife-blade ground, Crimped	HCS	126	T 313 AW	3	6.23684
FOR CERAMIC MATERIALS, "EXPERT" SERIES
Ceramic, Glass, Fibre glass reinforced plastics, Cast iron	Coarse	Carbide, coated	76	-	T 130 Riff	1	6.23657
Ceramic, Glass, Fibre glass reinforced plastics, Cast iron	Fine	Carbide, coated	76	-	T 150 Riff	1	6.23658

Jig saw blades with Fein shank

Suitable for FEIN jig saws

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corresponds to Bosch type	Packing unit	Order no.
FOR WOOD, "PROFESSIONAL" SERIES
23952 >professional Metal/wood >metals
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-40 mm	Clearance angle ground, Teeth ground	HCS	60	3,0 mm	F 1 C	5	6.23992
23953 >professional Metal/wood >metals
Hard wood, Soft wood, Wood-core plywood, Fibre boards 10-40 mm	Clearance angle ground, Teeth ground	HCS	60	4,0 mm	F 1 D	5	6.23993
FOR METAL, "CLASSIC" SERIES
23956 >classic < Metal/metal >metals
Sheet steel, 0.5-1.5 mm	Milled, Crimped	HSS	50	0,7 mm	F 18 G	5	6.23996
FOR METAL, "PROFESSIONAL" SERIES
23954 >professional Metal/metal >metals
Sheet steel, 1-3 mm	Milled, Crimped	BiM	60	1,2 mm	F 18 AF	5	6.23994
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
23957 >supercr. Au >xxxxxxxxxxxxxxxxxx >metals
Aluminium, Non-ferrous metals 3-15 mm, Pipes up to 30 mm, Profiles up to 30 mm	Milled, Crossed	BiM	75	3,0 mm	F 127 DF	5	6.23997

Jig saw blades with universal shank

Suitable for Black & Decker, Skil, Kress and others

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corre-sponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
z2044 # Professional/Holz/wood /metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm, For clean cuts	Milled, Crossed	HCS	74	3,0 mm	U 111 C	5	6.23945
FOR WOOD, "PROFESSIONAL" SERIES
z2044 # Professional/Holz/wood /metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm	Ground, Crossed	HCS	82	4,0 mm	U 144 D	5	6.23944
z2044 # Professional/Holz/wood /metabo
Hard wood, Soft wood, Plywood, Coated boards, 1.5-15 mm, Especially for curved cuts	Clearance angle ground, Tapered	HCS	52	1,3 mm	U 1 AO	5	6.23936
z2044 # >professional< Holz/wood >metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	82	2,5 mm	U 101 B	5	6.23943
z2044 # >professional< Holz/wood >metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	82	4,0 mm	U 101 D	5	6.23942
FOR WOOD, "PROFESSIONAL" SERIES, BIM
mm >professional Hols/wood metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm, For quick cuts	Ground, Crossed	BiM	74	4,0 mm	U 144 DF	5	6.23904
mm >professional Hols/wood metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 3-30 mm, Coated boards, For clean cuts	Clearance angle ground, Teeth ground	BiM	82	2,5 mm	U 101 BF	5	6.23905
FOR WOOD, "PIONEER" SERIES
mm >pioneer Hols/wood metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 2-65 mm, For quick cuts	Clearance angle ground, Teeth ground	HCS	90	2,0-3,0 mm, progressive	U 234 X	5	6.23903
FOR WOOD AND METAL, "PIONEER" SERIES
mm >pioneer Hols/wood metabo
Wood, Wood with nails, Metal, Non-ferrous metals, Plastics	Milled, Crossed	BiM	107	2,4 - 5,0 mm, progressive	U 345 XF	5	6.23906
FOR METAL, "CLASSIC" SERIES
mm >pioneer Metal meet meta
Sheet steel, 0.5-1.5 mm	Milled, Crimped	HSS	52	0,7 mm	U 118 G	5	6.23938
mm >pioneer Metal meet meta
Sheet steel, 1-3 mm	Milled, Crimped	HSS	52	1,2 mm	U 118 A	5	6.23941
mm >pioneer Metal meet meta
Sheet steel, 2.5-6 mm	Milled, Crimped	HSS	52	2,0 mm	U 118 B	5	6.23940
FOR METAL, "PROFESSIONAL" SERIES
mm >pioneer Metal meet meta
Sheet steel, 1-3 mm	Milled, Crimped	BiM	52	1,2 mm	U 118 AF	5	6.23907
mm >pioneer Metal meet meta
Sheet steel, 2.5-6 mm	Milled, Crimped	BiM	74	2,0 mm	U 118 BF	5	6.23937
FOR METAL, "PIONEER" SERIES
mm >pioneer Metal meet meta
Sheet steel, 1.5-10 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	74	1,2 - 2,6 mm, progressive	U 123 X	5	6.23909
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
mm >experts Alu >metabo
Aluminium, Non-ferrous metals 3-15 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	74	3,0 mm	U 127 D	5	6.23939

Jig saw blades with Makita shank
Suitable for Makita jigsaws

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corres-ponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
Soft wood, Plywood, Chipboards, Wood-core plywood, Fibre boards 3-15 mm, Especially for curved cuts	Milled, Crossed	HCS	62	2,5 mm	MA 119 HO	5	6.23958
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 4-50 mm, For rough cuts	Milled, Crossed	HCS	62	3,0 mm	MA 111 C	5	6.23955
FOR WOOD, "PROFESSIONAL" SERIES
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 4-50 mm, For quick cuts	Ground, Milled	HCS	82	3,0 mm	MA 144 CD	5	6.23919
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	62	2,7 mm	MA 101 BC	5	6.23959
FOR WOOD, "PIONEER" SERIES
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 2-65 mm, For quick cuts, For clean cuts	Clearance angle ground, Teeth ground	HCS	92	progressiv, 2,0-3,0 mm	MA 234 X	5	6.23911
FOR WOOD AND METAL, "PIONEER" SERIES
Wood, up to 65 mm, Wood with nails, Metal sheets, Pipes, Aluminium, Plastics, 3-10 mm	Milled, Crossed	BiM	102	progressiv, 2,5-5,0 mm	MA 345 XF	5	6.23912
FOR METAL, "CLASSIC" SERIES
Sheet steel, 1-3 mm	Milled, Crimped	HSS	62	1,0 mm	MA 118 A	5	6.23957
Sheet steel, 2.5-6 mm	Milled, Crimped	HSS	62	1,8 mm	MA 118 B	5	6.23956
FOR METAL, "PROFESSIONAL" SERIES
Sheet steel, 1-3 mm	Milled, Crimped	BiM	62	1,0 mm	MA 118 AF	5	6.23916
Sheet steel, 2.5-6 mm	Milled, Crimped	BiM	62	1,8 mm	MA 118 BF	5	6.23917
FOR METAL, "PIONEER" SERIES
Sheet steel, 1-10 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	77	progressiv, 1,0-2,6 mm	MA 123 X	5	6.23914
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
Aluminium, Non-ferrous metals 3-15 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	62	3,0 mm	MA 127 D	5	6.23918
