USER MANUAL TX-NR5009 ONKYO

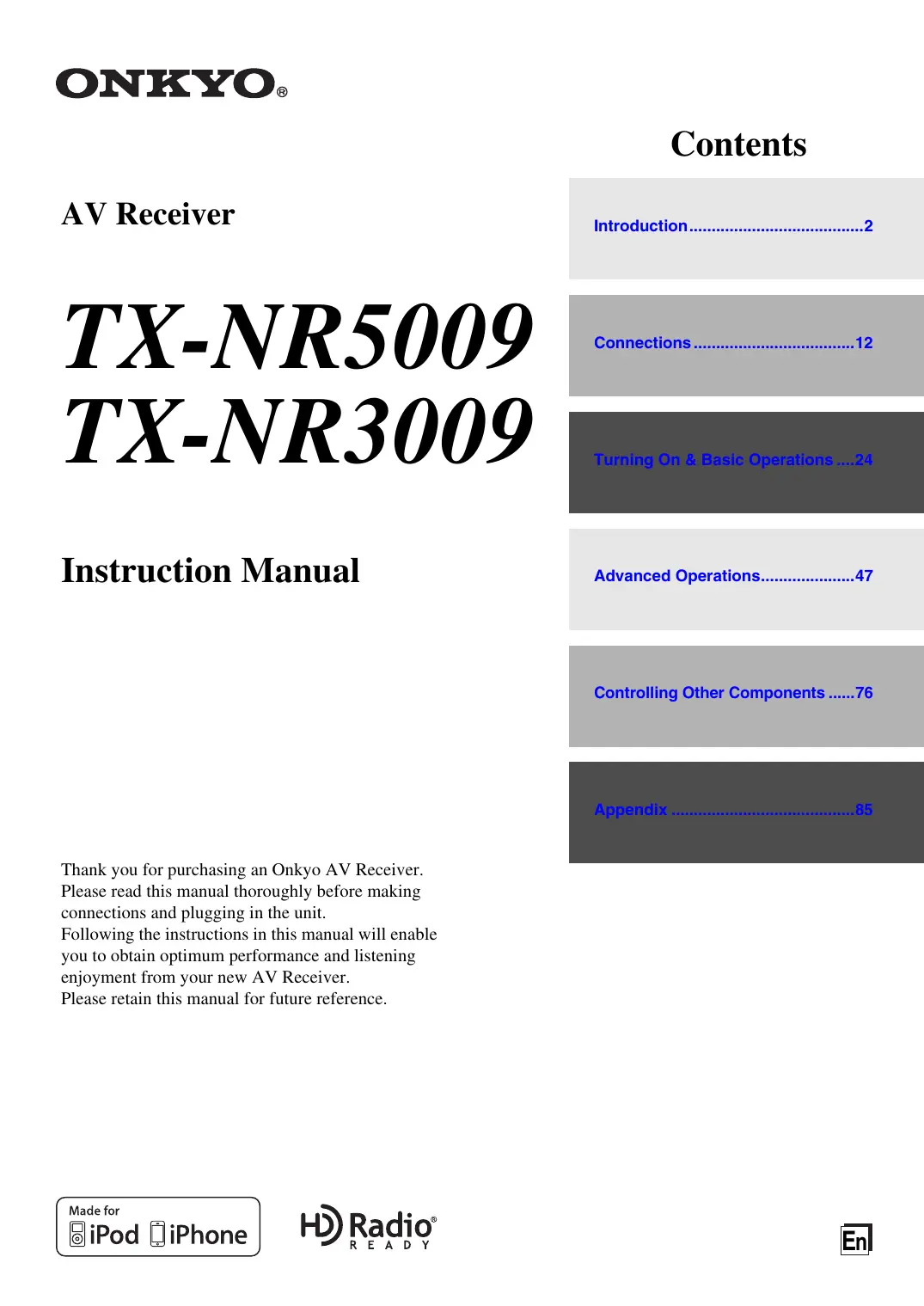

Contents AV Receiver

TX-NR5009 El" TX-NR3009

Advanced Operations.

Controlling Other Components ….… 76

Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.

Please retain this manual for future reference.

RISK OF ELECTRI DO HOT 0

The lighining flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the Â\ presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient

magnitude 10 constitute a risk of electric shock 10 persons.

The exclamation point within an equilateral triangle is intended 10 alert the user to the presence of important

 operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Important Safety Instructions

. Read these instructions.

Keep these instructions. Heed all warnings.

. Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth. … Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

.. Do not defeat the safety purpose of the polarized or

grounding-type plug. À polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the apparatus,

C. If the apparatus has been exposed to rain or water,

D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. Ifthe apparatus has been dropped or damaged in any way, and

F. When the apparatus exhibits a distinct change in performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.

Don't put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.

Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons: Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY!] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes +_If you need to transport this unit, use the original

packaging to pack it how it was when you originally

Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the

+ This units top and rear panels may get warm after prolonged use. This is normal.

+_If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

FCC Information for User

The user changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

+ Reorient or relocate the receiving antenna.

+ Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

+ Consult the dealer or an experienced radio/TV technician for help.

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral

Brown: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

Ifthe power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, ENS5020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY K. MIYAGI ONKYO EUROPE ELECTRONICS GmbH Supplied Accessories

Make sure you have the following accessories:

Speaker setup microphone (> page 33)

Remote controller (RC-812M) and two batteries (AAIR6)

* In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

Binstalling the batteries

+ If the remote controller doesn't work reliably, uy replacing the batteries.

+ Don’t mix new and old batteries or different types of batteries.

+ If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

+ Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

B Aiming the remote controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Remote control sensor

Approx. 16 ft. (5 m)

Transmitter AV receiver

Approx. 16 ft. (5 m)

Important Safety Instructions Precautions. Supplied Accessories

Front & Rear Panel Front Panel. Display. Rear Panel …

Remote Controlle: Controlling the AV Receiver .

2180mœoumRwnR Connections

Connecting the AV Receiver. Connecting Your Speakers About AV Connections . Connecting Components with HDMI . Connecting Your Components … Connecting Onkyo RI Components . Connecting a Recording Component Connecting the Antennas … Connecting the Power Cord .

Turning On/Off the AV Receiver . Turing On . Tuning Off.

Playback. Selecting the Language for

the Onscreen Setup Menus. Playing the Connected Component Controlling Contents of USB or Network Devices Understanding Icons on the Displa\ Playing an iPod/iPhone via USB Playing a USB Device Listening to Internet Radio Playing Music Files on a Server . Remote Playback . Listening to AM/FM Radio .

Using Basic Functions Using the Automatic Speaker Setup . Using the Listening Modes Using the Home Menu Using the Sleep Timer Setting the Display Brightness Displaying Source Information Changing the Input Display … Using the Whole House Mode. Selecting Speaker Layout . Muting the AV Receiver. Using Headphone! Using Easy Macros . Recording

About HDMI Network/USB Features. Specifications (TX-NR5009 Specifications (TX-NR3009

On-screen Setup Menus. Common Procedures in Setup Menu Input/Output Assign Speaker Setup Audio Adjust Source Setup. Listening Mode Preset Miscellaneous Hardware Setup Remote Controller Setup Lock Setup. Using the Audio Settings

Making Multi Zone Connections .

Controling Zone 2/3 Components.

Using the Remote Controller in Zone and Multiroom Control Kits …

Controlling Other Components

Using the Onkyo Dock: Controlling Your iPod/iPhone

Preprogrammed Remote Control Codes . Looking up for Remote Control Code Entering Remote Control Codes. Remote Control Codes for Onkyo Components

Connected via I Resetting REMOTE MODE Buttons . Resetting the Remote Controller Controlling Other Components Learning Commandk Using Normal Macros .

le TV, Player, or Recorder.

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press LON/STANDBY (> page 85).

(TX-NR5009) + 145 Watts/Channel @ 8 ohms (FTC)

+ 220 Watts/Channel @ 6 ohms (IEC)

+ 280 Watts/Channel @ 6 ohms (JEITA) (TX-NR3009)

+ 140 Watts/Channel @ 8 ohms (FTC)

+ 200 Watts/Channel @ 6 ohms (IEC)

+ 250 Watts/Channel @ 6 ohms (JEITA)

+ WRAT-Wide Range Amplifier Technology (5 Hz to 100 kHz bandwidth)

+ Linear Optimum Gain Volume Cireuitry

+ 3 Stage Inverted Darlington Amplifier Design

+ (TX-NR5009) Massive Toroidal Transformer

+ (TX-NR3009) Massive Transformer

+ (TX-NR3009) 192 kHz/24-Bit D/A Converters

+ Powerful and Highly Accurate 32-bit Processing DSP

+ Jitter Cleaning Circuit Technology

+ DSD Direct for Super Audio CD

+ (TX-NR5009) Gold-plated, color-coded, transparent speaker posts

* Services available may vary depending on the region.

+ 2 Independent Subwoofer Pre Outs

+ Network Capability for Streaming Audio Files*13

+2 USB Inputs’ (Front/Rear) for Memory Devices and iPod®/iPhone®*10 models (Enables Display of Album Artwork)

* Only front-panel USB input is compatible with iPod/iPhone.

+ Audyssey MultEQ® XT3277 to correct room acoustic problems

+ Audyssey Dynamic EQ®7 for loudness correction

+ Audyssey Dynamic Volume®7 to maintain optimal listening level and dynamic range

+ On-Screen Display via HDMI

+ Bi-Directional Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

+ ISF (Imaging Science Foundation) Video Calibration

+ VLSC“14 (Vector Linear Shaping Cireuitry) for All Channels

THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. AI rights reserved.

Before any home theater component can be

THX Ultra? Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra? Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra? Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra? Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

“2 Qdeo and QuietVideo are trademarks of Marvell or its affiliates.

‘3 HQV® (Hollywood Quality Video) is registered trademark of IDT, inc.

“4 #x.v.Color” is a trademark of Sony Corporation.

5 Sdtsui Sdts Master Audio Neo:X Manufactured under license under U.S. Patent Nos: 5.956.674; 5,974,380; 6.226.616: 6.487,535; 7,212.,872; 7,333,929: 7,392,195; 7,272,567: 7.003.467; 7,283,634 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, and DTS + the Symbol together are registered trademarks & the DTS logos are trademarks of DTS, Inc Product includes software. © DTS, Inc. All Rights Reserved.

5 noi sif{ RUE] ]DOLEY “PROLOGICIz | VOLUME |

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround EX and the double-D symbol are trademarks of Dolby Laboratories.

MULTEG XT€D AUDYSSEY Manufactured under license from Audyssey Laboratories TM, Inc. U.S. and foreign patents pending. sey MultEQ® XT32, Audyssey Dynamic EQ®, sey Dynamic Volume® and Audyssey DSXTM are registered trademarks and trademark of Audyssey Laboratories, Inc. 8 Music Optimizer"" is a trademark of Onkyo Corporation.

9 e Homiï “HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.”

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

HD Radio!M, HD Radio Ready!" and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation.

This HD Radio Ready" receiver is ready to receive

HD Radio broadcasts when connected to the Onkyo UP-HTI HD Radio tuner module (sold separately).

12 In Europe, using banana plugs to connect speakers 10 an audio

amplifier is prohibited.

“13 “DLNA®, the DLNA Logo and DLNA CERTIFIEDIM are

trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

“13 Windows and the Windows logo are trademarks of the

Microsoft group of companies.

"VLSC VLSCTM is a trademark of Onkyo Corporation.

* “Xantech” is a registered trademark of Xantech Corporation. * “Niles” is a registered trademark of Niles Audio Corporation.

* Re-Equalization and the “Re-EQ" logo are trademarks of THX Lid.

* This item incorporates copy protection technology that is

protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

(North American models)

@ Remote control sensor and transmitter (4)

@ MASTER VOLUME control and indicator (25) @ HDMI THRU indicator (66)

@ PURE AUDIO button and indicator (36)

@ Input selector buttons and indicators (25)

Front flap Gently push on the lower end of the front panel to open the flap.

ZONE 2, ZONE 3, and OFF buttons (73) @ TONE and Tone Level buttons (69)

@ MONITOR OUT button (48)

@ DISPLAY button (44)

& AUX INPUT jacks (19, 20)

@ ©POWER button (European and Asian models) (24)

@ RT/PTY/TP button (European and Asian models) (32)

For detailed information, see the pages in parentheses.

@ Speaker/channel indicators @ Z2 (Zone 2) indicator (73) © A and B speaker indicators (14) @ Z3 (Zone 3) indicator (73) ® Listening mode and format indicators (36, 70) © »-,11 and cursor indicators (25) @ NET indicator (27, 67) Tuning indicators RDS indicator (excluding North American models) (81) AUTO indicator (30) TUNED indicator (30) FM STEREO indicator (30)

@ Headphone indicator (45)

@ SLEEP indicator (43, 63)

Illustration based on TX-NR5009.

LD b (E) @ @ UNIVERSAL PORT jack @ IR IN and OUT jacks © DIGITAL IN COAXIAL and OPTICAL jacks @ USB port ® ETHERNET port © RI REMOTE CONTROL jack

@ RS232 port Terminal for control.

HDMI IN and HDMI output (HDMI OUT MAIN and HDMI OUT SUB) jacks

© MONITOR OUT V and S jacks

@ FM ANTENNA jack and AM ANTENNA terminal AC INLET

@ ZONE 2 and ZONE 3 12V TRIGGER OUT jacks

@ Composite, S-Video and analog audio jacks (BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, PC IN, TV/CD IN and PHONO IN)

See “Connecting the AV Receiver” for connection @ pages 12 to 23).

Controlling the AV Receiver

To control the AV receiver, press RECEIVER to select Receiver mode.

You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components.

See “Entering Remote Control Codes” for more

@ SP LAYOUT button (45)

@ Listening Mode buttons (36) DIMMER button (44)

© VOL 4/Y button (25)

You can select AM or FM by pressing TUNER repeatedly.

© CH +/- button (31)

© Number buttons (31)

When you want to change the remote controller mode (target component) without changing the current input source, press MODE and within about 8 seconds, press REMOTE MODE. Then, using the same AV receiver’s remote controller, you can control the component corresponding to the button you pressed

These buttons can also be used when a REMOTE MODE other than Receiver mode is selected. (Pressing HOME switches to Receiver mode.)

Connecting the AV Receiver

Connecting Your Speakers

Connecting the Speaker Cables

M9.2-channel Playback The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.

Front high Front wide Front wide Front high right right Front right Front left left left Center è œ le le É lé ® lé a le a eo :

Surround Surround Surround Surround right back right back left left

E Screw-type speaker terminals

Sup 1/2" to 5/8" (12 to 15 mm) of insulation from 412 to 5/8" (12 to 15 mm) the ends of the speaker cables, and twist the bare HA V4

wires tightly, as shown. = » À

RULES B Banana Plugs (North American models) + If you are using banana plugs, tighten the speaker terminal before inserting the banana plug. + Do not insert the speaker code directly into the center hole of the speaker terminal.

Speaker Configuration

Speaker Connection Precautions

The following table indicates the channels you should use depending on the number of speakers that you have.

No matter how many speakers you use, 2 powered subwoofers are recommended for a really powerful and solid bass.

To get the best from your surround sound system, you need to set the speaker settings automatically

( page 33) or manually (> page 51).

Numberof |[21314/5/6.77/7/8/8 90/9/1011 speakers

Front spakers |” Center AU speaker

Surround AL speakers

Surround back v vv v speaker!

Surround back 2 vv v speakers

Front high RETZ speakers

Front wide ri LU speakers

“If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.

Attaching the Speaker Cable Labels

The speaker terminals are color-coded for identification purpose.

Speaker Color Front left, Front high left, Front wide left, White Zone 2 left

Front right, Front high right, Front wide right, |Red Zone 2 right

Center Green Surround left Blue Surround right Gray Surround back left, Zone 3 left Brown Surround back right, Zone 3 right Tan

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the table above. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

Read the following before connecting your speakers:

+ You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure 10 set the minimum speaker impedance to “dohms”

( page 51). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.

+ Disconnect the power cord from the wall outlet before making any connections.

+ Read the instructions supplied with your speakers.

+ Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (—) terminals only to negative (—) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

+ Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

+ Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

+ Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

+ Don't connect more than one cable to each speaker terminal, Doing so may damage the AV receiver. + Don't connect one speaker to several terminals.

About Speakers A and Speakers B Installing Speakers A and Speakers B allows you to enjoy up to 7.2-channel surround-sound playback from each speaker configuration. Each configuration has its own pair of stereo front speakers and can use the same subwoofer, center, surround, front high, and surround back speakers, as required. You could, for example, use Speakers À when watching a DVD movie with 7.2-channels surround sound and use Speakers B for serious music listening with a pair of stereo speakers (2-channels).

Speakers A and Speakers B can be wired normally or bi-amped, but cannot be bi-amped at the same time. For example, if Speakers B are bi-amped, Speakers A can only be wired normally.

+ “Speaker Settings” (> page 51)

+ “Speaker Configuration” (> page 52)

+ “Selecting Speaker Layout” (> page 45) The versatility offered by the Speakers A and Speakers B configurations means you can configure the AV receiver to suit your exact requirements and application. Two typical applications are shown below.

Speakers A: 7.2-channel playback E Speakers A: 5.2-channel playback Speakers B: Stereo playback Speakers B: 2.1-channel playback with bi-amped In this example, Speakers À provides 7.2-channel front speakers surround sound for enjoying DVD movies, while In this example, Speakers À provides 5.2-channel Speakers B is used for serious music listening with a pair surround sound for enjoying DVD movies, while of top-quality stereo speakers. Speakers B is bi-amped for use with a pair of bi-amp

capable speakers. Subwoofer 1 is used with Speakers À and Speakers B.

Speakers B EL Speakers À

Surround Surround ue

Front High NeUse Front Hi Nous Surround Back NotUse Surround Back NetUse

+ You cannot set speaker impedance individually for Speakers A and Speakers B.

27.2-channel Playback with Speakers A or Speakers B The following illustration shows how to connect the speakers for up to 7.2-channel playback with Speakers A or Speakers B. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.

Front B right Front A right Front A left Front B left Center

Surround Front high Surround Surround Front high Surround right right back right back left left left

+ The speakers are configured by using the “Speaker Setup” setting ( page 51) + You can choose which speakers you want to use with Speakers À or Speakers B (> page 45).

Using Dipole Speakers

You can use dipole speakers for the surround and surround back speakers. Dipole = I speakers output the same sound in two directions. © È Dipole speakers typically have an arrow printed on them to indicate how they should be | C2 LTVEcreen [ C7 positioned, The surround dipole speakers (a) should be positioned so that their arrows CO0CE point toward the TV/screen, while the surround back dipole speakers (b) should be È ë ë & Ë positioned so that their arrows point toward each other, as shown.

Using Powered Subwoofers

To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results. You can connect the powered subwoofers with SW1 PRE OUT and SW2 PRE OUT respectively.

The level and distance can be set individually for each output.

If you’re using only one subwoofer, connect it to SW1 PRE OUT. Tip

+ If your subwoofer is unpowered and you”re using an external amplifier, connect the subwoofer pre out jack to an input on the amplifier.

Bi-amping the Front Speakers

1/3 of wall position

+ When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

+ Bi-amping can be used only with speakers that support bi- amping. Refer to your speaker manual.

Bi-amping provides improved bass and treble performance.

When bi-amping is used, the AV receiver is able to drive up to a 7.2 speaker system in the main room.

Once you’ve completed the bi-amping connections as shown and turned on the AV receiver, you must set the speaker setting to enable bi-amping (> page 51).

+ Speakers À and Speakers B can be wired normally or bi-amped, but cannot be bi-amped at the same time.

E Speakers A Tiveeter (high) LE Woofer (low) _Î| Ea œ|

Front A right Front A left

= Speakers B M Tweeter (high) —U:

Front B right Front B left

Connecting a Power Amplifier

If you want to use a more powerful power amplifier, you can use the AV receiver as a preamp. Connect all speaker outputs to the power amplifier. See the manuals supplied with your amplifier for details.

“1 Specify “None” for any channel that you dont want 10 output @ page 52).

About AV Connections

Connecting AV components

HDMI cable —: Video & Audio Other cables —: Video : Audio

AV receiver AV receiver

Blu-ray Disc/ Blu-ray Disc/

y À |[—— y ÇA DVD player DVD player TV, projectoi Game console | TV: Projector, etc. Game console

+ Before making any AV connections, read the manuals supplied with your AV components.

+ Don’t connect the power cord until you” ve completed and double-checked all AV connections.

+ Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

+ To prevent interference, keep audio and video cables away from power cords and speaker cables.

AV Cables and Jacks Signal Cable Jack Description Video and HDMI sou HDMI connections can carry digital video and audio. Audio Video Component video ÿ Component video separates the luminance (Y) and color difference signals (PB, PR), providing the best picture PB quality (some TV manufacturers label their component Pa video sockets slightly differentiy). Analog RGB This is a conventional analog interface to connect a PC and Η a display device (also called D-Sub or D-subminiature). S-Video S-Video separates the luminance from color signals and

provides better picture quality than composite video.

Composite video Composite video is commonly used on TVs, VERS, and

other video equipment.

Audio Optical digital audio

Optical digital connections allow you to enjoy digital sound such as PCM”, Dolby Digital or DTS. The audio quality is the same as coaxial.

Coaxial digital D—— Coaxial digital connections allow you to enjoy digital audio sound such as PCM”, Dolby Digital or DTS. The audio Le quality is the same as optical

Analog audio — : White Analog audio connections (RCA) carry analog audio.

Multichannel = This cable carries multichannel analog audio and is

analog audio typically used to connect DVD players with a 7.1-channel

(RCA) analog audio output. Several standard analog audio cables en can be used instead of a multichannel cable.

* Available sampling rate for PCM input signal (stereo/mono) is 32/44.1/48/88.2/96 kHz. In case of an HDMI connection, 176.4/192 KHz is also available.

+ The AV receiver does not support SCART plugs. + The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it's removed. Push plugs in all the way.

+ To prevent shutter damage, hold the optical plug straight when inserting and removing.

Connecting Components with HDMI VCR or DVD recorder/Digital Video Recorder

=——— TV, projector, etc.

Personal computer = =]

Blu-ray Disc/DVD player

Satellite/cable set-top box, etc.

Connect your components to the appropriate jacks. The default input assignments are shown below. V': Assignment can be changed (> page 49).

Jack Components Assignable

Input HDMI IN 1 Blu-ray Disc/DVD player v HDMI IN 2 VCR or DVD recorder/Digital Video Recorder v HDMI IN 3 Satellite/cable set-top box, etc. v HDMI IN 4 Game console v HDMI IN 5 Personal computer v HDMI IN 6 Other components v HDMI IN 7 Other components v AUX INPUT HDMI |Camcorder

Output HDMI OUT MAIN [TV HDMI OUT SUB projector, etc.

the TV/CD input selector is selected, and — “HDMI Control(RIHD)" is

+ To listen to audio received by the HDMI IN jacks through your TV's — Set the “HDMI Control(RIHD)” setting to “On” (> page 66) for an FIHD-compatible TV.

— Set the “Audio TV Out” setting to “On” (> page 66) when the TV is not compatible with FUHD, or the “HDMI Control(RIHD)" — Set your Blu-ray Di

+ When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set 10 another input source, this may result in no sound from the AV receiver or the sound may be cut off.

+ As the “Audio TV Out” setting is set 10 “On” ( page 66) to hear from your TV speakers, the sound will also be output from the AV

DVD player's HDMI audio output setting to PCM.

receivers speakers if you adjust the volume of the AV receiver. Similarly, as the “HDMI Control(RIHD)" setting is set to “On” € page 66) to hear from the speakers of an FRIHID -compatible TV, the AV receiver

speakers will produce sound if you adjust the volume of the AV receiver, while the TV speakers will be muted. To stop the AV receiver’s speakers from producing sound, you can either change the settings on the AV receiver or on the TV, or turn down the volume of the AV receiver.

Connecting Your Components

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV recciver’s display when changing settings.

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection Tips and Video Signal Path” for more information (> page 94).

Assignment can be changed (> page 50).

Jack/Port Components Assignable USB2 iPod/Phone, MP3 player, USB flash drive USB, AUX INPUT VIDEO iPod/Phone (video playback) AUXINPUT [VIDEO Camcorder, etc. AUDIO LR DIGITAL UNIVERSAL PORT Universal port option dock (UP-AI etc.) DIGITALIN [COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player v 2(VCR/DVR) | VCR or DVD recorder/digital video recorder, RI_ |# dock 3(CBL/SAT) |Satellite/cable set-top box, RI dock, etc. v OPTICAL 1 (GAME) Game console v 2(TV/CD) TV. CD player v 31 Other components v USB2 MP3 player, USB flash drive ETHERNET Router

No._|Jack/Port Components Assignable MONITOR OUT TV, projector, etc. BD/DVD IN Blu-ray Disc/DVD player VCR/DVR IN VCR or DVD recorder/digital video recorder, RI dock CBL/SATIN Satellite/cable set-top box, etc. GAMEIN Game console, RI dock PCIN Personal computer TV/CDIN TV, CD player, cassette tape deck, MD, CD-R, Turntable‘8, RI dock PHONO IN Turntable'3 &] |COMPONENT IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock v VIDEO IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. v IN 3 (GAME) Game console v MONITOR OUT TV, projector, etc. PC IN4 Personal computer MULTI CH (Multichannel input" DVD player, DVD-Audio, Super Audio CD- v capable player, MPEG decorder

2 Do not connect the AV receiver’s USB port 10 a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way.

3 Connect a turntable (MM) that has a built-in phono preamp to TV/CD IN, or connect it to PHONO IN with the phono preamp turned off. If your turntable (MM) doesn't have a phono preamp, connect it to PHONO IN. If your turntable has a moving coil (MC) type cartridge, you’Il need a commercially available MC head amp or MC transformer to connect 10 PHONO IN. See your turntable’s manual for details.

If your turntable has a ground wire, connect it to the AV receiver's GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

“4 When you connect your personal computer to PC IN and select the PC input selector, the video of the personal computer is output from the HDMI outputs. However, if you have assigned the HDMI inputs to the PC input selector, the AV receiver will output signals received from the HDMI inputs instead of signals from PC IN, based on the priority order of HDMI > component video > PC IN (analog RGB). To have the signals output from PC IN, select “- for “PC” in the “HDMI Input” setting (> page 49).

“5 Before using the multichannel input, you must assign it 10 an input selector. See “Analog Audio Input” (> page 50) for details. To select the multichannel input, see “Audio Selector” (> page 63). To adjust the subwoofer sensitivity of the multichannel input, see “Subwoofer Input Sensitivity” (> page 51).

+ With connection [5], you can enjoy Dolby Digital and DTS. (To record or listen the audio in Zone 2/3 as well, use [5]

and [8].) + With connection [8], you can listen to and record audio from external components while you are in Zone 2/3.

+ With connection [8] if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect to the main stereo.

BHow to record a video source With the connections described above, you cannot record the videos through the AV receiver. See “Recording” about connections for video recording (> page 46).

Connecting Onkyo RI Components

1 Make sure that each Onkyo component is connected with an analog audio cable (connection in the hookup examples) (> page 20).

2 Make the RI connection (see the illustration).

3 If you’re using an RI Dock or cassette tape deck, change the Input Display ( page 44).

With RI (Remote Interactive), you can use the following special functions:

B Auto Power On When you start playback on a component connected via RL while the AV receiver is on Standby, the AV receiver will automatically turn on and select that component as the input source.

Direct Change When playback is started on a component connected via RL the AV receiver automatically selects that component as the input source.

BE System Off When you turn off the AV receiver, the components turn off automatically.

B Remote Control You can use the AV receiver’s remote controller to control your other RI-capable Onkyo components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first @ page 81).

® e.g., CD player RI Dock

+ Use only RI cables for RI connections. I cables are supplied with Onkyo components.

+ Some components have two FRI jacks. You can connect either one to the AV receiver. The other jack is for connecting additional RI-capable components.

+ Connect only Onkyo components to FI jacks. Connecting other manufacturer’s components may cause a malfunction.

+ Some components may not support all I functions. Refer to the manuals supplied with your Onkyo components.

+ While Zone 2/3 is on, the System Off, Auto Power On and Direct Change RI functions do not work

Connecting a Recording Component

See “Recording” for details on recording (> page 46).

VCR, DVD recorder, cassette tape deck, CDR, MD recorder, etc.

+ The AV receiver must be turned on for recording. Recording is not possible while it's in standby mode.

If you want to record directly from your TV or playback VCR 10 the recording VCR without going through the AV receiver, connect the TV/VCR's audio and video outputs directly to the recording VCR's audio and video inputs. See the manuals supplied with your TV and VCR for details.

+ Video signals connected to composite video inputs can be recorded only via composite video outputs. For example, if your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

The surround sound and DSP listening modes cannot be recorded

+ Copy-protected Blu-ray Discs and DVDs cannot be recorded.

+ Sources connected 10 a digital input cannot be recorded. Only analog inputs can be recorded

DTS signals will be recorded as noise, so don't attempt analog recording of DTS CDs or LDs.

While the listening mode is set to Pure Audio, the video circuitry is turned off and therefore no video signals are processed. If you want 10 make recordings, select another listening mode.

Connecting the Antennas

This section explains how to connect the supplied indoor FM antenna and AM loop antenna.

The AV receiver won't pick up any radio signals without any antenna connected, so you must connect the antenna to use

North American models su European and Asian

e) models > LS > | fs Lo s = Insert the plug fully

Insert the plug fully into the jack into the jack. Push. Insert wire. Release.

+ Be careful not to injure yourself when using thumbtacks.

Assembling the AM loop antenna

œ : © Q V Indoor FM antenna (supplied) AM loop antenna (suppled)

+ Once your AV receiver is ready for use, you’Il need to tune into a radio station and position the antenna to achieve the best possible reception. + Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

+ If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

+ If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Connecting the Power Cord

1 Connect the supplied power cord to the AV FNote | receiver’s AC INLET.

+ Before connecting the power cord, connect all of your speakers and AV components. + Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. I this is a problem, plug the AV receiver into a different branch circuit Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

2 Plug the power cord into an AC wall outlet.

Turning On/Off the AV Receiver

(North American models) (Œuropean and Asian models)

OON/STANDBY OON/STANDBY GRECEIVER —}<©)

1 Œuropean and Asian models) Set OPOWER to the ON position (a) on the front panel. The AV receiver enters standby mode.

2 Press OON/STANDBY on the front panel.

Press RECEIVER followed by RECEIVER on the remote controller. The AV receiver comes on, the display lights.

1 Press OON/STANDBY on the front panel. or Press RECEIVER followed by ORECEIVER on the remote controller.

The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

Œuropean and Asian models) To completely shut down the AV receiver, set OPOWER to the OFF position (æ).

Tip + For details on power management setting:

ee “Auto Standby” (> page 67)

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV recciver’s display when changing settings.

This section describes the procedure for using the remote controller unless otherwise specified.

Selecting the Language for the Onscreen Setup Menus

You can determine the language used for the onscreen setup menus. See “Language” in the “OSD Setup” ( page 65).

Playing the Connected Component

B Operating with the remote controller

1 Press RECEIVER followed by INPUT SELECTOR. 2 Start playback on the source component. See also: + “Playing an iPod/Phone via USB” (> page 26) + “Playing a USB Device” (> page 27) + “Listening to Internet Radio” (> page 27) + “Playing Music Files on a Server” ( page 29) + “Remote Playback” (> page 29) + “Listening to AM/FM Radio” (> page 30) + “iPod/Phone Playback via Onkyo Dock” (> page 76) + “Controlling Other Components” (> page 79)

BE Operating on the AV receiver

1 Use the input selector buttons to select the input source.

2 Start playback on the source component.

& To adjust the volume, use the MASTER VOLUME control.

4 Select a listening mode and enjoy!

Controlling Contents of USB or Network Devices

See “Controlling Other Components” about the operation of other components (> page 79).

Press USB or NET first.

@ |A/Y and ENTER These buttons navigate through the menus.

In Standard Mode (iPod/iPhone), this button selects playlists.

® = This button starts playback.

@ |r4« This button selects the beginning of the current song Pressing this button twice selects the previous song

© |-«« This button fast-reverses the current song.

©@In This button pauses playback.

@ |SEARCH You can toggle between the playback screen and the list screen during playback.

® DISPLAY This button switches between song informations.

In Standard Mode (iPod/iPhone), this button selects albums:

RETURN This button returns to the previous menu.

>> This button selects the next song.

>> This button fast-forwards the current song.

LI This button stops playback.

MODE You can switch between Standard Mode and Extended Mode during iPod/Phone playback.

RANDOM This button performs random playback.

@ |REPEAT Press this button repeatedly to cycle through the repeat modes.

+ The buttons you can use will differ depending on the devices and media used for playback

Understanding Icons on the Display

This section describes icons that appear on the display during media playback.

Repeat Folder (USB Device)

Shuffle Album (iPod/iPhone)

Playing an iPod/iPhone via USB This section explains how to play music/video files on the iPod/iPhone.

Compatible iPod/iPhone models

iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod with video, iPod nano (1st, 2nd, 3rd, 4th, th and 6th generation), iPhone 4, iPhone 3GS, iPhone 3G, iPhone

1 Press USB repeatedly to select the “USB(Front)” input.

2 Connect the USB cable that comes with the iPod/Phone to the USB port on the front of the AV receiver.

While reading the contents of your iPod/Phone, the message “Connecting.” appears on the display. The USB indicator lights. It will flash if the AV receiver cannot read the iPod/iPhone.

3 Press MODE repeatedly to switch to Extended Mode (Music) or Extended Mode (Video). A list of your iPod/iPhone model’s contents appears.

To open a folder, use A/Ÿ to select it, and then press ENTER.

+ With the default settings, the iPod/iPhone is operated in Standard Mode.

+ Pressing MODE repeatedly switches back to Standard Mode.

+ When you disconnect the iPod/iPhone, the AV receiver stores the mode. This means that if you disconnect when in Extended Mode (Music), the AV receiver will start in Extended Mode (Music) the next time you connect the iPod/iPhone.

+ You can also use A/Y, ENTER and TUNING MODE buttons on the front panel. TUNING MODE allows you to switch modes.

+ When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.

4 Use A/T to select a music/video file, and press ENTER or æ- to start playback.

+ Do not disconnect the USB device or USB cable that comes with iPod/iPhone from the USB port at the front of the AV receiver, while the message “Connecting...” appears on the display.

+ If you connect an iPod or iPhone to the USB port on this device, no sound will be output from the headphones jack.

Extended Mode (Music) control

The music content information is displayed (lists are displayed), and you can control the music content while looking at the screen.

Top screen list: Playlists, Artists, Albums, Genres, Songs, Composers, Shuffle Songs, Now Playing.

Extended Mode (Video) control

The video content information is displayed (lists are displayed), and you can control the video content while looking at the screen.

Movies, Music Videos, TV Shows, Video Podcasts, Rentals.

+ To view the video contents of your iPod/iPhone, connect it to the USB port and AUX INPUT VIDEO jack on the AV receiver's front panel, using the official Apple Composite AV Cable.

+ Depending on your iPod/iPhone model and generation, the displayed items may vary and the support for Extended Mode {Video) is not guaranteed.

Standard Mode control

The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller (USB).

+ The following iPod models are not supported in Standard Mode. (They can only be controlled in Extended Mode). — iPod with video — iPod nano (1st generation)

Playing a USB Device

This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players).

See + “Network/USB Features” (> page 100).

1 Press USB repeatedly to select the “USB(Front)” or “USB(Rear)” input.

2 Plug your USB device into the AV receiver’s USB port. The USB indicator lights. It will flash if the AV receiver cannot read the USB device.

3 Press ENTER. A list of the device’s contents appears. To open a folder, use A/Y to select it, and then press ENTER.

4 Use A/T to select a music file, and press ENTER or »- to start playback.

+ Do not disconnect the USB device or USB cable that comes with iPod/iPhone from the USB port at the front of the AV receiver, while the message “Connecting.” appears on the display

Listening to Internet Radio

You need to connect the AV receiver to your home network ( page 100).

You can select Internet radio stations by connecting to the AV receiver from your computer and selecting stations in your web browser.

Internet radio URLS in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations.

+ Services available may vary depending on the region. See the Separate instructions for more information.

Listening to vTuner Internet Radio

This unit includes the full VTuner Internet Radio Service at no additional charge. Once you have connected your unit to the Internet you can select Tuner Internet Radio to search for and play Internet radio stations and podcasts at any time. To enhance your Internet radio experience, the http://onkyo.vtuner.com/ portal is available to you as an easy way to browse to find stations, set up/organize your favorites, add your own stations, get help, etc. After the first time you try VTuner Internet Radio on your unit you can use the MAC Address of your unit to create a member login account (email address and password) on the http://onkyo.vtuner.com/ portal. To verify your MAC Address, please see “Network” (> page 67).

1 Press NET. The “NET” screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

2 Use A/Y/<» to select “YTuner Internet Radio” and then press ENTER.

= lys où Graate Ait AyFavorte

Press MENU to enable selection from the following menu items. } Stations like this: Stations like the one currently being played back are displayed. > Add to My Favorites: Adds a station to My Favorites list. Press TOP MENU to go to the top menu of the Internet Radio services. Tip + By pressing SEARCH, you can toggle between the playback screen and the radio list screen.

Listening to Other Internet Radio

To listen to other internet radio stations, insert the following step after step 1 in the “Listening to VTuner Internet Radio” section.

1 On your computer, start your web browser and enter the AV receiver’s IP address in the browser’s Internet address (URL) field.

The browser connects to the AV receiver (WEB Setup Menu).

+ The AV receivers IP address is shown on “IP Address” @ page 67).

+ If you're using DHCP, your router may not always allocate the same IP address to the AV receiver, so if you find that you can't connect to the AV receiver, recheck the AV receivers IP address on the “Network” screen.

Click on the “My Favorites” tab.

Enter the preset name and Internet address (URL).

Click “Save” to save the Internet radio station.

GO R © N The Internet radio station is then added to “My Favorites”.

Registering My Favorites:

You can add the currently playing song or station to the

“My Favorites”. You can save up to 40 Internet radio

Once you've added a station to the list, simply select it in

the “My Favorites” menu, and then press ENTER to start

“1° From the search results you can Save the stations and songs but cannot listen to them directly.

& Top menu of Internet Radio } Create new statio:

Add a favorite station or Internet radio to the My Favorites.

» Rename this station: You can rename the stations and songs saved in “My Favorites” list.

> Delete from My Favorites: You can delete the stations and songs saved in “My Favorites” list.

1 Press MENU with the station selected or while a song is playing.

2 Use A/Y toselect “Add to My Favorites”, and press ENTER.

3 Use A/V/<> to select “OK”, and then press ENTER. Tip

+ If you choose 10 rename the station, see *

Playing Music Files on a Server

You need to connect the AV receiver to your home network (> page 100).

This section explains how to play music files on a computer or media server through the AV receiver (Server Playback).

1 Start your computer or media server.

2 Press NET. The “NET” screen appears. The NET indicator lights. If it flashes, confirm the network connection.

3 Use A/Y/<> to select “dina”, and press ENTER.

Tip + To go back to the previous screen, press RETURN.

Æ Use A/N to select a server, and then press ENTER. The menu is displayed according to the server functions.

+ The search function does not work with media servers which do not support this function.

+ Photos and movies stored on a media server cannot be accessed from the AV receiver.

+ Depending on the sharing settings in the media server, the AV receiver may not able to access the content. See the instruction manual of the media server.

5 Use A/Y to select an item, and then press ENTER or to start playback.

A favorite song 1 0:11

Aristname A tarte album

+ Depending on the media work.

+ Ifthe message “No Item.” appears, this means that no information can be retrieved from the server. In this check your server, network, and AV receiver connections.

This section explains how to configure Windows Media Player 11 so that the AV receiver can play the music fi stored on your computer.

1 Start Windows Media Player 11.

On the “Library” menu, select “Media Sharing”. The “Media Sharing” dialog box appears.

Select the “Share my media” check box, and then click “OK”.

Select the AV receiver in the list, and then click “Allow”.

Click “OK” to close the dialog box.

This completes the Windows Media Player 11 configuration.

GO &R & N You can now play the music files in your Windows Media Player 11 library through the AV receiver.

+ Windows Media Player 11 can be downloaded for free from the Microsoft web site.

You need to connect the AV receiver to your home network ( page 100).

Remote Playback means you can play the music files stored on a media server or personal computer with the AV receiver by operating the controller device in the home network.

Windows Media Player 12 Setup

This section explains how to configure Windows Media Player 12 so that the AV receiver can play the music files stored on your personal computer.

1 Start Windows Media Player 12.

2 On the “Stream” menu, select “Turn on media streaming”. A dialog box appears.

3 Move your cursor and click on “Turn on media streaming”. A list of media server appears. Wording may vary slightly depending on the network location.

4 Select the product in the list, and then click “Allowed”.

5 Click “OK” to close the dialog box.

This completes the Windows Media Player 12 configuration.

You can now play the music files in your Windows Media Player 12 library.

Start Windows Media Player 12. To enable remote playback, you must first configure Windows Media Player 12.

Press NET. The “NET” screen appears. The NET indicator lights. If it flashes, verify the network connection.

Use A/Y/-</> to select “dina”, and press ENTER. A list of media server appears.

+ Remote playback cannot be used while the music files of another media server are being played. You must stop their playback first.

On Windows Media Player 12, right-click on a music file.

The right-click menu appears. For selecting another media server, select the desired media server from the “Other Libraries” menu on Windows Media Player 12.

Select the AV receiver from the right-click menu. The “Play to” window appears and playback on the product starts. Operations during remote playback can be made from the “Play to” window of Windows 7 on your personal computer. During remote playback, operations (such as Playback, Pause, Fast Forward, Fast Rewind, Previous, Next, Repeat, Random) cannot be made.

Adjusting the Volume. You can adjust the volume by adjusting the volume bar in the “Remote playback” window. The default maximum volume level is 82 (0dB). If you wish to change this, enter the value from the Web Setup in your browser.

The volume value of the remote window and the volume value of the AV receiver may not always match.

Adjustments you make to the volume in the AV receiver will not be reflected in the “Remote playback” window.

Listening to AMFM Radio

This section describes the procedure using the buttons on the front panel unless otherwise specified.

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

You can also change the frequency steps (> page 65).

1 Press TUNER to select either “AM” or “FM”. In this example, FM has been selected. Each time you press TUNER, the radio band changes between AM and FM.

(Actual display depends on the country.)

Tuning into Radio Stations

1 Press TUNING MODE so that the AUTO indicator lights on the display.

2 Press TUNING 4/Y. Searching stops when a station is found. When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights on the display, as shown.

+ Tuning into weak FM stereo stations If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch 10 manual tuning mode and listen 10 the station in mono.

B Manual tuning mode In manual tuning mode, FM stations will be in mono.

1 Press TUNING MODE so that the AUTO indicator goes off on the display.

2 Press and hold TUNING 4/Y. The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

& Tuning into stations by frequency You can tune into AM and FM stations directly by entering the appropriate frequency.

1 Ontheremote controller, press TUNER repeatedly to select “AM° or “FM”, followed by D.TUN.

(Actual display depends on the country.) 2 Within 8 seconds, use the number buttons to enter the frequency of the radio station. For example, to tune to 87.5 (FM), press 8, 7, 5.

If you have entered the wrong number, you can retry after 8 seconds.

Presetting AM/FM Stations

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

1 Tune into the AM/FM station that you want to store as a preset. See the previous section.

2 Press MEMORY. The preset number flashes.

(Actual display depends on the country.)

3 While the preset number is flashing (about 8 seconds), use PRESET </> to select a preset from 1 through 40.

4 Press MEMORY again to store the station or channel. The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

+ You can name your radio presets for easy identification (> page 60). Its name is displayed instead of the band and frequency.

1 Toselect a preset, use PRESET </> on the AV receiver, or the remote controller”’s CH +/. Tip

+ You can also use the remote controller’s number buttons 10 select a preset directly.

1 Select the preset that you want to delete. ction.

2 While holding down MEMORY, press TUNING MODE.

The preset is deleted and its number disappears from

Using RDS (excluding North American models)

RDS works only in areas where RDS broadcasts are available.

‘When tuned into an RDS station, the RDS indicator lights. ‘When the station is broadcasting text information, the text can be displayed.

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information: PS (Program Service)

‘When tuned to an RDS station that’s broadcasting PS information, the stations name will be displayed. Pressing DISPLAY will display the frequency for 3 seconds.

‘When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display as described in the next section.

This allows you to search for RDS radio stations by type (3 page 32).

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (> page 32).

+ In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

+ Ifthe signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

Press RT/PTY/TP once. The RT information scrolls across the display.

+ The message “Waiting” may appear while the AV receiver wait for the RT information.

+ Ifthe message “No Text Data” appears on the display, no RT information is available.

BFinding Stations by Type (PTY)

You can search for radio stations by type.

Press RT/PTY/TP twice. The current program type appears on the display.

Use PRESET </> to select the type of program you want. See the table shown later in this chapter.

To start the search, press the enter button.

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen tois found, press the enter button.

If no stations are found, the message “Not Found” appears.

Listening to Traffic News (TP)

You can search for stations that broadcast traffic news.

Press RT/PTY/TP three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press the enter button.

The AV receiver searches until it finds a station that's broadcasting TP.

If no stations are found, the message “Not Found” appears.

RDS program types (PTY)

Type Display None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music PopM Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children's programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!

Using Basic Functions

Using the Automatic Speaker Setup

With the supplied calibrated microphone,

Audyssey MultEQ® XT32 automatically determines the

number of speakers connected, their size for purposes of

bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.

Audyssey MultEQ XT32 then removes the distortion

caused by room acoustics by capturing room acoustical

problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Audyssey MultEQ XT32 can be used with

Audyssey Dynamic EQ® and

Audyssey Dynamic Volume® (> page 59).

Before using this function, connect and position all of

Audyssey MultEQ XT32 offers two ways of measuring:

the “Audyssey Quick Start” and “Audyssey MultEQ XT32 Full Calibration”.

+ “Audyssey Quick Start” uses the measurement from one position to perform the speaker setting only.

+ “Audyssey MultEQ XT32 Full Calibration” uses the measurement from eight positions to correct room response in addition to the speaker setting.

The more positions are used in measuring, the better the

listening environment will become. We recommend using

a measurement from eight positions to create the best

listening environment.

The Quick Start takes 2 minutes and Full Calibration takes

Total measurement time varies depending on the number of speakers.

Measurement procedure

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ XT32 takes measurements at up to eight positions within the listening area. Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inaccurate results.

BFirst measurement position Also referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. Audyssey MultEQ XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

BSecond—eighth measurement positions These are the other listening positions (i.e., the places where the other listeners will sit). You can measure up 10 eight positions.

+ Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Turn off the cell phone (even if it is not in use) or place it away from all audio electron The microphone picks up test tones played through each speaker as Audyssey MultEQ XT32 Room Correction and Speaker Setup run.

+ Audyssey MultEQ XT32 Room Correction and Speaker Setup cannot be performed while a pair of headphones is connected.

+ Audyssey MultEQ XT32 Room Correction and Speaker Setup can only be used with Speakers A. When you insert the speaker setup microphone with Speakers B selected, the speaker layout is automatically switched to Speakers A.

À Turn on the AV receiver and the connected TV. On the TV, select the input to which the AV receiver is connected.

2 Set the speaker setup microphone at the Main Listening Position ®), and connect it to the SETUP MIC jack.

Speaker setup microphone

The speaker setting menu appears.

+ The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

3 When you’ve finished making the settings, press

ENTER. ner QUE Speakers TypaEtont A) Normal > Speakers TypeFront ) de

Ponered Zone 2 M Ponered Zone à W Perform the “Speaker Setup” according to your speaker configuration:

‘When an optional unit is connected to the UNIVERSAL PORT jack on the AV receiver, the optional unit setting may appear on the speaker setting menu.

Adjust the subwoofer volume level to 75 dB, and then press ENTER.

Test tones are played through the subwoofer. Use the volume control on the subwoofer.

When the “Subwoofer” setting is set to “1ch” only, the left-hand subwoofer (SW1) will be measured. ‘When the “Subwoofer” setting is set to “1ch” with two subwoofers connected, the right-hand subwoofer (SW2) will not be measured and no sound will be output.

An error Will occur if you set “Subwoofer” to “2ch” without connecting any subwoofers, or with only one subwoofer connected.

+ If your subwoofer does not have a volume control, disregard the displayed level and press ENTER to proceed to the next step.

+ If you set the subwoofers volume control to its maximum and the level displayed is lower than 75 dB, leave the subwoofer s volume control at its maximum and press ENTER (0 proceed to the next step.

+ If you use two subwoofers, perform this step twice.

Use A/Y to select “Audyssey Quick Start” or “Audyssey MultEQ XT32 Full Calibration”.

Audyssey MultEQ® XT32 Room Correction and Speaker Setup starts.

Test tones are played through each speaker as Audyssey MultEQ XT32 Room Correction and Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone.

Do not disconnect the speaker setup microphone during Audyssey MultEQ XT32 Room Correction and Speaker Setup, unless you want to cancel the setup.

If you select “Audyssey Quick Start”, you will go to step 9.

Place the speaker setup microphone at the next position, and then press ENTER.

Audyssey MultEQ XT32 performs more measurements. This takes a few minutes.

When prompted, repeat step 7.

Use A/Y to select an option, and then press ENTER.

A au Su ms Re Speaker Configuration = D Sa & Ù e Fos Es = Es = E CS . ee me _ Hors = 0 Surround Back Ch 2ch 2 ® = Es

The options are: > Save: Save the calculated settings and exit Audyssey MultEQ XT32 Room Correction and Speaker Setup. } Cancel: Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup. Tip + You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using >

Use A/Y to select a target, and use </»> to change the setting.

After the results of Audyssey MultEQ XT32 have been saved, the menu will display the “Audyssey” (> page 58), “Dynamic EQ” (> page 59), “Dynamic Volume” (> page 59) settings.

+ When “Audyssey Quick Start” has been used for measurement, “Audyssey” cannot be selected. + These settings are applied to all input selectors.

Disconnect the speaker setup microphone.

+ You can cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup at any point in this procedure simply by. disconnecting the speaker setup microphone.

+ Do not connect or disconnect any speakers during Audyssey MultEQ XT32 Room Correction and Speaker Setup.

+ Ifthe AV receiver is muted, it will be unmuted automatically when Audyssey MultEQ XT32 Room Correction and Speaker Setup starts.

+ Changes to the room after Audyssey MultEQ XT32 Room Correction and Speaker Setup requires you run Audyssey MultEQ XT32 Room Correction and Speaker Setup again, as room EQ characteristics may have changed.

While Audyssey MultEQ® XT32 Room Correction and Speaker Setup is in progress, one of the error messages below may appear.

The options are: > Retry: Try again. } Cancel: Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup. + Ambient noise is too high. The background noise is too loud. Remove the source of the noise and try again. + Speaker Matching Error! The number of speakers detected was different from that of the first measurement. Check the speaker connection. + Writing Error! This message appears if saving fails. Try saving again. If this message appears after 2 or 3 attempts, contact your Onkyo dealer. + Speaker Detect Error This message appears if a speaker is not detected. “No” means that no speaker was detected. Tip + See “Speaker Configuration” for appropriate settings (> page 13).

Changing the Speaker Setup Manually

You can manually make changes to the settings found during Audyssey MultEQ XT32 Room Correction and Speaker Setup.

See also: + “Speaker Configuration” ( page 52) + “Speaker Distance” (> page 53)

+ “Level Calibration” (> page 54)

+ “Equalizer Settings” (> page 54)

+ Please note that THX recommends any THX main speakers be set to “80HZ(THX)". If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set 10 “80Hz(THX)” crossover (> page 52).

+ Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

+ Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using a Powered Subwoofer

If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ XT32 Room Correction and Speaker Setup.

If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ XT32 Room Correction and Speaker Setup again. Note that if the volume is set 100 high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

Selecting Listening Modes

This button selects the listening modes intended for use with movies and TV.

This button selects the listening modes intended for use with music.

This button selects the listening modes intended for use with video games.

MOVIE/TV, MUSIC, GAME, THX PURE AUDIO button and indicator

This button selects the Pure Audio listening mode. When this mode is selected, the AV receiver’s display and video cireuitry are turned off. Only video signals input through HDMI input can be output from an HDMI output(s). The indicator lights when this mode is selected. Pressing this button again will select the previous listening mode.

+ The Dolby Digital and D

stening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV

receiver with a digital audio connection (coaxial, optical, or HDMI). + The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source

Information” (> page 44).

+ While a pair of headphones is connected, you can select the following listening modes: Pure Audio, Mono, Direct, and Stereo.

About Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

@ ® Surround speakers

@ ® Surround back speakers © @ Front high speakers

© @ Front wide speakers

Listening __L mode buttons

Input Source The following audio formats are supported by the listening mode.

DONC] | This is mono (monophonic) sound. STEREO] This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two speakers.

This is 5.1-channel surround sound, This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).

EM This is 7.1-channel surround sound. This is a further sound enhancement to 5.1 channel sound with bo additional speakers that provide greater sound envelopment and more accurate positioning of sounds.

GS |This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material.

DA is is Dolby Digital EX surround sound, This provides a center back surround channel from 5.1-channel sources.

Speaker Layout The illustration shows which speakers are activated in each channel. See “Speaker Configuration” for the speaker setup @ page 52).

After enabling the corresponding speakers, press RECEIVER followed by SP LAYOUT repeatedly to select the layout you want 10 use. Note that these layouts can only be selected when “Front High + Front Wide” is set to “No” (> page 51).

This layout cannot be selected with SP LAYOUT. To use this layout, set “Front High + Front Wide” to “No” (> page 51) and enable “Surround Back” (> page 52).

This layout cannot be selected with SP LAYOUT. To use this layout, set “Front High + Front Wide” to “Yes” (> page 51).

H Onkyo-Original DSP Listening Modes

Listening Mode Description Input [Speaker Source _|Layout Orchestra Suitable for classical or operatic music, this mode emphasizes the surround [MN] (5.212182) channels in order to widen the stereo image, and simulates the natural STEREO)

Orchestra reverberation of a large hall. ET Unplugged Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the |WFÆETE Unplugged

front stereo image, giving the impression of being right in front of the stage.

Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic This mode adds realistic acousties to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

Game-RPG In this mode, the sound has a dramatic feel with a similar atmosphere 10 Orchestra mode.

Game-RPG Game-Action In this mode, sound localization is distinct with emphasis on bass.

In this mode, sound pressure is emphasized 10 heighten live feel.

In this mode, reverberation is increased and sound localization decreased slighy.

Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater- Dimensional)

T-D With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s 100 much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

In this mode, the display and video circuitry are turned off, minimizing possible noise sources for the ultimate in high-fidelity audio reproduction. AIV Sync does not have effect on the analog audio. (As the video circuitry is tumed off, only video signals input through HDMI input can be output from an HDMI output(s).)

Direct In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers) and speaker Direct distance settings are enabled, but much of the processing set via Home menu is disabled. A/V Sync does not have effect on the analog audio. See “Advanced Setup” for more details (> page 47). Stereo Sound is output from the front left and right speakers and subwoofer. Stereo Mono Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right Leno channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs. Multichannel This mode is for use with PCM multichannel sources. ECS E2 Multich

Listening Mode Description Input |Speaker Source _|Layout Dolby Pro Logic IIx |Dolby Pro Logic IIx expands any 2-channel source for 7.1-channel Dolby Pro Logic I |playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games PL ours can also benefit from the dramatic spatial effects and vivid imaging. If you're not using any surround back speakers, Dolby Pro Logic II will be |SFEEQ PLI Music used instead of Dolby Pro Logic IIx. + Dolby PLIIx Movie PLI Game Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g.. TV, DVD, VHS). PLIx Movie + Dolby PLIx Music Use this mode with any stereo or Dolby Surround (Pro Logic) music source PLIx Music (e.g.. CD, radio, cassette, TV, VHS, DVD). + Dolby PLIIx Game RG Use this mode with video games, especially those that bear the Dolby Pro Logic II logo. + Dolby PLIIx Movie ET + Dolby PLIIx Music These modes use the Dolby Pro Logic IIx modes to expand 5.1-channel sources for 7.1-channel playback. Dolby Pro Logic I1z _ |Dolby Pro Logic I1z Height is designed to more effectively use existing [SEX] Height program material when height channel speaker outputs are present. Dolby |REXEYE Pro Logic Iz Height can be used to upmix a variety of sources from movies Pie Ho inf and musie, but are particularly well-suited to upmix game content. Dolby EX These modes expand 5.1-channel sources for 6.1/7.1-channel playback. |[EEREE Theyre especially suited to Dolby EX soundtracks that include a matrix- |[se[=4 pois ni encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect Dolby D EX for rotating and fly-by sound effects. Dolby Digital In this mode, audio from the input source is output without surround-sound_ |REKEM processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via

Home menu are enabled. See “Advanced Setup” for more details ET Dolby TrueHD Dolby TrueHD DTS DTS DTS-HD High

DSD DTS 96/24'6 This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 KHz sampling rate and 24-bit resolution, providing superior

fidelity. Use it with DVDs that bear the DTS 96/24 logo.

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360- degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Discrete soundtrack.

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix- encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

This mode expands various sources and various inputs up to 9.1 channel. DTS Neo:X provides semi-spherical sound field adding height/wide speakers to create a natural, immersive and spacious surround soundscape.

This mode is suitable for movie viewing. + DTS Neo:X Music

This mode is suitable for any music source. + DTS Neo:X Game

This mode is suitable for video games.

Audyssey DSX PLI Movie DSX PLI Music DSX PLI Game DSX PLIx Movie DSX PLIx Music DSX PLIx Game DSX Dolby EX DSX

+ Audyssey DSX Audyssey DSXTY is a scalable system that adds new speakers 10 improve surround impression. Starting with a 5.1 system Audyssey DSX first adds Wide channels for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than Back Surround channels found in traditional 7.1 systems. Audyssey DSX then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Audyssey DSX applies Surround Envelopment Processing to enhance the blend between the front and surround channels.

The combination of Dolby EX and Audyssey DSX modes can be used.

Founded by George Lucas, THX develops stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended. THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2-channel matrixed and multichannel sources. Surround back speaker output depends on the source material and the selected listening mode.

+ THX Cinema THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active. THX Music THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active. + THX Games THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

Dolby Pro Logic H/Ix°3 Movie + THX Cinema

Dolby Pro Logic H/Ix'3 Music + THX Music

The combination of Dolby Pro Logic I/IIx'3 and THX Cinema/Music/ Games modes can be used.

STEREO Dolby Pro Logie Lx Movie + THX Cinema

The combination of Dolby Pro Logic IIx and THX Cinema/Music modes can be used.

The combination of Dolby Pro Logic I1z Height and THX Cinema/Music/ Games modes can be used.

+ THX Ultra? Cinema This mode expands 5.1-channel sources for 7.1- channel playback. It does this by analyzing the composition of the surround source, optimizing the THX U2 Music ambient and directional sounds to produce the surround back channel output. THXDU2NGamE SIN |+ THX Ultra2 Music This mode is designed for use with music. It expands 5.1-channel sources THX Surr EX for 7.1-channel playback. + THX Ultra2 Games This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback. + TEX Surround EX This mode expands 5.1-channel sources for 6.1/7.1- channel playback. Is especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

+ Dolby Pro Logic I1z Height + THX Ultra2 Games The combination of Dolby Pro Logic 11z Height and THX Ultra? Cinema/ Music/Games modes can be used.

1° Pure Audio cannot be selected when Zone 2 is active.

Besides, if you activate Zone 2 while Pure Audio is selected, the listening mode will automatically switch to Direct.

Based on the audio channel signal contained in the source, the corresponding speakers will output the sound.

If there are no surround back speakers or Powered Zone 3 is being used, Dolby Pro Logic II is used.

For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound according to the player. In that case, set the output setting on the player side to PCM.

DTS is used depending on the configuration of the AV receiver (e.g.. Audyssey Dynamic EQ® is on or Powered Zone 2 is being used).

If there are no surround back speakers or Powered Zone 2 is being used, DTS is used.

DTS Neo:X cannot be selected in the case of 192 kHz input signals.

+ This listening mode can be selected only when all the following conditions are satisfied:

— Center speaker is connected.

— Either of front high or front wide speakers is connected.

+ The listening modes cannot be selected with some source formats.

Dialogue Normalization

Dialogue Normalization (Dialog Norm) is a feature of Dolby Digital, which is used to keep the programs at the same average listening level so the user does not have to change the volume control between Dolby Digital, Dolby Digital Plus and Dolby TrueHD programs. When playing back software which has been encoded in Dolby Digital, Dolby Digital Plus and Dolby TrueHD, sometimes you may see a brief message in the front panel display which will read “Dialog Norm X dB” (X being a numeric value). The display is showing how the program level relates with THX calibration level. If you want to play the program at calibrated theatrical levels, you may wish to adjust the volume. For example, if you see the following message: “Dialog Norm + 4 dB” in the front panel display, to keep the overall output level at THX calibrated loudnes st turn down the volume control by 4 dB. However, unlike a movie theater where the playback loudness is preset, you can choose your preferred volume setting for best enjoyment.

Using the Home Menu M Listening Mode

} You can select the listening modes that are

The Home menu provides you quick access to frequently grouped in the following categories:

used menus without having to go through the long MOVIE/TV, MUSIC, GAME and THX. standard menu. This menu enables you to change settings Use A/Y to select the category and Æ/# to and view the current information. select the listening mode. Press ENTER to

switch to the selected listening mode. The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is [ Note |

connected to other video outputs, use the AV R " à . “1° For the PORT input selector, the name of Universal Port receiver’s display when changing settings. | Lipur see ù crsa Po

Option Dock will be displayed. “Dynamic EQ” and “Dynamie Volumi

1 Press RECEIVER followed by HOME. when any of the THX listening modes is selected, with The Home menu will be superimposed on the TV “Loudness Plus” set to “On” or “Preserve THX Settings” screen. set to “Yes” (> page 55). “8 When “Dynamic EQ” is set to “On” or “Dynamic Volume”

LE is set to anything else than “Off”, “Dolby Volume” will be + Alternatively, you can use the AV receiver’s HOME. switched to “Of” (> page 58). . . Only when you hav ted “Custom” in the “Picture 2 Use A/Y and ENTER to make the desired selection. Mode” (> page 61), pressing ENTER allows you to adjust Œinput the following items via the Home menu: “Brightness”, “Contrast”, “Hue” and “Saturation”. Press RETURN to return to the “Picture Mode” setting. Depending on the input source and listening mode, not all channels shown here output the sound.

} You can select the input source while viewing the information as follows: the name of input selectors, input assignments, radio information, and ARC function setting.

Press ENTER to display the current input n "

source, followed by A/Y 1 select the desired input source. Pressing ENTER again switches 10 the selected input source.

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

} You can change the following settings: “Sound {Press RECEIVER followed by SLEEP repeatedly Program”, “Bass (Front)”, “Treble (Front)", to select the required sleep time. “Bass (Front Wide)”, “Treble (Front Wide)”, The sleep time can be set from 90 to 10 minutes in 10 “Bass (Front High)", “Treble (Front High)”, minute steps. “Bass (Center)”, “Treble (Center)”, “Bass The SLEEP indicator lights on the display when the (Surround)”, “Treble (Surround)”, “Bass sleep timer has been set. The specified sleep time (Surround Back)”, “Treble (Surround Back)”, appears on the display for about 5 seconds, then the “Bass (Subwoofer)”, “Subwoofer 1”, previous display reappears.

“Subwoofer 2”, “Center”, “Dolby Volume”, “Audyssey”, “Dynamic EQ°22”,

“Dynamic Volume‘23”, “Late Night”, “Music Optimizer”, “Re-EQ”, “Re-EQ(THX)”, and “Screen Centered Dialog”.

Tip + If you need to cancel the sleep timer, press SLEEP repeatedly until the SLEEP indicator goes off. the time remaining until the AV receiver sleeps, LEEP. Note that if you press again on SLEEP as

See also: the time being displayed is equal or inferior to 10 minutes, + “Audyssey” (> page 58) the sleep timer will go off. + “Using the Audio Settings” (> page 69) H Video

» You can change the following settings: “Wide Mode” and “Picture Mode“#”.

See also: + “Picture Adjust” (> page 61) Minfo's

} You can view the information of the following items: “Audio”, “Video” and “Tuner”.

Setting the Display Brightness

You can adjust the brightness of the AV receiver’s display.

1 Press RECEIVER followed by DIMMER

repeatedly to select:

+ Normal + MASTER VOLUME and input selector indicators light.

+ Normal + MASTER VOLUME and input selector indicators go off.

+ Dim + MASTER VOLUME and input selector indicators go off.

+ Dimmer + MASTER VOLUME and input selector indicators go off. Tip

+ (North American models) Alternatively, you can use the AV receiver"s DIMMER.

Displaying Source Information

You can display various information about the current input source as follows. (Components connected to the UNIVERSAL PORT jack are excluded.)

1 Press RECEIVER followed by DISPLAY repeatedly to cycle through the available information.

+ Alternatively, you can use the AV receiver’s DISPLAY.

The following information can typically be displayed.

Input source Listening mode —

Signal formatt — Sampling ——" frequency Input signal resolution —

“1 Ifthe input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

Changing the Input Display

When you connect an RI-capable Onkyo component, you must configure the input display so that I can work properly.

This setting can be done only from the front panel.

1 Press TV/CD, GAME or VCR/DVR. “TV/CD”, “GAME” or “VCR/DVR” appears on the display.

2 Press and hold down TV/CD, GAME or VCR/DVR (about 3 seconds) to change the input display. Repeat this step to select the desired input display.

MTV/CD: TV/CD — DOCK TAPE <l

B GAME: GAME € DOCK BVCR/DVR: VCR/DVR +> DOCK

+ DOCK can be selected for the TV/CD, GAME or VCR/DVR input selector, but not at the same time.

+ Enter the appropriate remote control code before using the remote controller for the first time (> page 79).

Using the Whole House Mode

The Whole House Mode is useful when you want to add extra background music to your home party: this allows you to enjoy the same stereo music as the main room in Separate rooms (Multi Zone: Powered Zone 2/3).

The Whole House Mode selects the same input source for Multi Zone as the main room’s.

1 Press WHOLE HOUSE MODE on the front panel. To cancel the Whole House Mode, change the input source for the main room or select a listening mode (> page 36).

+ The Whole House Mode only supports analog audio.

+ Touse the Whole House Mode, Powered Zone 2/3 must be set to enabled (> page 51).

+ Cancelling the Whole House Mode will switch Multi Zone off.

+ The sound from Powered Zone 2/3 may interrupt when tuming the Whole House Mode on or off.

+ If you change the setting of Multi Zone while using the Whole House Mode, this setting prevails over the Whole House Mode’s.

+ To adjust the volume of Multi Zone, switch the AV

r to Multi Zone control. See “Adjusting the Volume for Zones” (> page 74) for the volume adjustment of Multi Zone

+ The Whole House Mode cannot be used while the “Audio

V Out” setting is on.

Selecting Speaker Layout Muting the AV Receiver

You can set which speakers you want to use by priority.

Press RECEIVER followed by SP LAYOUT repeatedly to select:

Note that these layouts can only be selected when “Front High + Front Wide” is set to “No” ( page 51) and all speakers are enabled.

} Speaker Layout:SB/FH: The sounds from surround back and front high speakers are output by priority.

} Speaker Layout:SB/FW: The sounds from surround back and front wide speakers are output by priority.

Note that these layouts can only be selected when “Front High + Front Wide” is set to “No” { page 51) and front high and front wide speakers are enabled (= page 52).

» Speaker Layout:FH: The sound from front high speakers is output by priority.

} Speaker Layout:FW: The sound from front wide speakers is output by priority.

+ This setting cannot be selected when bi-amping the front speakers (> page 51) or using Speakers B (> page 51) or Powered Zone 2 (> page 51).

+ Playback conditions may be limited depending on the settings in “Speaker Settings” (> page 51) and “Speaker Configuration” (> page 52).

+ When a listening mode which doesn't support front high, front wide or surround back speakers is used, this setting cannot be selected.

E Speakers A or Speakers B Configuration When “Speakers Type(Front B)” setting is set to other than “No”, the relevant speaker indicator lights (A or B), and you can choose a speaker layout between Speakers A and Speakers B. Speakers A or B can be switched regardless of listening modes.

+ When using Speakers B, you cannot use front wide speakers.

+ While using Speakers B, you cannot use Audyssey MultEQ® XT32 Room Correction and Speaker Setup, as well as Audyssey Dynamic EQ® and Audyssey Dynamic Volume®.

You can temporarily mute the output of the AV receiver.

Press RECEIVER followed by MUTING. The output is muted and the MUTING indicator flashes on the display. Tip + To unmute, press MUTING again or adjust the volume.

+ Muting is automatically cancelled when the AV receiver is set 10 standby.

Connect a pair of stereo headphones with a standard plug (1/4 inch or 6.3 mm) to the PHONES jack.

While the headphones plug is inserted in the PHONES jack, ( indicator, speaker/channel indicator FL and FR lights. (The Powered Zone 2/3 speakers are not turned off.)

+ Always turn down the volume before connecting your headphones.

+ When you connect a pair of headphones, the listening mode is set 10 Stereo, unless it's already set to Stereo, Mono, Direct, or Pure Audio.

+ If you connect an iPod or iPhone to the USB port on the AV receiver, no sound will be output from the headphones jack.

By using ACTIVITIES in Easy macro mode, you can sequentially operate Onkyo components via simple commandé from a single-button press. These commands are user-definable. See “Using Normal Macros”

1 Press ACTIVITIES (MY MOVIE, MY TV, or MY MUSIC) to start the Easy macro command. The default sequences of actions are described below. To change the related source component, see “Changing the Source Components” shown later in this chapter.

B MY MOVIE First, the TV, the Onkyo Blu-ray Disc player, and the AV

receiver are turned on. The input selector is set to

“BD/DVD”. Finally the player starts playback."1

“1. Depending on the start-up time of your Blu-ray Disc/DVD player, the AV receiver may not activate this playback command. In this case, press = on the remote controller.

BMYTV First, the TV, the cable set-top box, and the AV receiver

are turned on. Then the input selector is set to “CBL/SAT”.

he Onkyo CD player and the AV receiver are turned on. The input selector is set to “TV/CD”. Finally, the player Starts playback.

+ While the Easy Macro command is being processed, you cannot use other ACTIVITIES. If you want 10 operate other components, first press ALL OFF and use the desired ACTIVITIES.

Turning Off the Components

This button turns off all components activated by the Easy Macro mode.

First, the related components stop and turn off. Second,

the AV receiver turns off. Finally, the TV turns off (or

enters standby mode)."1"2

“1 This step doesn't apply to MY MUSIC, with the default settings.

“2° With some televisions, the power may not be turned off (or enter standby mode).

Changing the Source Components

You can change the source components activated by the Easy Macro mode.

1 While holding down REMOTE MODE for the playback component you wish to assign, press and hold down the ACTIVITIES to be changed (MY MOVIE, MY TV, or MY MUSIC) (about 3 seconds).

ACTIVITIES flashes twice, indicating that the change is complete.

If you wished to use MY MOVIE to start the playback component assigned to VCR/DVR of REMOTE MODE, you would press and hold down MY MOVIE for about 3 seconds while pressing down VCR/DVR of REMOTE MODE.

You can restore ACTIVITIES to the default settings.

1 While holding down HOME, press and hold down ALL OFF until ALL OFF lights (about 3 seconds).

2 Release HOME and ALL OFF, and press ALL OFF again. ALL OFF flashes twice.

This section explains how to record the selected input source to a component with recording capability.

Audio sources can be recorded to a recorder (e.g., cassette tape deck, CDR, MD recorder). Video sources can be recorded to a video recorder (e.g., VER, DVD recorder).

1 Use the input selector buttons to select the source that you want to record. You can watch the source while recording, The AV receiver s MASTER VOLUME control has no effect

ND On your recorder, start recording.

On the source component, start playback. If you select another input source during recording, that input source will be recorded.

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV recciver’s display when changing settings.

This section describes the procedure for using the remote controller unless otherwise specified.

On-screen Setup Menus

© Speaker Setup © Hardware Setup

G page 51) @ page 65) Lee TRS À. gputersetings 1. Rance D 2. Spanar Cnfguraton dre £ Sata À rame £ Lonicalbnter £ dou £ Eine 5. AuoSundoy & TXAudo eur Ë Nano F7. im Up @ Audio Adjust Remote Controller (3 page 55) Setup (> page 79) RE FE Hanoi Cons

Common Procedures in Setup Menu

&3-— 7 RECEIVER ENTER |

AN SETUP RETURN The on-screen setup menus appear on the connected TV and provide a convenient way to change the AV receivers various settings. Settings are organized into 9 categories on the main menu.

Carry out the settings by using the on-screen display.

1 Press RECEIVER followed by SETUP. Tip + Ifthe main menu doesn”t appear, make sure the appropriate external input is selected on your TV.

N Use A/Y to select a menu, and then press ENTER. & Use A/Y to select a target, and then press ENTER.

Æ Use A/Y to select an option, and use 4/> to change the setting. Press SETUP to close the menu. Press RETURN to return to the previous menu.

+ This procedure can also be performed on the AV receiver by using SETUP, the arrow buttons, and ENTER + During Audyssey MultEQ® XT32 Room Correction and

Jia } des Speaker Setup, messages, etc. that are displayed on the TV. 50 screen will appear in the Display. À An oex $. Taserdioensnat 5 Des Explanatory Notes à. SoundProgn Et @ Source Setup © Lock Setup ©—LEICT Speaker Setup ( page 58) @ page 69) TRS FES @—# Subwoofer À time sup @- *leh: LAS Audio signal is outputted from SW1 jack 5 Peur Adus only. Ë Robes 2 »2ch: © Listening Mode Preset Audio signal is outputted from SW1 and G page 64) SW2 jacks. 5 Ling de Pret @ Menu selection 1 som 2 VOROR © Setting target 5 cs sl @ Setting options (default setting underlined) & ax

On the “Monitor Out” settings, you can select whether or not to have the video sources” images output through the HDMI output.

If you connect your TV to HDMI output, “Monitor Out” setting is automatically set and composite video, S-Video, and component video sources are upconverted' and output.

Composite video, S-Video, component video

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out” setting is automatically set and composite video and S-Video sources are upconverted* and output.

+ See “Video Connection Formats” (> page 94) for charts showing how the “Monitor Out” and “Resolution” settings affect the video signal flow through the AV receiver.

} Analog: Select this if your TV is connected to the COMPONENT VIDEO MONITOR OUT, MONITOR OUT S$, or MONITOR OUT V.

> HDMI Mai Select this MAIN.

> HDMI Sub: Select this if your TV is connected to HDMI OUT SUB.

> Both: Select this if your TVs are connected to HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

your TV is connected to HDMI OUT

> Both(Main): Select this if your TVs are connected to HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB.

> Both(Sub): Select this if your TVs are connected to HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

+ If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog”.

+ When using the DeepColor function, if the “Monitor Out” setting is set 10 “Both(Main)" or “Both(Sub)", the number of bits may be limited due to the capability of your TV connected 10 a priority output.

Changing the “Monitor Out” setting manually

1 Press MONITOR OUT on the front panel. The current setting is displayed.

2 Press MONITOR OUT repeatedly to select: » Analog, HDMI Main, HDMI Sub, Both, Both(Main) or Both(Sub)

Resolution » Through1: Select this to pass video through the AV receiver at the same resolution and with no conversion. » Auto’2: Select this to have the AV receiver automatically convert video at resolutions supported by your TV. > 480p (480p/576p), 720p, 1080i, 1080p2: Select the desired output resolution. » 1080p/24"2'3: Select this for 1080p output at 24 frames per second. } 4K Upscaling'2'3: Select this for an output resolution four times that of 1080p, resulting in 3840 x 2160 pixels. » Source: Output will be according to the resolution level which was set in the “Picture Adjust” ( page 61). You can specify the output resolution for the HDMI output(s) and COMPONENT VIDEO MONITOR OUT so that the AV receiver upconverts the picture resolution as necessary to match the resolution supported by your TV.

+ The “Resolution” setting is set respectively of main, sub, and analog.

+ To view the TV picture while setting, press ENTER.

+ Depending on the incoming video signal, the video playback may not be smooth or the vertical resolution may be lowered. In this case select anything other than “1080p/24”.

+ Ifthe “Monitor Out” setting is set to “Both”, this setting is fixed 10 “Auto”.

“1° PCIN (Analog RGB input) signal is output at 480p

(80p/576p), 720p, 1080i resolution when the “Monitor Out”

setting is set to “Analog” (> page 48) and the “Resolution”

setting is set to “Through”.

These settings are not available when the “Monitor Out”

setting is set to “Analog” (> page 48)

These settings are not available when the “Monitor Out”

setting is set 10 either “HDMI Sub” or “Both(Sub}

If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector. If you've connected your TV to the AV receiver with an HDMI cable, composite video, S-Video and component video sources can be upconverted” and output by the HDMI output‘t. You can set this for each input selector by selecting the “- - - - = * option. See “Video Connection Formats” for more information on video signal flow and upconversion (> page 94). Composite video, S-Video, component video

Ç OUT ) Composite video, S-Video, component video

“This applies only when “Monitor Out” setting is set to other than “Analog” (> page 48).

Here are the default assignments.

Input selector Default assignment BD/DVD HDMI VCR/DVR HDMI2 CBL/SAT HDMI ME HDMI4 PC HDMI5°2 AUX FRONT (Fixed) TEV/CD ----- PHONO |----- PORT |-----

‘2. If you connect your personal computer to PC IN (Analog RGB), you must assign “= - - - =” to the “PC” input selector.

B BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, TV/CD, PHONO, PORT > HDMI, HDMI2, HDMH3, HDMI4, HDMIS, HDMI6, HDMI7: Select a corresponding HDMI input to which the video component has been connected. be Output composite video, S-Video, and component video sources from the HDMI output. The video output signal from the HDMI output is the one configured in “Component Video Input”. Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMI7 have already been assigned, you must first set any unused input selectors 10“ - - - - or you will be unable to assign HDM[H1 - HDMI to other input selectors.

+ For composite video, S-Video, and component video upconversion for the HDMI output, the “Monitor Out” setting must be set 10 other than “Analog” ( page 48), and the “HDMI Input” setting must be set 10 “- - - - =”, See “Connection Tips and Video Signal Path” for more information on video signal flow and upconversion (> page 94)

+ If no video component is connected to HDMI output (even if the

HDMI input is assigned), the AV receiver selects the video

source based on the setting of “Component Video Input”.

When an HDMI IN is assigned to an input selector as explained

here, the same HDMI IN will be set as a priority in the “Digital

Audio Input” (> page 50). In this case, if you want to use the

coaxial or optical audio input, make the appropriate selection in

the “Audio Selector” setting (> page 63).

The “TUNER” selector cannot be assigned and is fixed to the

+ “AUX? is used only for input from the front panel.

+ Do not assign an HDMI IN to the TV/CD selector while “HDMI Control(RIHD)” is set to “On” (> page 66), otherwise

appropriate CEC (Consumer Electronics Control) operation will

If you assign “= - - - =” 10 an input selector that is currently

selected in “HDMI Through” (> page 66), the “HDMI Through” setting will be automatically switched to “Off”.

If you connect a component (such as UP-A1 Dock with docked

iPod/Phone) to the UNIVERSAL PORT jack, you cannot

assign any input to the “PORT” selector.

If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector.

If you”ve connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video and S-Video sources are upconverted” and output by the COMPONENT VIDEO MONITOR OUT"1. You can set this for each input selector by selecting the “- - option.

Composite video, S-Video Component video

“This applies only when “Monitor Out” setting is set 10 “Analog” (> page 48).

Here are the default assignments.

AUX TV/CD PHONO PORT B BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX, TV/CD, PHONO, PORT D IN1, IN2, IN3: Select a corresponding component video input to which the video component has been connected.

Output composite video and S-Video sources from the HDMI output.

+ For composite video and S-Video upconversion for the COMPONENT VIDEO MONITOR OUT, the “Monitor Out” setting must be set 10 “Analog” (> page 48), and the “Component Video Input” setting must be set to * See “Connection Tips and Video Signal Path” for more information on video signal flow and upconversion (> page 94).

+ If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (> page 48).

+ If you connect a component (such as UP-A1 Dock with docked iPod/Phone) to the UNIVERSAL PORT jack, you cannot assign any input to the “PORT” selector.

+ The “TUNER? selector cannot be assigned and is fixed to the

If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPTICAL1” to the “TV/CD” input selector. Here are the default assignments.

Input selector Default assignment BD/DVD COAXIALI VCR/DVR COAXIAL2 CBL/SAT COAXIAL3

AUX FRONT (Fixed) TV/CD OPTICAL2

& BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, TV/CD, PHONO, PORT

(TX-NR5009) } COAXIALI, COAXIAL2, COAXIAL3, OPTICAL1, OPTICAL2, OPTICAL3:

(TX-NR3009) } COAXIALI1, COAXIAL2, COAXIAL3, OPTICAL1, OPTICAL2: Select a corresponding digital audio input to which the component has been connected.

Select if the component is connected to an analog audio input.

+ When an HDMI IN is assigned to an input selector in “HDMI Input” (> page 49), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the selection in the “Audio Selector” @ page 63).

+ Available sampling rates for PCM signals (stereo/mono) from a digital input (optical and coaxial) are 32/44.1/48/88.2/96 KHz/16, 20, 24 bit.

+ If you connect a component (such as UP-A1 Dock with docked iPod/iPhone) 10 the UNIVERSAL PORT jack, you cannot assign any input to the “PORT” selector.

+ “AUX” is used only for input from the front panel.

+ The ‘T! ” selector cannot be assigned and is fixed 10 the

B Multich > BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX, TV/CD, PHONO: You can assign the multichannel input to the input selectors.

multichannel input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to the MULTI CH input, you must assign it to the “BD/DVD” input selector.

+ To listen to the component connected to the multichannel input, make the selection in the “Audio Selector” (> page 63).

E Subwoofer Input Sensitivity

> 0dB to 15dB in 5 dB steps. Some DVD players output the LFE channel from their analog subwoofer output at 15 dB higher than normal. With this setting, you can change the AV receiver's subwoofer sensitivity to match your DVD player.

+ This setting only affects signals connected to the AV receiver's multichannel input subwoofer jack.

+ If you find that your subwoofer is too loud, try the 10 dB or 15 dB setting.

Speaker Setup LEXCTN Srearer Setup

Some of the settings in this section are set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup function (> page 33). For Speakers B, you need to change the settings manually.

Here you can check the settings made by

Audyssey MultEQ XT32 Room Correction and Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using Audyssey MultEQ XT32 Room Correction and Speaker Setup function.

Press RECEIVER and use SP LAYOUT on the remote controller to select Speakers A or Speakers B. For details on SP LAYOUT, see “Selecting Speaker Layout”

+ These settings are not available in either of the following cases: — a pair of headphones is connected. —the “Audio TV Out” setting is set to “On” (> page 66). — “HDMI Control(RIHD)" is set to “On” ( page 66) and you”re listening through your TV speakers.

If you change these settings, you must run Audyssey MultEQ XT32 Room Correction and Speaker Setup again (> page 33).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

If you bi-amp the front speakers, you must change the “Speakers Type(Front A)” or “Speakers Type(Front B)” setting. For details on speaker wire connection, see “Bi-amping the Front Speakers” (> page 16).

+ When bi-amping is used, the AV receiver is able to drive up to 7.2 speakers in the main room + Before you change these settings, turn down the volume.

ll Speaker Impedance > 4ohms: Select if the impedance of any speaker is 4 ohms or more but less than 6. > 6ohms: Select if the impedances of all speakers are between 6 and 16 ohms.

E Speakers Type(Front A) > Normal: Select this if you've connected your front speakers A normally. » Bi-Amp: Select this if you’ ve bi-amped your front speakers A.

E Speakers Type(Front B) » No: © Select this if you’re not using speakers B. > Normal: Select this if you've connected your front speakers B normally. } Bi-Amp: Select this if you”ve bi-amped your front speakers B. B Powered Zone 2, Powered Zone 3 > No PYes:

Zone 2/3 speakers can be used. (Powered Zone 2/3 enabled.)

B Front High + Front Wide » Yes: The “Front High” and “Front Wide” settings ( page 52) are automatically switched to “80Hz(THX)" if it was set to “None”. > No

Listening mode that make use of “Front High + Front Wide” setting is as follows:

DTS Neo:X (Cinema/Music/Game), DTS Neo:X Cinema + THX Cinema, DTS Neo:X Music + THX Music, DTS Neo:X Game + THX Games, Audyssey DSX (PLII + Audyssey DSX included), Orchestra, Unplugged, Studio- Mix, TV Logic, Game-RPG, Game-Action, Game-Rock, Game-Sports, Al Ch Stereo, Full Mono.

+ “Speakers Type(Front A)” and “Speakers Type(Front B)” cannot be set to “Bi-Amp'” at the same time.

+ Powered Zone 2 cannot be used if “Bi-Amp' is selected or “Speakers Type(Front B)” is enabled.

+ Powered Zone 3 cannot be selected if Powered Zone 2 is set 10 “No” or “Speakers Type(Front B)" is enabled.

+ The “Front High + Front Wide” setting cannot be used in any of the following cases: —“Bi-Amp is selected. — Powered Zone 2/3 is selected. — “Speakers Type(Front B)” is selected.

+ When the “Front High + Front Wide” setting is set to “Yes”, the audio of front wide is output from the SURR BACK/ZONE 3 terminals.

Speaker Configuration

This setting is set automatically by

Audyssey MultEQ® XT32 Room Correction and Speaker Setup function (+ page 33). For Speakers B, you need to change the settings manually.

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. You can set the crossover frequencies, distances, and levels of the front speakers A and front speakers B independently. The other speakers (i.e., subwoofer, center, surround, surround back and front high) use the same crossover frequencies, distances, and levels for Speakers A and Speakers B. Specify “Full Band” for speakers that can output low frequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies. If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to “80Hz(THX)" crossover.

EH Subwoofer >ich: Audio signal is outputted from SWA1 jack only. »2ch: Audio signal is outputted from SW1 and SW2 jacks. > No

BFront (Setting Speakers A and Speakers B) » Full Band > 40H, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80HZ(THX), 90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz

+ Ifthe “Subwoofer” setting is set to “No”, the “Front” (Speakers B) setting is fixed to “Full Band”.

+ If any of “Center”, “Surround”, or “Front High” is set to “Full Band”, the “Front” (Speakers B) setting is fixed to “Full Band”.

BE Center‘, Surround‘, Surround Back'2:3:45 » Full Band » 40Hz, 45Hz, 50Hz, SSHz, 60Hz, 70Hz, S0HZ(THX), 90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz » None

Front Wide”2‘6‘7°8, Front High‘127 » Full Band > 40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80HzZ(THX), 90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz None

“Full Band” can be selected only when “Full Band” is selected in the “Front"(Speakers A) setting.

2_Ifthe “Surround” setting is set to “None”, this setting cannot be selected.

3 Ifthe “Surround” setting is set to anything other than “Full Band”, “Full Band” cannot be selected here.

“4 When the “Powered Zone 3° setting is set to “Yes”, this setting cannot be used.

5 When “Front High + Front Wide” is set to “Yes”, this setting cannot be selected.

“6 “Full Band” can be selected only when “Full Band” is selected in the “Front” setting.

‘7 If “Bi-Amp” is selected, or the “Powered Zone 2” setting is

set to “Yes”, this setting cannot be selected.

If anything other than “No” is selected in “Speakers

Type(Front B)”, this setting cannot be selected.

B Surround Back Ch »ich: Select if only one surround back speaker L is connected. »2ch: Select if two (left and right) surround back speakers are connected.

+ Ifthe “Surround Back” setting is set to “None”, this setting cannot be selected.

BLPF of LFE (Low-Pass Filter for the LFE Channel) » 80Hz, 90Hz, 100Hz, 110Hz, 120Hz » Bypass: Low-Pass Filter is not applied. With this setting, you can specify the cutoff frequency of the LFE channels low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel.

+ If you're using THX-certified speakers, select “80H”.

This setting is NOT set automatically by Audyssey MultEQ XT32 Room Correction and Speaker Setup function (> page 33).

} Of(THX) Turn this setting on to boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer.

+ This function can be set only if the “Subwoofer” “ich” or “2h”, or the “Front” setting is set to + If you're using THX-certified speakers, select “OfI(THX)".

»180° Moves the subwoofer phase.

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected.

This setting is set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup function (> page 33). For Speakers B,

you need to change the settings manually.

When an optional unit is connected to the UNIVERSAL PORT jack on the AV receiver, the speaker setting menu may appear on screen.

PYes: The audio is output from the speakers connected to the wireless unit. » No: The audio is not output from the speakers connected to the wireless unit. When the wireless unit is connected to the UNIVERSAL PORT jack on the AV receiver, you can select if you wish to output the audio from the speakers connected to the wireless unit.

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected (> page 52).

& Subwoofer, Front, Center, Surround, Front High, Surround Back (Setting Speakers À and Speakers B) > Not Use: Select if you don't want to use each speaker with Speakers A or Speakers B. » Use: Select if you do want to use each speaker with Speakers A or Speakers B. If you're using Speakers B, you can choose whether or not 10 use the subwoofer, center, surround, front high, and sur- round back speakers with the Speakers À and Speakers B configurations independently. You cannot choose whether or not to use the front speakers.

+ These settings can only be displayed when the “Speakers Type(Front B)” setting is set 10 other than “No” (> page 51).

+ You cannot select speakers that you set to “No” or “None”.

+ “Front” is fixed to “Use”.

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.

You can set the distances for front speakers A and front speakers B independently. The other speakers (i.e., subwoofer, center, surround, surround back and front high) use the same distance settings for Speakers À and Speakers B.

» feet: Distances can be set in feet. Range: 0.2ft to 30.0ft in 0.2 foot steps.

} meters: Distances can be set in meters. Range: 0.06m to 9.00m in 0.06 meter steps.

(The default setting varies from country to country.)

B Left, Front Wide Left, Front High Left, Center, Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left, Subwoofer 1, Subwoofer 2°1 > Specify the distance from each speaker to your

+ Speakers that you set to “No” or “None” in the “Speaker Configuration” cannot be selected (> page 52). + Speakers B cannot be selected if “Speakers Type(Front B)" is set to “No” (> page 51). “1 Ifthe “Subwoofer” setting is set to “Leh”, this setting cannot be selected (> page 52).

This setting is set automatically by

Audyssey MultEQ® XT32 Room Correction and Speaker Setup function (+ page 33). For Speakers B, you need to change the settings manually.

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the Same at the listening position.

You can set the levels of front speakers A and front speakers B independently. The other speakers (i.e., subwoofer, center, surround, surround back and front high) use the same level settings for Speakers A and Speakers B.

B Left, Front le Left, Front High Left, Center1, Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left > -12.0dB to 0.04B to +12.0dB in 0.5 dB steps.

E Subwoofer 1°1, Subwoofer 2:12 »-15.0dB to 0.04B to +12.0dB in 0.5 dB steps.

+ These settings cannot be calibrated when the AV receiver is muted.

+ Speakers that you set to “No” or “None” in the “Speaker Configuration” cannot be selected (> page 52).

+ The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

+ Speakers B cannot be selected if “Speakers Type(Front B)" is

set to “No” (> page 51).

For the center speaker and subwoofer, the level settings made by using the Home menu are saved in this menu

If the “Subwoofer” setting is set to “Leh”, this setting cannot be selected (> page 52).

+ If you're using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

With the Equalizer settings, you can adjust the tone of speakers individually with a 7-band equalizer. The volume of each speaker can be set.

The Equalizer settings only apply to Speakers A and cannot be adjusted while Speakers B is selected.

BEqualizer » Manual: You can adjust the equalizer for each speaker manually. Continue with the following procedure:

À Press Y to select “Channel”, and then use </» to select a speaker.

2 Use A/Y to select a frequency, and then use the <> to adjust the level at that frequency. The volume at each frequency can be adjusted from -6dB to 0dB to +6dB in 1 dB steps. Tip + Low frequencies (e.g.. 63Hz) affect bass sounds:

high frequencies (e.g.. 16000Hz) affect treble sounds.

3 Use A to select “Channel”, and then use 4/> to select another speaker. Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No” or “None” in the “Speaker Configuration” (@ page 52).

» of. Tone off, response flat.

+ You can select: “63Hz”, “160Hz”, “400Hz”, “1000Hz”, “2500Hz”, “6300Hz”, or “16000H”. And for the subwoofer, “25Hz”, “40H”, “6342”, “100Hz”, or “160H2”.

+ When the Direct or Pure Audio listening mode is selected, the equalizer settings have no effect.

} 1ft-4ft (0.3m-1.2m)

» >4ft (@1.2m) You can specify the distance between your surround back speakers. This setting is used by Speakers A and Speakers B.

+ Cannot be set if —“Surround Back Ch” is set to “1ch” ( page 52).

round Back” is set 10 “None” (> page 52).

— “Powered Zone 3” is setto “Yes” (> page 51) and Zone 3 is turned on (> page 73)

M THX Ultra2/Select2 Subwoofer

bYes If you're using a THX-certified subwoofer, set this setting to “Yes”.

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected (> page 52).

»On You can apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall).

+ This setting is only available if “THX Ultra2/Select2 Subwoofer” is set 10 “Yes”.

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected (> page 52).

»On When the “Loudness Plus” is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume.

This is only available when the THX listening mode is selected.

B Preserve THX Settings

>No If this setting is set to “Yes”, Dynamic EQ, Dynamic Volume and Dolby Volume have no effect in THX listening mode.

+ This setting is fixed to “Yes” if “Loudness Plus” is set to “On”.

THX Loudness Plus is a new volume control technology featured in THX Ultra? Plus! M and THX Select2 Plus!" Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that oceur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

manner LT With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

> Main/Sub This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

Input Channel » Left + Right » Left > Right This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2- channel analog/PCM source in the Mono listening mode. Output Speaker } Center: Mono audio is output by the center speaker. » Left / Right: Mono audio is output by the front left and right speakers. This setting determines which speakers output mono audio when the Mono listening mode is selected.

+ Ifthe “Center” setting is set to “None” (> page 52), this setting cannot be selected.

> of With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode.

»-3 to 0 to +3 With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward. If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it's in mono, or there's not enough surround sound, move it backward.

»Ot3t07 With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic Ix Music listening mode. Normally, if you're using a center speaker, the center channel sound is output from only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.

> High The Heïght Gain Control in Dolby Pro Logic IIz enables the listener to select how much gain is applied to the front high speakers. There are three settings, “Low”, “Mid” and “High”, and the front high speakers are accentuated in that order. While “Mid” is the default listening setting, the listener may adjust the Height Gain Control to their personal preference.

+ Ifthe “Front High” setting is set to “None” (> page 52), this setting cannot be selected.

M Dolby EX » Auto: If the source signal contains a Dolby EX flag, the Dolby EX or THX Surround EX listening mode is used. > Manu: You can select any available listening mode. This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.

+ Ifthe “Surround Back” setting is set to “None” (> page 52), this setting cannot be selected.

+ Ifthe “Front High” or “Front Wide” setting is enabled (> page 52), this setting is fixed to “Manual”.

>On Dolby Volume automatically adjusts the difference in volume levels which can occur between different contents or source components, freeing the user from having to make volume adjustments. Also, by adjusting the frequency balance according to the playback volume, it recreates the original source audio. Dolby Volume therefore provides comfortable listening, effectively controlling the volume level difference without unnatural changes in volume or sound quality to recreate the balance and nuance of the source audio.

+ When the “Dolby Volume” setting is set 10 “On”, “Dynamic EQ” and “Dynamic Volume” will be set to “Off”.

+ If you would like to use Dolby Volume in THX listening modes, set the “Loudness Plus” and “Preserve THX Settings” settings 10 “ONF” and “No”, respectively.

+ When “Dolby Volume” is set to “On”, the Late Night function cannot be set.

H Volume Leveler »Off » Low: Low Compression Mode activated. » Mid: Medium Compression Mode activated. » High: High Compression Mode activated. This setting affects volume the most, causing all sounds to be of equal loudness. “Volume Leveler” maintains the perceived loudness of all contents, coming from different channels or input sources.

+ Ifthe “Dolby Volume” setting is set to “Off”, this setting cannot be selected.

*On The Half Mode parameter turns Dolby Volume Half Mode processing on and off. In off mode, Dolby Volume applies a bass and treble attenuation to the audio when the system gain exceeds reference level. This enables a more perceptually flat listening experience as human ears are more sensitive to bass and treble at higher levels. Some listeners however, prefer to have more bass and treble performance at higher gain levels.

+ Ifthe “Dolby Volume” setting is set to “OF”, this setting cannot be selected.

+ During Half Mode on playback, Dolby Volume does not apply a bass and treble attenuation when the system volume exceeds reference level thereby boosting perception of high and low frequencies.

DO to2t05 The DTS Neo:X Music listening mode creates 9-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. Changing the value from “0” to “5” will spread the sound of the center channel to left and right (outwards).

Audyssey DSXTM E Soundstage

»-3dB to Reference to +3dB With this setting, you can adjust the sound stage when using Audyssey DSX.

+ This listening mode can be selected only when all the following conditions are satisfied: — The center speaker is connected. — The front high and front wide speakers are connected

+ The “Soundstage” setting cannot be adjusted while Speakers B is selected.

Æ Listening Angle > Wide: Select if the listening angle is greater than 30 degrees. > Narro: Select if the listening angle is less than 30 degrees. With tl etting, you can optimize the Theater- Dimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.

Front left speaker {7 Front right speaker

-Y Listening angle: 30°

MB Dolby Digital‘, DTS’2, Multich PCM, Dolby TrueHD, DTS-HD Master Audio, DSD'3 »-codB, -20dB, -104B, or 0dB With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for each input sources. If you find that low-frequency effects are too loud when using one of these sources, change the setting to -20 dB or —00 dB. “Dolby Digital and Dolby Digital Plus sources 2 DTS and DTS-HD High Resolution sources ‘3 DSD (Super Audio CD) sources

© Analog audio signals (bass signals) are not output. > On: Analog audio signals (bass signals) are output.

This setting determines whether or not analog audio signals (bass signals) are output from front speakers when the Pure Audio or Direct listening mode is selected.

+ Ifthe “Subwoofer” setting is set 10 “No” ( page 52), this setting cannot be selected.

BDSD DAC Direct > Of: DSD signals are processed by the DSP. > On: DSD signals are not processed by the DSP. This setting determines whether or not DSD (Super Audio CD) audio signals are passed through the DSP for A/V Sync, delay, etc., processing when the Pure Audio or Direct listening mode is selected.

+ Once you have selected “Yes”, only DAC Direct will be available for selection. “DSD Direct” will appear on the display.

HE Sound Program } Stereo Source 1, Stereo Source 2, Stereo Source 3, Muitich Source 1, Multich Source 2, Multich Source 3 ‘When playing back different content types on the same source, or when listening to a single content type on different sources, you can pre-register the settings that best suit each content in “Sound Program”. The registered settings can then be called up and modified in one set. Use “Sound Program Edit” to register and modify a combination of settings.

Tip + To select the registered settings, see “Sound Program”

( page 69). Listening Mode You can assign a default listening mode that will be selected automatically when you select the sound program. The “Last Valid” option means that the listening mode selected last will be used. The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

E Subwoofer » No, Yes You can choose whether or not to use the subwoofer with the sound program. B Music Optimizer‘1 > Off, On See “Music Optimizer” (> page 70).

BEqualizeri > Of > Manual: The manual setting in “Equalizer Settings” (> page 54) is applied.

B Dynamic Volume‘12 » Off, Light, Medium, Heavy See “Dynamic Volume” (> page 59).

M Dolby Volume‘: > Off, On See “Dolby Volume” (> page 56).

tening Mode” is only available when the input signal matches the setting of “Sound Program”. + You cannot select the “Subwoofer” setting if you set to “No” in the “Speaker Configuration”. + “Music Optimizer” is only available when “Stereo Source 1”, Stereo Source 2” or “Stereo Source 3” is selected. + When “Audyssey Quick Start” has been used for measurement, the “Audyssey”setting cannot be selected. “This setting cannot be used when the “Listening Mode” setting is set to “Pure Audio” or “Direct”. 2. To enable this setting, you must first perform the Room Correction and Speaker Setup.

Items can be set individually for each input selector.

Preparation Press the input selector buttons to select an input source.

The tone for each speaker is set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup. To enable the following settings, you must first perform the Room Correction and Speaker Setup (> page 33).

These technologies cannot be used when:

+ a pair of headphones is connected, or

+ Speakers B is being used, or

+ either Pure Audio or Direct listening mode is selected.

> Movie: Select this setting for movie material. The Audyssey indicator lights.

> Music: Select this setting for music material. The Audyssey indicator lights.

+ Ifthe “Audyssey” setting is set to “OfP”, the settings are applied (> page 54).

+ When “Audyssey Quick Start” has been used for measurement, the “Audyssey”setting cannot be selected.

+ Audyssey equalizing does not work with DSD sources.

B Dynamic EQ > om > On: Audyssey Dynamic EQ® becomes active. The Dynamic EQ indicator lights. With Audyssey Dynamic EQ, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that the content sounds the way it was created at any volume level — not just at reference level.

Reference Level Audyssey Dynamic EQ Reference Level Offset »OdB: © This should be used when listening to movies. 5

Select this setting for content that has a very wide

dynamic range, such as classical music. > 10dB:

Select this setting for jazz or other music that has a

wider dynamic range. This setting should also be

selected for TV content as that is usually mixed at

10 dB below film reference. > 15dB:

Select this setting for pop/rock music or other

program material that is mixed at very high listening

levels and has a compressed dynamic range. Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater system each speaker level must be adjusted so that -30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey MultEQ® XT32 will play at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it. Audyssey Dynamic EQ is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non- film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

+ If “Dynamie EQ" setting is set to “OfP”, these technologies cannot be used.

Activates Light Compression Mode.

> Medium: Activates Medium Compression Mode.

} Heavy: Activates Heavy Compression Mode. This setting affects volume the most. It quiets the loud parts, such as explosions, and boosts the quiet parts so they can be heard.

+ If you want to use Audyssey Dynamic EQ or Audyssey Dynamic Volume® with THX listening modes, set the “Loudness Plus” setting to “OFF” and set “Preserve THX Settings” to “No” (> page 55).

+ If you make Dynamic Volume active, “Dynamie EQ” is set 10 “On”. The Dynamic Vol indicator will light.

+ When “Dynamic EQ” is set to “Of”, “Dynamic Volume” is automatically switched to “OF”.

About Audyssey Dynamic EQ® Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any user-selected volume setting. The result is bass response, tonal balance and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution.

About Audyssey Dynamic Volume® Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression and dialog clarity remain the same whether watching movies, flipping between television channels or changing from stereo to surround sound content.

»-12dB to 0dB to +12dB in 1 dB steps. With IntelliVolume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others. Use Æ/» to set the level. If a component is noticeably louder than the others, use 10 reduce its input level. If it's noticeably quieter, use to increase its input level.

+ IntelliVolume does not work for Zone 2/3

} Omsec to 800msec in 5 msec steps. When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. To view the TV picture while setting the delay, press ENTER. To return to the previous screen, press RETURN.

The range of values you can adjust will depend on whether your TV or display supports HDMI Lip Sync and if the “Lip Sync” setting is set to “On” or not

+ A/V Sync is disabled when the Pure Audio listening mode is selected, or when the Direct listening mode is used with an analog input source.

+ This setting cannot be used with the NET input selector.

You can enter a custom name for each individual input selector and radio preset for easy identification. When entered, the custom name will appear on the display. The custom name is edited using the character input screen.

À Use A/Y/<r to select a character, and then press ENTER. Repeat this step to enter up to 10 characters.

2 To store a name when you’re done, be sure to

select “OK” by using A/Y/</», and then press ENTER.

Space: Enter a space character. Shift't: Toggles between lower and upper case characters. + (Left) — (Right): Moves the cursor left or right in the Name input area. Back Space”?: Moves the cursor backward and deletes one character. OK: Confirms your entry. Tip “1° This can also be performed by using +10 on the remote controller. ‘2 Press CLR on the remote controller to delete all the characters you have input.

To correct a character:

À Use A/Y/ > to select “+” (Left) or “"(Right), and then press ENTER. 2 Press ENTER several times to highlight the

incorrect character (For each pressure, the cursor is moved on the next character).

& Use A/Y/</> to select the correct character, and then press ENTER.

+ To name a radio preset, use TUNER to select AM or FM, and then select the preset (> page 31).

+ To restore a custom name to its default, erase the custom name by entering an empty white space for each letter.

+ This setting cannot be used for the NET and USB input selector.

Using Picture Adjust, you can adjust the picture quality and reduce any noise appearing on the screen.

To view the TV picture while setting, press ENTER. To return to the previous screen, press RETURN.

Æ Wide Mode‘1"2 This setting determines the aspect ratio. D 43:

+ Auto: According to the input signals and monitor output setting, the AV receiver automatically selects the “4:3”, “Full”, “Zoom” or “Wide Zoom” mode. See “Monitor Out” for details on the monitor output setting (> page 48).

B Picture Mode‘1 > Custom: Al settings can be performed manually. DISF Day: Setting when a room is bright. vISF Night: Setting when a room is dark. } Cinema: Select when the picture source is a movie or alike. » Game: Select when the video source is a game console. } Streaming: Attempts to reduce the mosquito noise and block artifact effects. > Through: Does not adjust picture quality (changes resolution). » Direct: Does not adjust picture quality (does not change resolution). The video coming from an analog input and output by HDMI output(s) is processed in the same way as “Through”.

With “Picture Mode”, you can change the following settings to be suitable for the movie or game screen by one operation: “Game Mode”, “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Mosquito NR”, “Random NR”, “Block NR”, “Resolution”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Color Temperature”, “Gamma”, “Red Brightness”, “Red Contrast”, “Green Brightness”, “Green Contrast”, “Blue Brightness”, or “Blue Contrast”.

The receiver has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from the receiver. Accordingly, Onkyo recommends that setup and calibration be performed by an ISF Certified installation technician.

On If video signal delay oceurs during playback on a video component (i.e., game console), select the corresponding input source and set the “Game Mode” setting to “On”. The delay will decrease but in return the picture quality will become poor.

B Film Mode'3'5"6 } Video: “Film Mode” detection is not applied and the input signal is handled as a video source. } Auto: Detects whether the input signal is a video or a movie. If it is a movie, the appropriate conversion is applied. The AV receiver will adjust to the picture source, automatically converting it to the appropriate progressive signal and reproducing the natural quality of the original picture.

B Edge Enhancement'3'5'6

> High With Edge Enhancement, you can make the picture appear sharper.

> High With this setting, you can reduce noise appearing on the screen. Select the desired level.

> High With Mosquito Noise Reduction, you can remove the shimmering or haziness that sometimes appears around objects in the picture. Mosquito noise can be an issue with overly compressed MPEG content.

> High With Random Noise Reduction, you can remove indiscriminate picture noise, such as film grain.

> High With Block Noise Reduction, you can remove the block distortion that sometimes appears in the picture. Block noise can be an issue with overly compressed MPEG content.

BResolution‘3'5'8"°10

> Through: Select this to pass video through the AV receiver at the same resolution and with no conversion.

» Auto: Select this to have the AV receiver automatically convert video at resolutions supported by your TV. ‘When the “Monitor Out” is set to “Analog”, this setting will be changed to “Through”.

> 480p (480p/576p), 720p, 1080i: Select the desired output resolution.

» 1080p: Select this for 1080p output and video conversion as necessary.

Select this for 1080p output at 24 frames per second.

» 4K Upscaling: Select this for an output resolution four times that of 1080p, resulting in 3840 x 2160 pixels. You can specify the output resolution for the HDMI Output(s) and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV. Available only when “Source” has been selected in the “Resolution” of the “Monitor Out” setting (3 page 48).

»-50 to © to +50 With this setting you can adjust the picture brightness. “50° is the darkest. “+50” is the brightest.

B Contrast1°35 »-50 to © to +50 With this setting you can adjust contrast. “-50° is the least. “+50” is the greatest. BHue‘135 »-50 to 0 to +50

‘With this setting you can adjust the red/green balance. “-50" is the strongest green. “+50” is the strongest red.

»-50 to © to +50 With this setting you can adjust saturation. “-50” is the weakest color. “+50” is the strongest color.

E Color Temperature‘3'5 » Warm > Normal » Cool With this setting you can adjust the color temperature.

B Gamma's'5 »-3 to 0 to +3 Adjust the balance of incoming picture R (red), G (green), and B (blue) color data signal to the output color data signal.

BE Red Brightness'35

»-50 to © to +50 etting you can adjust the picture red . “-50” is the darkest. “+50” is the

Red Contrast'3'5 »-50 to © to +50 With this setting you can adjust red contrast. “50” is the least. “+50” is the greatest.

BE Green Brightness'3'5 »-50 to © to +50 With this setting you can adjust the picture green brightness. “-50° is the darkest. “+50” is the brightest.

B Green Contrast:3'5 »-50 to 0 to +50 With this setting you can adjust green contrast. “-50" is the least. “+50” is the greatest.

B Blue Brightness'3'5 »-50 to © to +50 With this setting you can adjust the picture blue brightness. “-50° is the darkest. “+50” is the brightest.

B Blue Contrast'3'5 »-50 to © to +50 With this setting you can adjust blue contrast. “-50” is the least. “+50” is the greatest.

ture Adjust” cannot be used with the NET input selector.

“This procedure can also be performed on the remote controller by using the Home menu (> page 43).

“2 When a 3D video source is input, “Wide Mode” is fixed 10 “Full”.

“3 When the “Picture Mode” setting is set to anything other than “Custom”, this setting cannot be used.

“4 Ifthe “Resolution” setting is set 10 “4K Upscaling” € pages 48, 62), this setting is fixed to “OfP”.

5 Press CLR if you want to reset to the default value.

6. If you are using the analog RGB input, this setting is not available.

‘7 When the “Noise Reduction” setting is set 10 anything other than “OF”, this setting cannot be selected.

‘8 When “Resolution” is set to “1080/24” or “4K Upscaling” while “Monitor Out” is set to “Analog”, the video is output in 1080.

9 When “Resolution” is set to “1080/24” or “4K Upscalin: while “Monitor Out” is set 10 “HDMI Sub” or “Both(S the video is output in 1080p.

“10 When “Resolution” is set to “Auto” while “Monitor Out” is set to “Analog”, the video is output as “Through”.

You can set priorities of audio output when there are both digital and analog inputs.

> ARC: The audio signal from your TV tuner can be sent to the HDMI OUT MAIN of the AV receiver."1 With this selection, the TV’s audio can be automatically selected as a priority among other assignments.

> HDMI: This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is automatically selected as a priority.

} COAXIAL: This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and HDMI inputs have been assigned, coaxial input is automatically selected as a priority.

» OPTICAL: This can be selected when OPTICAL IN has been assigned as an input source. If both optical and HDMI inputs have been assigned, optical input is automatically selected as a priority.

> Multich: The AV receiver always outputs analog signals from multichannel analog input.

» Analog: The AV receiver always outputs analog signals.

+ The setting is stored individually for each input selector. + This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN. + The “Audio Selector” settings cannot be used with the NET, USB and PORT (with connected component) input selectors. + To select “Multich”, you must assign the multichannel input ( page 50). + When using the Whole House Mode, “Audit to “Analog”. “1 You can select “ARC if you select the TV/CD input selector. But you cannot if you've selected “Off” in the “Audio Return Channel” setting (> page 67).

BFixed Mode » Of: The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead. PCM: Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced. >DTS: Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the DTS indicator will flash and there will be no sound. When “HDMI”, “COAXIAL” or “OPTICAL" is selected in the “Audio Selector” setting, you can then specify the signal type in “Fixed Mode”. Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS. + If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM. + If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.

+ The setting is stored individually for each input selector. + The setting will be reset to “Of” when you change the setting in “Audio Selector”.

B Charge Mode » Auto: Power feeding is interrupted when your iPod/iPhone is fully charged. > On: Power feeding continues even if your iPod/iPhone is fully charged. »Off: Your iPod/iPhone is not charged. You can specify how the power is fed to your iPod/iPhone when the AV receiver is in standby mode.

+ This setting cannot be selected when

—the UP-A1 Dock with docked iPod/iPhone is not connected to the AV receiver, or — the docked iPod/iPhone model is not supported.

+ When the “Charge Mode” setting is set 10 “On”, or to “Auto” with your iPod/iPhone recharging, the SLEEP indicator is dimly lit in standby mode. In such conditions, the power consumption of the AV receiver slightly increases. With “Auto”, when the iPod/Phone becomes fully charged, the SLEEP indicator goes off and the power consumption in standby mode is reduced.

Listening Mode Preset

You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes during playback, but the mode specified here will be resumed once the AV receiver has been set to standby.

ECTS Listening Mode Preset

À Use A/Y to select the input source that you want to set, and then press ENTER. The following menu appears.

2 Use A/Y to select the signal format that you want to set, and then use Æ/»> to select a listening mode. Only listening modes that can be used with each input signal format can be selected ( pages 37 to 42). The “Last Valid” option means that the listening mode selected last will be used.

The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

+ If you connect an input component (such as UP-A1 series Dock that seated iPod) to the UNIVERSAL PORT jack, the only listening modes you can assign to the “PORT” selector are specific to analog sound.

+ For the TUNER input selector, only “Analog” will be available.

+ For the NET or USB input selector, only “Digital” will be available.

B Analog / PCM / Digital With this setting, you can specify the listening mode used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played.

BE Mono/Multiplex Source With this setting, you can specify the listening mode used when a mono digital audio signal is played (DVD, etc.).

B2ch Source With this setting, you can specify the listening mode used when 2-channel (2/0) stereo digital sources, such as Dolby Digital or DTS, are played.

& Dolby D/Dolby D Plus/TrueHD With this setting, you can specify the listening mode used when Dolby Digital or Dolby Digital Plus format digital audio signals are played (DVD, etc.). Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI).

B DTS/DTS-ES/DTS-HD With this setting, you can specify the listening mode used when DTS or DTS-HD High Resolution format digital audio signals are played (DVD, LD, CD, etc.). Specifies the default listening mode for DTS-HD Master Audio sources, such as Blu-ray or HD DVD (input via HDMD).

M Other Multich Source Specifies the default listening mode for multichannel PCM sources from HDMI IN such as DVD-Audio, and DSD multichannel sources such as Super Audio CD.

cellaneous KEXCTNN iscclianeous

Displayed range is Min, 0.5 to 99.5, Max.

Displayed range is codB, -81.5dB to +18.0dB. With this setting, you can choose how the volume level is displayed.

The absolute value 82 is equivalent to the relative value 0 dB.

+ If the absolute value is set to 82, “82Ref” will appear on the display and the THX indicator will flash.

»-codB (fully muted), -50dB to -10dB in 10 dB steps. This setting determines how much the output is muted when the muting function is used (> page 45).

> Off, 50 to 99 (Absolute display)

» Off, -32dB to +17dB (Relative display) With this setting, you can limit the maximum volume. To disable this setting, select “Off”.

» Last, Min, 1 to 99 or Max (Absolute display)

» Last, -codB, -81dB to +18dB (Relative display) With this preference, you can specify the volume setting to be used each time the AV receiver is turned on.

To use the same volume level that was used when the AV receiver was turned off, select “Last”.

The “Power On Volume” cannot be set higher than the “Maximum Volume” setting.

»-12dB to 0dB to +12dB With this preference, you can specify the headphone volume relative to the main volume. This is useful if there’s a volume difference between your speakers and your headphones.

BE On Screen Display

Off This preference determines whether operation details are displayed on-screen when an AV receiver function is adjusted. Even when “On” is selected, operation details may not be output if the input source is connected to an HDMI IN.

Remote ID BRemote ID

»1,2,0r3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differentiate the AV receiver from the other components, you can change its remote ID from “1”, to “2” or “3”.

+ If you do change the AV receiver's remote ID, be sure 10 change the remote controller to the same ID (see below), otherwise, you won’t be able to control it with the remote controller.

Changing the remote controller’s ID While holding down RECEIVER, press and hold down SETUP until RECEIVER lights (about 3 seconds) (> page 47).

Use the number buttons to enter ID 1, 2, or 3. RECEIVER flashes twice.

M Zone 2 Out, Zone 3 Out » Fixed: The Zone 2/3 volume must be set on the amp in that zone. } Variable: The Zone 2/3 volume can be set on the AV receiver. If you”ve connected your Zone 2/3 speakers to an amp with no volume control, set the “Zone 2 Out” and “Zone 3 Out” setting, respectively, to “Variable” so that you can set the volume, balance, and tone of zone 2 and volume of zone 3 on the AV receiver.

Zone 3 Maximum Volume

» Off, -32dB to +17dB (Relative display) With this setting, you can limit the maximum volume for Zone 2/3.

Zone 3 Power On Volume

» Last, Min, 1 to 99 or Max (Absolute display)

» Last, -codB, -81dB to +18dB (Relative display) This setting determines what the volume will be for Zone 2/3 each time the AV receiver is turned on.

To use the same volume level as when the AV receiver was last turned off, select “Last”.

The “Zone 2 Power On Volume” and “Zone 3 Power On Volume” cannot be set higher than the “Zone 2 Maximum Volume” and “Zone 3 Maximum Volume” setting.

For AM/FM tuning to work properly, you must specify the AM/FM frequency step used in your area. Note that when

this setting is changed, all radio presets will be deleted. BAM/FM Frequency Step (North American models) > 10kHz/200kHz: > 9kHz/50kKHz:

Select the frequency step according to your area.

BAM Frequency Step (European and Asian models) > 10kHz: > 9kHz: Select the frequency step according to your area.

Æ HDMI Control(RIHD) > of On Turn this setting on to allow RIHD -compatible components connected via HDMI to be controlled by the AV receiver (> page 97).

+ When the setting is set 10 “On” and the menu is closed, the

names of connected FRIHD -compatible components and

“RIHD On” are displayed on the AV receiver.

“Search...” — “(name)” —> “RIHD On”

When the AV receiver cannot receive the name of the

component, it is displayed as “Player*” or “Recorder*”, etc (**”

shows up and indicate the number of components, when two or

When an FRIHD-compatible component is connected to the

AV receiver via an HDMI cable, the name of the connected

component is displayed on the AV receiver display. For

example, while you are watching TV broadcasting, if you

operate a Blu-ray Disc/DVD player (being powered on) with the

remote control of the AV receiver, the name of the Blu-ray

Disc/DVD player will be displayed on the AV receiver.

Set it to “OFF” when a connected piece of equipment is not

compatible or it is unclear whether the equipment is compatible

If operation is not normal when set to “On”, change the setting

Refer to the connected component’s instruction manual for

When “HDMI Control(RIHD)” setting is set 10 “On”, the

power consumption on standby mode slightly increase.

{Depending on the TV status, the AV receiver will enter standby

+ The RIHID control does not support HDMI OUT SUB. Use HDMI OUT MAIN instead.

+ When the source equipment is connected with the I connection, it may malfunction if “HDMI Control(RIHD)" is set to “On”.

B HDMI Through > of » Auto: Detects the signal and automatically selects the input source. > BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX, TV/CD, PHONO, PORT: Selects the input source for which the HDMI Through function is enabled. » Last: The HDMI Through function is activated on the input source selected at the time of setting the AV receiver to standby mode. When enabling the HDMI Through function, regardless of whether the AV receiver is on or in standby, both audio and video streams from an HDMI input will be output to the TV or other components via HDMI connection. The HDMI THRU and HDMI indicators light when enabled (HDMI is dimly-lit). This setting is set to “Auto” automatically when the above “HDMI Control(RIHD)" is set to “On”.

+ Only the input source assigned to the HDMI IN via “HDMI Input” is enabled ( page 48).

+ The power consumption during standby mode will increase

during the HDMI Through function: however in the following

cases, the power consumption can be saved:

— The TV is in standby mode.

— You are watching a TV program.

Refer to the connected component’s instruction manual for

+ Depending on the connected component, the correct input source may not be selected with the setting set 10 “Auto”.

+ This setting is set to “Of” automatically when the “HDMI Control(RIHD)" setting is set 10 “OfP”.

>On This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV's speakers. Normally, this should be set to “Off”.

+ If“ On” is selected and the audio can be output from the TV, the AV receiver will output no sound through its speakers. In this case, “TV Speaker” appears on the display by pressing DISPLAY.

When “HDMI Control(RIHD)" is set to “On”, this setting is fixed to “Auto”.

With some TVs and input signals, no sound may be output even when this setting is set to “On”.

When “Audio TV Out” or “HDMI Control(RIHD)" is set to “On” and you're listening through your T's speakers

€ page 19), tuning up the AV receiver’s volume control will make the sound be output from the AV receiver's front left and right speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TVs settings, or turn down the AV receiver’s volume.

+ Listening mode cannot be changed when this setting is set to “On” and the input source is not HDMI.

If the “Monitor Out” setting is set to “Both(Main)” or “Both(Sub)” ( page 48) and if your TV connected 10 a priority output cannot output the audio, the sound will be heard from AV receivers speakers.

B Audio Return Channel Off » Auto: The audio signal from your TV tuner can be sent to the HDMI OUT MAIN of the AV receiver. The audio return channel (ARC) function allows an ARC capable TV to send the audio stream to the HDMI OUT MAIN of the AV receiver. To use this function, you must select the TV/CD input selector and your TV must be ARC capable.

+ If you set “Audio Return Channel” to “Auto”, the “Audio Selector” settings of the TV/CD input selector will be automatically switched to “ARC” (> page 63).

+ The “Audio Return Channel” setting can be set only when the “HDMI Control(RIHD)" setting is set to “On”.

+ This setting is set to “Auto” automatically when the “HDMI Control(RIHD)" is set to “On” for the first time.

>On This function allows the AV receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor.

+ This function works only if your HDMI-compatible TV supports HDMI Lip Sync.

+ Ifthe “Monitor Out” setting is set to “HDMI Main”, “Both(Main)” or “Both” (> page 48), the delay will be corrected in accordance with the monitor connected 10 HDMI OUT MAIN. On the other hand, if “HDMI Sub” or “Both(Sub)” is selected, the delay will be corrected in accordance with the monitor connected to HDMI OUT SUB.

After modifying the network settings, you must confirm the changes by executing “Save”.

After changing the settings of the “HDMI Control(RIHD)", “HDMI Through” or “Audio Return Channel” turn off the power on all connected pieces of equipment and then turn them on again. Refer to the users manuals for all connected pieces of equipment.

>On When “Auto Standby” is set to “On”, the AV receiver will automatically enter standby mode if there is no operation for 30 minutes with no audio and no video signal input. “Auto Standby” will appear on the display and OSD 30 seconds before the Auto Standby comes on. Default setting: On (European and Asian models), Off (North American models)

+ Set to “On”, the Auto Standby function may activate itself during playback with some sources.

+ The Auto Standby function does not work when Zone 2/3 is on.

This section explains how to configure the AV receiver’s network settings manually.

If your router’s DHCP server is enabled, you don't need to change any of these settings, as the AV receiver is set to use DHCP to configure itself automatically by default (e., DHCP is set to “Enable”). If, however, your router’s DHCP server is disabled (you’re for example using static IP), you’ll need to configure these settings yourself, in which case, a knowledge of Ethernet networking is essential.

DHCP (Dynamic Host Configuration Protocol) is used by routers, Computers, the AV receiver, and other devices to automatically configure themselves on a network. What’s DNS?

The DNS (Domain Name System) translates domain names into IP addresses. For example, when you enter a domain name such as www.onkyousa.com in your Web browser, before accessing the site, your browser uses DNS 10 translate this into an IP address, in this case 63.148.251.142.

This is the AV receiver’s MAC (Media Access Control) address. This address cannot be changed.

» Disable This setting determines whether or not the AV receiver uses DHCP to automatically configure its IP Address, Subnet Mask, Gateway, and DNS Server settings.

+ If you select “Disable”, you must configure the “IP Address”, “Subnet Mask”, “Gateway”, and “DNS Server” settings yourself

BP Address } Class A: “10.0.0.0” to “10.255.255.255" } Class B: “172.16.0.0” to “172.31.255.255" } Class C: “192.168.0.0” to “192.168.255.255" Enter a static IP address provided by your ISP. Most routers use Class C IP addresses.

Enter the subnet mask address provided by your ISP (typically 255.255.255.0).

Enter the gateway address provided by your ISP.

Enter the DNS server address provided by your ISP. En

B Network Control } Enable » Disable This setting enables or disables control over the network.

+ When set to “Enable”, the NET indicator is dimly-lit and the power consumption slightly increases in standby mode.

B Control Port » “49152” to “65535” Thi

+ When the “Network Control” setting is set t setting is cannot be selected.

is the network port used for control over the network.

See “Firmware Update” for the update procedure @ page 91).

+ Perform the firmware update only when such an announcement is posted on the Onkyo web site. Visit the Onkyo web site for the latest information.

+ It takes maximum 60 minutes to complete the firmware update.

B Version Displays the current version of the firmware.

BReceiver } via NET: Performs the firmware update via Internet. Check the network connection before updating. } via USB:

Performs the firmware update from a USB device. These settings allow you to update the AV receiver’s firmware. Do not shutdown the power of the AV receiver while updating.

M Universal Port } via NET: Performs the firmware update via Internet. Check the network connection before updating. } via USB:

Performs the firmware update from a USB device. These settings allow you to update Onkyo dock’s firmware. Do not shutdown the power of the AV receiver while updating.

+ This update shall not be performed when no dock is connected 10 the UNIVERSAL PORT jack.

Remote Controller Setup RECU remote Controller Setup

First, select the ACTIVITIES (MY MOVIE, MY TV, or MY MUSIC) that you want to configure.

B Source > BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX, TUNER, TV/CD, PHONO, PORT, NET,

USB With this setting, you can choose the target input source of the Easy macro.

> Disable With this setting, you can specify whether or not to turn on the source component.

BReceiver Power On » Enable > Disable

With this setting, you can specify whether or not to turn on the AV receiver.

BReceiver Source Change

With this preference, you can protect your settings by locking the setup menus.

} Unlocked When “Locked” is selected, the setup menus will be locked and you cannot change any setting.

Using the Audio Settings

You can change various audio settings from the Home menu (> page 43).

1 Press RECEIVER followed by HOME.

2 Use A/Y and ENTER to select “Audio”, and then use À/Y/</» to make the desired selection.

+ These settings are not available in either of the following cases —the “Audio TV Out” setting is set to “On” (> page 66). — “HDMI Control(RIHD)" is set to “On” ( page 66) and you”re listening through your TV speakers.

E Sound Program » Stereo Source 1, Stereo Source 2, Stereo Source 3, Multich Source 1, Multich Source 2, Multich Source 3

s setting, you can select the combination of settings that you registered in “Sound Program Edit” (> page 58).

+ This setting is not available when the multichannel analog input is selected.

+ Ifthe input selector is changed, the “Sound Program” setting is switched back to “Of”

Tone Control Settings

BBass »-10dB to 0dB to +10dB in 2 dB steps. You can boost or cut low-frequency sounds output.

mTreble > -10dB to 0dB to +10dB in 2 dB steps.

You can boost or cut high-frequency sounds output. You can adjust the bass for the front, front wide, front high, center, surround, surround back and subwoofer speakers and treble for the front, front wide, front high, center, surround and surround back speakers, except when the Direct, Pure Audio or THX listening mode is selected.

Operating on the AV receiver

1 Press TONE repeatedly to select either “Bass” or “Treble” for each speaker or subwoofer.

2 Use + and — to adjust.

+ This setting is not available when the multichannel analog input is selected.

E Subwoofer 1 »-15.0dB to 0.04B to +12.0dB in 0.5 dB steps.

H Subwoofer 2° »-15.0dB to 0.04B to +12.0dB in 0.5 dB steps.

»-12.0dB to 0.04B to +12.0dB in 0.5 dB steps. You can adjust the volume of each speaker while listening to an input source. These temporary adjustments are cancelled when the AV receiver is set to standby. To save the setting you made here, go to “Level Calibration” ( page 54) before setting the AV receiver to standby.

+ You cannot use these functions while the AV receiver is muted. + These settings cannot be used while a pair of headphones is connected. + Speakers that are set to “No” or “None” in “Speaker Configuration” (> page 52) cannot be adjusted. “1 Ifthe “Subwoofer” setting is set to “Leh”, this setting cannot be selected (> page 52).

B Dolby Volume See “Dolby Volume” of “Audio Adjust” (+ page 56).

+ This setting cannot be used in either of the following cases:

— Pure Audio or Direct listening mode is selected.

—the multichannel analog input is selected

— Speakers B is being used.

— any of the THX listening modes is selected, with “Loudness Plus” set 10 “On” or “Preserve THX Settings” set to “Yes” ( page 55).

+ When “Dolby Volume” is set to “On”, the “Dynamic EQ and “Dynamic Volume” settings of all input selectors are switched to “OT”.

+ When “Sound Program” is enabled, the setting must be made with the “Sound Program Edit

M Dynamic Volume See “Dynamic Volume” in “Source Setup” (> page 59).

+ These technologies can be used when all the following conditions are met:

— Room Correction and Speaker Setup is completed. Note that “Audyssey” requires the “Audyssey MultEQ XT32 Full Calibration” method.

— Any listening mode other than Direct or Pure Audio is selected.

— A pair of headphones is not connected.

— multichannel analog input is not selected.

— Speakers B is not being used.

+ The setting is stored individually for each input selector.

+ “Dynamic EQ° and “Dynamic Volume” cannot be selected when any of the THX listening modes is selected, with “Loudness Plus” set to “On” or “Preserve THX Settings” set to “Yes” (> page 55).

+ When “Dynamie EQ" is set to “On” or “Dynamic Volume” is set to anything else than “Of”, “Dolby Volume” will be switched to “OFF”

+ When “Sound Program” is enabled, the setting must be made with the “Sound Program Edit”.

Late Night For Dolby Digital and Dolby Digital Plus sources, the options are: of » Low: Small reduction in dynamic range. » High: Large reduction in dynamic range. For Dolby TrueHD sources, the options are: » Auto: © The Late Night function is set to “On” or “Off” automatically.

etting on to reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels —ideal for watching movies late at night when you don't want to disturb anyone.

+ The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

+ The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

+ The Late Night function is set to “OFF” when the AV receive is set to standby. For Dolby TrueHD sources, it will be set to “Auto”.

>On Turn this setting on to enhance the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3.

+ The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 KHz and analog audio input signals.

+ The Music Optimizer is disabled when the Direct or Pure Audio listening mode is selected.

+ The setting is stored individually for each input selector.

+ The M.Opt indicator will light (> page 9).

+ This setting is not available when the multichannel analog input is selected.

und Program” is enabled, the setting must be made

Re-EQ With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

On This function can be used with the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express, DSD, Dolby EX, Dolby Pro Logic I1z Height, Dolby PLIIx Movie, DTS Neo:X Cinema.

M Re-EQ(THX) off »On This function can be used with the following listening modes: THX Cinema, THX Surround EX, and THX Ultra2 Cinema.

+ Settings for the Re-EQ function are kept in each listening mode. In THX listening mode however, the setting will return to “On”

when the AV receiver is turned off. + These settings cannot be used while a pair of headphones is connected.

Screen Centered Dialog

By using the front high speaker, this function moves the center image of dialog etc. upwards so that the image of dialog is fixed to the display height.

E Screen Centered Dialog As the value increases, the center image moves upwards. »0

Screen Centered Dialog on.

+ The “Screen Centered Dialog” can be used when supported listening mode is selected.

+ This setting cannot be used while a pair of headphones is connected.

In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you

can select a different source for each room.

Making Multi Zone Connections [ Note |

+ With this setup, the volume of Zone 2/3 is controlled by the AV There are two ways you can connect Zone speakers: 1. Connect them directly to the AV receiver. 2. Connect them to an additional amplifier.

Connecting the Zone Speakers Directly to the AV receiver

This setup allows you to select different sources for Main room and Zone 2/3. This is called Powered Zone, as the Zone 2/3 speakers are powered by the AV receiver.

To use this setup, you must activate the Powered Zone 2/3 setting (> page 51).

Main room o o Re AV receiver ES | o

1 Zone 2 5 s |; LI LIL

receive. + When Powered Zone 2 is used, playback in the main room is

reduced to 7.2 channels. + When Powered Zone 3 is used, playback in the main room is

reduced to 5.2 channels.

Connecting the Zone Speakers to an Additional Amplifier

This setup allows 9.2-channel playback in your main listening room and 2-channel stereo playback in Zone 2/3.

Receiver/ integrated amp

Receiver/ integrated amp

+ With the default settings, the Zone 2/3 volume must be set on the Zone 2/3 amplifier. If your Zone 2/3 amplifier has no volume control, change the setting so that you can set the Zone 2/3 volume on the AV receiver.

The AV receiver features a composite video output for connection to a TV in Zone 2, so you can enjoy both audio and video in that zone.

+ Use a composite video cable to connect the AV receiver’s ZONE 2 OUT V jack to a composite video input on your Zone 2 TV.

+ The ZONE 2 OUT V jack outputs video from components con- nected to composite video only.

When Zone 2/3 is turned on, the output from the 12V TRIGGER OUT jack goes high (+12 V and max. 150 mA for Zone 2, +12 V and max. 25 mA for Zone 3). Connecting this jack to a 12-volt trigger input on a component in Zone 2/3 will make that component turn on or off as the AV receiver turns on or off the Zone 2/3.

Controlling Zone 2/3 Components

B Operating on the AV receiver

1 To turn on Zone 2/3 and select an input source, press ZONE 2 or ZONE 3 followed by an input selector button within 8 seconds.

Zone 2/3 turns on, the 22/3 indicator lights on the display.

Tip + The corresponding trigger output goes high (+12 V)

To select AM or FM, press TUNER input selector and ZONE 2 or ZONE 3 repeatedly.

To select the same source as the main room's, press ZONE 2 or ZONE 3 twice. “Z2 Selector: Source” or “Zone 3 Selector: Source” appears on the display.

2 To turn off Zone 2/3, press ZONE 2 or ZONE 3.

The 22/3 indicator on the display flash. Press OFF.

The zone is turned off. Tip

+ The corresponding trigger output goes low (0 volts).

M Operating on the remote controller To control Zone 2/3, you must press the remote controller's ZONE first.

ZONE turns red while Zone 2 is on, and green while Zone 3 is on.

1 Press ZONE repeatedly, then point the remote controller at the AV receiver and press ORECEIVER.

Zone 2/3 turns on, the Z2/3 indicator lights on the display. Tip

+ The corresponding trigger output goes high (+12 V)

2 Toselect an input source for Zone 2/3, press ZONE repeatedly, followed by INPUT SELECTOR. To select AM or FM, press the TUNER input selector and ZONE repeatedly.

+ You cannot select different AM or FM radio stations for your main room and Zone 2/3. The same AM/FM radio station will be heard in each room.

3 To turn off Zone 2/3, press ZONE repeatedly, followed by ORECEIVER.

Tip + The corresponding trigger output goes low (0 volts).

g the Volume for Zones

B Operating on the remote controller

1 press ZONE repeatediy.

2 Use VOL 4/Y to adjust the volume.

B Operating on the AV receiver

1 Press ZONE 2 or ZONE 3 (the 2/3 indicator on the display flash).

2 Use MASTER VOLUME control within 8 seconds to adjust the volume.

If your Zone 2/3 speakers are connected to a receiver or integrated amp in Zone 2/3, use its volume control to

B Operating on the remote controller

1 Press ZONE repeatedly, and then press MUTING.

+ To unmute, press ZONE followed by MUTING again. Zones can also be unmuted by adjusting the volume.

Adjusting the Tone and Balance of Zones

On the AV receiver, press ZONE 2 or ZONE 3.

2 Press the AV receiver’s TONE repeatedl to select “Bass”, “Treble” or “Balance”.

3 Use -/+ to adjust the bass, treble or balance. + You can boost or cut the bass or treble from —10 dB 10 +10 dB in 2 dB steps. + You can adjust the balance from 0 in the center to +10 dB to the right or +10 dB to the left in 2 dB steps.

+ Only analog input sources are output by the ZONE 2/3 PRE/LINE OUT and FRONT WIDE/ZONE 2 L/R, SURR BACK/ZONE 3 L/R terminals. Digital input sources are not output. If no sound is heard when an input source is sel verify that the source is connected to an analog input. While Zone 2/3 is on, RI functions will not work.

+ You cannot select different AM or FM radio stations for your main room and Zone 2/3. The same AM/FM radio station will be heard in each room. Namely, if you have selected an FM station for the main room, that station will also be output in Zone 2/3. When you have selected NET or USB as the input selector, the last selector selected will be set for Main room, Zone 2, and Zone 3

When Zone 2/3 is activated and its input selector is power consumption of standby mode slightly increases.

When setting the AV receiver to standby mode while Zone 2/3 active, the Z2/3 indicator is dimly lit.

Activating Zones in the main room when the listening mode is set to Pure Audio will automatically switch it to Direct.

+ The Zone 2 volume, tone, and balance function have no effect on ZONE 2 PRE/LINE OUT when the “Zone2 Out” setting is set 10 “Fixed” (> page 65).

The Zone 3 volume, tone, and balance function have no effect on ZONE 3 PRE/LINE OUT when the “Zone3 Out” setting is set ixed” (> page 65).

en if you repeatedly press the remote controller's ZONE to select zones, the last zone selection will be retained once you have switched to other components by pressing other REMOTE MODE after pressing ZONE.

Using the Remote Controller in Zone and Multiroom Control Kits

To control the AV receiver with the remote controller while you’re in Zone, you’Il need a commercially available multiroom remote control kit for each zone.

+ Multiroom kits are made by Niles and Xantech.

These kits can also be used when there isn't a clear line of sight to the AV receiver’s remote sensor, such as when it's installed inside a cabinet.

Using a Multiroom Kit with Zone

In this setup, the IR receiver in Zone picks up the infrared signals from the remote controller and feeds them through to the AV receiver in the main room via the connecting block.

DT ET comnécing ma block receiver Remote controller Main room Zone

The miniplug cable from the connecting block should be connected to the AV receiver’s IR IN jack, as shown below.

From the connecting block

AV receiver = Signal flow

Using a Multiroom Kit with a Cabinet

In this setup, the IR receiver picks up the infrared signals from the remote controller and feeds them to the AV receiver located in the cabinet via the connecting block.

| ET TIR Connecting receiver block

Using a Multiroom Kit with Other Components

In this setup, an IR emitter is connected to the AV receivers IR OUT jack and placed in front of the other component's remote control sensor. Infrared signals received at the AV receiver’s IR IN jack are fed through to the other component via the IR emitter. Signals picked up by the AV receiver’s remote control sensor are not output.

= LT ET r Connecting IR receiver block

Remote controller | Other component

ZS Signal flow The IR emitter should be connected to the AV receiver’s

IR OUT jack, as shown below.

From the connecting block — Miniplug cable L Other component

Remote control sensor

iPod/iPhone Playback via Onkyo Dock

Using the Onkyo Dock

The Dock is sold separately. Models sold are different depending on the region.

For the latest information on the Onkyo Dock components, see the Onkyo web site at: http:/www.onkyo.com

Before using the Onkyo Dock components, update your iPod/Phone with the latest software, available from the Apple web site.

For supported iPod/iPhone models, see the instruction manual of the Onkyo Dock.

With the UP-A1 Dock, you can easily play the music, photos, or movies stored on your Apple iPod/iPhone through the AV receiver and enjoy great sound.

You can use the AV receiver’s remote controller to operate your iPod/iPhone.

B Operating Notes + Functionality depends on your iPod/iPhone model and

ting a different input source, stop your iPod/Phone playback to prevent the AV receiver from selecting the iPod/iPhone input source by mistake.

+ If any accessories are connected to your iPod/iPhone, the AV receiver may not be able to select the input source properly.

+ When connecting the UP-A1 Dock to the radio tuner UP-HT1

(North American models)/UP-DT1 (European and Asian

models) with AUTO selected by the tuner's Mode Selector

switch, you can switch the input source between UP-A1 Dock

and the tuner, by pressing PORT repeatedly on the front

While your iPod/iPhone is in the UP-A1 Dock, its volume

control has no effect. If you adjust your iPod/iPhone models

volume control while it's in the UP-A1 Dock, make sure it's

not set 100 high before you reconnect your headphones.

The Auto Power On function will not work if you set your

iPod/Phone in the UP-A1 Dock while it is playing

+ When Zone 2/3 is turned on, you can’tuse Auto Power On and Direct Change functions.

+ The “Charge Mode” setting must be set to “On” to enable the Auto Power On and Direct Change functions (> page 63).

The AV receiver may take several seconds to start up, so you might not hear the first few seconds of the first song.

If you start iPod/iPhone playback while the AV receiver is on standby, the AV receiver will automatically turn on and select your iPod/iPhone as the input source. Direct Change

If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically select your iPod/iPhone as the input source.

Using the AV receiver’s Remote Controller

You can use the AV receiver’s remote controller to control basic iPod/iPhone functions (> page 77).

BE Using Your iPod/iPhone Alarm Clock

You can use the Alarm Clock function of your iPod/iPhone to automatically turn on your iPod/iPhone and the AV receiver at a specified time. The AV receiver’s input source will automatically be set to the PORT selector.

+ To use this function, your iPod/iPhone must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV receive.

+ This function works only in Standard mode (> page 78).

+ When you use this function, be sure to set the AV receiver's volume control to a suitable level.

+ When Zone 2/3 is turned on, you can't use this function.

+ This function doesn't work when alarms sounds are set on your iPod/iPhone.

+ The “Charge Mode” setting must be set 10 “On” to enable the Alarm Clock function (> page 63).

E Charging Your iPod/iPhone Battery

When the UP-A1 Dock with docked iPod/iPhone is connected to the AV receiver, the battery of your iPod/iPhone is charged. Charging occurs when AV receiver is set to on or standby.

You can specify how the power is fed to your iPod/iPhone when the AV receiver is in standby mode (> page 63).

+ When the UP-A1 Dock with docked iPod/iPhone is connected, the power consumption on standby mode slightly increases.

If either of the following messages is not displayed on the AV receiver’s display, check the connection to your iPod/iPhone.

The AV receiver is checking the connection with the dock.

+ PORT Not Support The AV receiver do not support the connected dock. + PORT UP-A1 UP-AI Dock is connected.

+ The AV receiver displays the message “UP-A1” for several seconds after recognizing the UP-AL.

+ Linked operations do not work with video playback or when the alarm is set to play a sound

+ If you use your iPod/iPhone with any other accessories, iPod/Phone playback detection may not work.

+ This function works only in Standard mode ( page 78).

+ Use the AV receiver’s volume control to adjust the playback volume.

+ While your iPod/iPhone is inserted in the RI Dock, its volume control has no effect.

+ If you do adjust the volume control on your iPod/iPhone while its inserted in the RI Dock, be careful that it's not set 100 loud}

before you reconnect your headphones.

With the RI Dock, you can easily play the music stored on your Apple iPod/iPhone through the AV receiver and enjoy great sound, and watch iPod/iPhone slideshows and videos on your TV. In addition, the onscreen display (OSD) allows you to view, navigate, and select your iPod/iPhone model’s contents on your TV, and with the supplied remote controller, you can control your iPod/iPhone from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod/iPhone.

+ Enter the appropriate remote control code before using the AV receivers remote controller for the first time (> page 80).

+ Connect the RI Dock to the AV receiver with an RI cable page 22).

s RI MODE switch to “HDD” or

+ Set the AV receiver’s Input Display to “DOCK” (> page 44).

E System Function Auto Power On

If you press the remote controller’ s m= (Playback) while the AV receiver is on standby, the AV receiver will automatically turn on, select your iPod/iPhone as the input source, and your iPod/iPhone will start playback.

If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically switch to the input to which the RI Dock is connected. Other Remote Operations

You can use the remote controller that came with the AV receiver to control other iPod/iPhone functions. The available functionality depends on the AV receiver. iPod/iPhone Alarm

If you use the Alarm function on your iPod/iPhone to Start playback, the AV receiver will turn on at the specified time and select your iPod/Phone as the input source automatically.

When you turn off the AV receiver, RI Dock and iPod/iPhone turn off automatically.

+ On the iPod with video and iPod nano (1st generation), the click wheel is disabled during playback.

Controlling Your iPod/iPhone

By pressing the REMOTE MODE that's been programmed with the remote control code for your Dock, you can control your iPod/iPhone in the Dock with the buttons described further in this section.

See “Entering Remote Control Codes” for details on entering a remote control code (> page 80).

See the Dock’s instruction manual for more information.

PORT is preprogrammed with the remote control code for controlling a Dock via Universal Port.

You can control your iPod/iPhone when “PORT is selected as the input source.

+ Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

+ OSOURCE may not work with a remote control code (without RI). In this case, make an I connection and enter the remote control code 81993 (with RD).

Æ With the RI Control

Make an RI connection and enter the remote

control code 81993 (with R1).

+ Set the AV receiver’s Input Display to “DOCK” ( page 44).

& Without the RI Control

You must enter the remote control code 82990 first

Press the appropriate REMOTE MODE first. Onkyo Dock x

© @ [RETURN v @ [MODE V7 PA] D

+ With some iPod/iPhone models, generations and RI Docks, certain buttons may not work as expected. ? For detailed operation of iPod/iPhone, please refer to the instruction manual of the RI Dock.

This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the first time you press this button, in which case you should press it again. This is because the remote controller transmits the On and Standby commands alternately, so if your iPod/iPhone is already on, it will remain on when the remote controller transmits the On command. Similarly, if your iPod/Phone is already off, it will remain off when the remote controller transmits the Off command.

TOP MENU works as the mode button when used with the DS-A2 RI Dock.

In Extended mode (see 7), /> is used as the page jump button.

This allows you to quickly locate your favorite songs even when such lists as the song or artist lists are very long.

In Extended mode (see ‘7), this button doesn’t work.

In Extended mode (see 7), DISPLAY is used to switch between song informations. In Standard mode (see ‘7), DISPLAY turns on backlight for a second.

DISPLAY turns on backlight for a second.

Press MODE to switch between the following modes:

Nothing is displayed on your TV. Contents are browsed and selected on your iPod/iPhone display.

Extended mode (Music)

The music contents (artists, albums, songs, and so on) are displayed on your TV, and you can browse and select them on screen. Extended mode (Video)

The video contents (Movies, Music Videos, TV Shows, Video Podcasts or Rentals) are displayed on your TV, and you can browse and select them on screen.

With the Resume function, you can resume playback of the song that was playing when you removed your iPod/iPhone from the RI Dock.

+ In Extended mode (see ‘7), you cannot operate your iPod/iPhone directly. + In Extended mode (see ‘?), it may take some time to acquire the contents. + In Extended mode (see ‘?), the on-screen navigation menus only appear on a TV that is connected to the HDMI OUT MAIN.

ji S Controlling Other Components

You can use the AV receiver’s remote controller to control your other AV components, including those made by other manufacturers. This section explains how to enter the remote control code for a component that you want to control: DVD, TV, CD, etc.

“Learning Commands” for learning commands directly from another component's remote controller

“Using Normal Macros” for programing ACTIVITIES

to perform a sequence of remote control actions

Preprogrammed Remote Control Codes

The following REMOTE MODE buttons are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components.

For details on controlling these components, see the indicated pages.

BD/DVD Onkyo Blu-ray Disc player (> page 81) TV/CD Onkyo CD player (> page 81) PORT Onkyo Universal Port Option (> page 77)

Looking up for Remote Control Code

You can look up for an appropriate remote control code from the on-screen setup menu.

+ This can only be carried out using the on-screen setup menu.

1 Press RECEIVER followed by SETUP. The main menu appears on-screen. Tip

+ Ifthe main menu doesn”t appear, make sure the appropriate external input is selected on your TV.

Use 4/Y to select “Remote Controller Setup”, and then press ENTER.

Use 4/Y to select “Remote Mode Setup”, and then press ENTER.

Use A/Y to select a remote mode, and then press ENTER.

The menu of category selection appears.

Use A/Y to select a category, and then press ENTER.

The panel for brand name input appears.

6 UseA/Y/</> to select a character, and then press ENTER. Repeat this step for the first three characters of the brand name. When you have entered the 3rd character, select “Search” and press ENTER. A list of brand names is retrieved.

7 Use A/N to select a brand, and then press ENTER.

If you cannot find the brand name, use » to select

“Search DB”, and then press ENTER to access the

database on the network.

The AV receiver accesses and searches the database.

After searching, a list of the brand name appears. Tip

+ If you cannot access the database, a message “Cannot connect to database.” will appear. Press ENTER to return to the previous step.

+ Ifthe brand name is not found, use » to select “Not Listed”, and then press ENTER.

8 Use A/Y to select “Search by model number (via network)”, and then press ENTER. The model number input panel appears. ‘When you do NOT have a network connection or if you are not sure about the exact model, select “Skip”, and then press ENTER. If you select “Skip”, you will go to step 11.

9 Enter the model in a manner similar to that of the brand name (step 6).

Tip + After entering the 3rd character, press ENTER to start searching.

+ You cannot enter a space character.

10 Use 4/Y to select the model, and then press ENTER. If the model is not found, use to select “Not Listed”, and then press ENTER. After searching is completed, a message for remote control code transfer will appear.

11 ‘While pointing the remote controller at the AV receiver’s transmitter, press ENTER.

When you searched for the model, a message “Successful” will appear. Now the transfer is successful!

When you did NOT search for the model, push any key (except for arrow buttons and ENTER) to see if the component responds.

Tip + The numbers in[_/_ ] mean the order of the candidate code and the total number of codes for the brand.

If you can control component, press RECEIVER,

use À/Y to select “Works”, and then press ENTER.

If you cannot control component, press RECEIVER, use A/Y to select “Doesn’t work (Retry)” and press ENTER.

The next code appears. Repeat from step 11.

14 Press ENTER to transfer the determined code.

15° off center 16 ft. (5m)

You’Il return to the category selection menu. Press SETUP to end the remote mode setup.

Entering Remote Control Codes

You’Il need to enter a code for each component that you want to control.

Look up the appropriate remote control code in the separate Remote Control Codes list.

The codes are organized by category (e.g., DVD player, TV, etc.).

While holding down the REMOTE MODE to which you want to assign a code, press and hold down DISPLAY (about 3 seconds).

The REMOTE MODE button lights.

+ Remote control codes cannot be entered for RECEIVER and ZONE.

+ Only TV remote control codes can be entered for TV.

+ Except for RECEIVER, TV and ZONE, remote control codes from any category can be assigned to the REMOTE MODE. However, these buttons also work as input selector buttons ( page 25), so choose a REMOTE MODE that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.

Within 30 seconds, use the number buttons to enter the 5-digit remote control code.

REMOTE MODE button flashes twice.

If the remote control code is not entered successfully, REMOTE MODE button will flash once slowly.

+ Though the provided remote control codes are correct at the time of printing, they are subject to change.

Remote Control Codes for Onkyo

Components Connected via RI Onkyo components that are connected via RI are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.

1 Make sure the Onkyo component is connected with an RI cable and an analog audio cable (RCA). See “Connecting Onkyo RI Components” for details ( page 22).

2 Enter the appropriate remote control code for REMOTE MODE, referring to the previous section.

Onkyo cassette tape deck with RI > 81993:

3 Press REMOTE MODE, point the remote controller at the AV receiver, and operate the component.

Controlling Onkyo components without RI If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that's not connected via RH, use the following remote control codes: » 30627: Onkyo DVD player without RI »71817: Onkyo CD player without RI » 32900/33100/33500: Onkyo Blu-ray Disc player » 32901/33104/33504: Onkyo HD DVD player » 70868: Onkyo MD recorder without RI » 71323: Onkyo CD recorder without RI » 82990:

Onkyo Dock without RI Resetting REMOTE MODE Buttons

You can reset a REMOTE MODE to its default remote control code.

1 While holding down REMOTE MODE that you want to reset, press and hold down HOME until REMOTE MODE button lights (about 3 seconds).

2 Within 30 seconds, press REMOTE MODE again. REMOTE MODE button flashes twice, indicating that the button has been reset.

Each of REMOTE MODE is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored.

+ The leaming command is also reset

Resetting the Remote Controller

You can reset the remote controller to its default settings.

1 While holding down RECEIVER, press and hold down HOME until RECEIVER lights (about 3 seconds).

2 Within 30 seconds, press RECEIVER again.

RECEIVER flashes twice, indicating that the remote controller has been reset.

Controlling Other Components

By pressing the REMOTE MODE that's been programmed with the remote control code for your component, you can control your component as described below.

For details on entering a remote control code for other components, see “Entering Remote Control Codes”

Controlling a TV TV is preprogrammed with the remote control code for controlling a TV that supports the FHID"1 (limited to some models). The TV must be able to receive remote control commands via FIHD and be connected to the AV receiver via HDMI. If controlling your TV via RIHD doesn't work very well, program your TV’s remote control code into TV and use the TV remote mode 10 control your TV. Use the following remote control codes:

> 11807/13100/13500:

TV with RIHD Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder

BD/DVD is preprogrammed with the remote control code for controlling a component that supports the HD (limited to some models). The component must be able to receive remote control commands via FRHHD and be connected to the AV receiver via HDMI. Use the following remote control codes:

» 32910/33101/33501/31612:

Blu-ray Disc/DVD player with RIHID

“1° The RIHD supported by the AV receiver is the CEC system control function of the HDMI standard.

v: Available buttons

Press the appropriate REMOTE Components MODE first. 5 Ë ë source g £4) EE $ 84 [82088 1090 ere RÉCHIÉSE > Ê Ë RREPÉEE e 5 23 a Buttons r à (28 66886 @|OSOURCE"1 v AAA @|%, INPUT, v TV VOL 4/Y @|GUIDE v vv TOP MENU v ) @hNI A, v v vu ENTER @|SETUP v vv V OCRTICR PACE ACTA >>, 1-44, DD @|SEARCH vaslvalual bal DE) REPEAT vraly val val RANDOM vralvr val val MODE vaslvalval Lalw @|Number: 109,0 | vhv Number: #10 [#2 [#2 vb —@ ©|DISPLAY v vv V @|MUTING v vo ©|CH #- v vv DISC +#- v v @|PREV CH v vv MENU v @|RETURN v vv @|CLR v vv “1 When you press OSOURCE, the related component is turned on (or off). d “2 The RIHD function is not supported. The FRIHID ©) @) © ! supported by the AV receiver is the CEC system control ! function of the HDMI standard. © ©) O)] ! “3 HA (Pause) functions as reverse playback. i ! “4 These buttons function as colored buttons or À, B, C, D © ©. buttons. ECS [note | ! © ! Ça + See the “Controlling Your iPod/iPhone” about the operation of iPod/iPhone ( page 77).

+ With some components, certain buttons may not work as expected, and some may not work at all.

Learning Commands [ Note |

The AV receiver’s remote controller can learn the commands of other remote controllers. By transmitting, for example, the Play command from your CD player’s remote controller, the supplied remote controller can learn it, and then reproduce the exact same command when its »- is pressed in CD remote mode.

This is useful when you've entered the appropriate remote control code (+ page 80) but some buttons don’t work as expected.

1 While holding down REMOTE MODE for the mode in which you want to use the command, press and hold down ©RECEIVER until the REMOTE MODE button lights (about 3 seconds).

2 On the supplied remote controller, press the button to which you want to assign the new command.

3 Point the remote controllers at each other, within about 4 inches (10 em) apart, and then press and hold the button whose command you want to acquire until the REMOTE MODE button flashes.

If the command is learned successfully, the REMOTE MODE button flashes twice.

Within about 4 inches (10 cm)

Supplied remote controller

4 To learn more commands, repeat steps 2 and 3.

Press any REMOTE MODE when you've finished. The REMOTE MODE button flashes twice.

+ The following buttons cannot learn new commands: ORECEIVER, ALL OFF, MY MOVIE, MY TV. MY MUSIC, REMOTE MODE, MODE, HOME.

+ The remote controller can learn approximately 70 to 90 commands, although this will be less if commands that use a lot of memory are learned.

+ Remote controller buttons such as Play, Stop, and Pai preprogrammed with commands for controlling Onkyo CD players, cassette decks, and DVD players. However, they can learn ne , and you can restore the preprogrammed commands at any time by resetting the remote controller ( page 81).

+ To overwrite a previously acquire command, repeat this procedure.

+ Depending on the remote controller that you are using, there may be some buttons that won't work as expected, or even some remotes with which leaming is impossible.

+ Only commands from infrared remote controllers can be acquire.

+ When the remote controller runs out of batteries, all commands acquired will be lost and will have to be learned all over again. Therefore, do not discard your other remote controllers.

B Deleting Acquired Commands

1. While holding down REMOTE MODE for the mode from which you want to delete a command, press and hold down TV until the REMOTE MODE button lights (about 3 seconds).

2. Press REMOTE MODE or the button from which you want to delete the commands. The REMOTE MODE button flashes twice. When you press REMOTE MODE, all commands learned in that mode will be deleted.

You can program the remote controller’s ACTIVITIES to

perform a sequence of remote control actions.

To play a CD you typically need to perform the following

1. Press RECEIVER to select the Receiver remote controller mode.

2. Press ORECEIVER to turn on the AV receiver.

3. Press TV/CD to select the TV/CD input source.

4. Press = 10 start playback on the CD player.

You can program ACTIVITIES so that all four actions are

performed with just one button press.

Each ACTIVITIES can store one macro, and each macro can contain up to 32 commands.

1 While holding down RECEIVER, press and hold down MY MOVIE, MY TV, or MY MUSIC until MY MOVIE, MY TV, or MY MUSIC lights (about 3 seconds).

2 Press the buttons whose actions you want to program into the macro in the order you want them performed.

For the CD example above, you would press the following buttons: dRECEIVER, TV/CD, »-.

3 When you”ve inished, press ACTIVITIES again. ACTIVITIES button flashes twice.

If you enter 32 commands, the process will finish automatically.

MODE cannot be operated during the macro-making process. + Once you assign new macro commands, the previously

registered macro will no longer work. If you wish to retrieve it, you will have to reassign the commands with the macro-making.

1 Press MY MOVIE, MY TV, or MY MUSIC. The commandés in the macro are transmitted in the order in which they were programmed. Keep the remote controller pointed at the AV receiver until all of the commands have been transmitted. Macros can be run at any time, regardless of the current remote controller mode.

1 While holding down HOME, press and hold down ALL OFF until ALL OFF lights (about 3 seconds). 2 Press ALL OFF again. ALL OFF flashes twice.

Vhen Normal macros are deleted, ACTIVITIES are restored 10 their default settings, namely the Easy macro commands ( page 46).

Ven using Normal macros, Easy macros cannot be used, which includes changing the source components.

If you have any trouble using the AV receiver, look for a solution in this section. If you can't resolve the issue yourself, contact your Onkyo dealer.

If you can't resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer.

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press LON/STANDBY. “Clear” will appear on the display and the AV receiver will enter standby mode.

Note that resetting the AV receiver will delete your radio presets and custom settings.

—— HOME To reset the remote controller to its factory defaults, while holding down RECEIVER, press and hold down HOME until RECEIVER button lights (about

3 seconds). Within 30 seconds, press RECEIVER

& The AV receiver turns off and after restoring the power, it turns off again

The protection circuit has been activated. Remove 13 the power cord from the wall outlet immediately.

Make sure that all speaker cables and input sources

are properly connected, and leave the AV receiver

with its power cord disconnected for 1 hour. After

that, reconnect the power cord and turn the power

on. Ifthe AV receiver turns off again, unplug the

power cord and contact your Onkyo dealer.

Caution: If “CHECK SP WIRE” appears on the display, the speaker cables may be shorting.

WARNING If smoke, smell or abnormal noise is produced by the AV receiver, unplug the power cord from the wall outlet immediately and contact your Onkyo dealer.

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

B Can't turn on the AV receiver

Make sure that the power cord is properly plugged — into the wall outlet.

Unplug the power cord from the wall outlet, wait — five seconds or more, then plug it in again.

a The AV receiver turns off unexpectedly

The AV receiver will automatically enter standby 67 mode when Auto Standby has been set and launches.

&There’s no sound, or it's very quiet

Make sure that the digital input source is selected 50 properly.

Make sure that all audio connecting plugs are pushed 18 in all the way.

Make sure that the inputs and outputs of all components are connected properly

Make sure that the polarity of the speaker cables is 13 correct, and that the bare wires are in contact with

the metal part of each speaker terminal.

Make sure that the input source is properly selected. 25 Make sure that the speaker cables are not shorting. 13 Check the volume. The AV receiver is designed for — home theater enjoyment. It has a wide volume range, allowing precise adjustment.

If the MUTING indicator is flashing on the display, 45

press the remote controller’s MUTING to unmute the AV receiver.

While a pair of headphones is connected to the 45 PHONES jack, no sound is output from the speakers.

If there’s no sound from a DVD player connected to — an HDMIN, check the DVD player’s output

settings, and be sure to select a supported audio

Check the digital audio output setting on the — connected device. On some game consoles, such as those that support DVD, the default setting is off

With some DVD-Video dises, you need to select an — audio output format from a menu.

If your turntable uses an MC cartridge, you must — connect an MC head amp, or an MC transformer.

Make sure that none of the connecting cables are — bent, twisted, or damaged.

Not all listening modes use all speakers. 37 Specify the speaker distances and adjust the 53 individual speaker levels.

Make sure that the speaker setup microphone is not — still connected.

Ifthe input signal format is set to “PCM” or “DTS”. 63 E Setitto “ON”. n

When the Stereo or Mono listening mode is selected, — only the front speakers and subwoofer produce

In the Mono listening mode, only the front speakers 55 output sound if the “Output Speaker” setting is set

Check the Speaker Configuration 52

MB Only the center speaker produces sound

Check the digital audio output setting on the — connected device. On some game consoles, such as

those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an — audio output format from a menu.

Depending on the input signal, some listening modes 37-42 cannot be selected.

E Can't select the Pure Audio listening mode

If you use the Dolby Pro Logic IIx Movie, Dolby Pro — Logic IIx Music, or Dolby Pro Logic IIx Game

listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

In the Mono listening mode, only the center speaker 55 output sound if the “Output Speaker” setting is set

Make sure the speakers are configured correctly. 52

&The surround speakers produce no sound

When the T-D (Theater-Dimensional), Stereo or — Mono listening mode is selected, the surround

speakers produce no sound.

Depending on the source and current listening mode, — not much sound may be produced by the surround speakers. Try selecting another listening mode.

Make sure the speakers are configured correctly. 52

&The center speaker produces no sound

When the Stereo or Mono listening mode is selected, — the center speaker produces no sound.

In the Mono listening mode, only the front speakers 55 output sound if the “Output Speaker” setting is set to “Left / Right”.

Make sure the speakers are configured correctly. 52

&The front high, front wide and surround back speakers produce no sound

Depending on the current listening mode, no sound 37 may be produced by the front high, front wide and surround back speakers. Select another listening.

Depending on the sound source, the sound produced — by the front high, front wide and surround back

speakers may be weak.

Make sure the speakers are configured correctly. 52 While the “Powered Zone 2” setting is set to “Yes”, 72 playback in the main room is reduced to 7.2-

channels and the front wide and front high speakers produce no sound.

While the “Powered Zone 3” setting is set to “Yes”, 72 playback in the main room is reduced to 5.2-

&The subwoofer produces no sound

When you play a source material that contains no — information in the LFE channel, the subwoofer produces no sound.

Make sure the speakers are configured correctly. 52

The Pure Audio listening mode cannot be selected — while Zone 2/3 is on.

H Can't get 6.2/7.2 playback

If no surround back speakers, front wide and front — high speakers are connected, or the Zone 2/3

speakers are being used, 6.2/7.2 playback is not

Depending on the number of connected speakers it 37-42 is not always possible to select all of the listening

æ The speaker volume cannot be set as required

Check to see if a maximum volume has been set. 64

If the volume level of each individual speaker has 33,54 been adjusted to high positive values, then the

maximum master volume possible may be reduced.

Note that the individual speaker volume levels are

set automatically after the

Audyssey MultEQ® XT32 Room Correction and

Speaker Setup has been performed.

M Noise can be heard

Using cable ties to bundle audio cables with power — speaker cables, and the like may degrade the audio performance, so refrain from doing it.

An audio cable may be picking up interference. Try — repositioning your cables.

The Late Night function doesn't work

Make sure the source material is Dolby Digital, 70 Dolby Digital Plus, and Dolby TrueHD.

& The analog multichannel input doesn't work

Check the multichannel input connections. —

Make sure that the multichannel input is assigned to 50 the input selector.

Make sure that the multichannel input is selected. 63

Check the audio output settings on your source = component.

When DTS program material ends and the DTS — bitstream stops, the AV receiver remains in DTS listening mode and the DTS indicator remains on.

This is 10 prevent noise when you use the pause, fast forward, or fast reverse function on your player. If

you switch your player from DTS to PCM, because

the AV receiver does not switch formats

immediately, you may not hear any sound, in which case you should stop your player for about three seconds, and then resume playback.

With some CD and LD players, you won't be able to playback DTS material properly even though your player is connected 10 a digital input on the AV. receiver. This is usually because the DTS bitstream has been processed (.g.. output level, sampling rate, or frequency response changed) and the AV receiver doesn't recognize it as a genuine DTS signal. In such cases, you may hear noise.

Playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.

The beginning of audio received by an HDMI IN

Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.

æThere’s no sound during Whole House Mode

Make sure you've selected an analog audio input.

Make sure that all video connecting plugs are pushed in all the way

Make sure that each video component is properly connected.

If your TV is connected to the HDMI output(s), set the “Monitor Out” setting other than “Analog”, and select “= - -" in the “HDMI Input” to watch composite video, S-Video, and component video sources

If your TV is connected to the COMPONENT VIDEO MONITOR OUT, MONITOR OUT S, or MONITOR OUT V, set the “Monitor Out” setting 10 “Analog”, and select *- - - - #” in the “Component Video Input” to watch composite video and S-Video sources.

If the video source is connected 10 a component video input, you must assign that input 10 an input selector, and your TV must be connected to either the HDMI output(s) or COMPONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video input, your TV must be connected to the HDMI output(s) or the corresponding composite video output.

If the video source is connected to an HDMI input, you must assign that input 1 an input selector, and your TV must be connected to the HDMI output(s). While the Pure Audio listening mode is selected, the video circuitry is turned off and only video signals input through HDMI IN can be output.

On your TV, make sure that the video input to which the AV receiver is connected is selected

If the “Monitor Out” setting is set to “Both(Main)” or “Both(Sub)” while your TV is connected 10 a secondary HDMI output (not a primary HDMI output), the picture may not appear. In this case, change the setting to “Both”.

&There’s no picture from a source connected to

an HDMI IN Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

When the “Monitor Out” setting is set to “Analog”, no video is output by the HDMI outputs.

When the resolution is set to any resolution not supported by the TV, no video is output from the HDMI outputs.

If the message “Resolution Error” appears on the AV receiver's display, this indicates that your TV does not support the current video resolution and you need to select another resolution on your DVD player.

BThe on-screen menus don't appear

On your TV, make sure that the video input to which the AV receiver is connected is selected

When the AV receiver is not connected to a TV via HDMI OUT MAIN, on-screen menus are not displayed.

MB The on-screen display does not appear

Depending on the input signal, the on-screen display may not appear when the input signal from the HDMI IN is output to a device connected to the HDMI OUT MAIN.

BReception is noisy, FM stereo reception is

noisy, or the FM STEREO indicator doesn't light

Relocate your antenna.

Move the AV receiver away from your TV or computer.

Listen to the station in mono.

When listening to an AM station, operating the remote controller may cause noise.

Passing cars and airplanes can cause interference. Concrete walls weaken radio signals.

If nothing improves the reception, install an outdoor antenna.

m The remote controller doesn't work

Before operating this unit, be sure to press RECEIVER.

Make sure that the batteries are installed with the correct polarity.

Install new batteries. Dont mix different types of batteries, or old and new batteries.

Make sure that the remote controller is not too far away from the AV receiver, and that there’s no obstruction between the remote controller and the AV receiver’s remote control sensor.

Make sure that the AV receiver is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV receiver is installed in a rack or cabinet with colored-glass doors, the remote controller may not work reliably when the doors are closed.

Make sure you've selected the correct remote 11,81 controller mode.

When using the remote controller to control other — manufacturers’ AV components, some buttons may

not work as expected.

Make sure you've entered the correct remote control 80 code.

Make sure to set the same ID on both the AV 65 receiver and remote controller.

H Can't control other components

If its an Onkyo component, make sure that the I 22 cable and analog audio cable are connected properly. Connecting only an RI cable won’t be enough.

Make sure you've selected the correct remote 11,81 controller mode.

For a proper operation of the remote controller as a 44 cassette tape deck is connected to the TV/CD IN

jack, or as an RI Dock is connected to the TV/CD IN, VCR/DVR IN or GAME IN jacks, you must set

the input display accordingly.

If you cannot operate it, you will need to enterthe 79 appropriate remote control code.

To control another manufacturer s component, point 80 the remote controller at that component

If none of the codes work, use the Learning function 83 to learn the commands of the other components

To control an Onkyo component that's connected 80 via RI, point the remote controller at the AV

receiver. Be sure 10 enter the appropriate remote

To control an Onkyo component that's not 81 connected via FRI, point the remote controller at the component. Be sure to enter the appropriate remote control code first.

The entered remote control code may not be correct. — If more than one code is listed, try each one.

B Can't learn commandés from another remote controller

When learning commands, make sure that the 83 transmitting ends of both remote controllers are pointing at each other.

Are you trying to learn from a remote controller that — cannot be used for learning? Some commands

cannot be learned, especially those that contain

several instructions.

UP-A1 Dock for iPod/iPhone

Make sure your iPod/Phone is actually playing. —

Make sure your iPod/iPhone is properly inserted in — the Dock.

Make sure the UP-A1 Dock is connected to the — UNIVERSAL PORT jack on the AV receiver.

Make sure the AV receive is turned on, the correct — input source is selected, and the volume is turned up.

Make sure the plugs are pushed in all the way. — Try resetting your iPod/iPhone. =

Make sure that your iPod/iPhone models TV OUT setting is set 10 On. Make sure the correct input is selected on your TV or the AV receiver.

Some versions of the iPod/iPhone do not output video.

The AV receiver’s remote controller doesn't

control my iPod/iPhone

Make sure your iPod/iPhone is properly inserted in the Dock. If your iPod/iPhone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock.

The iPod/iPhone cannot be operated while it's displaying the Apple logo.

Make sure you've selected the right remote mode. When you use the AV receiver's remote controller, point it toward your AV receiver.

When connecting the UP-A1 Dock to the radio tuner UP-HTI (North American models /UP-DT1 (European and Asian models) with AUTO selected with the tuner's Mode Selector switch, you can switch the input source between the UP-A1 Dock and the tuner, by pressing PORT repeatediy on the front panel.

If you still can’t control your iPod/iPhone, start playback by pressing your iPod/iPhone model’s Play button. Remote operation should then be possible. Try resetting your iPod/iPhone.

Depending on your iPod/iPhone, some buttons may not work as expected.

& The AV receiver unexpectedly selects your

iPod/iPhone as the input source

Always pause iPod/Phone playback before selecting a different input source. If playback is not paused, the Direct Change function may select your iPod/Phone as the input source by mistake during the transition between tracks.

BiPod/iPhone doesn't work properly

Try reconnecting your iPod/iPhone.

On your recorder, make sure the correct input is selected.

To prevent signal loops and damage to the AV. receiver, input signals are not fed through to outputs with the same name (VCR/DVR IN to VCR/DVR OUT).

When the Pure Audio listening mode is selected, recording is not possible because no video signals are output. Select another listening mode.

E Standby power consumption

Only components connected to analog inputs can be — played in Zone 2/3.

æThe Zone 2/3 speakers produce no sound

See “Multi Zone” for the conditions in which 72 Powered Zone 2/3 cannot be used.

To use the Zone 2 speakers, you must set the 51 “Powered Zone 2” setting to “Yes”.

To use the Zone 3 speakers, you must s 51

“Powered Zone 3” setting to “Yes”.

Music Server and Internet Radio

H Can't access the server or Internet radio

Check the network connection between the AV — receiver and your router or switch.

Make sure that your modem and router are properly — connected, and make sure they are both tuned on.

Make sure the server is up and running and compatible with the AV receiver.

Check the “Network” settings. 67

BE Playback stops while listening to music files on the server

100, 102 If you download or copy large files on your = computer, playback may be interrupted. Try closing.

any unused programs, use a more powerful

computer, or use a dedicated server.

Make sure your server is compatible with the AV receiver

If the server is serving large music files to several — networked devices simultaneously, the network may become overloaded and playback may be

interrupted. Reduce the number of playback devices

on the network, upgrade your network, or use a

switch instead of a hub.

Can't connect to the AV receiver from a Web browser

If you're using DHCP, your router may not always 67 allocate the same IP address to the AV receiver, so if

you find that you can”t connect 10 a server or Internet radio station, recheck the AV receiver’s IP address

on the “Network” screen.

Check the “Network” settings. 67

M Can't access the music files on a USB device

Make sure the USB device is plugged in properly. — The AV receiver supports USB devices that support — the USB mass storage device class. However,

playback may not be possible with some USB

devices even if they conform to the USB mass

storage device class.

USB memory devices with security functions cannot — be played.

In the following cases, the power consumption in 20,66, standby mode may reach up to a maximum of 67 45 W (North American)/50 W (Others): — You are using the Universal Port jack. “Network Control” is set to “Enable” in the “Network” setting. “HDMI Control(RIHD)" setting is set to “On”! (Depending on the TV status, the AV receiver will enter standby mode as usual.) = The “HDMI Through” setting is set to other than “Of.

& The sound changes when | connect my headphones

When a pair of headphones is connected, the — listening mode is set to Stereo, unless its already set to Stereo, Mono, Direct, or Pure Audio.

& The speaker distance cannot be set as required

In some cases, corrected values suitable for home — theater use may be set automatically.

&The display doesn't work

The display is tumed off when the Pure Audio — listening mode is selected

B How do I change the language of a multiplex source

Use the “Mul menu to

lex” setting on the “Audio Adjust” 55 Main” or “Sub”.

m The RI functions don't work

To use fRI, you must make an FRI connection and 22 an analog audio connection (RCA) between the component and AV receiver, even if they are

connected digitally.

While Zone 2 or Zone 3 is selected, the FI 22 functions don't work.

&The functions System Off/Auto Power On and Direct Change don’t work for components

connected via RI While Zone 2 or Zone 3 functions don't work.

s selected, the RI 22

E When performing “Automatic Speaker Setup”, the measurement fails and the message “Ambient noise is too high.” is displayed.

This can be caused by a malfunction in your speaker — unit. Check if the unit produces normal sounds.

&The following settings can be made for the S-Video and composite video inputs You must use the buttons on the unit to make these settings. On the AV receiver, press the input selector for the input source that you want to set and the SETUP button simultaneously. While holding down the input selector button, press SETUP until “Video ATT:On° appears on the display. Then, release both buttons. To reactivate the setting, repeat the above process so that “Video ATT:Off” appears on the display, and release the buttons.

+ Video Attenuation This setting can be made for the BD/DVD, VCR/DVR, CBL/SAT, GAME or AUX input. If you have a game console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain. Video ATT:Off: (default). Video ATT:On: Gain is reduced by 2 dB.

mi the picture on your TV/monitor connected to the HDMI output(s) is unstable, try switching the DeepColor function off To turn off the DeepColor function, simultaneously press the CBL/SAT and OON/STANDBY buttons on the AV receiver. While holding down CBL/SAT, press GON/STANDBY until “OF” appears on the display. Then, release both buttons. To reactivate the DeepColor function, repeat the above process until “On” appears on the display and release the buttons.

The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.

Important Note Regarding Video Playback

The AV receiver can upconvert component video, S- Video, and composite video sources for display on a TV connected to the HDMI output(s). However, if the picture quality of the source is poor, upconversion may make the picture worse or disappear altogether.

In this case, try the following:

1 If the video source is connected to a component video input, connect your TV to the COMPONENT VIDEO MONITOR OUT.

If the video source is connected to an S-Video input, connect your TV to a MONITOR OUT S.

If the video source is connected to a composite video input, connect your TV to the MONITOR OUT V.

2 On the main menu, select “Input/Output Assign” and then “Component Video Input” ( page 50).

If the video source is connected to COMPONENT VIDEO IN 1, select the relevant input selector, and assign it to “IN1”.

If the video source is connected to COMPONENT VIDEO IN 2, select the relevant input selector, and assign it to “IN2”.

If the video source is connected to COMPONENT VIDEO IN 3, select the relevant input selector, and assign it to “IN3”.

If the video source is connected to an S-Video input or composite video input, select the relevant input selector, and assign it 10 “= + - =”.

Tip + To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (> page 61)

To update the firmware of the AV receiver, you can choose from the following two methods: update via network, or update via USB storage. Choose the one that best suits your environment. Before proceeding with the update, please read the corresponding explanations carefully.

BE Update via network You need a wired Internet connection to update the firmware.

M Update via USB storage (> page 92) Please prepare a USB storage device such as a USB flash memory stick. You need at least 32 MB of available space to update the firmware.

+ Check the network connection before updating.

+ Do not touch the any cable or device connected to the AV receiver during the update process.

+ Do not attempt to access the AV receiver from your PC while it

+ Do not shutdown the power of the AV receiver while it is being updated.

+ The storage media in the USB card reader may not work.

+ Ifthe USB device is partitioned, each section will be treated as an independent device.

+ Ifthe USB device contains a lot of data, the AV receiver may take a while to read it.

+ Operation is not guaranteed for all USB devices, which includes the ability to power them.

+ Onkyo takes no responsibility whatsoever for the loss or damage of data resulting from the use of a USB device with the AV receiver. Onkyo recommends that you back up your important music files beforehand.

+ If you connect a USB hard disk drive to the USB port, Onkyo recommends that you use its AC adapter to power

+ USB hubs and USB devices with hub functions are not supported. Do not connect your USB device via a USB hub.

+ USB devices with security functions are not supported.

Limitation of liability The program and accompanying online documentation are fumished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

See the Onkyo web site for latest information.

Updating the Firmware via Network

The AV receiver allows you to update the firmware using network connection on the rear panel.

+ Make sure your AV receiver and TV are turned on and an Ethernet cable is connected to the rear panel of the AV receiver.

+ Never unplug or turn off the AV receiver while it is being updated.

+ Never plug or unplug an HDMI or Ethernet cable during the update process.

+ Do not attempt to access the AV receiver from your PC while it is being updated.

+ Never unplug the power cord during the update proc

+ It takes maximum 60 minutes to complete the firmware update.

+ The AV receiver will retain all your settings after the update is

+ Set the “HDMI Control(RIHD)" setting to “Off” @ page 66).

+ Turn off the controller device connected via RS232C and via Ethernet network.

+ Turn off Zone 2 and Zone 3.

+ Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

1 Press RECEIVER followed by SETUP on the remote controller. The Setup menu will be displayed on the TV screen. The procedures thereafter can also be performed on the AV receiver by using its SETUP, arrow and ENTER buttons.

Select “Hardware Setup” and press ENTER.

ND Select “Firmware Update” and press ENTER. Note that the “Firmware Update” option will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

Select “via NET” and press ENTER.

5 Select “Update” and press ENTER. The update process will begin. During the update process, the on-screen display may disappear depending on the updated program. When this occurs, you can still view the update progress on the front display of the AV receiver. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again.

6 The message “Completed!” appears on the front display of the AV receiver, indicating that the update has been completed.

Z Turn off the AV receiver using ©ON/STANDBY on the front panel. Do not use ORECEIVER on the remote controller. Once turned off, the AV receiver will automatically turn on again. Congratulations! You now have the latest firmware installed on your Onkyo AV receiver.

If “No Update” is displayed on the front display of the AV receiver, it means that the firmware has already been updated. You do not need to do anything further.

If an error occurs, “Error!! *-**” is displayed on the front display of the AV receiver. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action.

BErrors during an update via network

Error Code _|Description

10, 7-20 The Ethernet cable was not detected. Reconnect the cable properly

11, °-13, "21, | Internet connection error.

728 Check the following items:

+ Make sure the IP address, subnet mask, gateway address, and DNS server are configured properly.

+ Make sure the router is turned on.

+ Make sure the AV receiver and the router are connected with an Ethernet cable.

+ Make sure your router is configured properly. See the instruction manual of the router.

+ If your network allows only one client

connection and there is any other device

already connected, the AV receiver will not

be able to access the network. Consult your

Internet Service Provider (ISP).

If your modem does not function as a router,

you will need a router. Depending on your

network, you may need 10 configure the

proxy server if necessary. See the document

provided by your ISP. If you are still unable

to access the Internet, the DNS or proxy

server may be temporarily down. Contact

Others Retry the update procedure from the beginning. If the error persists, please contact Onkyo Support ( page 93) and provide the error code.

If an error oceurs during the update process, disconnect then reconnect the AC power cord and try again.

If an error occurs due to a wrong selection of input sources, turn off and on the AV receiver. Then retry the

If you do not have an Internet connection, please contact Onkyo Support (> page 93).

Updating the Firmware via USB The AV receiver allows you to update the firmware using a USB device.

+ Never unplug or turn off the AV receiver during the update process.

+ Never plug or unplug an HDMI cable or a USB device during the update process.

+ Never unplug the USB storage device containing the firmware file or the AC power cord during the update process.

+ Do not attempt to access the AV receiver from your PC while it is being updated.

+ It takes maximum 60 minutes to complete the firmware update.

+ The AV receiver will retain all your settings after the update is finished.

+ Set the “HDMI Control(RIHD)" setting to “Off” ( page 66).

+ Turn off the controller device connected via RS232C and via Ethernet network.

+ Turn off Zone 2 and Zone 3.

+ Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

+ If there is any data in the USB device, remove it first.

1 Connect a USB device to your PC. If there is any data in the USB device, remove it first.

2 Download the firmware file from the Onkyo web

site. The file name is as follows: ONKAVRE EEE et 7ip

Unzip the downloaded file. The following three

files are created: ONKAVRY EEE He of1 ONKAVRE EEE ie [2 ONKAVRE EEE He 0f3

3 Copy the extracted files to the USB device. Be careful not to copy the zip file.

4 Remove the USB device from your PC and connect it to the USB port on the AV receiver. When the AV receiver has two USB ports, you can use either one.

5 Make sure the AV receiver and TV are turned on. If the AV receiver is in standby mode, press GON/STANDBY on the AV receiver to light up the front display.

6 Select the USB input source.

“Now Initializing.…” is displayed on the front display and then the name of the USB device is

displayed. It takes 20 to 30 seconds to recognize the USB device.

7 Press RECEIVER followed by SETUP on the Troubleshooting remote controller.

The setup menu will be displayed on the TV screen. The procedures thereafter can also be performed on the AV receiver by using its SETUP, arrow and ENTER buttons.

Select “Hardware Setup” and press ENTER.

If “No Update” is displayed on the front display of the AV receiver, it means that the firmware has already been updated. You do not need to do anything further.

If an error occurs, “Error!! *-**” is displayed on the front display of the AV receiver. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action.

Q Select “Firmware Update” and press ENTER.

10 Select “via USB” and press ENTER.

11 Select “Update” and press ENTER. BErrors during an update via USB The update process will begin. Error Code [Description During the update process, the an-screen display 710,720 The USB device was not detected. Make sure may disappear depending on the updated program. the USB flash memory or USB cable is When this occurs, you can still view the update properly connected to the USB port. If the progress on the front display of the AV receiver. The USB storage device has its own power Supply, on-screen display will reappear after the update is use it 10 power the USB device. complete, and upon turning the AV receiver off and 14 The firmware file was not found in the root On again folder of the USB device, or the firmware file ue : is for another model. Retry and download the Do not turn off the AV receiver and do not remove file on the support page of the web site, the USB device during the update process. following the on-site instructions. If the error 12. The message “Completed!” appears on the front persists, please contact Onkyo Support and i ae sodcaté th code. display of the AV receiver, indicating that the POV Me Error code update has been completed. Others Retry the update procedure from the R the USB device beginning. If the error persists, please contact move È à Onkyo Support and provide the error code. 13 Turn off the AV receiver using OON/STANDBY Case 3 ase 3:

Do not use ORECEIVER on the remote controller. Once turned off, the AV receiver will automatically turn on again.

Congratulations! You now have the latest firmware installed on your Onkyo AV receiver.

If an error oceurs during the update process, disconnect then reconnect the AC power cord and try again.

If an error occurs due to a wrong selection of input sources, turn off and on the AV receiver. Then retry the

Asia, Oceania, Middle East, Africa Please contact an Onkyo distributor referring to Onkyo SUPPORT site.

http;/Aww.ntl.onkyo.com/support/local_supportindex.htm En

Connection Tips and Video Signal Path

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide.

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV recciver’s display when changing settings.

Video Connection Formats

Video components can be connected by using any one of the following video connection form:

S-Video, PC IN (Analog RGB), component video or HDMI, the latter offering the best picture quality. The AV receiver can upconvert and downconvert between video formats, depending on the “Monitor Out” setting (> page 48), which generally determines whether video signals are upconverted for the component video output or the

+ For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component

video input passing through to component video output).

+ To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (> page 61).

& “Monitor Out” set to “HDMI Main” or “HDMI Sub” Video input signals flow through the AV receiver as shown, with composite video, S-Video, PC IN (Analog RGB) and component video sources all being upconverted for the HDMI output. Use these settings if you connect either the HDMI OUT MAIN or HDMI OUT SUB of the AV receiver to your TV.

The composite video, S-Video and component video outputs pass through their respective input signals as they are.

Video Signal Flow Chart Blu-ray Disc/DVD player, etc. ]

Composite Component HDMI AV receiver

MONITOR OUT Composite S-Video Component HDMI YŸ _Ÿ YŸ +

[ TV, projector, etc. ]

& “Monitor Out” set to “Both”, “Both(Main)” or “Both(Sub)”

Video input signals flow through the AV receiver as shown, with composite video, S-Video, PC IN (Analog RGB) and component video sources all being upconverted for both HDMI outputs. Use these settings if you connect both the HDMI OUT MAIN and HDMI OUT SUB of the AV receiver to your TV. The composite video, S-Video and component video outputs pass through their respective input signals as they are. > Both: Video signals are output from both HDMI outputs at the resolution supported by both TVs. You cannot select “Resolution” setting. > Both(Main): Video signals are output from both HDMI outputs but HDMI OUT MAIN takes priority; depending on the resolution, video signals may not be output from HDMI OUT SUB. > Both(Sub): Video signals are output from both HDMI outputs but HDMI OUT SUB takes priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

[ Blu-ray Disc/DVD player, etc. ]

[ TV, projector, etc ]

ting will be automatically switched to “Analog” (> page 48) if not connected to both outputs when “Both” ected or if not connected to a priority output when “Both(Main)” or “Both(Sub)" is selected.

& “Monitor Out” set to “Analog” Video Signal Flow Chart Video input signals flow through the AV receiver as shown, | with composite video, S-Video, and PC IN (Analog RGB)

Blu-ray Disc/DVD player, etc. ]

sources being upconverted for the component video output. Ÿ Ÿ Ÿ Ÿ Ÿ Use this setting if you connect the AV receiver’s Composite S-Video PCIN Component HDMI COMPONENT VIDEO MONITOR OUT to your TV. {Analog RGB)

Composite video is upconverted to S-Video and S-Video is

downconverted to composite video. Note that these

conversions only apply to the MONITOR OUT V'and S AV receive

outputs, not the VCR/DVR OUT V and S outputs.

The composite video, S-Video and component video outputs MONITOR OUT

pass through their respective input signals as they are. Composite S-Video Component HDMI This signal flow also applies when the “Resolution” setting Ÿ Ÿ Ÿ Ÿ |

set 10 “Through” (> page 48).

TV, projector, etc |

“1° For details, refer to “Video Resolution Chart” € page %).

Video Signal Flow and the Resolution Setting Video Signal Flow Chart When the “Monitor Out” setting is set 10 “Analog” ( page 48), if the “Resolution” setting is set to anything

Blu-ray Disc/DVD player, etc.

other than “Through” ( page 48), the video signal flow ÿ ÿ ÿ ÿ ÿ will be as shown here, with composite video, S-Video, and

P Composite S-Video PCIN_ Component HDMI PC IN (Analog RGB) sources being upconverted for the (Analog RGB)

component video output.

The composite video, S-Video, and component video outputs pass through their respective analog input signals as they are. HDMI input signals are not output.

Audio Connection Formats

Audio components can be connected by using any of the Audio Signal Flow Chart following audio connection formats: analog, analog | multichannel, optical, coaxial or HDMI. When choosing a connection format, bear in mind that the Ÿ Ÿ Ÿ Ÿ ÿ AV receiver does not convert digital input signals for analog Analog Multichannel Optical Coaxial HDMI line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog VCR/DVR OUT.

Blu-ray Disc/DVD player, etc. ]

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.

[ TV, projector, etc.

“1 Depends on the “Audio TV Out” setting (> page 66).

2 This is possible when “Audio Return Channel” is set 10 “Auto” ( page 67), the TV/CD input selector is selected, and your TV is ARC capable

“3 Only the front L/R channels are output.

Video Resolution Chart

The following tables show how video signals at different resolutions are output by the AV receiver.

* The on-screen menus and superimposed menus are displayed via HDMI OUT MAIN.

Available resolutions: [640 x 480 60 Hz], [800 x 600 60 Hz], [1024 x 768 60 Hz], [1280 x 1024 60 Hz] Available resolutions: [3840 x 2160 24/25/30 Hz] The output is limited to 480p/576p for an effective signal in the effect of copy protect. PC IN (Analog RGB) input signal is output at 720p resolution when you select “Analog” in the “Monitor Out” setting (> page 48) and “Through” in the “Resolutio:

Using an RIHD-compatible TV, Player, or Recorder

RIHD, which stands for Remote Interactive over HDMI, is the name of the sy The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over

HDMI and is part of the HDMI standard. CEC provides interoperability between various components

tem control function found on Onkyo

operation with components other than FR1HD -compatible components cannot be guaranteed.

About RIHID -compatible components Operations that can be performed with RIHD connection

The following components are FIHID -compatible (as of January 2011).

+ Toshiba REGZA-LINK compatible TV

+ Sharp TV M Players/Recorders

+ Onkyo and Integra FIHID-compatible players

oshiba REGZA-LINK compatible players and recorders (only when used together with Toshiba REGZA-LINK compatible TV)

+ Sharp players and recorders (only when used together with Sharp TV)

* Models other than those mentioned above may have some interoperability if compatible with CEC, which is part of the HDMI Standard, but operation cannot be guaranteed.

+ For proper linked operations, do not connect more RIHD - compatible components than the quantities specified below, to the HDMI input terminal

sc/DVD players: up to three.

sc/DVD recorders/Digital Video Recorders: up to

tellite Set-top boxes: up to four.

+ Do not connect the AV receiver to the other AV receiver/AV amplifier via HDMI.

+ Proper linked operations are not guarant RIHD -compatible components than the above-mentioned quantities are connected.

B For RIHD-compatible TV The following linked operations are enabled by

connecting the AV receiver to an FRHHD-compatible

+ The AV receiver will enter standby mode when the power of the TV is turned to standby.

+ You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV receiver, or from the speakers of the TV.

+ Itis possible to output the video/audio coming from the antenna or from the input jack of the TV from the speakers connected to the AV receiver. (A connection such as optical digital cable or similar is required above the HDMI cable.)

+ Input to the AV receiver can be selected with the remote controller of the TV.

+ Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV.

B For RIHD-compatible players/recorders The following linked operations are enabled by connecting the AV receiver to an FRHHD-compatible player/recorder.

+ When the playback is started on the player/recorder, input of the AV receiver will switch to the HDMI input of the player/recorder that is playing back.

+ Operation of the player/recorder is possible using the remote controller supplied with the AV receiver.

* Depending on the model used, not all operations may be available.

BHovw to connect and setup

1 Confirm the connecting and setting.

1. Connect the HDMI OUT MAIN jack to the HDMI input jack of the TV.

Blu-ray Disc/DVD player, etc.

connection connection (OPTICAL)

DIGITAL AUDIO t L HDMI TV, projector, etc.

2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV receiver using an optical digital cable.

+ When the audio return channel (ARC) function is used with an ARC capable TV, this connection is not necessary (> page 67). 3. Connect the HDMI output of the Blu-ray Disc/DVD player/recorder to the HDMI IN 1 jack of the AV receiver.

+ Itis necessary to assign the HDMI input when connecting the Blu-ray Disc/DVD player/recorder to other jacks {> page 49). Do not assign the components connected to the HDMI IN to the TV/CD input at this time. Appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.

Change each item in the “HDMI” menu according to the following settings:

+ HDMI Control(RIHD): On

+ Audio Return Channel (ARC): Auto

See details of each setting (> pages 66, 67).

3 Confirm the settings.

1. Turn on the power for all connected components.

2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.

3. Turn on the power of the Blu-ray Disc/DVD player/recorder.

4. Start playback on the Blu-ray Disc/DVD player/recorder, and verify the following.

+ The AV receiver automatically turns on, and selects the input to which the Blu-ray Disc/DVD player/recorder is connected.

+ The TV automatically turns on, and selects the input to which the AV receiver is connected.

5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.

6. Select “Use the speakers connected from the AV receiver” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers.

+ Perform the above operations when you use the AV receiver for the first time, when the settings of each component are changed, when the main power of each component is turned off, when the power cable is disconnected from the power supply, or when there has been a power outage.

Operate with the remote controller. For buttons that can be operated (> page 82).

+ Audio from DVD-Audio or Super Audio CD may not output from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)

+ Even if you set 10 output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, re- do the operations on the TV.

+ In case of an RIHID connection with FI and RI audio control compatible components, do not connect the RI cable at the same time.

+ On the TV, when you select anything other than the HDMI

jack to which the AV receiver is connected, the input on the

AV receiver will be switched to “TV/CD”.

The AV receiver will automatically power on in

conjunction when it determines it to be necessary. Even if

the AV receiver is connected to an FIHID compatible

TV or player/recorder, it will not power on if it is not

necessary. It may not power on in conjunction when the TV.

is set to output audio from the TV.

Linked functions with the AV receiver may not work

depending on the component model connected. In such

cases, operate the AV receiver directly.

About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).

The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)"1, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The AV receiver uses HDCP (High-bandwidth Digital Content Protection)"2, so only HDCP-compatible components can display the picture.

The AV receiver’s HDMI interface is based on the following: Audio Return Channel, 3D, x.v.Color, DeepColor, Lip Syne, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM.

Supported Audio Formats

+ 2-channel linear PCM (32-192 kHz, 16/20/24 bit)

+ Multichannel linear PCM (up to 7.1 ch, 32-192 kHz, 16/20/24 bit)

+ Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)

Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats.

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)"2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

DVI (Digital Visual Interface): The digital display interface standard set by the DDWG"3 in 1999. HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It's ned to protect video content and requires a HDCP-compatible device to display the encrypted video.

DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group's objective is to address the industry”s requirements for a digital connectivity specification for high- performance PCS and digital displays.

+ The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you”Il need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

+ The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there”s no sound from a component connected via HDMI, check its setup. Refer to the connected components instruction manual for details.

Network/USB Features

Connecting to the Network Network Requirements

The following diagram shows how you can connect the AV receiver to your home network. In this example, it's connected to a LAN port on a router, which has a 4-port 100Base-TX switch built-in.

For the best results, a 100Base-TX switched Ethernet network is recommended. Although it's possible to play music on a computer that's connected to the network wirelessly, playback may be unreliable, so it is recommended to use wired connections.

A router manages the network, data-routing and supplying

of IP addresses. Your router must support the following:

+ NAT (Network Address Translation). NAT allows several networked computers to access the Internet simultaneously via a single Internet connection. The AV receiver needs Internet access for Internet radio.

+ DHCP (Dynamic Host Configuration Protocol). DHCP supplies IP addresses to the network devices, allowing them to configure themselves automatically.

+ A router With a built-in 100Base-TX switch is recommended.

Some routers have a built-in modem, and some ISPs

require you to use specific routers. Please consult your ISP

or computer dealer if you’re unsure.

M CATS Ethernet cable Use a shielded CATS Ethernet cable (straight-type) to connect the AV receiver to your home network.

Binternet Access (for Internet radio)

To receive Internet radio, your Ethernet network must have Internet access. A narrowband Internet connection (e.g, 56K modem, ISDN) will not provide satisfactory results, so a broadband connection is strongly recommended (e.g., cable modem, xDSL modem, etc). Please consult your ISP or computer dealer if you're unsure.

+ To receive Internet radio with the AV receiver, your broadband Internet connection must be working and able to access the Web. Consult your ISP if you have any problems with your Internet connection.

+ The AV receiver uses DHCP to configure its network settings automatically. If you want to configure these settings manually, see “Network” (> page 67).

+ The AV receiver does not support PPPOE settings, so if you have a PPPOE-type Internet connection, you must use a PPPOE- compatible router.

+ Depending on your ISP, you may need to specify a proxy server to use Internet radio. If your computer is configured to use a proxy server, use the same settings for the AV receiver (> page 67).

Server Requirements USB Device Requirements

The AV receiver can play digital music files stored on a

computer or media server and supports the following

+ Windows Media Connect 2.0

+ DLNA-certified media server

If the operating system of your computer is

Windows Vista, Windows Media Player 11 is already

Windows Media Player 11 for Windows XP can be

downloaded for free from the Microsoft web site.

+ The computer or media server must be on the same network as the AV receiver.

+ Up to 20000 folders can be displayed, and folders may be nested up to 16 levels deep.

+ Depending on the media server, the AV receiver may not recognize it, or may not be able to play its music files.

Minimum system requirements for Windows Media

Player 11 on Windows XP Operating system

Windows XP Home Edition (SP2), Windows XP Professional (SP2), Windows XP Tablet PC Edition (SP2), Update Rollup 2 for Windows XP Media Center Edition 2005 (KB900325), October 2006 Update Rollup for Windows XP Media Center Edition (KB925766)

Processor: 233 MHz Intel Pentium II, Advanced Micro Devices (AMD), etc.

Memory: 64MB Hard disk: 200 MB of free space

Driv CD or DVD drive

Sound card: 16-bit sound card

Monitor: Super VGA (800 x 600)

Video card: 64 MB VRAM, DirectX 9.0b

Software: Microsoft ActiveSyne (only when

+ Windows Media Player 12

+ DLNA-certified (within DLNA Interoperability Guidelines version 1.5) media server or controller device.

Setting varies depending on the device. Refer to your

device’s instruction manual for details.

If the operating system of your personal computer is

Windows 7, Windows Media Player 12 is already

installed. For more information, see the Microsoft web

+ USB mass storage device class (but not always guaranteed).

+ FATI16 or FAT32 file system format.

+ If the storage device has been partitioned, each section will be treated as an independent device.

+ Each folder may contain up to 20,000 music files and folders, and folders may be nested up to 16 levels deep.

+ USB hubs and USB devices with hub functions are not supported.

+ Ifthe media you connect is not supported, the message “No Storage” will appear on the display.

+ If you connect a USB hard disk drive to the AV receiver's USB port, we recommend that you use its AC adapter to power it.

+ The AV receiver supports USB MP3 players that support the USB Mass Storage Class standard, which allows USB devices to be connected to computers without the need for special drivers or software. Note that not all USB MP3 players support the USB Mass Storage Class standard. Refer to your USB MP3 players instruction manual for details.

+ Protected WMA music fi

+ Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB device when that device is used with the AV receiver. We recommend that you back up your important music files beforehand.

+ MP3 players containing music files that are managed with special music software are not supported.

+ Operation is not guaranteed for all USB devices, which includes the ability to power them.

+ Do not connect your USB device via a USB hub. The USB device must be connected directly to the AV receiver’s USB port.

+ Ifthe USB device contains a lot of data, the AV receiver may take a while to read i

+ USB devices with security functions cannot be played.

n an MP3 player cannot be played.

Supported Audio File Formats

For server playback and playback from a USB device, the AV receive supports the following music file formats. Variable bit-rate (VBR) files are supported. However, playback time may not be display correctly.

+ With remote playback, the AV receiver does not support the following music file formats: FLAC and Ogg Vorbis.

+ In the case of server playback, the below-mentioned file formats may not be played depending on the server type.

BE MP3 (.mp3 or .MP3)

+ MP3 files must be MPEG-1/MPEG-2 Audio Layer 3 format with a sampling rate of 8 kHz, 11.025 kHz, 12 KHz, 16 kHz, 22.05 KHz, 24 kHz, 32 KHz, 44.1 KHz, 48 kHz and bitrates of between 8 kbps and 320 kbps. Incompatible files cannot be played.

WMA stands for Windows Media Audio and is an audio

compression technology developed by Microsoft

Corporation. Audio can be encoded in WMA format by

using Windows Media® Player.

+ WMA files must have the copyright option turned off.

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 kHz, 48 KHZ, bitrates of between 5 kbps and 320 kbps, and WMA DRM are supported.

+ WMA Pro/Voice formats are not supported.

B WMA Lossless (.wma or .WMA)

+ Sampling rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 kHz are supported.

+ Quantization bit: 16 bit, 24 bit

BE WAV (.wav or .WAV)

WAV files contain uncompressed PCM digital audio.

+ Sampling rates of 8 kHz, 11.025 KHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz, and 96 kHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

BAAC (aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/ .-3GP or .3G2)

AAC stands for MPEG-2/MPEG-4 Audio.

+ Sampling rates of 8 kHz, 11.025 KHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz, 96 KHz and bitrates of between 8 kbps and 320 kbps are supported.

BFLAC (.flac or .FLAC)

FLAC is a file format for lossless audio data compression.

+ Sampling rates of 8 kHz, 11.025 KHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz, and 96 kHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

E Ogg Vorbis (.ogg or .0GG)

+ Sampling rates of 8 kHz, 11.025 KHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 kHz, 48 KHz and bitrates of between 48 kbps and 500 kbps are supported. Incompatible files cannot be played.

MB LPCM (Linear PCM)

+ Sampling rates of 8 KHz, 11.025 KHz, 12 kHz, 16 KHz, 22.05 kHz, 24 KHz, 32 KHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz, and 96 kHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

* Only for playback via network.

About DLNA The Digital Living Network Alliance is an international, cross-industry collaboration. Members of DLNA develop a concept of wired and wireless interoperable networks where digital content such as photos, music, and videos can be shared through consumer electronics, personal computers, and mobile devices in and beyond the home. The AV receiver complies with the DLNA Interoperability Guidelines version 1.5.

Specifications (TX-NR5009)

Rated Output Power All channels:

145 watts minimum continuous power per channel, 8 ohm leads, 2 channels driven from 20 Hz to 20 KHz, with a maximum total harmonic distortion of 0.05% (FTC) 175 watts minimum continuous power per channel, 8 ohm leads, 2 driven at 1 KHz, with a ma harmonie distortion of 0.7% (FTC) 185 watts minimum continuous power per channel, 6 ohm leads, 2 channels driven at 1 KHz, with a maximum total harmonie distortion of 0.1% (FTC) (Others) 9 ch x 220 W at 6 ohms, 1 kHz, 1 ch driven of 1 % (IEC)

Maximum Effective Output Power

(Asian) 9 ch x 280 W at 6 ohms, 1 kHz, 1 ch driven GEITA) Dynamic Pow * 1EC60268-Short-term maximum output power

400 W (3 Q, Front) 300 W (4 Q, Front) 180 W (8 Q, Front)

0.05% (20 Hz - 20 KHz, half power) Damping Factor 60 (Front, 1 kHz, 8 Q) Input Sensitivity and Impedance (Unbalance)

200 mV/47 kQ (LINE) 2.5 mV/47 kQ (PHONO MM)

Rated RCA Output Level and Impedance 1 V/470 Q (PRE OUT)

Maximum RCA Output Level and Impedance

5.5 V/470 Q (PRE OUT)

5 Hz- 100 MHz/+0 dB, -3 dB FM Tuning Frequency Range (North American) 87.5 MHz - 107.9 MHz (Others) 87.5 MHz - 108.0 MHz, RDS AM Tuning Frequency Range 522/530 kHz - 1611/1710 kHz

Power Supply (North American) AC 120 V, 60 Hz (Others)

AC 220 - 240 V, 50/60 Hz

(North American) 12.8 A

(Others) 1160 W No-sound Power Consumption

(North American) 135 W (Others) 145 W Stand-by Power Consumption

Dimensions (W x H x D)

Weight 25.0 kg (55.1 lbs.)

AUX INPUT Output OUT MAIN, OUT SUB Video Resolution 1080p

Audio Format Dolby TrueHD, DTS-HD Master Audio,

DVD-Audio, DSD Supported 3D, Audio Return Channel (OUT MAIN), DeepColor, x.v.Color, LipSyne, CEC (RIHD)

Main (L, R, C, SL, SR, SBL/Z3L, SBR/Z3R) + Front Wide/ZONE2 (L, R) + Front High (L, R)

Specifications and features are subject to change

Rated Output Power All channels:

140 watts minimum continuous power per channel, 8 ohm leads, 2 channels driven from 20 Hz to 20 KHz, with a maximum total harmonic distortion of 0.05% (FTC) 160 watts minimum continuous power per channel, 8 ohm loads, 2 driven at 1 KHz, with a ma harmonie distortion of 0.7% (FTC) 170 watts minimum continuous power per channel, 6 ohm leads, 2 channels driven at 1 KHz, with a maximum total harmonie distortion of 0.1% (FTC) (Others) 9 ch x 200 W at 6 ohms, 1 kHz, 1 ch driven of 1 % (IEC)

Maximum Effective Output Power (Asian) 9 ch x 250 W at 6 ohms, 1 kHz, 1 ch driven GEITA)

Dynamic Pow * 1EC60268-Short-term maximum output power

320 W (3 Q, Front) 270 W (4 Q, Front) 160 W (8 Q, Front)

0.05% (20 Hz - 20 KHz, half power) Damping Factor 60 (Front, 1 kHz, 8 Q) Input Sensitivity and Impedance (Unbalance)

200 mV/47 kQ (LINE) 2.5 mV/47 kQ (PHONO MM)

Rated RCA Output Level and Impedance 1 V/470 Q (PRE OUT)

Maximum RCA Output Level and Impedance

5.5 V/470 Q (PRE OUT)

5 Hz- 100 MHz/+0 dB, -3 dB FM Tuning Frequency Range (North American) 87.5 MHz - 107.9 MHz (Others) 87.5 MHz - 108.0 MHz, RDS AM Tuning Frequency Range 522/530 kHz - 1611/1710 kHz

Power Supply (North American) AC 120 V, 60 Hz (Others)

AC 220 - 240 V, 50/60 Hz

(North American) 11.6 À

(Others) 1060 W No-sound Power Consumption

155 W Stand-by Power Consumption (North American)

Dimensions (W x H x D)

Weight 25.0 kg (55.1 lbs.)

AUX INPUT Output OUT MAIN, OUT SUB Video Resolution 1080p

Audio Format Dolby TrueHD, DTS-HD Master Audio,

DVD-Audio, DSD Supported 3D, Audio Return Channel (OUT MAIN), DeepColor, x.v.Color, LipSyne, CEC (RIHD)

CBL/SAT, GAME, PC, TV/CD, PHONO,

Specifications and features are subject to change without notice.

ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700

ONKYO CHINA LIMITED Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: 852-2429-3118 Fax: 852-2428-0039 http}/www.ch.onkyo.com/
