Brand	Cecotec
Model	Bolero Flux Im 756500 A
Product type	Decorative recessed hood
Dimensions (W x D x H)	60 x 48 x 13 cm (approx.)
Net weight	8.5 kg (approx.)
Power supply	230 V ~ 50 Hz
Motor power	140 W (approx.)
Lighting	LED, 2 x 1.5 W
Max air flow	650 m³/h (approx.)
Max noise level	65 dB (approx.)
Number of speeds	3 speeds + intensive
Control type	Electronic touch controls
Filter type	Washable aluminum grease filter
Charcoal filter	Optional (sold separately)
Exhaust mode	External exhaust or recirculation
Functions	Timer, automatic shut-off, LED lighting
Maintenance and cleaning	Clean the grease filter every month; replace the charcoal filter every 3-6 months
Safety	Automatic cut-off in case of overheating
Spare parts	Available: filters, LED bulbs, motor, remote control
Repairability	Repairability index: 7.7/10 (estimate)
Included accessories	Exhaust kit, user manual

Frequently Asked Questions - Bolero Flux Im 756500 A CECOTEC

How to install the Cecotec Bolero Flux Im 756500 A hood?

Installation should be carried out by a qualified professional. Make sure to respect a minimum distance of 65 cm between the hood and an electric hob, or 75 cm for a gas hob. Follow the mounting instructions provided in the manual.

How to clean the grease filters?

The aluminum grease filters are washable. Remove them and clean them by hand with hot water and detergent, or in the dishwasher. Dry them completely before putting them back.

When should the charcoal filter be replaced?

If you use the hood in recirculation mode, the charcoal filter must be replaced every 3 to 6 months depending on use. An indicator light may alert you.

How to use the timer function?

Press the timer button (clock) while the hood is running. The hood will automatically stop after 10 minutes. You can set the duration via the speed buttons.

What to do if the hood does not turn on?

Check that the appliance is plugged in and that the circuit breaker has not tripped. Also ensure that the filters are correctly installed. If the problem persists, contact customer service.

How to change the LED bulb?

Unplug the hood. Remove the glass panel or cover depending on the model. Unclip the defective LED bulb and replace it with a bulb of the same type (1.5 W, G4). Replace the cover.

The hood is noisy, is this normal?

A slight noise is normal. If the noise is excessive, check that the hood is properly fixed to the wall and that the filters are clean. A clogged filter can increase noise.

Can I use this hood in recirculation mode without an external duct?

Yes, the hood can operate in recirculation mode. You must then install a charcoal filter (not supplied) to purify the air before releasing it back into the kitchen.

How to adjust the suction speed?

Use the control buttons to select the desired speed (1, 2, 3 or intensive). Speed 1 is the quietest, speed 3 and intensive are for strong odors.

Where to find spare parts for my Cecotec hood?

Spare parts are available from Cecotec customer service or on their website. You can order filters, bulbs, motor or remote control. Check the manual for exact references.

USER MANUAL Bolero Flux Im 756500 A CECOTEC

Campana integrable / Built-in kitchen hood

Safety instructions 7

1. Parts and components 47

2. Before use 47

3. Installation 47

4. Operation 48

5. Cleaning and maintenance 49

6. Troubleshooting 51

7. Technical specifications 52

8. Disposal of old electrical and electronic appliances 55

9. Technical support and warranty 55

10. Copyright 55

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.

You must allow the appliance to be disconnected from the power supply after installation.

There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

There is a risk of fire if cleaning is not carried out according to the instructions.

Do not flambé under the kitchen hood.

CAUTION: accessible parts can become hot when used with cooking appliances.

Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.

The minimum distance between the support surface of the cooking containers on the worktop and the lowest part of the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

I. Non-combustible parts of kitchen hoods.
II. Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are

deformed).

The air discharge regulations must be complied with.

The kitchen hood is intended for installation only over a hob with four burners.

Things you should never do:

IV. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
V. Do not install the kitchen hood above a cooker with a high-level grill.
VI. Do not leave pans unattended during use because overheated fats or oils may catch fire.

Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.

Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.

Never leave open flames under the kitchen hood.

If the kitchen hood is damaged, do not attempt to use it.

When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Important! Always disconnect the power supply during installation and maintenance.

The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.

All installation work must be carried out by a competent person or a qualified electrician.

Dispose of the packaging material carefully. Children are vulnerable to it.

Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood. Warning: failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.

Warning: before accessing the electrical terminals, all power supply circuits must be disconnected.

There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

Caution: the appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.

Local air discharge regulations must be complied with.

For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.

You should not use a steam cleaner.

NEVER try to put out the fire with water. Instead, turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.

Never use extension cables, multiple socket connections or external timer connection elements.

If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.

The appliance must not be operated if the power supply cable is damaged or cut.

If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec

Technical Support Service.

Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

Potencia total: 73 W

Motor: 70 W

Lámpara: 2 x 1.5 W

Caudal de aire: 350 m3/h

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Kitchen hood
• Assembly kit (depending on model)
• Instruction manual

3. INSTALLATION

Before installing the kitchen hood, make sure that the area is clean to prevent it from sucking in dust or dirt.
- Please note that the kitchen hood must not share the same ventilation duct with other appliances that use gas or other fuses.
- To facilitate air outlet, the ventilation duct should have a curvature of ≥ 120^ and should be

connected to the outside wall.

- After installation, ensure that the kitchen hood is level to prevent grease build-up on the end (Fig. 2).

1. The kitchen hood should be placed at a distance of 65-75 cm above the cooking surface for best effect (Fig. 3).
2. The dimensions of the kitchen hood are shown in the following figures:

Figure 4 > 02865_Bolero Flux IM 523500 Inox A

Figure 5 > 02867_Bolero Flux IM 756500 Inox A

1. Drill a rectangular hole in the enclosure according to the following dimensions (Fig. 6):

02865 > 485 × 275 × 240 mm (width × depth × height)

02867 > 715 × 275 × 240 mm (width × depth × height)

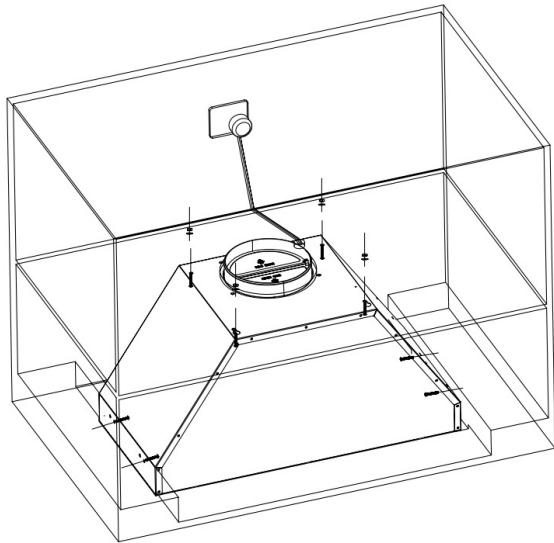

1. Remove the mesh filters, place the kitchen hood inside the cabinet through the hole, use the supplied screws ST4*40 (x8) to fix the hood in the cabinet, from the left side, right side and from the top, as shown in figure 7.
2. Drill holes and attach the hood.
3. Once the kitchen hood has been hung up, you can install the flexible chimney connection pipe to the ventilation duct at the top.
4. Connect the other end of the flexible connection pipe to the wall chimney.
5. Plug the power cable into the outlet.

Black cable (or brown, depending on models) > Phase

Blue cable > neutral

Yellow-Green cable > ground

You must connect the phase and neutral cables to a 220-240 V\~/ 50 Hz power cable.

The kitchen hood must be connected to an earthed installation.

4. OPERATION

Push buttons

1. Press the power button, the motor will stop.
2. Press the low speed button, the kitchen hood will beep, and the motor will operate at low speed.
3. Press the medium speed button, the kitchen hood will beep, and the motor will operate at medium speed.
4. Press the high power button, the kitchen hood will beep, and the motor will operate at high speed.

ENGLISH

1. Press the light button, both bulbs will light up. Press it again and the light will switch off.

NOTE: the kitchen hoods are equipped with an overheating protection system that acts to prevent possible incidents when the motor temperature exceeds the operating limit value.

5. CLEANING AND MAINTENANCE

Always switch off the power supply before cleaning or performing any maintenance work on the kitchen hood. Please note that the cleaning and maintenance frequency depends on the use frequency and intensity.

1. To prevent the outer surface of the kitchen hood from deteriorating over time, it is recommended that it be cleaned with hot water and a non-corrosive detergent every two months.
2. Do not use abrasive detergents. Otherwise, the surface of the kitchen hood may be damaged.
3. Keep the motor and other parts away from water, as water may damage the appliance.

Cleaning the filters

Do not use corrosive detergents to clean grease from the aluminium filters. Regular cleaning of the aluminium filters will prolong the life of the appliance and keep it in good working order. Follow the instructions below:

• Cleaning method 1: Immerse the aluminium filters in hot water (40-50 °C), add neutral detergent and let them soak for 2 to 3 minutes. Protect yourself with gloves and clean the filters with a soft brush or scouring pad. Do not apply too much force, as filters are very delicate and can be easily damaged.
• Cleaning method 2: If you wish, you can also wash the filters in the dishwasher at a temperature of approx. 60 °C.

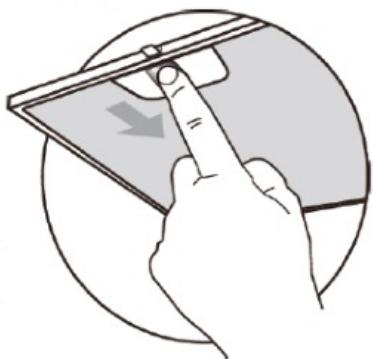

Note: to remove the filter, press on the tabs as shown in Figure 8 and pull it out.

Carbon filter

This type of filter has activated carbon and purifies air and absorbs cooking odours. The activated carbon becomes saturated after a period of time, which will reduce the adsorption capacity of the filter. The carbon filter cannot be washed nor cleaned in any way. When its service life comes to an end you must replace it with a new one.

- It is recommended to check the condition of carbon filters regularly, at least two or three

times a year. Its replacement will depend on how the kitchen hood is used, as well as the daily operating time.

- In case of very frequent frying, shorten the time interval for checking and/or replacing the carbon filters.

Installing the carbon filters

1. Remove the protective metal filters.
2. The carbon filters are located on both sides of the motor. Insert and turn the filters, until they are firmly in place.
3. To replace the carbon filters, proceed in reverse order.
4. Carbon filters must not be exposed to heat.

Fig. 9:

A: Closed

B: Opened

C: Opened

D: Closed

Carbon filter dimensions:

Article No 02865 > Φ132*18.5 mm

Article No 02867 > Φ176*35 mm

Replacing the light bulb/lamp

Please note:

• The light bulb must be replaced by the official Cecotec Technical Support Service or similarly qualified technicians.
• Always disconnect the power supply before performing any operation on the appliance. When handling the bulb, make sure that it has cooled down completely before any direct contact with your hands.
• When handling the bulbs, hold them with a cloth or gloves to prevent sweat from coming into contact with the bulb, as this may reduce the bulb life.

Note:

• Before changing the light bulb, make sure that the appliance is switched off and unplugged.
• Protect yourself from danger when changing the light bulb, e.g. by wearing gloves.

6. TROUBLESHOOTING

Fault	Cause	Solution
The light is on, but the motor does not work	The kitchen hood is obstructed.	Remove what is obstructing the hood.
	The condenser is damaged.	Replace the condenser.
	Motor is jammed or bearing damaged.	Replace the motor.
	Motor is burnt or gives off a bad smell.	Replace the motor.
Neither the light bulb nor the motor work	In addition to the above, check the following:
	The light bulb has blown.	Replace the light bulb.
	Power cable is loose.	Connect the cables according to the wiring diagram.
Grease falls out of the aluminium filters	The filters are very dirty.	Clean or replace the aluminium filters immediately.
The kitchen hood vibrates	The fan is damaged, causing the kitchen hood to vibrate when extracting air.	Replace the fan.
	The engine is not securely fastened.	Fix the engine correctly.
	The kitchen hood is not securely fastened.	Fix the kitchen hood correctly.
The kitchen hood is not sufficiently extracting	The distance between the kitchen hood and the cooking surface is too large.	Readjust the distance.
	There is too much ventilation in the room due to open doors or windows.	Relocate and reinstall the kitchen hood.
The kitchen hood is tilted	Fastening screws are not tightened properly.	Reposition the kitchen hood horizontally and tighten the screws.
	Plastic plugs are not tightened properly.	Reposition the kitchen hood horizontally and tighten the plugs.

If none of these situations match your problem, do not attempt to disassemble, or repair the appliance by yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Contact the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

7. TECHNICAL SPECIFICATIONS

All technical information is available on the public website of the European Product Register for Energy Labelling (EPREL):

eprel.ec.europa.eu/screen/home

Regulation (EU) 65/2014

EU Directive 2010/30/EU

Product reference: 02865

Product name: Bolero Flux IM 523500 Inox A

Rated voltage: 220-240 V

Rated frequency: 50 Hz

Total power: 73 W

Motor: 70 W

Light bulb: 2 x 1.5 W

350 m³/h air flow

Bulb type: round LED light

Lamp diameter: 68 mm

ILCOS Code D: DBL-1.5-S-68

	Symbol	Value	Unit
Model reference		02865
Annual energy consumption	AEC hood	22.3	kWh/a
Time increment factor	f	1.2
Fluid dynamic efficiency	FDE hood	21.8
Energy Efficiency Index (EEIW)	EEI hood	52.8
Measured airflow at maximum efficiency point	Q_BEP	176.9	m3/h
Air pressure measured at maximum efficiency point	P_BEP	204	Pa
Maximum airflow	Q_max	317.4	m3/h
Electrical input power measured at maximum efficiency point	W_BEP	45.9	W
Nominal power of the lighting system	W_L	3.0	W
Measured illumination of the illumination system on the cooking surface	E_med	120	lux
Standby power consumption	P_S	N/A	W
Power consumption in off mode	P_o	0	W
Noise level (Highest setting)	L_WA	64	dB
Noise level (Lowest setting)	L_WA	53	dB

This appliance features a light source with an energy efficiency grade A.

The appliance power consumption when off is 0 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the Off position.

Product reference: 02867

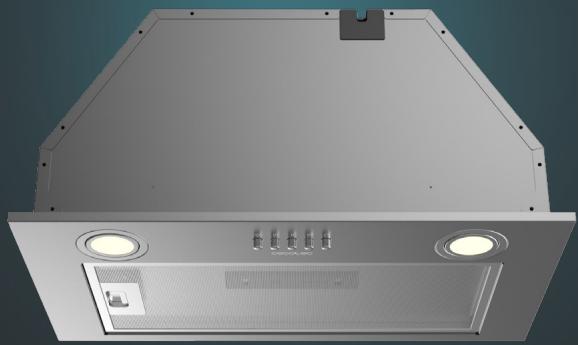

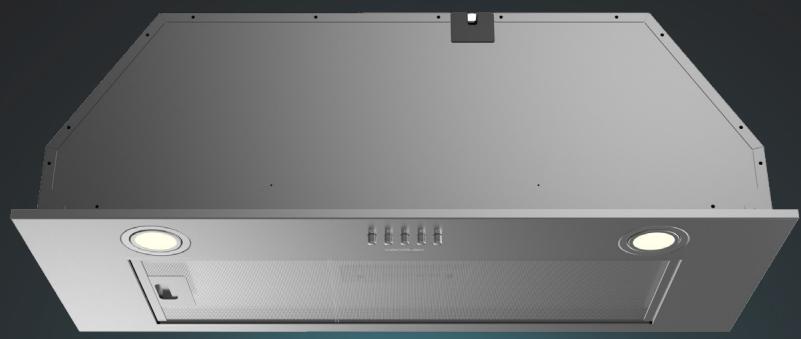

Product name: Bolero Flux IM 756500 Inox A

Rated voltage: 220-240 V

Rated frequency: 50 Hz

Total power: 168 W

Motor: 165 W

Light bulb: 2 x 1.5 W

650 m³/h air flow

Bulb type: round LED light

Lamp diameter: 68 mm

ILCOS Code D: DBL-1.5-S-68

	Symbol	Value	Unit
Model reference		02867
Annual energy consumption	AEC hood	22.3	kWh/a
Time increment factor	f	1.2
Fluid dynamic efficiency	FDE hood	21.8
Energy Efficiency Index (EEIW)	EEI hood	52.8
Measured airflow at maximum efficiency point	Q_BEP	176.9	m3/h
Air pressure measured at maximum efficiency point	P_BEP	204	Pa
Maximum airflow	Q_max	317.4	m3/h
Electrical input power measured at maximum efficiency point	W_BEP	45.9	W
Nominal power of the lighting system	W_L	3.0	W
Measured illumination of the illumination system on the cooking surface	E_med	120	lux
Standby power consumption	P_S	N/A	W
Power consumption in off mode	P_o	0	W
Noise level (Highest setting)	L_WA	64	dB
Noise level (Lowest setting)	L_WA	53	dB

This appliance features a light source with an energy efficiency grade A.

The appliance power consumption when off is 0 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

ENGLISH

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Directive 2010/30/UE

Référence : 02865

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

www.cecotec.es
