USER MANUAL TELEPHONE A CARTES FRANCE TELECOM

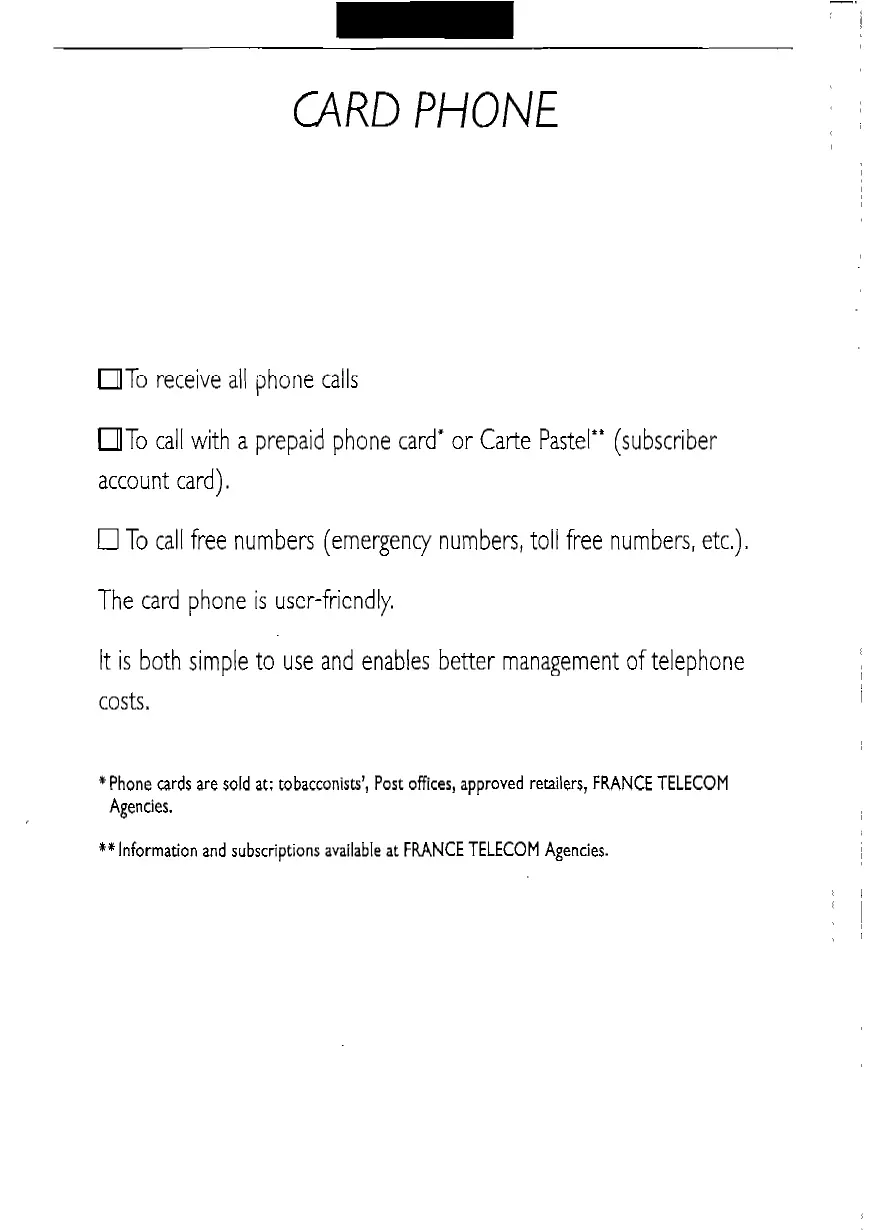

To receive all phone calls
To call with a prepaid phone card or Carte Pastel* (subscriber account card).
To call free numbers (emergency numbers, toll free numbers, etc.).

The card phone is user-friendly.

It is both simple to use and enables better management of telephone costs.

Phone cards are sold at: tobaccoists', Post offices, approved retailers, FRANCE TELECOM Agencies.
*Information and subscriptions available at FRANCE TELECOM Agencies.

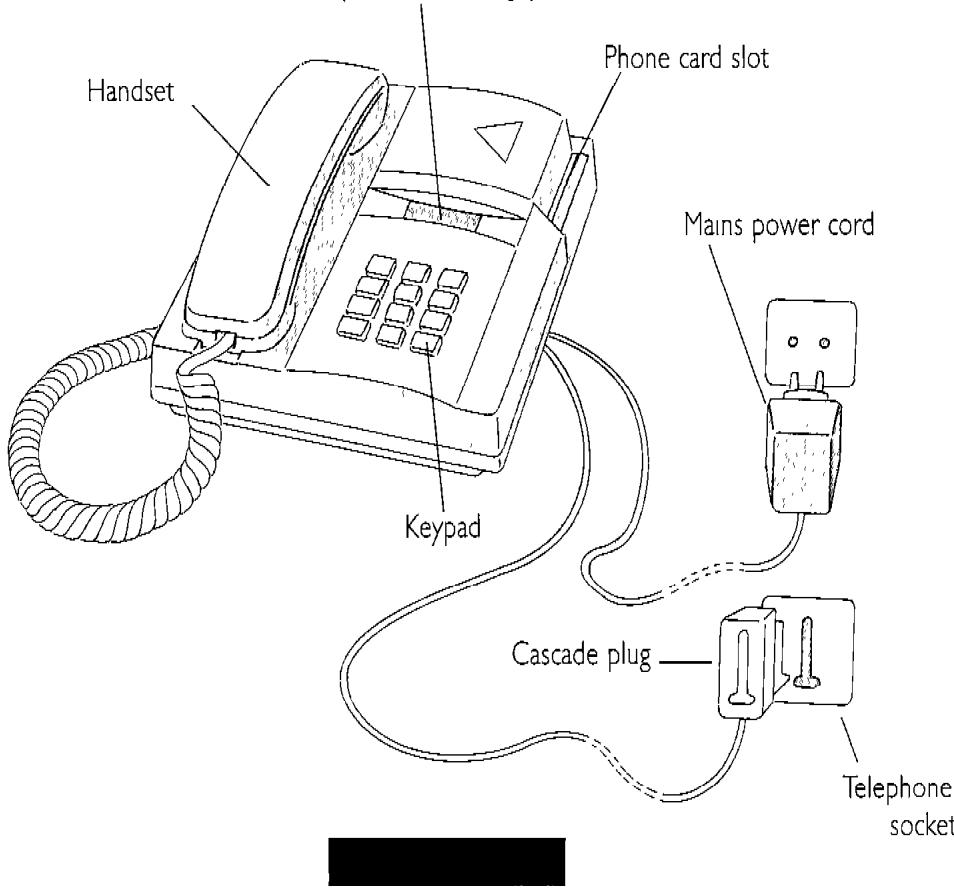

DESCRIPTION

4-digit display showing credit amount remaining on phone card (or error message).

INSTALLATION

• Insert the telephone plug into the telephone socket.
• Plug the mains power plug into a standard 220V - 50Hz^* mains socket.
• Plug any peripheral equipment (Minitel, fax, etc.) into the cascade plug.

The card phone can be installed on any flat surface. An optional wall mounting fixture is also available.

• In case of mains power failure, the telephone can still be used to dial free (emergency) numbers (see calling without a phone card) and can receive calls.

The electrical plug must be located near the card phone and easily accessible.

INSTRUCTIONS

RECEIVING CALLS

The card phone is assigned an individual number which can be called from France and other countries. The number is listed on the instruction card.

MAKING A CALL

1-With a prepaid card

Insert the prepaid card before lifting the handset

Insert the card

Lift handset

Dial

The display shows the number of credit units remaining during the call.

NOTE: Certain services charge a fixed number of unit fees, deducted once at the beginning of the call.

For example, telephone information services (numbers beginning with 3665) or directory assistance (12) cost 5 unit fees.

At the end of your call you may leave the card in the slot for further use (don't forget to remove it at the end of your stay).

2 - Using the Carte Pastel (subscriber account card)

Do not insert the Carte Pastel in the slot.

Lift the handset and dial 3610

card number (9 digits) ÷ PIN code

number called

press

3-Without a card

Only free numbers can be called by lifting the handset without inserting a phone card.

Emergency numbers: 18 17 15
- Repair service: 13 and FRANCE TELECOM agencies: 14
-Toll-free numbers: Numero Vert

DISPLAY MESSAGES

1) Normal operation:

• the number of credit units remaining on a phone card is displayed:

if the card has 20 units, for example, the display is:

If all credit units have been used up, the display is:

• for the free numbers, shown before, the display is:

the insertion of the phone card would induce the cutting off of the call.

2) Error message:

Action:

ERR 0 or ERR 7	card has been incorrectly inserted or is not a phone card	hang up, reinsert a phone card, lift the handset and re-dial. If the problem persists, dial 13 for FRANCE TELECOM maintenance.
ERR 1 or ERR 2 or ERR 5	phone card error	hang up, insert a new phone card, lif the handset and dial again.
Credit remaining display flashing or ERR 3 or ERR 4 and call cut off.	either a pay number has been dialed without a phone card or the card was removed or inserted during a call	hang up, insert a prepaid phone card, lift the handset and re-dial, without removing the card.
ERR 6	Call error	hang up and re-dial. If the problem persists, dial 13 for maintenance/technical assistance.

FRANCE TELECOM

DIRECTION GENERALE

DIRECTION COMMERCIALE
