Product Type	Portable Media Player
Brand	Nextar
Model	MC3007
Dimensions	5.5 x 3.5 x 0.5 inches (140 x 89 x 13 mm)
Weight	0.3 lbs (136 g)
Power Source	Built-in rechargeable lithium-ion battery (1000 mAh) or USB 5V
Display	3.5-inch TFT LCD, 320x240 pixels
Supported Media	Video: AVI, MPEG4; Audio: MP3, WMA; Photo: JPEG
Storage Support	SD/MMC card slot (up to 32GB) and USB host for flash drives
Audio Output	3.5mm headphone jack, built-in mono speaker
Video Output	Composite AV output (cable included)
File Management	Browse, copy, delete files; supports folder navigation
Additional Functions	FM radio, voice recorder, e-book reader (TXT), calendar, alarm clock
Battery Life	Up to 5 hours video playback, 8 hours audio
Charging Time	Approximately 3 hours via USB
Languages Supported	English, Spanish, French, German, Italian, etc.
Maintenance & Cleaning	Wipe with a soft, dry cloth; avoid liquids and abrasive cleaners
Safety Precautions	Do not expose to moisture, extreme temperatures, or drop; keep away from children under 3 years
Spare Parts & Repairability	Battery replaceable by professional; other parts not user-serviceable; contact Nextar support
Package Contents	Nextar MC3007, USB cable, AV cable, earphones, user manual, quick start guide

Frequently Asked Questions - MC3007 Nextar

What video formats does the Nextar MC3007 support?

The device supports AVI and MPEG4 video formats. For best compatibility, convert videos to these formats using a converter.

How do I transfer files to the media player?

You can transfer files by connecting the player to a computer via USB or by inserting an SD card with files into the slot. The player will appear as a removable drive.

Can I use the MC3007 as a flash drive?

Yes, when connected to a computer via USB, the player acts as a mass storage device, allowing you to copy files to and from its internal memory or SD card.

What is the battery life and how do I charge it?

The built-in battery provides up to 5 hours of video or 8 hours of audio. Charge via the included USB cable connected to a computer or a 5V USB charger.

Does it support external subtitles?

The MC3007 does not support external subtitle files (like .srt). Subtitles must be embedded in the video file.

Can I listen to FM radio without headphones?

The FM radio requires earphones as an antenna. The built-in speaker will not receive radio signals.

How do I reset the device if it freezes?

Use a paperclip to press the reset button located on the bottom or side of the device. If that doesn't work, try holding the power button for 10 seconds.

What memory cards are compatible?

The MC3007 supports SD and MMC cards up to 32GB. SDHC cards are compatible.

Can I output video to a TV?

Yes, use the included AV cable to connect to a TV via composite video and audio inputs. Select the correct input on your TV.

How do I update the firmware?

Firmware updates are not officially provided for this model. If needed, contact Nextar support for assistance.

USER MANUAL MC3007 Nextar

Important Safety Instructions

WARNING: To reduce the risk of fire or electric shock, DO NOT expose this product to rain or moisture.

The lighting flash with arrowhead symbol, within a triangle, alerts the user to "dangerous voltage" which could cause electric shock.

The exclamation point within a triangle is indicates to the user to read important operating and maintenance instructions in the manual.

Notes

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Maintain well-ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) This unit is equipped with a polarized plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the plug provided doesn't fit in your outlet, consult an electrician for replacement of the obsolete outlet. Removal of the polarized plug will diminish the plugs level of safety.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, for example, power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.

Note: Do not touch the color TFT LCD screen by hand directly.

Functional Features

This apparatus is the latest PMP player. By using the harddisk as its storage device, this product is a multi-media player which could play files of MPEG1, MPEG2 and MPEG4 video format, MP3/WMA audio format and JPEG/BMP/GIF picture format. It is with 40GB ultra large capacity, and hundreds of MPEG4 films and thousands of MP3 music could be stored on the harddisk. It can be used as the moveable harddisk to connect to PC at any time via the USB 2.0 port. Possessed with this player, your pastime will be more interesting.

High Resolution:

The horizontal resolution achieves more than 500 lines, providing clear image.

Special Operation:

Support video playback, music playback, picture scan and AV recording.

Voice Recording

Support to record voice via the microphone.

Audio/Video Output:

It could be connected with TV, LCD and slide projector via AV cable.

LCD (Liquid Crystal Display) Screen: 7" Color LCD screen provide clear image.

Audio/Video Input:

It could be connected with external Audio/Video signal source to obtain more A/V signal. It also supports external A/V signal recording function, recording the program on the harddisk.

USB Input:

The product is designed with an USB 2.0 OTG port. You can download multi-media files from the external memory by USB port.

Supported File Format:

Supports MPG, DAT, VOB and AVI video format files, MP3/WMA audio format files and the JPG, BMP, GIF picture format file.

Harddisk Functions:

40GB harddisk capacity. Hundreds of films of MPEG4 format and thousands of MP3 music can be stored on the harddisk. Designed with USB 2.0 OTG port, can be connected to computer at any time as a moveable harddisk.

SD Card Functions:

Designed with SD card port, can be connected to SD card.

Accessories

Please refer to the following sheet, make sure that all these items are attached to your player.

Picture	Name	Number
	User's Manual 1
	A/V Cable 1
	USB Cable 2
	Power Adapter 1
	Rechargeable Battery 1
	Car Adapter 1
	Bracket 1
	Earphone 1

NOTE: If you find that the accessories are not in accordance with the items listed in the manual book, please contact the local sales person or the department store.

Table Of Contents

Important Safety Instruction 1

Functional Features 2

Accessories- 3

Table of Contents 4

Description- Front Panel 5

Description- Rear Panel 7

About the Rechargeable Battery 8

System Connections 11

Connecting to the Power Adapter---- 11

Connecting to AV Input Device 12

Connecting to AV Signal Source 13

Connecting to DC adapter 14

Connecting to PC 15

Connecting to USB 15

Connecting to Earphone 16

System Setup 17

Setting Menu 17

Movie Setup 22

Music Setup 23

Photos Setup 23

File Manager 23

File Management 24

New Folder 24

Play Mode 24

Playlist 25

Favorites---- 25

Copy 26

Delete 26

Rename 27

Files Download 28

Audio and Video Recording Function 30

System Upgrading 31

Troubleshooting 32

Specifications 33

Description -Front Panel

1. POWER Button/ Power Indicator/ Charge Indicator

Press and hold for about 2 seconds to turn on/off the power.

The light is green under normal playback status, while red in standby mode.

2. SETUP Button

Under file menu, press this button to enter file arrangement mode.

Under video file playback status, press this button to switch aspect ratio between 16:9 and 4:3. Press and hold the button for a while to enter time searching mode.

Under audio file playback status, press this button to enter playback mode selecting menu.

3. VOL - Button

Press this button to decrease the volume level.

4. VOL + Button

Press this button to increase the volume level.

5. REC Button

Under main setup menu, press this button to enter record mode menu, then press MENU/ STOP button to exit. Under video file playback and recording status, press to select Brightness, contrast or color adjust mode.

6. PREV Button

Press to skip to the previous chapter or track.

Under setup menu, press this button to select or adjust items.

Description -Front Panel

7. ➤ NEXT Button

Press to skip to the next chapter or track.

Under setup menu, press this button to select or adjust items.

8. MENU/STOP Button

Press to enter or exit setup menu.

In the playback mode, press this button to stop playback.

Under the record mode, press this button to stop recording.

9. ENT Button

Adjust this button to select items in the menu, press this button to confirm your selection.

In playback status, press to pause or resume playback; press and hold for a while to select audio mode: L-Mono/R-Mono / Stereo/Mixed Mono/Mute.

10. LCD OFF/NORMAL/LOCK

Switch to LCD OFF, the LCD screen will be turned off to save battery power.

Switch to LOCK to lock the function of the buttons on the panel.

Switch to NORMAL to start normal playback.

11. SD Card Port

Insert SD card into this Port.

12. RESET Hole

Press to reset the player.

13. DC 9.5V IN Jack

Used to connect with 9.5V power adapter.

14. USB Jack

Used for USB connecting.

15. Earphone Jack

Used for connecting with the earphone.

16. AV Out Jack

Used for connecting to external AV input device.

17. AV In Jack

Used for connecting to external AV output signal source.

18. MIC Hole

Used for voice recording.

Description- Rear Panel

Rear Panel

1. Rechargeable Battery Switch

Push this switch to detach the battery.

2. Rechargeable Battery contact Port

Used to connect the rechargeable battery.

About the Rechargeable Battery

The power supply of the player is via the attached power adapter or the rechargeable battery.

As a portable multi-media player, this player is equipped with a specific lithium polymeric rechargeable battery, for using in outdoor or traveling.

About rechargeable battery

Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully charged battery delivers about 3.5 hours of use. If the battery will not be used for a long period of time, fully charged the battery prior to storage.

Working conditions and precautions for the rechargeable battery

The battery should be fully charged when it is used for the first time, the charging time is normally about 5 hours. And the charging time should be above 9 hours the first 3 times.
Battery should be charged under the 10-30 degree room temperature.
Under room temperature 25 degree, a fully charged battery delivers about 3.5 hours of use. The using time of the battery will be shortened if it is used under an over heated or over cold circumstance.
When the battery is exhausted, a sign will appear on the screen. The battery will turn off automatically one minute later.
➢ Detach the battery after fully charged. It is suggested that do not charge the battery under playback mode.
➢ Detach the battery when it is not in use.
The battery should be stored in a dry, cool and sunless place.
Do not throw the battery into fire or heat it to avoid exploding.
Do not have the rechargeable battery exposed to moisture or fell into water.
Do not connect any metal object to the positive or negative pole of the battery.
Do not open or disassemble the battery.
Do not short the battery terminals.

Warning:

Do not touch any metal objects to the battery connectors, as it will put the battery in standby mode. To exit the standby mode, connect the player with the battery to AC power.

About the Rechargeable Battery

Attaching The Rechargeable Battery

1. Place the player on a soft and smooth surface with the bottom facing up.
2. Align the plastic tabs on the interface of the rechargeable battery with the holes on the player. Then push the battery downward until it is embedded into the battery slot at which you will hear a slight click. As shown on the below:

:

Charging The Rechargeable Battery

The battery must be attached to the player to charge it.

1. Attach the battery to the player as shown above.
2. Plug the supplied power adapter into the player's power jack marked "DC 9.5V IN" on the left panel of the player.
3. Plug the other end of the power adapter into a household AC outlet, as shown below:

You're suggested to charge the battery when the player is in standby mode.

About the Rechargeable Battery

NOTE: The rechargeable battery will discharge gradually when not used for a long period of time, and it will be exhausted within about one month

SPECIAL NOTE: If the player is not to be used for a long period of time, you'd better detach the battery from the player in order to prolong the life span of the battery. Take the following steps to detach the battery:

Detaching the battery

Slant the player with the bottom downward, push the battery lock in the direction of the arrow, then the battery will fall off automatically. As shown on the below:

NOTE: Do not touch the LCD screen when attaching or detaching the battery.

System Connection

NOTE: Before plugging the power cord into an AC outlet, make sure that all other connections have been made as described below.

Connecting to the Power Adapter

The player is supplied with an AC adapter for powering the unit and charging the battery.

1. Connect AC adapter to the left side of the player in the jack marked DC 9.5V IN, as shown on the below.
2. Plug the two-prong end of the power cord into a grounded electrical outlet.

Please keep the power adapter far away from the player when using the power adapter.

System Connection

Connecting to AV Input Device

This player supports AV output function. Using the supplied audio/video cable to connect the player to the external AV input device, such as a TV.

Plug one end into the AV Out jack on the left panel of the player

Plug the other end into the input jack of the external AV input device, such as a TV, as shown on the below figure:

System Connection

Connecting to AV Signal Source

This player supports AV input function. Using the supplied audio/video cable to connect the player to the external AV output signal source.

Plug one end into the AV In jack on the left panel of the player

Plug the other end into the output jack of the external AV signal source, such as a DVD, as shown on the below figure:

System Connection

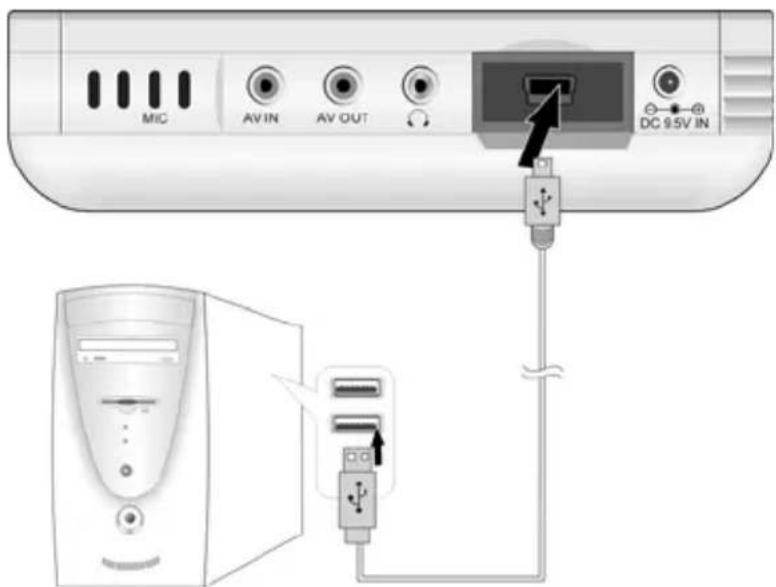

Connecting to PC (Slave-mode)

Use the supplied USB cable to connect the player to the personal computer.

Plug one end into the USB jack on the left panel of the player, and the other end into the USB jack of the computer. See the below figure.

Connecting to USB ( Master Model )

Use the supplied USB connecting cable to connect the player to the external storage device.

Plug one end into the USB jack on the left panel of the player and the other end into the storage device, such as digital camera, etc. See the below figure.

System Connection

Connecting to USB ( Master Mode II )

Use one supplied USB cable to connect the player, the other end is connected to the other USB cable, then connected to the external USB device, such as a digital camera, see the below figure:

This method is to use the supplied USB cable with one bigger USB cord and one smaller USB cord to connect the USB device that support MINI USB connecting method.

Connecting to Earphone

Turn down the volume before you connect the earphones to the earphone jack of the player.

The speakers will mute automatically when the earphone is connected.

NOTE: Excessively loud volume would damage your hearing.

System Setup

Pre-Operation

Press the POWER button for 2 seconds to turn on the power.

The main menu will be displayed on the screen.

There are seven optional items in the system root menu: Movie, Music, Photo, PVR, Voice Recording, File Manager and Settings.

In the system main setup menu, adjust the ENT button to select the desired items, then press ENT button to enter the selected items.

Settings Menu

Press MENU/STOP button to enter the system main setup menu, adjust the ENT button to select the "SETTINGS", then press the ENT button to confirm and enter the setting menu. It Includes 8 setup items: Display Setting, Audio, Slideshow, Power, Player Information, Password Setting, Reset and Format HDD.

In the Setting menu, adjust the ENT button or press the ◀ or ▶button on the panel to select items which you prefer, then press the ENT button to confirm your selection. In the setup menu, press the MENU/STOP button to return to the previous menu.

Display Setting

Adjust the ENT button or press the ◀ or ▶ button on the panel to select "Display Setting". Press the ENT button to enter the display setting menu. There are several items are included in the display setting menu: Language, Video Format, TV Aspect Ratio, Brightness, Contrast and Color. As shown in the below figure:

Adjust the ENT button to select the items which you prefer, then press the ◀ or ▶ button to select or adjust. Press the MENU/STOP button to return to the previous menu.

Language Setup

The default language of the system is English.

System Setup

Video Format Setup

Adjust the ENT button to select Video Format, then press the ◀ or ▶ button to select items: PAL and NTSC. The LCD screen will turn off automatically when the PAL is selected.

TV Aspect Ratio Setup

Adjust the ENT button to select the TV Aspect Ratio, press the ◀or▶ button to select items: 16:9 Wide, 4:3 Pan Scan or 4:3 Letter Box.

Brightness Setup

Adjust the ENT button to select the Brightness, then press the ◀ or ▶ button to adjust the brightness level.

Contrast Setup

Adjust the ENT button to select the Contrast, then press the ◀ or ▶ button to adjust the contrast level.

Color Setup

Adjust the ENT button to select the Color, then press the ◀ or ▶ button to adjust the color level.

Audio Setup

Adjust the ENT button or press the ◀ and ▶ buttons to select Audio, press the ENT button to enter the audio setup menu, including audio output and volume setup. The screen will display as below:

Adjust the ENT button to select desired setup items in the Audio Setup menu.

Press the ◀ and ▶ buttons to select and adjust. Press the MENU/STOP button to return to the previous menu.

Audio output setup

Adjust the ENT button to select Audio Output, press the ◀ and ▶ buttons to select items: Stereo ,L-Mono,R-Mono, and MixMono.

Volume Setup

Adjust the ENT button to select volume, press the ◀ and ▶ buttons to adjust volume level.

System Setup

Slideshow Setup

Adjust the ENT button or press the ◀ and ▶ buttons to select Slideshow, press the ENT button to enter slideshow setup menu, including Time Interval and Play Mode. The screen will display as below:

In the Slideshow setup menu, adjust the ENT button to select the desired item. Then press the ◀ and ▶ buttons to select under the item. Press the MENU/STOP button to return to the previous menu.

Time Interval

Adjust the ENT button to select the Time Interval, then press the ◀ and ▶ buttons to select items.

Playback Mode

Adjust the ENT button to select the Play Mode, then press the ◀ and ▶ buttons to select items, including Off, Play All-One Time, Repeat All.

Slideshow with Music

When selecting the playback mode of the Repeat All, the screen will display the slideshow with music setup item. Adjust the ENT button to choose the “Slideshow with Music”, then press the ENT button to enter MP3 music file selecting menu, then adjust the ENT button to choose the song as background music, press the ENT button to confirm the selection.

Power Setup

Adjust the ENT button or press the ◀ and ▶ buttons to select Power, then press the ENT button to enter power setup menu. There are two items: Screen Saver and Sleep Timer. The screen will display as below:

System Setup

In the power setup menu, adjust the ENT button to select the setup item, press the ◀ and ▶ buttons to select and adjust under the item. Press the MENU/STOP button to return to the previous menu.

Screen Saver Setup

Adjust the ENT button to select Screen Saver, press the ◀ and ▶ buttons to select the screen saver time or Off.

Sleep Timer Setup

Adjust the ENT button to select the sleeping clock. Press the ◀ and ▶ buttons to select the time or Off.

Player Information

Adjust the ENT button or press the ◀ and ▶ buttons to choose the Player Information, then press the ENT button to enter. The screen will display the corresponding information on the player including hard drive capacity, available hard drive space, used hard drive space and the software version. As below:

Press the MENU/STOP button to return to the previous menu.

System Setup

Password Setting

Adjust the ENT button or press the ◀ and ▶ buttons to choose Password Setting. Press the ENT button to enter Password Setting menu. The screen will display as below:

Adjust the ENT button to move the cursor up and down, press the ◀ and ▶ buttons to move the cursor left and right, then press the ENT button to confirm input. If you input mistake information, you can select the DEL and press the ENT button to delete the wrong input. After finishing input, you can select the ENTER and press ENT button to confirm input. If you select the “Click To Lock Unit After Next Reboot” column, you should input password when restart the player.

Press the MENU/STOP button to return to the previous menu.

Note: The super password is 631800.

Reset Setup

Adjust the ENT button or press the ◀ and ▶ buttons to select Reset, then press the ENT button to enter Reset setup menu. In the Reset setup menu, there are two optional items: Reset Wallpaper and Reset to Factory Setting. The screen will display as below:

In the Reset setup menu, adjust the ENT button to select the desired setup item, press the ENT button to confirm. Press the MENU/STOP button to return to the previous menu.

System Setup

Reset Wallpaper

Adjust the ENT button to select Reset Wallpaper, then press the ENT button to confirm and reset wallpaper.

Reset to Factory Setting

Adjust the ENT button to select Reset to Factory Setting, then press the ENT button to resume to the default settings.

Format HDD Setup

Adjust the ENT button or press the ◀ and ▶ buttons to select Format HDD, then press the ENT button to enter. An attention will be displayed on the screen, as below:

Press the ◀ and ▶ buttons to select Yes or No, then press the ENT button to confirm. Press the MENU/STOP button to return to the previous menu.

Note: If you select Yes, it will format the hard drive and all the data on the hard drive will be lost. Frequently copying and deleting file on the harddisk may affect the playback; format the harddisk to avoid it.

Movie Setup

Press the MENU/STOP button to enter main setup menu, adjust the ENT button to select Movie, then press the ENT button to enter the movie file selecting menu. In the movie file selecting menu, press the ◀ and ▶ buttons to go to the previous page and the next page. adjust the ENT button to select movie file, then press the ENT button to confirm and start playback. Press the MENU/STOP button to return to the previous menu

During playback, press the ◀ and ▶ buttons to select the previous and next movie file, press the ENT button to pause playback, adjust the ENT button up and down to fast forward and rewind at the speed of 2x ,4x, 8x normal speed. Press the MENU/STOP button to stop playback and return to the movie file selecting menu. Press the SETUP

button to switch the screen aspect ratio between 4:3 and 16:9. press the SETUP button and hold it for a while to enter time-selecting menu, then adjust the ENT button to select hour, minute or second, press the ◀ and ▶ buttons to set time. When finishing time setting, press the ENT button to start playback.

Notes: Some movie files may not support the fast forward/rewind and time searching functions.

System Setup

Music Setup

Press the MENU/STOP button to enter main setup menu, adjust the ENT button to select Music, Press the ENT button to enter music file selecting menu.

In the music file selecting menu, press the ◀ and ▶ buttons to go to the previous page and the next page, adjust the ENT button to select music file, then press the ENT button to confirm and start playback. Press the MENU/STOP button to return to the previous menu

During playback, press the ◀ and ▶ buttons to select the previous and next music file, press the ENT button to pause playback, adjust the ENT button up and down to fast forward and rewind, press the MENU/STOP button to stop playback and return to the music file selecting menu. Press the SETUP button to select playback mode.

Photos Setup

Press the MENU/STOP button to enter main setup menu, adjust the ENT button to select the Photos, then press the ENT button to enter photo file selecting menu.

In the photo file selecting menu, press the ◀ and ▶ buttons to go to the previous page and the next page, adjust the ENT button to select photo file, press the ENT button to confirm and start playback. Press the MENU/STOP button to return to the previous menu.

During playback, press the ◀ and ▶ buttons to rotate photo. Adjust the ENT button up and down to select previous or next photo. Press the MENU/STOP button to stop playback and return to the photos file selecting menu. Press the SETUP button to switch the screen aspect ratio between 4:3 and 16:9.

File Manager

Press the MENU/STOP button to enter main setup menu, adjust the ENT button to select the File Manager. Press the ENT button to enter folder selecting menu.

In the folder selecting menu, press the ◀ and ▶ buttons to go to the previous page and the next page, adjust the ENT button to select folder, press the ENT button to confirm and enter. Press the MENU/STOP button to return to the previous menu.

Notes: Playback operations are depended on the file type.

File Management

File Management Menu

1. In the movie or music file selecting menu, press the SETUP button on top panel to set movie or music file or select items: Play Mode, Playlist, Favorites, Copy, Delete, Rename.
2. In the file manager setup menu, press the SETUP button on the top panel to set the folder or file: New Folder, Copy, Delete or Rename.
3. In the photos file selecting menu, press the setup button to realize various photos setup: Wallpaper, Playlist, Favorites, Copy, Delete, Rename.

In file manage mode, adjust the ENT button to choose the operation mode, press the ENT button to enter menu. Press the MENU/STOP button to return to the previous menu.

New folder

In the File Manager setup menu, first press the SETUP button, then adjust the ENT button to select the New Folder and press the ENT button to confirm, the screen will display as below:

Adjust the ENT button or press ◀◀▶ to select the numbers or characters, then press the ENT button to confirm the input. If input wrong information, you can select the DEL and press the ENT button to delete the incorrect input; Select ENTER when you finish the input, then press the ENT button to confirm you input. Press the MENU/STOP button to return to the previous menu.

Play Mode

In the movie and music file selecting menu, press the SETUP button first, then adjust ENT button to select the Play Mode, press the ENT button again to enter the setup. The screen will display as below:

File Management

Press the ◀◀◀▶ buttons to select the play mode: Off, Normal, Repeat One, Repeat All, Shuffle.

Press the MENU/STOP button to return to the previous menu.

Playlist

In the movie, music or photo file selecting menu, press the SETUP button first, then adjust the ENT button to select the Playlist, and press the ENT button again to enter setup, the screen will display as below:

In the playlist, adjust the ENT button to select the file, press the ENT button to move the file. Press <<▶▶ buttons to select "Select File to Add" or "Select File to Remove". Press the MENU/STOP button to return to the previous menu.

Favorites

In the movie, music or photo file selecting menu, press the SETUP button first, then adjust the ENT button to select your favorite file. Press the ENT button again to enter setup, the screen will display as below:

File Management

In the Favorite menu, adjust the ENT button to select file, press the ENT button to remove the file. Press the ▶▶▶ buttons to select "Select File to Add" or "Select File to Remove". Press the MENU/STOP button to return to the previous menu.

Copy

In the movie, music or photo file selecting menu and file manager menu, press the SETUP button first, and then adjust the ENT button to select Copy. Press the ENT button again to enter setup. The screen will display as below:

In the file Copy menu, adjust the ENT button up and down to select the file, press the ENT button to confirm selection. Press the ◀◀▶▶ buttons to select "Select Source" or "Select Destination". Press the MENU/STOP button to return to the previous menu.

Delete

In the movie, music or photo file selecting menu and file manager menu, press the SETUP button first, then adjust the ENT button up and down to select Delete. Press ENT button to again to enter the setup. The screen will display as below:

File Management

Press◀▶buttons to select "Yes" or "No". Press ENT button to confirm the selection.

Rename

In the movie, music or photos file selecting menu and file manager menu, press the SETUP button first, then adjust the ENT button to select Rename. Press the ENT button again to enter the setup. The screen will display as below:

Adjust the ENT button or press the ◀◀▶ button to select the numbers or characters, and press ENT button to confirm your input. If input wrong information, select DEL and press the ENT button to delete the incorrect input. When finishing input, select ENTER and press the ENT button to confirm the input. Press the MENU/STOP button to return to the previous menu.

Files Download

This player is equipped with USB 2.0 OTG port, you can download program source from the computer. Please follow the below steps:

1. Turn power on; connect the player to the computer via USB cable.
2. The LCD will turn off automatically after the information about that the USB has been connected is displayed on the screen.
3. The computer explorer will display "moveable harddisk", now you can go on with file deleting, copying, cutting or pasting, and formatting the moveable harddisk as well.

NOTE: If the users' computer system is WIN-Me/WIN-XP, there is no need to install the drive. If operation system version is lower than WIN98, you should install the USB drive and restart the computer at first.

When the computer is connected, the hard drive will display normally. Users could copy file from the computer to the hard drive. In order to have these program sources be recognized correctly and rapidly, please heed following proceedings:

1. Different folder for different file types. The video file should be stored in Movie folder, photos in the Picture folder and MP3 files in the Music folder. The UPGRADE file should be copied on the harddisk directly, without compressing or copying on other folder. Or else, the system will not be upgraded normally.

2. Most of the AVI files of MPDG4 format, VOB files of MPEG2 format and most of the DAT and MPG file of MPEG1 format could be played by video file. JPG file, BMP file, GIF file can be scanned by photo file; And the WMA file, MP3 file can be played by the music file. It is suggested that the users should not download files that is not compatible with this player, for such program source would result in malfunction of the player.

3. The player can be used as moveable harddisk. All the files within the capacity of the player can be stored through the USB cable. It is suggested that files not supported by the player should be stored in other different folders.

Using USB 2.0 OTG:

1. Plug the supplied USB cable to the player, the other end into the USB device. Or connect the USB device, which support MINI USB connecting method with the player, via the supplied USB cable that is with one bigger USB port and one smaller USB port.

2. According to the indication on the screen to copy the file to the hard drive and unplug the USB cable.

3. When unplugging the USB cable, the player will restart automatically, and the files will be saved in the folder named as dsk0000, dsk0001.....

Files Download

USB OTG ( USB On The Go ) means that any two eligible OTG devices can be connected with each other without the computer. The only purpose of the USB OTG is to provide a method for connecting these two USB devices. When these two devices are connected, one can be used as the host and the other one can be used as the slave.

Using SD CARD

The player is equipped with SD card port; it can be connected to the SD card.

When the SD card is not inserted into the player, the SD card mark will be displayed on the screen.

When the SD card is inserted into the player, the word "SD CARD" will be displayed in the SD card mark. Now, the SD card sub-fold will be displayed in the file manager me can go on with copying or playback operation.

Recording Function

Audio and Video Recording Function

The Player support audio and video recording function, please take the following steps to operate:

1. According to the system connection, connect the unit with the external AV signal source.
2. Turn on the power of the unit and the extern AV signal source.
3. In the main setup menu, select PVR, an indication will appear on the LCD screen. Adjust the ENT button to select YES or NO, press the ENT button to enter previewing status, then press REC button to start recording.
4. During recording, press the ENT button to stop recording and return to previewing status. Press the ENT button again to start another file recording. Press the MENU/STOP button to exit the recording mode. The new recording file will be stored in the file named as "record". The file name will automatically be saved as record 001.avi, record 002.avi etc.

Note: Please remove the SD card before recording,

Voice Recording Function

The player support voice recording function, please take the following steps to operate: In the main menu, select Voice Record, press the ENT button to start voice recording.

A time information about voice recording will be displayed on the screen. Press the MENU/STOP button to exit the recording mode. The new recording file will be stored in the file named as “record”. The file name will automatically be saved as record 001.pcm, record 002.pcm etc.

System Upgrading

The Player supports system upgrading. Please follow the below steps to operate:

1. Use the USB cable to connect the player to computer, and then turn on the power of the player and the computer.
2. After the computer recognizes successfully, decompress the upgrading file to get ROMFS.BIN file, and then copy the file to the root directory on the player and substitute the original file that with the same name (only in the root directory)
3. Disconnect the USB cable directly after copying, the player will restart and go to the main setup menu. Adjust the ENT button to select SETTING, and press the ENT button to enter setup menu.
4. Press the SETUP button, the screen will display a selecting menu; adjust the ENT button to select "Upgrade BIOS". Press the ENT button, the screen will display an indication, select the Yes or No and press the ENT button to confirm.

It needs some time to upgrade. Please wait patiently. At the same time, the screen will appear some indication and information. During upgrading, make up power is continuously supplied to the player.

1. It will return to main setup menu automatically after upgrading.

Notes:

Use the power adapter when upgrading, make sure the power supply is continually provided.
Upgrading is a dangerous operation. Many interference factors can cause the fail upgrading and malfunction to the player. Please consult the specialist to upgrade system.
If the player cannot be restart after upgrading, please refer to the service department for help.

Troubleshooting

Symptom How To Check
The LCD screen does not display	Make sure that the power is turned on.Make sure the LCD OFF/NORMAL/LOCK switch is not switched to LCD OFF.Make sure that file format is supported player.
The LCD screen is too bright or too dark	Adjust the brightness of the image in the Display Setup menu.
The player does not work	Make sure that the playing file format is supported by this player.
There is no sound in the speakers	Check if the volume is turned down or the earphone is connected.Make sure that the apparatus is not in standby mode.Check if the compressed audio file format is MP3 or WMA
Play a section repeatedly and can not continue.	Make sure that the file was not damaged.
There is no function when pressing buttons	Make sure the LCD OFF/NORMAL/LOCK switch is not switched to LOCK.

Other possibilities:

Static or other external interference may cause the player to function abnormally. Insert a stick into the reset hole and press to reset the player so that normal operation can resume. If you are still having problems, then disconnect the power to the PMP and consult a qualified technician.

Electromagnetic interference may cause error or abnormal to the player, please reset the player or reinsert the USB cable.

Specifications

Capacity of the memory 40GB
Audio Response	20Hz ~ 20kHz ±2.5dB
Audio Signal-to- Noise ≥ 85dB
Audio Distortion + Noise	≤ -70dB (1kHz)
Channel Separation	≥ 70dB (1kHz)
Dynamic Range	≥ 80dB (1kHz)
Audio Out	Output Level: 1.5V±0.2, Load:10kΩ
Video Out	Output Level: 1VP-P±0.2, Load:75Ω Unbalanced Negative
Power AC100~240V, 50/60Hz
Dimension	198mm×121mm×32mm (L*W*D)
Weight 0.75 Kg
LCD Screen Size 7 inches

DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
