ADVANTIX 3100AF - Film camera KODAK - Free user manual and instructions

Product Type	Compact film camera
Brand	KODAK
Model	ADVANTIX 3100AF
Film Format	Advanced Photo System (APS)
Lens	KODAK EKTANAR 25 mm, f/4.6
Focus	Active automatic 2-zone with overlap at 1.5 m
Viewfinder	Real image with C, H, P format display
Flash	Built-in KODAK SENSALITE, automatic
Flash range (ISO 200)	0.8 m to 4.3 m (2.5 to 14 ft)
Film speed accepted	ISO 100, 200, 400 and 800 (DX coded)
Photo formats	Classic (C), HDTV (H), Panoramic (P)
Power supply	3 V lithium battery KODAK KCR2 (or equivalent)
Dimensions (L x H x D)	119 x 63 x 38 mm (4.7 x 2.5 x 1.5 in)
Weight	Approx. 195 g (7 oz) with battery and film
Self-timer	Yes, 10 seconds, with blinking indicator
Red-eye reduction	Yes, can be activated via mode button
Rewinding	Automatic at end of film; manual possible via dedicated button
Auto power off	After 4 minutes of inactivity
Warranty	Keep the receipt as proof of purchase date
Spare parts available	Replacement battery KODAK KCR2
Maintenance	Clean the lens with a soft cloth; avoid moisture and shocks
Safety	Keep battery away from children; do not disassemble, recharge or expose to flames
Tripod compatibility	Yes, built-in tripod socket
Battery type	Lithium 3 V, KCR2 format

Frequently Asked Questions - ADVANTIX 3100AF KODAK

How to load the film into the camera?

Slide the film compartment latch, insert the KODAK ADVANTIX cartridge completely, then close the cover. The film advances automatically and the number of exposures is displayed on the LCD panel.

What types of batteries to use?

Use a 3 V lithium battery KODAK KCR2 or equivalent. The battery symbol blinks when low; replace it immediately if it stays solid and the camera does not work.

How to change the photo format (C, H, P)?

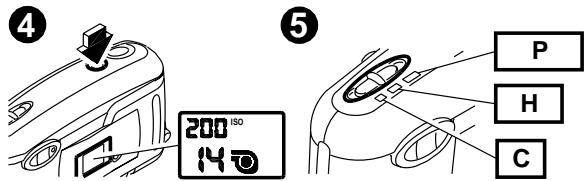

Move the photo format selector (4) to the desired position: C (classic), H (HDTV) or P (panoramic). The selected format applies to the current view.

How to use the self-timer?

Press the mode button repeatedly until the self-timer symbol appears on the LCD screen. Then press the shutter: the indicator blinks for 10 seconds before the shot.

What to do if the flash does not fire?

Check that the flash is not in 'Flash off' mode (corresponding symbol on the LCD). If the charging indicator blinks, wait for it to stop. Also make sure the battery is sufficiently charged.

How to reduce red-eye in photos?

Activate the Red-eye reduction function by pressing the mode button until you see the corresponding symbol on the LCD. Place subjects facing a light source and avoid reflective surfaces.

What does it mean if all indicators blink on the LCD?

This indicates a mechanical problem. Try pressing the shutter, turning the camera off and on, or replacing the battery. If the problem persists, contact customer service.

How to manually rewind the film before the end?

Press the rewind button (16) to automatically rewind the film. Once rewound, you cannot reuse that cartridge in the camera.

What is the minimum distance for a sharp photo?

Stand at least 0.8 m (2.5 ft) from your subject. For portraits of one person, hold the camera vertically and stay about 1.5 m away.

How to clean the camera?

Use a soft, dry cloth to clean the lens and the body. Avoid any contact with water or chemicals. Store the camera in a dry, dust-free place.

USER MANUAL ADVANTIX 3100AF KODAK

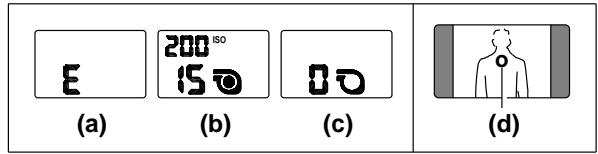

A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

Unexposed

Partially

Exposed

Fully

Exposed

Processed Negatives

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following:

Reorient or relocate the receiving antenna.
Increase the separation between the camera and the receiver.
— Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Look for this logo to be certain the film you buy is made for this camera.

Certified

ADVANCED

Photofinishing

Service

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

EASTMAN KODAK COMPANY

Rochester, NY 14650

Pt. No. 916 3494

24

1-97

Printed in U.S.A.
